Product Overview

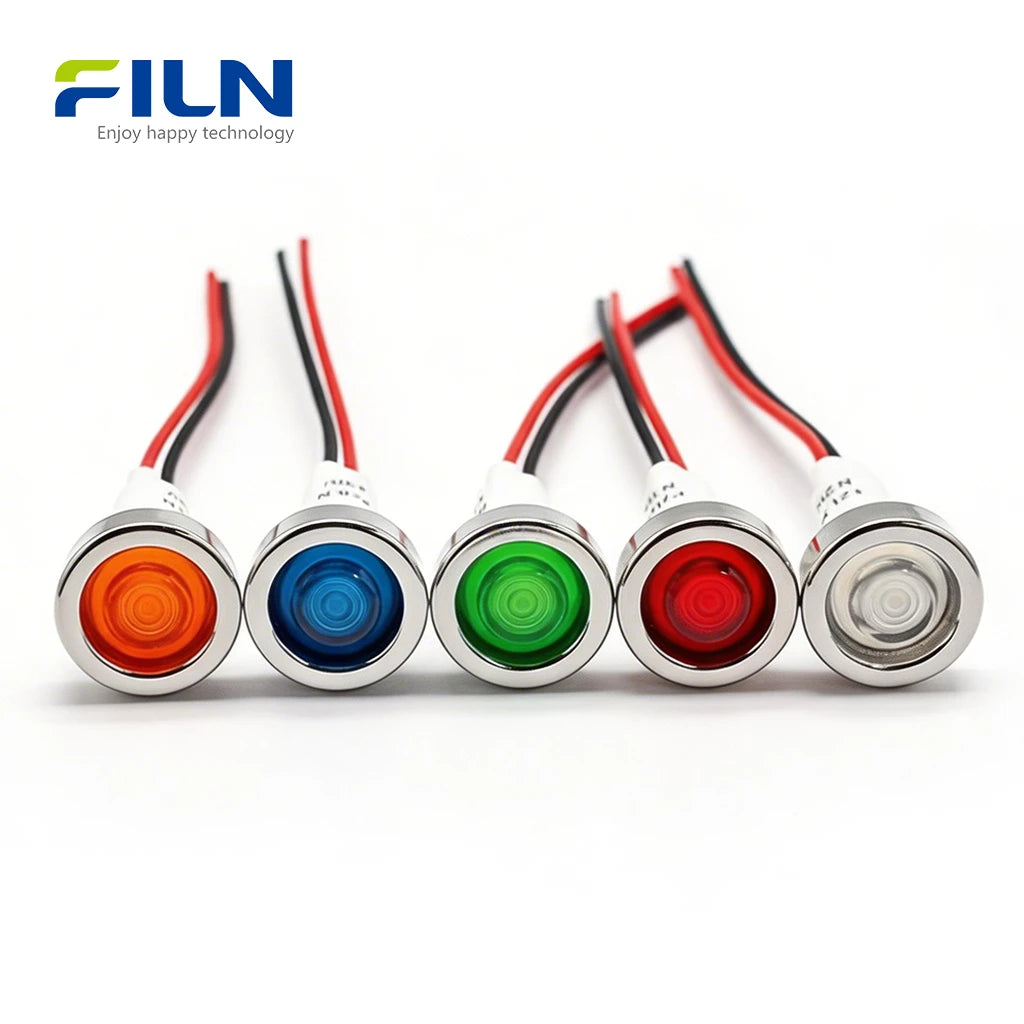

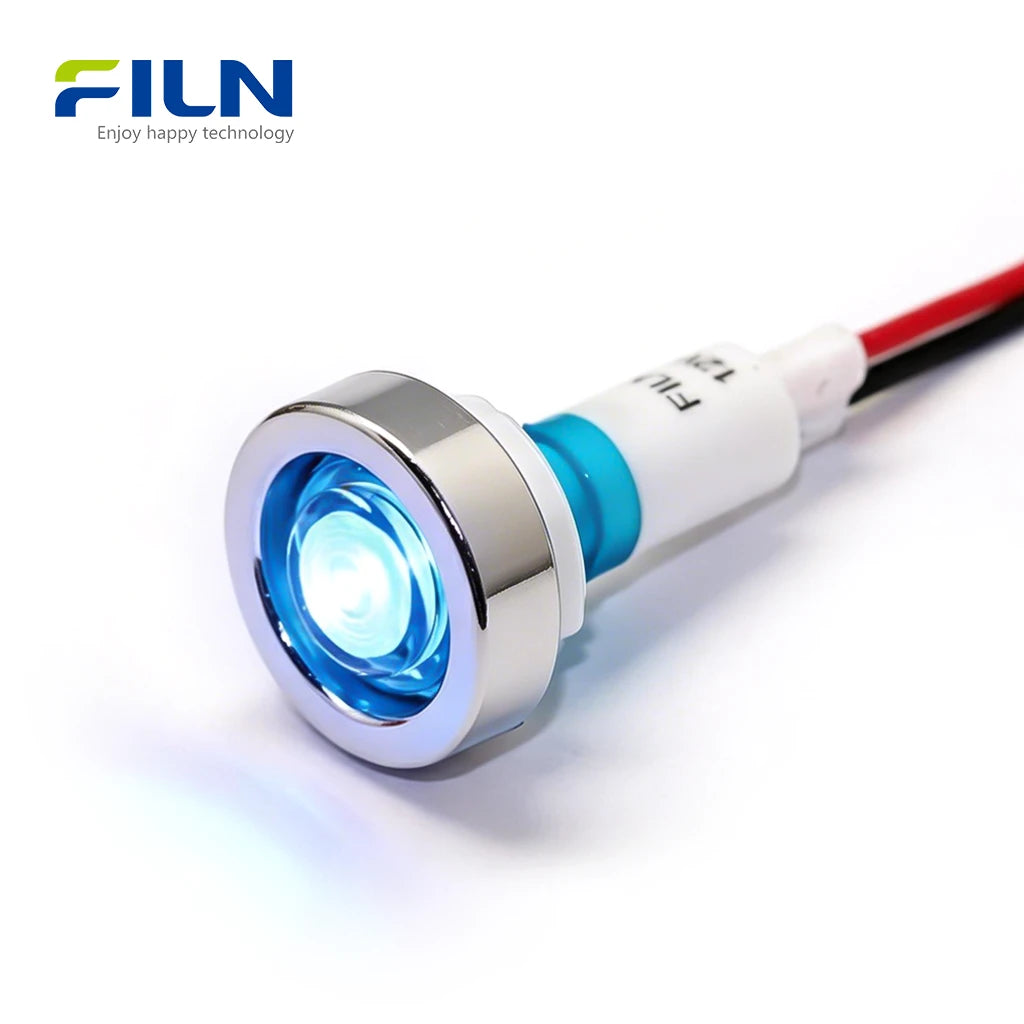

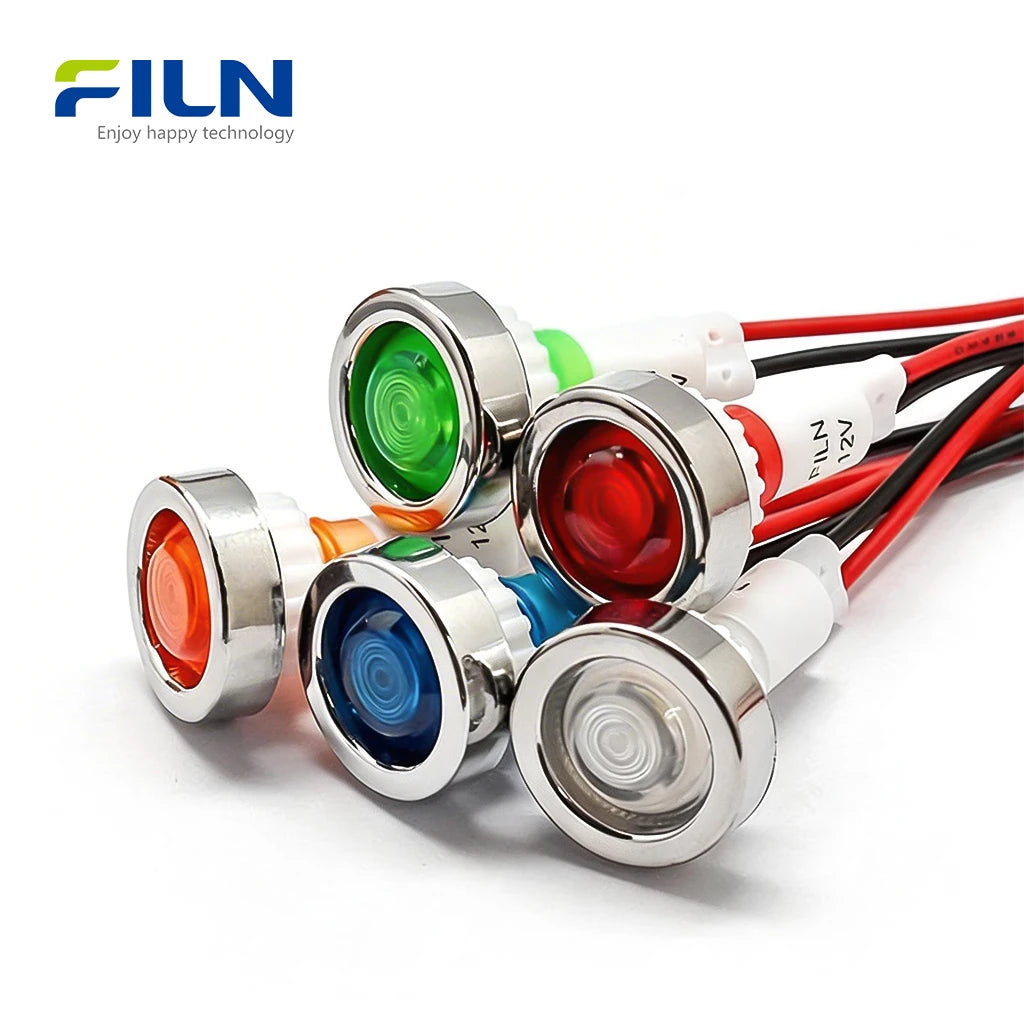

The 10mm plastic pilot light (Model: FL1P-10NW-1) is a premium industrial LED indicator light 12v designed for high visibility and long-term reliability. This 10mm plastic pilot light for sale features an elegant electroplated ring on the head, providing a sleek, modern aesthetic ideal for kitchen equipment signal light 10mm applications and commercial appliances. Manufactured by FILN, a leading factory with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, this high-brightness LED pilot light ensures superior performance in demanding environments. Whether you need a threaded mount plastic indicator lamp for heavy machinery or automation panels, our products are available for direct online purchase with global shipping.
Quick Specifications
| Mounting Hole | 10mm / 0.39 inch |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Head only for threaded type) |
| Operating Temp | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Wiring Type | Wire Lead (15cm) or 2.8mm Pin Terminal |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL, IP65 |
Component Materials & Parameters
| Component Name | Material |
|---|---|
| Shell / Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | High-transparency PC |
| Luminescent Source | Energy-efficient LED |
| Resistance | Carbon film resistance |
| 2.8mm Terminal | H59 Copper (Brass) |
| Wire Specification | PVC Lead Wire (15cm standard) |
General Technical Characteristics
| Rated Power | 0.2W | Insulation Resistance | 1800V/5s |
| Relative Humidity | ≤85% at +40℃ | Air Pressure | 86~106Kpa |
Reliability & Performance
| Test Item | Condition | Requirement |
|---|---|---|
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Continuous Life | 30mA @ 1000h | >50,000 Hours |
| Temperature Cycle | -40℃ to 85℃ (5 Cycles) | Stable Performance |
Key Features & Industrial Applications

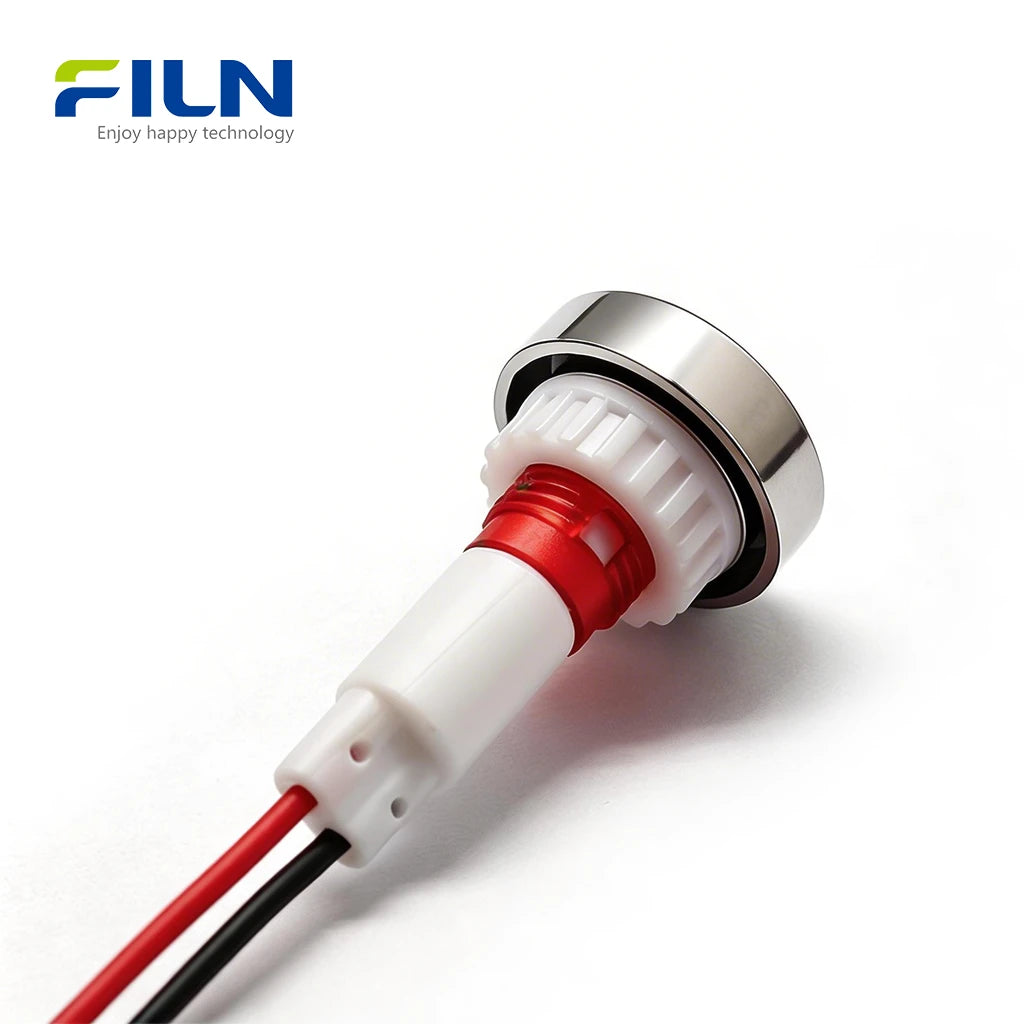

- LED High Brightness: Equipped with a high-brightness LED pilot light for clear signaling.
- Sleek Design: Features an electroplated ring and a round high-head profile for a premium look.
- Waterproof IP65: The waterproof IP65 plastic pilot lamp head is protected against moisture and dust.
- Durable PA66: Superior heat resistance compared to standard plastics.
- Easy Installation: Secured with a plastic nut, ideal for quick assembly lines.
Common Applications: Industrial control panels, CNC machines, kitchen equipment signal light 10mm, automation equipment, and electrical cabinets.

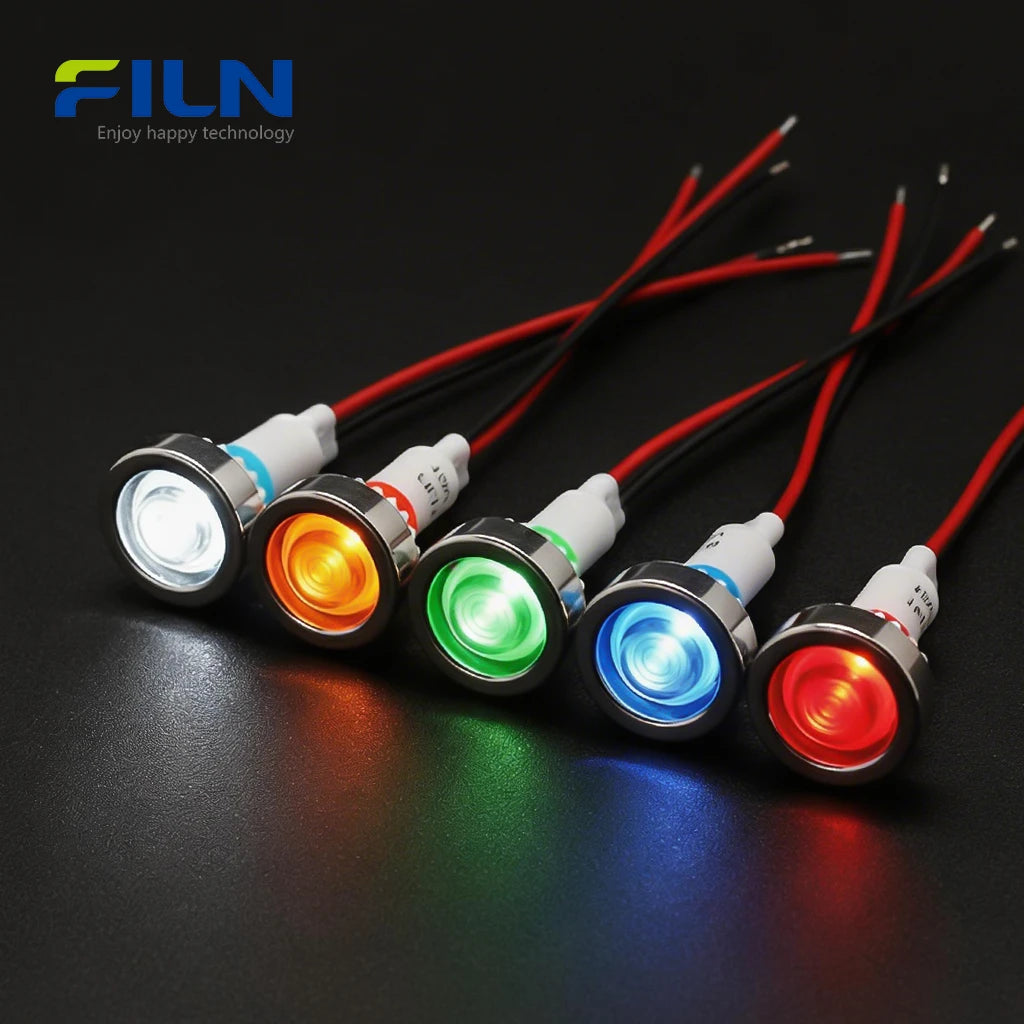

Installation Guide (Threaded Mounting)
- Drill a 10mm (0.39") hole in your target panel.
- Insert the threaded mount plastic indicator lamp from the front/top side of the panel.
- Slide the plastic nut from the back of the panel onto the threaded body.
- Tighten the nut securely to fix the indicator in place.
- Connect the 15cm wire leads or 2.8mm terminal plastic pilot light pins to your power source.

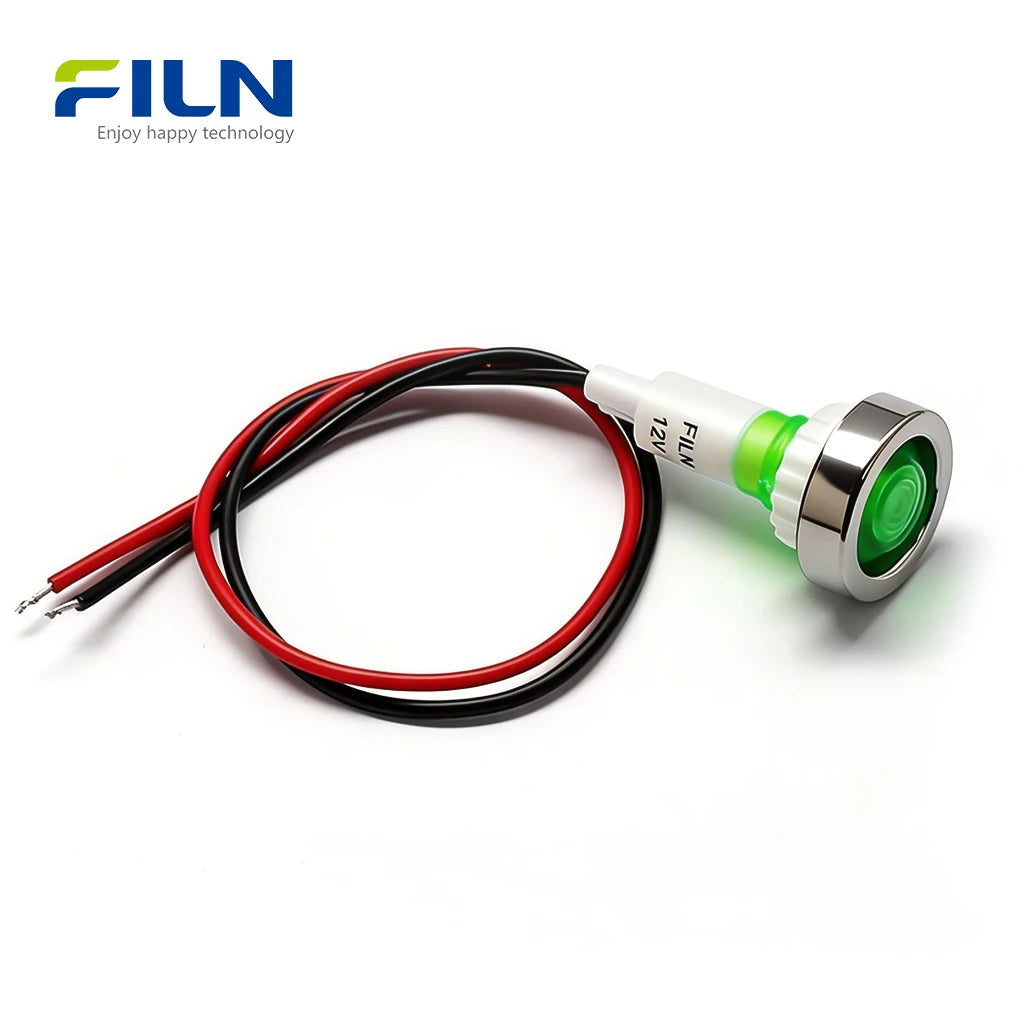

What Is a 10mm Plastic Pilot Light?

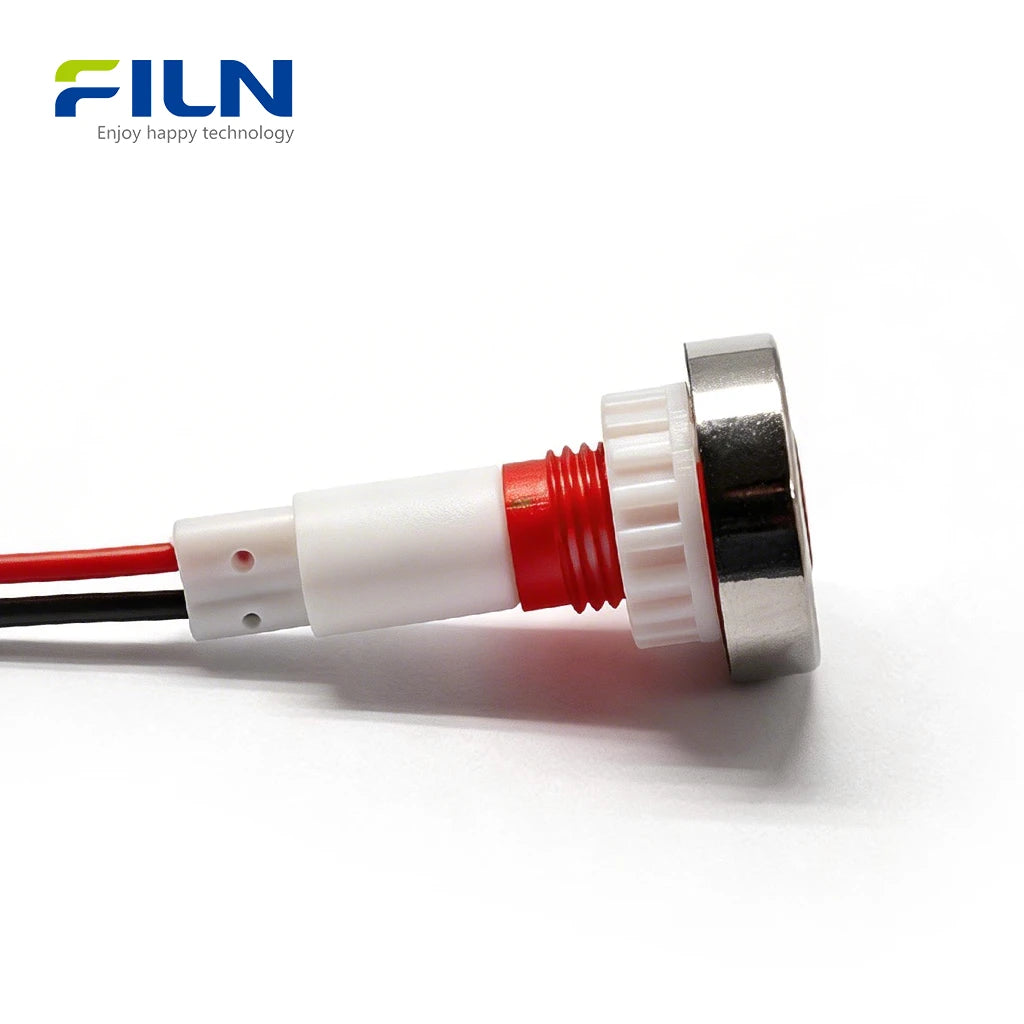

A 10mm plastic pilot light is a critical signaling component used to monitor the operational status of machinery. In the plastic vs metal indicator light debate, plastic models offer excellent insulation, corrosion resistance, and cost-effectiveness, making them the preferred choice for commercial food equipment and household appliances.
LED Light Color Meanings:
• Red: Danger or Emergency (Stop).
• Green: Normal Operation or Safety (Go).
• Yellow: Warning or Abnormality (Caution).
• Blue: Specific Action Required (Mandatory).
• White: Power On or Neutral Status.
FILN Factory Direct Supply
As a specialized filn factory custom indicator light provider, we offer bespoke solutions for B2B clients:
- ✅ Voltage Customization: 3V to 380V available.
- ✅ Wire Customization: Adjustable lengths and connector types.
- ✅ Fast Global Shipping: Efficient logistics for international orders.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 10mm plastic pilot light for sale online?
Yes, FILN offers direct online purchasing for standard and custom indicator lights.
2. What is the difference between wire lead and pin terminal types?
Wire leads (15cm) allow for direct soldering or splicing, while 2.8mm terminal plastic pilot light pins are designed for quick-connect female terminals.
3. Are these lights suitable for high-temperature kitchen equipment?
Yes, the PA66 nylon housing and PC lens are heat-resistant up to 80℃, perfect for kitchen equipment signal light 10mm needs.
4. Do you support custom wire lengths?
As a filn factory custom indicator light specialist, we can customize wire length from 5cm to 5 meters.
5. Is the plastic material durable enough for industrial use?
Our industrial-grade PA66 is highly impact-resistant. While metal is tougher, plastic offers better electrical insulation.
6. What voltages are available?
We stock 12V, 24V, 110V, and 220V, but we can customize any voltage between 3V and 380V.
7. Is the pilot light waterproof?
The head is rated waterproof IP65 plastic pilot lamp, making it splash-proof for front-panel use.
8. What certifications does FILN hold?
We are fully certified with UL, CE, RoHS, VDE, and ISO9001.
9. How long is the lifespan of the LED?
Our high-brightness LED pilot light is rated for over 60,000 hours of continuous use.
10. How do I install the threaded version?
Simply drill a 10mm hole, insert the light, and tighten the plastic nut from behind.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
