Product Overview

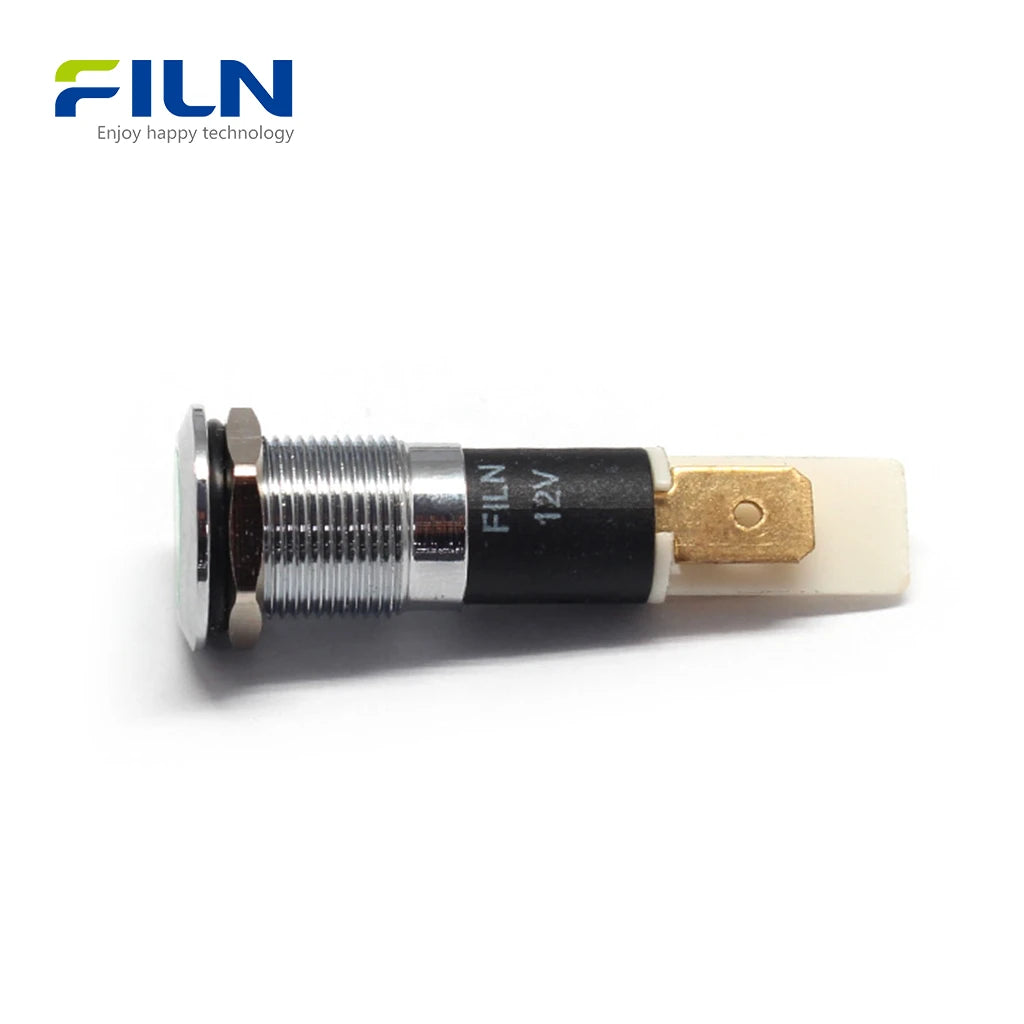

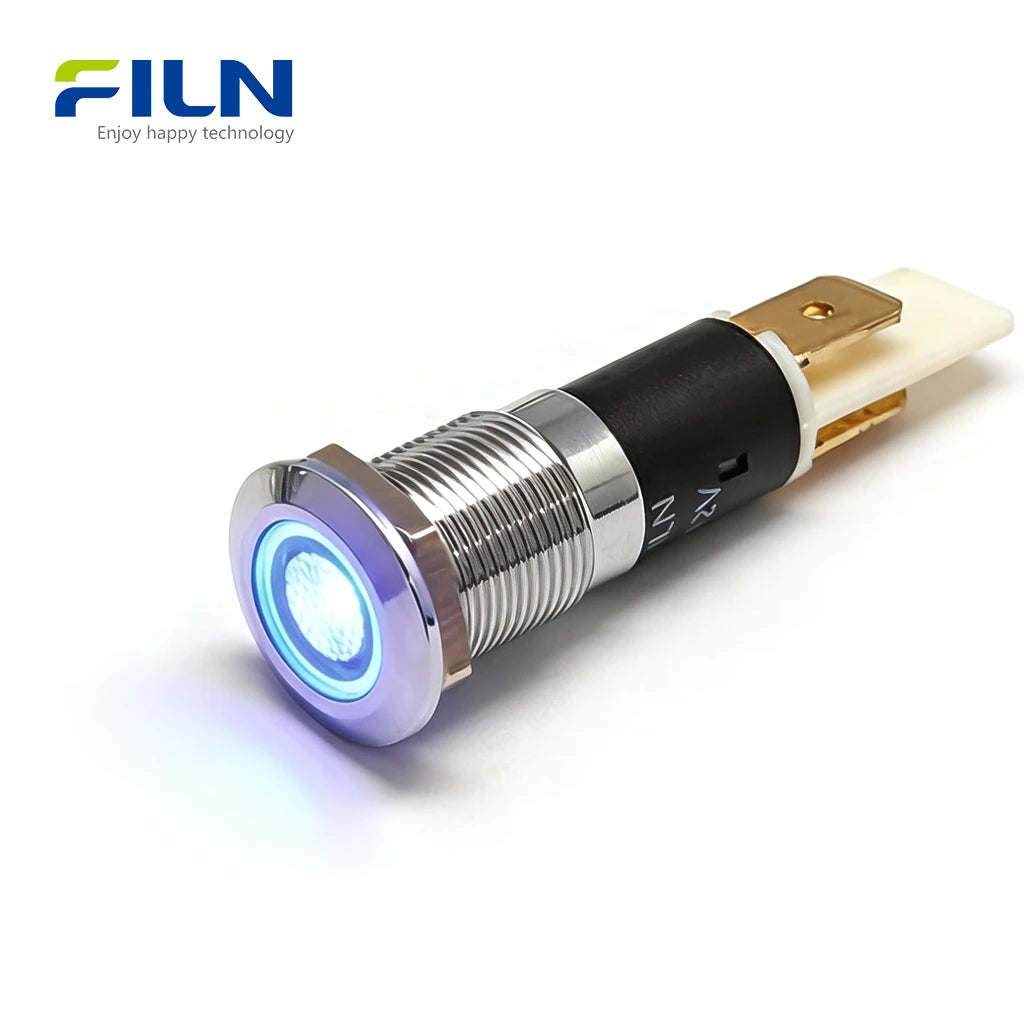

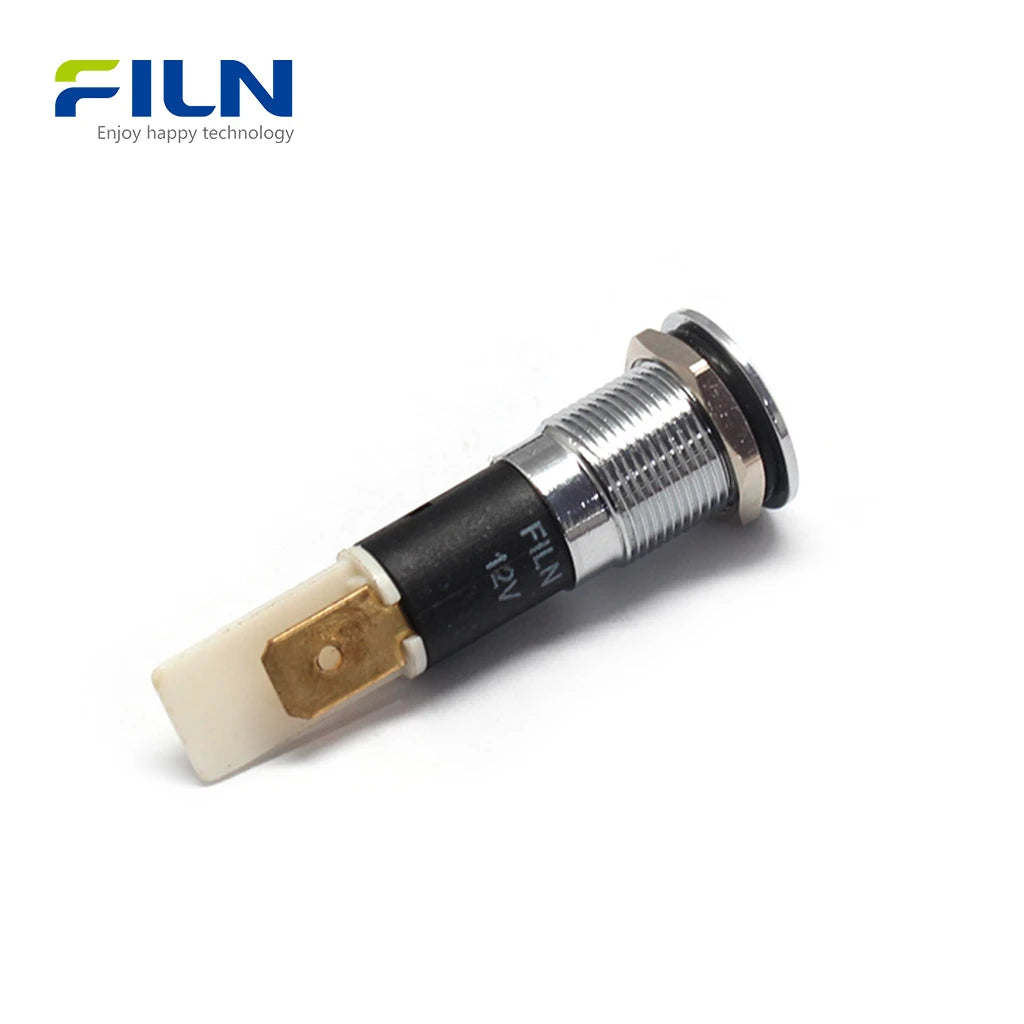

The 120V LED panel indicator lights (Model: FL1M-12FJ-1) are professional-grade signaling solutions designed for durability and clarity. These 12mm metal pilot lamps feature a robust flat-head design and 2-pin terminals for secure electrical connectivity. Engineered for global industrial standards, FILN indicator lights carry ISO9001, CE, VDE, RoHS, SGS, UL, and IP67 certifications[cite: 2]. They are primarily used in CNC machinery, industrial control panels, medical devices, and marine systems. The core advantage lies in the high-brightness LED chip and the corrosion-resistant metal housing (available in silver or black), ensuring reliable performance in harsh environments with an IP67 waterproof rating.
Quick Specifications
| Mounting Hole | 12mm (approx. 0.47 inches) |
| Voltage | 12V-24V / 110V-220V (120V Standard) |

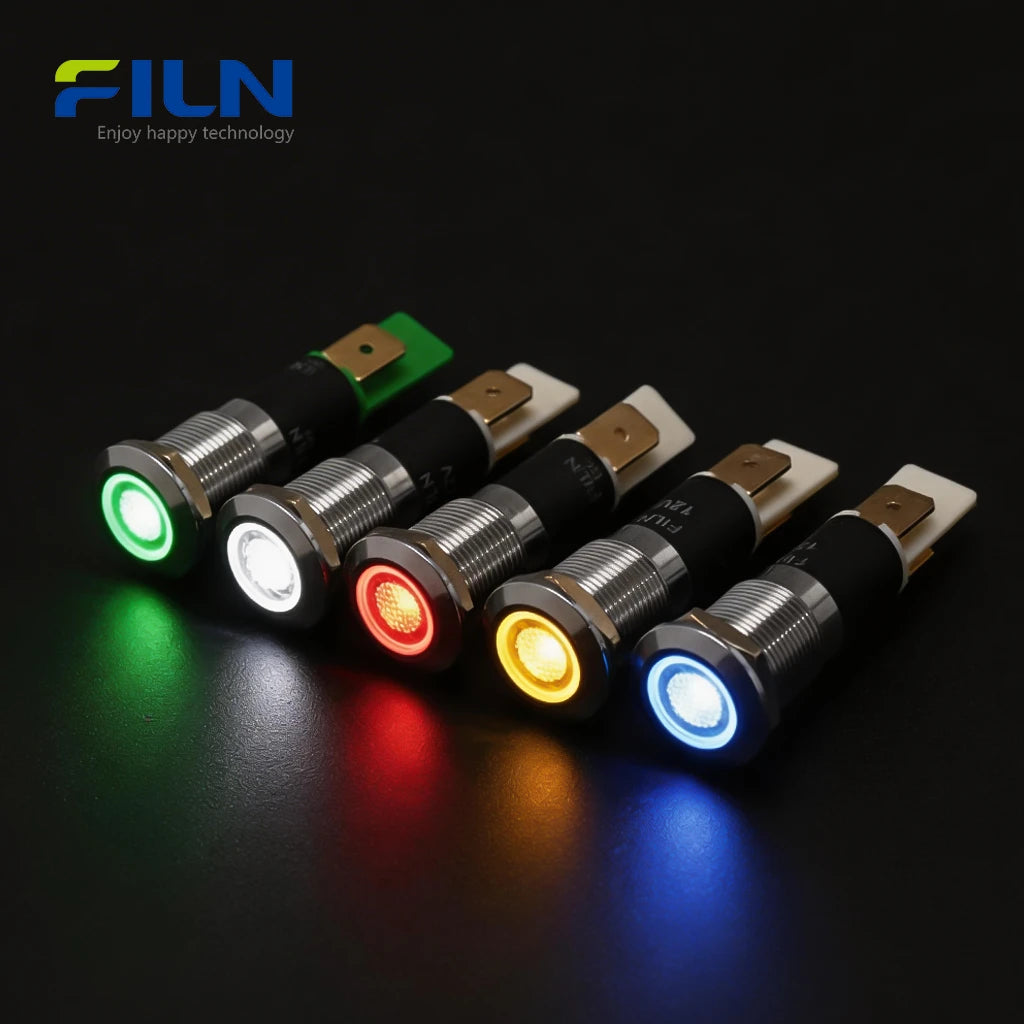

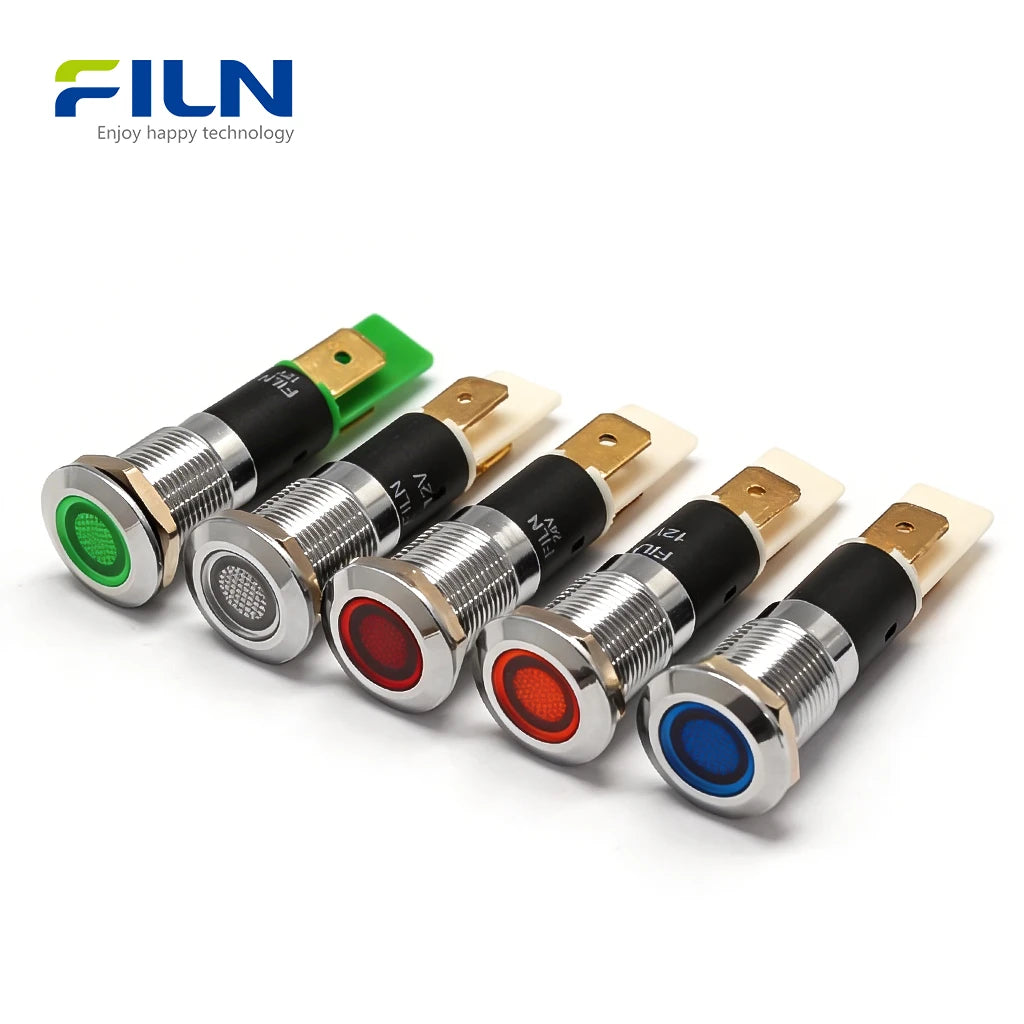

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | 2-Pin Plug-in Type (Fast Connection) |
Rated Working Parameters
| Rated Voltage | Customized (12V/24V/110V/120V/220V) |
| Frequency (AC) | 50Hz ～ 60Hz |
| Rated Current | ≤ 20mA |
Component Materials

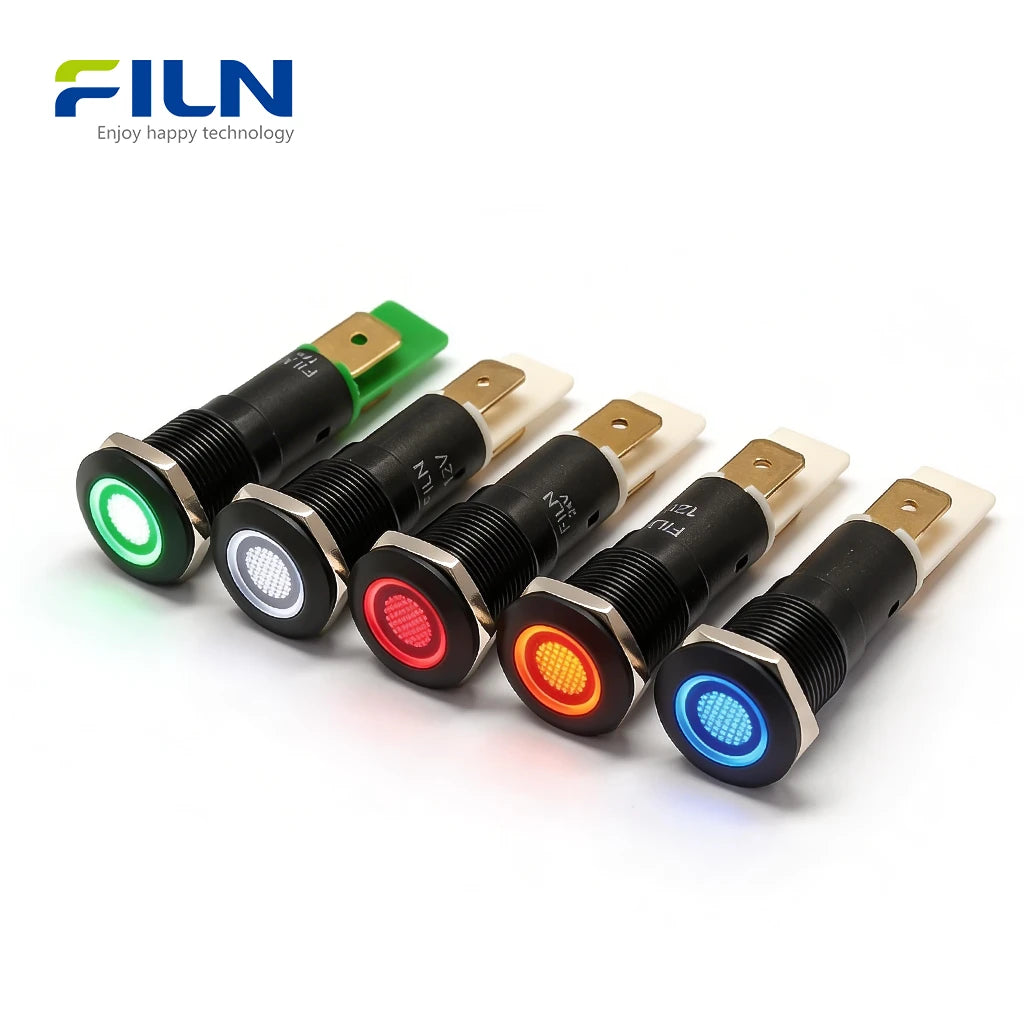

| Housing | Nickel-plated Brass / Stainless Steel (Silver or Black) |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone (O-Ring included) |
| Terminal | 2-Pin Solder/Plug Lug |
General Characteristics
| Operating Temp | -40℃ ～ 80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temp | 5 ~ 35℃ |
| Air Pressure | 86 ~ 106Kpa |
Electric Property
| Insulation Resistance | |
| Test Condition | DC500V for 1 minute |
| Requirement | ≥100MΩ |
| Dielectric Strength | |
| Test Condition | 1500VAC / 5mA / 60s |
| Requirement | No breakdown or flashover |
Key Features
- LED High Brightness: Ensures clear visibility even in well-lit factory environments.
- Long Lifespan: Rated for 50,000 hours of continuous operation.
- IP67 Waterproof: Full protection against dust and temporary immersion in water.
- Easy Installation: Features a 12mm thread with a smooth nut for rapid mounting.
- Industrial Grade Reliability: Metal housing provides impact resistance and electrical safety.
Applications
- Industrial control panels
- CNC machines & Lathes
- Automation equipment
- Testing & Measurement tools
- Marine & Yacht dashboards
- New energy charging piles
- Medical diagnostics gear
- Electrical cabinets
Installation Guide
- Prepare a mounting hole on your panel with a diameter of 12mm.
- Insert the indicator light from the front/top of the panel.
- Ensure the O-ring waterproof washer is positioned between the light head and the panel.
- From the back of the panel, slide the M12 metal nut onto the threads.
- Tighten the nut to secure the unit firmly against the panel.
- Connect the power source to the 2-pin terminals.
What Is a 120V LED Panel Indicator Light?
A 120V LED panel indicator light is a critical visual signaling component used in electrical systems to communicate the status of a machine or circuit. Unlike traditional incandescent bulbs, these LED versions are energy-efficient and highly resistant to vibration. The flat-head design is particularly advantageous in industrial settings as it offers a sleek profile that is less likely to be accidentally struck or damaged. Furthermore, the pin-type terminal design allows for quick soldering or plug-in connections, which is often preferred over wire-lead types in high-density control panels where space-saving and clean cable management are priorities.
Factory Direct Supply & Customization
FILN is a premier manufacturer specializing in signal indicator lights. We offer:
- Factory Direct Pricing: No middleman costs.
- Voltage Customization: Available from 3V to 380V[cite: 4].
- Connector & Wire Customization: Custom harness and terminal types available.
- Fast Global Shipping: Reliable logistics for international B2B orders.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are these 120V LED indicator lights suitable for outdoor use?
A: Yes, with an IP67 rating, they are fully waterproof and dustproof.
Q2: Can I get a black housing instead of silver?
A: Yes, we offer both silver nickel-plated brass and black anodized finishes.
Q3: What is the benefit of a flat-head design?
A: It provides a low profile, making the panel easier to clean and preventing snagging.
Q4: Do these require a resistor for 120V AC?
A: No, the resistor is built-in for the specified voltage.
Q5: What is the difference between pin terminals and wire leads?
A: Pin terminals are better for PCB or quick-connect plugs, while wire leads offer more flexibility in routing.
Q6: Are these compatible with 110V systems?
A: Yes, our 110V-220V wide-voltage range covers 120V standard applications.
Q7: Can I use these on a yacht?
A: Absolutely, the IP67 rating and corrosion-resistant metal make them ideal for marine environments.
Q8: What certifications do FILN lights have?
A: We hold UL, CE, RoHS, VDE, and ISO9001 certifications[cite: 2].

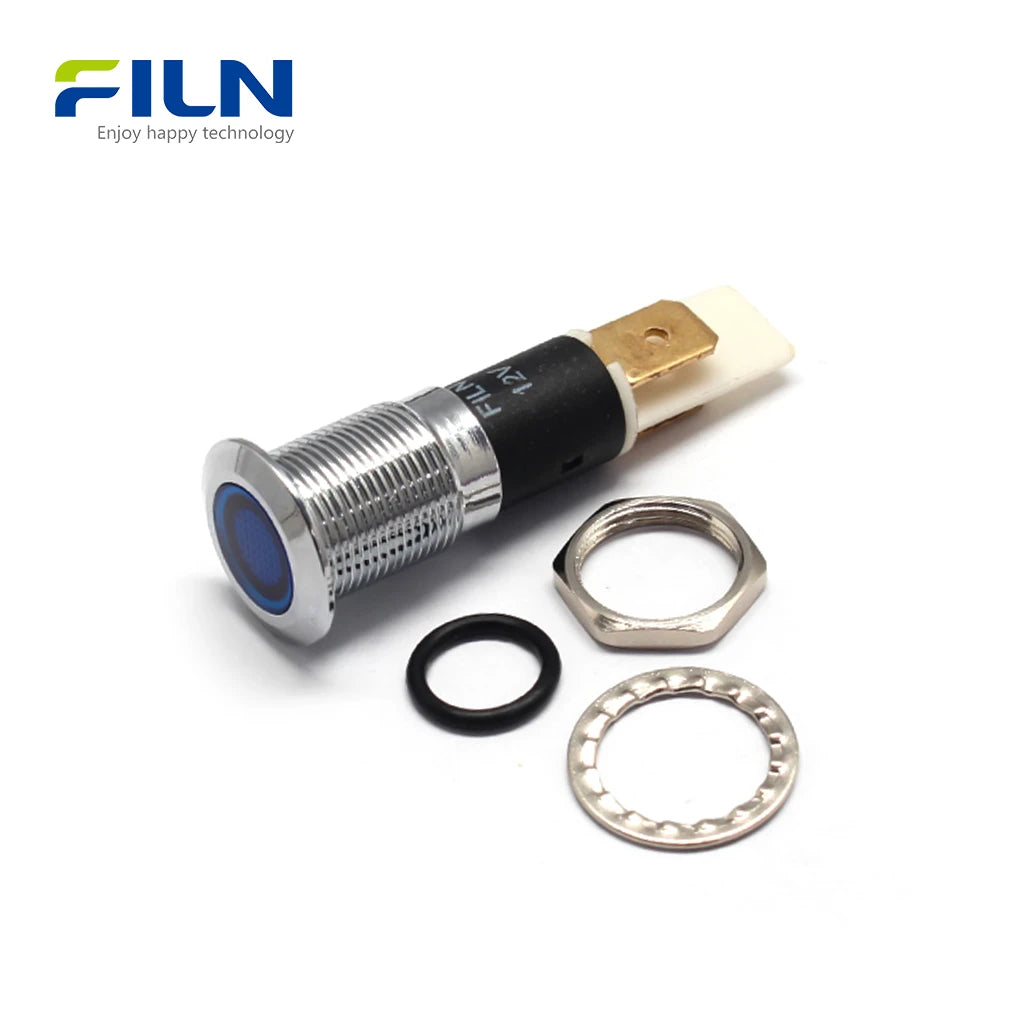

Q9: Is the mounting hardware included?
A: Yes, each light comes with a silicone O-ring and a metal M12 nut.
Q10: Do you support custom wire lengths?
A: Yes, we are a factory and can customize wire length and connectors upon request[cite: 4].
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
