Product Overview

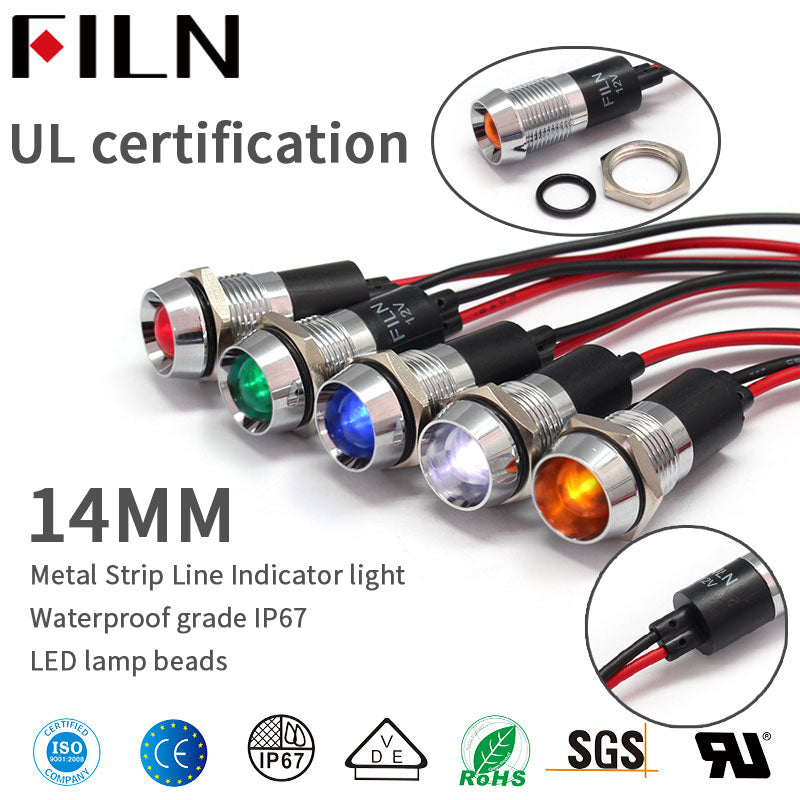

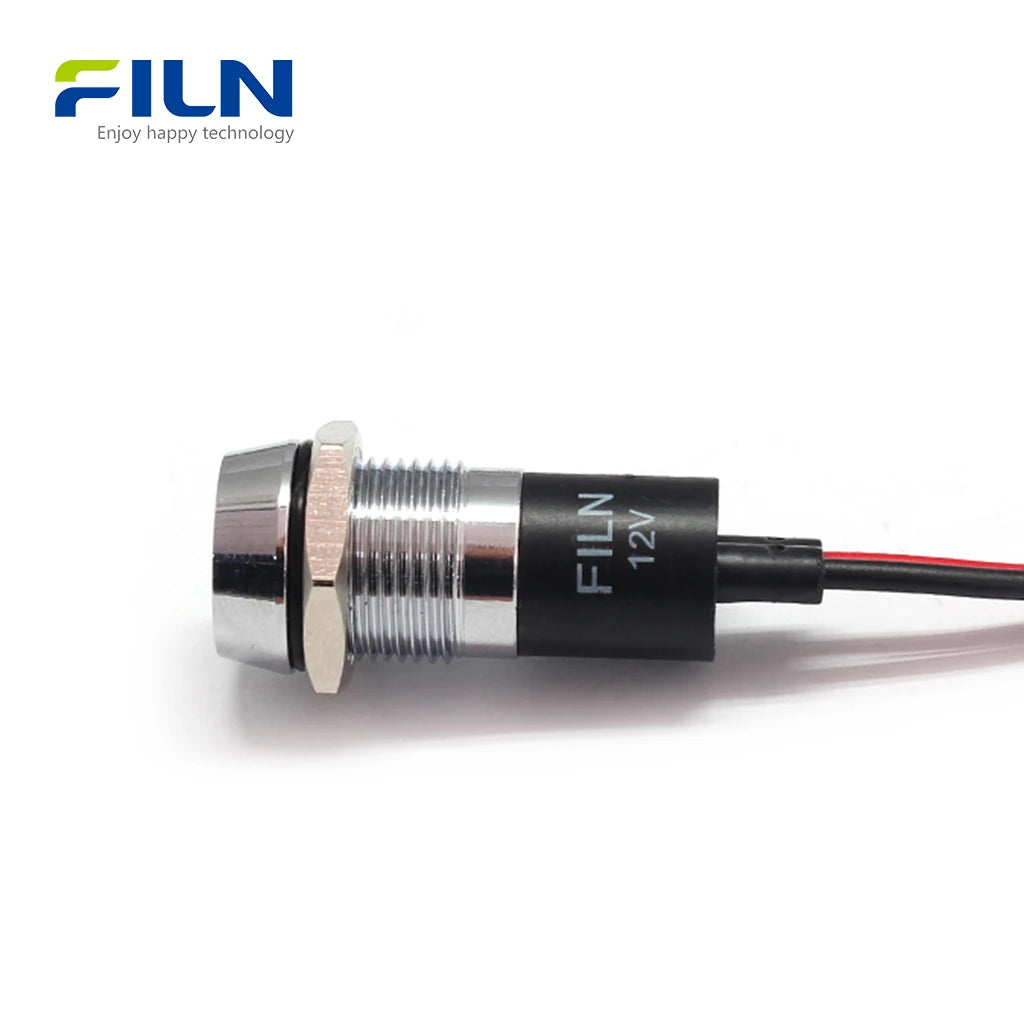

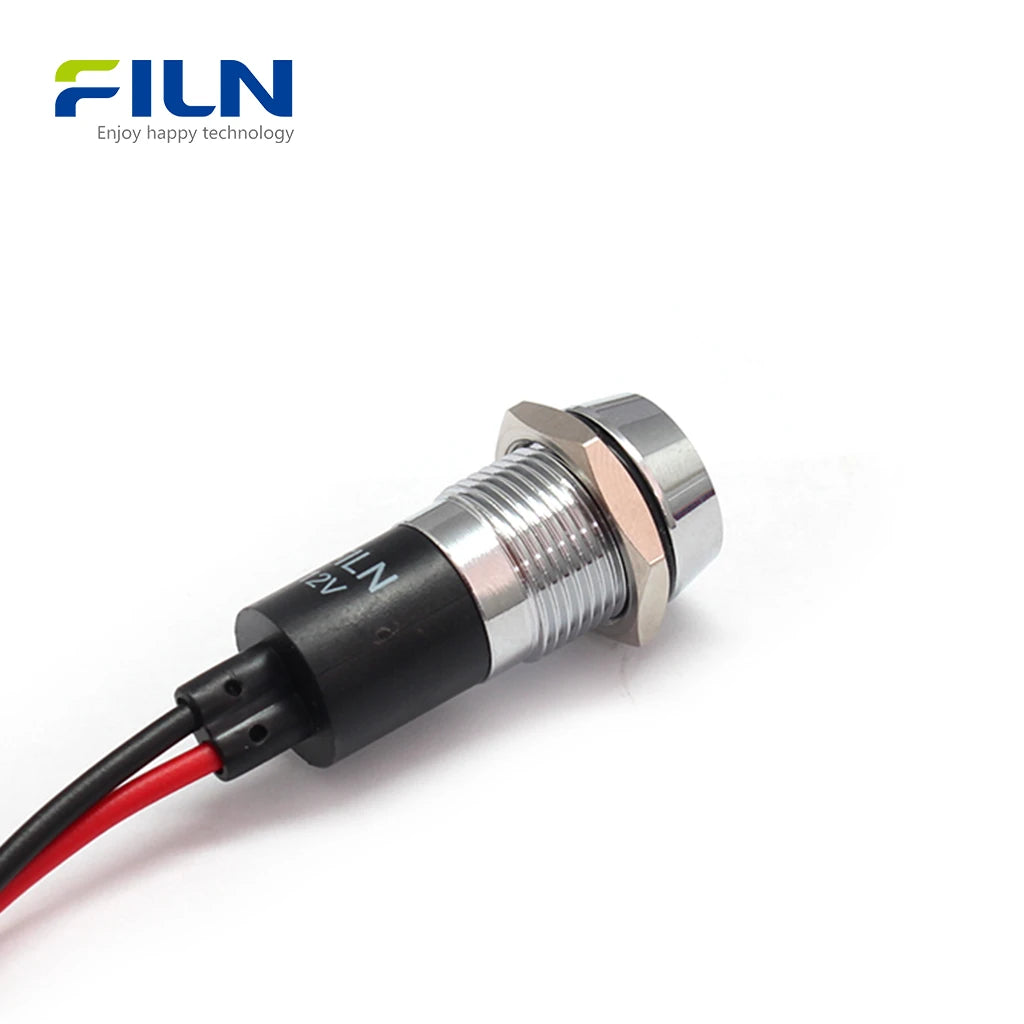

The FILN FL1M-14CW-1 is a professional 14mm indicator light red designed for high-performance signaling. This metal concave head indicator features pre-installed 15cm wire leads for convenient installation in diverse environments. Certified by ISO9001, CE, VDE, RoHS, SGS, and UL, it meets the highest international safety standards. Its IP65/IP67 waterproof rating ensures reliability in industrial control panels, medical devices, yachts, and new energy systems. Compared to the FL1M-14CJ-1 pin type, this wire lead version offers greater wiring flexibility. The concave head design enhances lens protection while the long lifespan LED ensures maintenance-free operation for up to 50,000 hours.
Quick Specifications
| Mounting Hole | 14mm / 0.55" |
|---|---|
| Voltage | 12-24V / 110-220V (Support Custom) |

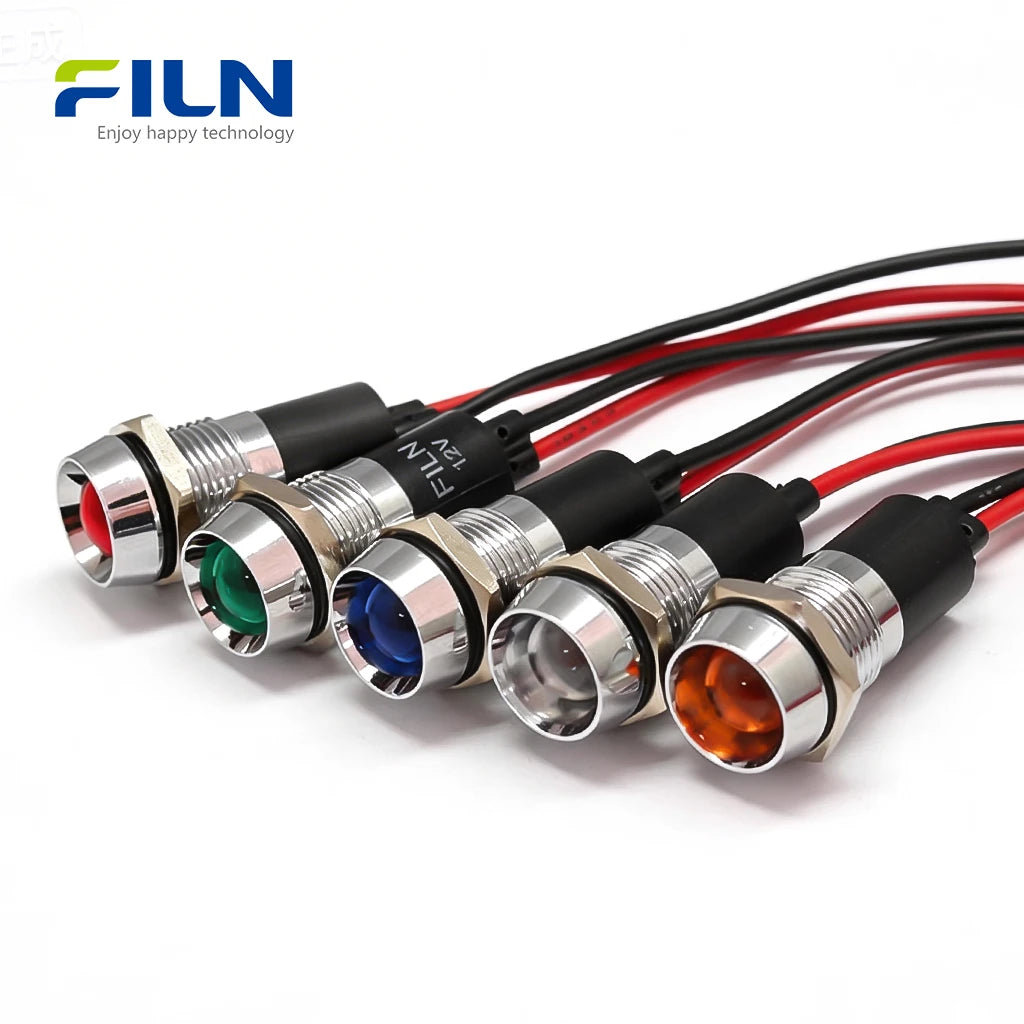

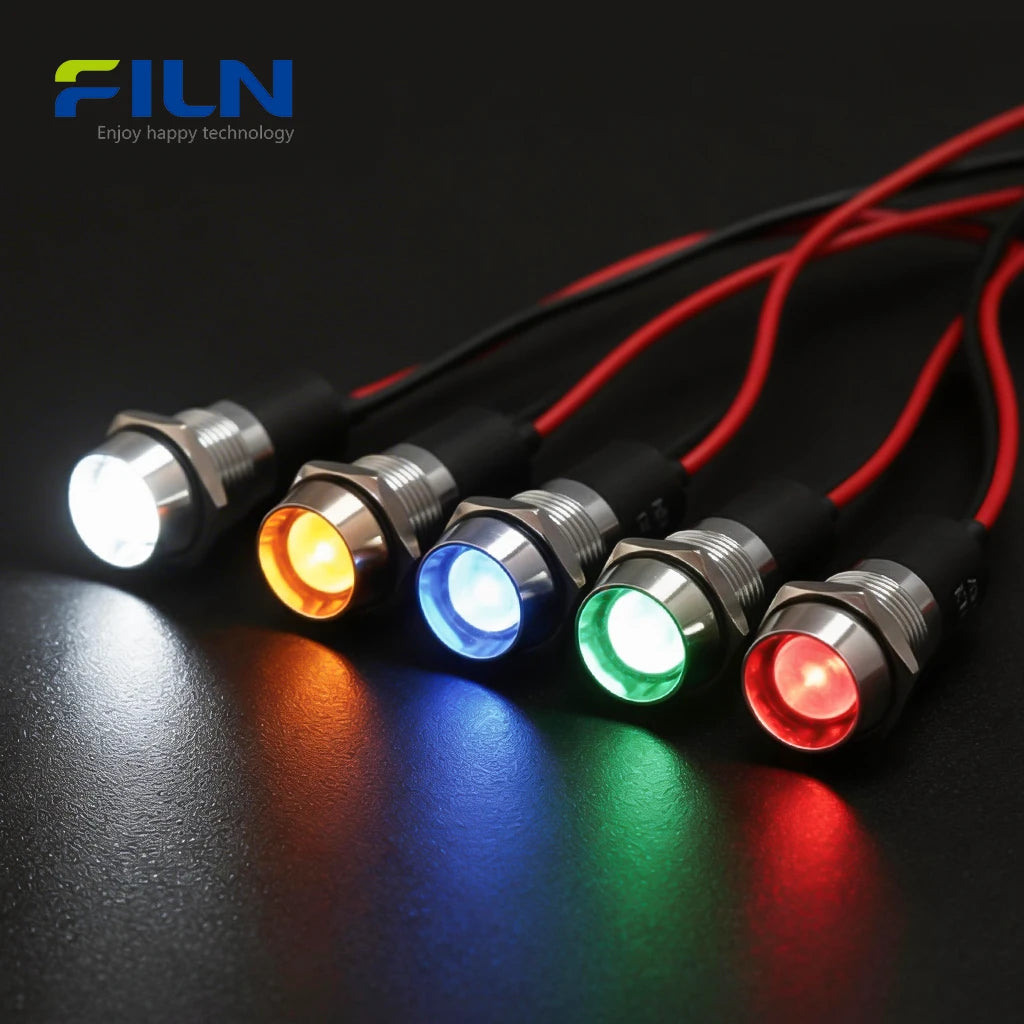

| LED Color | Red (Green, Yellow, Blue, White available) |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead (15cm Length) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Chrome Plated Brass or Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silica Gel |
| Wire Material | UL Certified Copper Wire |
General Characteristics
| Part Name | FL1M-14CW-1 |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
|---|---|---|
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Working Life | 30mA 1000h | 50,000 hours |
|---|
Resistant Performance
| High Temperature | 80℃ 96h |
|---|---|
| Low Temperature | -40℃ 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features
- LED high brightness: Clear red signaling even in high-ambient light areas.
- Long lifespan: Reliable operation up to 50,000 hours.
- IP67 waterproof: Includes 14mm O-ring for extreme moisture protection.
- Easy installation: Smooth M14 threads and pre-wired for convenience.

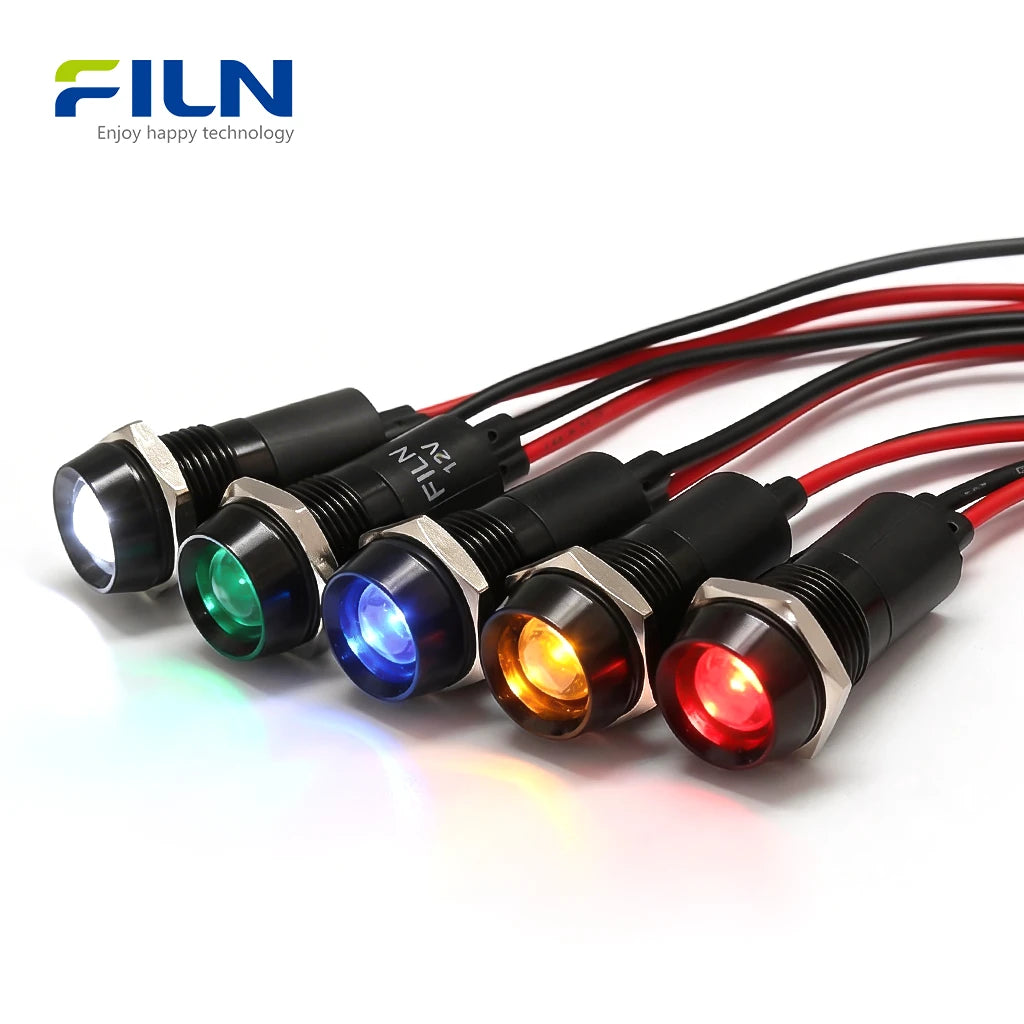

- Industrial grade reliability: High-quality metal housing in Silver or Black.
Applications
- Industrial Panels: CNC machines and automation cabinets.
- Medical Equipment: Patient monitoring and laboratory testing devices.
- Marine Systems: Yacht dashboards and ship control systems.
- New Energy: EV charging stations and solar power inverters.
- Transportation: Status indicators for trucks and specialty vehicles.
Installation Guide
- Drill a 14mm hole in your control panel.
- Insert the 14mm O-ring onto the indicator base.
- Pass the indicator light through the hole from the front side.
- Thread the M14 nut from the back and tighten securely.
- Connect the 15cm wire leads to your 12-24V or 110-220V circuit.

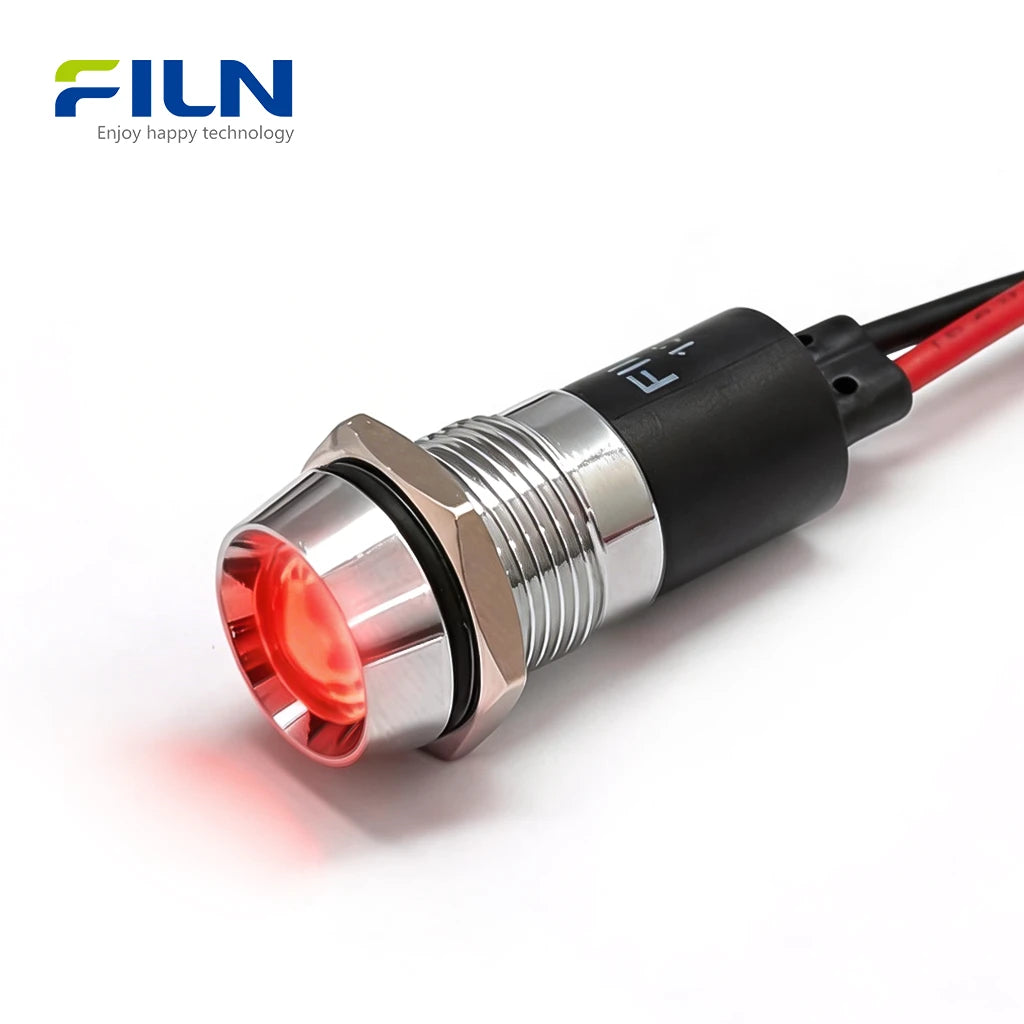

What Is an Indicator Light Red?
An indicator light red is a specialized visual signal used to convey status, warnings, or operational states in machinery. In industrial and medical settings, the red color often signals "Critical Stop," "Power On," or "Fault." The 14mm size provides a balance between high visibility and compact footprint. The concave head design is a significant advantage as it protects the LED from external damage and reduces glare. Unlike the pin-terminal FL1M-14CJ-1, the wire-lead FL1M-14CW-1 model simplifies installation in deep cabinets where manual soldering is difficult, ensuring a robust and vibration-resistant connection.
Factory Direct Supply
- Factory Direct: Lowest price guaranteed for bulk orders.
- Full Customization: Custom voltage, wire length, and connector types available. [cite: 4]
- Fast Global Shipping: Reliable logistics for international B2B clients.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Visible FAQ
1. What are the advantages of a concave head? It protects the lens from physical impact and accidental touches.
2. Difference between wire lead and pin type? Wire lead (14CW-1) has 15cm wires for flexible installation; pin type (14CJ-1) is for quick plug-in/PCB.
3. Can I use this on a yacht? Yes, the IP67 waterproof rating makes it perfect for marine environments.
4. Supported voltages? 12-24V, 110-220V, and other custom voltages are supported.
5. What materials is it made of? Metal housing in silver (chrome brass) or black (anodized aluminum).
6. Is it suitable for medical devices? Yes, it meets the high reliability and certification standards for medical labs.
7. How long are the wires? 15cm is standard, but we can customize the length.

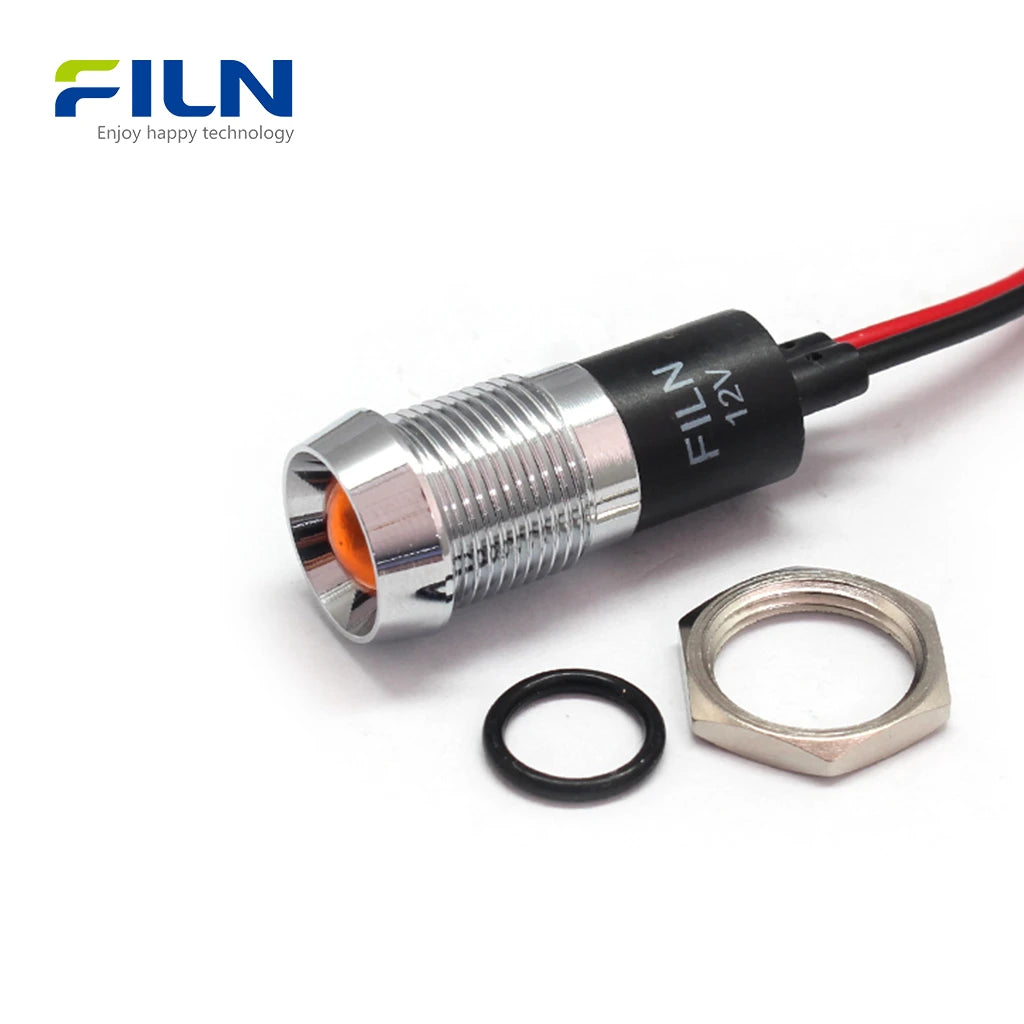

8. Does it include the nut? Yes, a matching M14 nut and waterproof O-ring are included.
9. Are other colors available? Yes: Red, Green, Yellow, Blue, and White.
10. Is the threading smooth? Yes, we use precision M14 threads for easy installation.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
