Product Overview

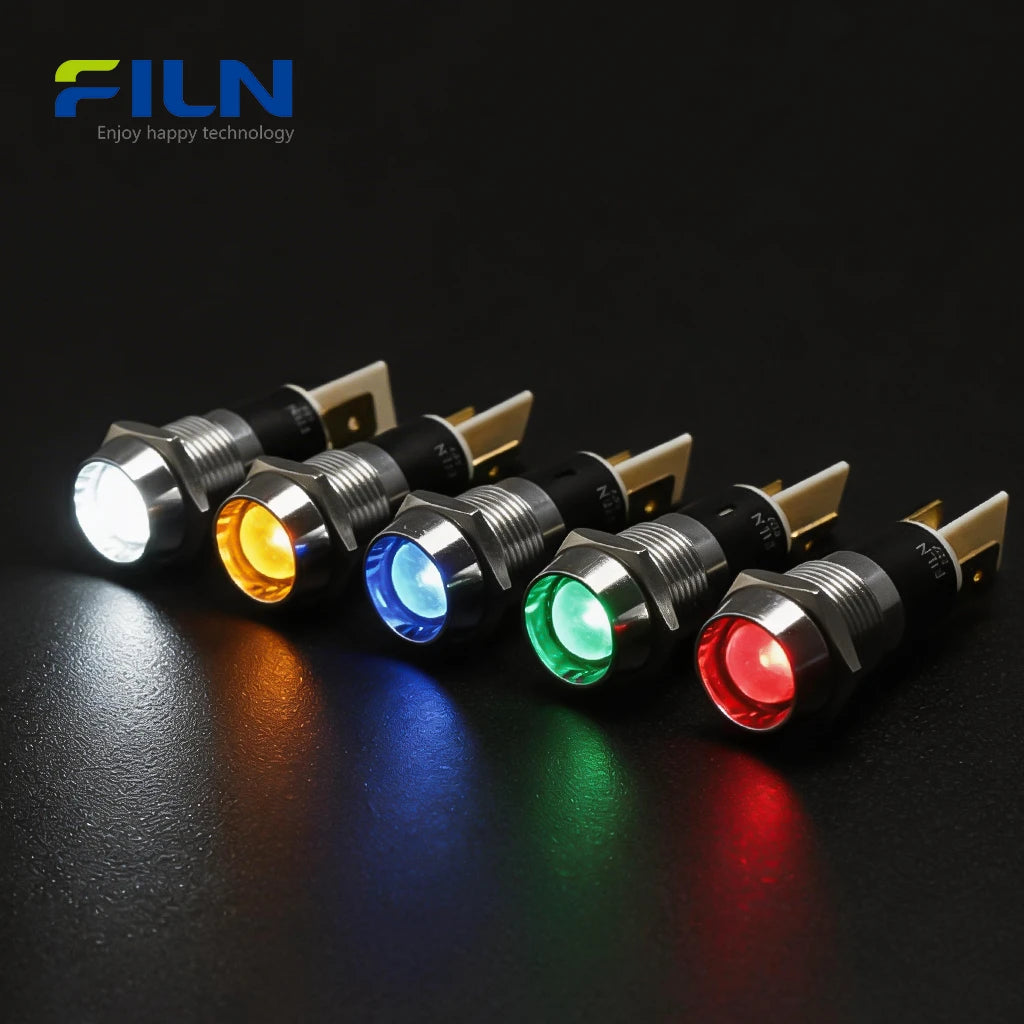

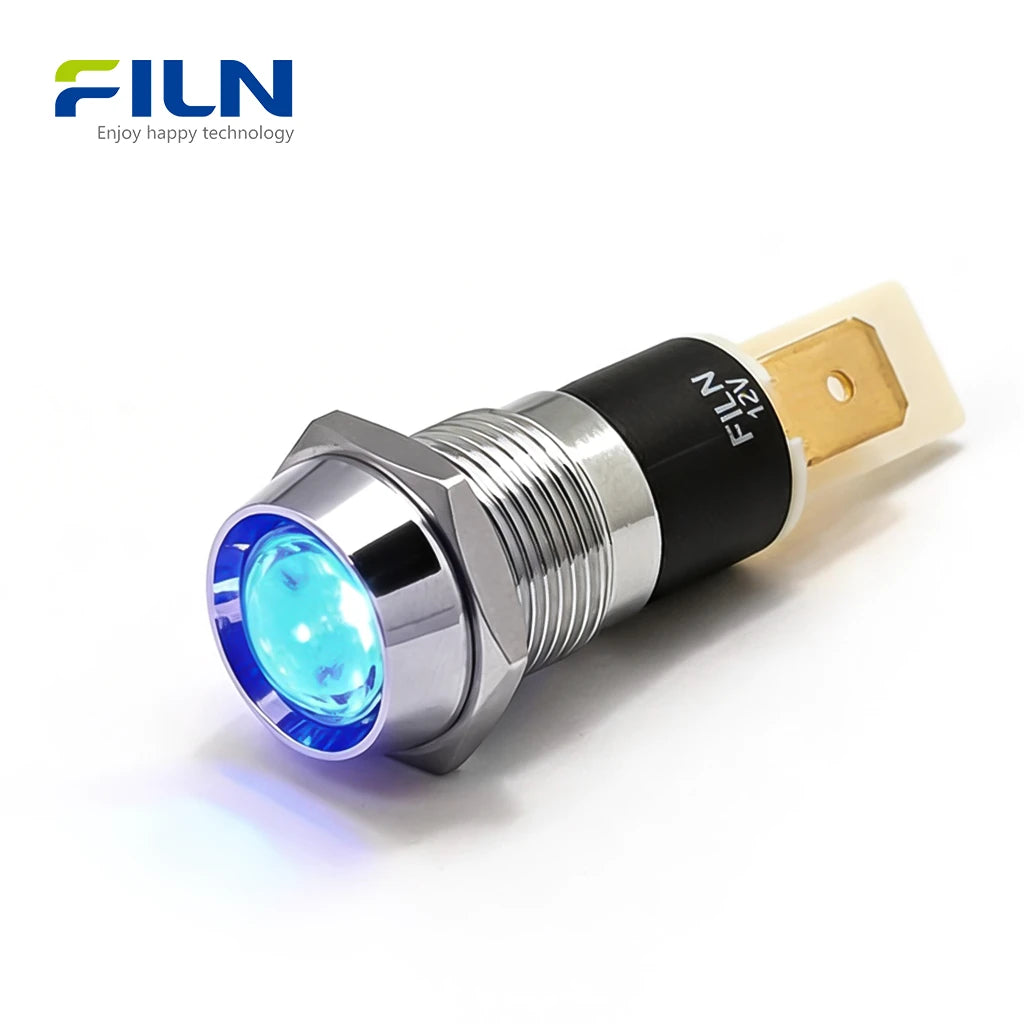

The FILN FL1M-14CJ-1 is a premium 14mm LED indication light engineered for high-performance signal signaling. This metal concave head indicator features a robust 2-pin terminal design, offering superior durability compared to standard plastic alternatives. Certified by ISO9001, CE, VDE, RoHS, SGS, and UL, it ensures compliance for global markets. With an IP65/IP67 waterproof rating, it is widely utilized in industrial control panels, medical diagnostic equipment, CNC machinery, and marine systems. The concave head design provides recessed protection for the LED, enhancing longevity and preventing accidental damage in harsh environments. Available in multiple voltages (12V-220V) and colors (Red, Green, Blue, Yellow, White), it is the ultimate choice for reliable status monitoring.
Quick Specifications
| Mounting Hole | 14mm / 0.55 inch |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red / Green / Yellow / Blue / White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 2-Pin Type (Plug-in) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized (3V - 380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Chrome or Black Anodized Aluminum |
|---|---|
| Lens | High-impact Polycarbonate (PC) |
| Seal Ring | Silica Gel (O-ring) |
| Terminal | Copper Alloy with Silver Plating |
General Characteristics
| Operating Temperature | -40℃～+80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability & Resistance
| Type | Condition | Performance |
|---|---|---|
| Working Life | 30mA / 1000h | 50,000 Hours |
| Temperature Cycle | -40℃ → 25℃ → 85℃ | 5 Rounds OK |
| Moisture Res. | 40℃ 90-95%RH 96h | Stable Signal |
Key Product Features
- LED High Brightness: Utilizes premium LED chips for clear visibility even in bright environments.

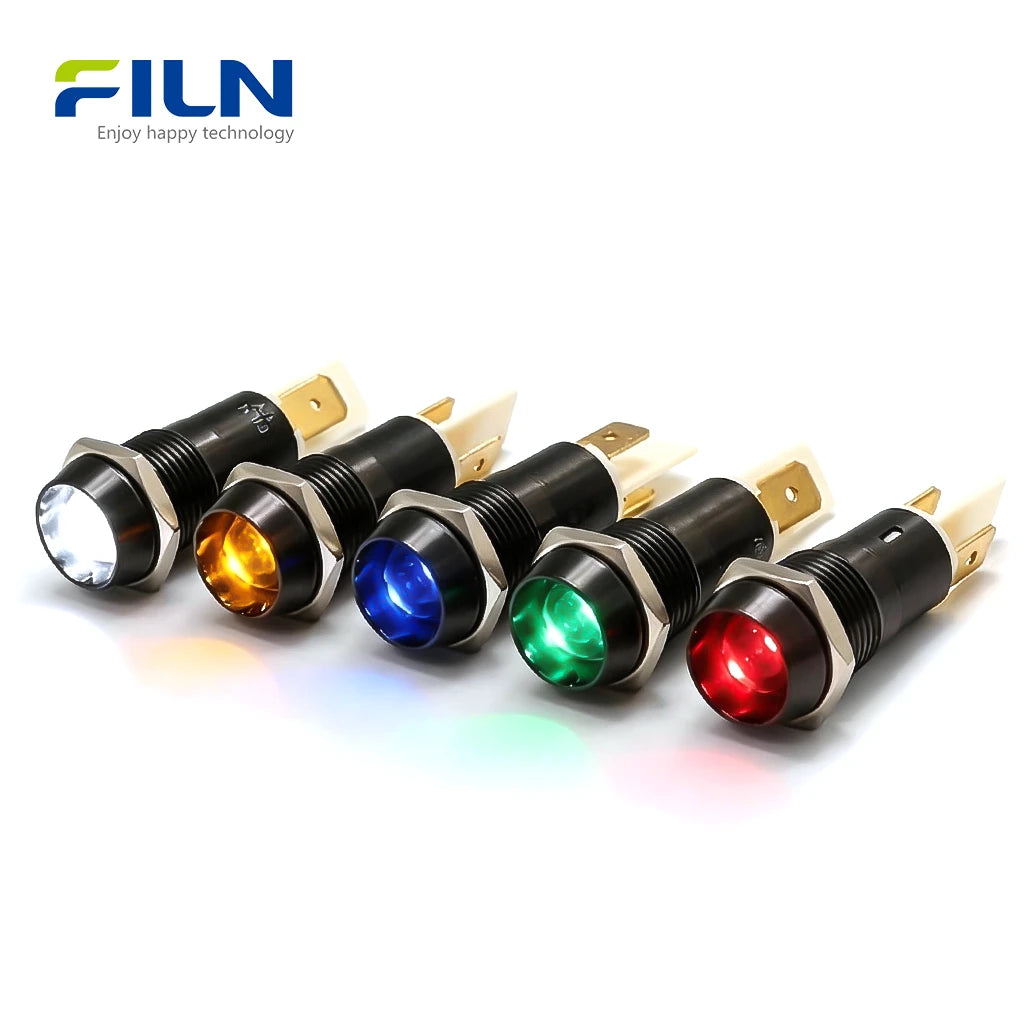

- Concave Head Design: Protects the light source and provides a modern, low-profile aesthetic.
- IP67 Waterproof: Full protection against dust and water immersion, ideal for marine and outdoor use.

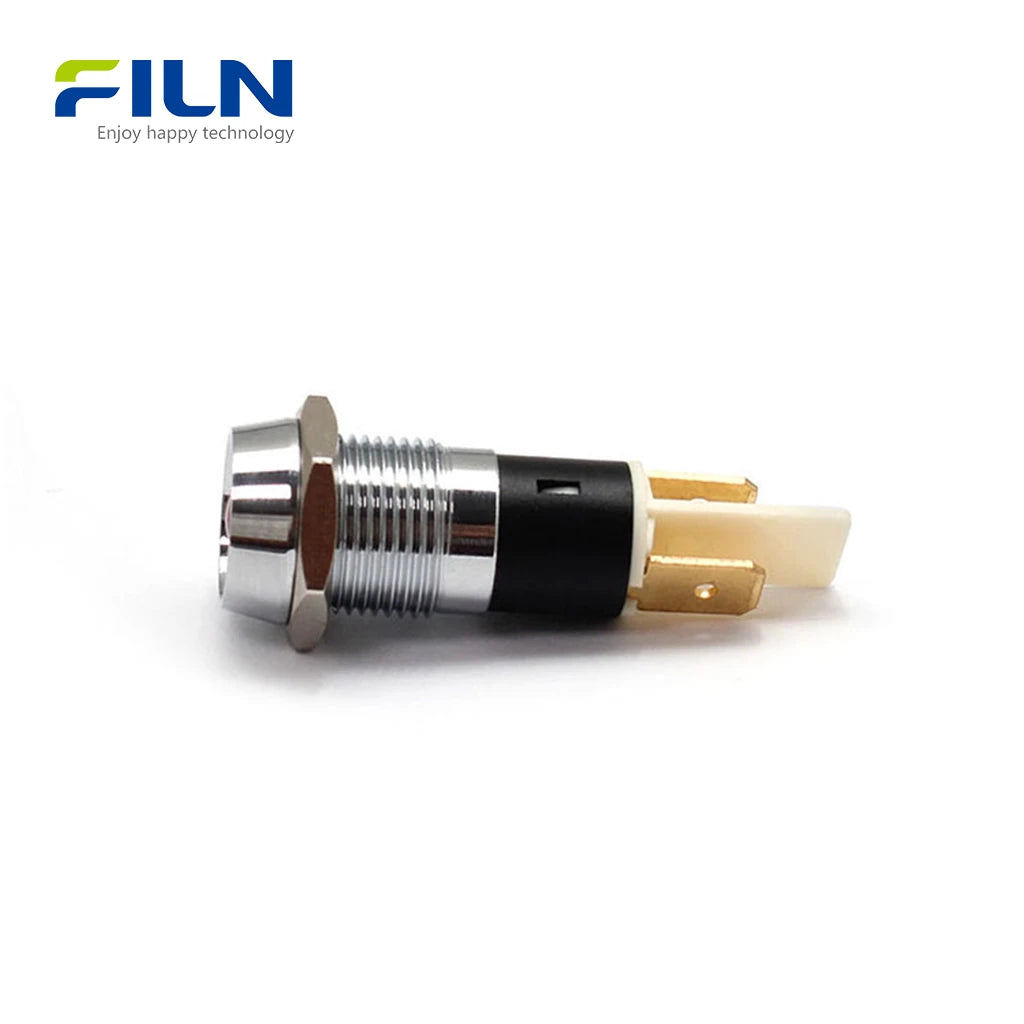

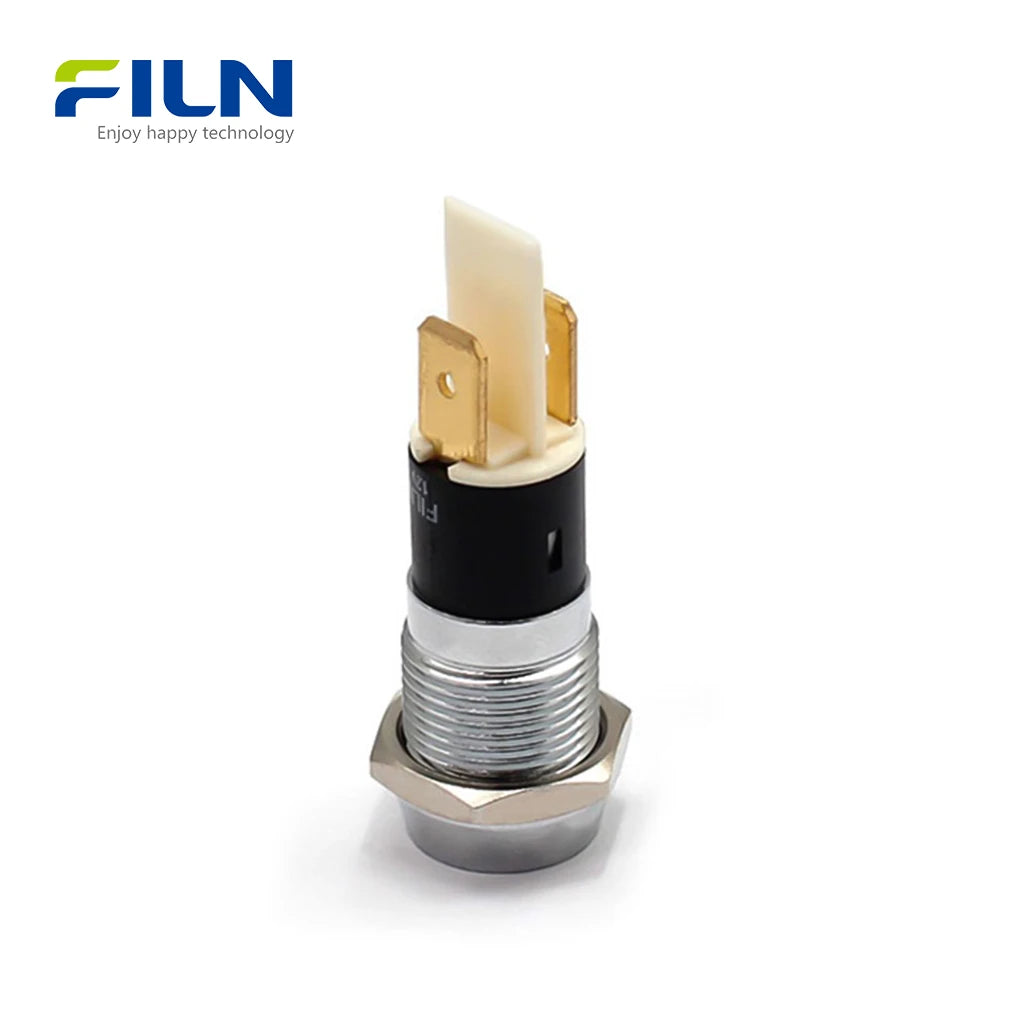

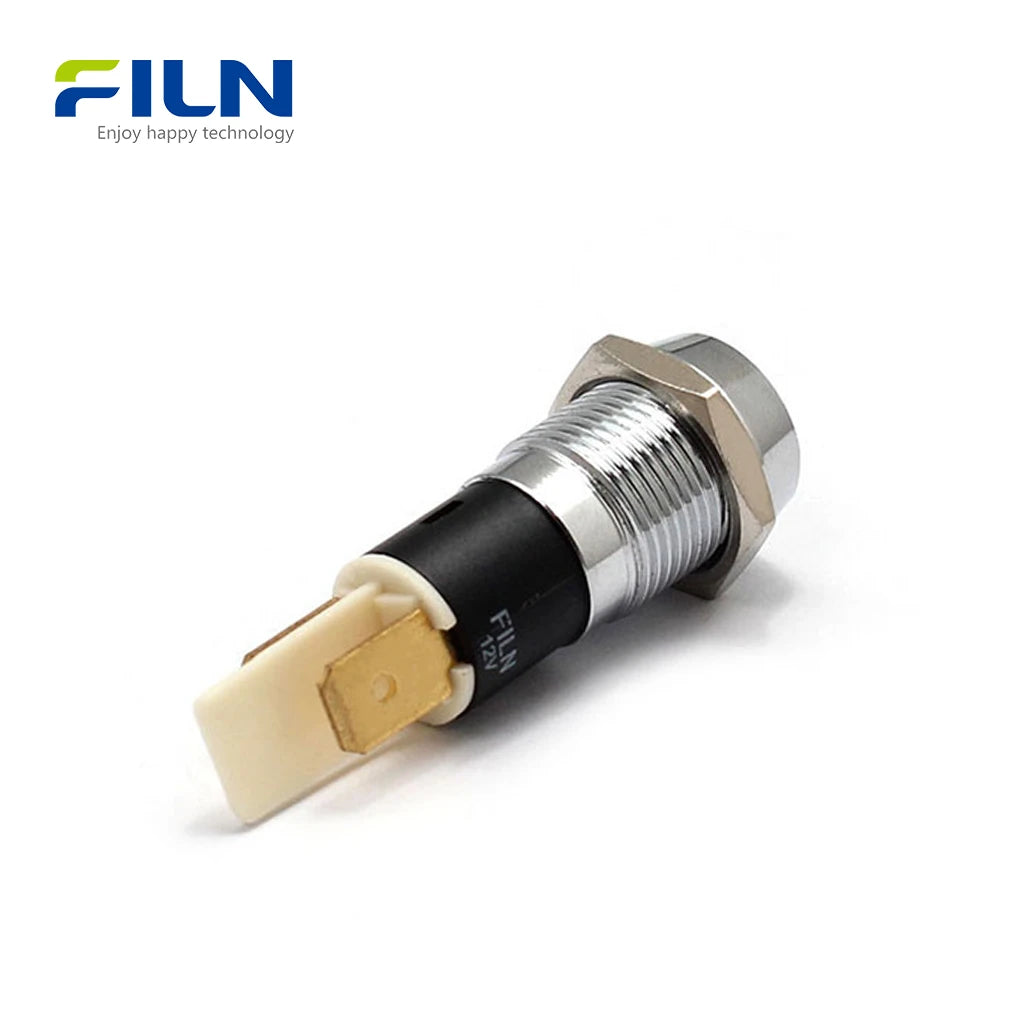

- 2-Pin Terminal: Simplifies installation compared to wire leads, allowing for faster assembly and maintenance.

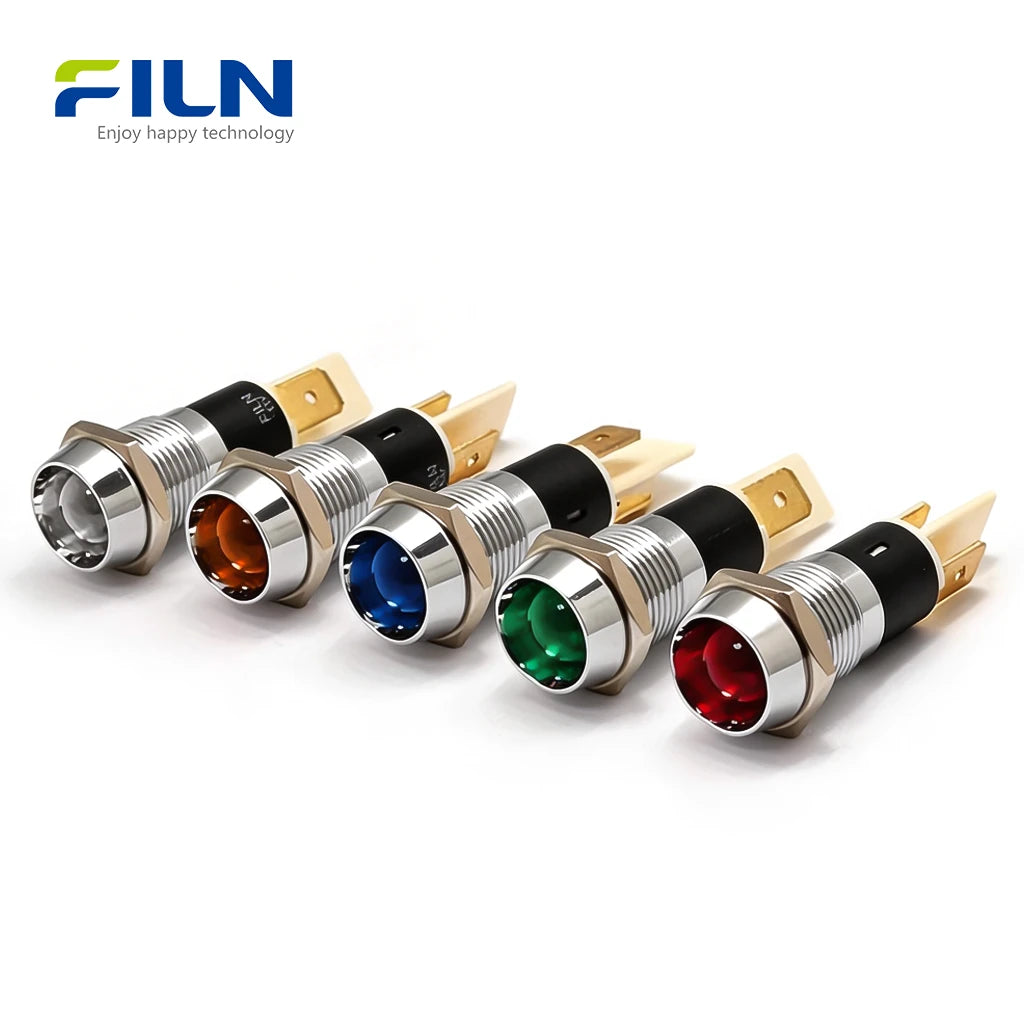

- Industrial Durability: Solid metal housing (Silver or Black) with smooth M14 threads and secure nut fixation.
Versatile Applications
- Industrial Control Panels & Automation Equipment
- CNC Machining Centers & Industrial Robots
- Medical Diagnostic & Laboratory Devices
- Marine Control Systems, Yachts & Boats
- New Energy Vehicle (NEV) Charging Stations
- Electrical Distribution Cabinets & Power Supplies
Installation Guide
- Drill a 14mm (M14) diameter hole in your target panel or surface.
- Place the provided 14mm O-ring onto the indicator light base for a waterproof seal.
- Insert the indication light from the front/top of the panel.
- Secure the light from the back using the provided M14 metal nut. Tighten until firm.
- Connect your 12-24V or 110-220V power source to the 2-pin terminals.
What Is an Indication Light?
An indication light is a critical visual signaling component used in electrical and mechanical systems to communicate the operational status of equipment. Unlike standard illumination, these lights are designed to be high-contrast indicators—signaling whether a machine is "On," "Off," in "Fault" mode, or at a specific cycle stage. In industrial settings, the 14mm metal indicator provides a compact yet highly visible solution for dense control panels where space is limited but reliability is non-negotiable. The use of LED technology ensures low power consumption and a lifespan that far exceeds traditional incandescent pilot lights, reducing maintenance downtime for factory floors and medical facilities alike.
FILN Factory Direct Benefits
- Direct Manufacturing: Competitive pricing and strict quality control.
- Full Customization: Tailored voltage, wire length, and connector types.
- Global Logistics: Fast worldwide shipping from our production hub.
- Certified Quality: Standards including UL, CE, and ISO9001.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q: What are the benefits of a concave head indication light?
A: It protects the lens from physical impact and reduces side-glare, ideal for industrial panels.
Q: Can I customize the voltage?
A: Yes, FILN supports customization for 3V-380V applications.
Q: What is the difference between pin type and wire lead?
A: Pin types are great for PCB/plug-in mounting; wire leads offer flexibility for distant connections.
Q: Is this 14mm light waterproof?
A: Yes, it is rated IP67, making it resistant to dust and heavy water exposure.
Q: Does it come with the nut and gasket?
A: Every order includes a high-quality M14 nut and an O-ring for immediate installation.
