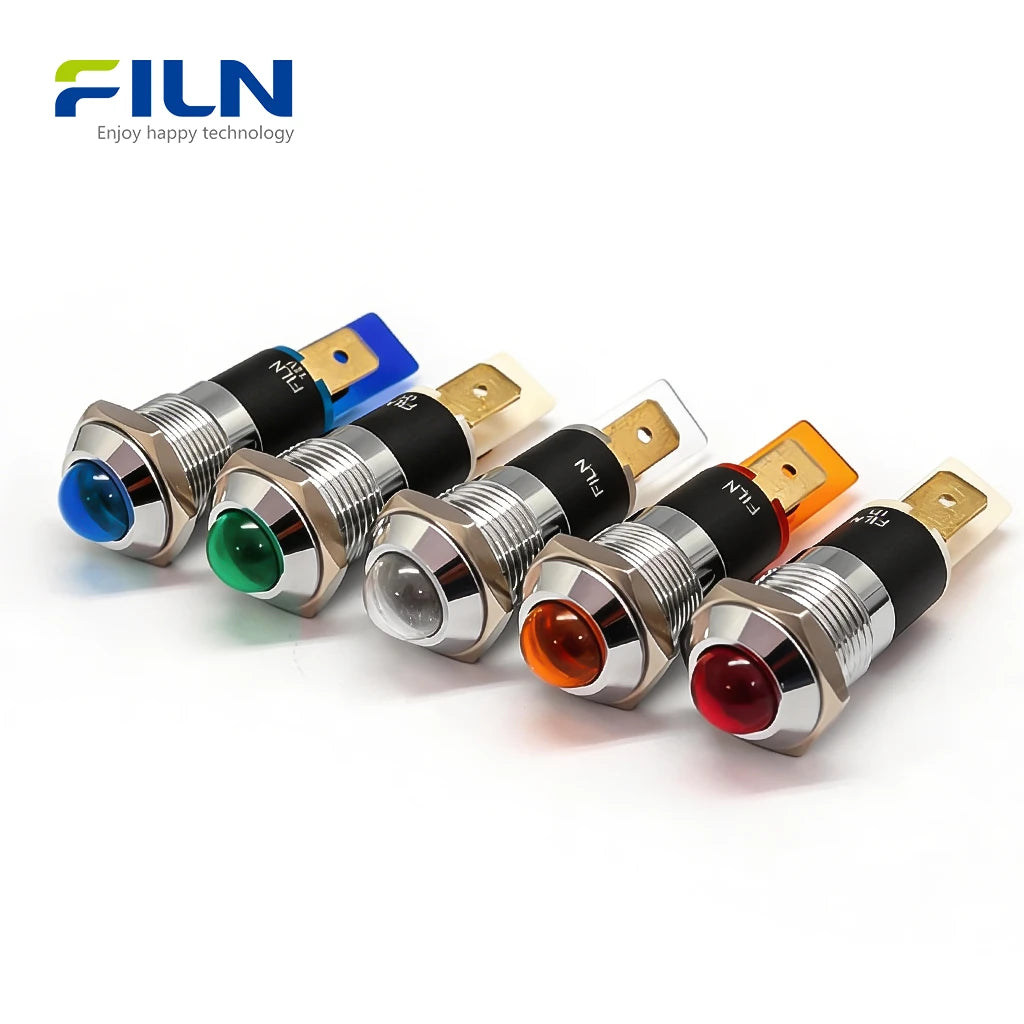

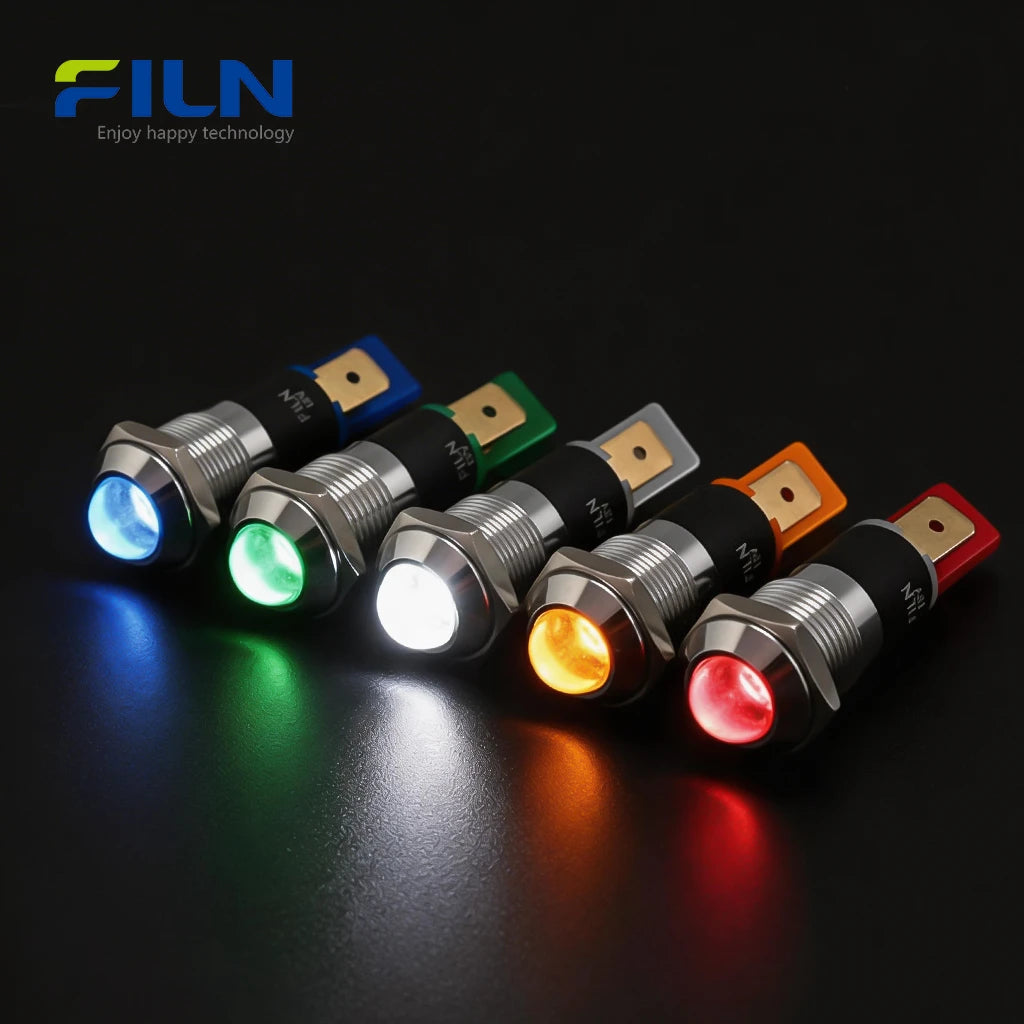

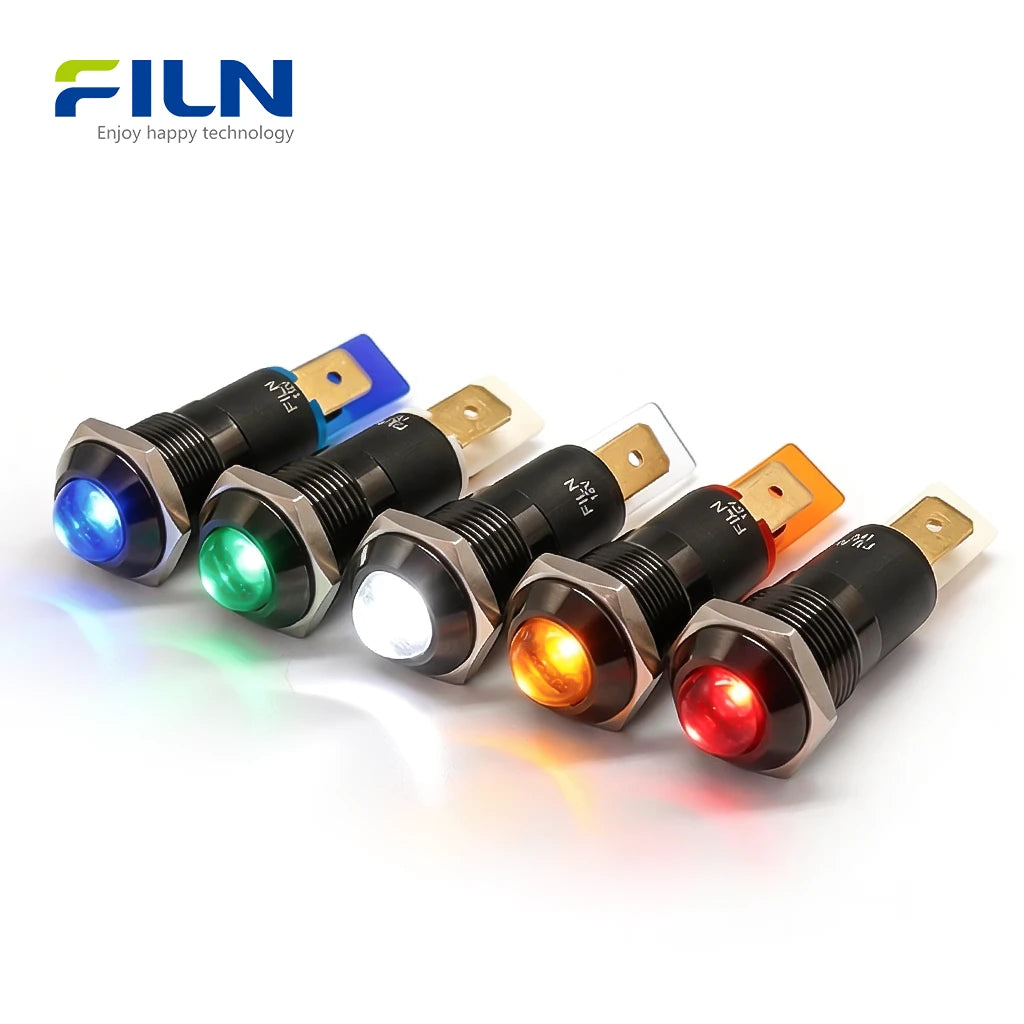

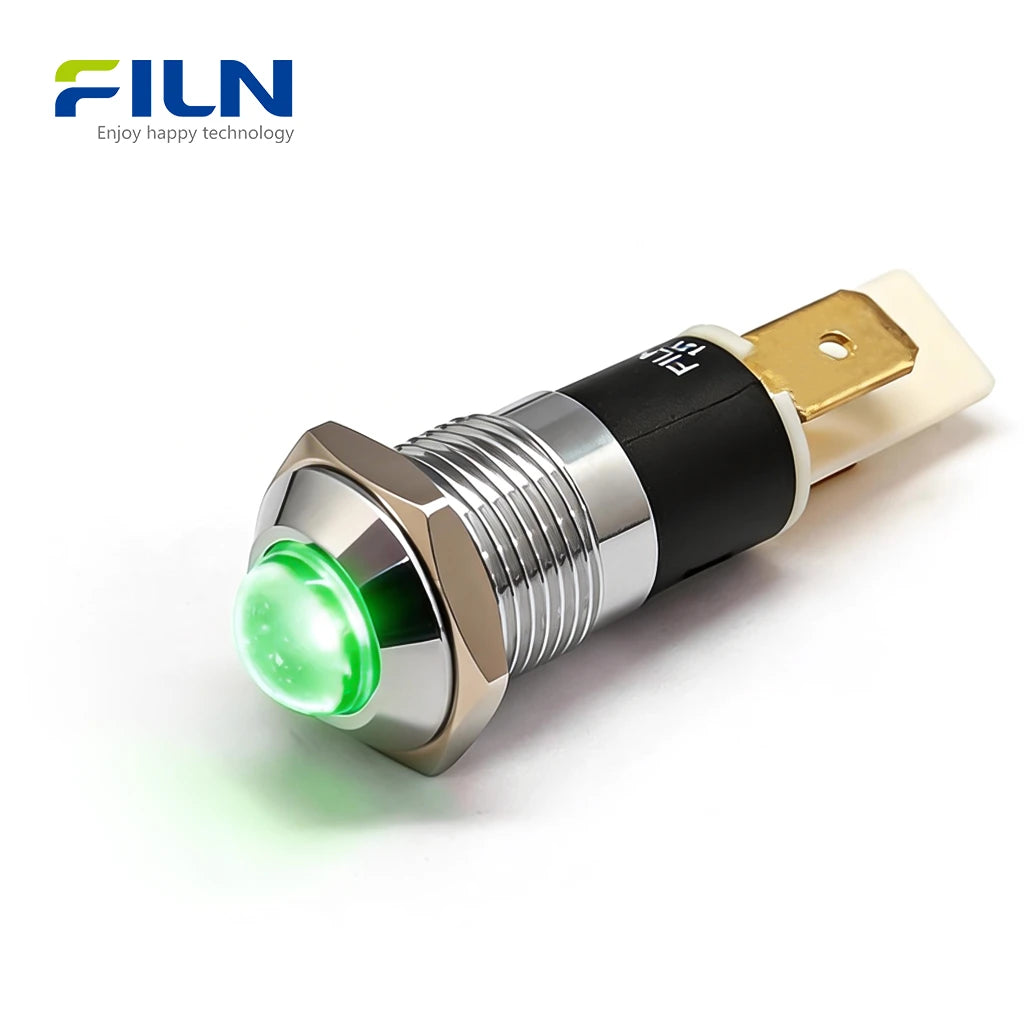

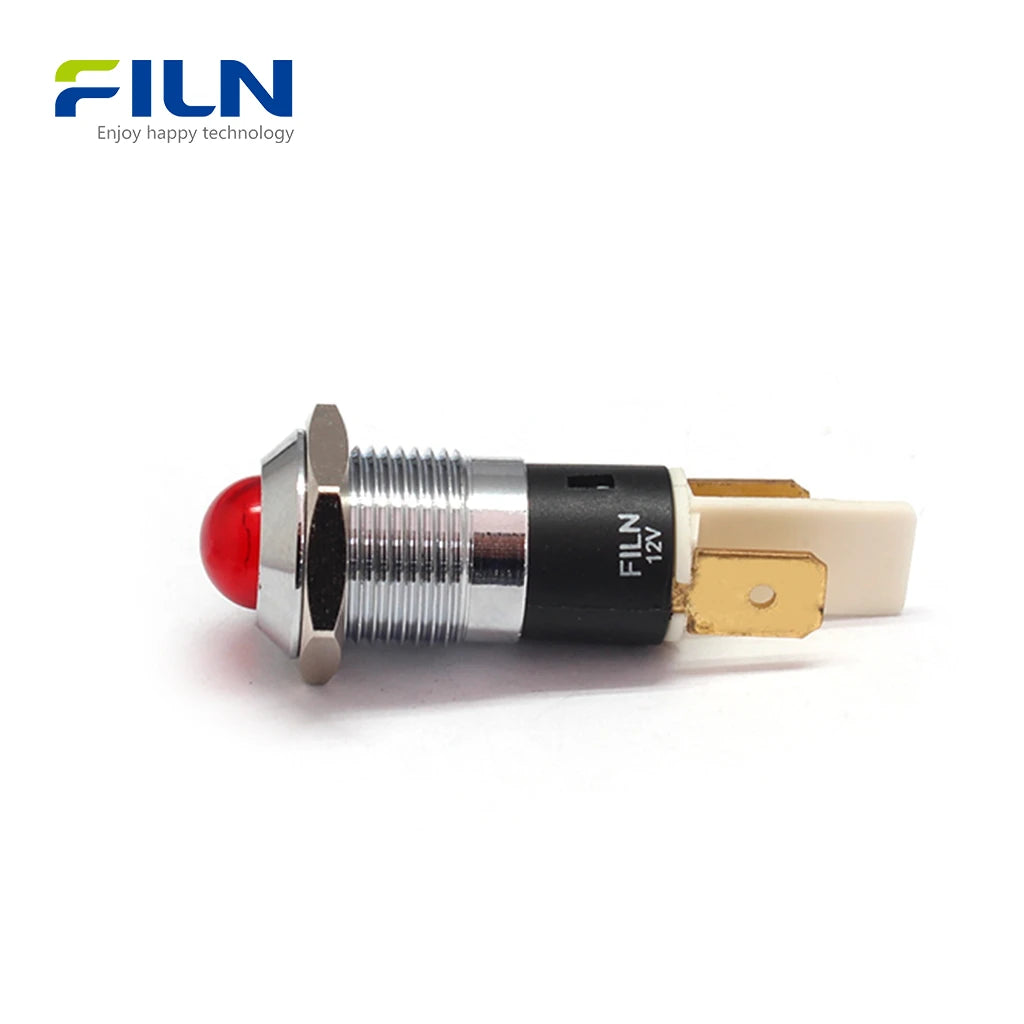

The FILN light indication (Model: FL1M-14SJ-1) is a premium 14mm high-head metal indicator engineered for demanding environments. This product carries global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. Designed for versatile use in industrial control panels, medical devices, yachts, and new energy systems, it features a rugged housing available in silver or black. Its primary advantage is the high-head design which offers superior 360-degree visibility compared to flat or concave types. With long lifespan and easy 2-pin terminal installation, FILN provides a reliable factory-direct solution for global B2B procurement.
| Mounting Hole | 14mm (0.55 inches) |
|---|---|
| Voltage | 12V-24V / 110V-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |

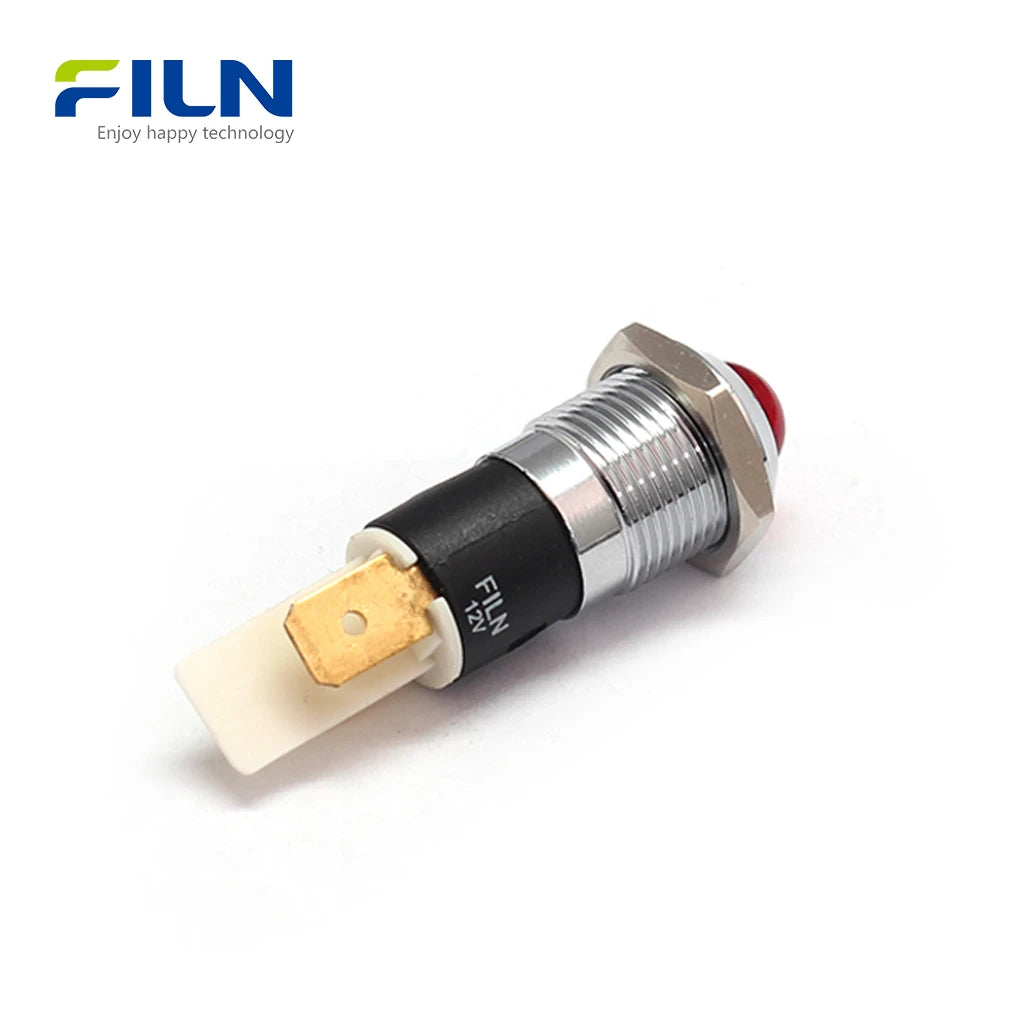

| Wiring Type | 2-PIN Faston Terminal |
| Head Type | High Head (Prominent) |
| Rated Voltage | Customized per Requirement |
|---|---|
| Frequency (AC) | 50 ～ 60Hz |
| Rated Current | ≤20mA |
| Housing | Chrome Plated Brass / Black Anodized Al |
|---|---|
| Lens | Epoxy / PC |
| Seal Ring | Silicone O-Ring (14mm) |
| Terminal | Silver-plated Brass Pins |
| Operating Temperature | -40℃ ～ 80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86 ～ 106Kpa |
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Continuous Working Life | 50,000 hours |
|---|---|
| Aging Test Condition | 30mA 1000h |
| Test Item | Parameters |
|---|---|
| Temperature Cycle | -40℃ → 25℃ → 85℃ (5 rounds) |
| Moisture Resistance | 40℃ 90-95%RH 96h |
A light indication component is a visual signal used to monitor the status of electrical circuits. The FL1M-14SJ-1 features a High Head design, which protrudes from the panel to allow operators to see the light from side angles (360-degree visibility). This is distinct from Flat Head indicators which are flush for aesthetics, or Concave (凹头) designs that protect the lens but limit viewing angles. Additionally, the pin terminal (插脚) design provides a rigid connection point for quick-connectors, whereas the FL1M-14SW-1 uses wire leads (接线) for remote wiring. Choosing the right head and terminal type is vital for the ergonomics and safety of industrial equipment.
FILN is a specialized manufacturer offering factory-direct advantages:
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Q1: High Head vs. Flat Head vs. Concave?
A: High head offers the best side visibility; Flat head is flush for safety; Concave (凹头) protects the lens surface but narrows the light beam.
Q2: SJ-1 (Pin) vs. SW-1 (Wire)?
A: SJ-1 uses 2-pin terminals for quick connection. SW-1 uses pre-soldered wires for easy wiring in deep panels.
Q3: Is it suitable for yachts?

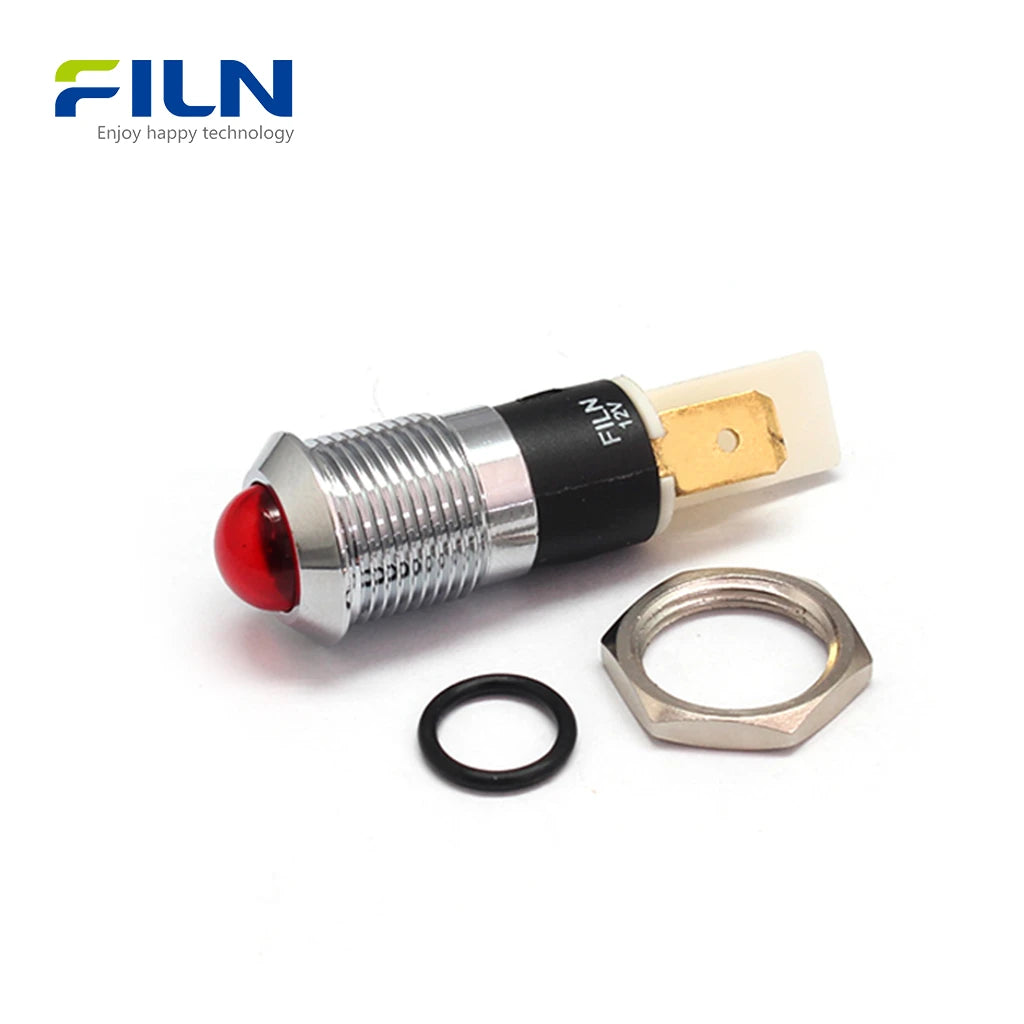

A: Yes, with IP67 protection and a corrosion-resistant shell, it is marine-ready.
Q4: Do you offer customization?
A: Yes, we customize voltage, wire length, and shell color (Silver/Black).
Q5: What certifications are included?
A: We hold ISO9001, CE, UL, VDE, and RoHS certifications.
Q6: How easy is installation?
A: Very easy; drill 14mm, insert, and tighten the M14 nut. The threads are smooth for fast assembly.
Q7: What is the rated current?
A: The rated current is typically ≤20mA for optimal brightness and longevity.
Q8: Can it handle extreme temperatures?
A: Yes, it is tested to operate reliably from -40℃ to +80℃.
Q9: Is there a MOQ for custom orders?
A: As a factory, we offer flexible solutions for both small batches and large OEM orders.
Q10: Are the LEDs bright enough for daylight?
A: Yes, we use high-brightness industrial chips for clear light indication under various lighting conditions.
