Product Overview
The 14mm signal indicator light (Model: FL1M-14FW-1) is a high-performance signaling component manufactured by FILN. This IP65/IP67 waterproof LED indicator features a durable metal flat-head design in silver or black finishes, offering a flush, aesthetic appearance that is easy to clean and resistant to impact. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, it ensures global compliance for industrial control panels, medical devices, marine systems, and new energy equipment. With support for 12V to 220V and customizable 15cm wire leads, it provides long-lasting reliability and high-brightness visibility for critical status monitoring.
Quick Specifications
| Mounting Hole | 14mm (0.55") |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customized) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead (15cm Standard) |
| Operating Temperature | -40℃～80℃ |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | 3V - 380V (Customized) |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass (Silver or Black Chrome) |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silica Gel O-Ring |
| Terminal | Pure Copper |
| Wire Material | UL1007 22AWG (15cm) |
General Characteristics
| Application | Universal Signal Indication |
|---|---|
| Part Name | FL1M-14FW-1 Signal Light |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP65/67 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | Test Condition | Requirement |
|---|---|---|
| LED Reliability | 30mA 1000h | 50,000 hours |
Resistant Performance
| Test Type | Parameters |
|---|---|
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features
- Premium Flat Head Design: Provides a sleek, flush mount profile that is aesthetically pleasing and reduces the risk of accidental damage.
- Dual-Color Shell Options: Available in high-grade silver or black chrome-plated metal for various equipment styles.
- Extended Lifespan: High-brightness LED chip ensures over 50,000 hours of continuous service.
- Pre-Wired Convenience: Comes with 15cm UL-certified wire leads for rapid installation without the need for soldering.
- Enhanced IP67 Waterproofing: Equipped with a precision-engineered 14mm O-ring and smooth-threading M14 nut.
Applications
- Industrial: CNC machines, automation control panels, electrical cabinets.
- Medical & Testing: Diagnostic equipment, laboratory instruments, testing devices.
- Marine & Transportation: Yacht dashboards, marine control systems, EV charging piles.
- Energy: New energy storage systems, power distribution units.
Installation Guide
- Prepare a 14mm diameter mounting hole on the panel surface.
- Ensure the waterproof O-ring is placed on the indicator body.
- Insert the 14mm signal indicator light from the front of the panel.
- Thread the M14 nut from the back of the panel onto the smooth metal threads.
- Tighten the nut securely to compress the O-ring for a waterproof seal.
- Connect the 15cm pre-wired leads to the corresponding power circuit.
What Is a Signal Indicator Light?
A signal indicator light is a critical visual component used to communicate the status of electrical circuits or mechanical processes to an operator. In industrial and medical environments, these lights act as the primary interface for safety and monitoring. The FL1M-14FW-1 model utilizes a flat-head design, which is specifically chosen for applications where a flush surface is required to prevent debris buildup or to match modern aesthetic standards. Unlike pin-type models (FL1M-14FJ-1), which require soldering, the wire-lead (FW) version offers pre-installed 15cm cables, significantly reducing assembly time and labor costs while providing a more secure connection in high-vibration environments like marine vessels or heavy machinery.
FILN Factory Direct Supply
FILN is a professional manufacturer providing factory-direct pricing and high-end customization services for global B2B clients.
- Voltage Customization: Wide range from 3V to 380V.
- Wire Customization: Length, gauge, and connector types tailored to your specs.
- Shell Customization: Multiple metal finishes and head styles.
- Fast Global Shipping: Efficient delivery for project-based orders.
Official Website: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I use this 14mm signal indicator light for marine dashboards?
Yes, with its IP67 waterproof rating and metal housing, it is perfect for marine and yacht applications.
2. What is the difference between FL1M-14FW-1 and the FJ-1 pin-type model?
The FW-1 features 15cm pre-wired leads for easy installation, while the FJ-1 (pin-type) requires soldering to the terminals.
3. Are custom wire lengths available for this signal light?
Absolutely. As a factory, FILN can customize wire lengths and add connectors to meet your specific needs.
4. Does it include the mounting nut and seal?
Yes, every unit comes with a smooth-threaded M14 nut and a high-quality O-ring waterproof seal.
5. Is this product suitable for medical testing equipment?
Yes, the flat-head design is ideal for medical devices that require flush, easy-to-sanitize surfaces.
6. Can the voltage be customized to 48V or 110V?
Yes, we support a wide range of voltages including 12V, 24V, 110V, and 220V, as well as specific custom values.
7. What are the benefits of the flat head design?
It provides a flush appearance on the panel, prevents snagging, and is easier to clean in sterile environments.
8. How long is the lifespan of the LED?
The high-quality LED chips are rated for a working life of over 50,000 hours.
9. Is the housing made of real metal?
Yes, it features a chrome-plated brass shell available in silver or black finishes for maximum durability.
10. Does FILN offer wholesale or bulk discounts?
Yes, as a manufacturer, we provide direct factory pricing for bulk orders and long-term partnerships.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
高
工作機械の集中制御盤の試作用に14mmサイズを選択。定格電圧の特殊カスタマイズについて、誉林電子（Yueqing Yulin Electronic Co., Ltd.）のエンジニアが迅速に対応してくれました。コストパフォーマンスが抜群で、次回のロット生産でも確実にリピートします
S
Industrie-Qualität: Perfect fit for our marine deck power distribution units. Consistent voltage regulation across the entire batch with clear hue indicators. CAD drawings from Yueqing Yulin Electronic matched engineering tolerances down to the millimeter. Furthermore, the bulk multi-slot tray packaging layout isolates each metal module perfectly, avoiding any metal-on-metal micro-abrasions during heavy cargo ocean transport lines.
M
Usage industriel certifié: Used as a status indicator on our processing equipment line. Consistent voltage regulation across the entire batch with clear hue indicators. Slashed our assembly layout prep time by nearly 35 percent.
B
Usage industriel certifié: Used as a status indicator on our processing equipment line. Consistent voltage regulation across the entire batch with clear hue indicators. Highly recommended for procurement managers seeking stable parts.
S
Usage industriel certifié: Used as a status indicator on our processing equipment line.
田
ラボ用試験装置の電源確認用ランプとして購入。定格電圧の特殊カスタマイズについて、誉林電子（Yueqing Yulin Electronic Co., Ltd.）のエンジニアが迅速に対応してくれました。コストパフォーマンスが抜群で、次回のロット生産でも確実にリピートします。
D
Usage industriel certifié: Used as a status indicator on our processing equipment line. Consistent voltage regulation across the entire batch with clear hue indicators. Will maintain FILN as our primary supplier for indicators.
A
Usage industriel certifié: Installed inside a custom heavy-duty PLC cabinet panel. The pre-wired 2PIN layout eliminates all terminal soldering faults. Exceptional Signal Indicator Light illumination. Slashed our assembly layout prep time by nearly 35 percent.
高
自動化生産ラインのステータス表示用に導入。IP67の確かな防水気密性により、切削油や洗浄液が飛散する環境下でも安定して動作します。耐久性の高いLED Indicator Lightです。今後も当社の標準選定部品として登録し、定期調達を継続します。
B
Industrie-Qualität: Purchased for a high-precision CNC workshop workstation.
S
Usage industriel certifié: Used as a status indicator on our processing equipment line.
M
Usage industriel certifié: Purchased for a high-precision CNC workshop workstation. The pre-wired 2PIN layout eliminates all terminal soldering faults. Exceptional Signal Indicator Light illumination. Slashed our assembly layout prep time by nearly 35 percent. Furthermore, the bulk multi-slot tray packaging layout isolates each metal module perfectly, avoiding any metal-on-metal micro-abrasions during heavy cargo ocean transport lines.
S
Die Kontrollleuchte ist gut verarbeitet, aber der Versand dauerte zu lange.
Thank you for your feedback. We support fully customizable wire lengths for production runs. Please message our sales team on your next order to adjust wire lengths.
田
製品自体の金属の質感や配線加工の状態は素晴らしいです。ただ、通関の影響か指定日より4日遅れて到着しました。お急ぎの方は注意が必要です。
Thank you for your review. We are working closely with our logistics partners to speed up transit times. Full CAD parameters are available directly on our website.
中
食品加工機器の防水スイッチパネルに実装。
S
Used as a status indicator on our processing equipment line. The flat anodized metal face gives a clean flush appearance on the stainless enclosure. Will maintain FILN as our primary supplier for indicators. Furthermore, the bulk multi-slot tray packaging layout isolates each metal module perfectly, avoiding any metal-on-metal micro-abrasions during heavy cargo ocean transport lines.
佐
工作機械の集中制御盤の試作用に14mmサイズを選択。RGYBWの各色とも発光ダイオードの輝度にバラつきがなく、均一なインジケーションが可能です。ネジ山の精度も極めて高い。CADデータの提供も迅速で、設計段階からのコンポーネント選定において非常におすすめです。
高

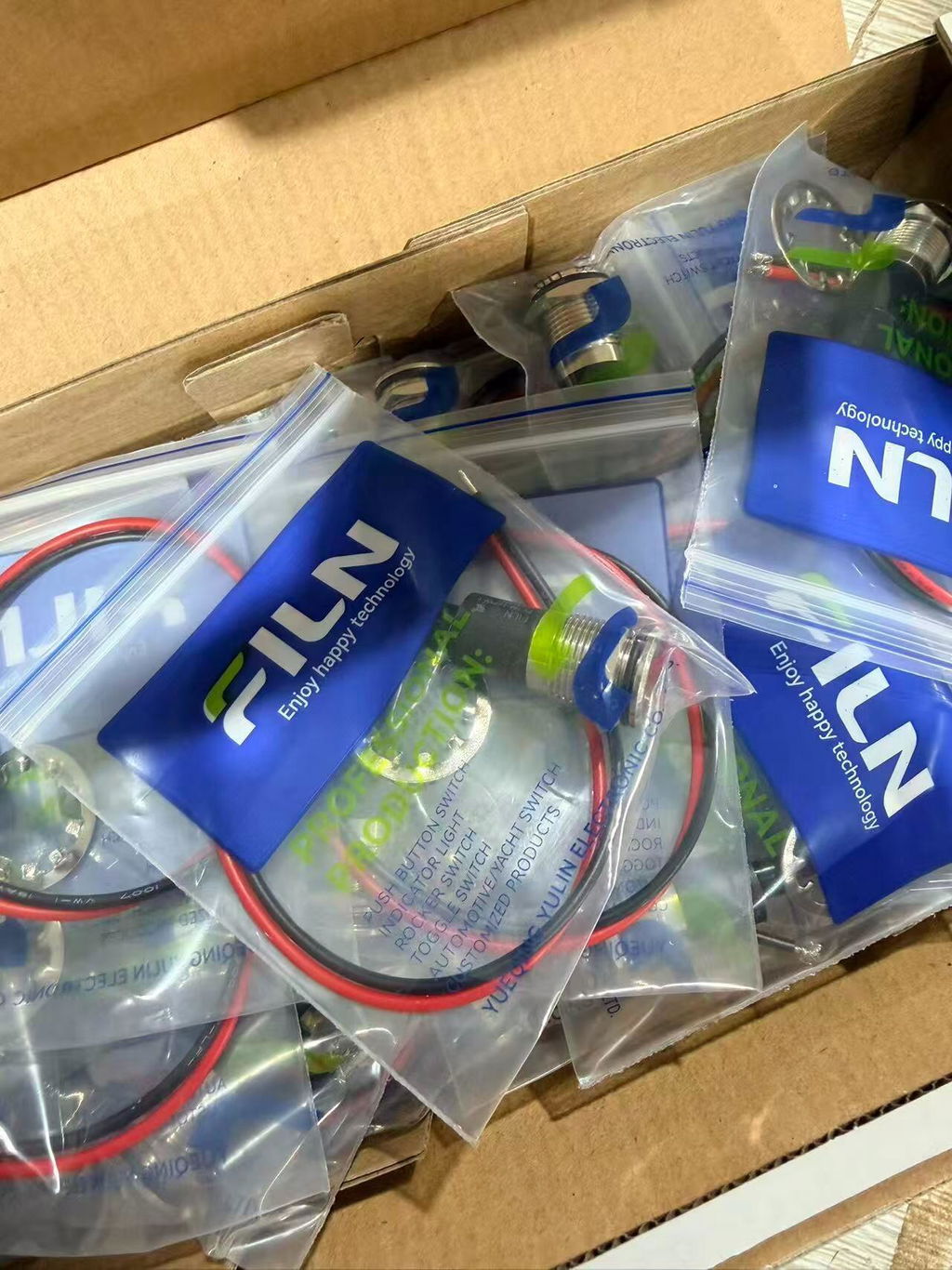

ボートのダッシュボード計器盤に組み込みました。黒色外殻タイプは目立ちすぎず、インジケータ発光時の視認性をさらに際立たせてくれます。プロ仕様のコンポーネントです。バルク梱包も仕切り板で厳重に保護されており、輸送傷一つなく届きました。素晴らしい品質管理です。
