Product Overview

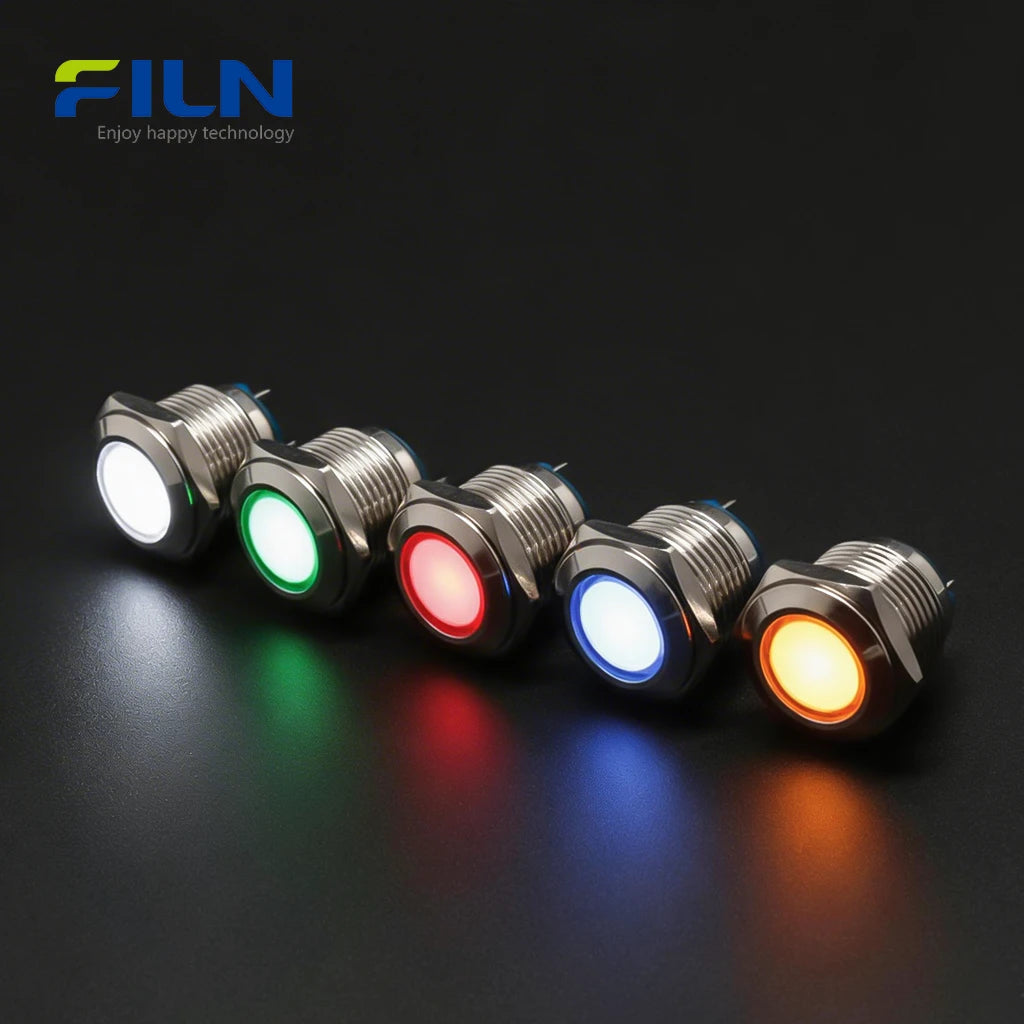

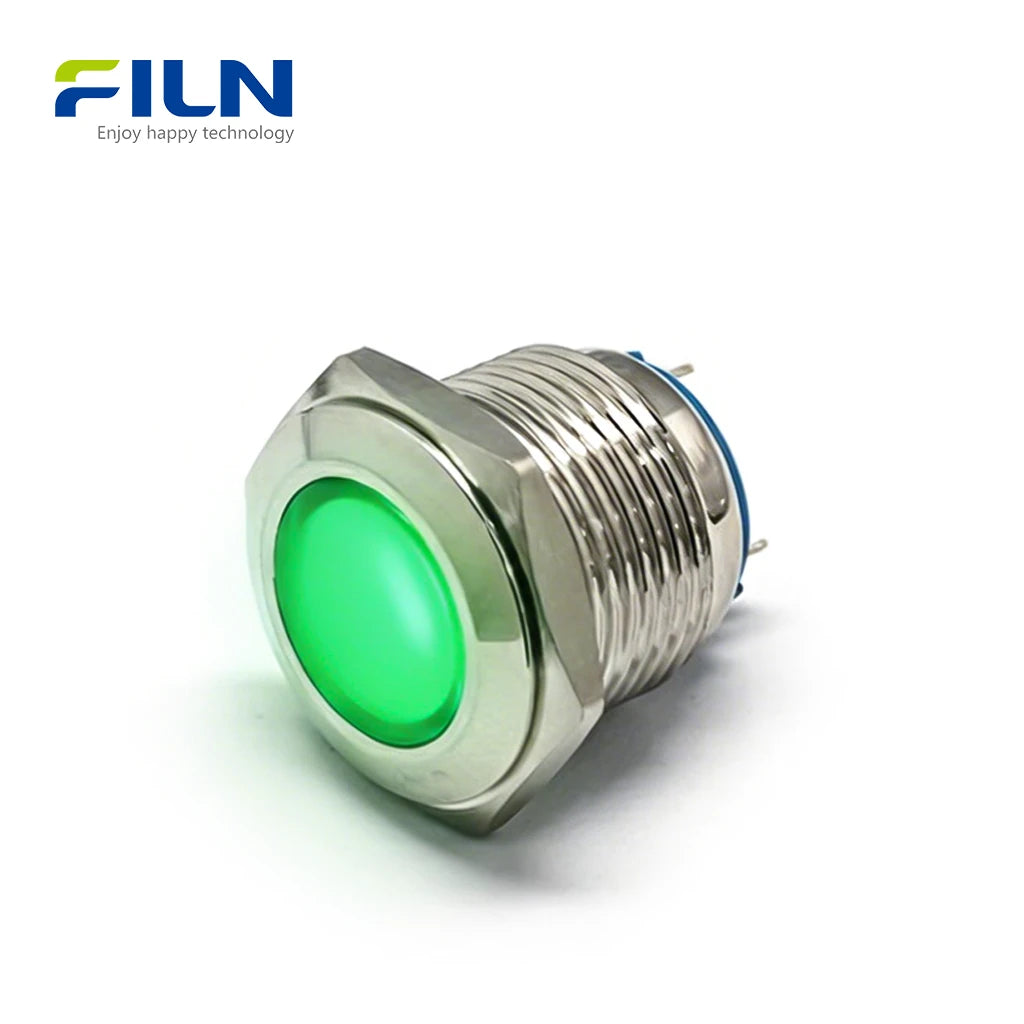

The pilot light indicator 16mm (FL1M-16FJ-2) is a professional-grade signaling solution from FILN, specifically designed for compact industrial spaces. This short-body model features a metal flat head and 2-pin terminals, ensuring industrial-grade reliability and a space-saving footprint. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67[cite: 2], it is ideal for automation equipment, CNC machines, and electrical cabinets. With its silver copper alloy shell and high-brightness LED, it provides exceptional visibility and a lifespan of 50,000 hours, supporting custom voltages for global B2B procurement.
Quick Specifications
| Mounting Hole | 16mm (0.63 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |

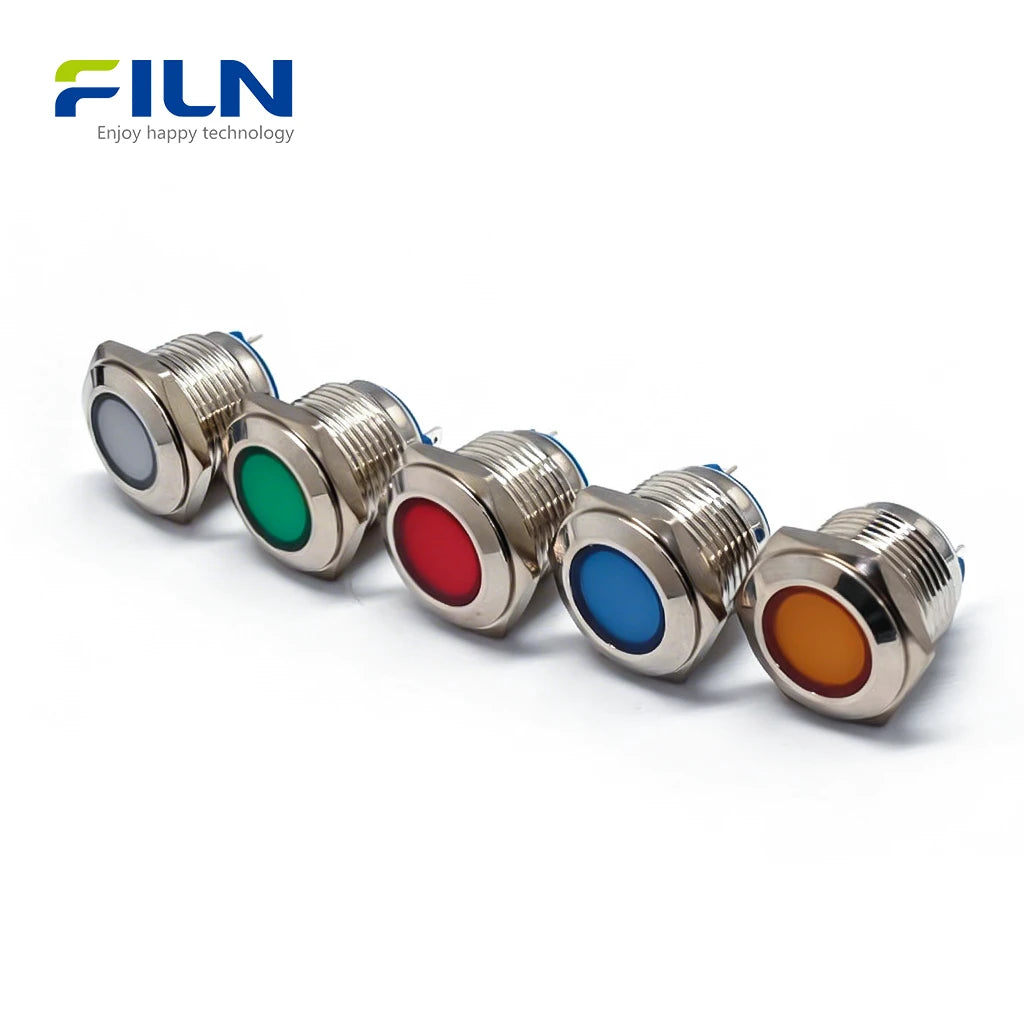

| LED Color | Blue (Red, Green, Yellow, White available) |
| Waterproof Rating | IP65 / IP67 |

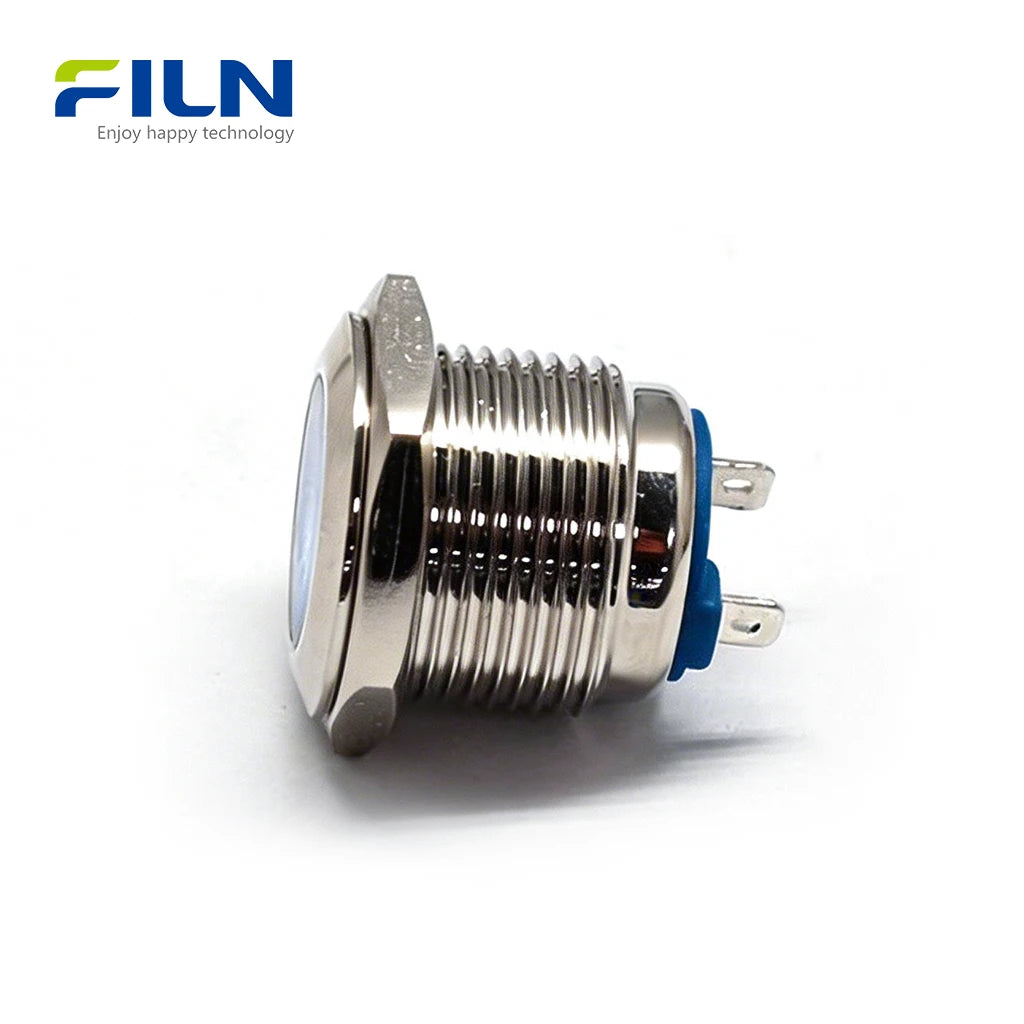

| Body Style | Short-body Compact Design |

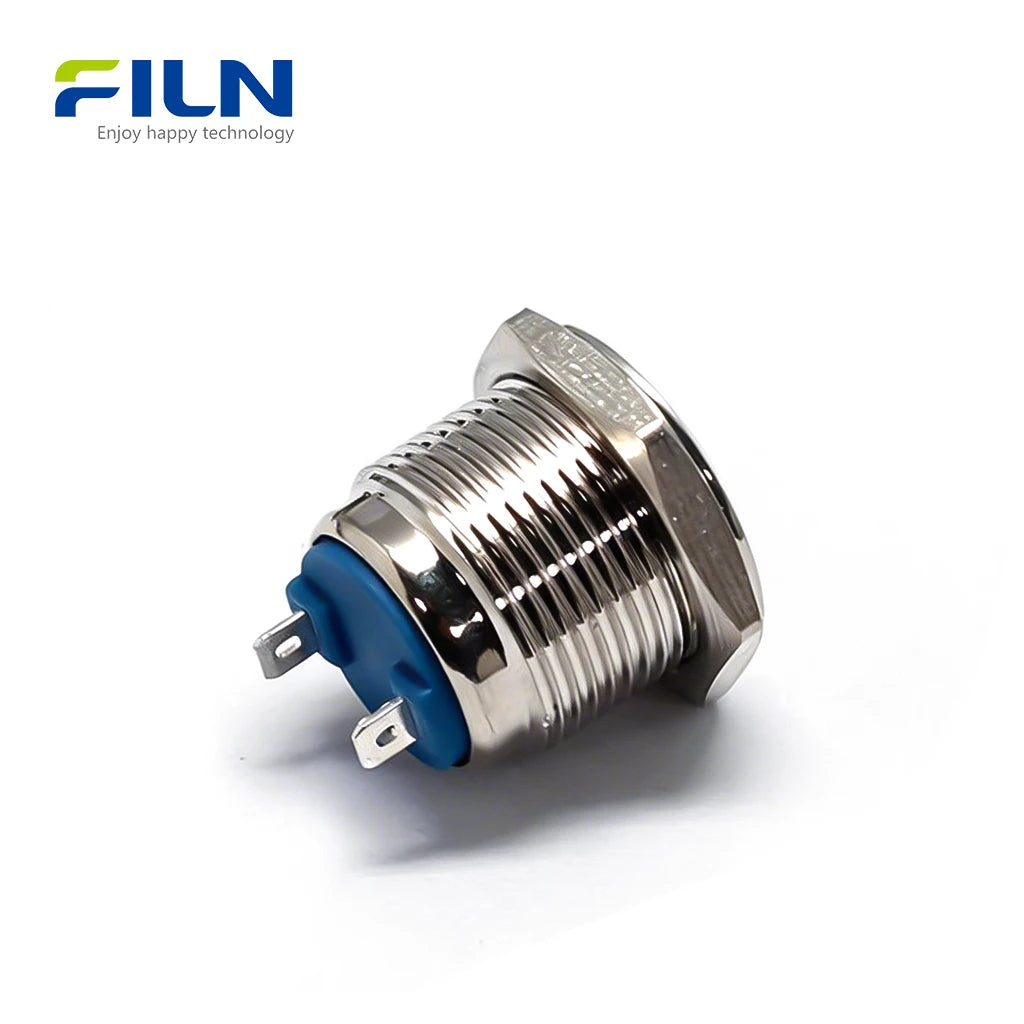

| Wiring Type | 2-Pin Plug-in (Pin Type) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell (Housing) | Copper Alloy | Silver-plated / Chrome for durability |
| Lamp Holder | PA66 High Strength Nylon | Temperature and impact resistant |
| Lampshade (Lens) | PC Polycarbonate | High transparency and impact resistance |
| Light Source | LED | Long life, high brightness |
| Terminal (Pin) | Brass | Excellent conductivity |
| O-ring | Silica Gel | Provides IP67 waterproof seal |
| Nut / Gasket | Copper Alloy / Stainless Steel | M16 smooth thread for easy fixing |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity (Operating) | ≤85% at +40℃ |
| Ambient Temperature | 5~35℃ |
| Relative Humidity (Ambient) | 45~85% |
| Air Pressure | 86~106Kpa |
Electric Property
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Resistant Performance
| High Temperature Resistance | 80℃ for 96h |
|---|---|
| Low Temperature Resistance | -40℃ for 96h [cite: 4] |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features
- LED High Brightness: Crisp blue illumination for clear status signaling.
- Short Body Design: Only 16mm diameter with a compact depth for shallow panels.
- Metal Flat Head: Low-profile aesthetic that resists accidental impact.
- IP67 Waterproof: Reliable performance in wet or dusty industrial environments.
- Pin Terminals (2-Pin): Allows for fast, clean connections using female terminals or soldering.
Applications
- Industrial control panels and machinery.
- CNC equipment with limited internal wiring space.
- Automation systems and electrical cabinets.
- Marine signaling and boat dashboards.
- Medical equipment and laboratory instruments.

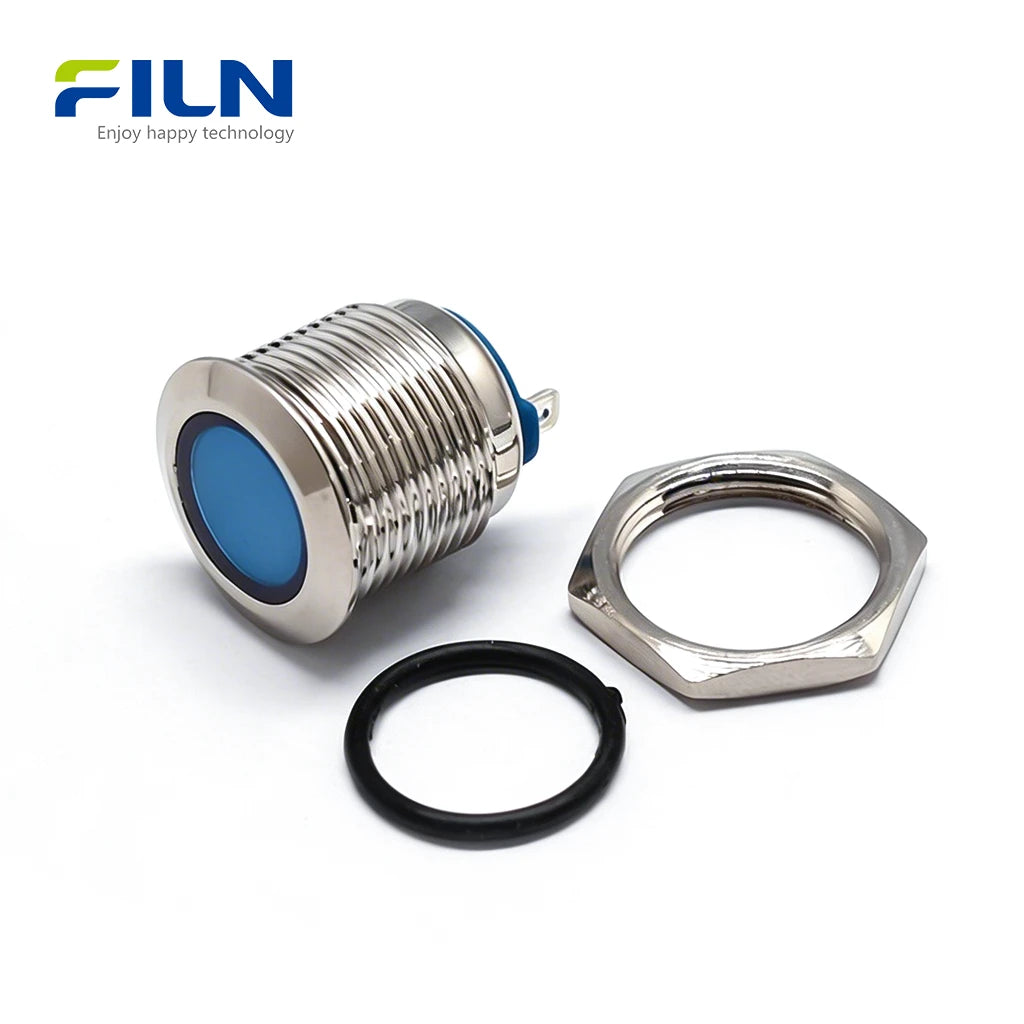

Installation Guide
- Drill a precise 16mm hole in your control panel.
- Insert the pilot light indicator through the front of the panel.
- Place the provided 16mm O-ring against the panel surface from the front.
- From the back, thread the M16 nut onto the smooth threads.
- Tighten the nut to secure the unit and connect the 2-pin terminals.
What Is a Pilot Light Indicator?
A pilot light indicator is a essential component in electrical systems used to provide visual feedback regarding circuit status or machinery operation. The flat head design offers significant advantages in modern industrial design, as it sits flush with the panel surface, preventing the light from being accidentally knocked or sheared off in high-traffic environments.
Unlike wire-lead models which come with fixed lengths of wire, pin-terminal indicators offer greater flexibility for field maintenance. They allow engineers to use their own wiring lengths and standardized quick-connect terminals, which is often faster and cleaner in complex control cabinets. The short-body configuration is particularly valuable for slim-line devices where internal depth is restricted.
Factory Direct Supply
- Factory Direct: Sourced directly from FILN (Yueqing Yulin Electronic Co., Ltd).
- Voltage Customization: We support 12V, 24V, 110V, 220V, and other specific requests.
- Connectors: Custom pin spacing or connector housing available upon request.
- Fast Global Shipping: Reliable logistics for B2B procurement in the US and Europe.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What makes a "short body" indicator better for my project?
Short body indicators are designed for equipment with very limited space behind the mounting panel. This allows for more compact housing designs in medical and laboratory devices.
2. Can I use this 16mm pilot light for AC and DC applications?
Yes, we can customize the internal resistors to support both AC and DC voltages, ranging from 3V up to 380V.
3. What is the advantage of a flat head vs. a raised head?
The flat head provides a sleek, modern look and reduces the chance of physical damage from impacts, making it ideal for mobile equipment or heavy machinery.
4. Are pin terminals more reliable than pre-wired indicators?
Both are reliable, but pin terminals allow for a more modular setup where you can easily swap the indicator without cutting and re-stripping wires.
5. Is the housing available in other colors besides silver?
For the FL1M-16FJ-2 series, the standard industrial finish is a high-quality silver copper alloy for maximum durability.
6. How do I ensure the IP67 waterproof seal?
Ensure the provided O-ring is properly seated between the panel and the head of the light before tightening the nut securely.
7. Does FILN offer sample testing for B2B clients?
Yes, we encourage professional procurement officers to contact our sales team for product samples to verify technical specs.
8. Can the LED color be customized?
We offer standard colors (Red, Green, Yellow, Blue, White). Custom RGB or dual-color options can be discussed with our engineering team.
9. Are these indicators compliant with international standards?
Yes, FILN indicators hold UL, CE, and RoHS certifications, ensuring they meet safety and environmental standards worldwide.
10. What is the expected working life of the LED?
The high-quality LEDs used in our pilot lights are rated for 50,000 hours, which is over 5 years of continuous 24/7 operation.
