Product Overview

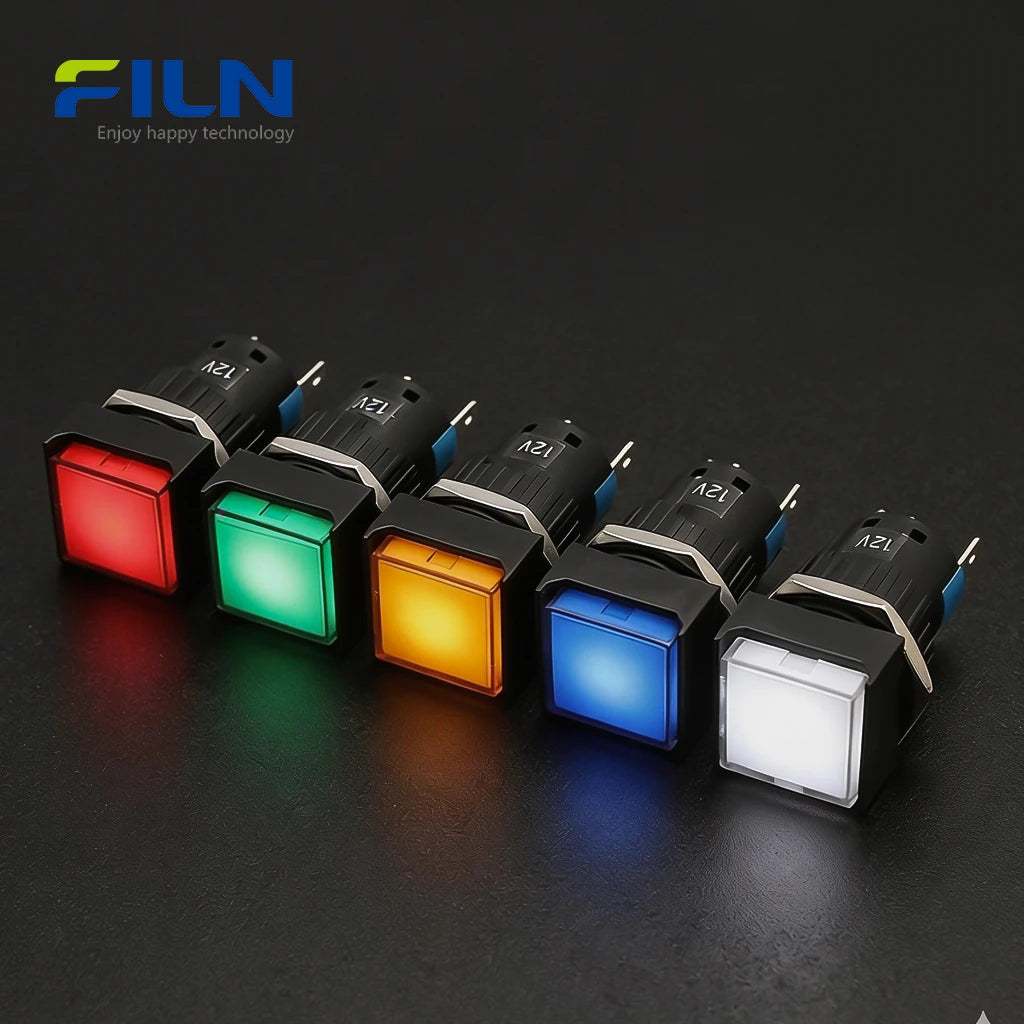

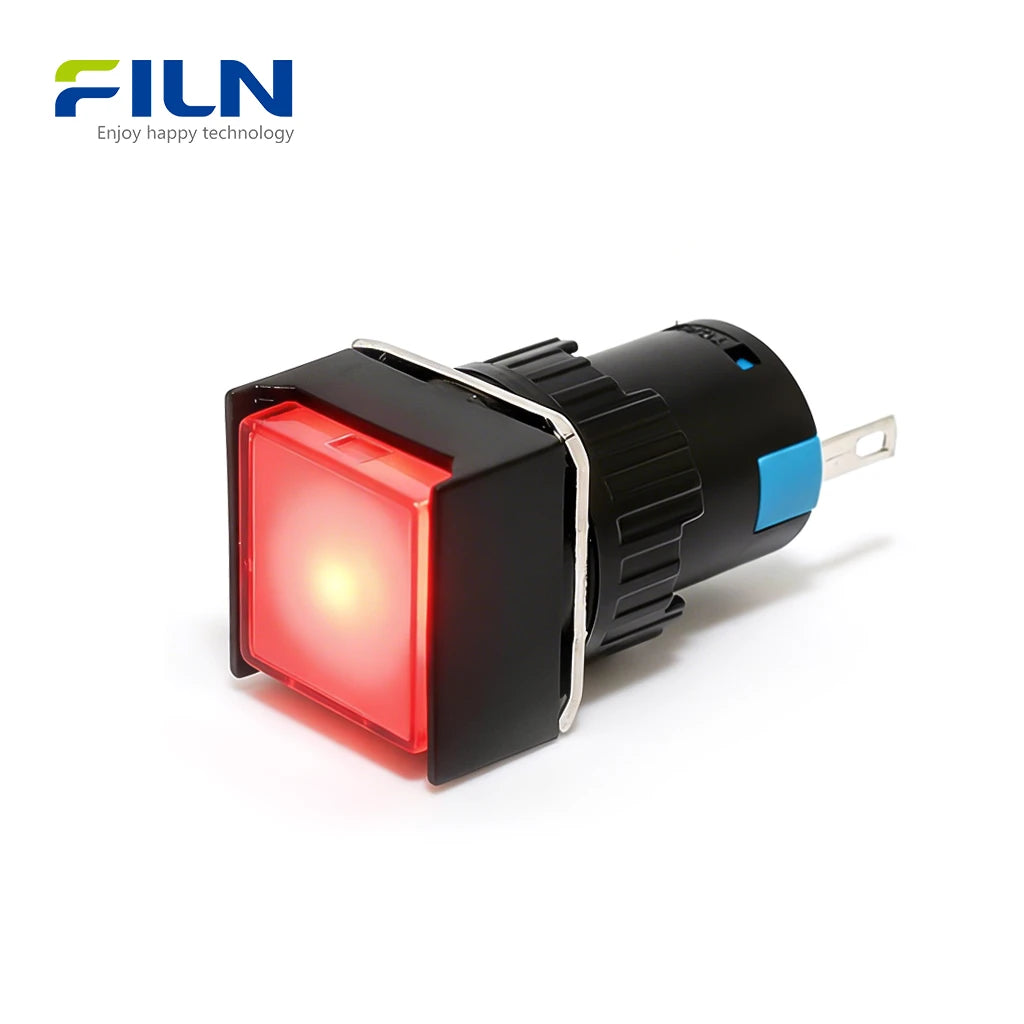

The 16mm plastic 220V pilot lamp red (Model: FL1P-16NJ-6) is a high-performance industrial signaling solution now available for sale directly from the FILN factory. This square head plastic indicator light features a high-profile design for maximum visibility in complex control environments. Built with premium PA66 nylon and PC materials, it ensures flame retardancy and durability. This 16mm panel mount led indicator is widely used in CNC machines, automation equipment, and electrical cabinets. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, FILN guarantees world-class quality for global B2B procurement. Whether you need a single 220V pilot lamp red or bulk custom orders, our stock is ready for immediate dispatch.
Quick Specifications
| Mounting Hole | 16mm (0.63 inch) |
|---|---|
| Voltage Options | 12V, 24V, 110V, 220V (Customized) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Head for Screw Mount) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥60,000 Hours |
| Installation Method | Screw Nut Mounting |
| Wiring Type | 2.8mm Pin Terminal |
| Certifications | UL, CE, RoHS, VDE, ISO9001 |
Material Construction
| Component Name | Material |
|---|---|
| Shell (Housing) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | PC (Polycarbonate) |
| Luminescent Source | High-Brightness LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Brass Copper |
Rated Working Parameters
| Rated Voltage | 3V - 380V (Customized) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Items | Parameter |
|---|---|
| Insulation Resistance | 1800V / 5s |
| Rated Power | 0.2W |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86 ~ 106Kpa |
Electric & Durability Performance
| Test Item | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Continuous Life | 30mA @ 1000h | 50,000+ hours |
Key Features
- LED High Brightness: Provides crystal clear signaling even in well-lit factory environments.
- Industrial Grade PA66: The PA66 nylon indicator light housing offers superior heat resistance and chemical stability.
- IP65 Waterproof: Sealed head design protects against dust and water splashes.
- Pin Terminal Advantage: 2.8mm screw terminal pilot light 220V design allows for fast, secure connections compared to wire leads.

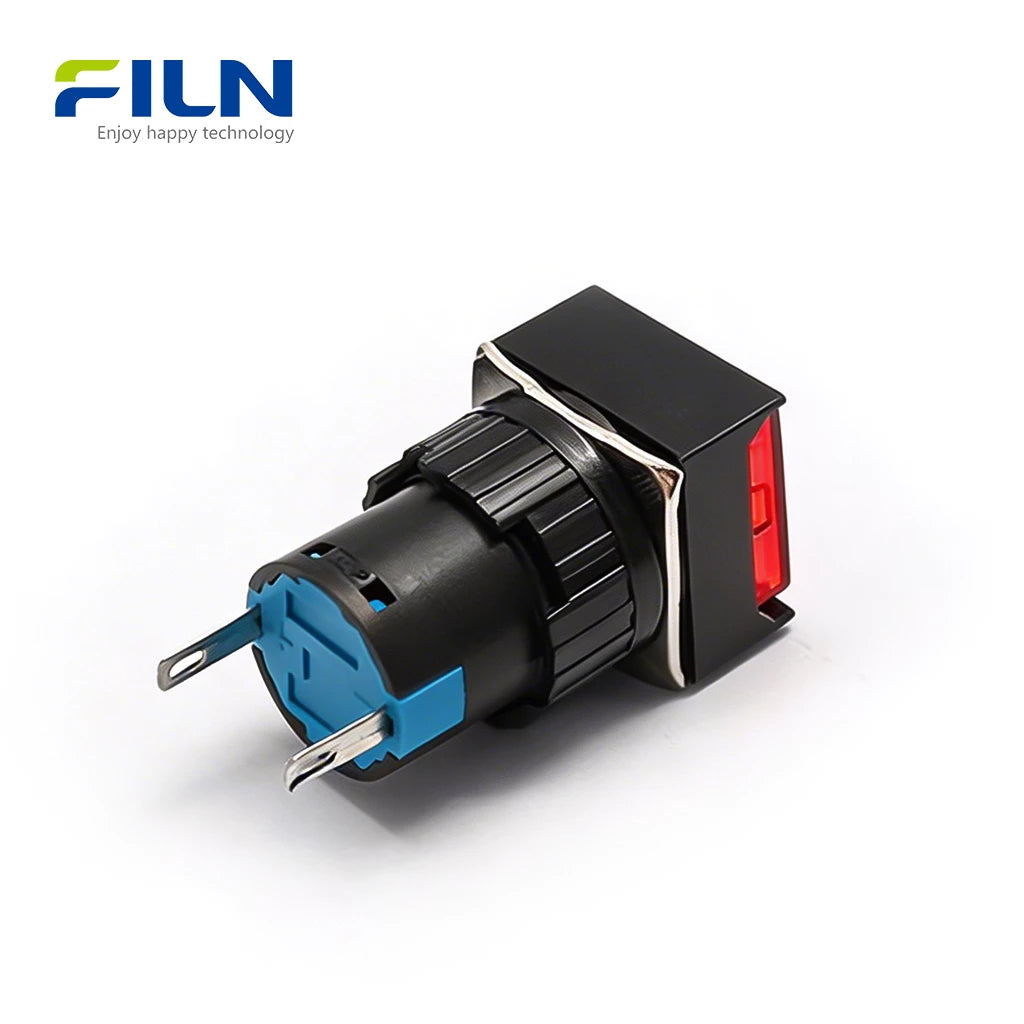

- Compact Square Head: Unique square aesthetic for modern 16mm panel mount led indicator layouts.

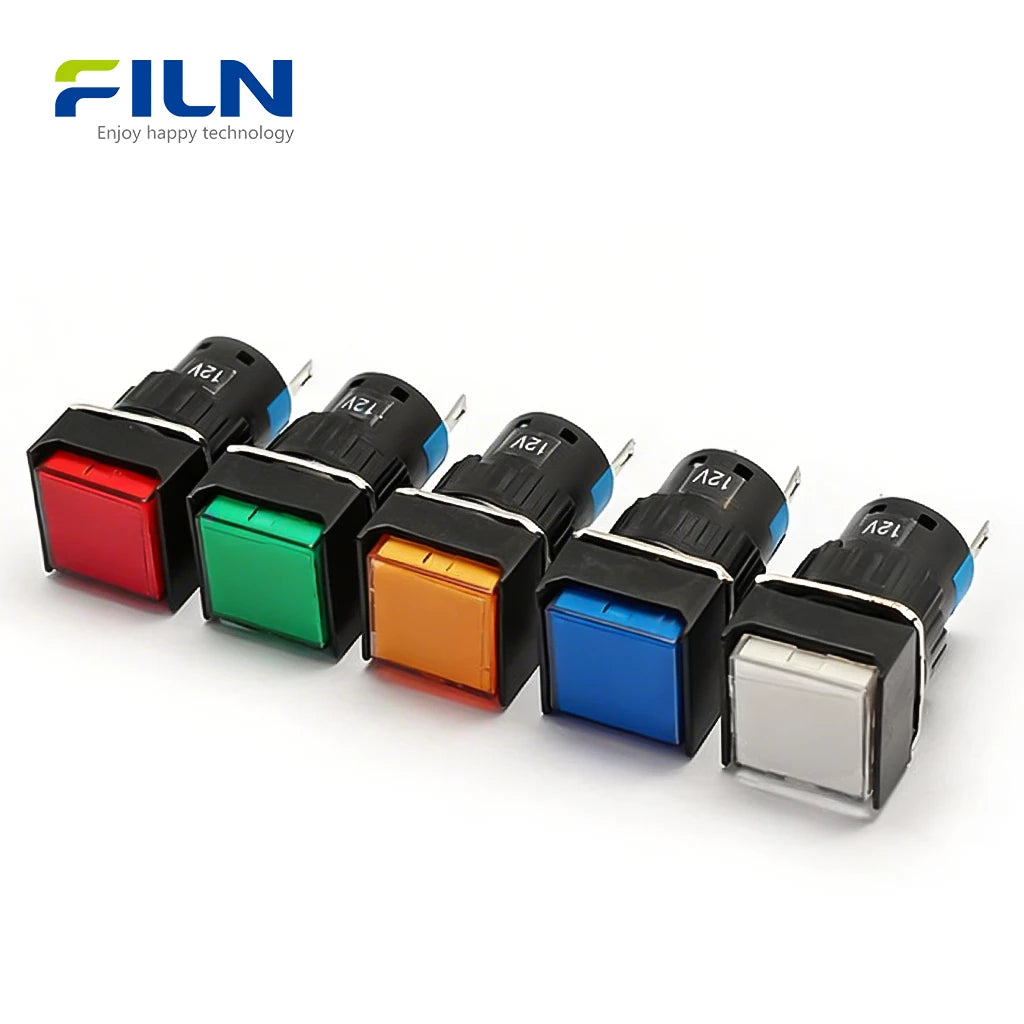

Signal Color Meanings
| Red: Emergency, Danger, or Fault status. |
| Green: Normal Operation or Ready state. |
| Yellow: Warning or Change in status. |
| Blue: Mandatory action or Remote control status. |
| White: Power supply indicator or Neutral status. |
Installation Steps
- Drill a 16mm (0.63") diameter hole on your control panel.
- Insert the square head plastic signal light from the front side of the panel.
- Slide the plastic hexagonal nut from the back and tighten it to fix the housing.
- Connect the electrical wires to the 2.8mm 2pin pin terminals securely.
What Is a 16mm Plastic 220V Pilot Lamp?

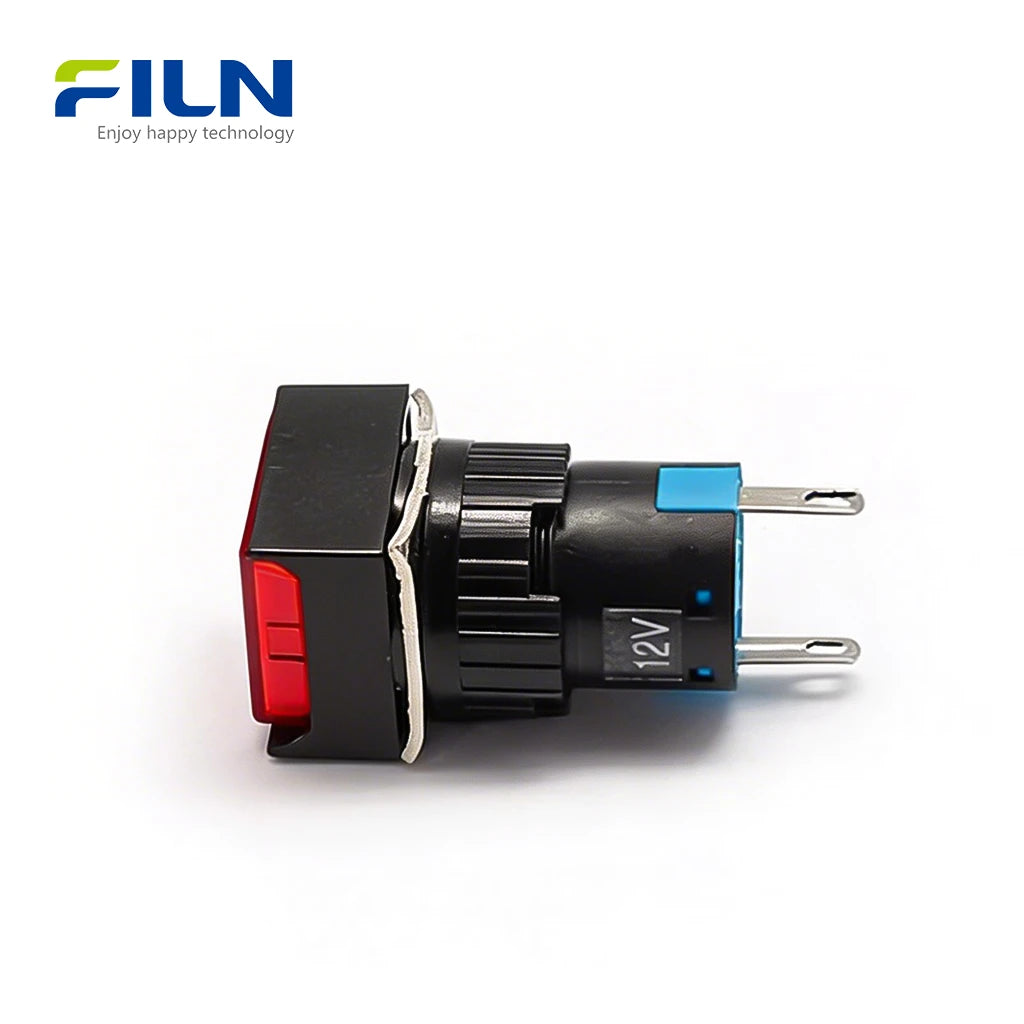

A 16mm plastic 220V pilot lamp is a critical industrial component used to communicate the operational status of machinery. Unlike metal indicators, plastic variants made from PA66 and PC offer lightweight, cost-effective, and excellent insulation properties. In 220V systems, these lamps serve as primary visual alerts for power on, system errors, or process completion. The square-head-plastic-signal-light design provides a distinct visual profile compared to standard round lights, making it easier for operators to distinguish between different zones of a control panel.
FILN Factory Direct Advantage
- Direct Manufacturer: Custom solutions for 16mm-plastic-indicator-light-factory pricing.
- Full Customization: Tailor-made voltage, wire length, and connector types.
- Global Shipping: Fast delivery to over 150 countries.
- Support: Expert technical assistance for B2B industrial projects.
Official Website: www.filn.com
Email Inquiry: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the difference between pin terminals and wire leads for the 220V pilot lamp?
A1: Pin terminals (2.8mm) allow for quick-connect or soldering directly at the terminal, offering a cleaner panel back. Wire leads are pre-soldered, which saves time if you don't have crimping tools.
Q2: Is the 16mm plastic indicator light waterproof?
A2: Yes, the screw-mounted version reaches IP65 waterproof rating at the head, making it suitable for damp industrial environments.
Q3: Can I get a customized voltage for the red signal light?
A3: Absolutely. As a factory, FILN supports 3V, 12V, 24V, 110V, 220V, and even 380V customizations.
Q4: What material is used for the housing?
A4: We use high-grade PA66 Nylon, which is far superior to standard ABS in terms of heat resistance and durability.
Q5: What is the lifespan of the LED used in these lamps?
A5: Our industrial LEDs are rated for over 60,000 hours of continuous operation.
Q6: Are these lamps suitable for CNC machines?
A6: Yes, they are specifically designed for high-vibration environments like CNC machinery and automation lines.
Q7: What certifications does the FILN 16mm pilot light have?
A7: Our products carry UL, CE, RoHS, VDE, and ISO9001 certifications.
Q8: Does FILN offer samples for B2B clients?
A8: Yes, we provide samples for quality testing before bulk industrial orders.
Q9: How do I choose between the colors?
A9: Red is typically for danger/stop, Green for run/safe, and Yellow for warnings. Blue and White are used for custom auxiliary signals.
Q10: Is the square head design different in mounting from round heads?
A10: No, the mounting hole remains a standard 16mm circular cut; only the visible top part is square for aesthetic and grouping purposes.
