Product Overview

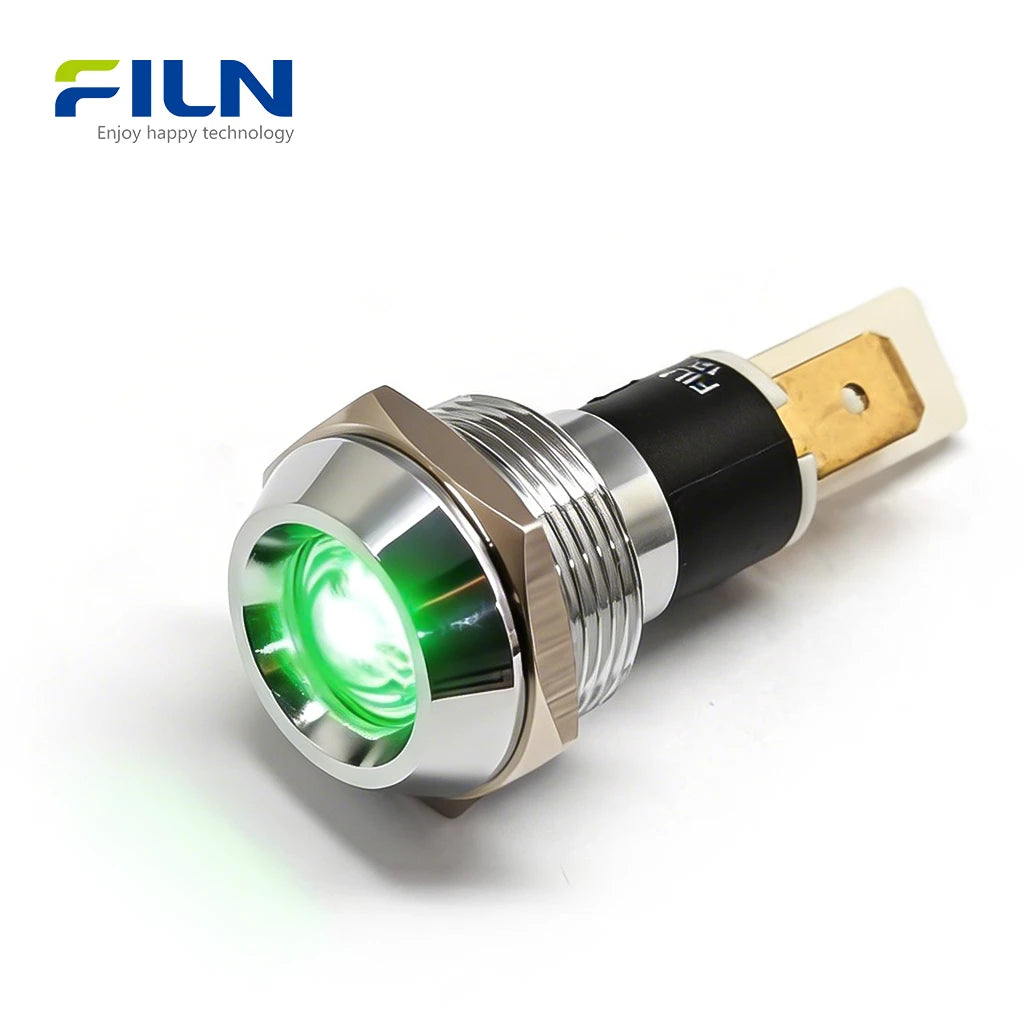

The 120v indicator light (Model: FL1M-19CJ-1) by FILN is a professional-grade industrial signaling solution. Featuring ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, this 19mm metal indicator ensures peak reliability in harsh environments. Designed for industrial control panels, CNC machines, and automation equipment, it provides high-visibility status monitoring. The concave head design offers superior mechanical protection for the lens, while the 2-PIN plug terminal simplifies wiring. Whether you need standard 120V or customized 12-24V/220V configurations, FILN delivers long-lifespan, anti-corrosive signaling components for global power systems and marine electronics.
QUICK SPECIFICATIONS
| Mounting Hole | 19mm / 0.75 inch |
|---|---|
| Voltage | 12-24V, 110-120V, 220V (Customizable) |

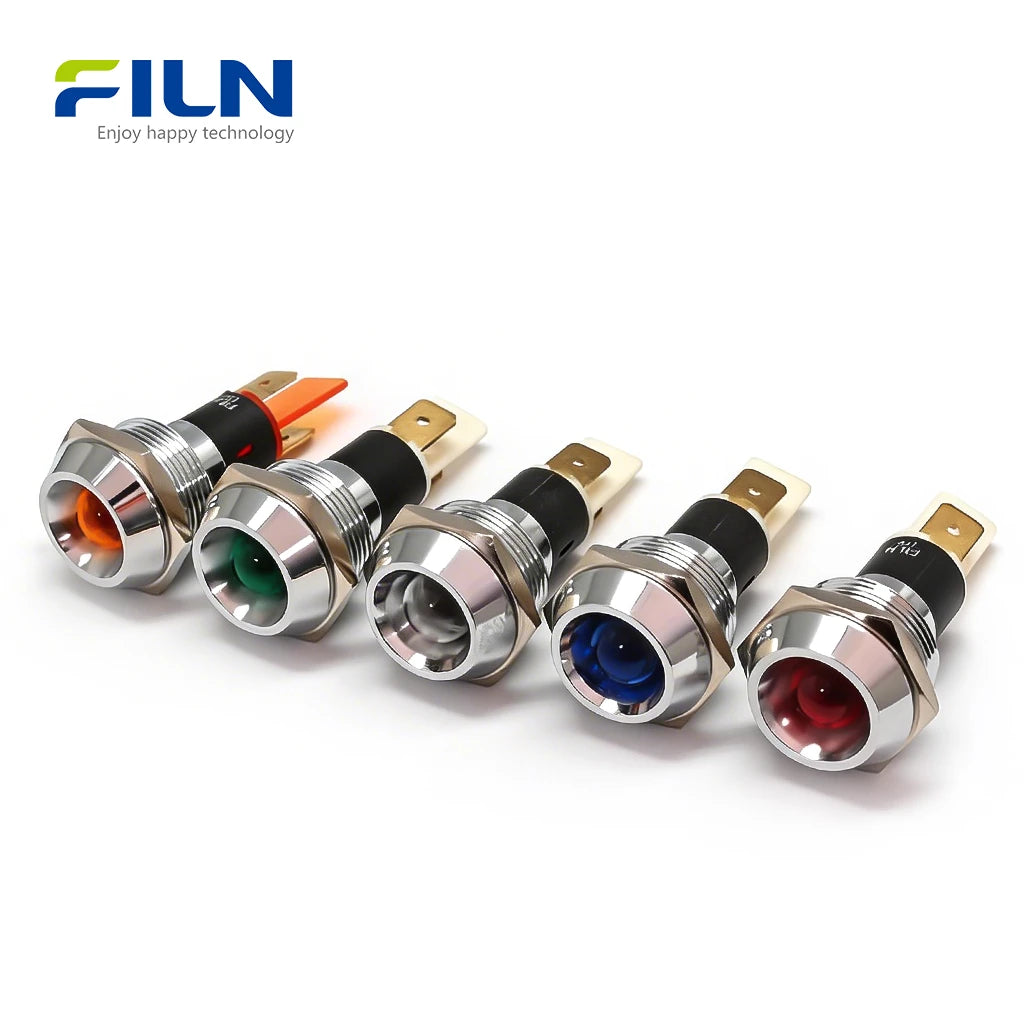

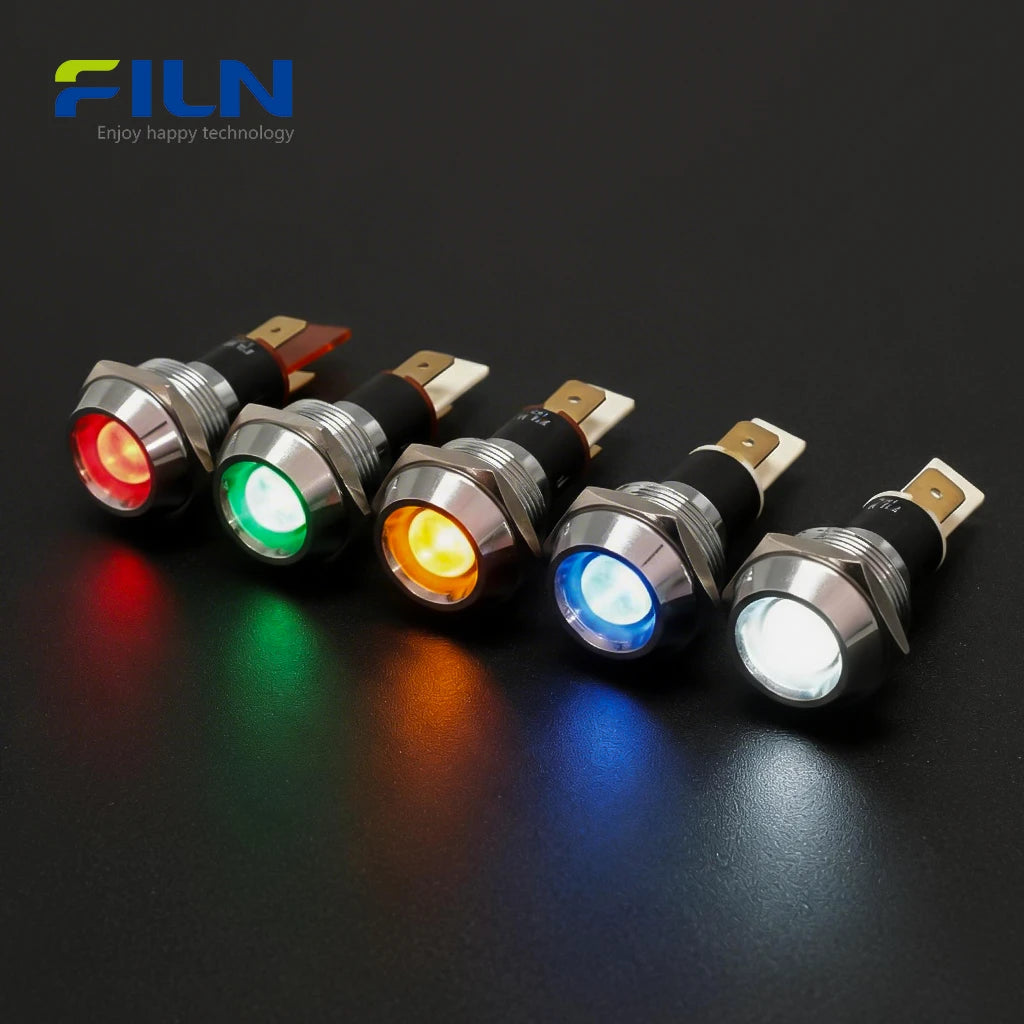

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |

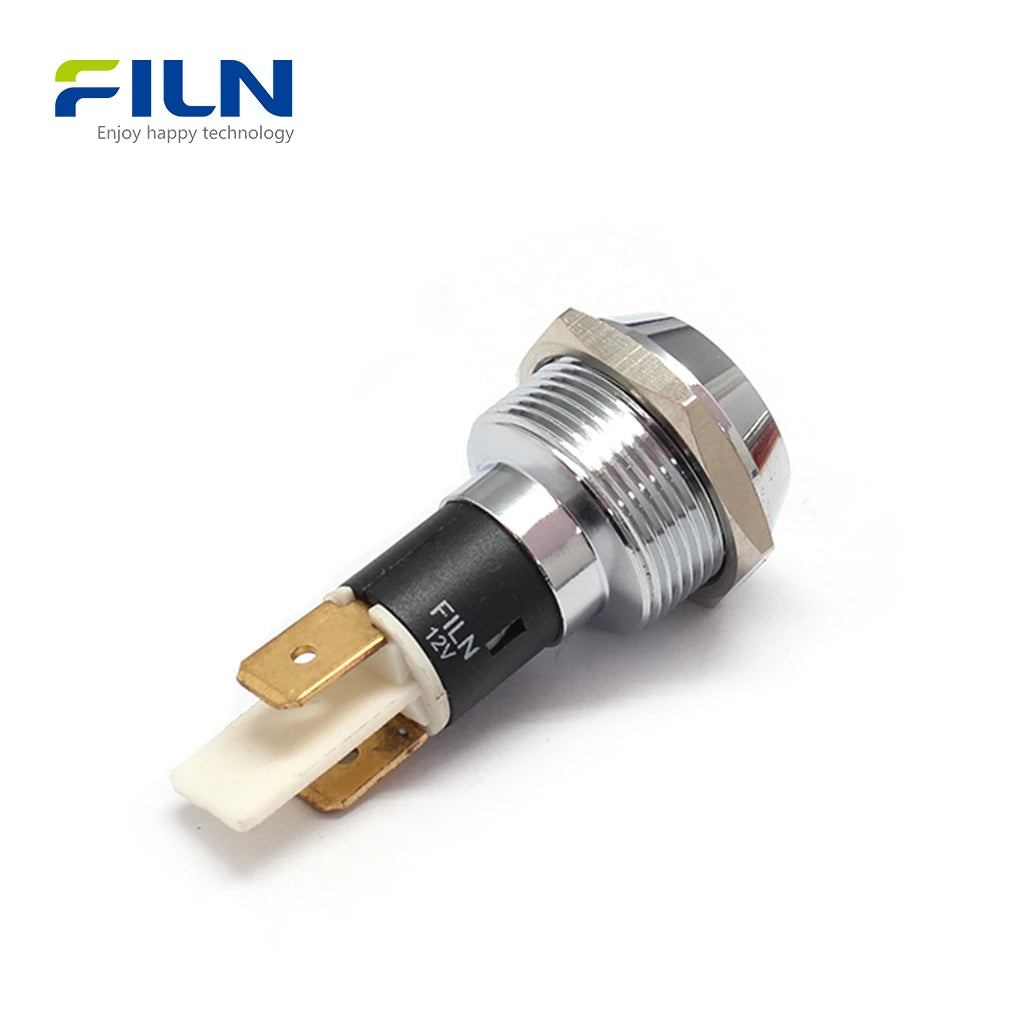

| Wiring Type | 2-PIN Plug (Pin Terminal) |
| Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel/Chrome plated (Silver or Black) |
| Lampshade | PC Polycarbonate | Concave design, High impact resistance |
| Pin | Brass | 2-PIN terminal for quick connection |
| O-ring | Silica Gel | Provides IP67 waterproof seal |
RATED WORKING PARAMETERS
| Rated Voltage | Customized (12V, 24V, 110V, 120V, 220V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
COMPONENT MATERIALS
| Housing | Nickel-plated Brass / Stainless Steel / Black Anodized |
|---|---|
| Lens | High-transparency Polycarbonate (PC) |
| Seal Ring | Waterproof Silicone O-ring |
| Terminal | 2-PIN Brass Tab Terminals |
GENERAL CHARACTERISTICS
| Operating Temperature | -40℃ ～ 80℃ |
|---|---|
| Storage Temperature | -40℃ ～ 85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86～106Kpa |
ELECTRIC PROPERTY
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
DURABILITY CHARACTERISTICS
| Continuous Working Life | Test: 30mA 1000h | ≥50,000 hours |
|---|
RESISTANT PERFORMANCE
| High Temperature | 80℃ for 96h |
|---|---|
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
KEY FEATURES
- LED High Brightness: Uses premium LED chips for clear visibility even in high-ambient light.
- Long Lifespan: Rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Includes a high-grade silicone O-ring for extreme moisture protection.

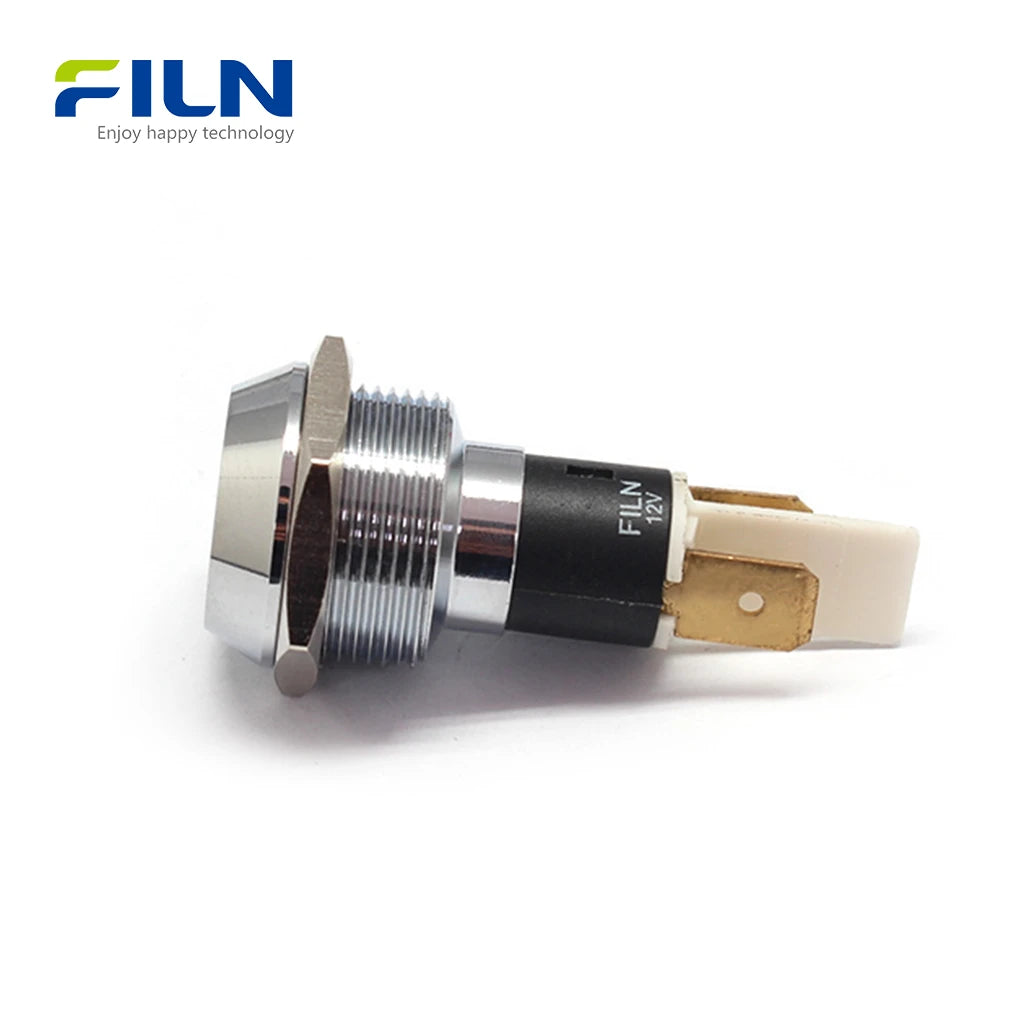

- Metal Concave Design: The recessed head prevents accidental damage and provides a sleek industrial look.
- Industrial Reliability: Robust metal housing (Silver/Black) with high-strength PA66 internals.
APPLICATIONS
- Industrial control panels and distribution boards.
- Precision CNC machines and heavy-duty lathes.
- Automated production line status indicators.
- Marine electronics and shipboard control systems.
- Medical device status monitoring.
INSTALLATION GUIDE
- Drill Panel Hole: Create a 19mm (0.75") hole in your control panel.
- Insert Light: Place the indicator light into the hole from the front side.

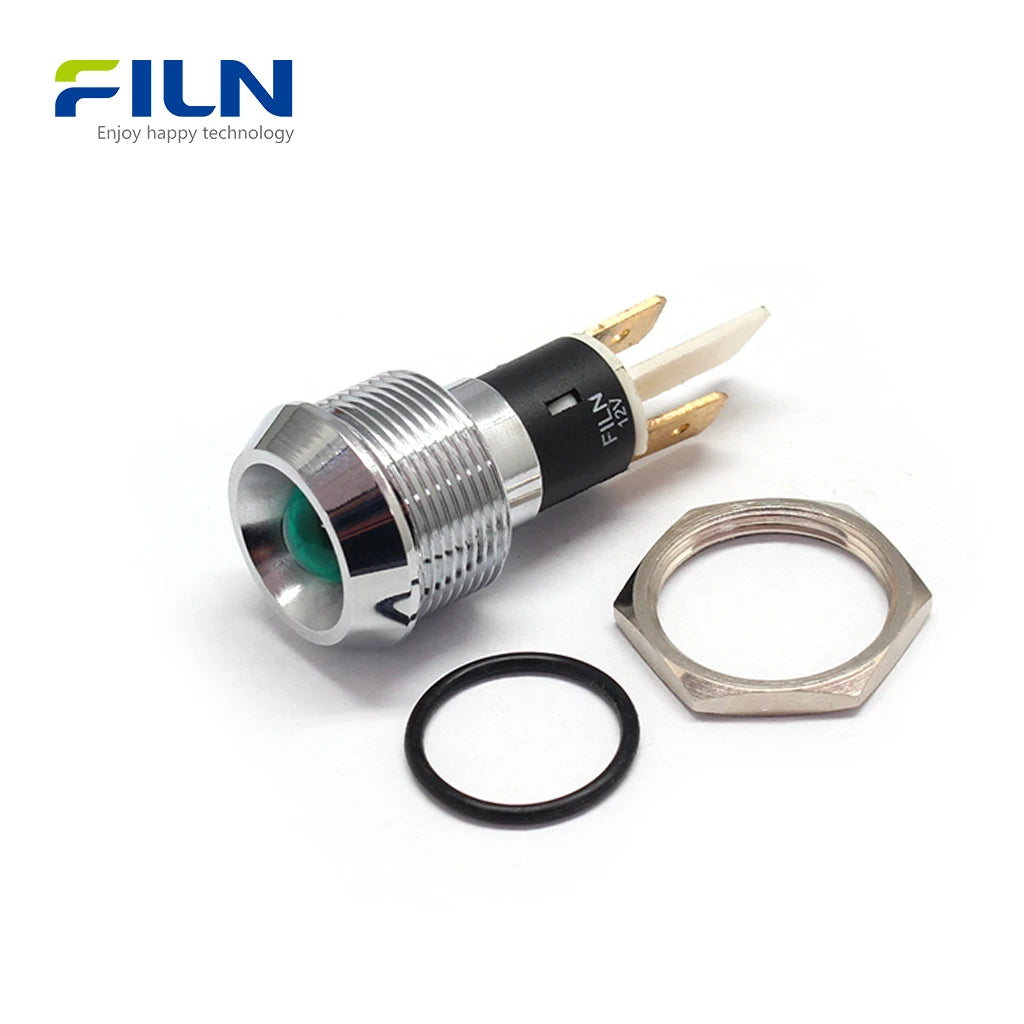

- Secure with Nut: Slide the O-ring and then the M19 nut onto the back of the indicator.
- Tighten: Use a wrench to tighten the nut; the smooth threading ensures a firm grip.
- Connect Terminals: Use 2-PIN plug connectors or soldering to attach your 120V power leads.
WHAT IS AN 120V INDICATOR LIGHT?
An 120v indicator light is a critical visual signaling component used to convey the operational status of electrical circuits. In industrial settings, these lights act as the primary interface between the machine and the operator. The concave head design is particularly favored in heavy industry because the lens is recessed within the metal body, protecting it from flying debris and accidental impacts.
Plug vs. Wire Lead: While wire-lead indicators are pre-soldered, 2-PIN plug (pin) terminals offer superior flexibility. They allow maintenance teams to quickly swap units without cutting wires, using quick-connect female terminals. Combined with an IP67 silicone O-ring and a precision-machined M19 nut, these lights provide a hermetic seal against oil, water, and dust, ensuring safety and compliance in demanding factory environments.
FACTORY DIRECT SUPPLY
As a leading manufacturer, FILN provides specialized customization services for B2B clients:
- ✅ Voltage Customization: 3V to 380V support.
- ✅ Connector Customization: Custom harness and terminals.

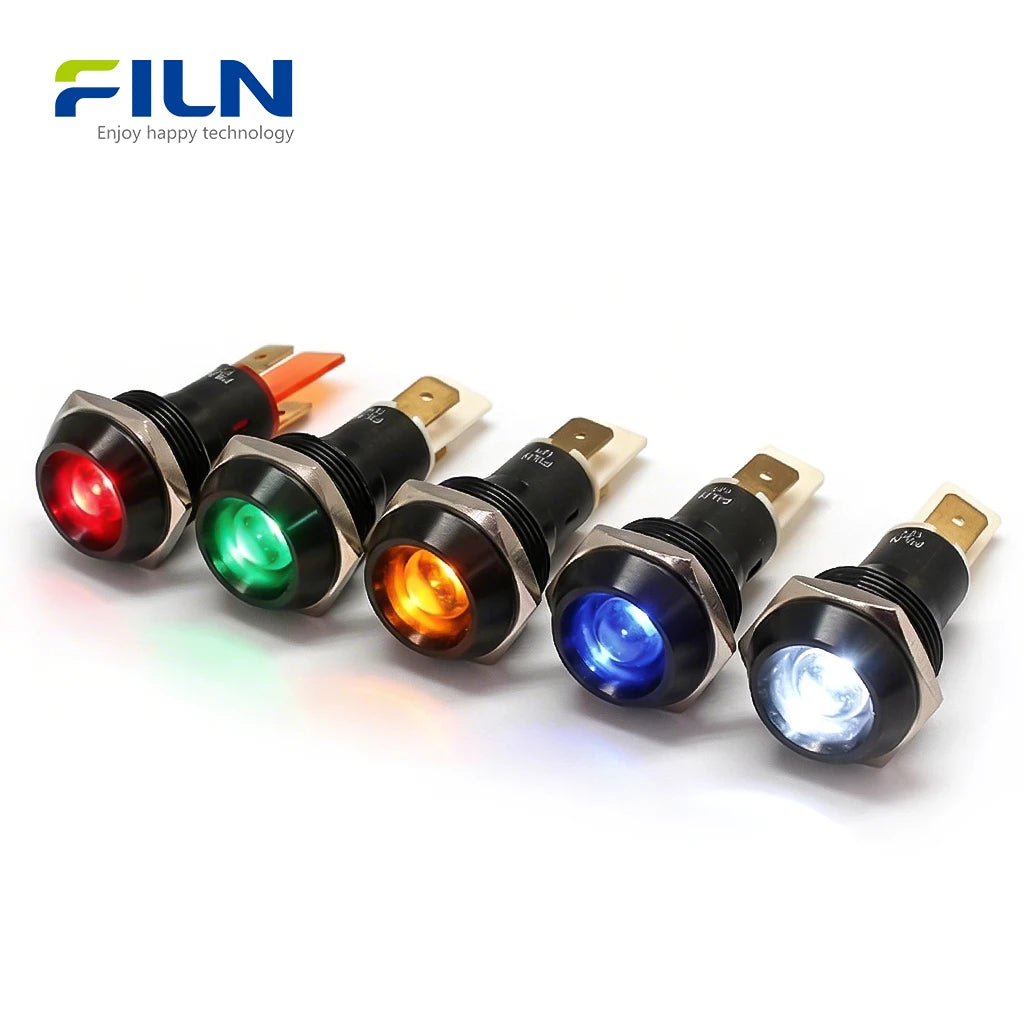

- ✅ Color Options: Chrome, Nickel, or Black Anodized shells.
- ✅ Fast Global Shipping: Direct from our production facility.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
1. What is the benefit of a concave head on a 120v indicator light?
The concave design protects the LED lens from mechanical impact and prevents accidental triggering or damage in high-traffic industrial zones.
2. Can I use this 19mm indicator with 220V power?
Yes, FILN offers customized versions for 220V. Please specify your voltage requirements during the order process.
3. Is the metal shell corrosion-resistant?
Yes, the shell is made of high-quality copper alloy with nickel or chrome plating, or black anodizing for extreme durability.
4. What is the difference between IP65 and IP67?
IP65 protects against water jets, while IP67 allows for temporary immersion, making it ideal for marine or heavy outdoor use.
5. How do 2-PIN plug terminals compare to wire leads?
2-PIN plugs allow for faster installation and easier maintenance using standard crimp connectors.
6. Does FILN provide UL certification for these lights?
Yes, our indicator lights are UL certified, ensuring they meet strict safety standards for the North American market.
7. What is the role of the O-ring and Nut?
The O-ring provides a waterproof seal against the panel, while the M19 nut ensures the light is securely fastened even under vibration.
8. Are different LED colors available?
We offer Red, Green, Yellow, Blue, and White LEDs to suit different signaling needs.
9. Can I request a longer wire lead if I don't want the plug terminal?
Absolutely. We specialize in factory customization including wire length and connector types.
10. What is the typical lifespan of these LED indicators?
Our industrial-grade LEDs are rated for over 50,000 hours of continuous use.
