Product Overview

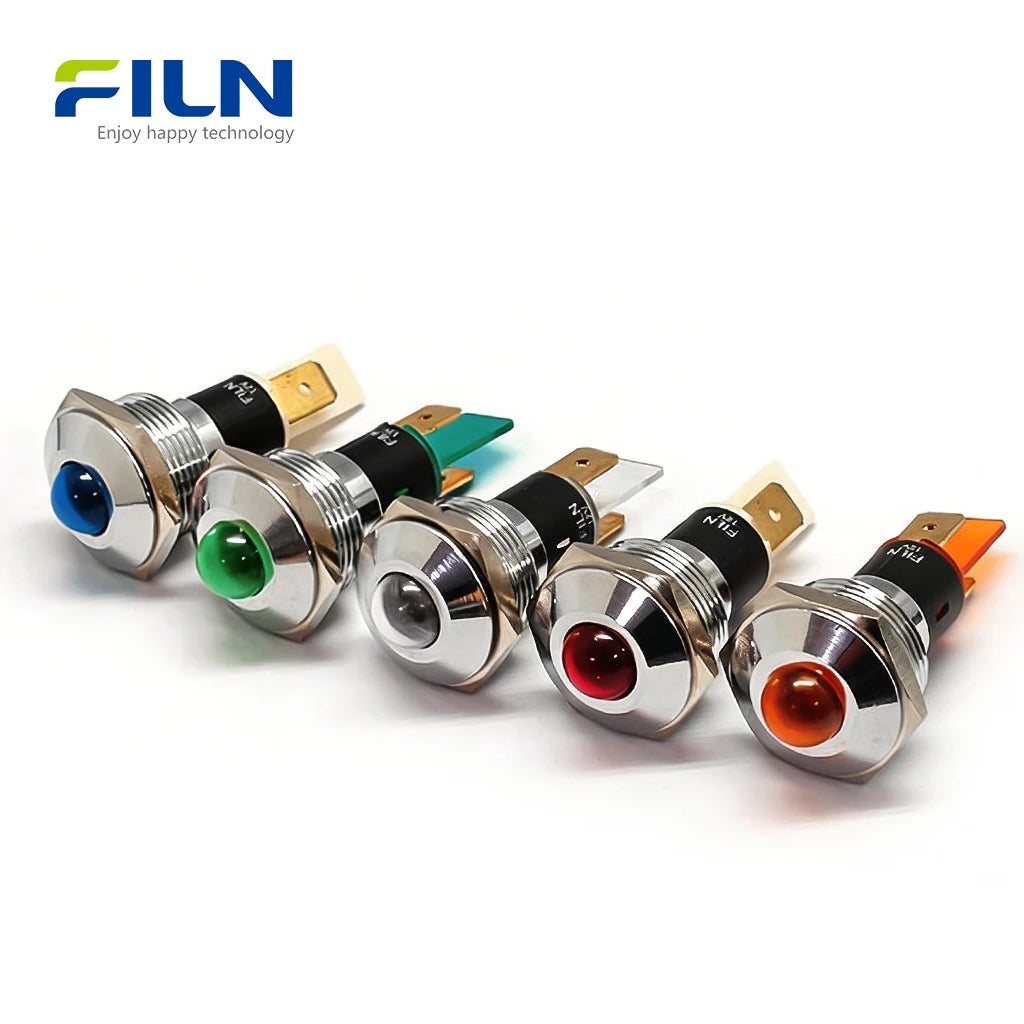

The panel light indicator (Model: FL1M-19SJ-1) by FILN is a premium industrial signaling component designed for high-visibility status monitoring. Boasting ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, this 19mm metal indicator is engineered for durability. The high head (prominent) design ensures the light is visible from extreme side angles, making it ideal for safety-critical industrial control panels, CNC machinery, and automation systems. Featuring a 2-PIN plug terminal for rapid electrical connection and a robust metal shell in silver or black, it supports versatile voltages from 12VDC to 220VAC. Whether for marine or factory use, this FILN indicator delivers long-lifespan performance in any environment.
QUICK SPECIFICATIONS
| Mounting Hole | 19mm / 0.75 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |

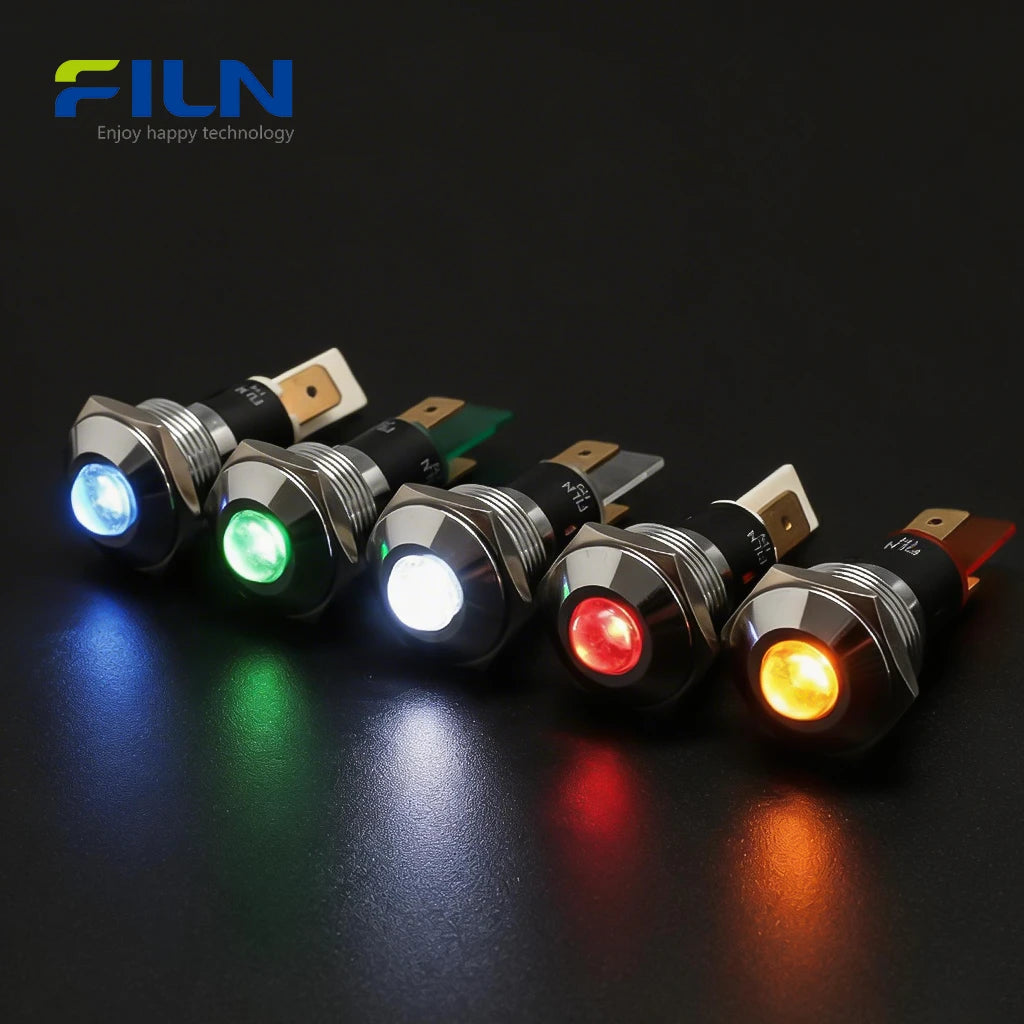

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 2-PIN Plug Terminal |
| Head Type | High Head (Prominent) |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Silver Nickel or Black finish |
| Lamp Holder | PA66 Nylon | High heat resistance |
| Lampshade | PC Polycarbonate | High head for wide-angle viewing |
| Pin | Brass | 2-PIN quick-connect plug |
| O-ring | Silica Gel | 19mm waterproof seal |
| Nut | Copper Alloy | M19 smooth thread for panels |
RATED WORKING PARAMETERS
| Rated Voltage | Customized (12V-220V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
COMPONENT MATERIALS
| Housing | Nickel-plated Brass / Black Anodized |
|---|---|
| Lens | Prominent High PC Lens |
| Seal Ring | Industrial Silicone O-ring |
| Terminal | 2-PIN Brass Tab |
GENERAL CHARACTERISTICS
| Operating Temp | -40℃ ～ 80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86 ～ 106Kpa |
| Waterproof Rating | IP65 / IP67 |
ELECTRIC PROPERTY
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V / 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 60s | No flashover |
DURABILITY CHARACTERISTICS
| Continuous Life | 30mA Load Test | 50,000+ hours |
|---|
RESISTANT PERFORMANCE
| High Temperature | 80℃ / 96h |
|---|---|
| Low Temperature | -40℃ / 96h |
| Moisture Resist | 40℃ 95%RH / 96h |
KEY FEATURES

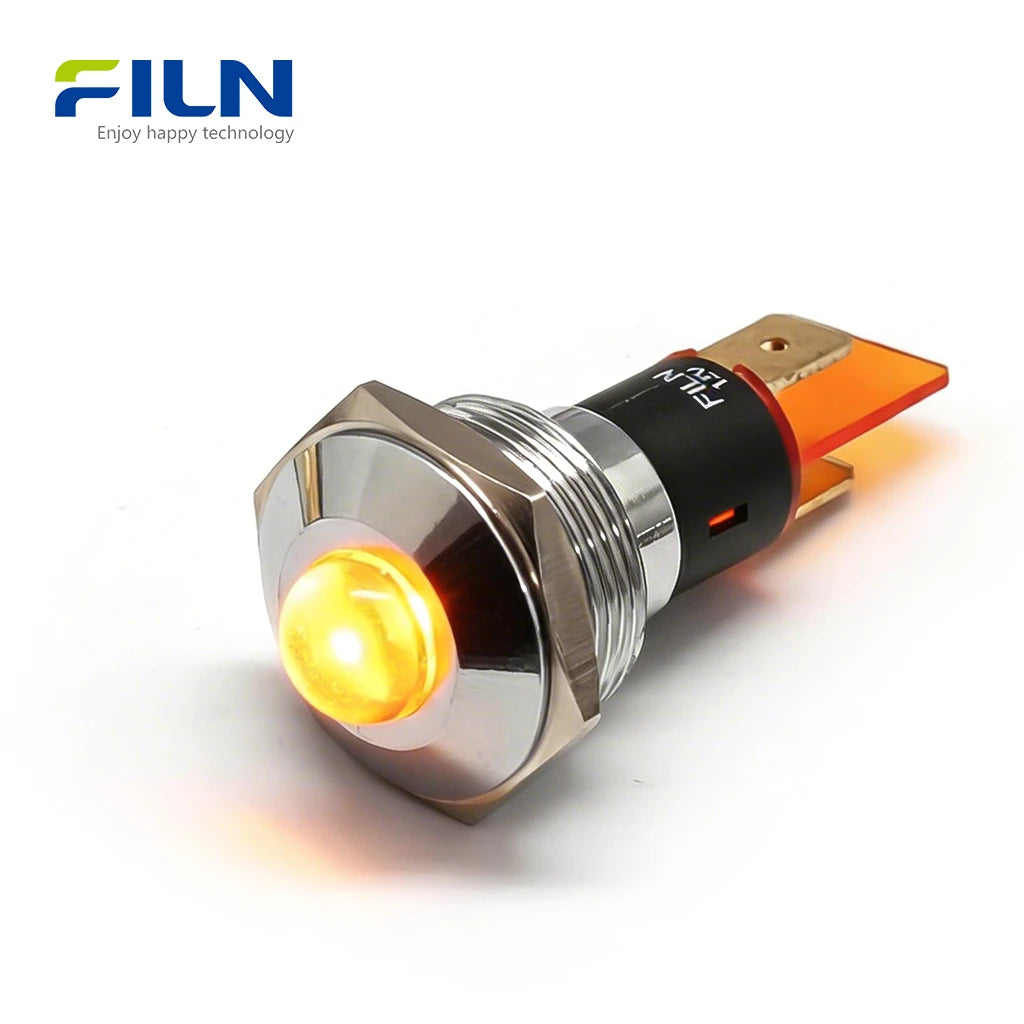

- High Head Visibility: The prominent head design allows operators to see the light status from 180 degrees.

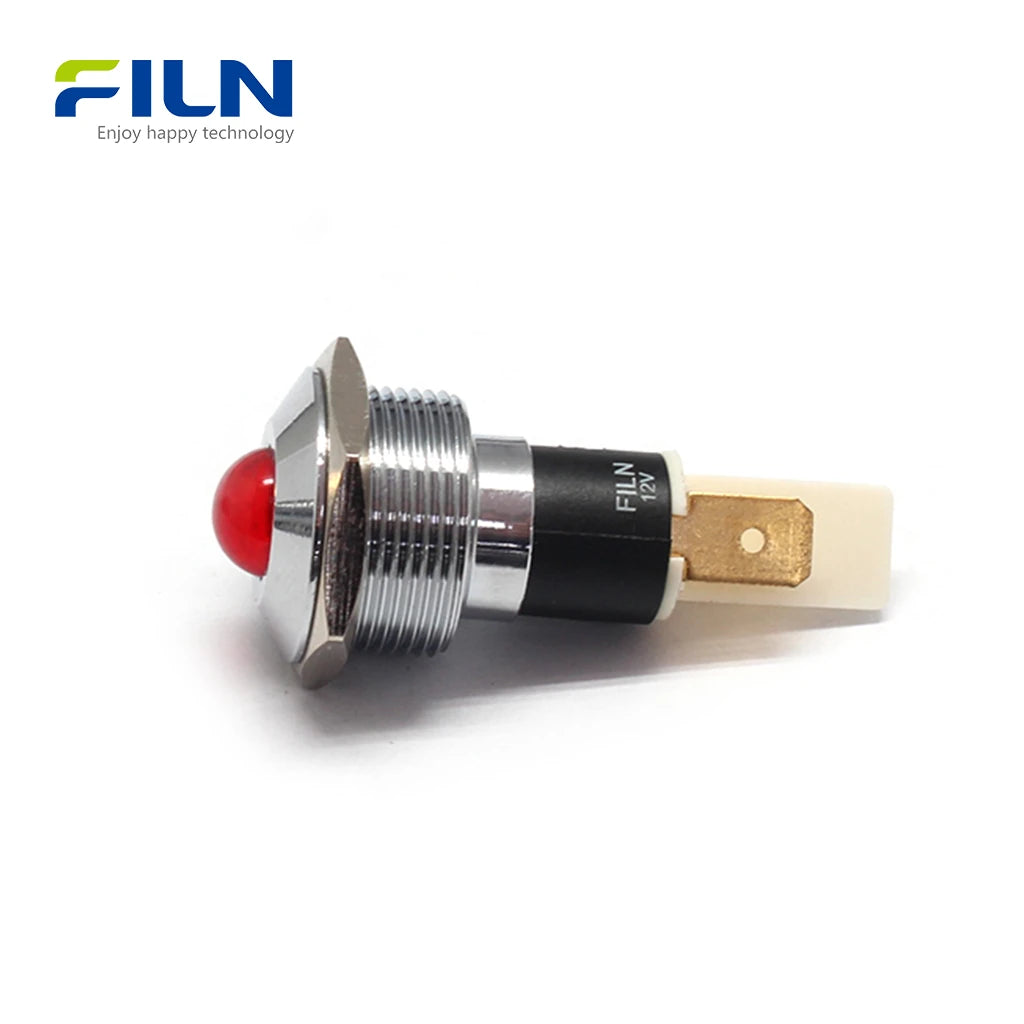

- IP67 Waterproofing: High-grade silicone O-ring provides a complete seal against moisture and dust.

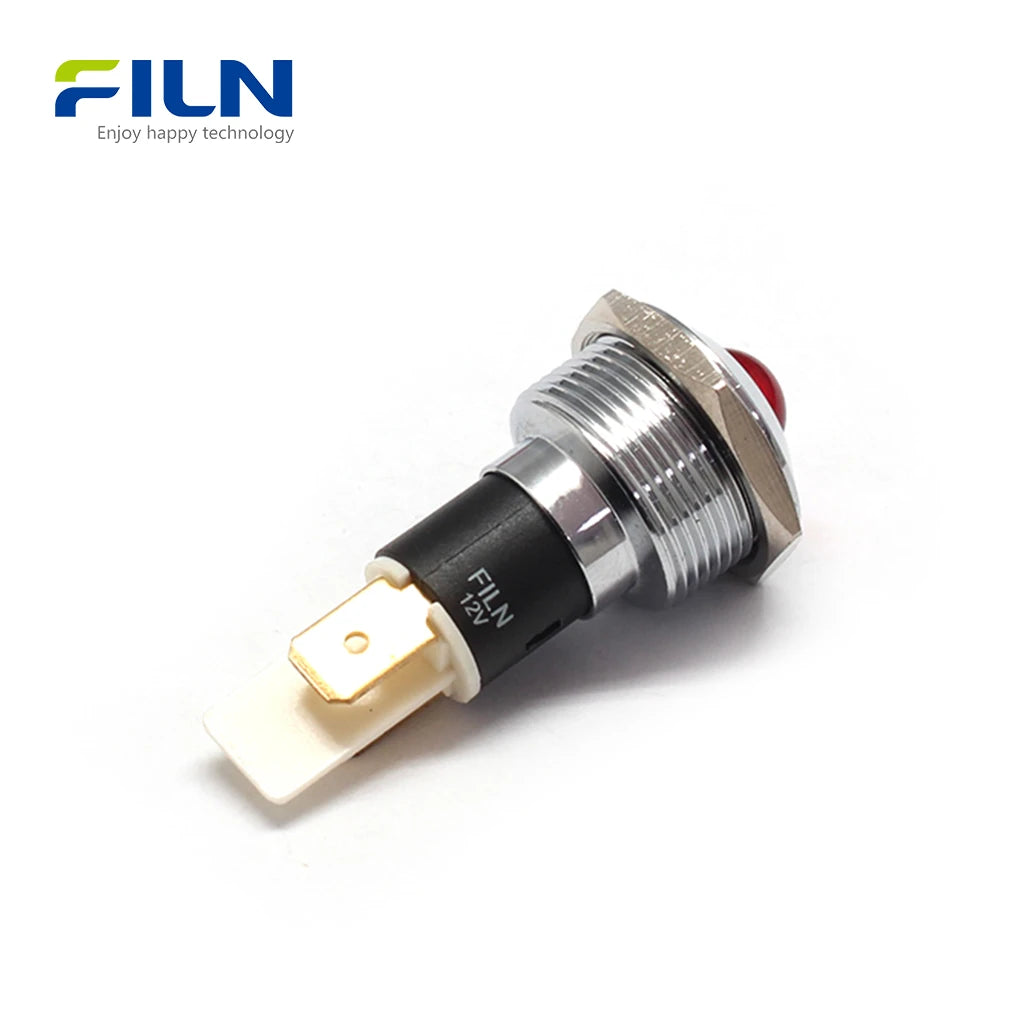

- 2-PIN Plug Design: Facilitates ultra-fast wiring and tool-less replacement compared to soldered types.

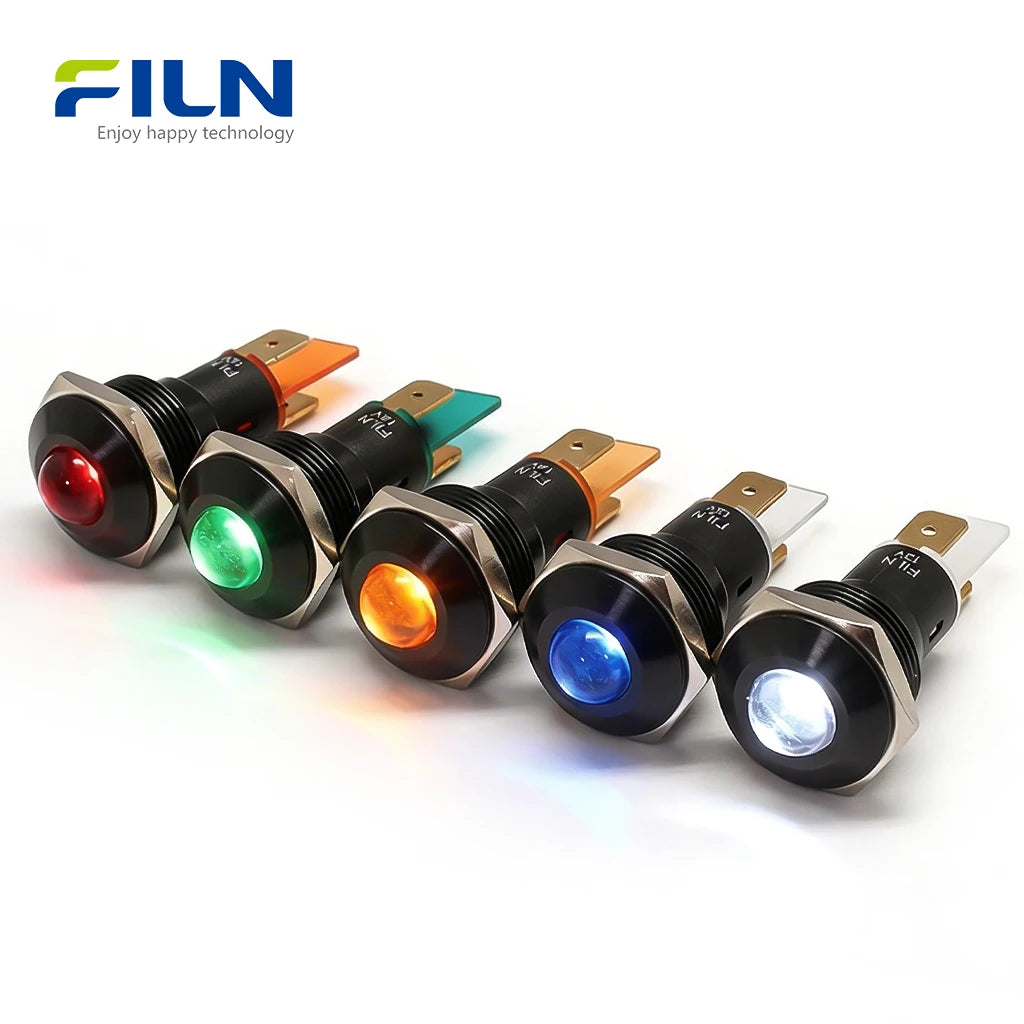

- Metal Housing: Available in anti-corrosive silver nickel or matte black to match any control panel.
- Long Operation Life: Rated for over 50,000 hours of maintenance-free service.
APPLICATIONS
- Industrial control system panels.
- Automation and robotics status monitoring.
- CNC heavy machinery indicator lamps.
- High-voltage electrical cabinets.
- Marine and naval dashboard electronics.
- Emergency medical device signaling.
INSTALLATION GUIDE
- Drilling: Create a 19mm hole in the mounting surface.
- Placement: Slide the indicator light through the hole from the top of the panel.

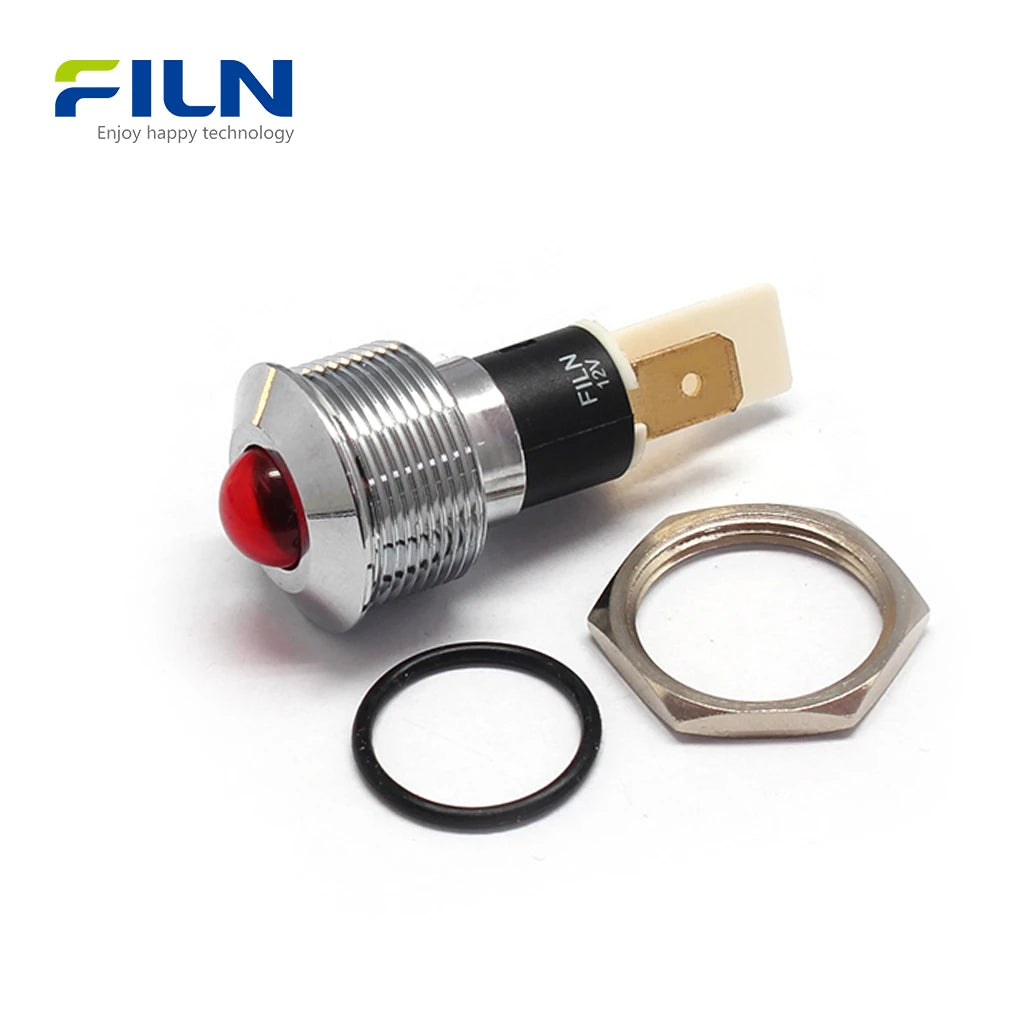

- Sealing: Ensure the included 19mm silicone O-ring is seated against the panel for IP67 protection.
- Tightening: Use the M19 nut to secure the device from behind; the high-quality thread ensures smooth torque.
- Connection: Plug in your 2-PIN connectors to complete the circuit.
WHAT IS A PANEL LIGHT INDICATOR?
A panel light indicator is a visual signal device that communicates a machine's "Health" or "Alert" status to human operators. The high head design is specifically utilized in large-scale factory floors where visibility from a distance or a side angle is necessary for safety.
Plug vs. Wired: Unlike traditional pre-wired lamps, the 2-PIN plug terminal allows for modular electrical design. This makes maintenance significantly easier; if a panel needs upgrading, the indicators can be unplugged without cutting wires. Furthermore, the M19 copper nut and large silicone O-ring work in tandem to provide vibration resistance and an airtight seal, ensuring the electronics inside your panel remain dry and functional.
FACTORY DIRECT SUPPLY
FILN is a specialized manufacturer providing high-performance signaling solutions with global support:
- ✅ Voltage Customization: 12V, 24V, 110V, 220V AC/DC.
- ✅ Fast Prototyping: Quick samples for industrial projects.
- ✅ Shell Finishing: Silver, Black, or Chrome options.
- ✅ Global Shipping: Direct supply for B2B procurement.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
1. What makes a "High Head" panel light indicator better than flat types?
The prominent head allows for side-angle visibility, ensuring operators can see the status from anywhere on the factory floor.
2. Can I use these indicators for outdoor marine applications?
Yes, with an IP67 rating and a high-grade silicone O-ring, they are resistant to salt spray and moisture.
3. Are the 2-PIN plug terminals compatible with standard connectors?
Yes, they are designed for quick-connect female terminals, allowing for fast, solder-less installation.
4. Does FILN support custom voltages like 48V or 380V?
As a factory, we can customize the internal resistors to support any voltage your project requires.
5. Is the black housing scratch-resistant?
Our black shells use professional-grade anodizing or chrome plating, offering excellent durability against wear and chemicals.
6. What is the mounting diameter for this signal lamp?
The required mounting hole is exactly 19mm (approximately 0.75 inches).
7. Do you provide UL or CE documentation?
Yes, FILN products are fully certified with UL, CE, VDE, and RoHS; documents are available upon request.
8. What colors are available for the LED?
We offer Red, Green, Yellow, Blue, and White as standard options.
9. How does the waterproof O-ring function?
It compresses between the metal head and the panel, creating a barrier that prevents water and oil from entering the enclosure.
10. Can I order bulk samples for a new machine design?
Yes, please contact us at inquiry@cnylin.com.cn for factory-direct bulk pricing and samples.
