Product Overview

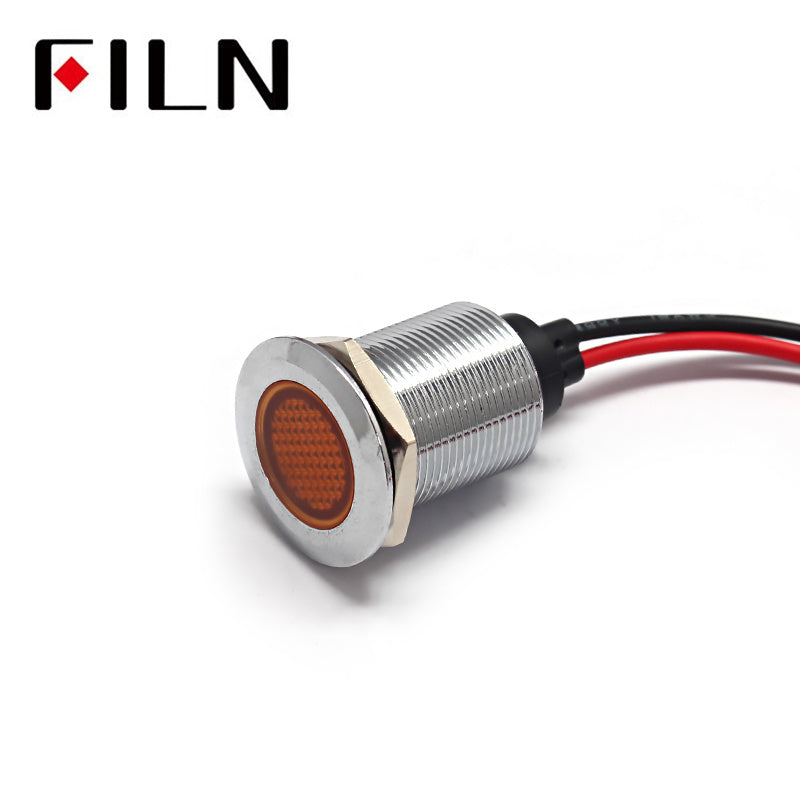

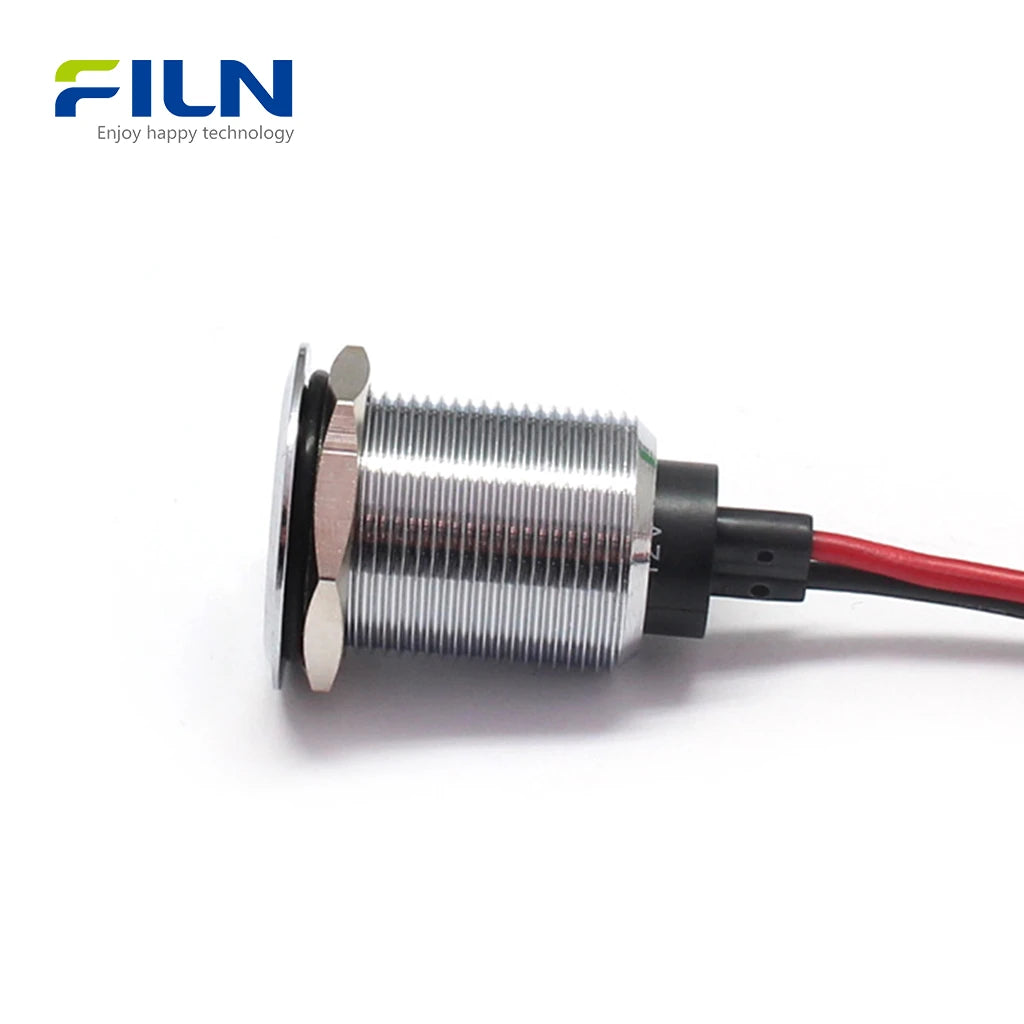

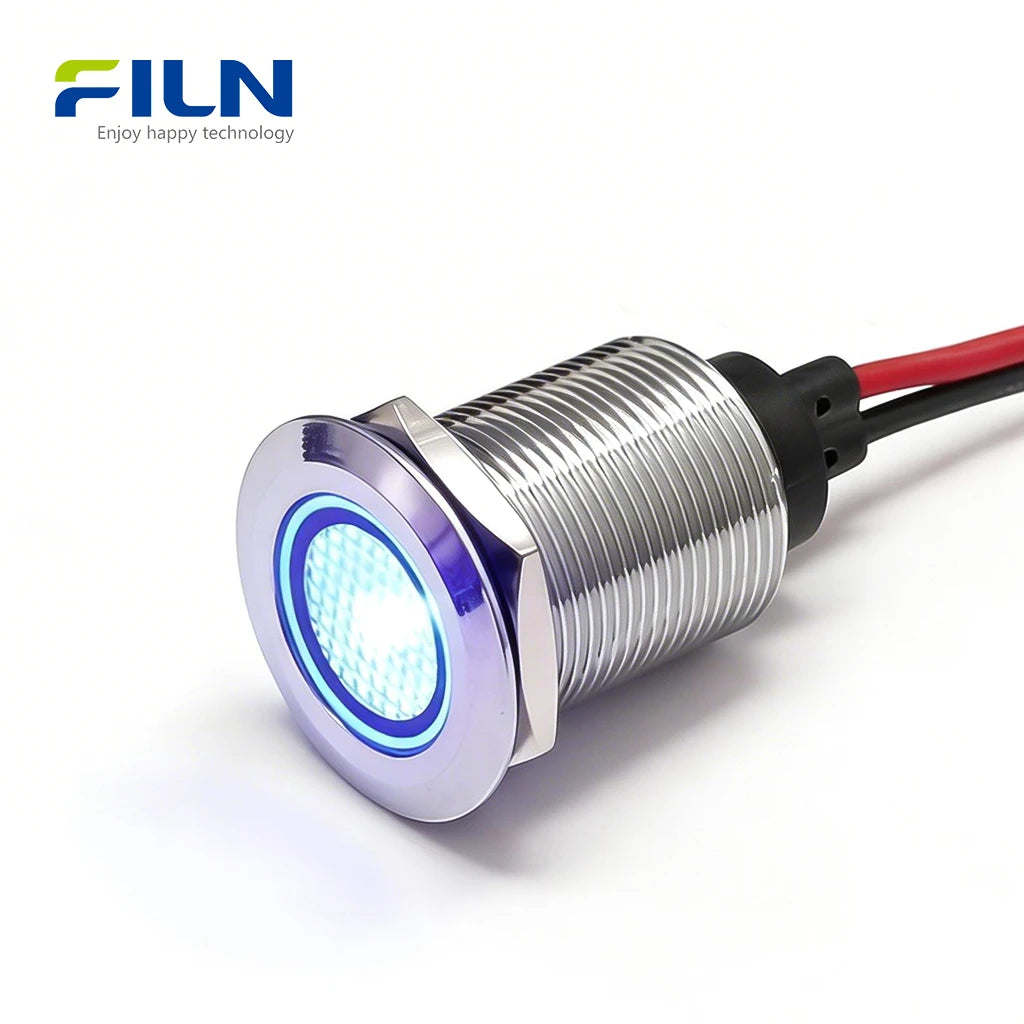

The panel mount led (Model: FL1M-19FW-2) by FILN is a professional-grade signaling solution engineered for diverse industrial and commercial electronics. Fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this 19mm metal indicator is built to last. The flat head design ensures a flush, low-profile finish that is both aesthetically modern and highly resistant to accidental impact. Unlike terminal-based models, this pre-wired version features 15cm leads, offering a secure, vibration-proof connection ideal for signal transmission in both large-scale machinery and small appliances. With support for 12VDC to 220VAC and available in silver or black metal shells, FILN provides a reliable, easy-to-install status indicator for any global application.
QUICK SPECIFICATIONS
| Mounting Hole | 19mm / 0.75 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 15cm Pre-wired Leads |

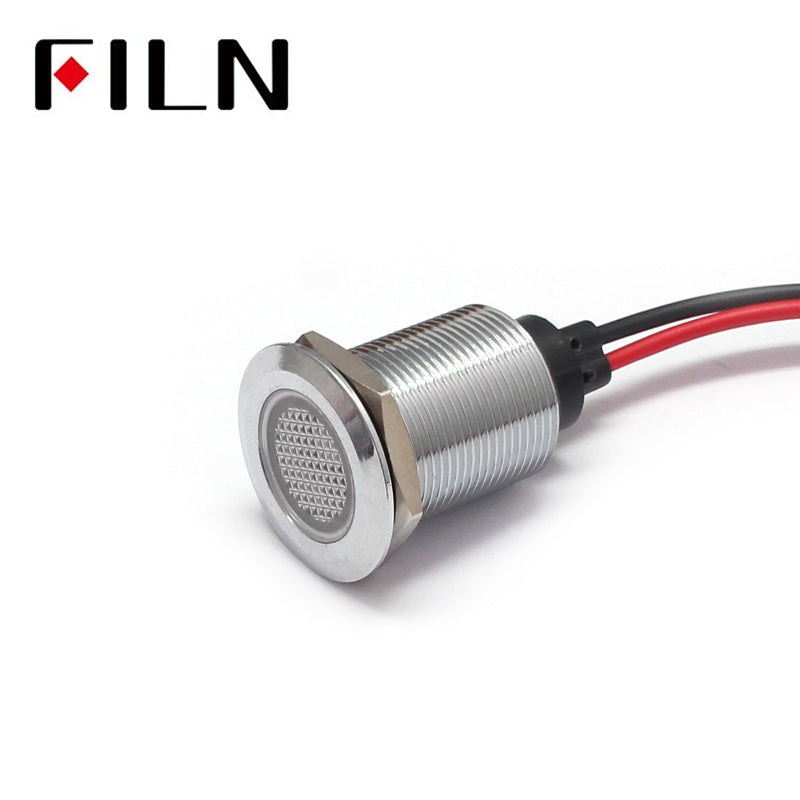

| Head Type | Flat Round Head |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel-plated (Silver) or Black Anodized |
| Lamp Holder | PA66 Nylon | High heat resistance & durability |
| Lampshade | PC Polycarbonate | Flat design for wide-angle diffusion |
| Wires | Standard PVC | 15cm length for direct connection |
| O-ring | Silicone | 19mm waterproof protection |
| Nut | Copper Alloy | M19 smooth thread for secure mounting |
RATED WORKING PARAMETERS
| Rated Voltage | 12V-220V (AC/DC) |
|---|---|
| Rated Current | ≤20mA |
| Power Frequency | 50～60Hz |
PRODUCT FEATURES
- Flat Head Advantage: The flush design provides a sleek appearance and prevents damage from accidental contact or cleaning cloths.

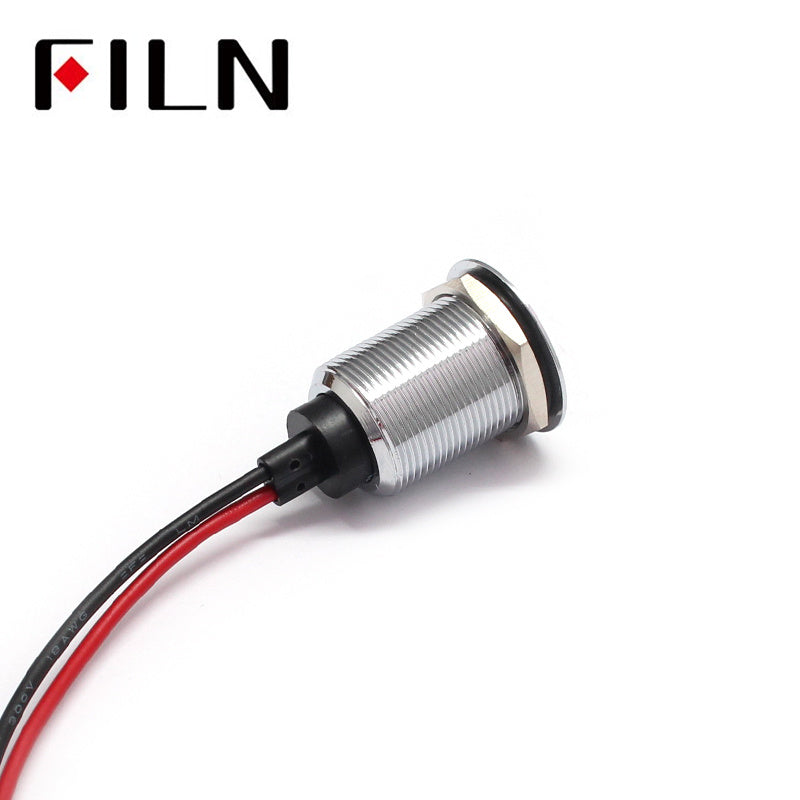

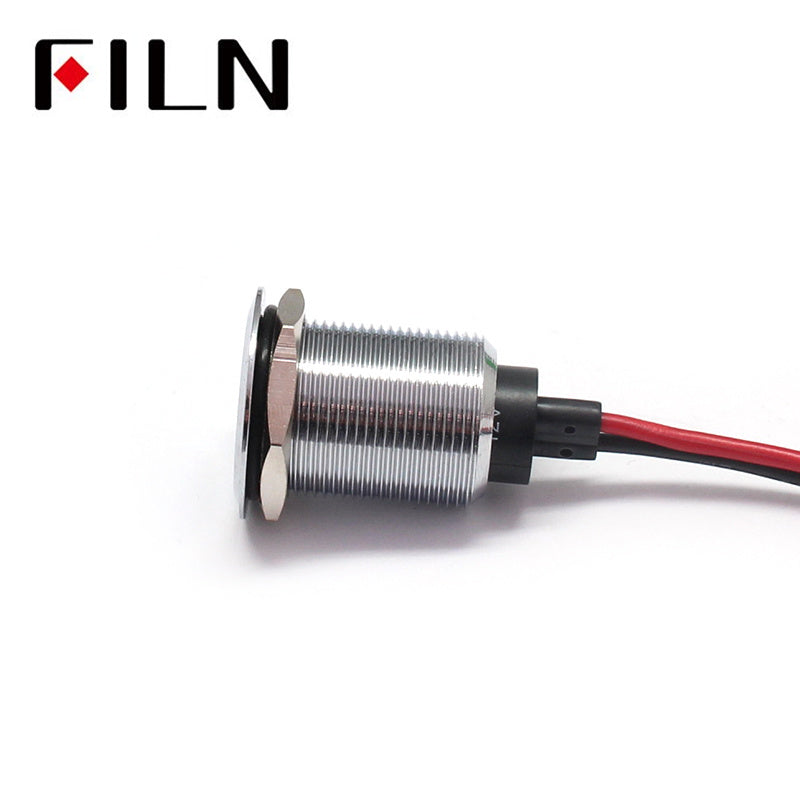

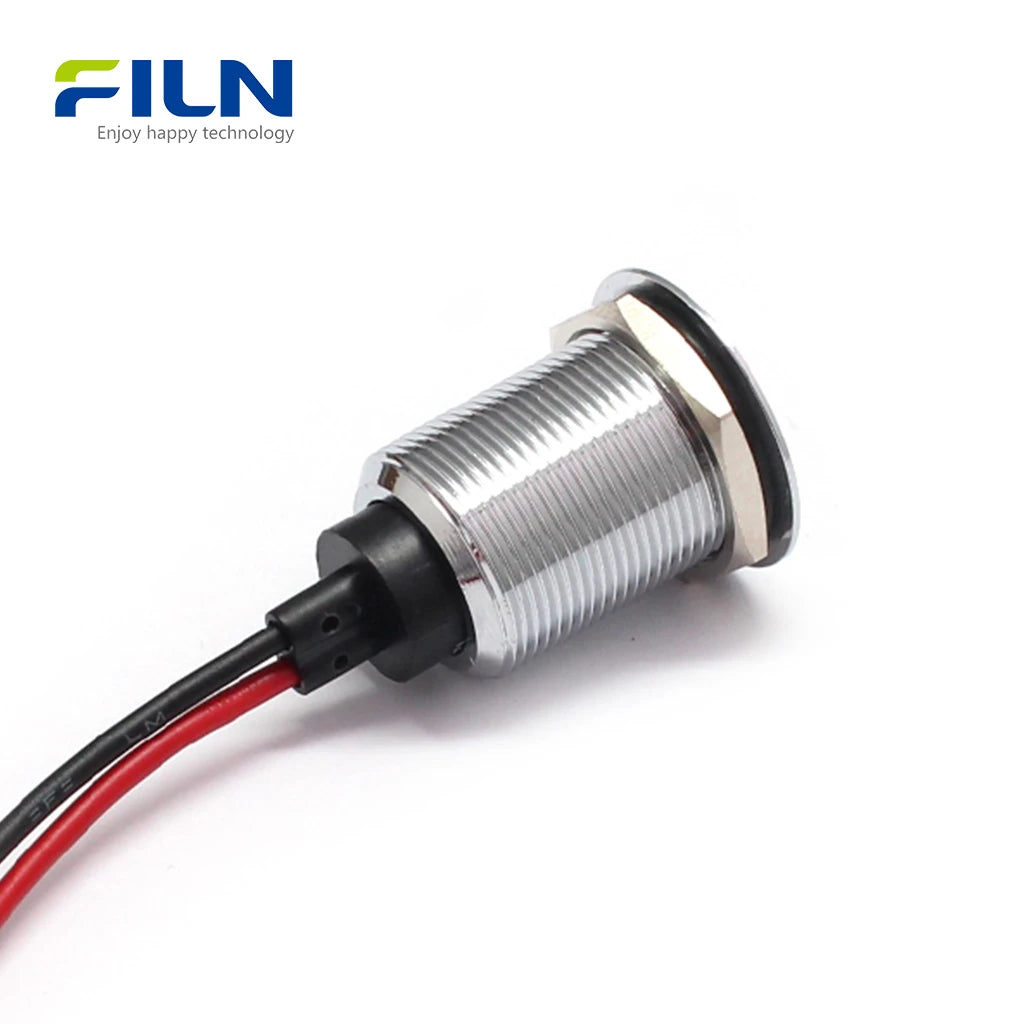

- 15cm Wire Lead: Pre-wired at the factory for convenience, reducing assembly labor and ensuring a vibration-resistant connection.

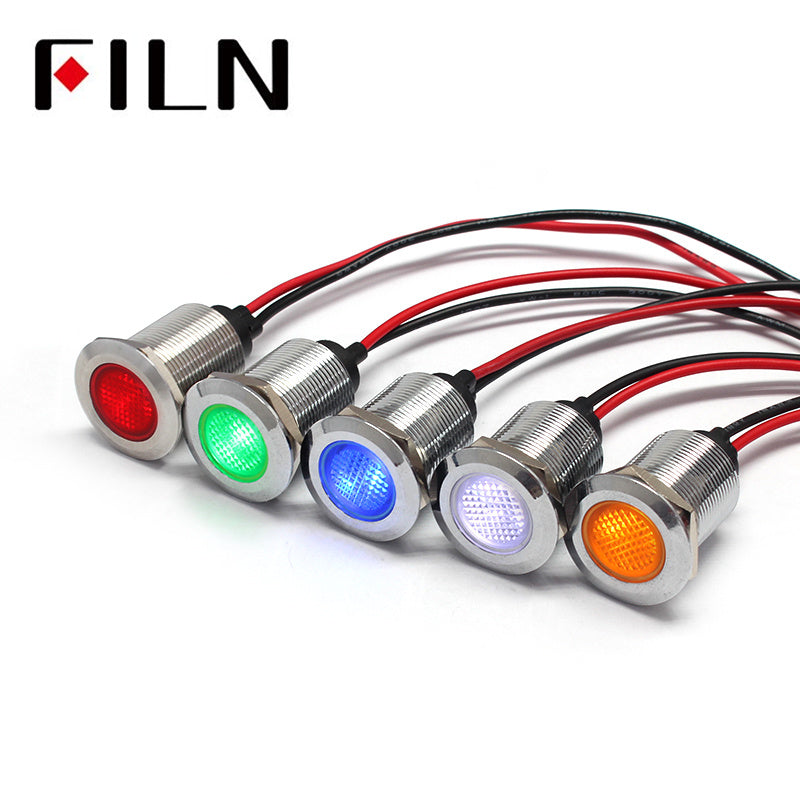

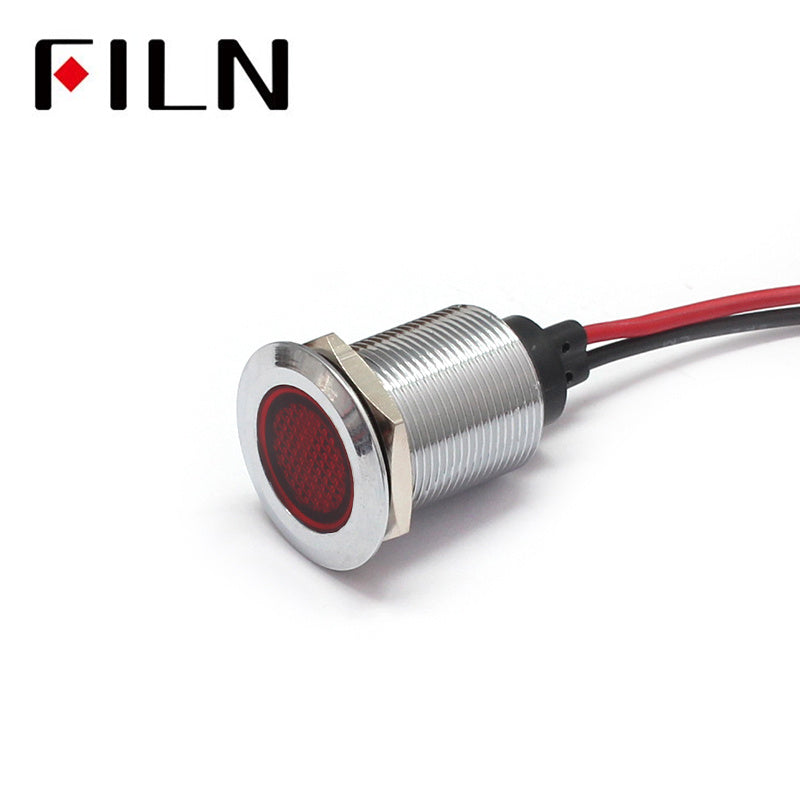

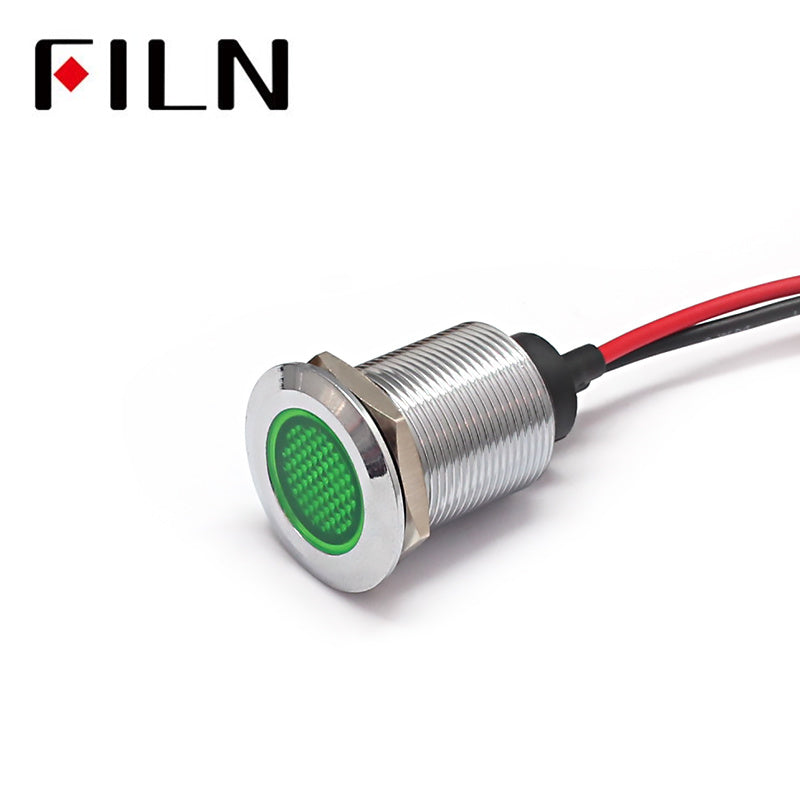

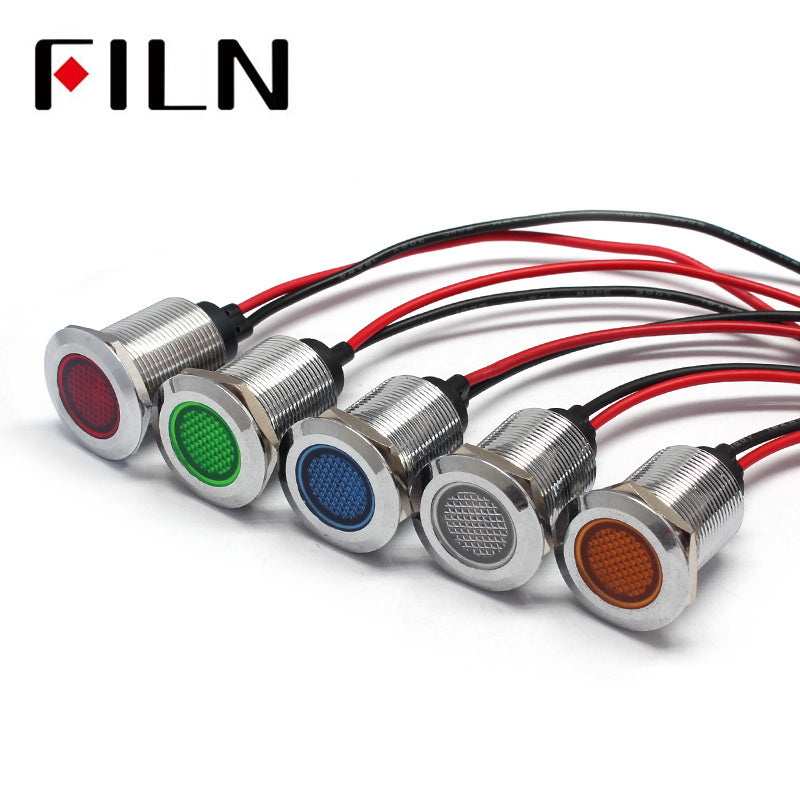

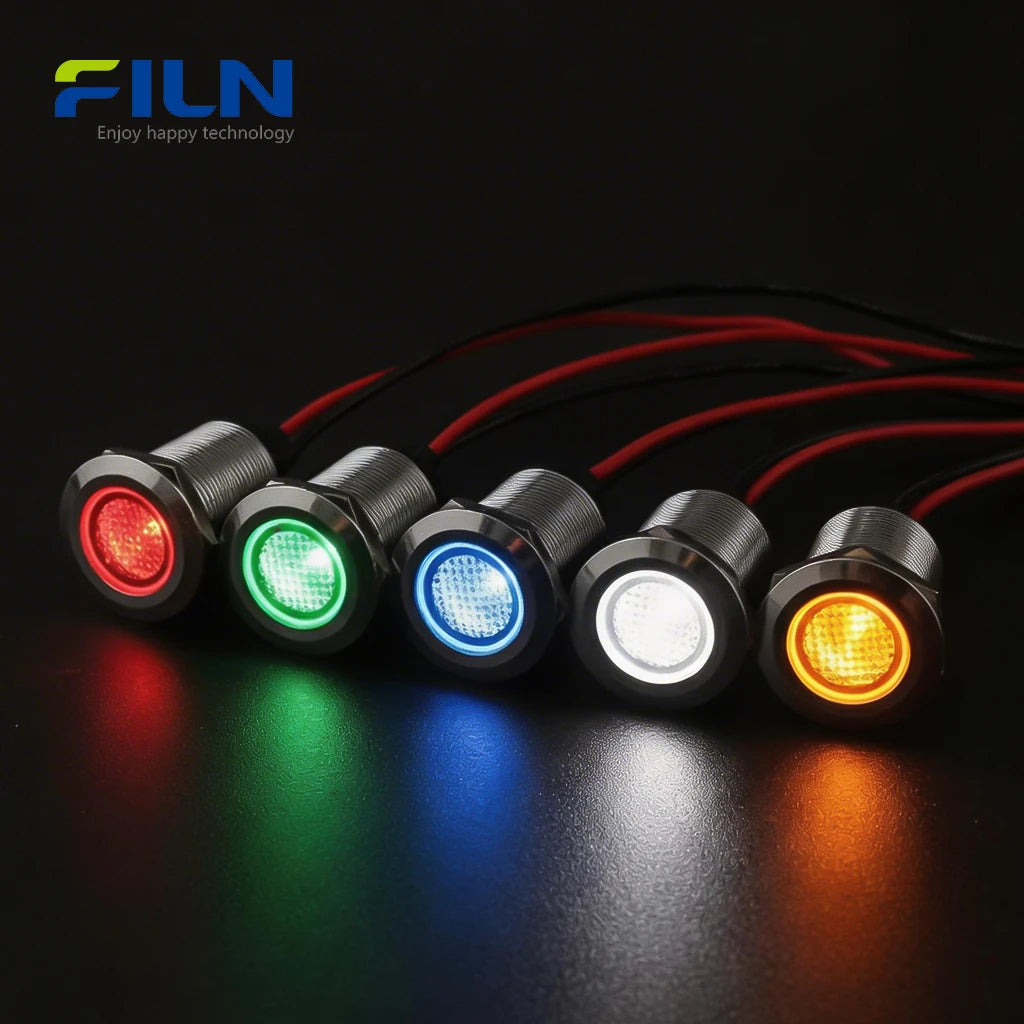

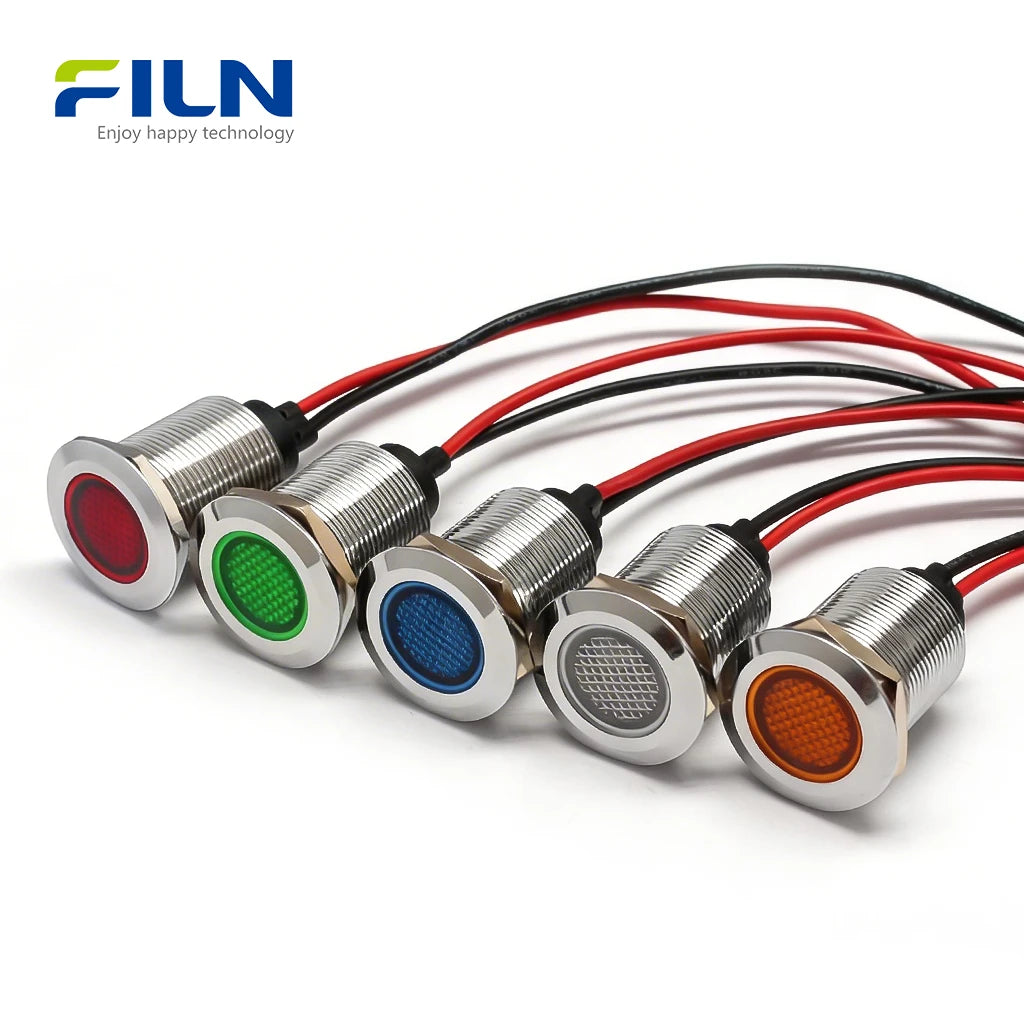

- Vibrant LED Colors: High-brightness chips available in Red, Green, Yellow, Blue, and White for clear status signaling.

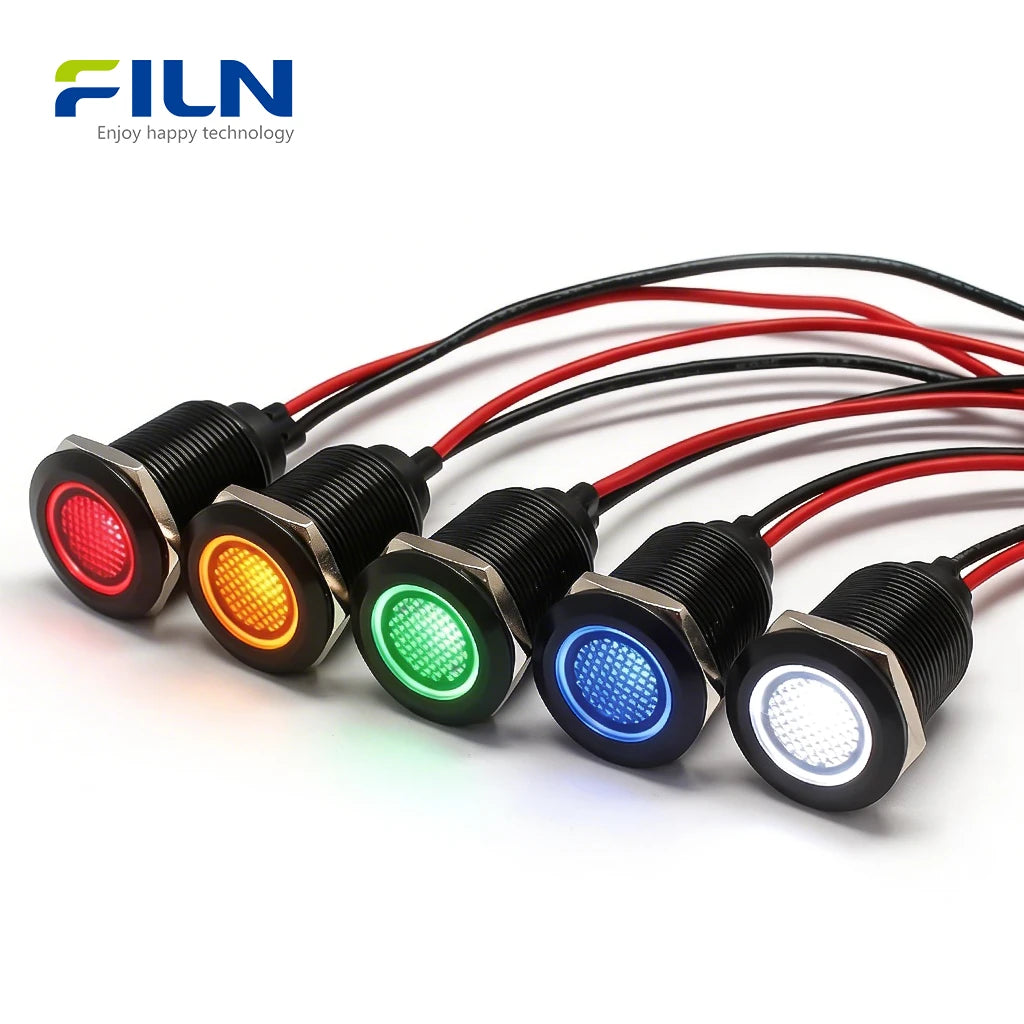

- Two Shell Finishes: Choose silver nickel-plating for a classic look or black anodizing for professional industrial aesthetics.
- Long Service Life: Advanced LED technology ensures a continuous working life of over 50,000 hours.
INSTALLATION & HARDWARE

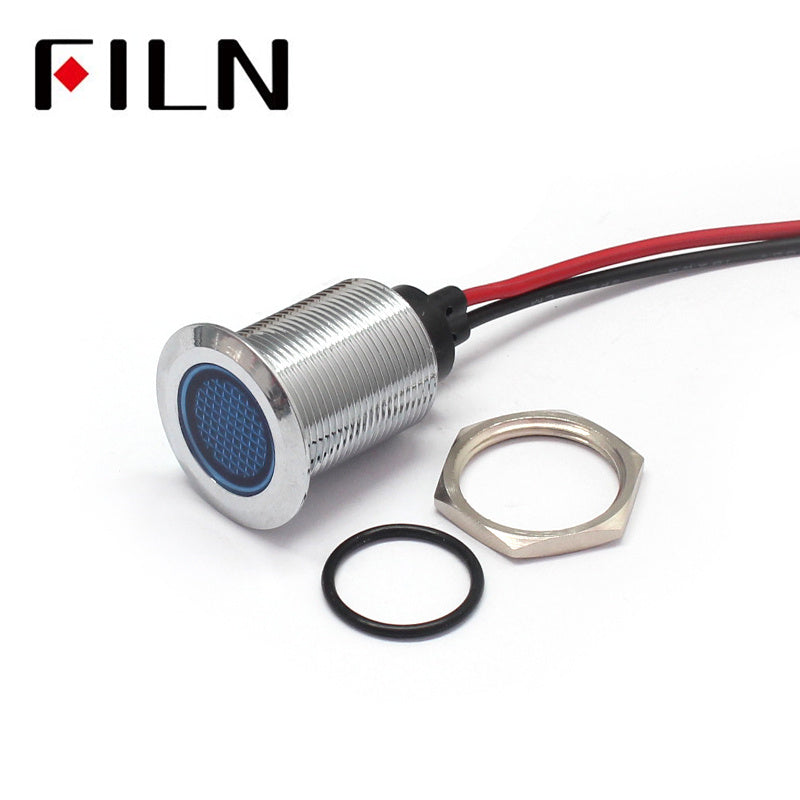

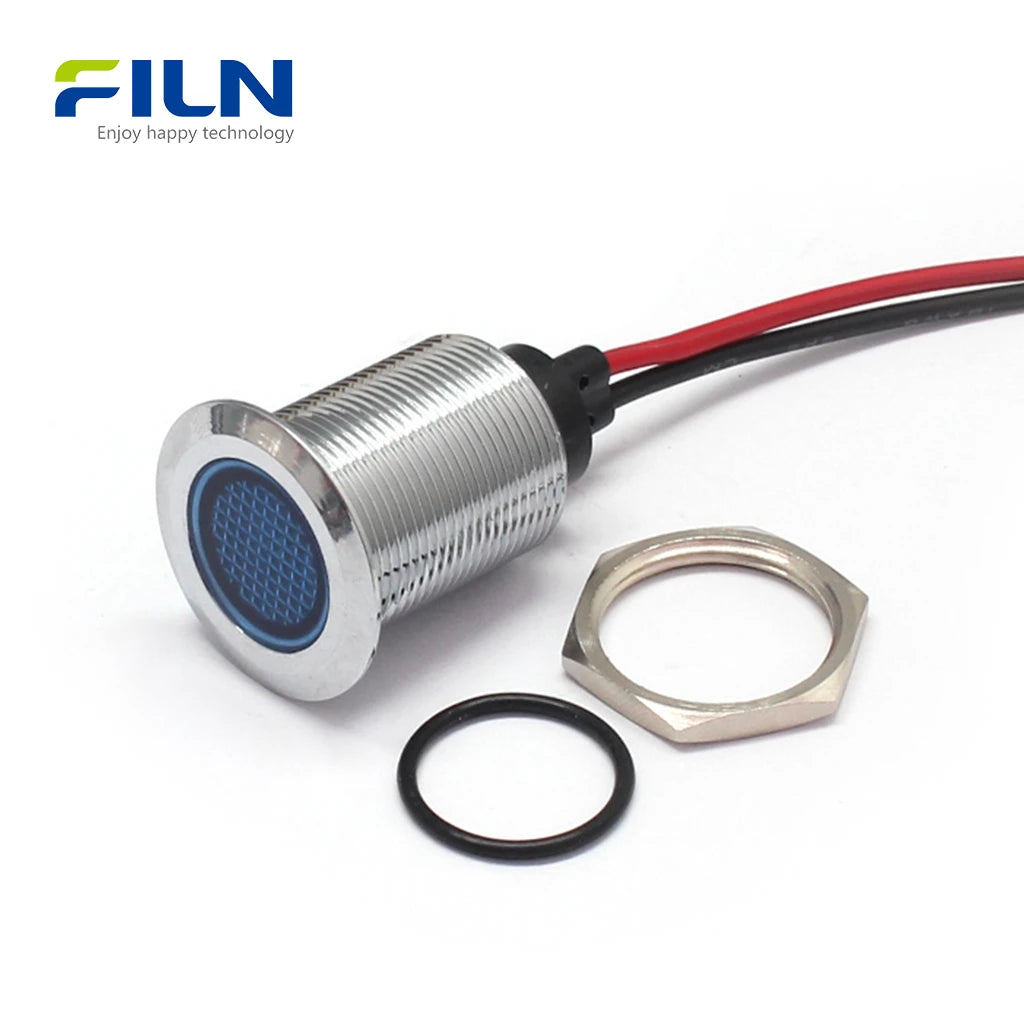

Each unit includes high-quality mounting hardware to ensure industrial-grade sealing:
- 19mm Silicone O-ring: Placed under the head to prevent water, oil, and dust from entering the panel enclosure.
- M19 Metal Nut: Features a smooth, precision-cut thread for easy tightening and long-term vibration resistance.
Installation Steps:
- Drill a 19mm hole in your panel surface.
- Insert the pre-wired LED from the front (top) of the panel.
- From the back of the panel, slide the M19 nut over the wires and tighten it onto the threaded body to secure the unit firmly.
Wired vs. Terminal Indicators
The panel mount led with pre-wired leads (15cm) is specifically designed for applications where vibration is a concern or where space behind the panel is too tight for manual terminal crimping. While plug/pin terminals allow for modular swapping, the wired design creates a permanent, sealed connection that is less likely to oxidize or loosen in high-motion environments like CNC machines or mobile power generators.
FACTORY DIRECT SOLUTIONS
FILN specializes in high-end signaling components for global manufacturing:
- ✅ Customization: Supports specific voltage and wire length requests.
- ✅ Versatile Use: Suitable for signal transmission in all large and small electrical equipment.
- ✅ Global Compliance: Fully certified with UL, CE, and RoHS standards.
Contact FILN: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
1. What is the benefit of the flat head design?
The flat head is flush with the panel, making it easy to clean and protecting it from being bumped or damaged by external forces.
2. Can I use these for both DC and AC power?
Yes, we offer configurations for 12-24V DC and 110-220V AC. Please specify your voltage when ordering.
3. How long are the wires on the FL1M-19FW-2?
The standard wire length is 15cm, but as a factory, we can customize this to any length you need.
4. Why choose wired leads over plug terminals?
Wired leads provide a more secure, permanent connection that is resistant to loosening in environments with high vibration.
5. Is the metal shell corrosion-resistant?
Yes, both the nickel-plated silver and black anodized shells are designed for industrial durability and corrosion resistance.
6. What is the role of the silicone O-ring?
The O-ring provides a waterproof and dust-proof seal (IP67) between the indicator head and the mounting panel.
7. Are these LEDs bright enough for outdoor use?
Yes, we use high-brightness LED chips that are clearly visible even in daylight conditions.
8. Can these be installed on small appliances?
Absolutely. These are versatile indicators suitable for signal transmission in any small or large electrical device.
9. Does the M19 nut strip easily?
No, the M19 nut and shell threads are precision-engineered for smooth, high-torque fastening without stripping.
10. What certifications does this panel mount LED hold?
Our indicators are certified by UL, CE, VDE, RoHS, and SGS, ensuring global safety compliance.
