Product Overview

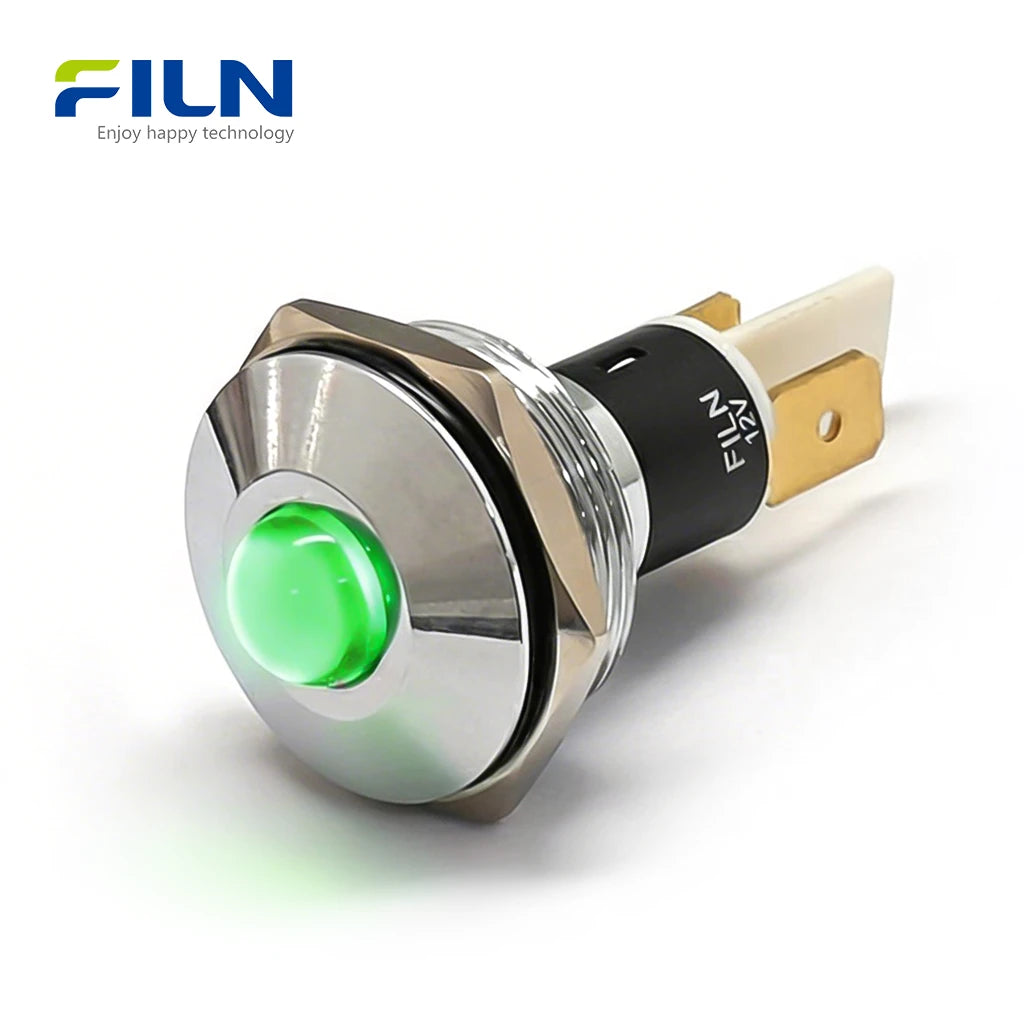

The 5v panel mount led (Model: FL1M-22SJ-1) by FILN is a heavy-duty industrial signaling solution. This 22mm large-size metal indicator features a high head design for 360-degree visibility. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, it ensures maximum reliability in harsh environments. Designed for industrial control panels, automation, and electrical cabinets, this LED supports versatile voltages from 5V, 12-24V to 110-220V. Its 2-pin terminal design allows for rapid installation, while the high-quality metal housing (available in silver or black) provides superior durability compared to plastic alternatives.
Quick Specifications
| Mounting Hole | 22mm (0.87 inch) |
| Voltage | 5V, 12V, 24V, 110V, 220V (Customizable) |

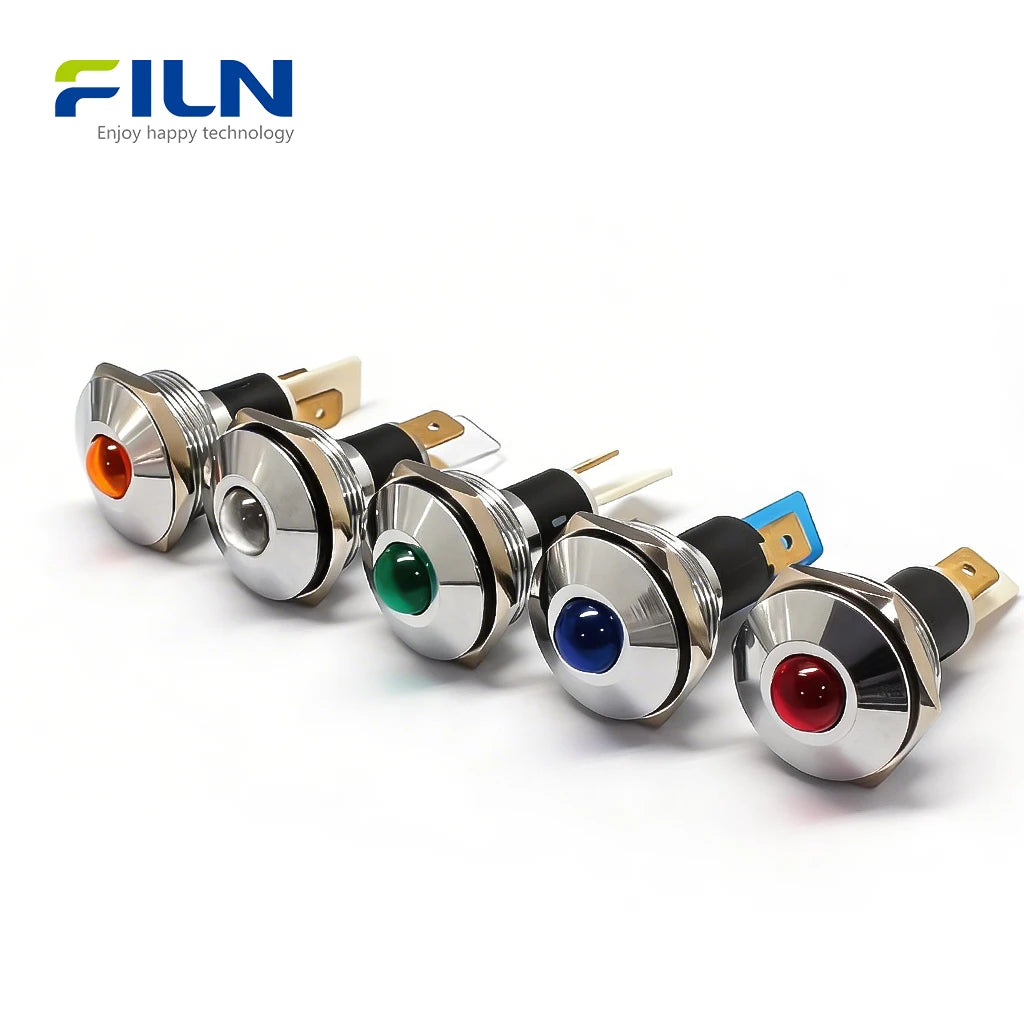

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | 2-Pin Type Terminal |
| Product Certification | UL, CE, VDE, RoHS, ISO9001 |
Component Material List
| Component Name | Material | Note |
| Shell | Copper Alloy | Nickel or Black Chrome plated |
| Lamp Holder | PA66 Nylon | Heat resistant and durable |
| Lampshade | PC Polycarbonate | High-Head design for better visibility |
| Light Source | LED | High brightness, long life |
| Resistor | Carbon Film | Optimized for specific voltage |
| Pin | Brass | High conductivity |
| Nut | Copper Alloy | Smooth M22 thread for secure locking |
| O-ring | Silica gel | 22mm large waterproof seal |
| Plum Gasket | Stainless Steel | Anti-vibration fastening |
Rated Working Parameters
| Rated Voltage | Customized (5V/12V/24V/110V/220V) |
| Frequency (AC) | 50Hz～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Metal (Silver/Black available) |
| Lens | Polycarbonate (High-Head) |
| Seal Ring | Silicone Rubber |
| Terminal | 2-Pin Fast-on Terminal |
| Wire Material | Optional (Custom lengths available) |
General Characteristics
| Application | Large-scale Signal Transmission |
| Part Name | FL1M-22SJ-1 |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP65 / IP67 |
Electric Property
| Property | Test Condition | Requirement |
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | 50,000 hours (Test: 30mA 1000h) |
Resistant Performance
| High/Low Temp | 80℃ / -40℃ (96h each) |
| Moisture/Cycling | 40℃ 95%RH / -40℃ to 85℃ Cycles |
Key Features

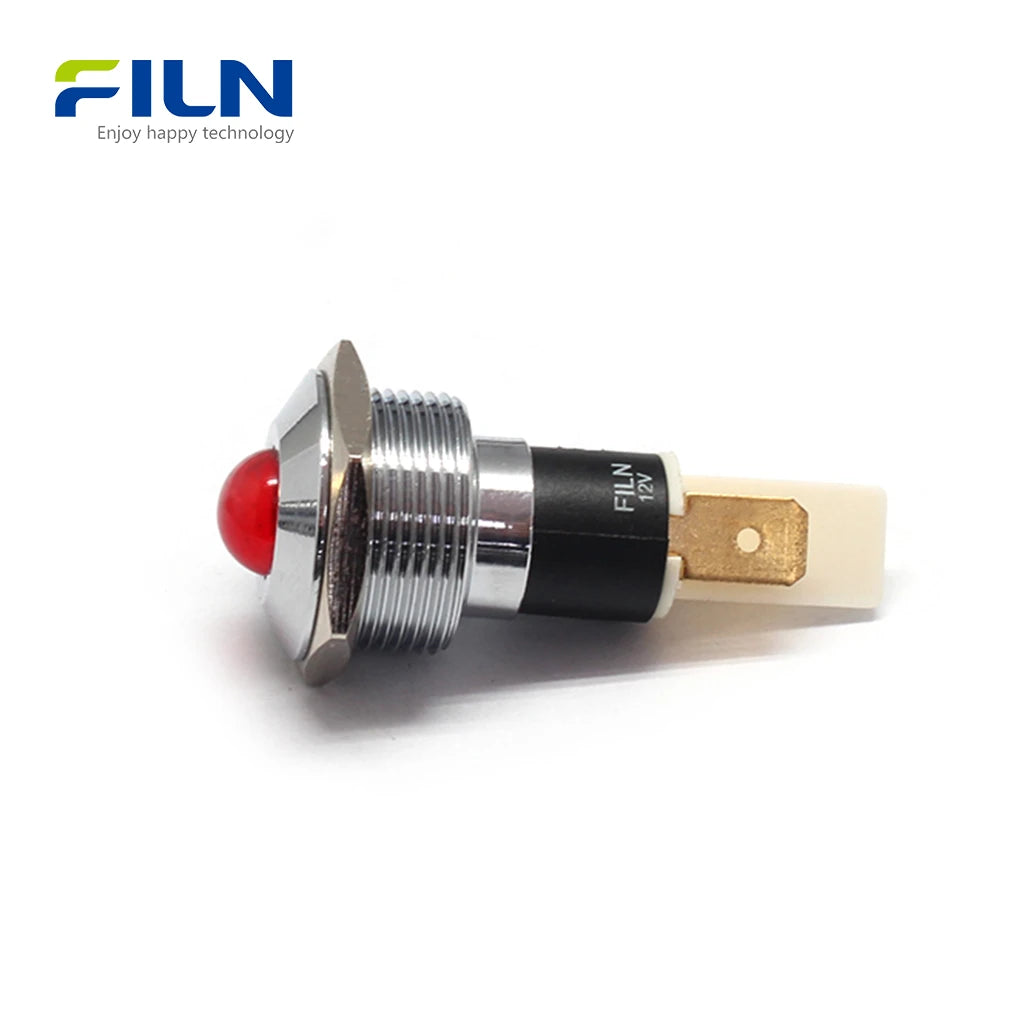

- High-Head Visibility: The protruding "High Head" lens allows the light to be seen from the side, perfect for safety status alerts.

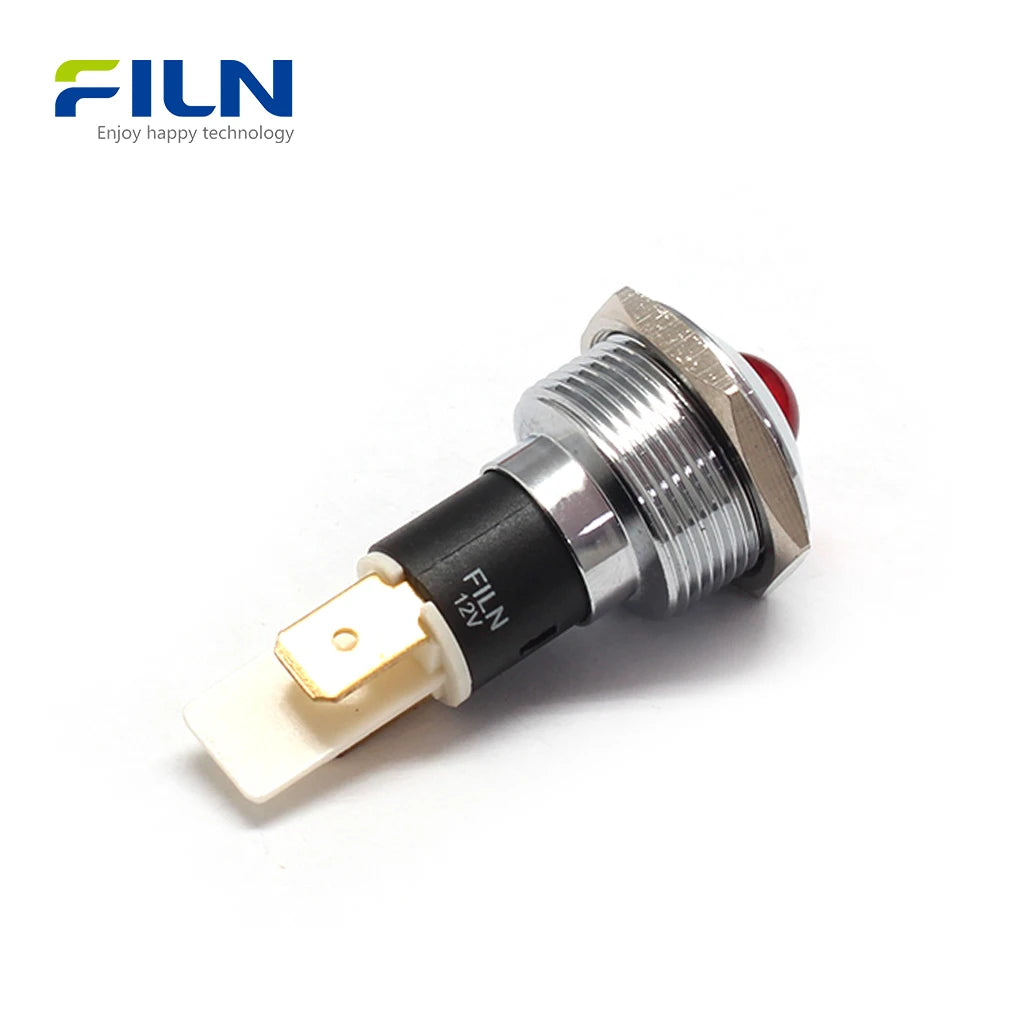

- Pin Terminal Advantage: Unlike pre-wired leads, 2-pin terminals allow for easy connection using female spade connectors or direct soldering, simplifying field maintenance.

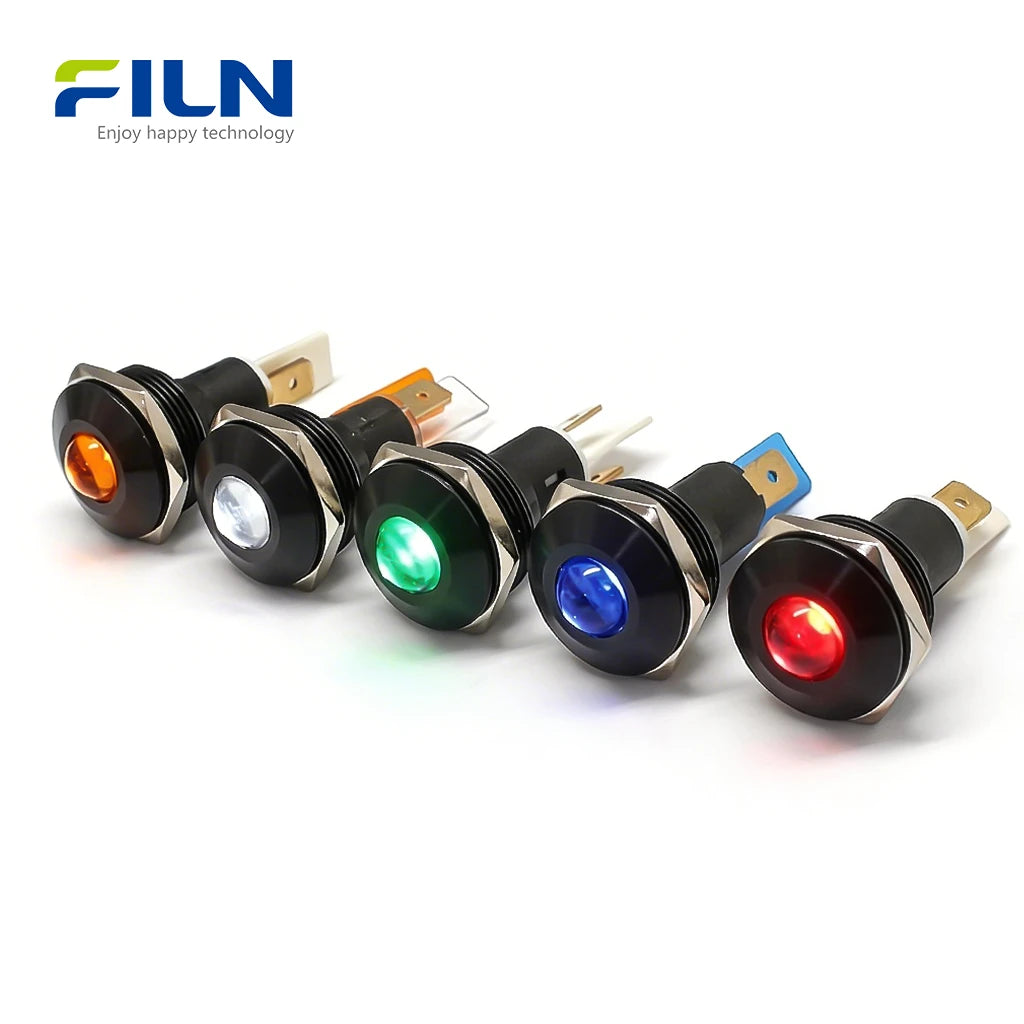

- Premium Metal Finish: Choose between professional silver chrome or sleek black housing to match your panel aesthetics.

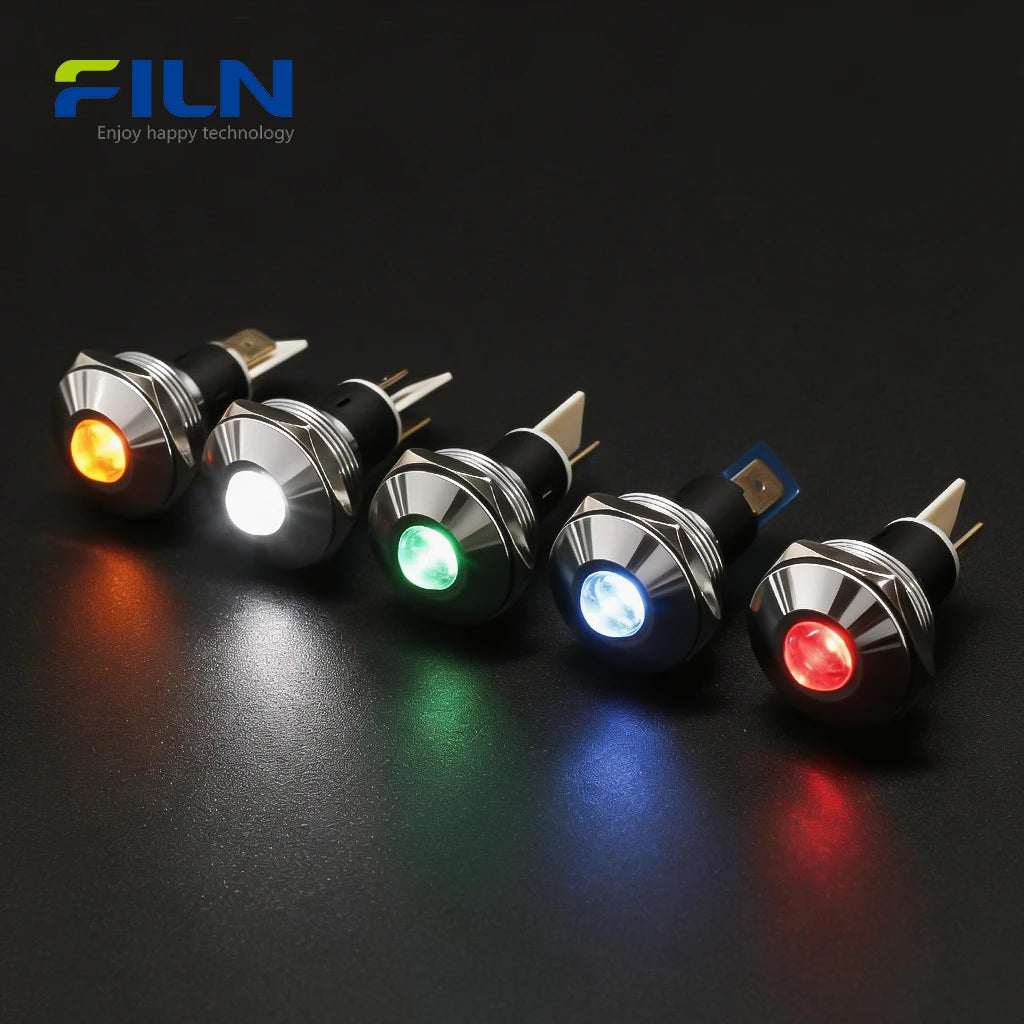

- IP67 Protection: Includes a high-grade 22mm O-ring and stainless steel gasket for a leak-proof seal.
- Fast Installation: M22 precision threading and a heavy-duty nut ensure the light stays tight even under vibration.
Applications
This 22mm 5V panel mount LED is suitable for any large or small electrical equipment requiring status transmission:
- Commercial kitchen appliances and vending machines
- Heavy-duty CNC machinery and milling equipment
- Industrial control consoles and power distribution units
- Electric vehicle charging stations and marine panels
- Automation sensor feedback and emergency signal systems
Installation Guide
- Drill a 22mm diameter hole into your control panel.
- Place the O-ring onto the LED body (this prevents water and dust ingress from the front).
- Insert the indicator from the front of the panel.
- Slide the M22 nut from the back and tighten it securely.
- Connect your 5V, 12V, or 220V power leads to the 2-pin terminals.
What Is a 5V Panel Mount LED?
A 5v panel mount led is a visual communication device used to indicate system power, errors, or operational states in industrial machinery. In high-stakes B2B environments, 22mm indicators are preferred for their clear visibility. The "High Head" design is especially beneficial because it protrudes from the panel, allowing operators to see the light even when standing at a sharp angle. Compared to traditional wire-lead indicators, the pin terminal design offers greater flexibility during wiring and is less prone to damage during transport.
5V Panel Mount LED for Sale - Factory Direct
This product is available for immediate purchase. FILN offers direct factory support for bulk orders and specialized customizations.
- Factory Direct: Buy directly from the manufacturer for the best B2B pricing.
- Voltage Customization: We build LEDs for 5V, 12V, 24V, 110V, 220V, and more.
- Connector Services: We can add custom connectors or wire lengths on request.
- Fast Global Shipping: Rapid delivery for industrial projects.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Why choose the 22mm 5V panel mount LED over smaller sizes?
The 22mm size is standard for industrial panels, offering much better visibility and a more rugged metal construction for heavy equipment.
2. What are the advantages of the High Head design?
The high head protrudes from the panel, making it visible from all angles (360 degrees), which is critical for safety warnings.
3. Can I use this 5V LED with a 220V power supply?
Yes, we can customize the internal resistor to support 220V AC. Please specify your voltage when ordering.
4. Is the shell resistant to corrosion?
Yes, the metal shell is chrome or nickel plated (or black plated), providing excellent resistance to salt spray and moisture.
5. How does the 2-pin terminal make wiring easier?
It allows for standardized female connectors (6.3mm or 4.8mm) to be snapped on, making replacement fast without cutting wires.
6. Is this indicator waterproof for outdoor use?
Yes, with the included O-ring and silicone seal, it achieves an IP67 rating, suitable for marine and outdoor exposure.
7. What colors are available for the 5V panel mount LED?
We stock Red, Green, Yellow, Blue, and White. Custom colors can be produced for large orders.
8. Does it come with mounting accessories?

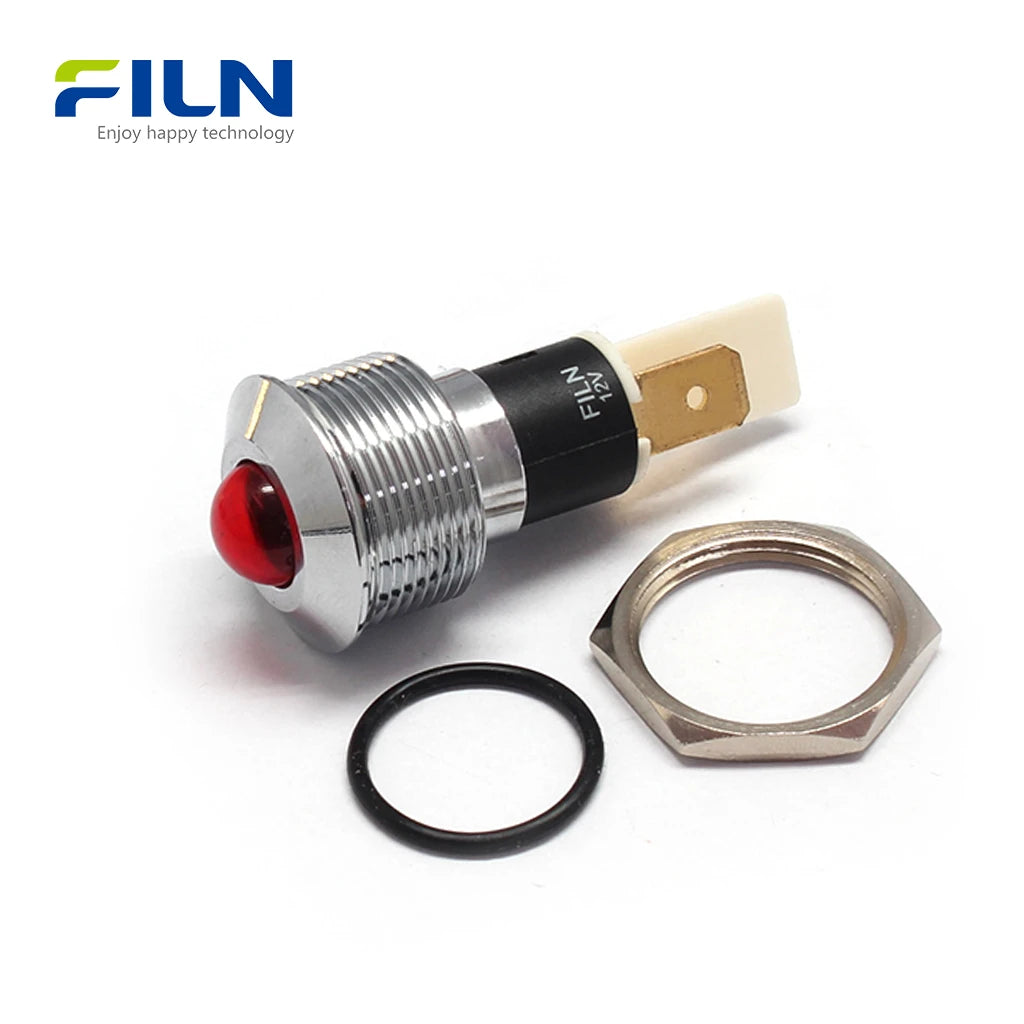

Every unit includes a 22mm silicone O-ring, a stainless steel plum gasket, and a precision M22 brass nut.
9. Can I get a black shell instead of silver?
Yes, we offer both silver and black shell finishes to suit your design requirements.
10. How can I buy this product in bulk?
You can buy directly via our website or email inquiry@cnylin.com.cn for a wholesale B2B quote.
