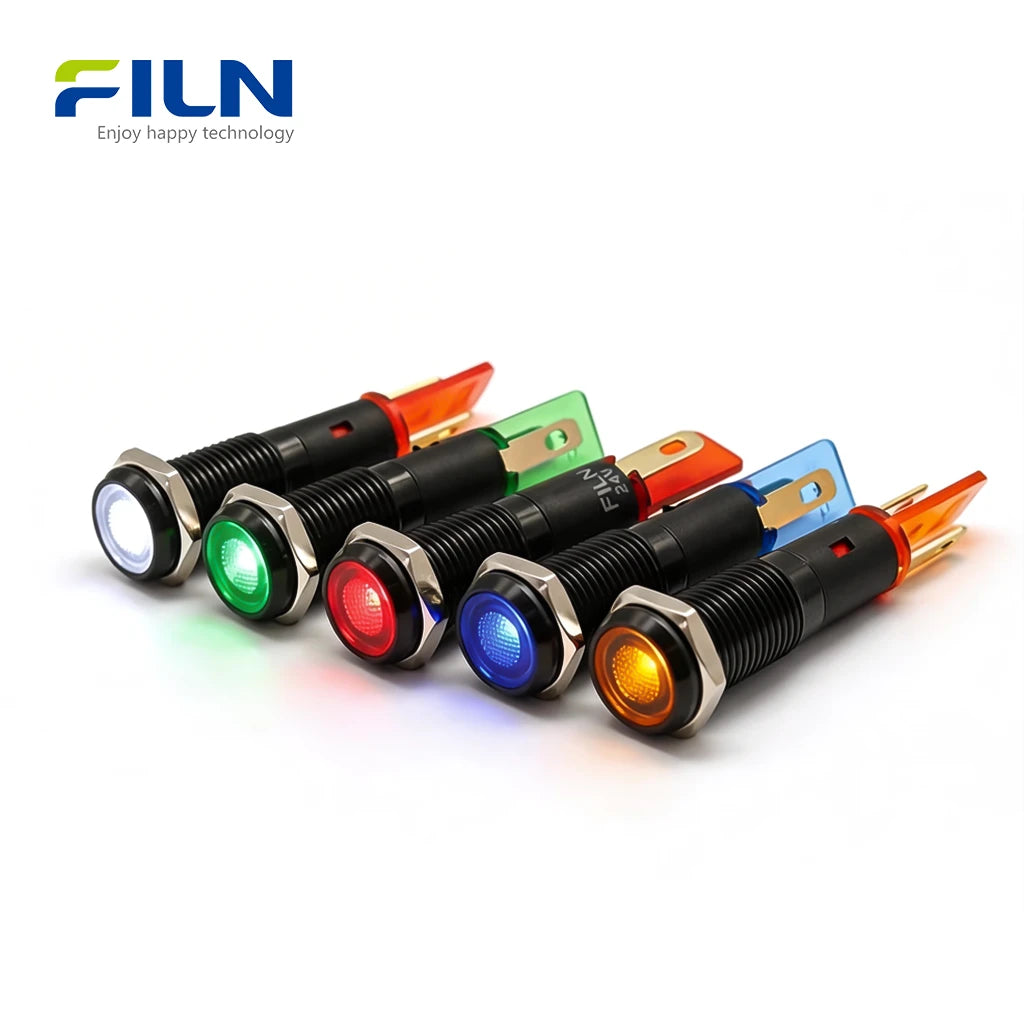

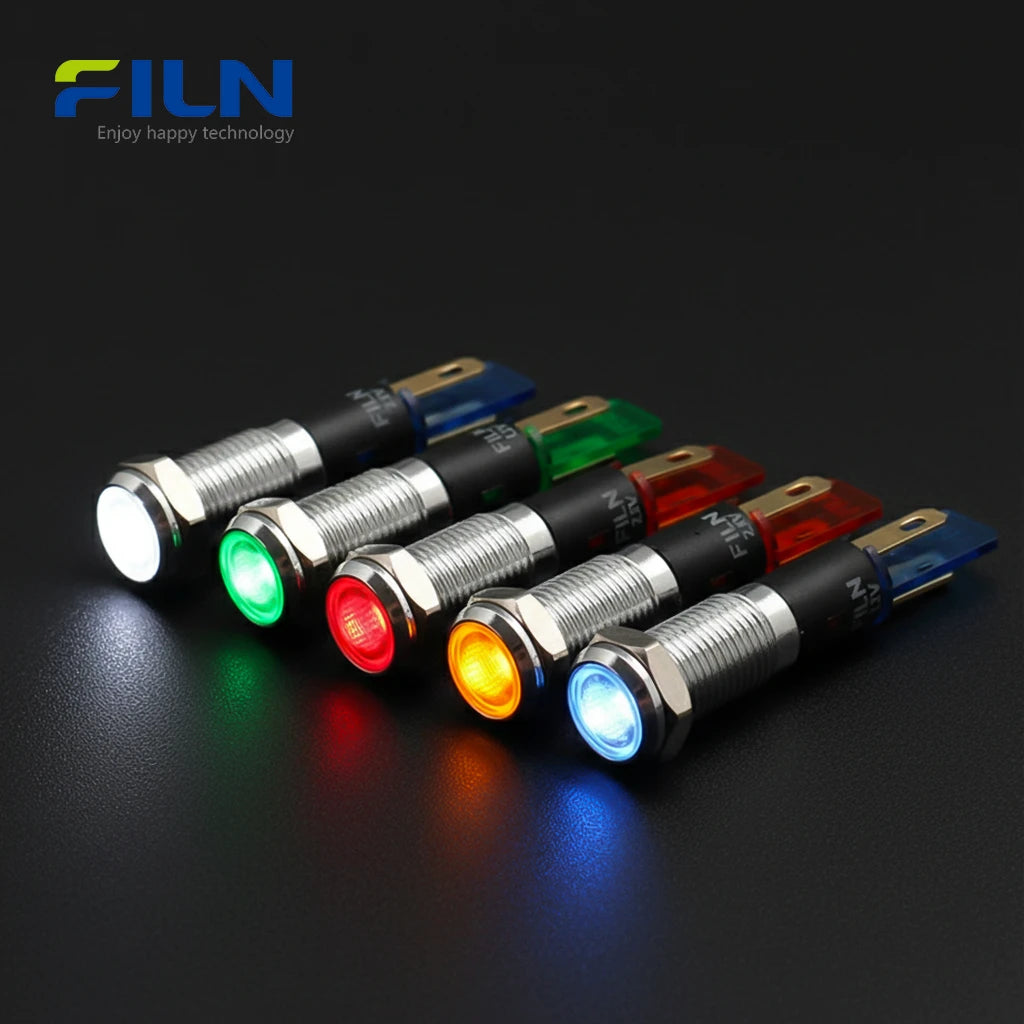

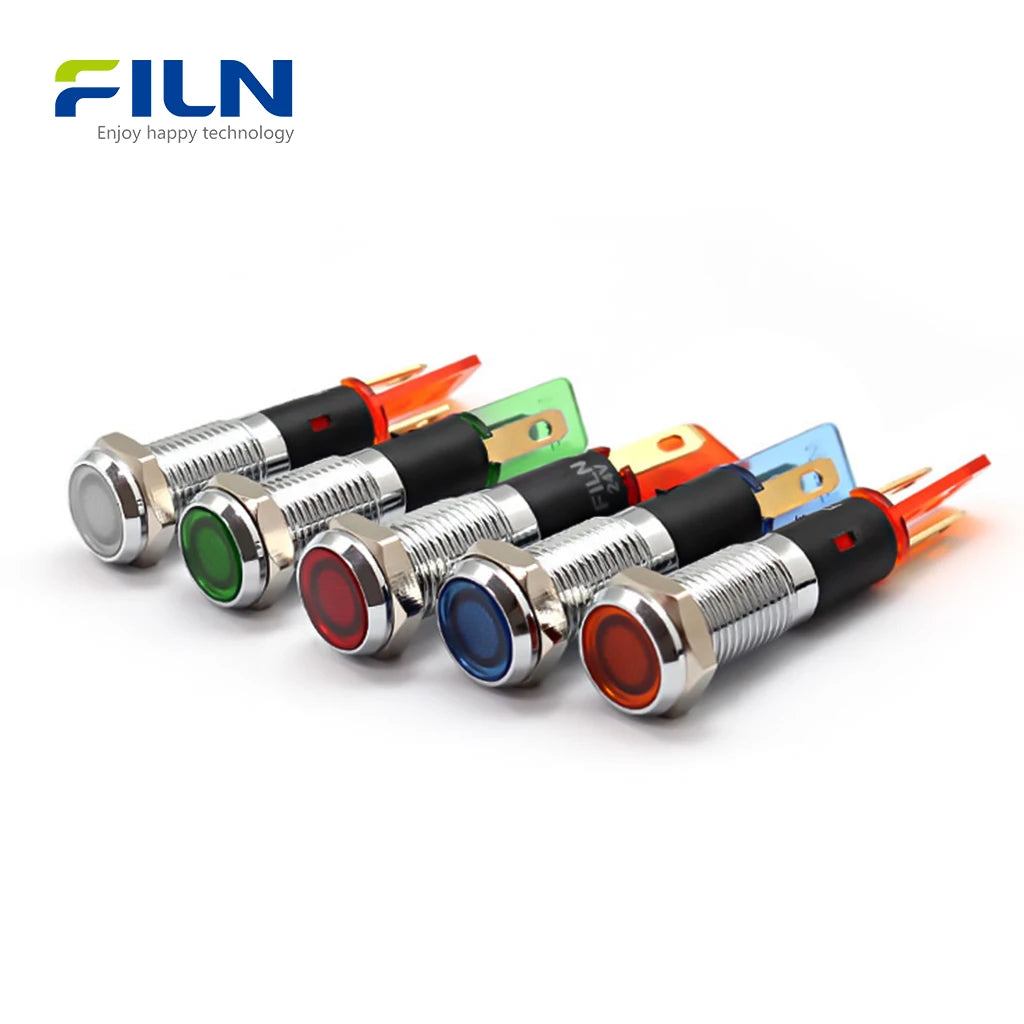

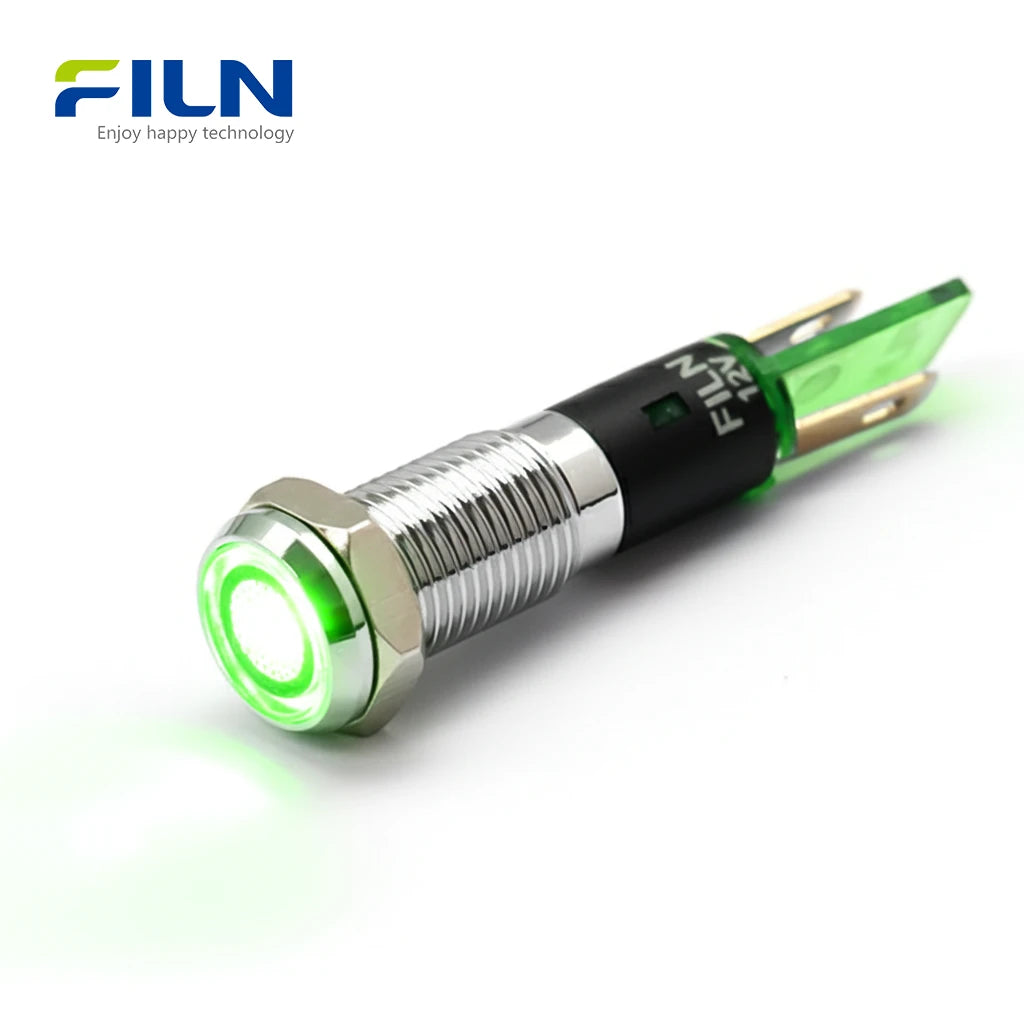

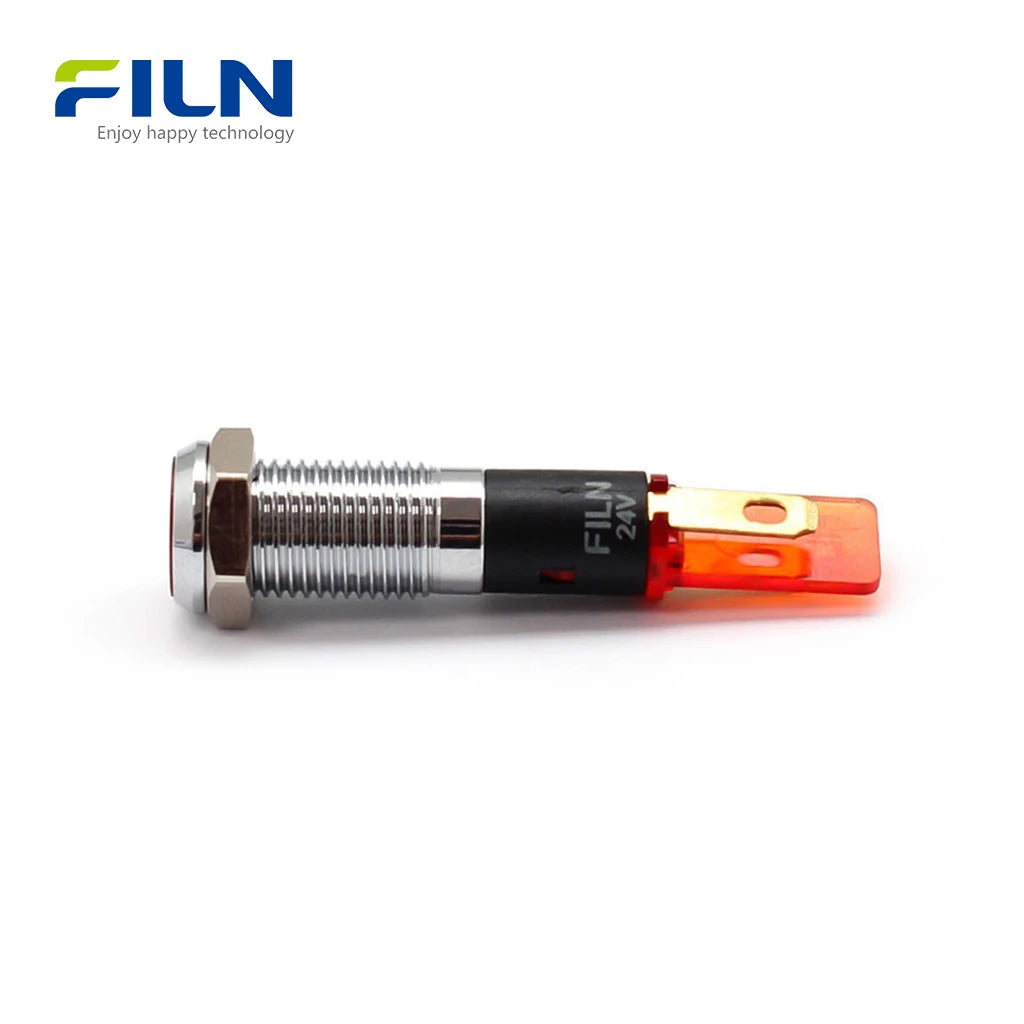

The 24v indicator light is a high-performance signaling solution designed for demanding industrial environments. Featuring a compact 8mm mounting hole and a robust metal flat head, this LED indicator ensures IP67 waterproof reliability and long-term durability. It supports a wide voltage range from 12V to 220V, making it compatible with various global electrical systems. Engineered for industrial control panels, CNC machines, and marine systems, it offers non-polar LED beads for easy pin-type wiring. Whether you need a black or silver housing, this industrial-grade LED lamp provides superior visibility and high-brightness performance for critical status monitoring.
Quick Specifications
| Mounting Hole | 8mm / 0.31 inch |
|---|---|
| Voltage | 12-24V / 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP67 |
| Wiring Type | Pin Terminals (Plug-in) |
Rated Working Parameters
| Rated Current | ≤20mA |
|---|---|
| Frequency (AC) | 50～60Hz |
Component Materials
| Housing Material | Chrome Plated Brass / Black Aluminum |
|---|---|
| Head Type | Metal Flat Head |
| Base Material | Flame Retardant PA66 |
General Characteristics
| Operating Temp | -40℃～+80℃ |
|---|---|
| Relative Humidity | ≤85% (at +40℃) |
| Air Pressure | 86~106Kpa |
Electric Property
| Insulation Resistance | ≥100MΩ (DC500V 1 min) |
|---|---|
| Dielectric Strength | 1500VAC (No breakdown / 60s) |
Durability Characteristics
| Test Condition | 30mA Continuous 1000h |
|---|---|
| Continuous Working Life | ≥50,000 Hours |
Resistant Performance
| High/Low Temperature | 80℃ 96h / -40℃ 96h |
|---|---|
| Moisture Resistance | 40℃ 90-95%RH (96h) |
| Temperature Cycling | -40℃ to 85℃ (5 Cycles) |
Key Features
- LED High Brightness: Ensures clear status visibility even in high-light environments.
- Long Service Life: Industrial-grade LEDs rated for over 50,000 hours.
- IP67 Protection: Fully waterproof and dust-tight for marine and CNC applications.
- Non-Polar Design: Advanced LED circuitry allows for easy wiring without polarity errors.
- Complete Accessories: Includes high-quality waterproof ring and metal nut for secure installation.
Frequently Asked Questions
1. Can this 24v indicator light be used on AC and DC power supplies?
Yes. Our 8mm indicator light features non-polar LED beads, making it compatible with both AC and DC 24V inputs.
Yes. Our 8mm indicator light features non-polar LED beads, making it compatible with both AC and DC 24V inputs.
2. What is the standard mounting hole diameter for this signal lamp?
The required mounting hole diameter is 8mm (0.31 inch), standard for industrial control panels.
The required mounting hole diameter is 8mm (0.31 inch), standard for industrial control panels.
3. Is the metal shell resistant to salt spray and corrosion?
Absolutely. We offer chrome-plated brass or black anodized aluminum housings, both of which provide excellent corrosion resistance.
Absolutely. We offer chrome-plated brass or black anodized aluminum housings, both of which provide excellent corrosion resistance.
4. Does the indicator light come with a seal for waterproof installation?
Yes, each unit includes a dedicated waterproof silicone ring and a mounting nut for an IP67-rated seal.
Yes, each unit includes a dedicated waterproof silicone ring and a mounting nut for an IP67-rated seal.
5. What LED colors are available for the 24V version?
We provide five standard colors: Red, Green, Yellow, Blue, and White.
We provide five standard colors: Red, Green, Yellow, Blue, and White.
6. Can I install this indicator in a 220V circuit?
This model supports 12V-24V, but we also offer specialized 110V-220V versions or custom-built solutions for higher voltages.
This model supports 12V-24V, but we also offer specialized 110V-220V versions or custom-built solutions for higher voltages.
7. What is the benefit of the metal flat head design?
The flat head design is aesthetically pleasing, easy to clean, and prevents accidental damage compared to prominent lenses.
The flat head design is aesthetically pleasing, easy to clean, and prevents accidental damage compared to prominent lenses.
8. Is it possible to use these lights in high-vibration CNC machines?
Yes, the threaded fixation and metal housing are specifically designed to withstand industrial vibration and shock.
Yes, the threaded fixation and metal housing are specifically designed to withstand industrial vibration and shock.
9. Do these lights require additional resistors for 24V?
No, the internal circuitry is already optimized for the specified voltage range, ensuring simple "plug and play" use.
No, the internal circuitry is already optimized for the specified voltage range, ensuring simple "plug and play" use.
10. How do I wire the pin-type terminals?
The pins are designed for professional soldering or compatible female quick-connect terminals for reliable electrical contact.
The pins are designed for professional soldering or compatible female quick-connect terminals for reliable electrical contact.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
