Rocker Switch Drawing
What is a 4 Pin Rocker Switch?
A 4 pin rocker switch is a high-capacity electromechanical switch used to control the power supply of industrial and consumer devices. This KCD4 series model features a stainless steel surface, providing a premium aesthetic and extreme durability. As a Double Pole Single Throw (DPST) device, it can simultaneously cut off both the live and neutral lines, ensuring maximum electrical safety. The integrated LED offers immediate visual confirmation of the "ON" status, which is critical for complex machinery operations.
Industrial Product Overview

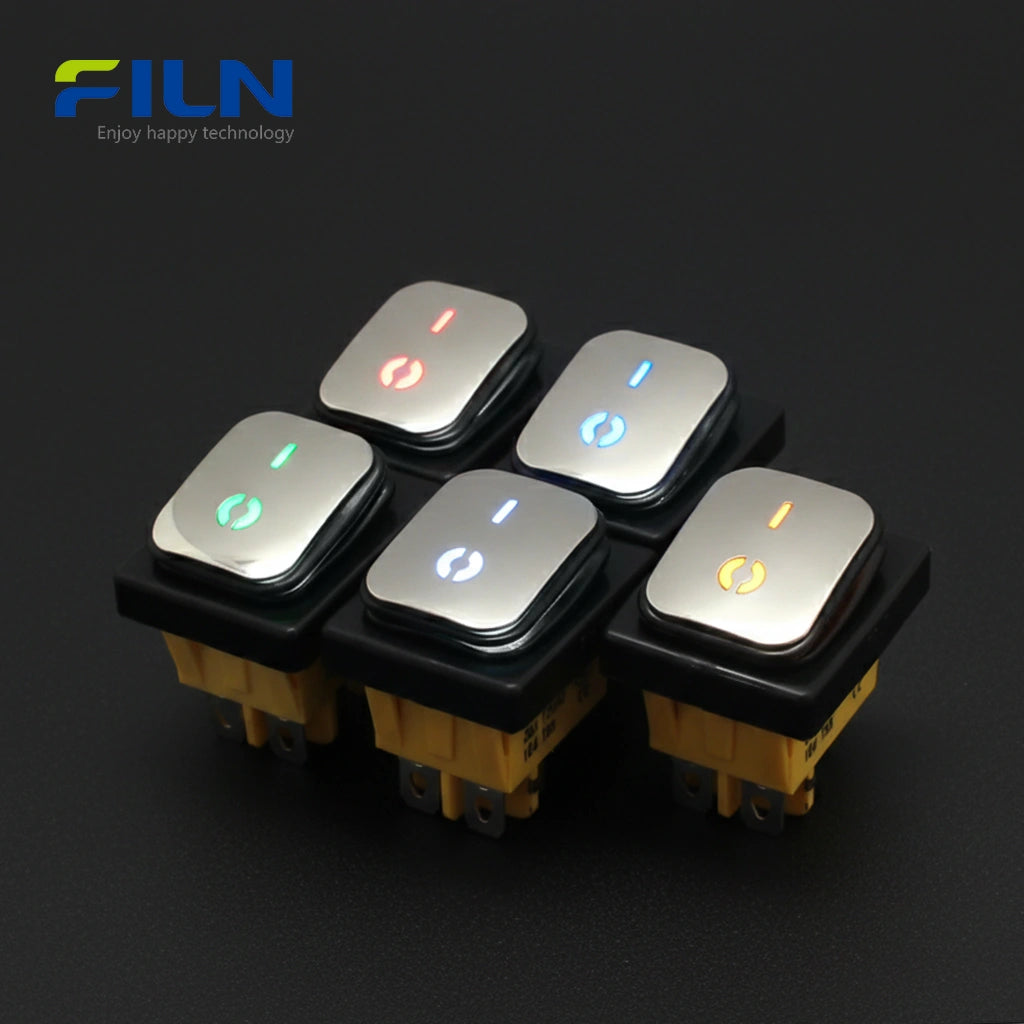

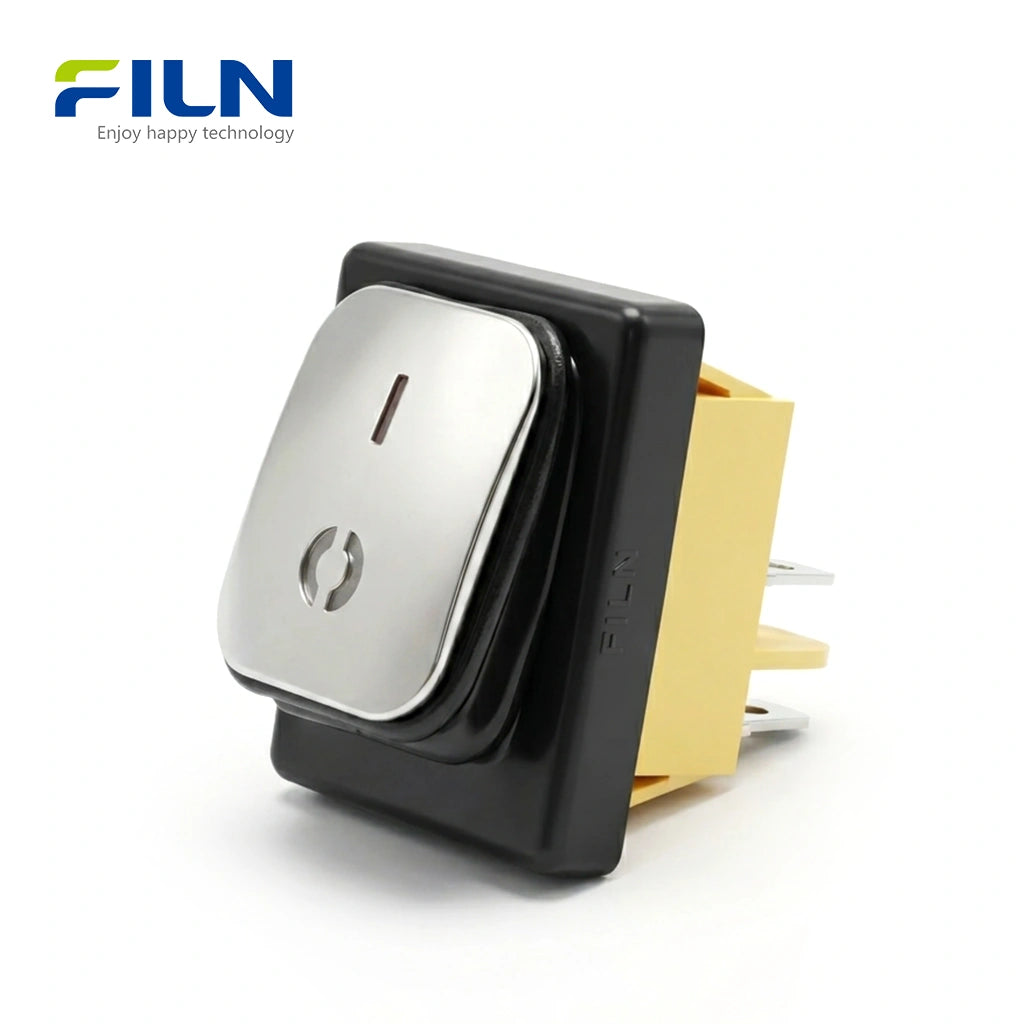

The FILN FL3-KCD4-0123-23 is a market-leading 4 pin rocker switch engineered with a unique stainless steel actuator surface. This rectangular 30x22mm switch is not only more fashionable than standard plastic models but also significantly easier to clean and maintain in medical or food-processing environments. It is a framed rocker switch designed for snap-in installation, offering an IP65 waterproof rating for outdoor and humid applications. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, it supports custom voltages from 5-24V to 110-220V and comes in RGYBW LED colors. Whether for a high-end appliance or heavy machinery, this KCD4 switch ensures long-term reliability and a high-end industrial finish.
Comparison of 2-Position Switch Functions
| Switch Function | Operation Logic | Common Application |
|---|---|---|
| Latching ON-OFF | Remains in the selected position (Stay-put). | Main power switches for appliances, heaters, and tools. |
| Momentary (ON)-OFF | Returns to the original position when released. | Reset buttons, horn triggers, and motor starting. |
Quick Specifications

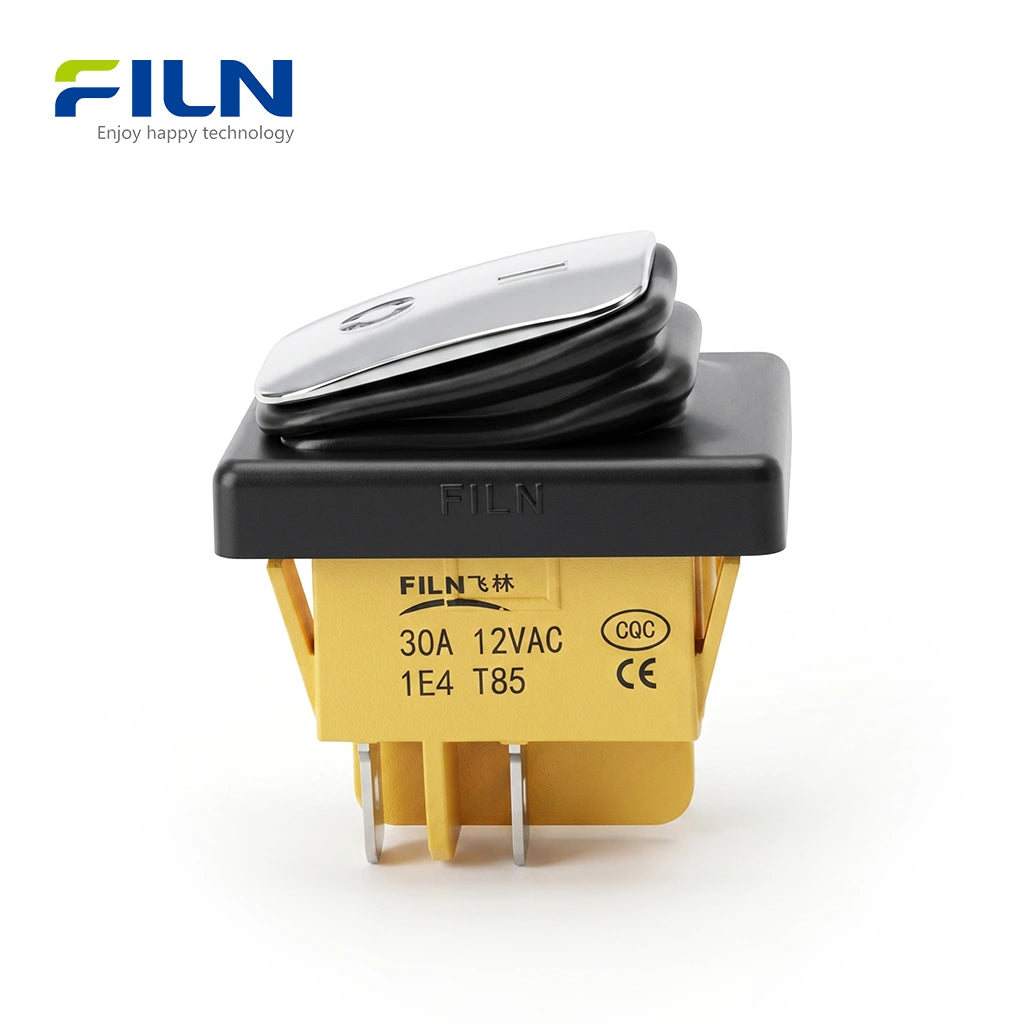

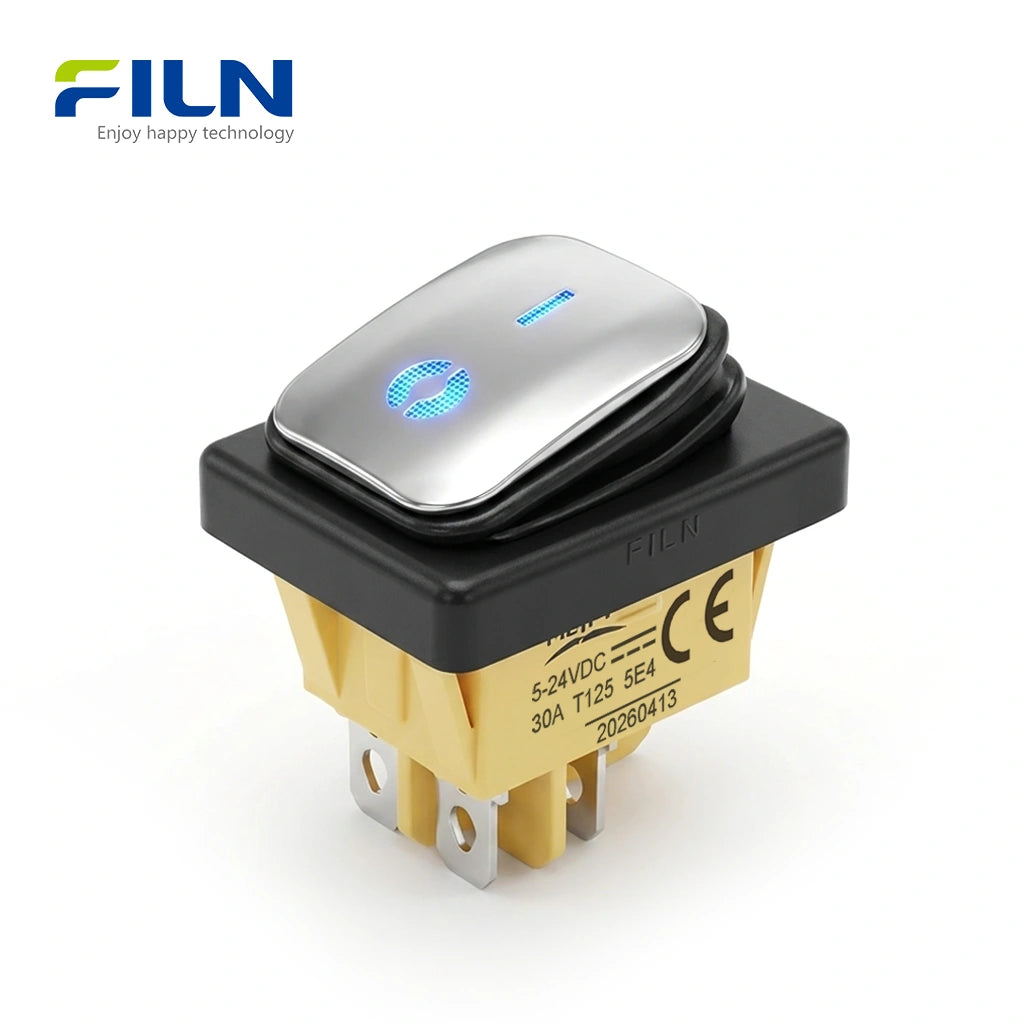

| Model Number | FL3-KCD4-0123-23 |
| Mounting Size | 30mm x 22mm (1.18" x 0.86") |
| Switch Function | ON-OFF (2 Positions) |
| LED Illumination | Yes (Red, Green, Yellow, Blue, White) |
| Actuator Material | Stainless Steel Surface |
| Wiring Connection | 4 PIN Terminals |
| Is it Framed? | Yes, Framed Design |
Performance Parameters
| Main Technology Performance | Specification Details |
|---|---|
| Function | ON-OFF |
| Rated Voltage |
16A 250VAC
|
| Rated Current |
16A 250VAC
|
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ/500VDC |
| Dielectric Strength | 1500VAC/5mA 60s |
| Endurance | 10,000 cycles |
| Ambient Temperature | -40T125 |
| Protection Degree | IP65/IP66 |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL, IP65 |
Component Materials
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Accessories Name | Material |
|---|---|
| Actuator Surface | Stainless Steel |
| Transparent Sheet | PC |
| Holder / Up Base | ABS |
| Waterproof Cover | Rubber |
| Bottom Base | PA66 |
| Pin / Spring Board | H62 Brass |
| Contact | AgCdO12 (Silver Alloy) |
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
The Advantage of Stainless Steel Surfaces
The stainless steel surface rocker switch offers significant benefits for high-end equipment. Unlike standard plastics, the metal surface is highly resistant to fingerprints and stains, making it incredibly easy to clean and maintain. It provides a modern, fashionable look that elevates the quality of medical devices, marine dashboards, and kitchen appliances. In dark or low-visibility environments, the illuminated KCD4 design shines brightly through the stainless frame, whereas a standard non-illuminated black switch is often chosen for its "low-profile" versatility in bright settings.
Industrial Applications
Due to the waterproof IP65 rating and the high-current 30A capacity, this 4 pin rocker switch is used everywhere reliable power control is needed:
- Medical Equipment: Easy-to-sanitize control panels.
- Home Appliances: High-end coffee machines and ovens.
- Outdoor Machinery: Pumps and lawn equipment.
- Commercial Kitchens: Fryers and mixers.
- Office Equipment: PDU and server power controls.
Step-by-Step Installation Guide
- Panel Cutout: Precise a 30mm x 22mm rectangular opening in your panel.
- Insert Switch: Position the 4 pin rocker switch from the front of the panel and push downward.
- Secure Clips: Ensure the snap-in clips on the sides of the switch body lock firmly into the panel.

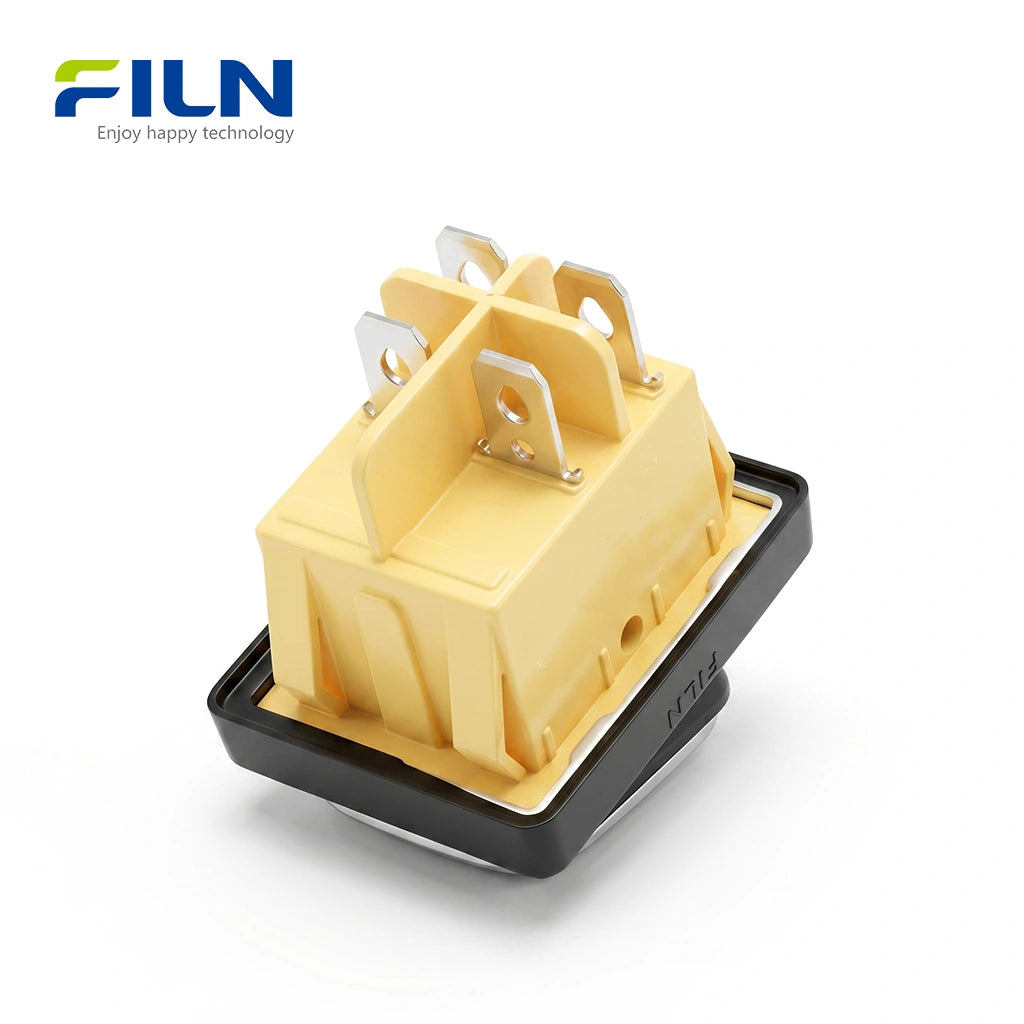

- Wiring: Connect your wires to the 4PIN terminals on the back according to the wiring diagram. The framed design ensures a flush, professional fit.
4 Pin Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
FILN Factory Direct Advantage
As a professional manufacturer, FILN offers direct supply with full customization support for global B2B clients.
- No MOQ Requirement
- Custom Wire & Connectors
- Fast Global Lead Times
- ISO9001/UL/CE Certified
- Voltage: 12V, 24V, 110V, 220V
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
Q1: Does this 4 pin rocker switch support 220V AC?
A: Yes, it is rated for up to 30A 250VAC. We can customize the internal LED resistor for 12V, 24V, 110V, or 220V.
Q2: Is the 30x22mm cutout a standard size?
A: Yes, the 30x22mm cutout is the industry standard for the KCD4 series large rectangular rocker switches.
Q3: How do I identify the 4 pins on the back?

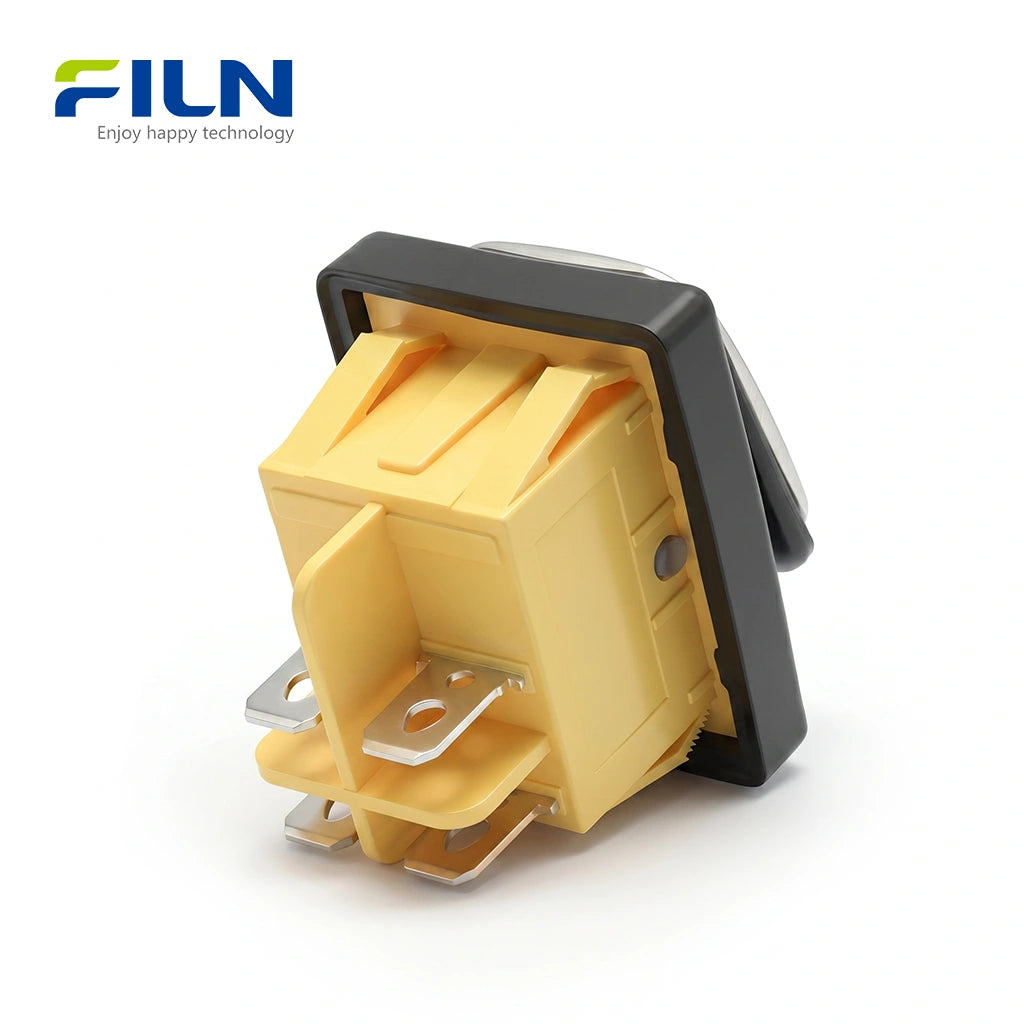

A: Usually, pins are arranged in pairs. One pair is for input (Line) and the other is for output (Load). Check the diagram on the switch body for exact orientation.
Q4: Can I get a blue LED instead of red?
A: Yes, FILN provides RGYBW (Red, Green, Yellow, Blue, White) LED color options for all illuminated switches.
Q5: Is this switch latching or momentary?
A: This specific model is a latching ON-OFF switch, meaning it stays in the position you press it until you toggle it again.
Q6: Why is the 4 pin rocker switch safer than a 2 pin version?
A: Because it acts as a DPST switch, it can cut off both power lines simultaneously, providing complete circuit isolation.
Q7: Can the LED light stay ON all the time?
A: Yes, by changing the wiring connection to the input side, the LED can stay on independently of the switch position.
Q8: What is the lifespan of this industrial switch?
A: It is rated for at least 10,000 electrical cycles and much higher mechanical cycles under normal conditions.
Q9: Does FILN provide custom laser markings on the stainless surface?
A: Yes, we can laser engrave custom symbols or icons on the actuator for better user identification.
Q10: Is the switch body made of flame-retardant material?
A: Yes, the base is made of PA66 nylon, which has excellent flame-retardant and high-temperature resistant properties.
