Product Overview

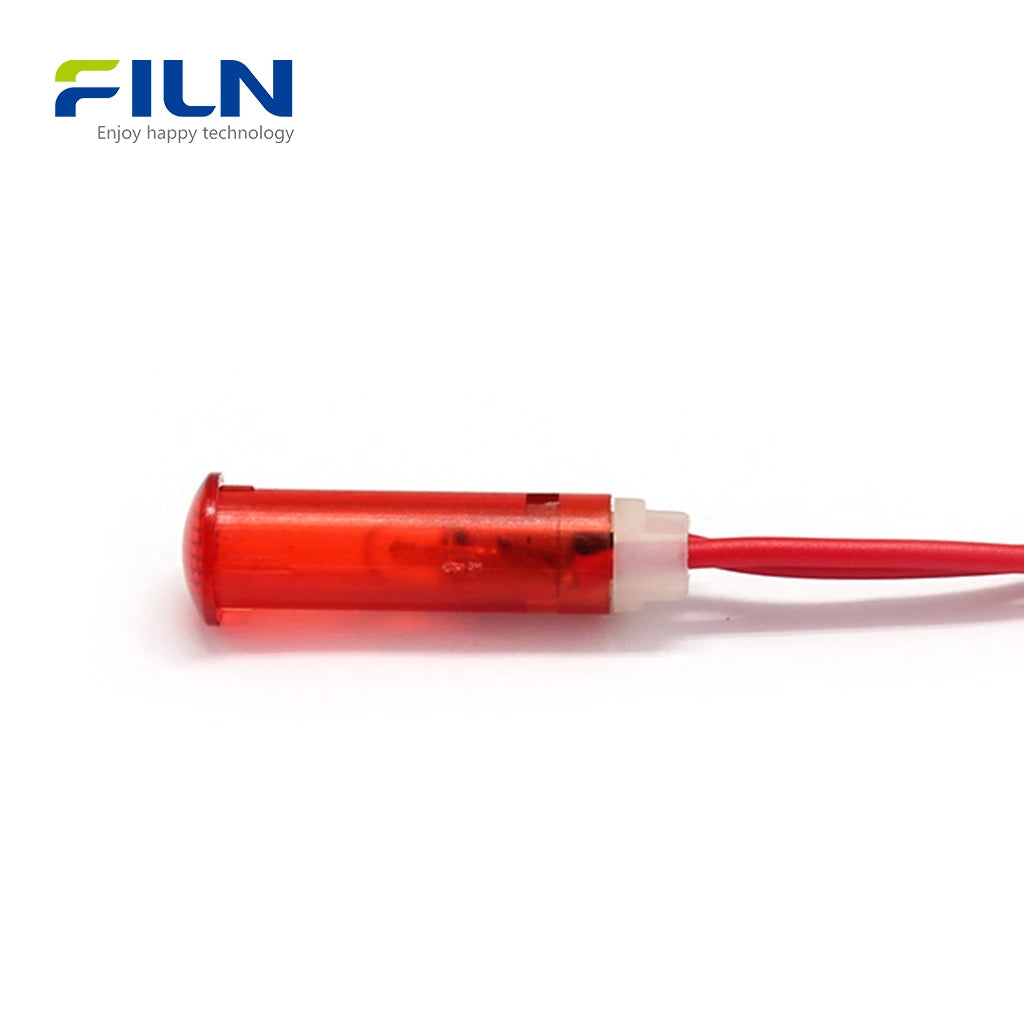

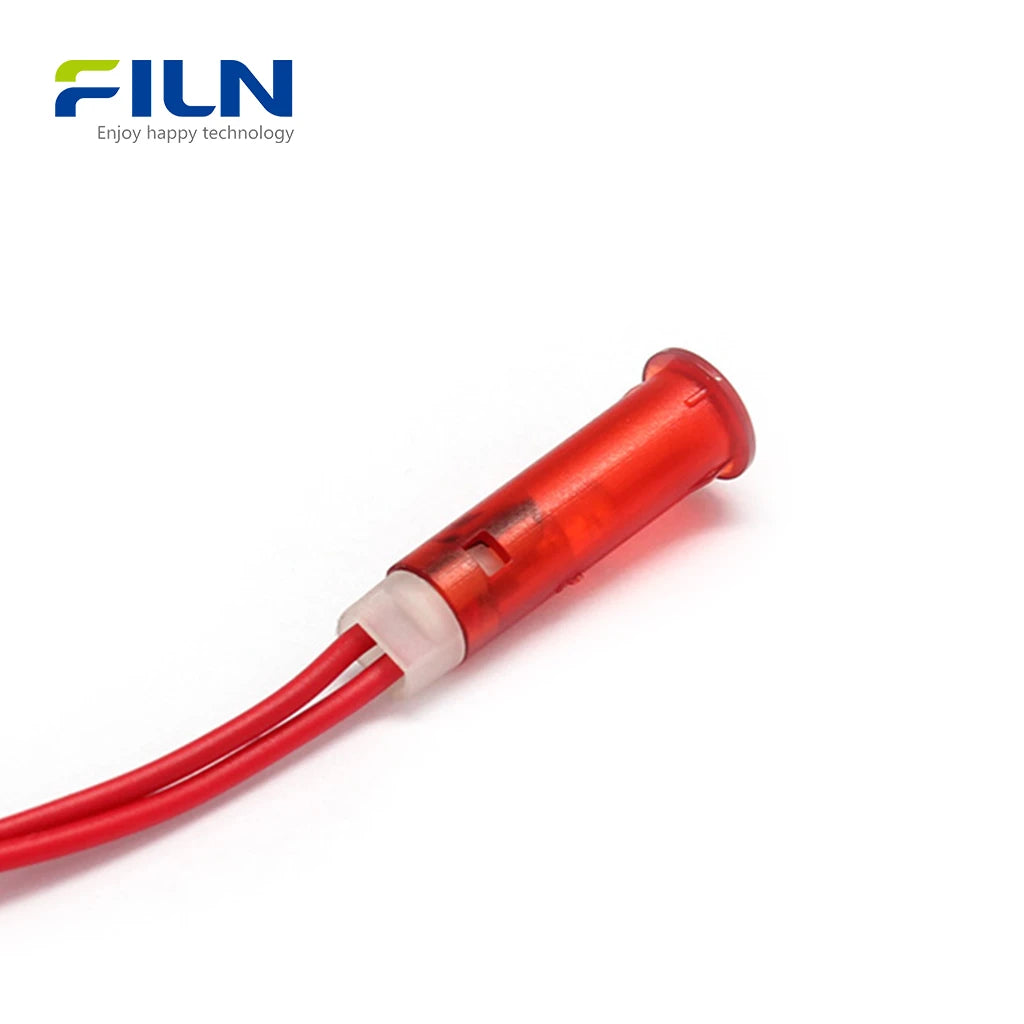

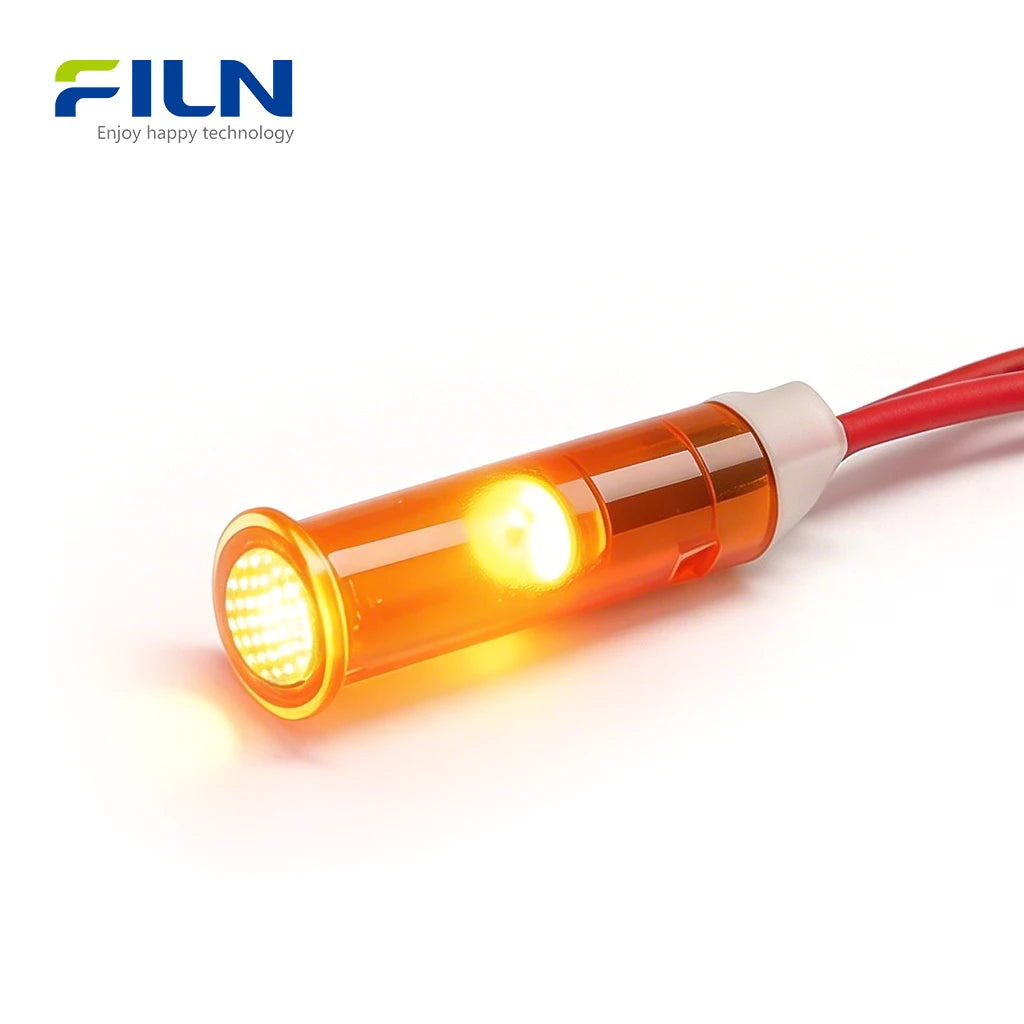

The FILN 120 vac led indicator light (Model: FL1P-06QW-2) is a high-performance signaling solution designed for modern industrial applications. Featuring a compact 6mm mounting hole and a round-head plastic design, this 6mm-plastic-indicator-light-for-sale is perfect for space-constrained panels. This product is for sale directly from our factory, ensuring competitive pricing and reliable quality. Made from premium PA66 and PC materials, it offers superior insulation and durability. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it is widely used in CNC machines, automation equipment, and electrical cabinets. The snap-in installation and 15cm pre-wired leads make it the ideal choice for quick, secure assembly.
Quick Specifications
| Mounting Hole | 6mm (0.24 inch) |
|---|---|
| Voltage Range | 12V-24V, 110V-220V (120VAC compatible) |

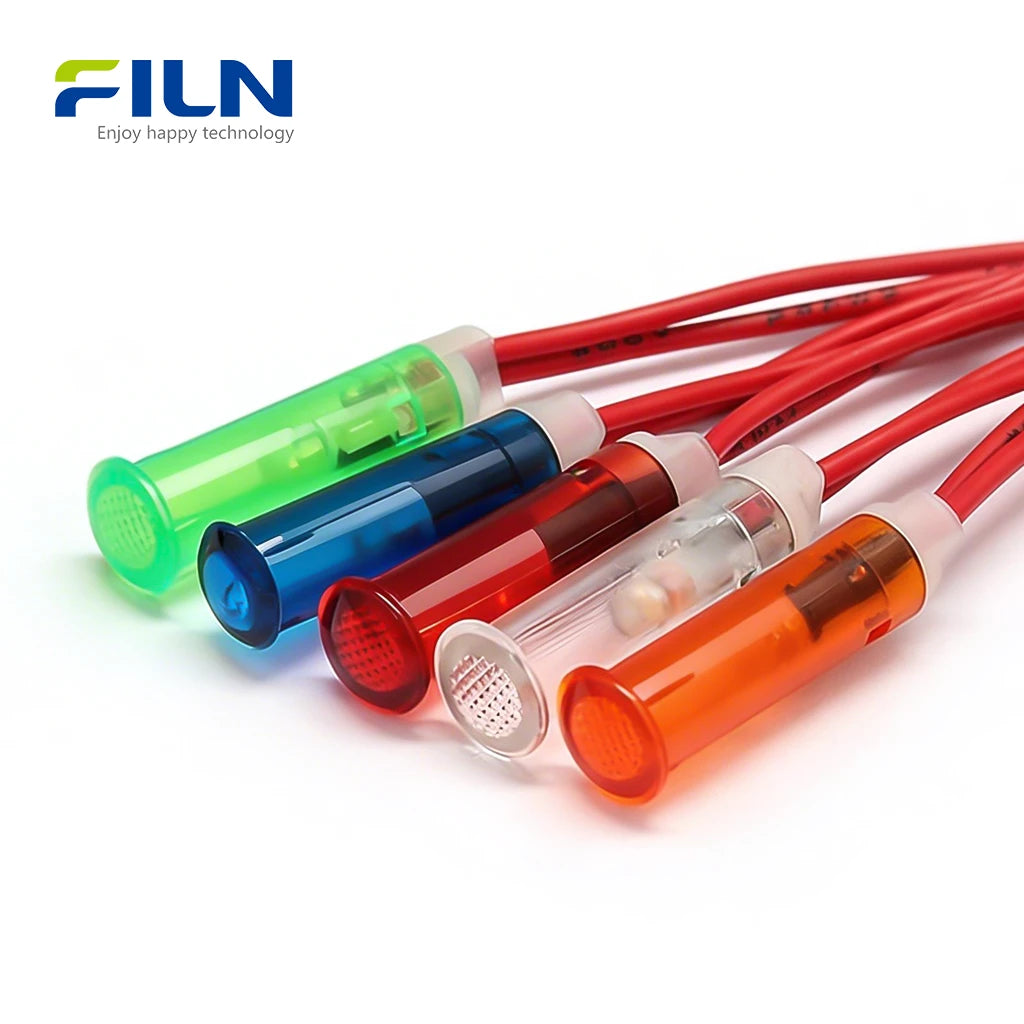

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 (Threaded Type) / Non-waterproof (Snap-in) |
| Wire Length | 150mm (15cm) PVC Lead |
| Lifespan | 60,000 Hours |
| Component Name | Material |
|---|---|
| Shell (Outer) | PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade | PC (Polycarbonate) |
| Luminescent Source | LED |
| Resistance | Carbon Film Resistance |
| 2.8mm Terminal | H59 Copper (for Pin type) |
| Wire Specification | PVC Insulated Wire (for Lead type) |
Rated Working Parameters
| Rated Voltage | 3V-250V (Customized) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Item | Parameter |
|---|---|
| Insulation & Voltage Resistance | 1800V/5s |
| Working Life | 60,000h |
| Operating Temp | -40℃～+80℃ |
| Heat Resistance | +80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Test | Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Test Item | Continuous Working Life |
|---|---|
| Test Condition | 30mA 1000h |
| Requirement | 50,000 - 60,000 hours |
Resistant Performance
| Test Type | Condition & Result |
|---|---|
| High Temperature | 80℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features

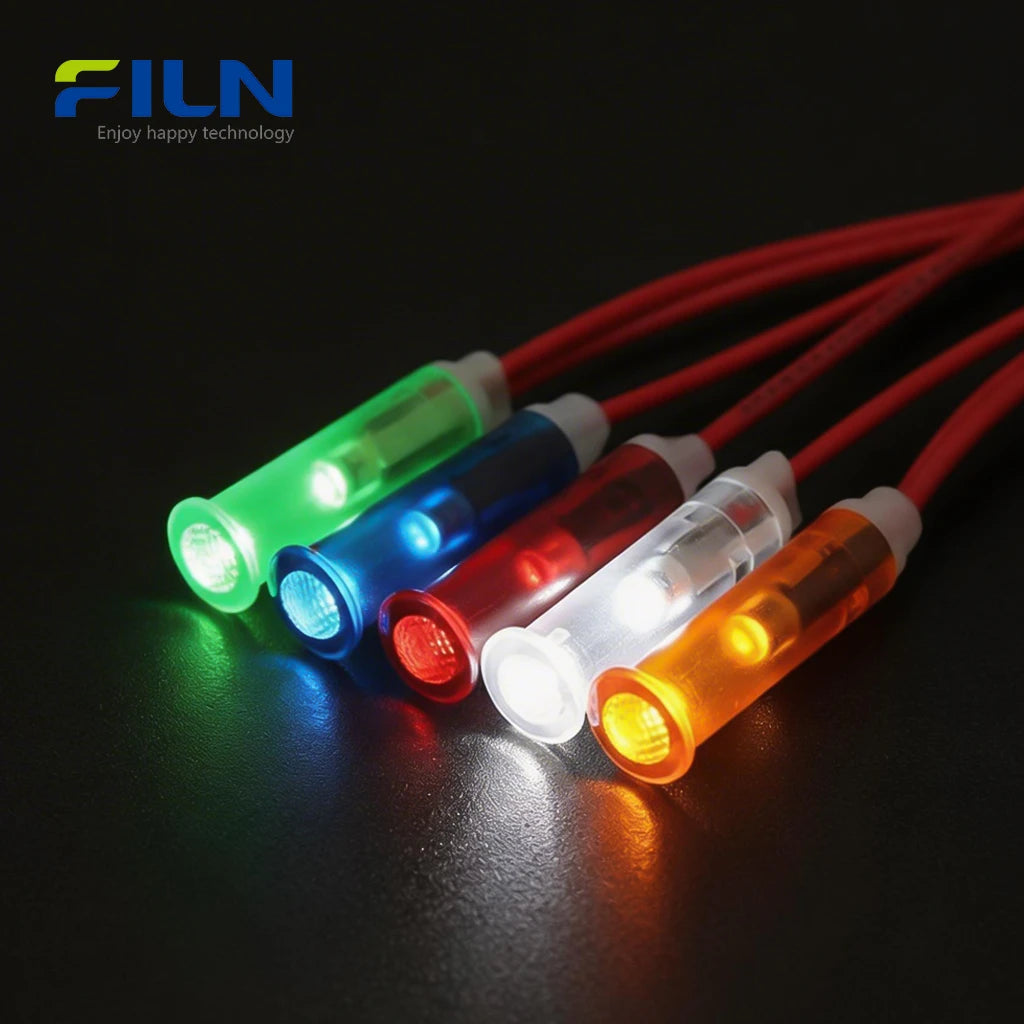

- LED High Brightness: Ultra-bright output available in Red, Green, Yellow, Blue, and White.
- Long Lifespan: Industrial-grade LEDs rated for over 60,000 hours of use.

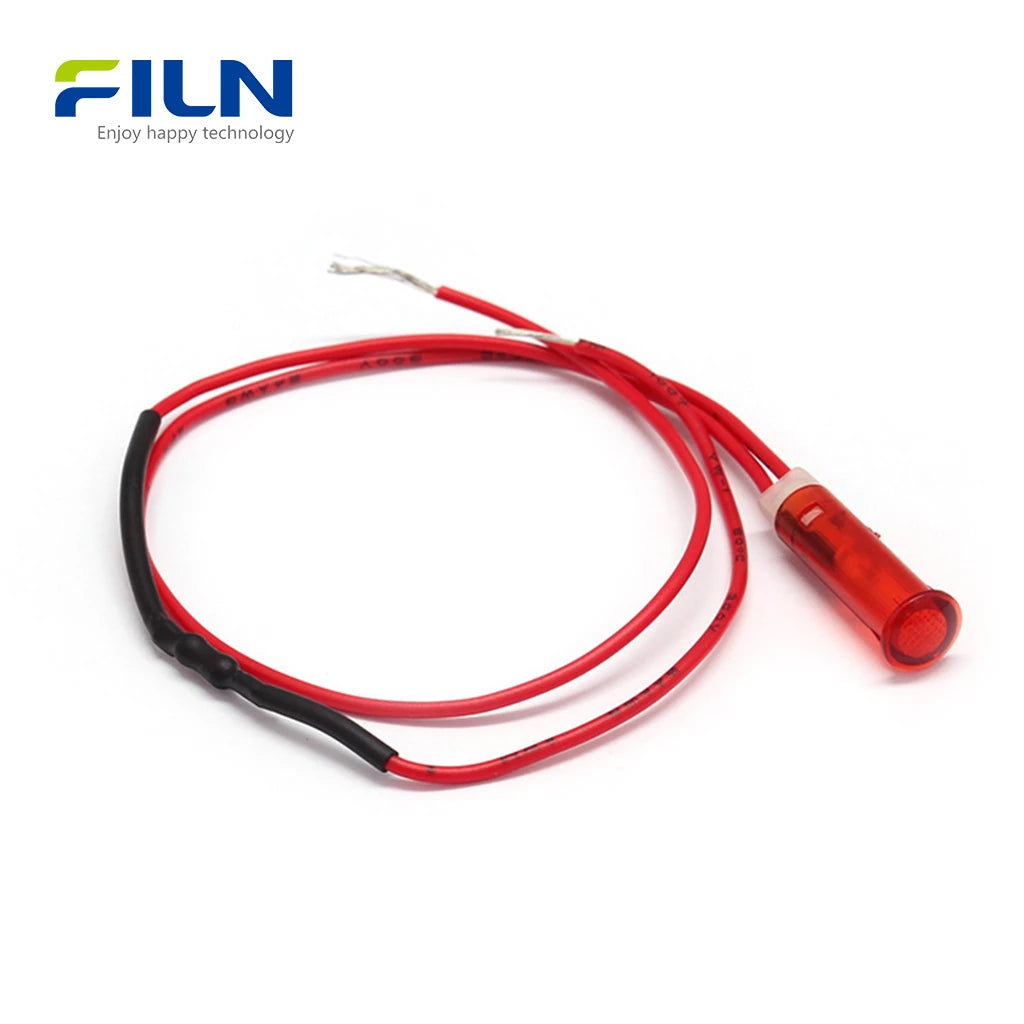

- Direct Wire Design: Features a custom-wire-lead-indicator-light (15cm) for direct connection.
- Fast Installation: Snap-in design allows for quick mounting without extra hardware.
- Superior Materials: High-quality plastic housing provides excellent electrical insulation.
Applications
- Industrial control panels (120-vac-led-indicator-light applications).
- CNC machines and factory automation monitors.
- Electrical power distribution cabinets.
- Household appliances and medical equipment.
- Automotive and marine dashboard signals.
Installation Guide
- Measure and drill a 6mm hole on the target panel.
- Clean the hole edges to ensure a smooth fit.
- Take the snap-in-led-panel-indicator and align it with the hole.
- Push the indicator light from the front until the plastic clips lock it securely.
- Connect the 15cm wire leads to your circuit (AC or DC as specified).
What Is an 120 VAC LED Indicator Light?
An 120 vac led indicator light is a small-scale signaling device used to indicate the status of high-voltage industrial circuits. Unlike pin-type indicators which require soldering to 2.8mm terminals, our wire-lead indicator comes with pre-installed PVC wires, saving significant labor time during mass production. Plastic indicators offer a distinct advantage over metal ones in terms of electrical insulation and weight, making them safer for high-voltage environments. The round-head plastic indicator light is particularly popular for 110v-220v-plastic-signal-light applications due to its high visibility and ease of snap-in mounting.
FILN Factory Direct Supply
FILN is a global leader in indicator light manufacturing, offering professional OEM/ODM services.
- Direct Purchase: Industrial 120-vac-led-indicator-light units available for immediate sale.
- Customization: We support custom wire lengths, connectors, and voltage levels.
- Fast Logistics: Rapid global shipping to support your production timeline.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. Can I use this 120 VAC LED indicator light for 220V systems?
Yes, the fl1p-06qw-2-plastic-led is designed to support a wide range of 110V-220V AC applications.
2. What is the difference between wire lead and pin type indicators?
Wire lead indicators come with 15cm cables for easy direct connection, while pin types use 2.8mm terminals that require external soldering or female connectors.
3. How does the snap-in mounting work?
Simply drill a 6mm hole and push the indicator in from the front. The side plastic clips will automatically lock it to the panel.
4. Is the 15cm wire length customizable?
Yes, as a factory, FILN can customize the wire length (e.g., 20cm, 50cm, 1m) based on your project requirements.
5. Are these 6mm-plastic-indicator-light-for-sale units UV resistant?
The high-quality PC lampshade is designed to withstand standard industrial indoor lighting and heat without yellowing quickly.

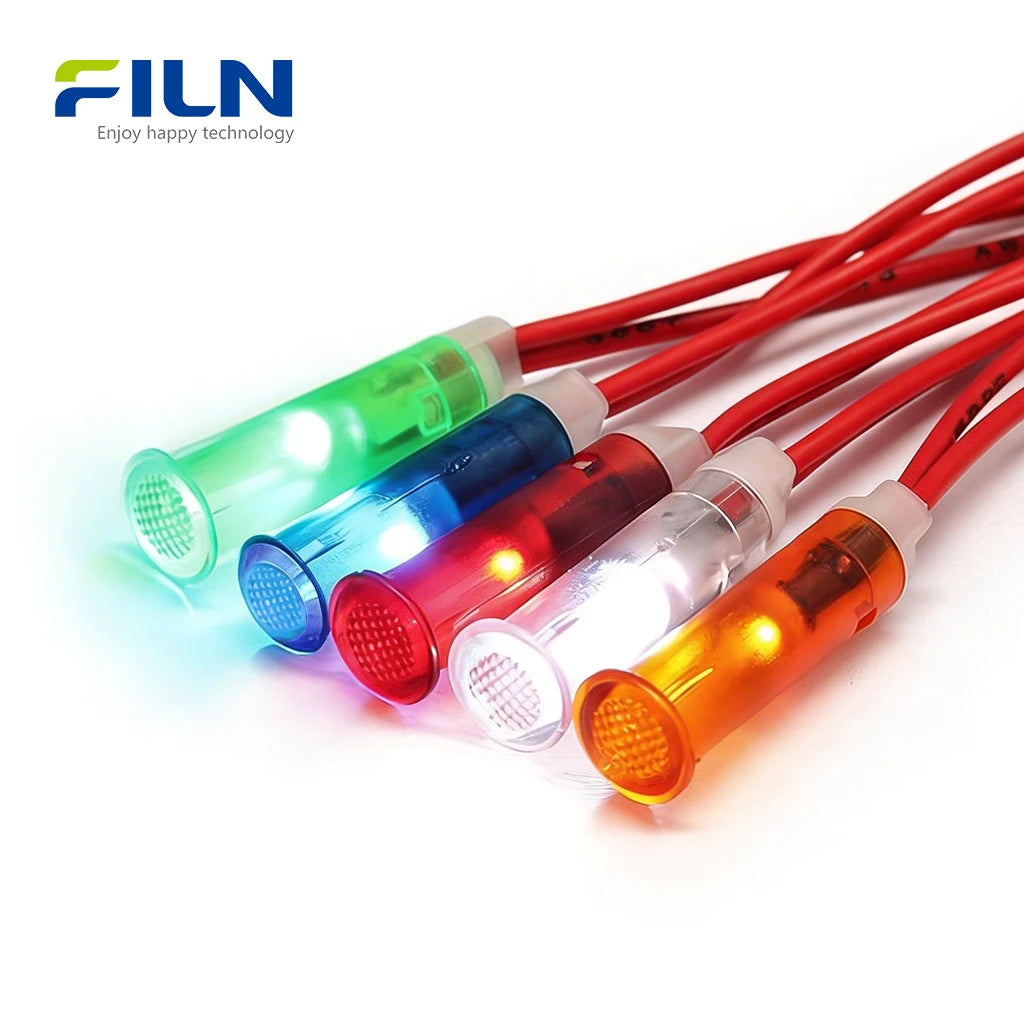

6. What colors are available for the 120V pilot lamps?
We offer Red, Green, Yellow, Blue, and White LED options.
7. Do you provide samples for B2B testing?
Yes, please contact our sales team at inquiry@cnylin.com.cn for professional sample requests.
8. Is the round-head plastic indicator light available in metal?
FILN offers both plastic and metal series. This specific 6mm model is optimized for plastic snap-in convenience.
9. Can these lights handle extreme temperatures?
Our indicators are rated for -40℃ to +80℃, making them suitable for cold storage or high-heat industrial environments.
10. Does this product have UL certification?
Yes, FILN's 120-vac-led-indicator-light is UL certified, ensuring it meets strict safety standards for North American markets.
