Product Overview

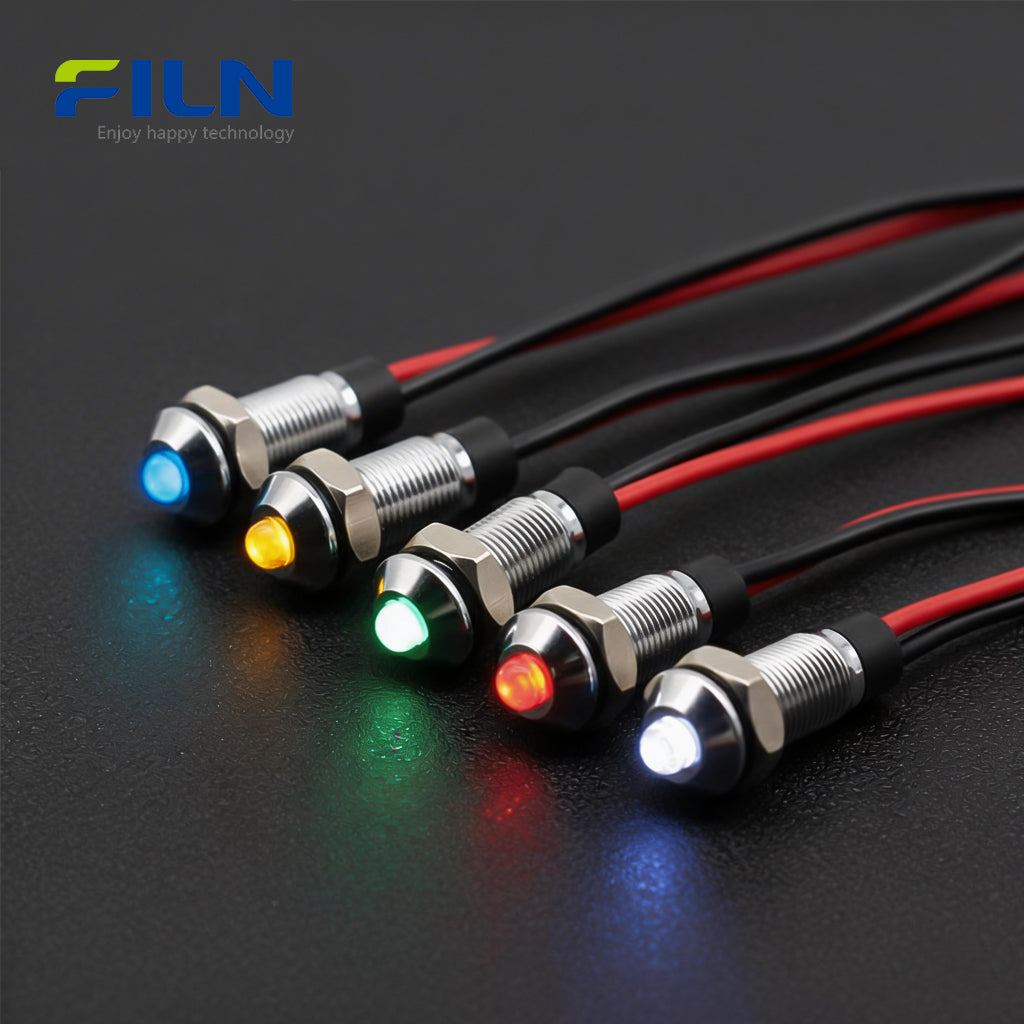

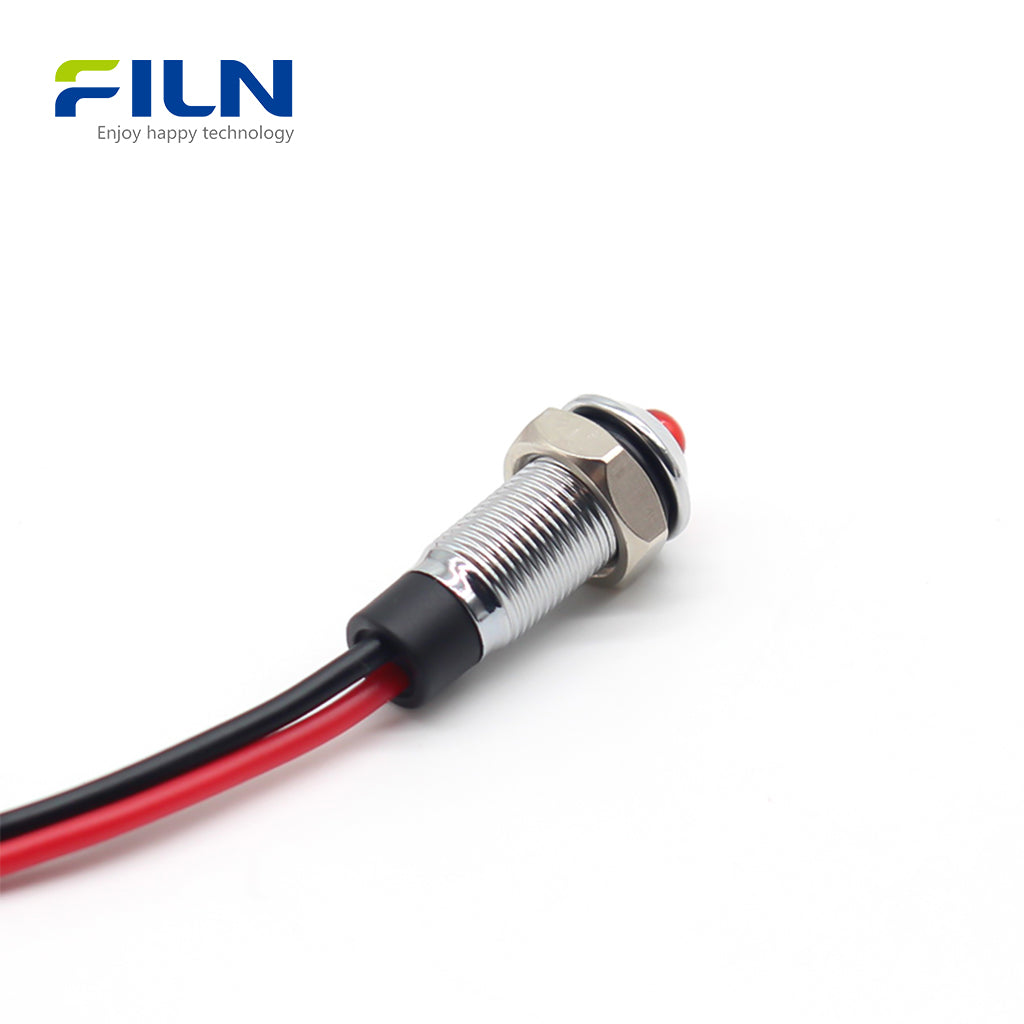

This ultra-compact 6mm LED Pilot Light (Model: FL1M-06SW-2) is now available for sale, offering a specialized solution for high-density control panels. Compared to the standard FL1M-06SW-1, this mini LED indicator features an even shorter body design, making it perfect for equipment with extremely limited internal space. As a professional indicator light factory, FILN has engineered this 6mm metal high head indicator to provide superior visibility from the side, ensuring signal status is clear from any angle. Whether you need 12V, 24V, 110V, or 220V, our pre-wired pilot lights are ready for immediate online purchase. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP67 certifications, it guarantees industrial-grade reliability for any signal transmission task in both large machinery and small electrical appliances.
Quick Specifications
| Mounting Hole | 6mm (0.24 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Supports Customization) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃～80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring type | Pre-wired Lead Type (20cm wire length) |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Chrome or Black plating for anti-corrosion |
| Lamp Holder | PA66 Nylon | High-strength, temperature resistant |
| Lampshade | PC Polycarbonate | High light transmission and impact resistance |
| Light Source | LED | Long life, low energy consumption |
| O-ring | Silica gel | IP67 Sealing protection |
| Nut | Copper Alloy | M6 Nut for secure fastening |
| Plum Gasket | Stainless Steel | Prevents loosening due to vibration |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Chrome-plated Copper / Black Anodized Aluminum |
|---|---|
| Lens | PC (Polycarbonate) |
| Seal Ring | High-grade Silicone |
| Terminal | Direct Wire Exit |
| Wire Material | UL1007 standard wire |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP67 |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Test Condition | Requirement |
|---|---|
| 30mA / 1000h Continuous Working | Life > 50,000 hours |
Resistant Performance
| Test Item | Parameter |
|---|---|
| High Temperature Resistance | 80℃ / 96h |
| Low Temperature Resistance | -40℃ / 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features

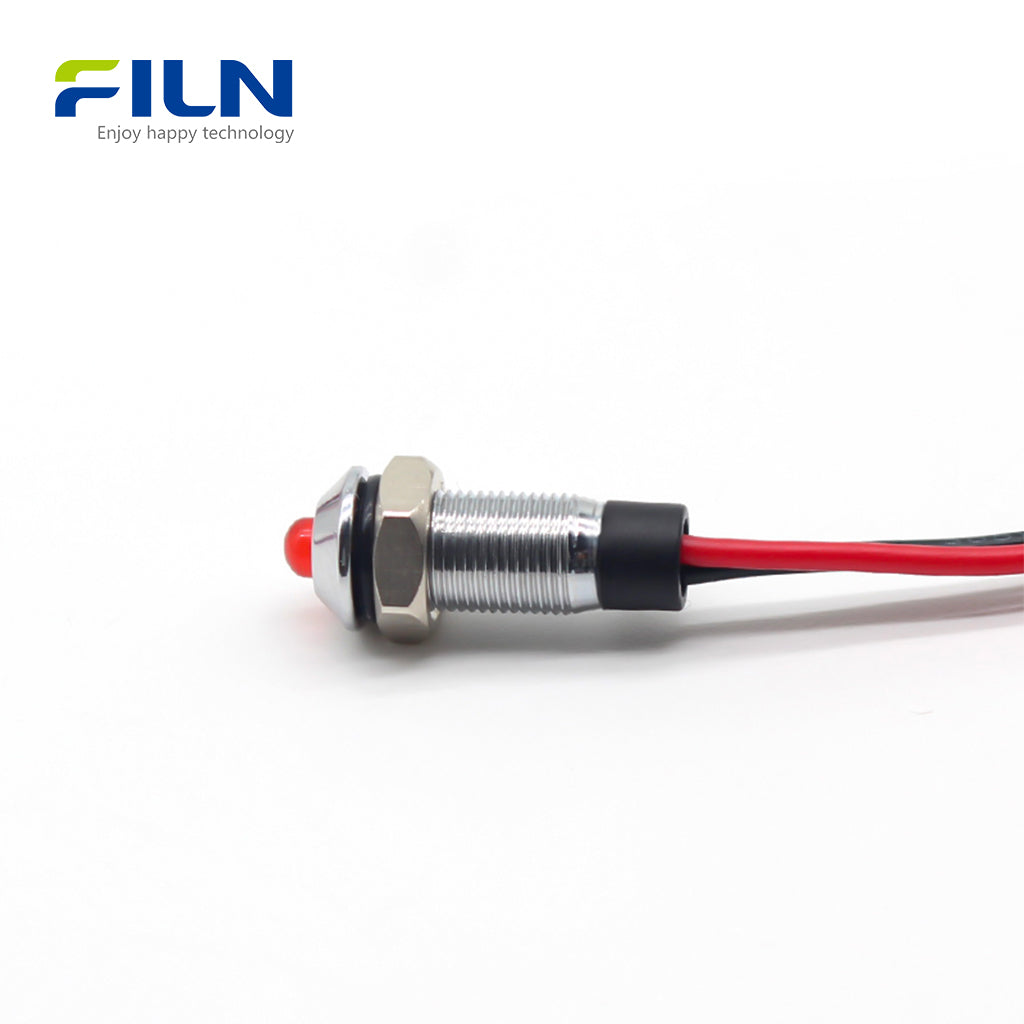

- Ultra-Short Mini Design: Significantly shorter than standard 6mm models, ideal for shallow mounting depths.

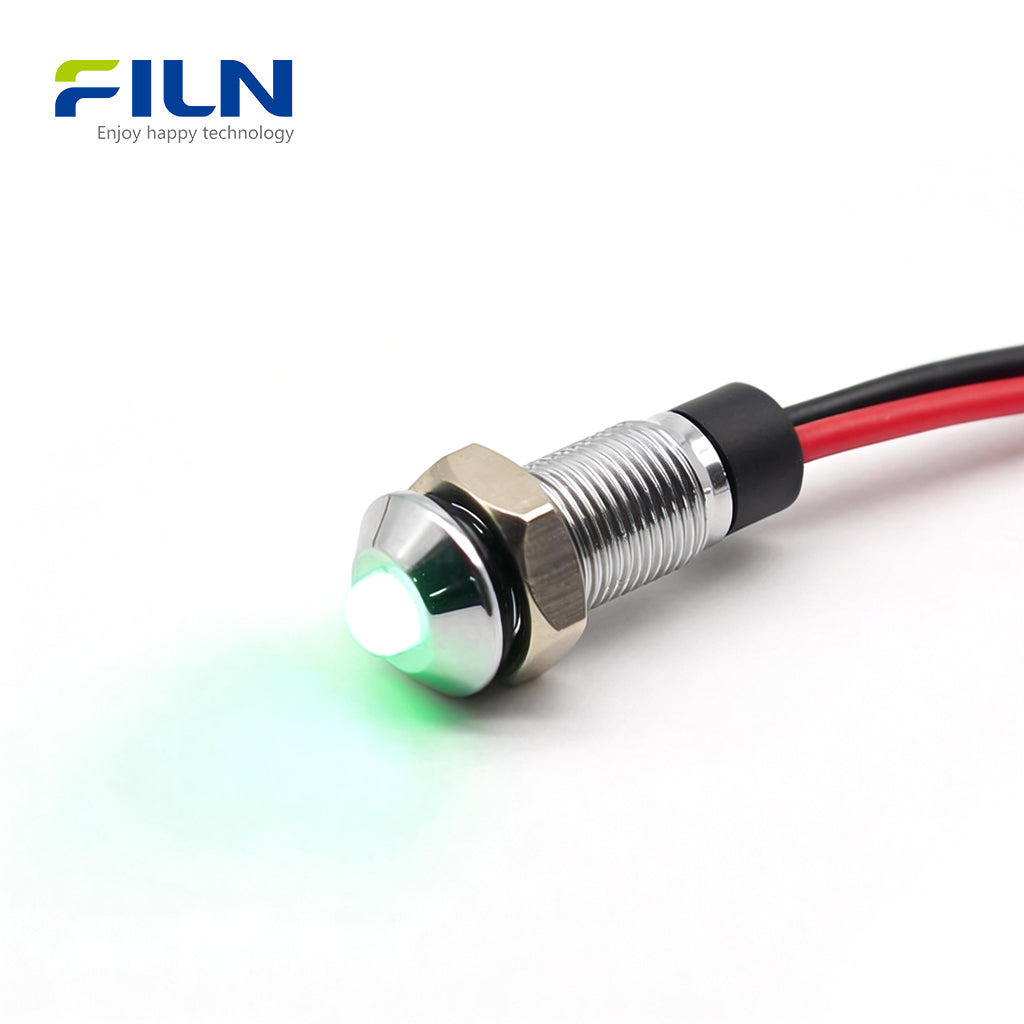

- High Head Visibility: The prominent high-head design ensures the LED Pilot Light can be seen from the side profile.

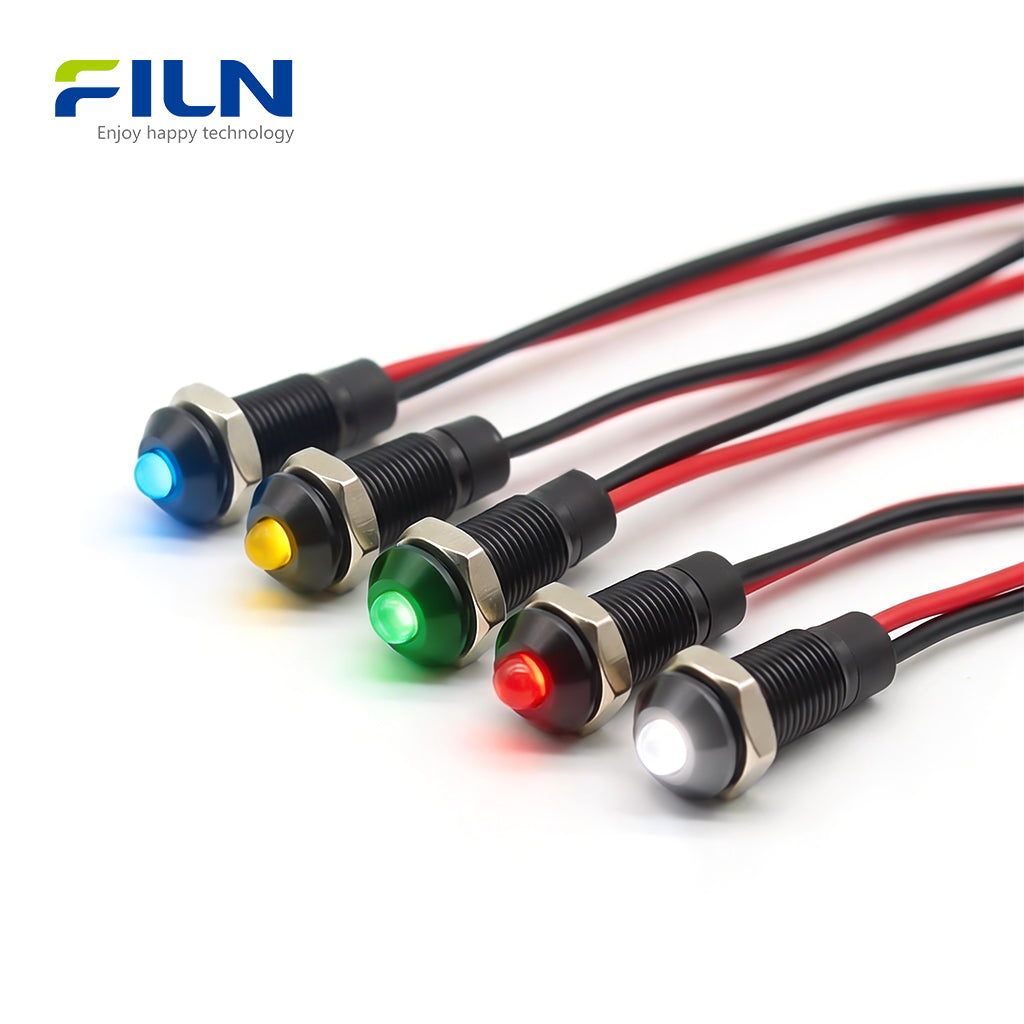

- Industrial-Grade Shell: Available in chrome silver or anodized black to match your industrial aesthetic.
- IP67 Waterproof: Includes specialized silicone seals for protection against water immersion and dust.
- Pre-wired Ease: 20cm pre-soldered leads provide a stable connection and fast assembly.
Applications
- Industrial control panels and CNC machinery.
- Automation equipment status monitoring.
- Electrical distribution cabinets and power boxes.
- Marine dashboard and automotive signal transmission.
- Medical and kitchen appliances requiring miniature signal lamps.
Installation Guide
- Drill a 6mm hole on the mounting panel.

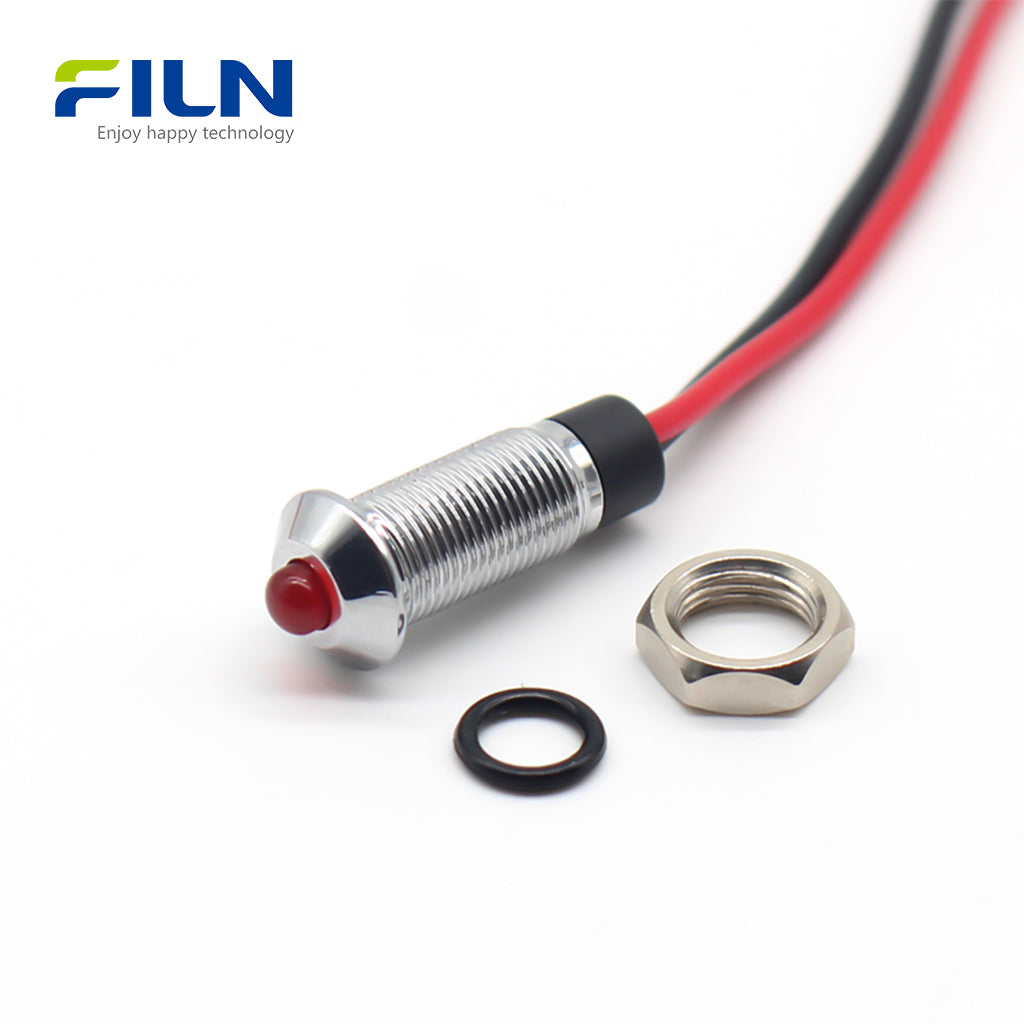

- Place the O-ring waterproof seal onto the body of the indicator lamp.
- Insert the LED Pilot Light from the front side of the panel.
- From the back, slide the metal gasket over the wires and secure the unit with the M6 nut.
- The O-ring prevents moisture from leaking behind the panel, while the nut and gasket ensure a vibration-proof fit.
What Is an 6mm LED Pilot Light?
An 6mm LED Pilot Light is a miniature visual indicator used to signal the operational status of electrical circuits. The high head design of the FL1M-06SW-2 allows the light to protrude from the panel, offering better visual recognition than flat indicators.
One of the key technical choices is the pre-wired (lead) design versus pin terminals. Pre-wired indicators feature direct wire outputs factory-sealed at the base, which offers better protection against moisture and vibration. This is particularly useful in miniature 6mm sizes where space is too tight for manual soldering or terminal connectors. The smooth-threaded M6 nut and silicone O-ring are essential for maintaining an IP67 rating, ensuring the internal electronics remain dry even in harsh wash-down environments.
Factory Direct Supply
FILN factory provides high-quality manufacturing with complete customization options:
- Factory Direct: Lowest price and fast shipping.
- Voltage Customization: Available for any voltage (3V-380V).
- Wire Length Customization: Standard 20cm or custom lengths.
- Global Certification: UL, CE, VDE, RoHS, SGS.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy these LED pilot lights directly from the factory?
Yes, FILN offers these 6mm indicators for sale online with worldwide shipping.
2. How is this mini version different from the standard FL1M-06SW-1?
The FL1M-06SW-2 has a shorter body, designed for compact panels with very little back-clearance.
3. What is the benefit of the high-head design?
The high head allows the light to be visible from a 180-degree side view, unlike flat-head models.
4. Is the wire length adjustable?
The standard length is 20cm, but we can customize the wire length to meet your project needs.
5. Are these pilot lights waterproof?
Yes, they are rated IP67 when installed with the provided silicone O-ring.
6. What shell colors are available?
We offer both nickel-plated copper (silver) and anodized aluminum (black) shells.
7. Do you support custom voltages?
Yes, we can customize the internal resistor for any voltage from 3V to 380V.
8. What is the advantage of pre-wired over pin terminals?
Pre-wired designs are easier to install and offer better vibration and moisture resistance in miniature sizes.
9. Are these UL certified?
Yes, FILN indicator lights carry UL, CE, VDE, and RoHS certifications.
10. How long is the expected working life?
Our high-quality LEDs are rated for over 50,000 hours of continuous operation.
