Product Overview

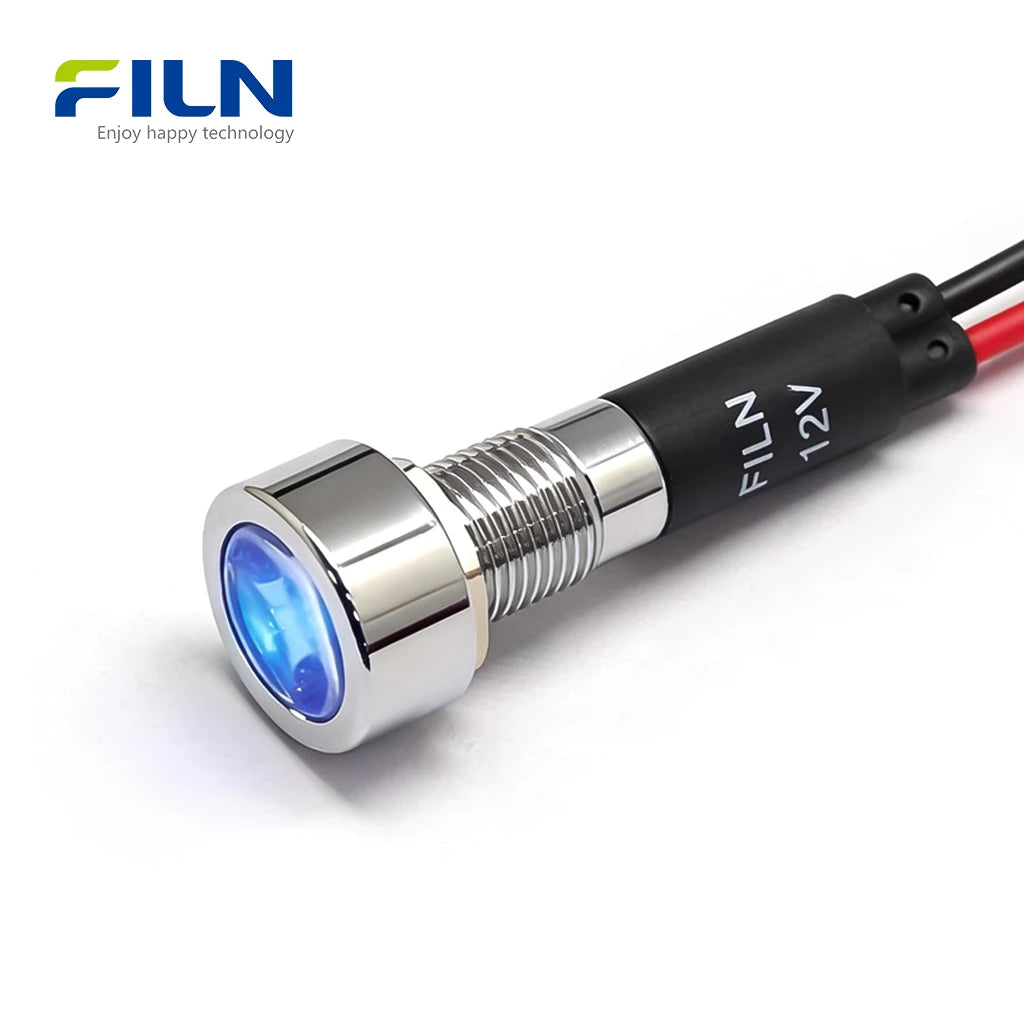

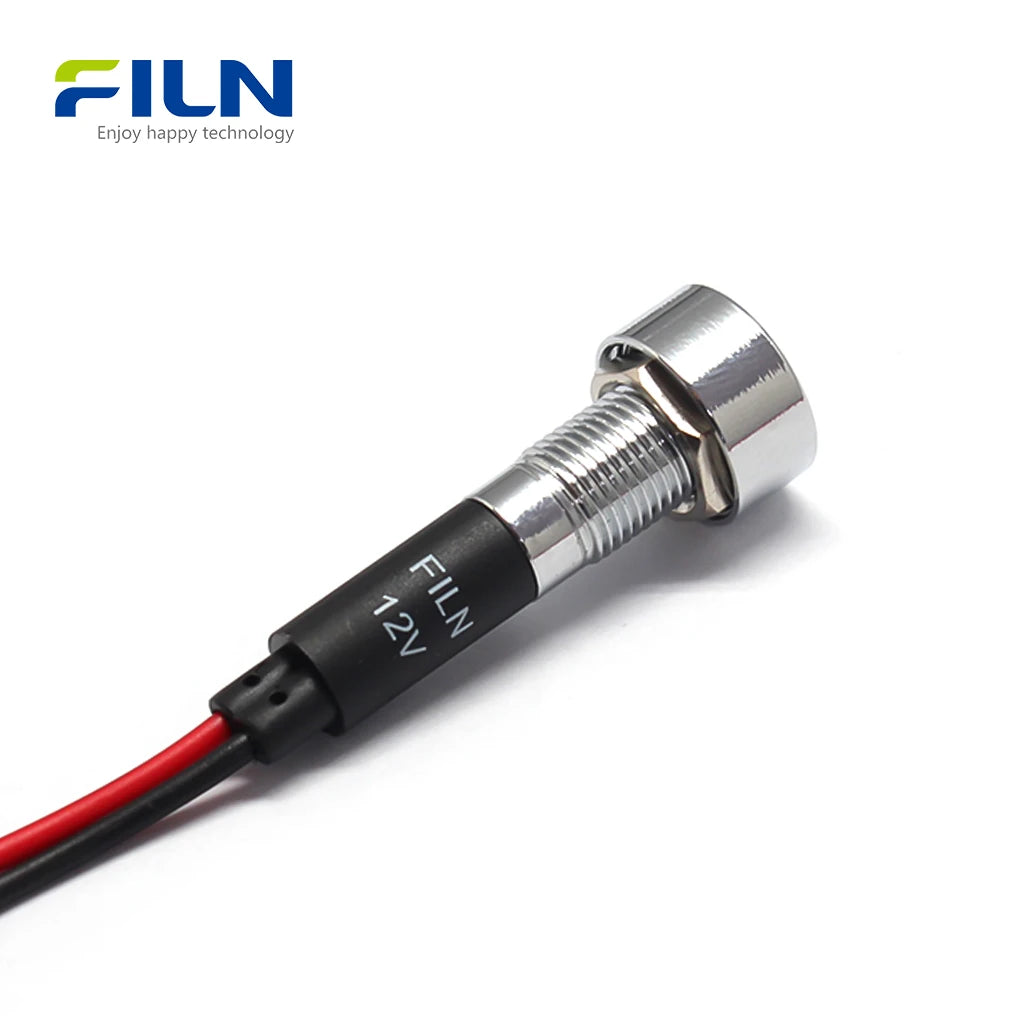

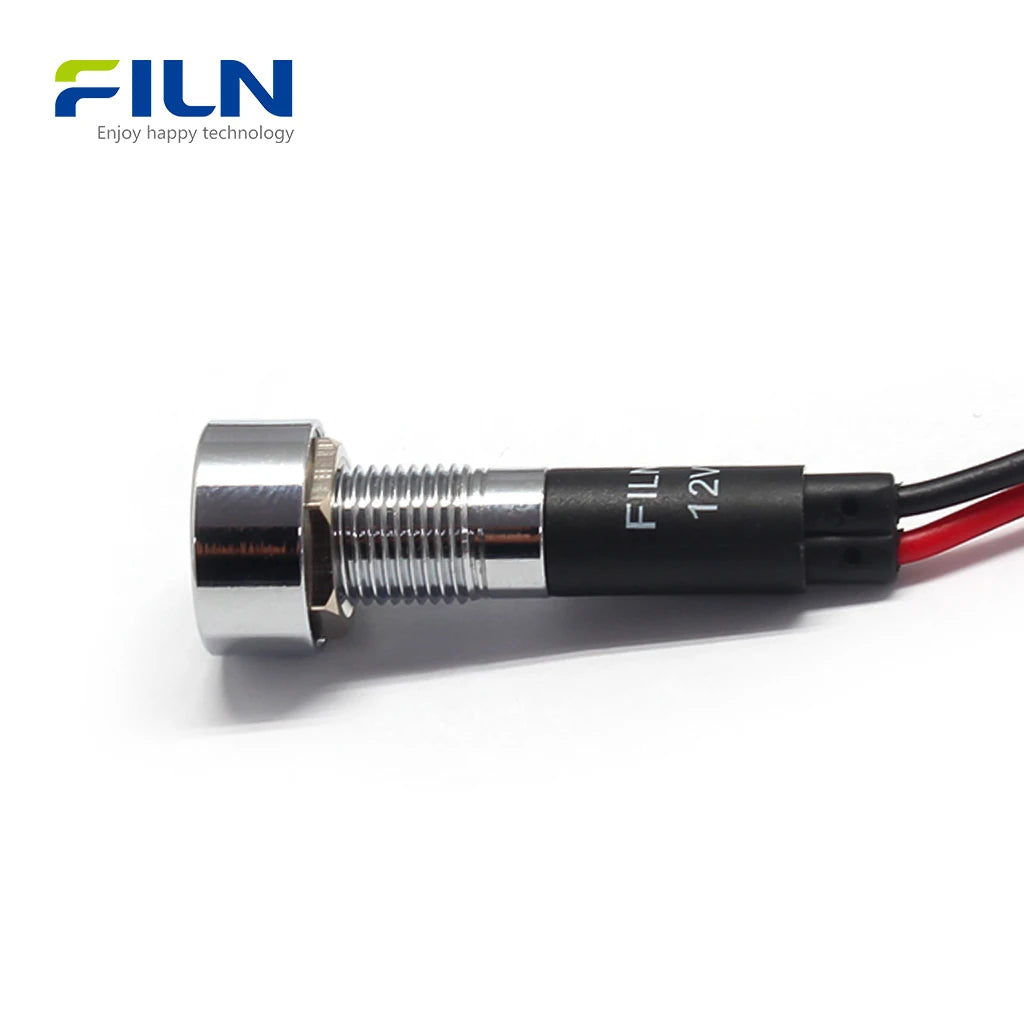

The FL1M-08SW-5 Machine Panel Indicator Light is a high-performance 8mm industrial LED signal lamp designed for precision monitoring in CNC machinery, automation equipment, and control panels. Featuring a silver metal housing and a unique high-head convex design, this indicator provides superior visibility with a 13mm head diameter despite its compact 8mm mounting size. Engineered for industrial reliability, it offers IP67 waterproof protection and a non-polar LED bead for versatile 12V-24V or 110V-220V wiring. The pre-wired lead design ensures a significantly faster installation compared to standard pin-type terminals, making it the ideal choice for heavy-duty electrical environments.
Quick Specifications
| Mounting Hole | 8mm (0.315 inch) |
|---|---|
| Voltage | 12-24V / 110-220V |

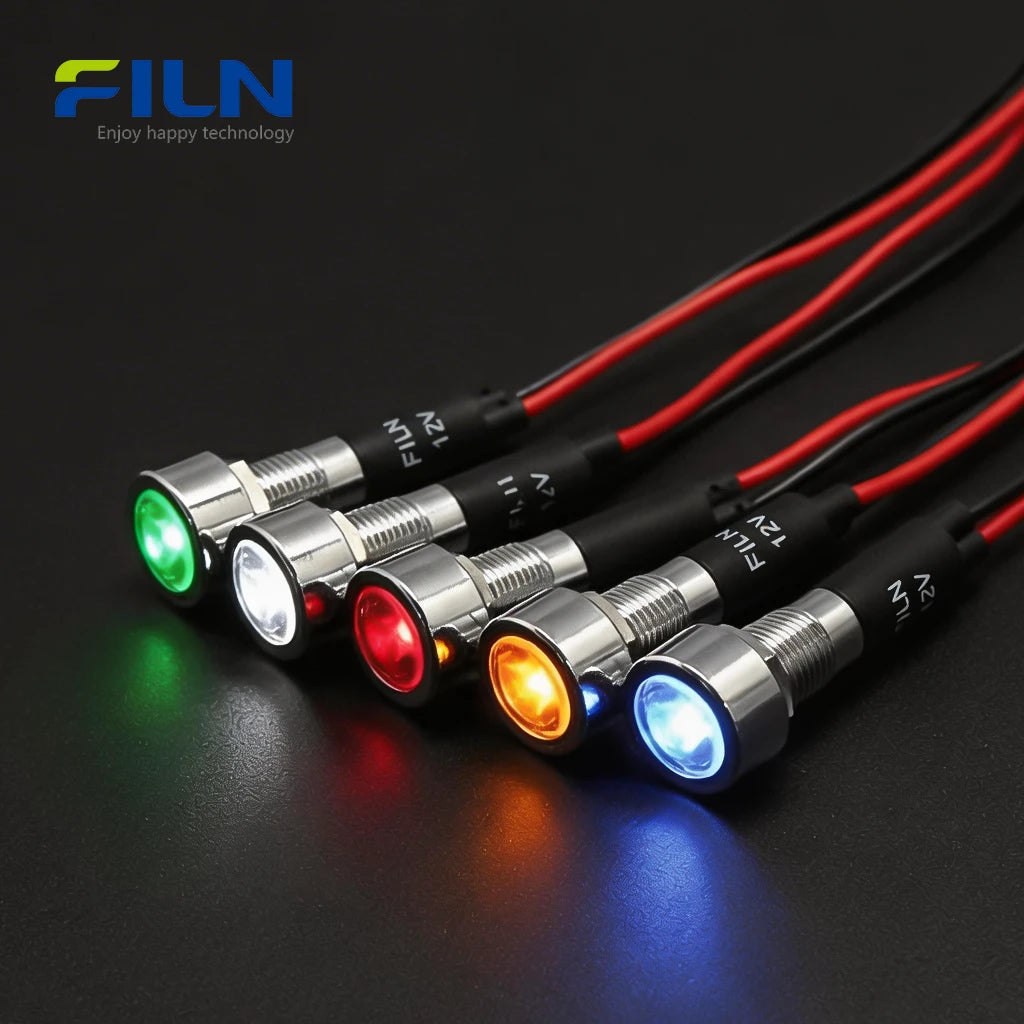

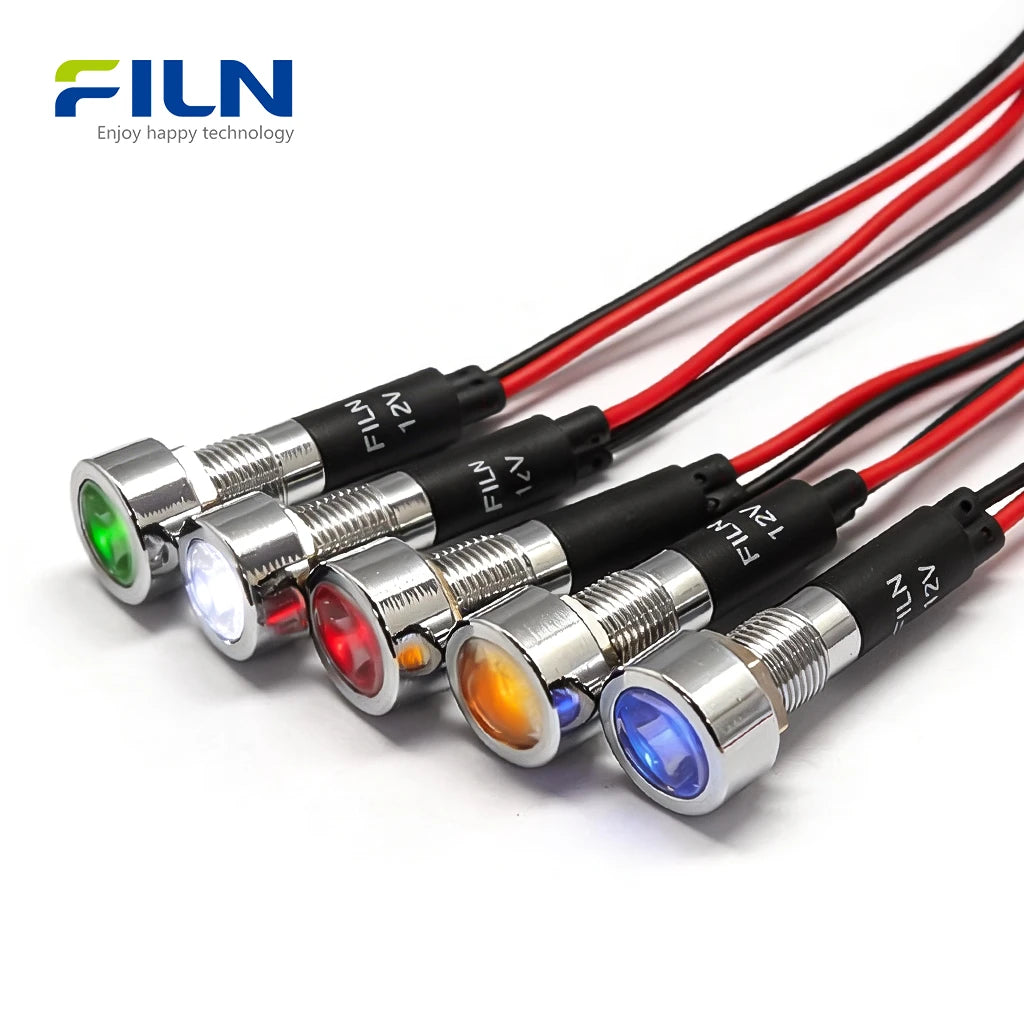

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead Type |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Silver Plated Brass |
|---|---|
| Lens | PC (Polycarbonate) |
| Seal Ring | Silicone O-ring |
| Wire Material | PVC Copper Wire |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 60s | No breakdown |
Reliability Data
| Working Life | 50,000 hours (Test: 30mA 1000h) |
|---|---|
| Heat/Cold Resistance | 80℃ / -40℃ (96h) |
| Cycle Test | -40℃ to 85℃ (5 rounds) |
Key Features
- LED high brightness: Premium beads for clear signaling.
- Long lifespan: Rated for over 50,000 hours of continuous use.
- IP67 waterproof: Dust-tight and protected against water immersion.
- Easy installation: Direct pre-wired tail for rapid mounting.
- Industrial grade: Rugged silver metal housing with anti-vibration M8 nut.
Applications
- Industrial control panels
- CNC machines & Lathes
- Automation equipment lines
- Electrical cabinets & Switchgear
- Marine & Medical devices
Installation Guide
- Drill an 8mm diameter mounting hole in your panel.
- Slide the indicator light through the hole from the top side.
- Ensure the O-ring gasket is flush against the panel surface.
- Tighten the M8 nut from the rear to secure the housing.
- Connect the lead wires to your power source (non-polar LED).
What Is a Machine Panel Indicator Light?
A Machine Panel Indicator Light is a critical visual component for monitoring industrial equipment status. Unlike standard pin-type indicators that require soldering or connectors, our pre-wired (wire lead) model offers a direct-out tail design for easier management in tight electrical cabinets. The convex "high head" style ensures the signal is visible from 180 degrees, while the IP67-rated metal housing protects against oil and coolant spray in CNC environments.
Factory Direct Supply - FILN
Leverage our expertise as a leading manufacturer with over 180 employees.
- ✓ Factory Direct Pricing
- ✓ Voltage Customization
- ✓ Wire Length Custom
- ✓ Fast Global Shipping
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the difference between pre-wired and pin types?
Pre-wired leads allow for direct connection without soldering, saving time in CNC assembly.
Pre-wired leads allow for direct connection without soldering, saving time in CNC assembly.
2. Can I use this for 220V applications?
Yes, we support 110V-220V and 12V-24V configurations.
Yes, we support 110V-220V and 12V-24V configurations.
3. Is the LED polarity sensitive?
No, our non-polar design works regardless of how you connect the leads.
No, our non-polar design works regardless of how you connect the leads.
4. What is the maximum panel thickness?
The M8 thread accommodates standard industrial panel thicknesses up to 6mm.
The M8 thread accommodates standard industrial panel thicknesses up to 6mm.
5. Is the housing rust-proof?
Yes, the silver metal housing is corrosion-resistant for marine and industrial use.
Yes, the silver metal housing is corrosion-resistant for marine and industrial use.
6. Can you customize the wire length?
Yes, as a factory, we offer wire length and connector customization.
Yes, as a factory, we offer wire length and connector customization.
7. What colors are in stock?
Red, Green, Yellow, Blue, and White are standard stock colors.
Red, Green, Yellow, Blue, and White are standard stock colors.

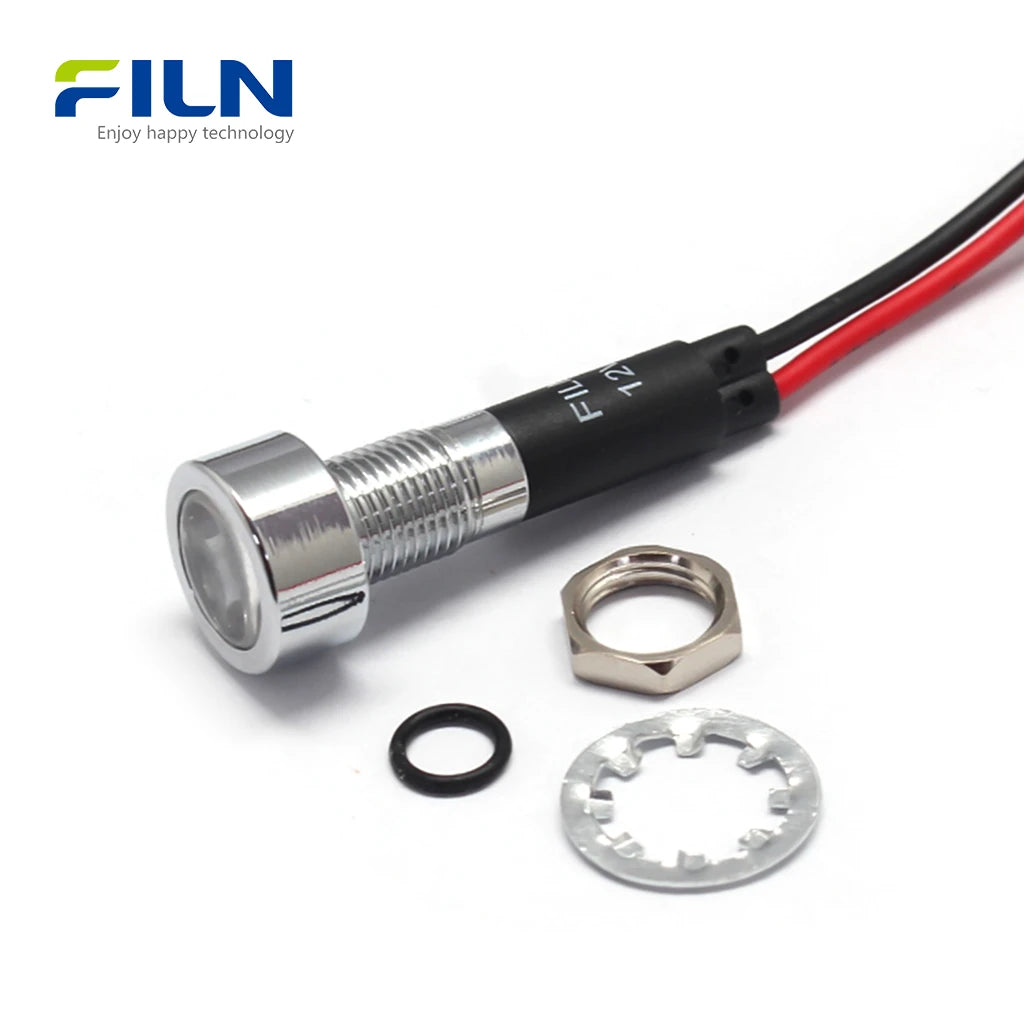

8. Is the O-ring included?
Yes, each light comes with an O-ring and a mounting nut.
Yes, each light comes with an O-ring and a mounting nut.
9. What is the head diameter?
While the mounting hole is 8mm, the visible high-head diameter is 13mm.
While the mounting hole is 8mm, the visible high-head diameter is 13mm.
10. Does this meet IP67 standards?
Yes, it is fully sealed for protection against heavy water spray and dust.
Yes, it is fully sealed for protection against heavy water spray and dust.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
