Product Overview

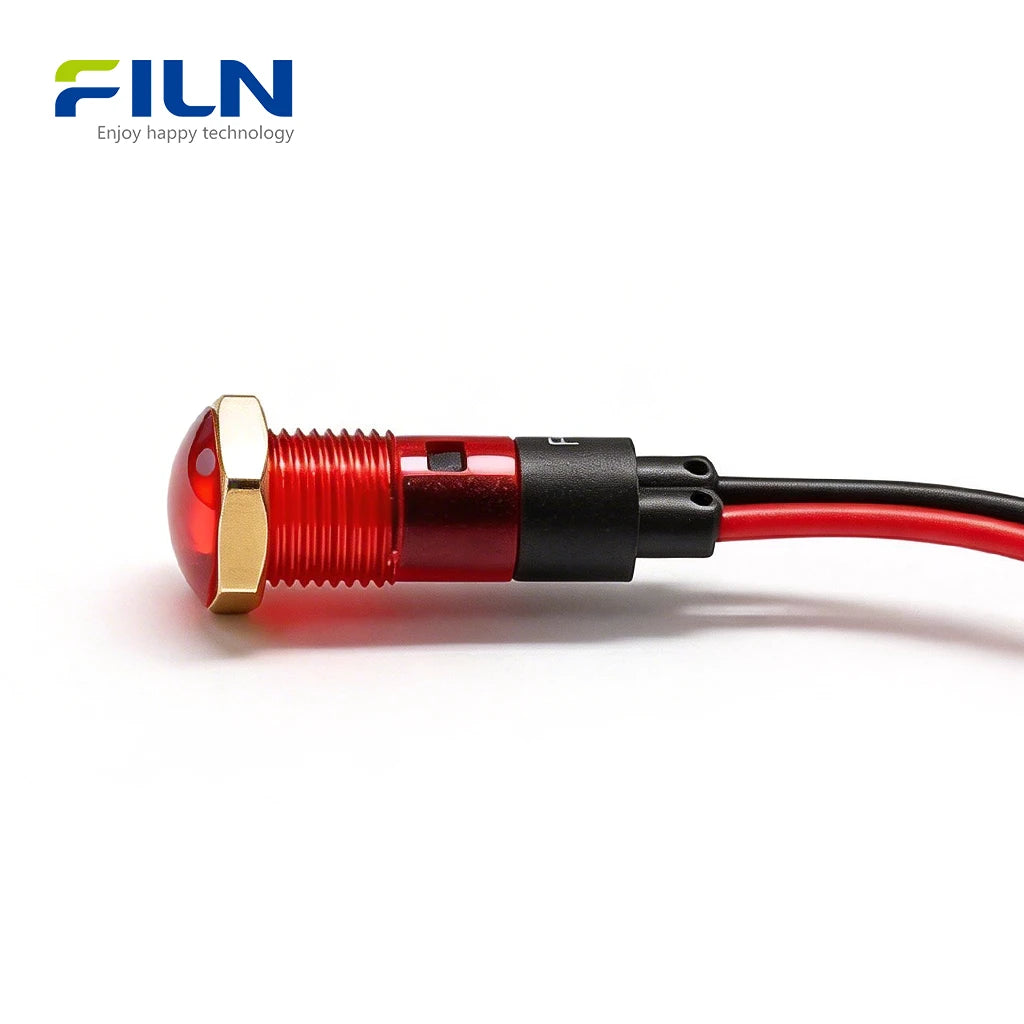

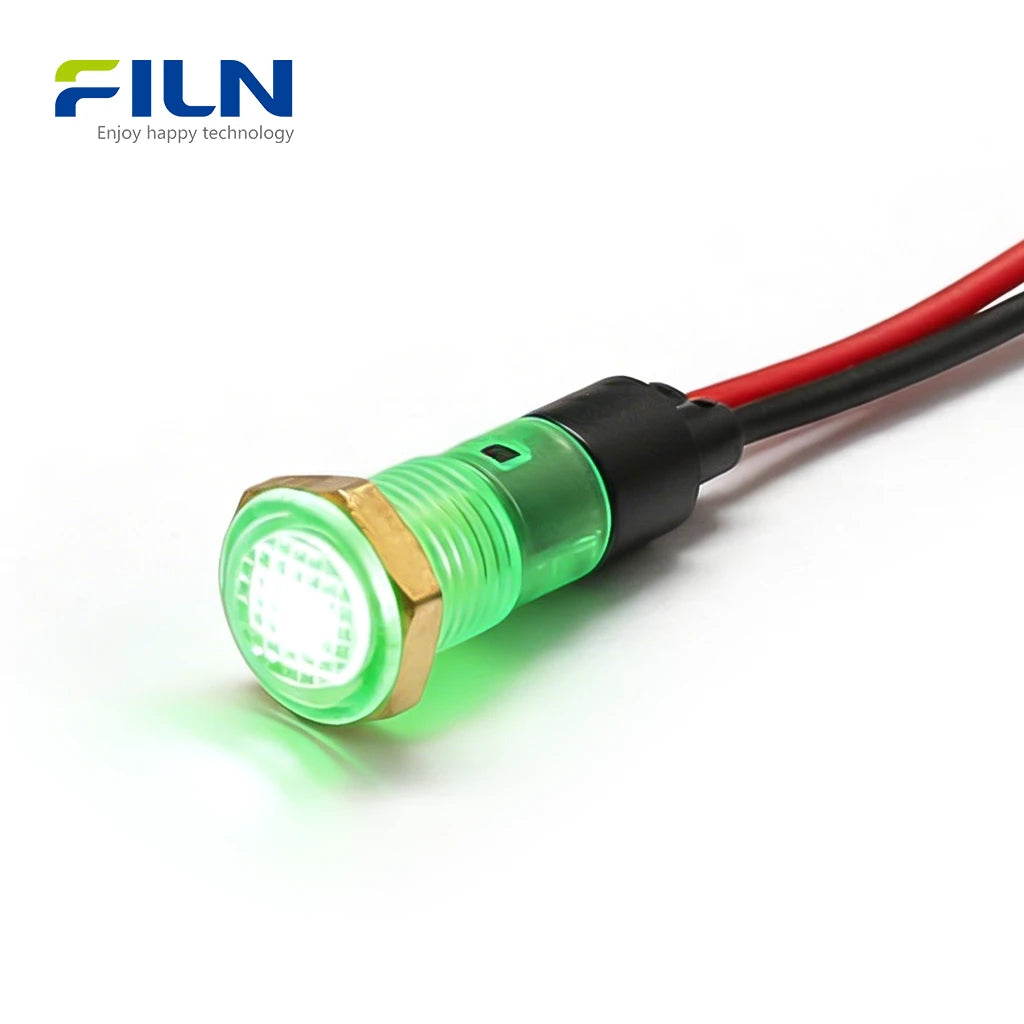

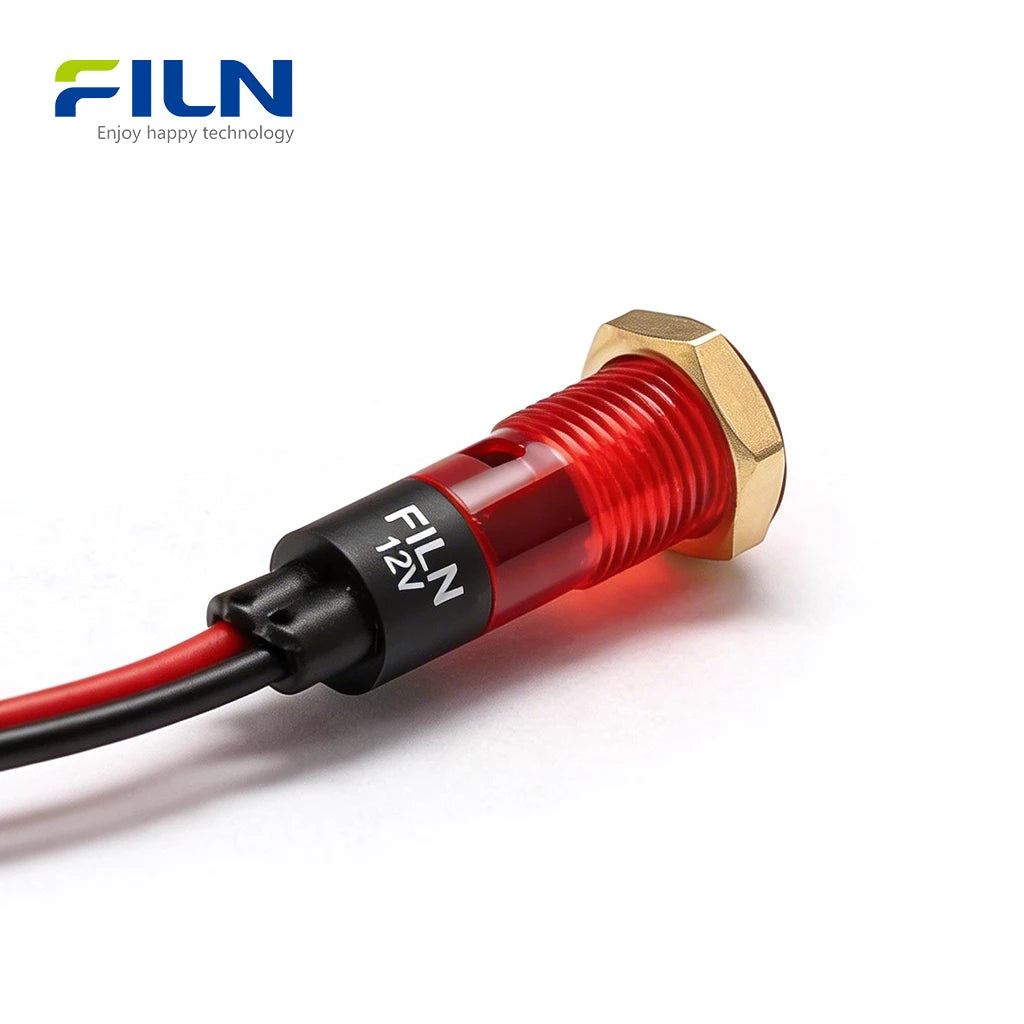

The FILN FL1P-08NW-1 is a high-reliability pilot indicator led for sale, featuring an 8mm mounting diameter and a durable PA66 plastic body. This 8mm-plastic-pilot-indicator-led-for-sale comes with a convenient 15cm pre-wired lead design, eliminating the need for manual soldering and speeding up your assembly process. As a direct factory, FILN ensures every 12v red pilot indicator led panel mount and 220v green pilot indicator led wire unit is certified by ISO9001, CE, UL, VDE, and RoHS. Plastic indicators are highly valued for their excellent electrical insulation and lightweight nature compared to metal versions. With a 60,000-hour lifespan and a secure threaded metal nut installation, these pilot indicator led units are perfect for industrial control panels, CNC machines, and automotive dashboards. Direct factory stock is available for purchase now.
Quick Specifications
| Mounting Hole | 8mm (0.31 inch) |
|---|---|
| Voltage | 12V-24V, 110V-220V (Supports Customization) |

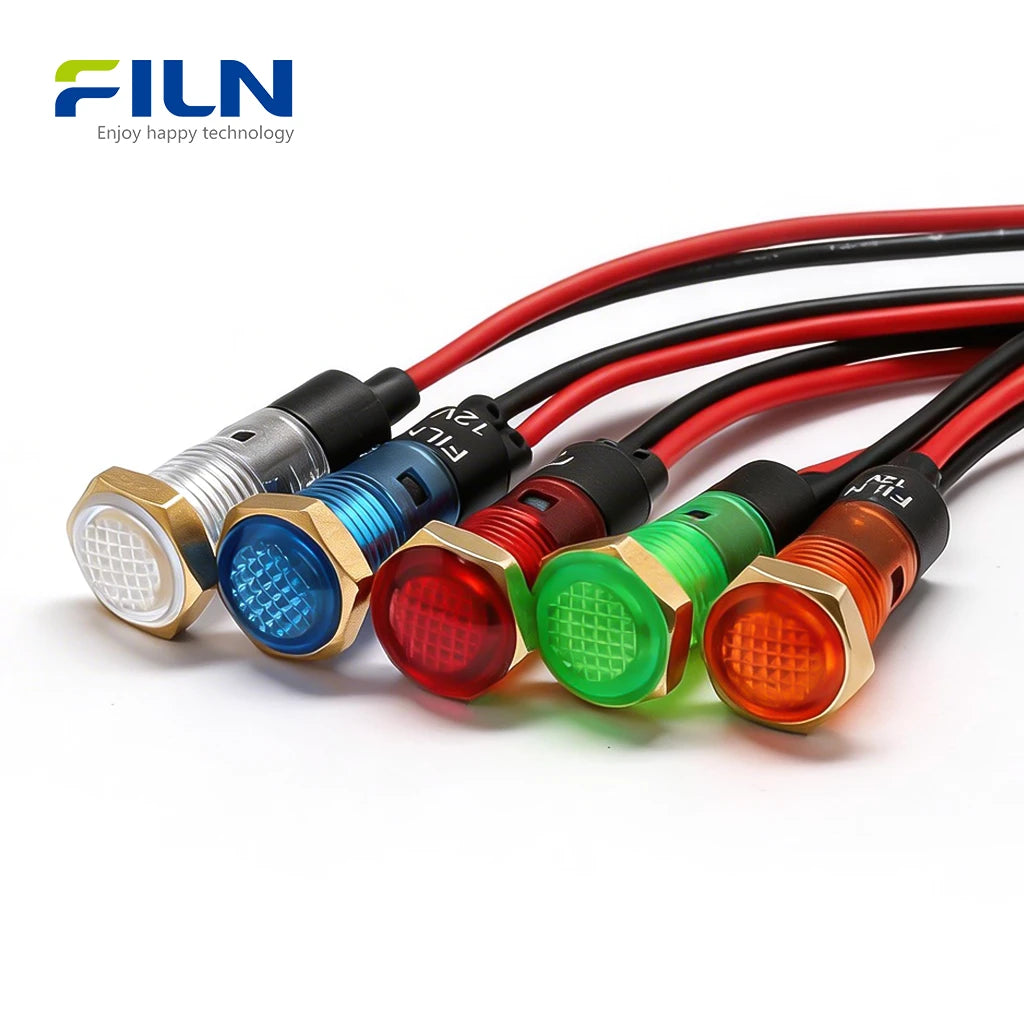

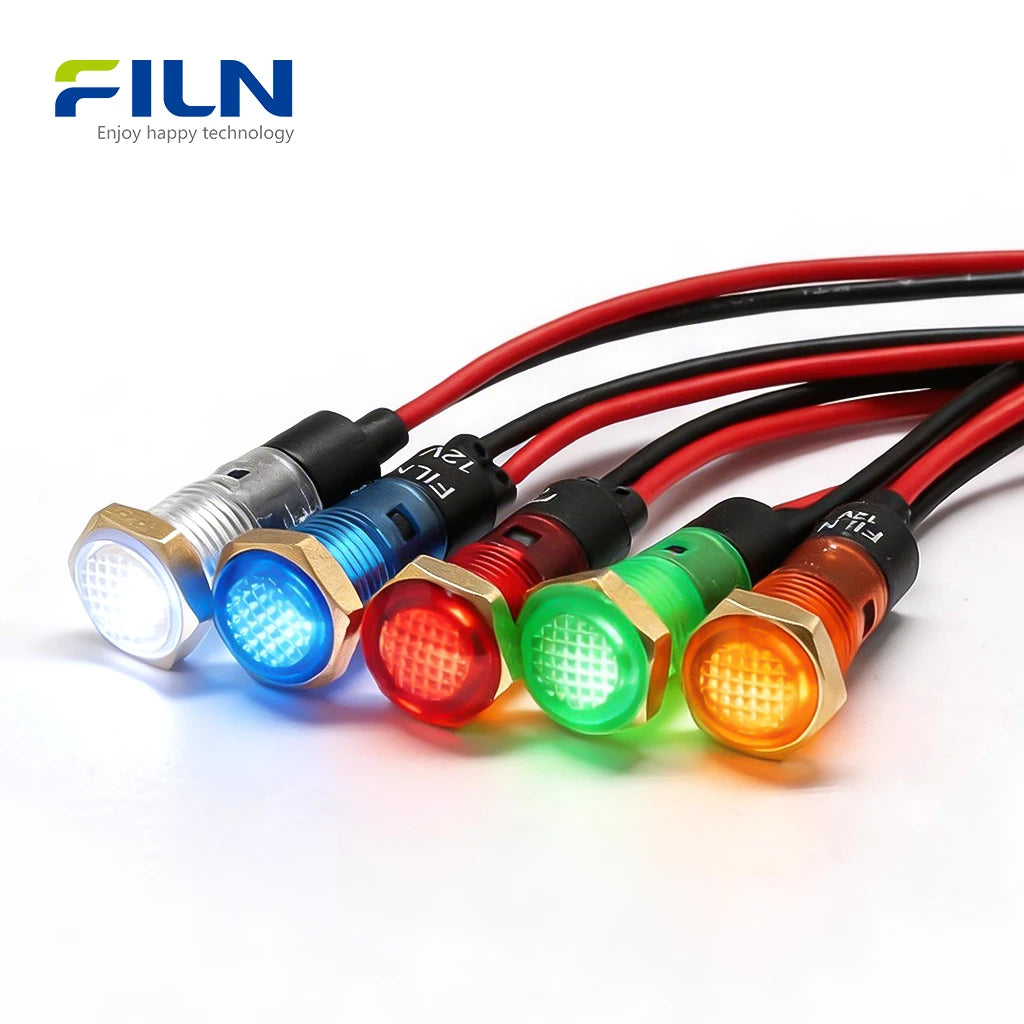

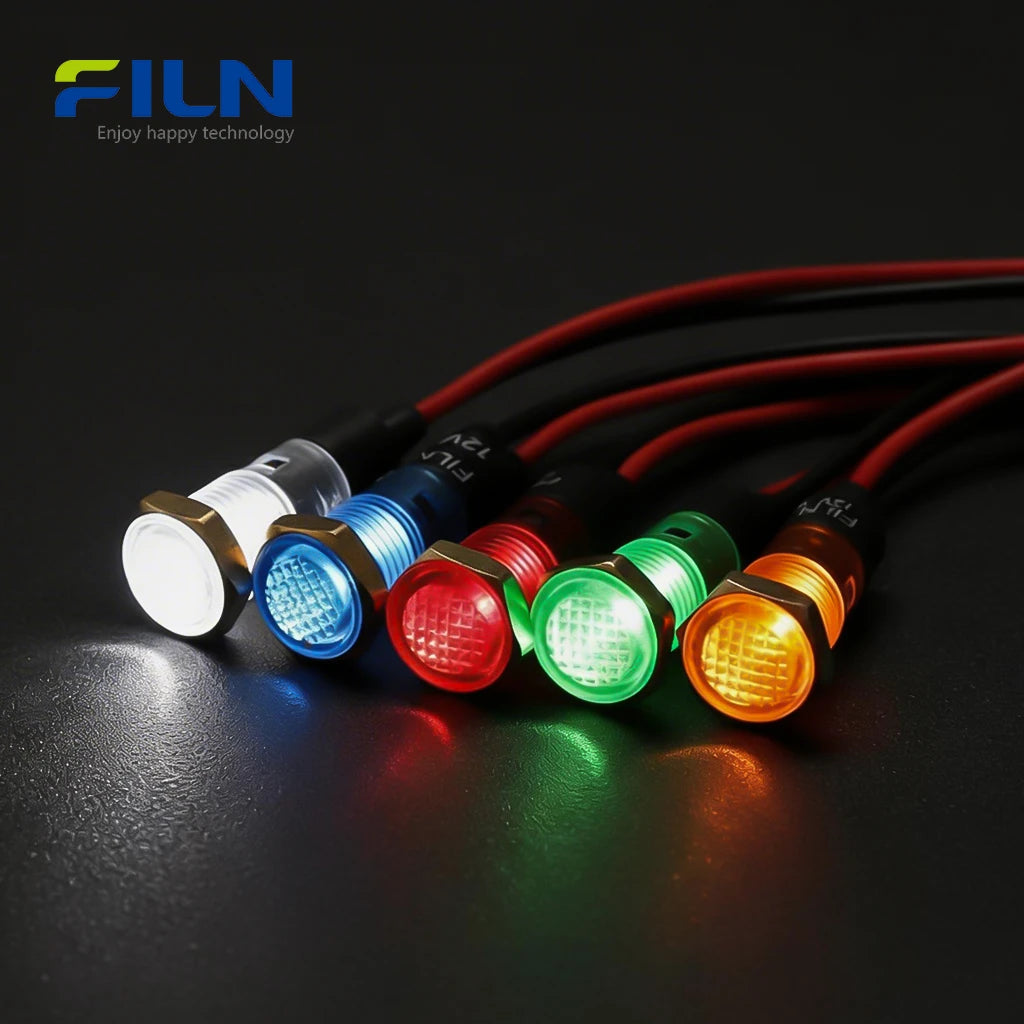

| LED Color | Red, Green, Yellow, Blue, White |
| Wire Length | 150mm (15cm) / Custom Length Available |
| Waterproof Rating | IP65 (Threaded Head) |
| Wiring Type | Pre-wired Lead Type (PVC Wire) |
| Installation Method | Threaded Mount with Metal Nut |
| Component Name | Material |
|---|---|
| Shell | PA66 Plastic |
| Lamp Holder | PA66 Plastic |
| Lampshade | PC |
| Luminescent Source | High-bright LED |
| Nut | Metal (Zinc Alloy / Brass) |
| Wire Specification | PVC (15cm) |
Rated Working Parameters
| Rated Voltage | Customized 3V-440V |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Industrial PA66 Nylon |
| Lens | Heat-resistant PC |
| O-ring | Silicone (IP65 Seal) |
| Wire Material | Standard PVC / UL wire |
General Characteristics
| Items | Parameter |
|---|---|
| Voltage Resistance | 1800V/5s |
| Working Life | 60,000h |
| Operating Temp | -40℃ ～ +80℃ |
| Relative Humidity | ≤85% at +40℃ |
Electric Property
| Insulation Resistance | DC500V 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 50,000 hours (Long-term stability) |
Resistant Performance
| High Temperature | 80℃ 96h |
| Moisture Resistance | 40℃ 90-95%RH 96h |
Key Features
- LED high brightness: Superior optics for 8mm-pre-wired-led-indicator-light visibility.
- Long lifespan: Maintenance-free operation exceeding 60,000 hours.
- Pre-wired Design: 15cm PVC leads for "out-of-the-box" wiring convenience.
- IP65 Waterproof: Sealed head ensures reliability in industrial pilot-indicator-led-8mm-plastic-for-sale environments.
- Secure Threaded Mount: Metal nut provides a vibration-resistant grip on the panel.
Applications
- Industrial machinery control panels and CNC workstations.
- Power distribution cabinets and battery chargers.
- White-led-dash-pilot-indicator-8mm for vehicle and boat consoles.
- Automation systems and industrial-8mm-led-pilot-lamp-for-sale setups.
- Kitchen equipment and commercial appliances.

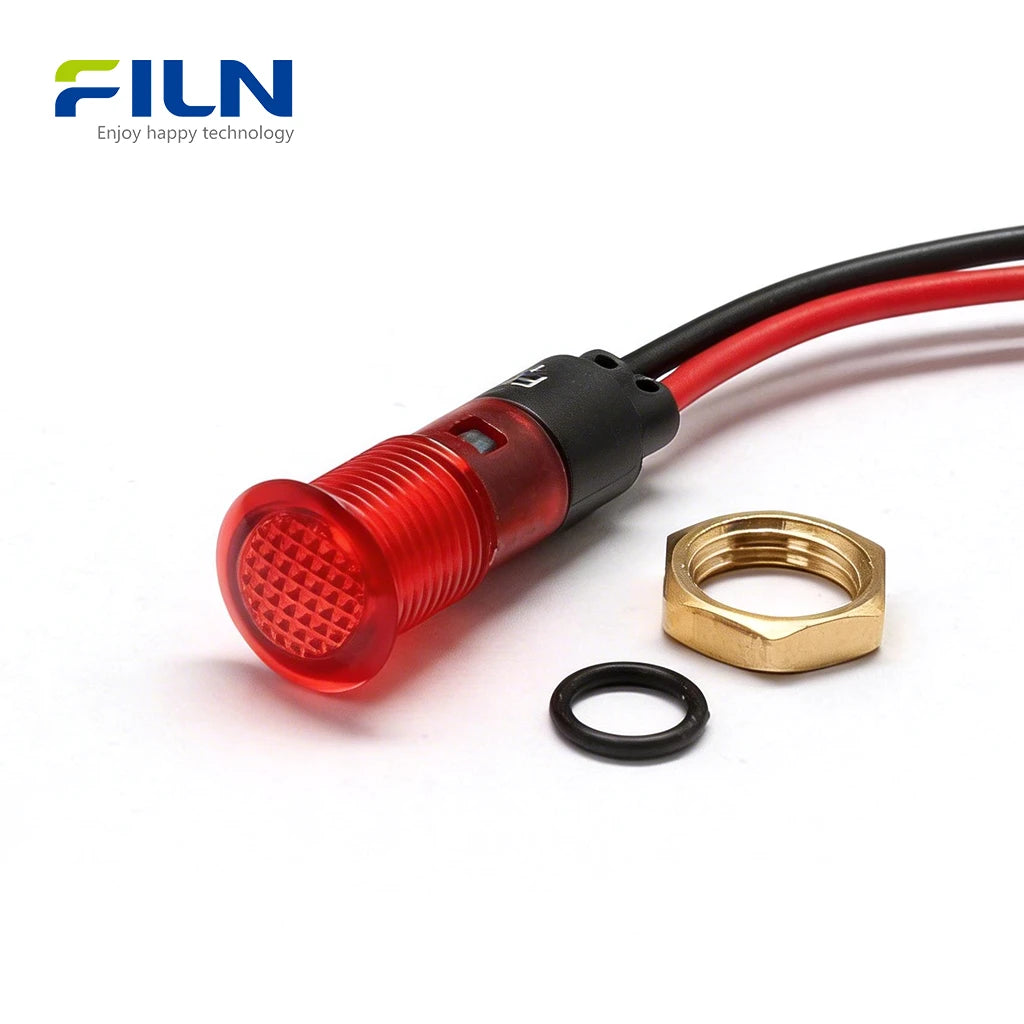

Installation Guide
- Drill an 8mm hole in your panel material.
- Remove the metal nut from the pilot indicator led housing.
- Insert the wires and the LED body through the front of the panel.
- From the rear, slide the metal nut over the wires and screw it onto the threaded mount body.
- Tighten the nut to secure the indicator firmly.
- Connect the 15cm wires to your power source.
What Is an 8mm Pre-wired Pilot Indicator LED?
An 8mm-plastic-pilot-indicator-led-for-sale is a compact status lamp used in industrial and automotive fields.
Pre-wired vs. Terminal Pin: Pre-wired models (FL1P-08NW-1) come with 15cm leads, making them ideal for deep cabinets where hand-wiring is difficult. Pin terminals, on the other hand, are better for PCB mounting or quick-connect connectors.
Plastic vs. Metal: Plastic indicators using PA66 provide better electrical safety through insulation and are resistant to rust. Metal indicators offer higher physical impact resistance for heavy machinery.
Threaded vs. Snap-in: Threaded mounts with a metal nut are preferred for panels that experience vibration, ensuring the light never comes loose.
Factory Direct Supply
FILN is a premier factory specializing in pilot indicator led production. Purchase direct for factory benefits:
- OEM/ODM Support
- Wire Length Customization
- Custom Connector Fitting
- Fast Global Logistics
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are the wires easy to pull out?
A: No, the wires are potted or securely anchored within the PA66 housing to prevent detachment during installation.
Q2: Can I get these with custom connectors?
A: Yes, we can add terminals like spade or JST connectors to the ends of the 15cm wires at the factory.
Q3: How does the LED perform in sunlight?
A: We use high-intensity LEDs to ensure signaling is visible even in bright industrial conditions.
Q4: Is there a bulk price for industrial distributors?
A: Yes, FILN offers tiered wholesale pricing for large volume B2B orders.
Q5: Can you provide a 24V version?
A: Yes, 24V is one of our standard voltage options along with 12V and 220V.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
