Product Overview

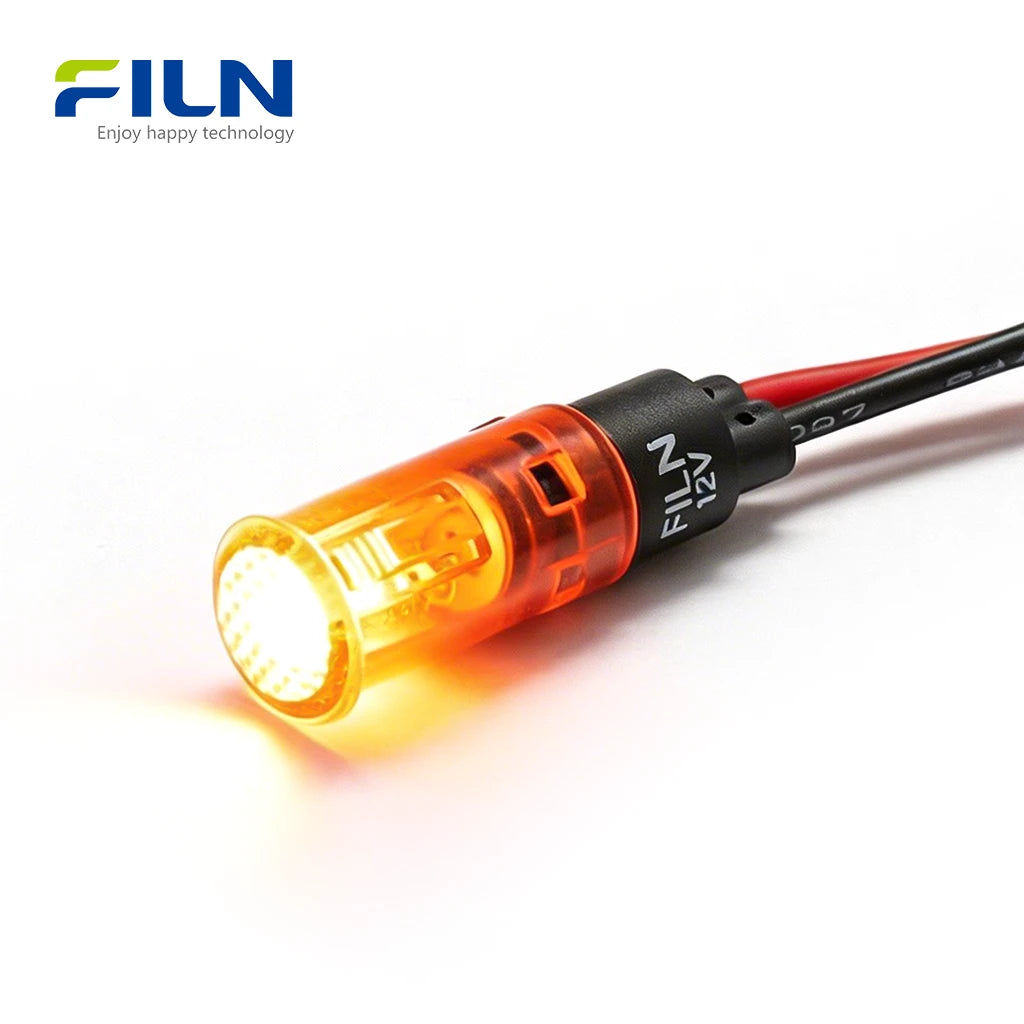

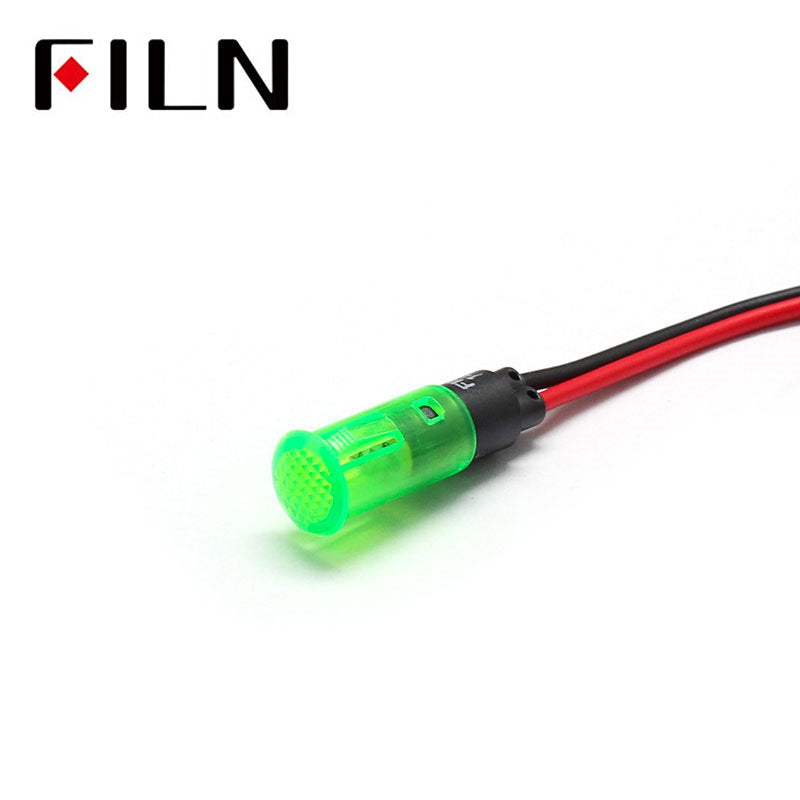

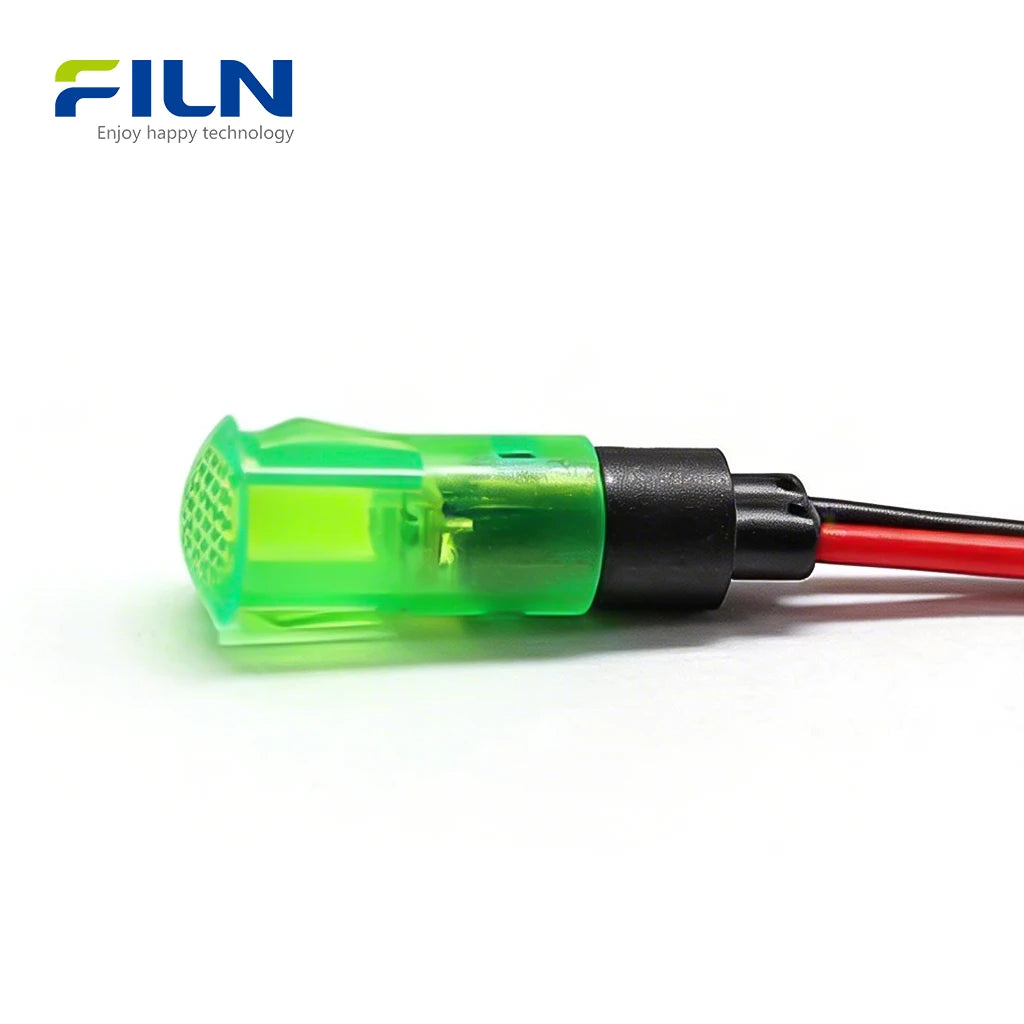

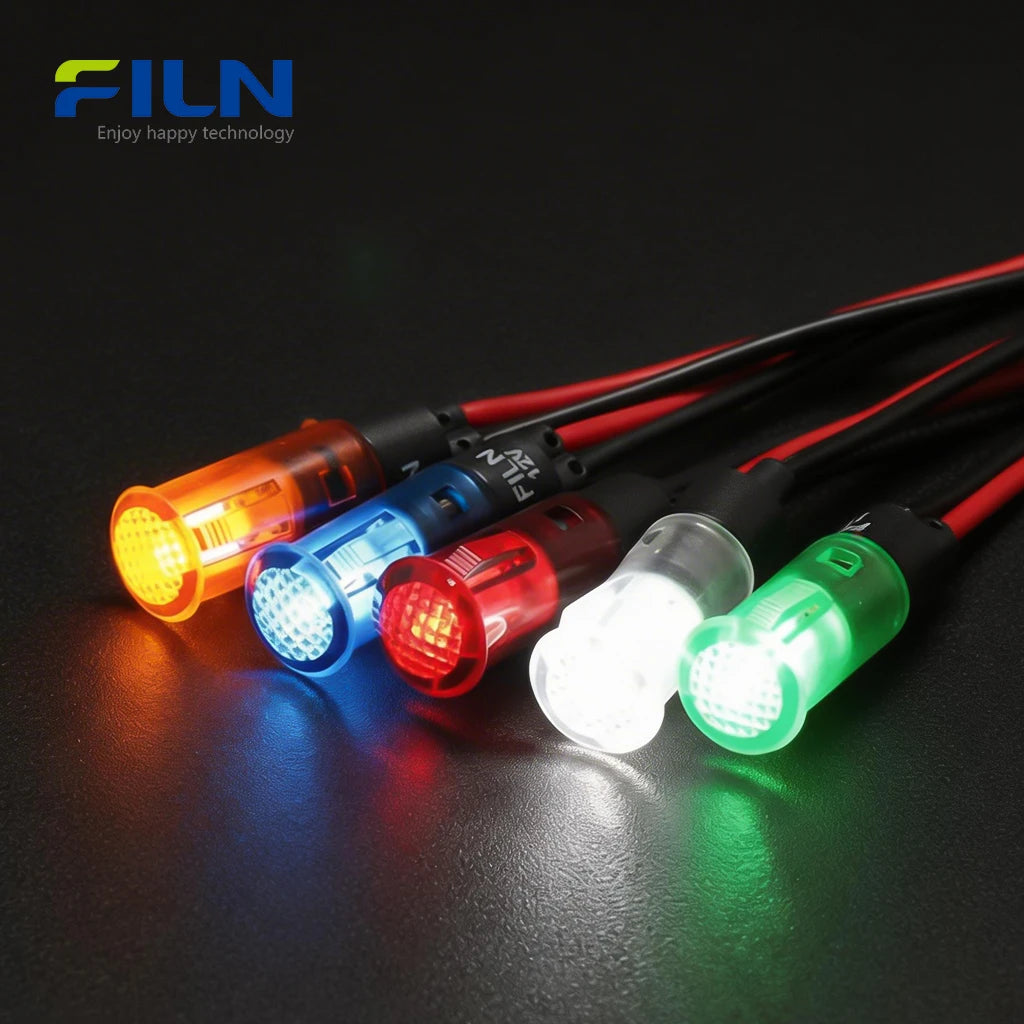

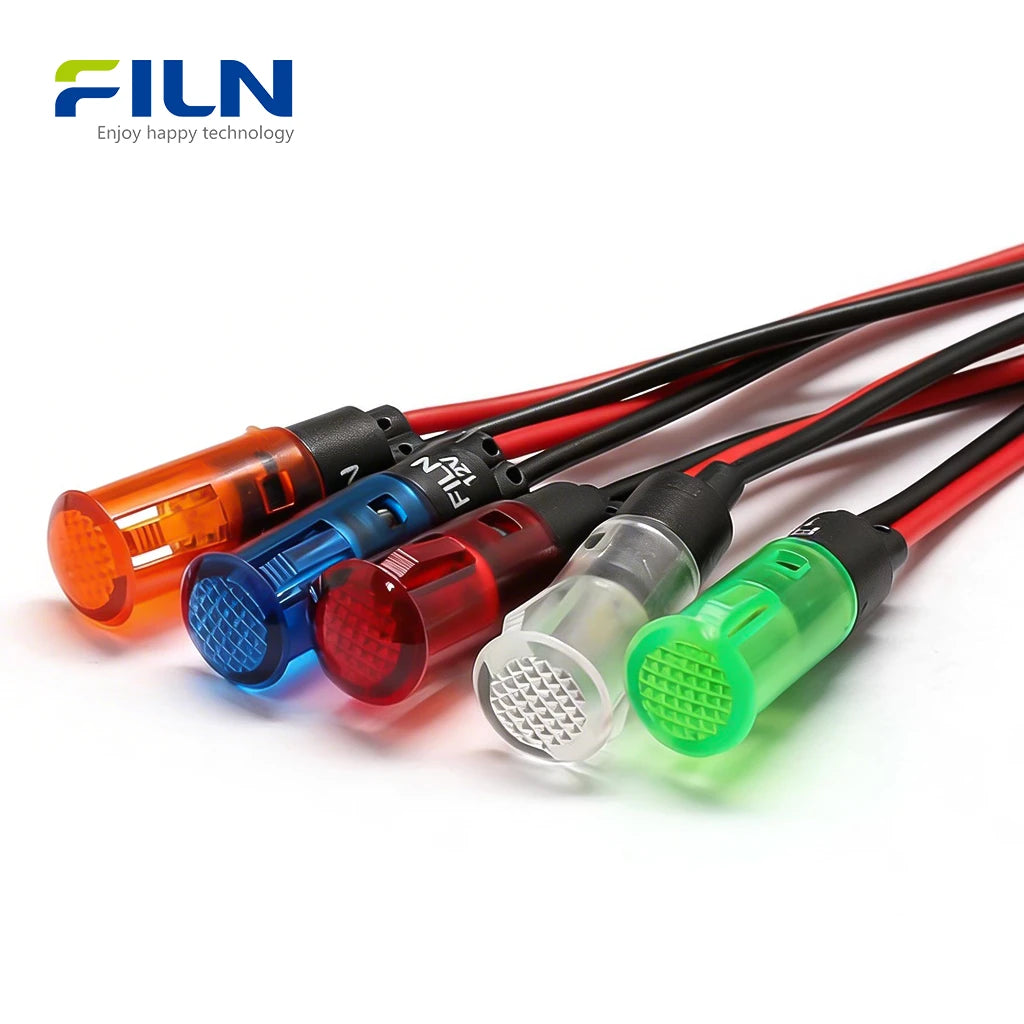

The FL1P-08QW-2 8mm plastic signal light for sale is a high-performance industrial signaling solution designed by FILN. This plastic indicator light features a durable PA66 shell and a high-visibility PC lampshade, ensuring clarity in demanding environments. Available in 12V, 24V, 110V, and 220V (with support for custom voltage), these lights are perfect for industrial control panels and automation equipment. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 (head only), you are guaranteed industrial-grade reliability. Whether you need a red, green, yellow, blue, or white signal light, our factory-direct supply allows for direct online purchase with fast global shipping.
Quick Specifications
| Mounting Hole | 8mm (0.315 inch) |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Snap-in type not fully waterproof) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Type | Snap-in Panel Mount |
| Wiring Type | Wire Lead Type (15cm Standard) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Materials
| Component Name | Material |
|---|---|
| Shell | PA66 Nylon |
| Lamp holder | PA66 Nylon |
| Lampshade | PC (Polycarbonate) |
| Luminescent Source | High Brightness LED |
| Resistance | Carbon film resistance |
| Wire specification | 15cm PVC Wire |
Rated Working Parameters
| Rated Voltage | Customized (3V - 380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Items | Parameter |
|---|---|
| Insulation Resistance | 1800V/5s |
| Working Life | 60,000h |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Cold/Heat Resistant | -40℃ / +80℃ |
Technical & Durability Performance
| Insulation Resistance (DC500V) | ≥100MΩ |
|---|---|
| Dielectric Strength (1500VAC) | No breakdown / 60s |
| Continuous Working Life | 50,000+ Hours |
| Moisture Resistance | 40℃ 90-95%RH 96h |
Key Features
- LED high brightness: Clear visibility even in bright environments.
- Long lifespan: Maintenance-free operation for over 60,000 hours.
- IP65 waterproof head: Durable against moisture and dust from the front.
- Easy installation: Snap-in design with side "ears" for quick panel fixing.
- Industrial grade reliability: High-temperature resistant PA66 materials.
Applications
- Industrial control panels and distribution boards.
- CNC machines and precision automation tools.
- Marine systems and outdoor electrical cabinets.
- Medical monitoring and diagnostic equipment.
- Commercial appliances and coffee machines.
Installation Guide
- Drill a hole in the panel with a diameter of 8mm.

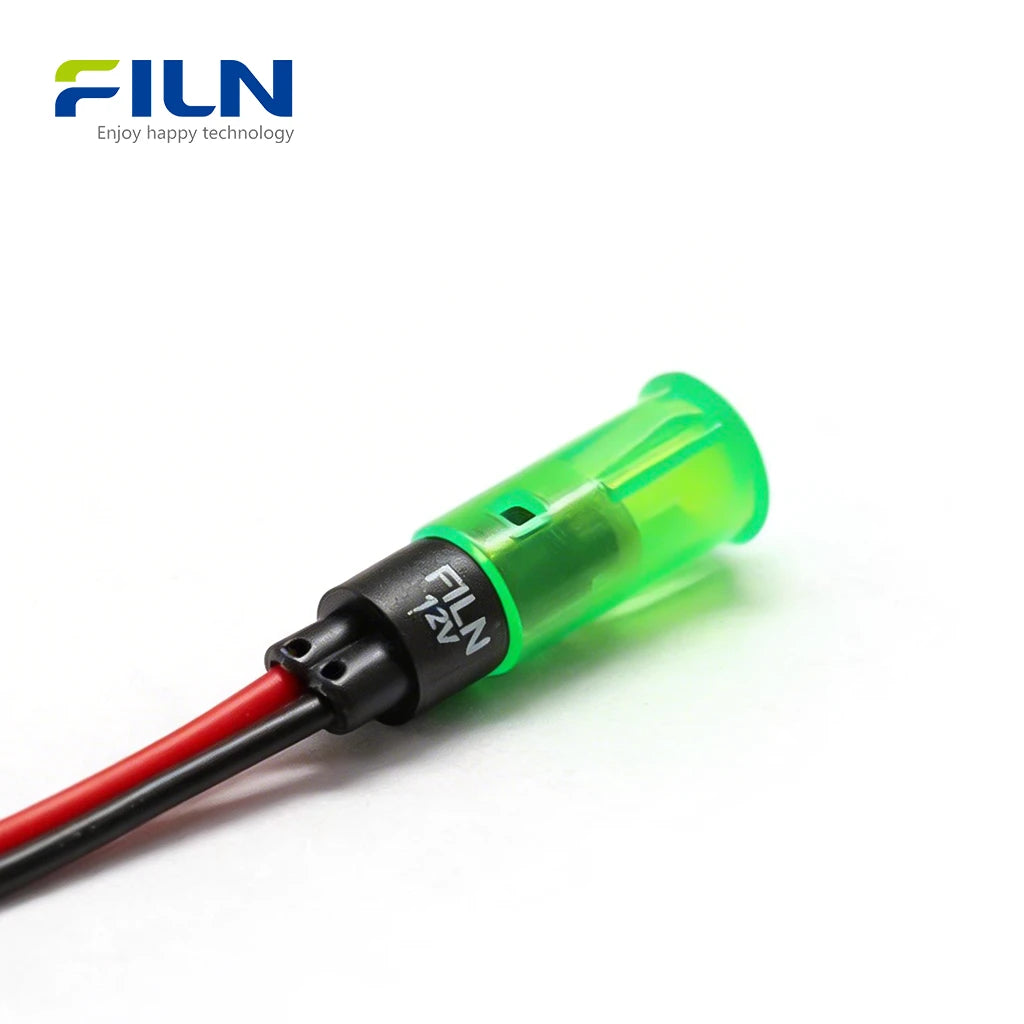

- Pass the wire lead plastic pilot light cables through the hole.
- Push the indicator light from the top of the panel down.
- The snap-in side "ears" will automatically lock onto the panel.
- Connect the 15cm PVC wires to your power source.
What Is an 8mm Plastic Signal Light?
An 8mm plastic signal light is a compact status indicator used to communicate machine states (running, fault, standby) to operators. Unlike metal indicators, plastic versions offer superior insulation and cost-efficiency. The FL1P-08QW-2 model utilizes a snap-in mounting method, which is much faster than traditional screw-nut fixing. The wire lead type provides a direct connection, reducing the need for soldering terminals, making it a preferred choice for high-volume industrial panel mount indicator light applications.
Factory Direct Supply
As a leading 12V LED indicator light manufacturer, FILN offers:
- Factory Direct: No middlemen, ensuring the best price for sale.
- Customization: Tailored voltage, wire length, and connectors.
- Global Shipping: Fast delivery to all major industrial hubs.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 8mm plastic signal light directly?
Yes, our 8mm plastic signal light for sale is available for direct factory purchase online.
2. What is the benefit of the snap-in mount?
The snap-in design allows for rapid tool-less installation, saving time on assembly lines.
3. Is this indicator waterproof?
The head is rated IP65, protecting it from front-side splashes, though the snap-in body is not fully sealed.
4. Does FILN provide custom wire lengths?
Yes, as a custom voltage signal light factory, we can adjust wire length and add connectors.
5. What is the difference between plastic and metal indicators?
Plastic is lightweight and offers better electrical insulation; metal is more impact-resistant.
6. Are these LEDs replaceable?
The high brightness LED is integrated for maximum lifespan and is not intended for replacement.
7. What colors are available?
We offer Red, Green, Yellow, Blue, and White variations.
8. Can I use the 220V model for 110V?
We recommend using the voltage specific to your needs to ensure optimal LED high brightness.
9. Is the wire lead type better than pin type?
Wire leads are easier for direct wiring; pin types are better for PCB or quick-disconnect terminals.
10. Does the product have international certifications?
Yes, it is certified by UL, CE, VDE, and RoHS.
