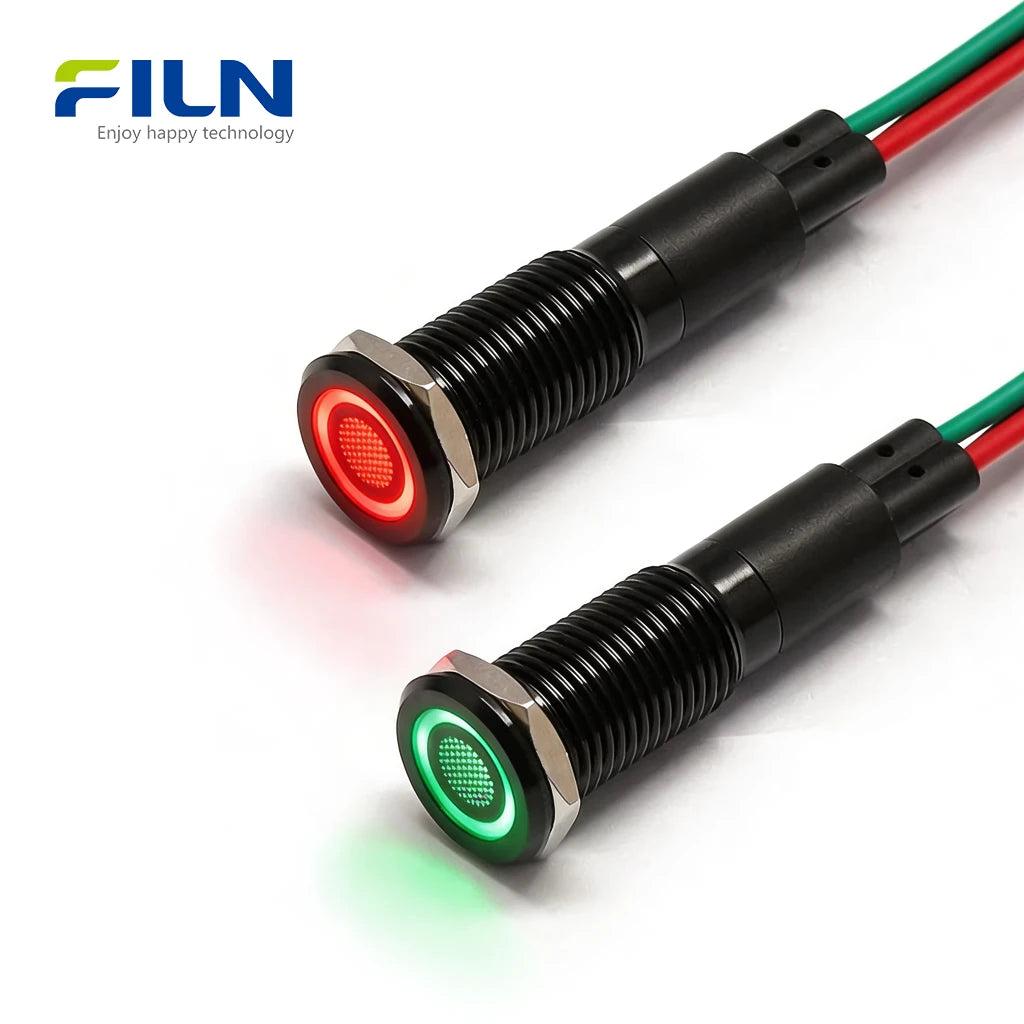

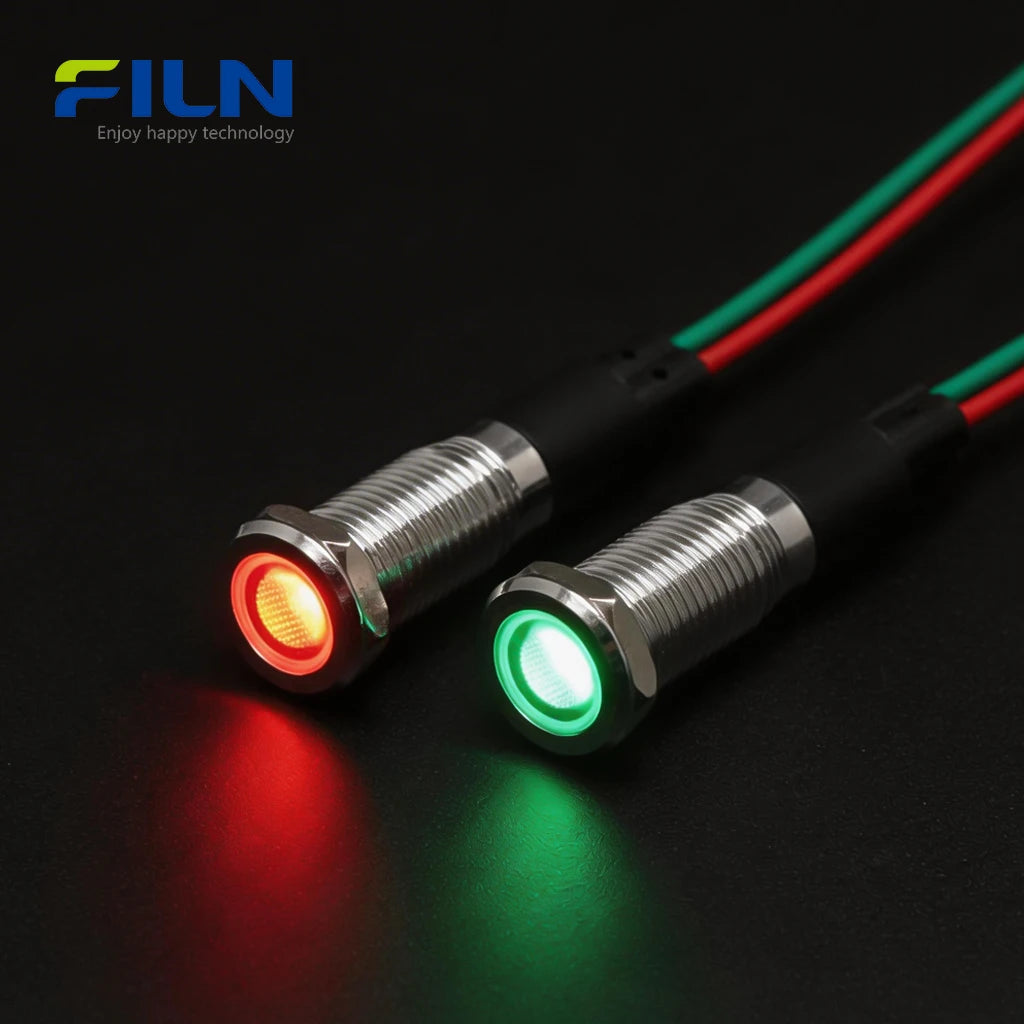

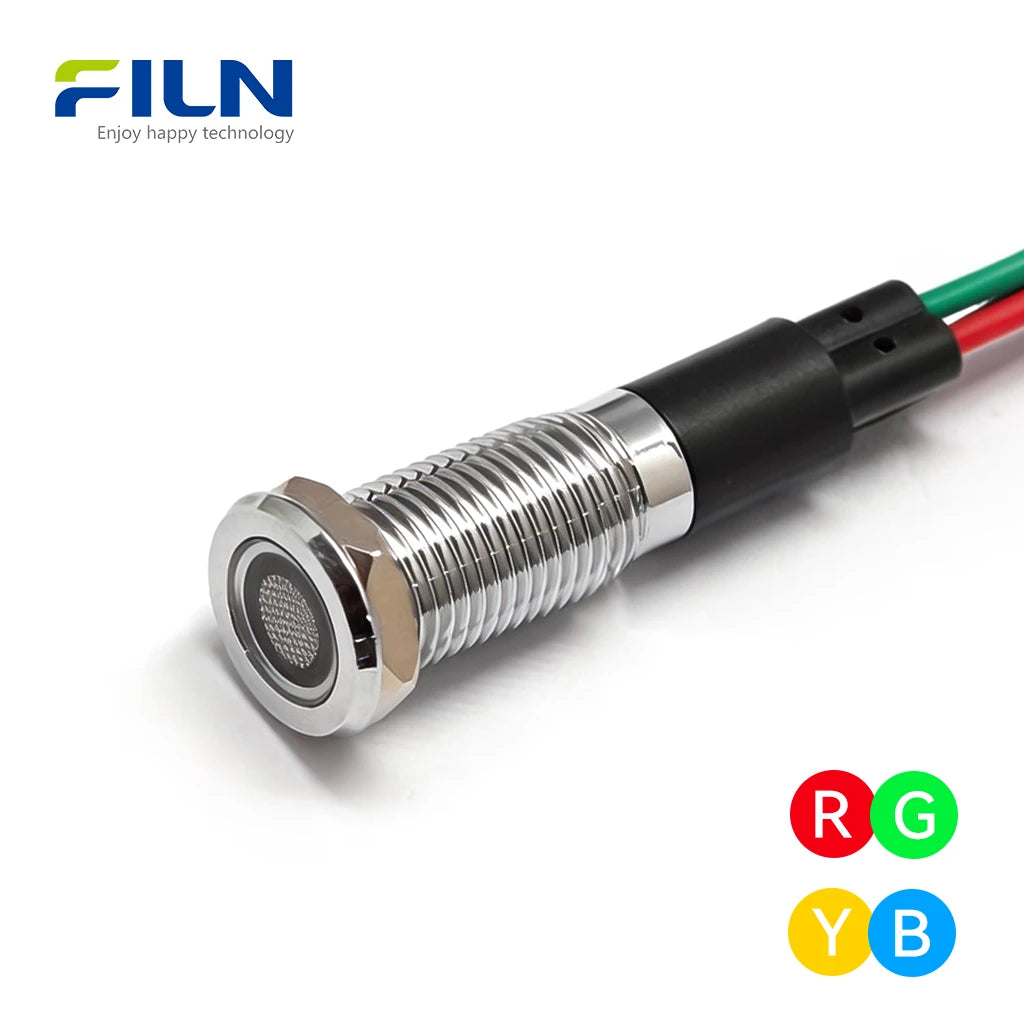

Product Overview
The Bi-color LED Indicator Light model FL1M-08FW-D is a high-precision 8mm metal indicator designed for advanced industrial signaling. Featuring a sleek flat-head design and IP67 waterproof protection, this dual-color lamp can emit two distinct colors from a single unit. It is available in Common Anode or Common Cathode configurations to suit various circuit requirements. With its ultra-short body and 15cm pre-wired leads, it is the ideal space-saving solution for industrial control panels, CNC machinery, and automation equipment where clear, multi-status visual feedback is essential.
Quick Specifications
| Mounting Hole | 8mm (0.315 inch) |
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Bi-color (Red/Green, Blue/Yellow, etc.) |
| Wiring Method | Common cathode by default. Please leave a note or contact us if common anode is required. |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Wire Lead (20cm) |
Rated Working Parameters
| Rated Voltage | 12V-220V (Customized Support) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Silver Nickel-plated Brass / Black Aluminum |
| Lens | Polycarbonate (White Transparent when off) |
| Seal Ring | 8mm O-shaped Waterproof Ring |
| Terminal | Direct Wire Lead |
| Wire Material | UL Certified PVC Copper Wire (15cm) |
General Characteristics
| Application | Industrial Signal Indication |
| Part Name | FL1M-08FW-D Indicator |
| Operating Temperature | -40℃～+80℃ |
| Storage Temperature | -40℃～+85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP65 / IP67 |
Electric Property
| Property | Test Condition | Requirement |
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | 30mA 1000h | 50,000 Hours |
Resistant Performance
| High Temperature Resistance | 80℃ for 96h |
| Low Temperature Resistance | -40℃ for 96h |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features
- Dual-Color Functionality: Emits two colors (e.g., Red/Green) to indicate different statuses.
- Common Anode/Cathode: Flexible circuit options to match your system design.
- Ultra-Short Design: Total body length is highly compact, suitable for small spaces.
- IP67 Waterproof: Fully protected against dust and temporary immersion in water.
- Pre-Wired Installation: Includes 15cm UL wires for fast and reliable connection.
Applications
- Industrial Control Panels
- CNC Machinery and Tooling
- Automation Systems
- Marine and Shipboard Equipment
- Medical Device Status Monitoring
Installation Guide
- Prepare the panel by drilling an 8mm diameter mounting hole.
- Insert the indicator from the front side of the panel.

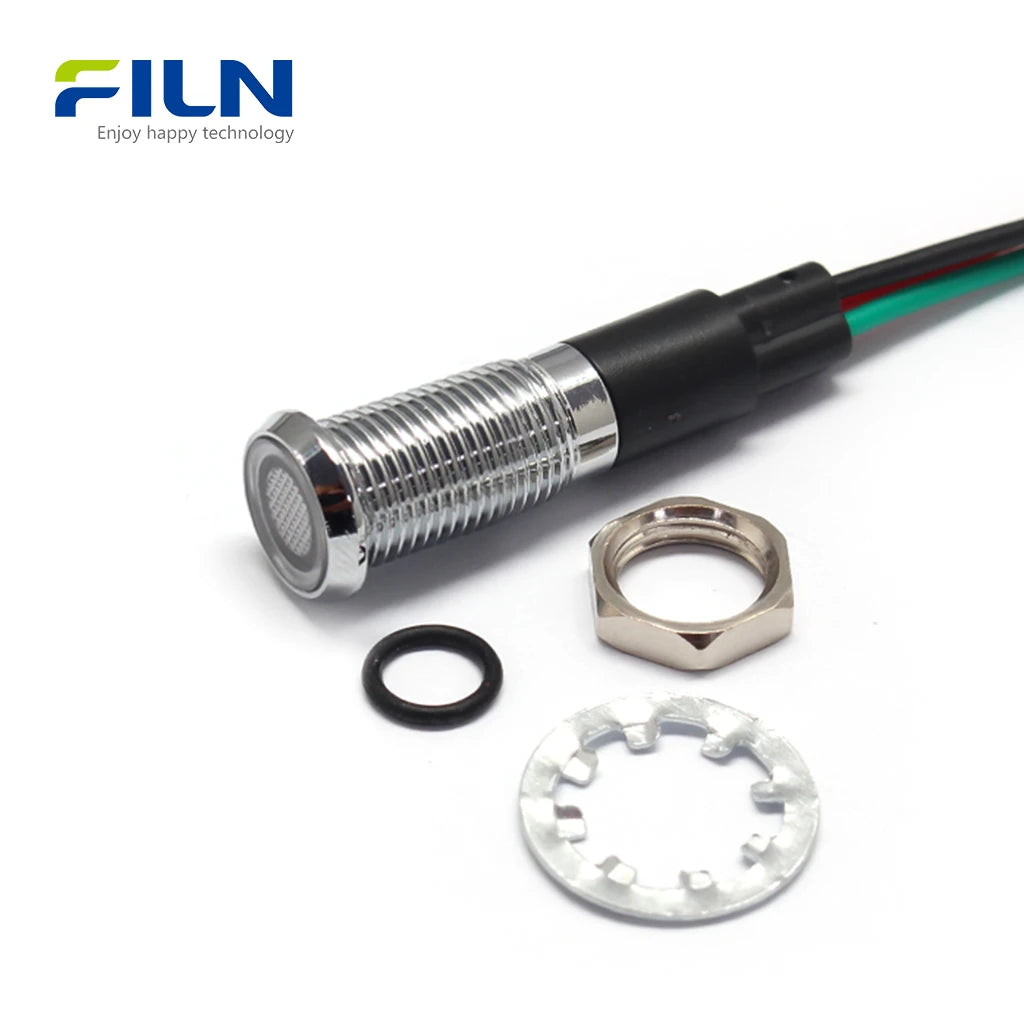

- Place the 8mm O-shaped waterproof ring from the rear.
- Screw on the M8 nut and tighten it to secure the indicator to the panel.
- Connect the three wires based on your Common Anode or Common Cathode configuration.
What Is a Bi-color LED Indicator Light?
A Bi-color LED indicator light is a specialized signaling device that integrates two different colored LED chips into a single 8mm housing. In industrial environments, this allows one hole to represent two different statuses (such as Green for "Running" and Red for "Fault").

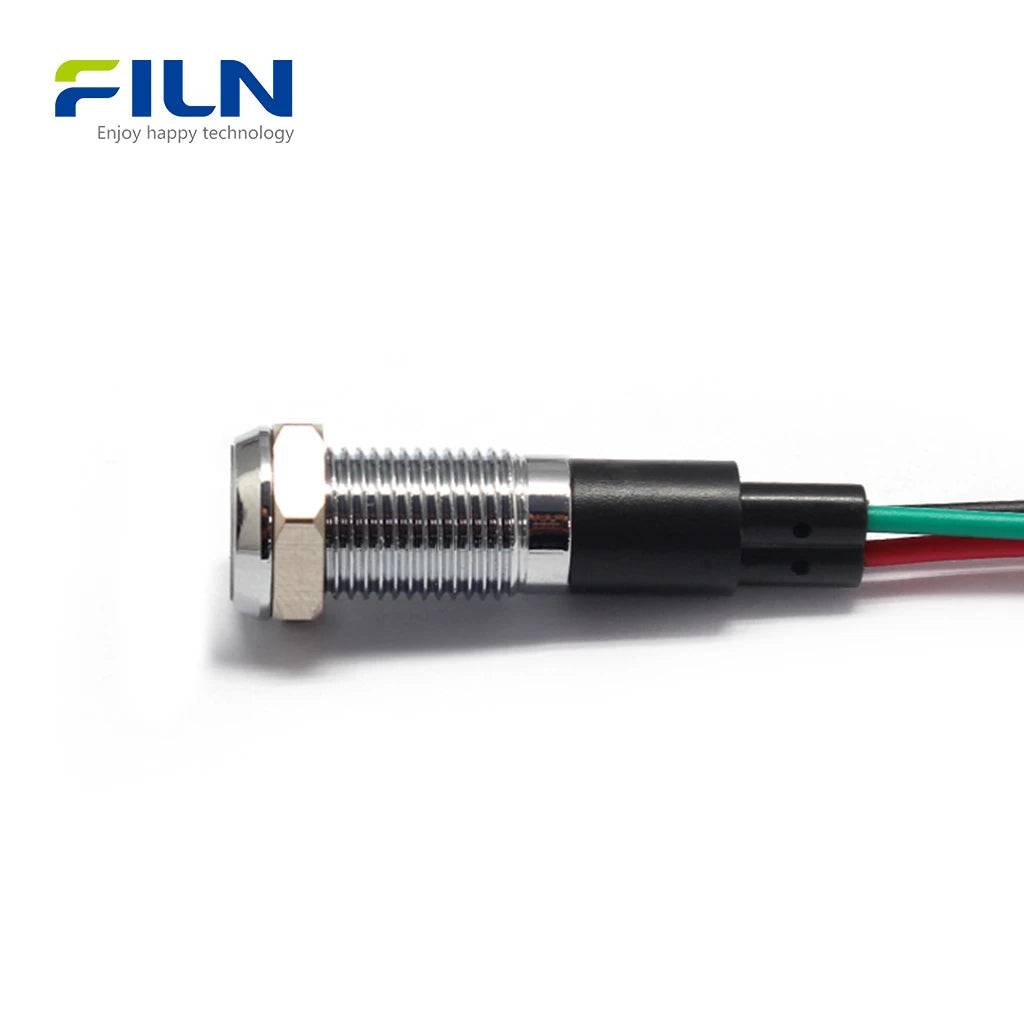

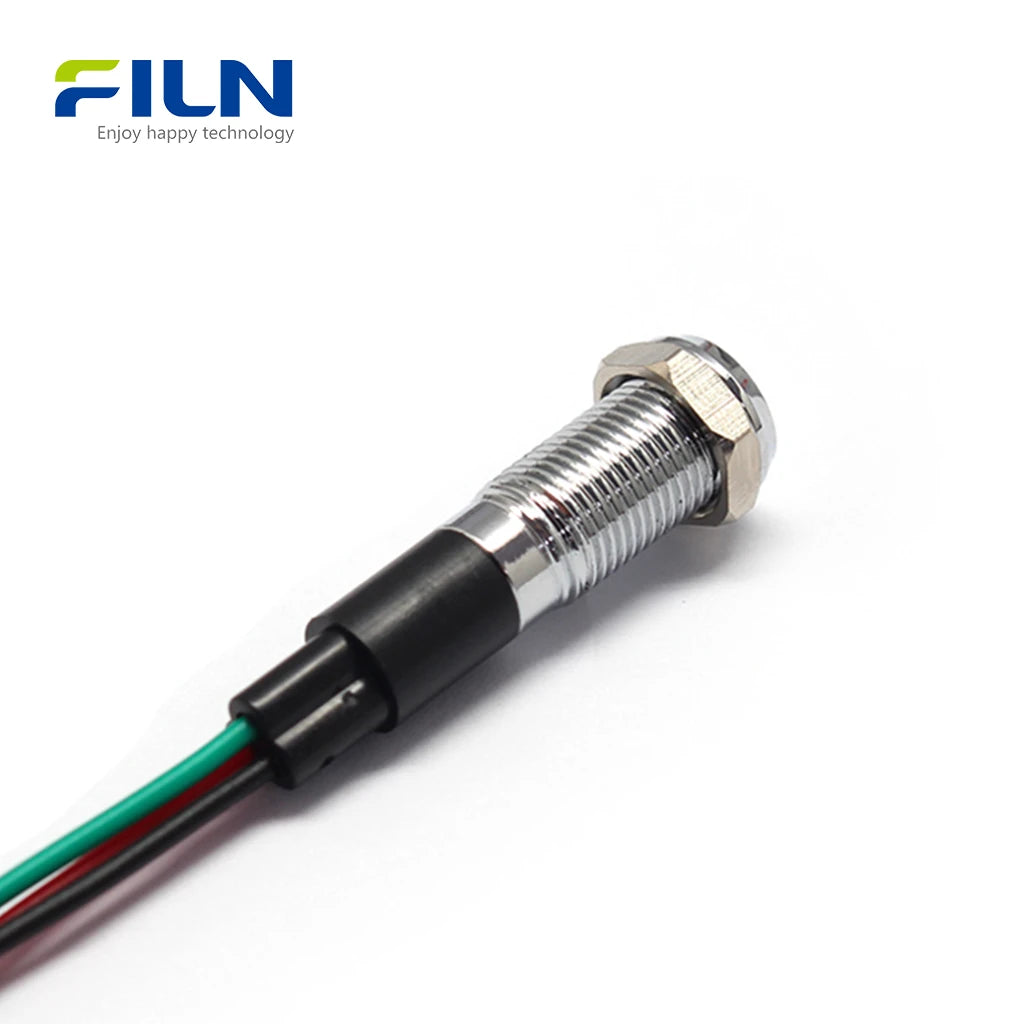

Common Anode (CA) vs. Common Cathode (CC): In a Common Anode setup, the positive leads are connected together, and you switch the negative leads to change colors. In a Common Cathode setup, the negative leads are shared, and you switch the positive side. Wired indicators like the FL1M-08FW-D offer superior reliability over pin-type terminals in high-vibration machinery by eliminating potential solder joint failures.
Factory Direct Supply - FILN
- Voltage Customization: 3V to 380V available.
- Wire Customization: Adjustable lengths and connector types.
- Global Logistics: Fast shipping directly from our factory.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the difference between Common Anode and Common Cathode?
A: Common Anode shares a positive wire, while Common Cathode shares a negative wire. Choose based on your controller's output.
A: Common Anode shares a positive wire, while Common Cathode shares a negative wire. Choose based on your controller's output.
Q2: Is the lens clear or colored?
A: The lens is white and transparent when the power is off, allowing for high visibility once illuminated.
A: The lens is white and transparent when the power is off, allowing for high visibility once illuminated.
Q3: How long is the pre-wired cable?
A: The standard length is 15cm, but we can customize this for your specific project.
A: The standard length is 15cm, but we can customize this for your specific project.
Q4: Can I use this for 24V applications?
A: Yes, the FL1M-08FW-D supports 12-24V as standard and can be customized for other voltages.
A: Yes, the FL1M-08FW-D supports 12-24V as standard and can be customized for other voltages.
Q5: What is the waterproof rating?
A: This model is IP67 rated, making it suitable for outdoor or washdown environments.
A: This model is IP67 rated, making it suitable for outdoor or washdown environments.
Q6: Is the housing available in different colors?
A: Yes, we offer standard Silver (Nickel-plated) and Black Anodized finishes.
A: Yes, we offer standard Silver (Nickel-plated) and Black Anodized finishes.
Q7: Does it come with mounting hardware?
A: Yes, each indicator includes one M8 nut and one waterproof O-ring.
A: Yes, each indicator includes one M8 nut and one waterproof O-ring.
Q8: Can you provide custom connectors on the wires?
A: Absolutely. We can install JST, Molex, or other connectors at the factory.
A: Absolutely. We can install JST, Molex, or other connectors at the factory.
Q9: How long is the lifespan of the LED?
A: Our industrial-grade LEDs are rated for up to 50,000 hours of continuous use.
A: Our industrial-grade LEDs are rated for up to 50,000 hours of continuous use.
Q10: Is this suitable for high-vibration environments?
A: Yes, the wired lead design is much more resilient than pin types for vibration resistance.
A: Yes, the wired lead design is much more resilient than pin types for vibration resistance.
