What is Rocker On Off Switch?

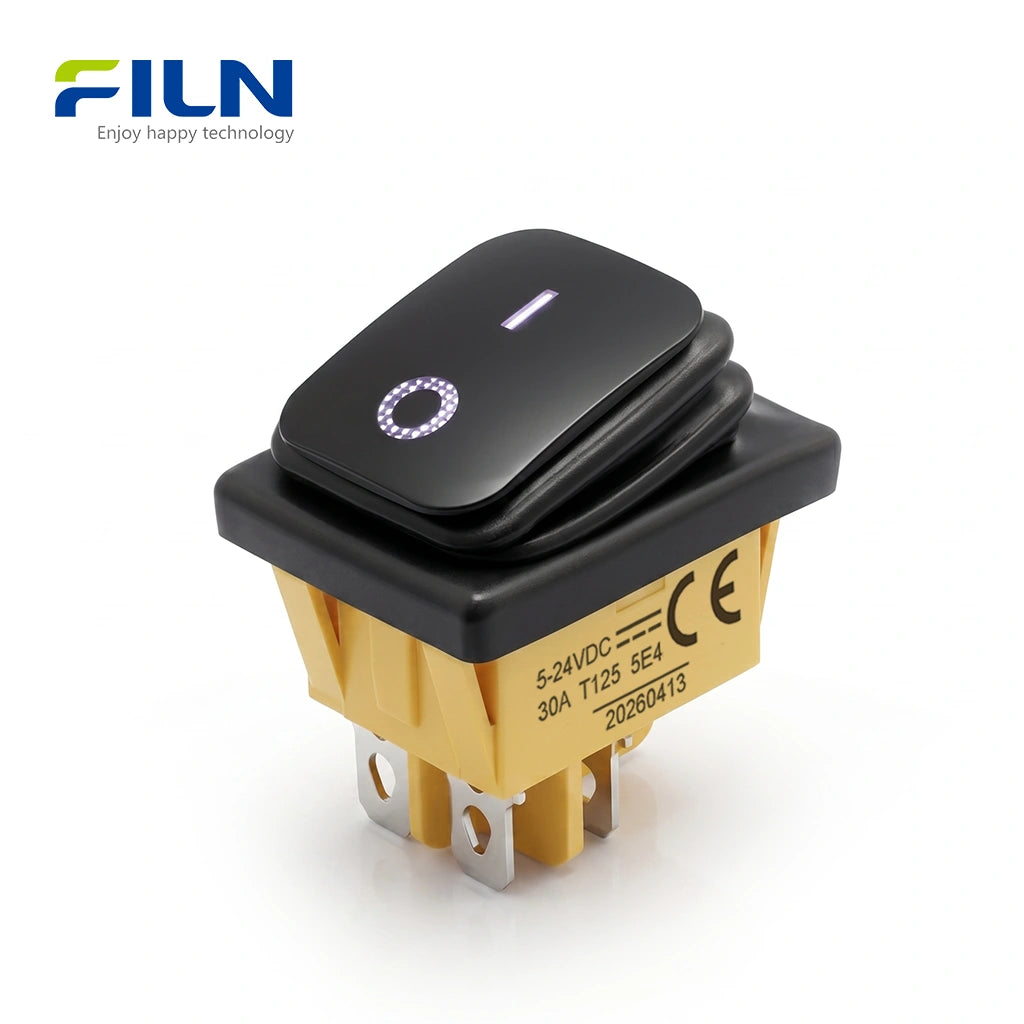

A rocker on off switch is a fundamental electrical component used to manually open or close a power circuit through a pivoting motion. The FL3-KCD4-0113-21 model is a market-universal KCD4 series rectangular switch featuring a high-quality black plastic surface. Designed for a 30x22mm mounting hole, it utilizes 4-pin terminals to provide DPST (Double Pole Single Throw) control, making it a reliable choice for high-current applications in both AC and DC environments.
Product Overview
The FILN rocker on off switch is engineered for durability and aesthetic versatility. This 2-position switch features a black plastic actuator that is not only fashionable but also easy to clean and maintain. Designed as a frameless (no frame) integrated unit, it achieves an IP65 waterproof rating, allowing for safe operation in outdoor and industrial settings. The 4-pin terminal configuration at the base ensures a stable electrical connection. With support for 5V-24V and 110V-220V custom voltages, this switch is widely used in powered equipment to control circuit continuity efficiently.
Working Principles: ON-OFF vs ON-ON
| Function | Technical Logic | Application Scenario |
|---|---|---|
| ON-OFF | Single Throw: The circuit is bridged in the ON position and fully disconnected in the OFF position. | Primary power control for appliances and tools. |
| ON-ON | Double Throw: Power is toggled between two different output paths; there is no neutral OFF state. | Switching between modes (e.g., Fan Speed 1 vs Speed 2). |
Quick Specifications
| Model Number | FL3-KCD4-0113-21 |

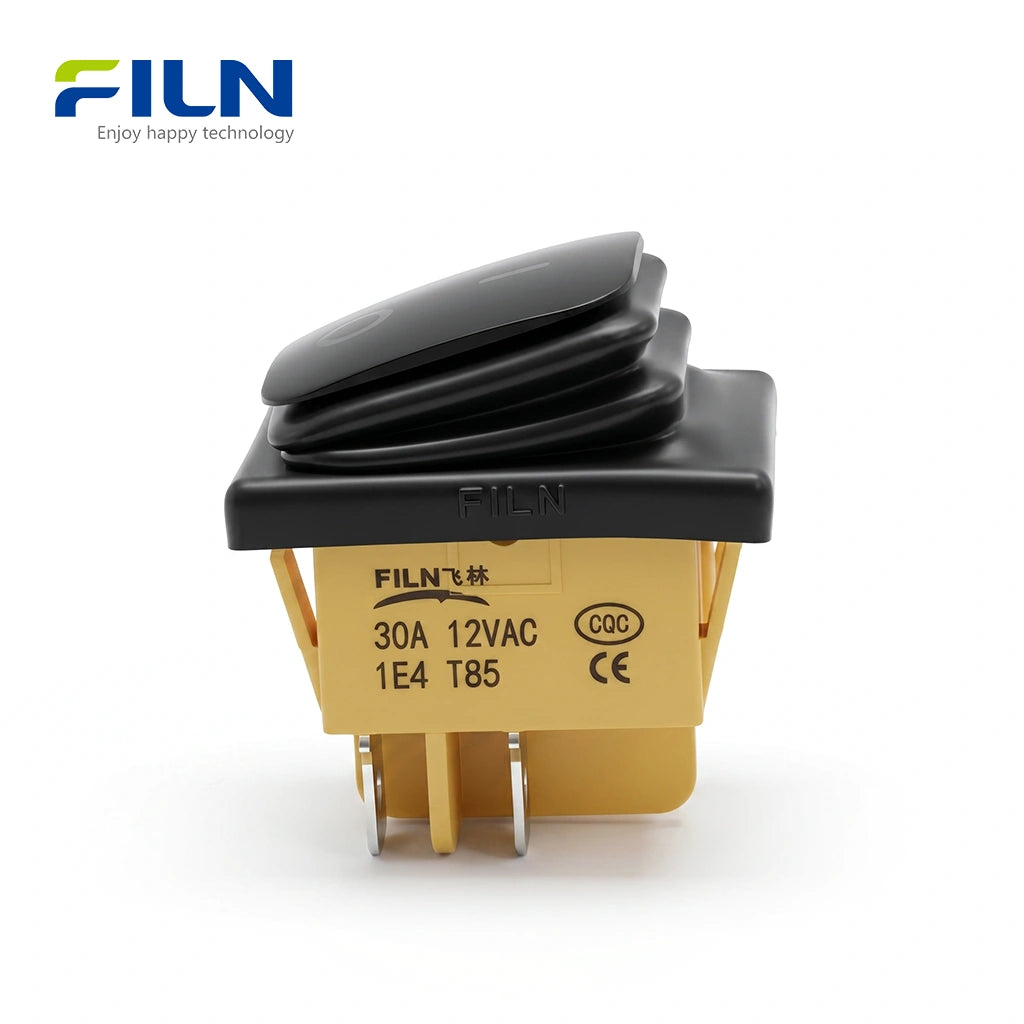

| Mounting Hole Size | 30X22MM |
| Function Type | ON-OFF (2-Position) |

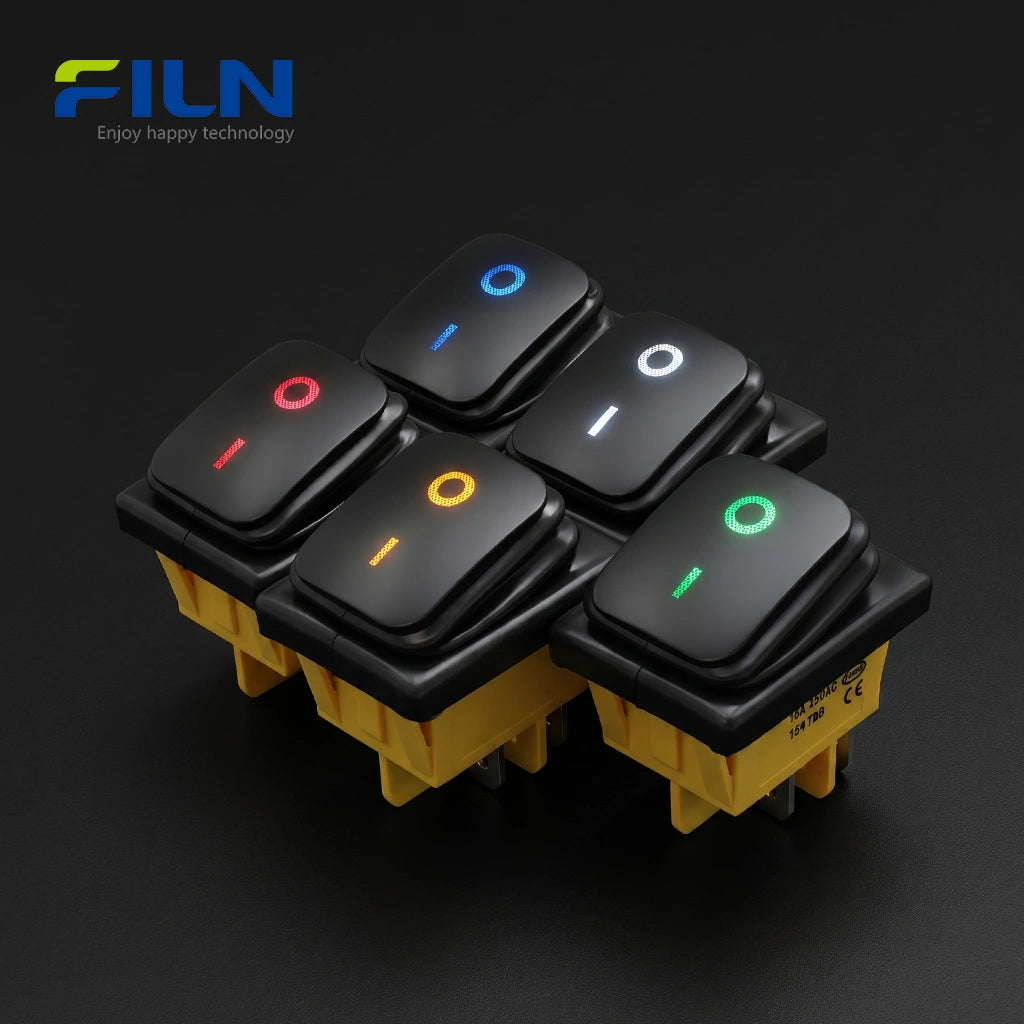

| LED Colors Available | Red, Green, Yellow, Blue, White |
| Actuator Material | Fashionable Black Plastic |

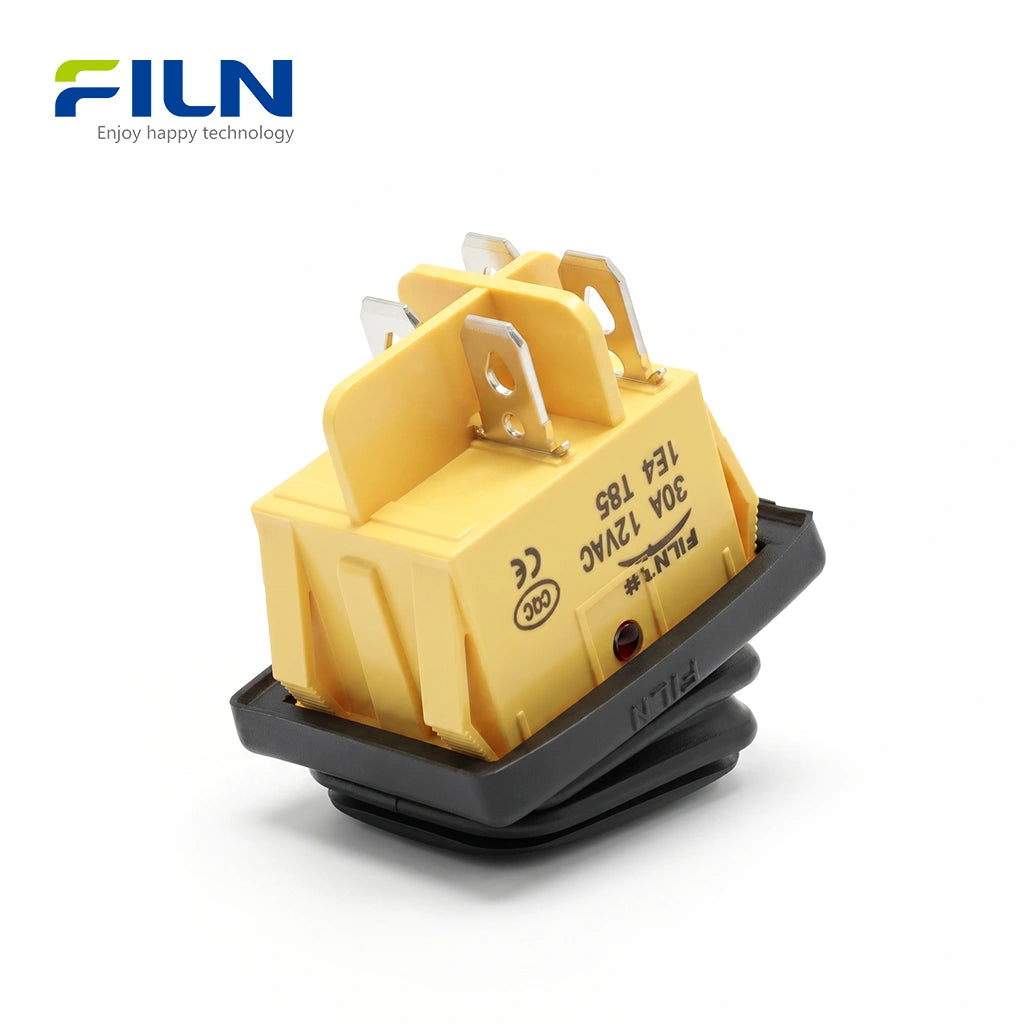

| Terminal Pins | 4-Pin Plug-in Feet |
| Frame Design | No Frame (integrated body) |
Technical Performance Parameters
| Rated Power |
16A 250VAC
|
| Operational Voltage | 5V-24V / 110V-220V / Custom |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Service Life | 10,000 Electrical Cycles |
| Environmental Temp | -40°C to +125°C |
| Protection Grade | IP65 Waterproof |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Design Benefits: Lighting & Maintenance

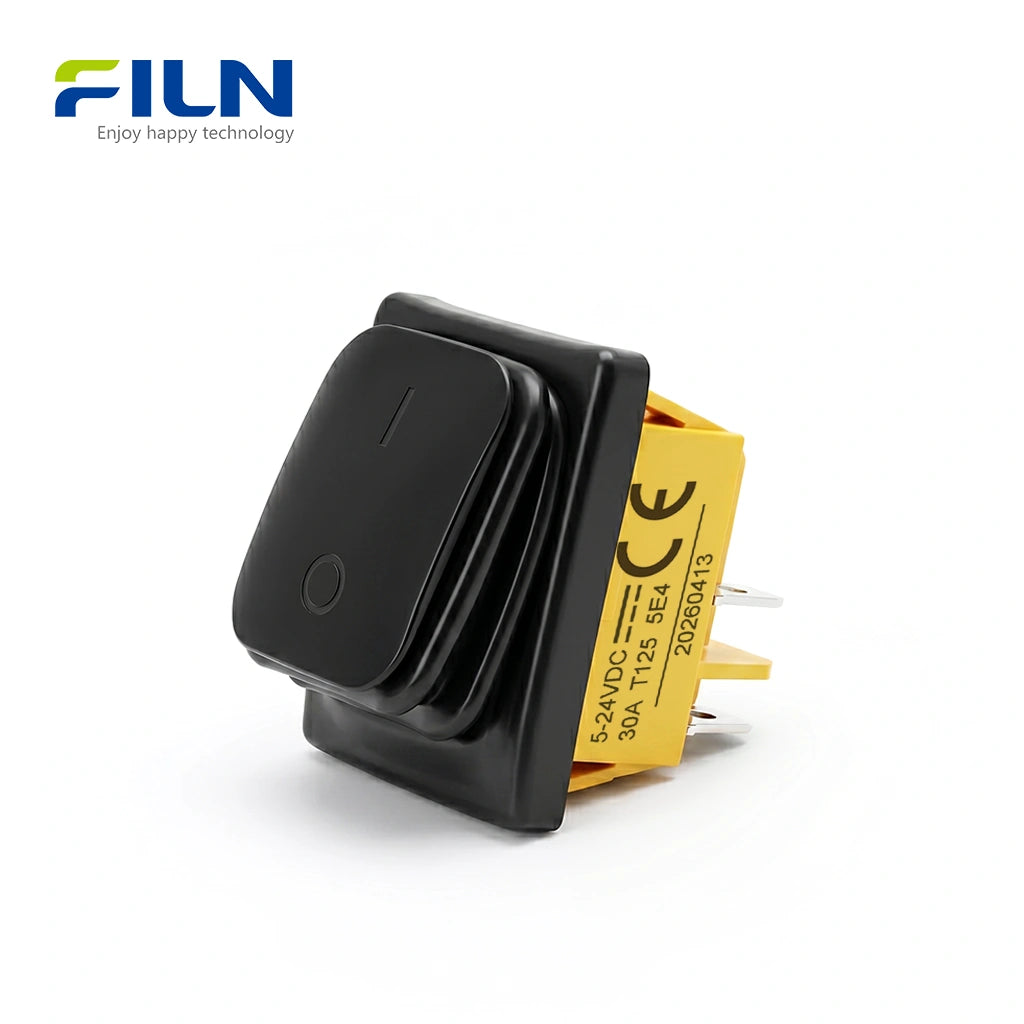

Choosing the right rocker on off switch involves balancing aesthetics and functionality. The illuminated black rocker switch is designed to provide high visibility; the integrated LED indicator makes the switch easy to locate in dark environments, improving safety during nighttime operation. Furthermore, the black plastic actuator is a superior choice for professional settings. It is highly resistant to fingerprints and stains, making it easy to clean and exceptionally fashionable. For simpler setups, the black non-lighted version offers a versatile, classic look that matches any panel design.
Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes

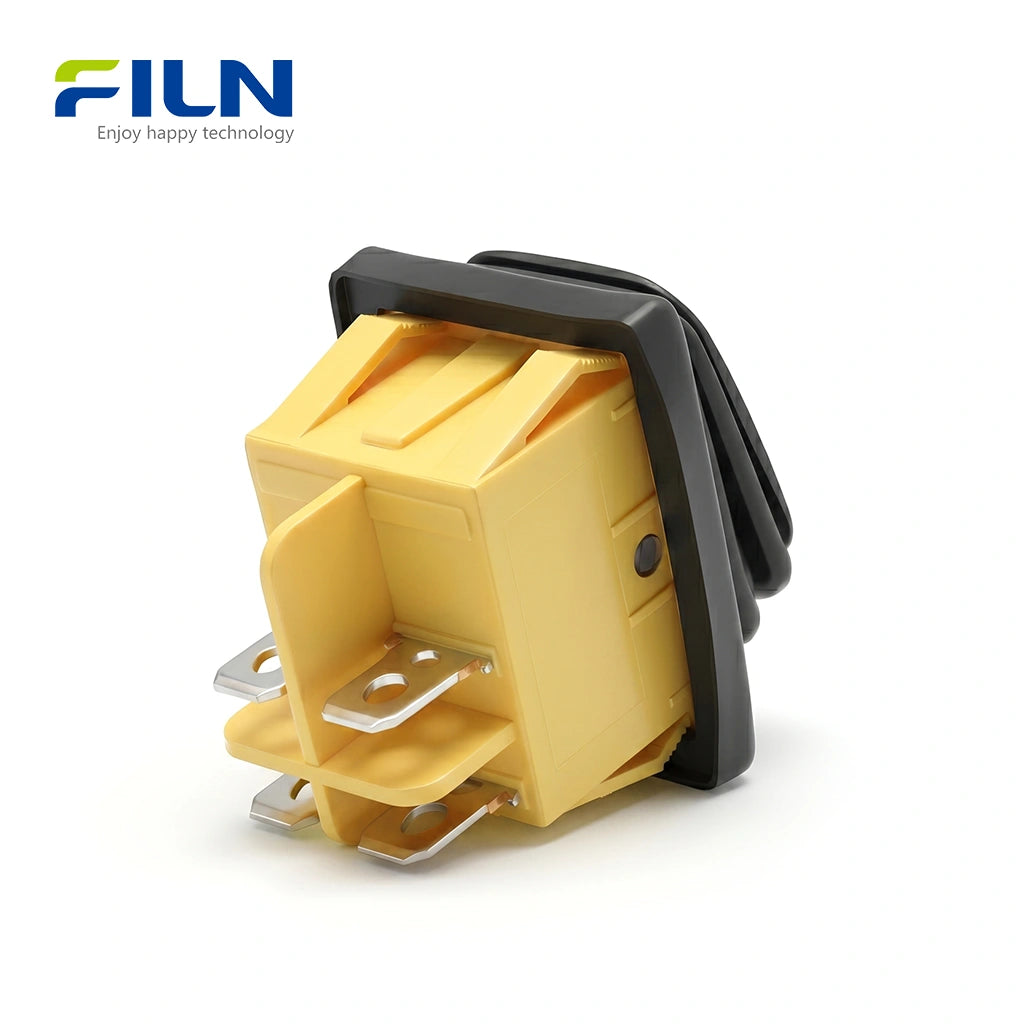

- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Snap-in Installation Procedure
The FILN KCD4 rocker switch features a user-friendly snap-in mounting system for rapid assembly:
- Prepare the panel by cutting a precise 30x22mm rectangular opening.
- Align the switch from the front (top) of the mounting panel.
- Press the switch firmly into the cutout; the integrated side clips will retract and then snap out to lock the switch securely against the panel walls.
- Proceed with wiring by connecting your power lines to the 4-pin terminals on the base.
Versatile Application Scenarios
A reliable rocker on off switch is the heart of any powered device, acting as the primary interface for circuit control. These IP65 waterproof switches are ideal for:
- Commercial Equipment: Water dispensers, industrial coffee brewers, and kitchen air fryers.
- Outdoor Systems: Marine dashboard controls and agricultural machinery.
- Industrial Power: PDU distribution boxes and heavy-duty testing equipment.
- Consumer Electronics: Power tools and household appliances.
Factory Direct Customization
FILN is a premier manufacturer offering wholesale pricing and No MOQ requirements. We support extensive customization, including Voltage (5V-220V), Internal LED colors, and custom Wiring Harnesses. Our products are available for immediate purchase through our global distribution channels.
Official Website: www.filn.com
Inquiries: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How many pins does the lighted rocker on off switch have?
This model features 4 pins (DPST) to control both live and neutral lines while powering the internal LED.
2. Can I use this 12V rocker switch for a 220V appliance?
The body can handle the load, but the LED is voltage-specific. We provide custom 110V-220V LED versions for these applications.
3. Is the KCD4 30x22mm switch suitable for outdoor use?
Yes, it has an IP65 waterproof rating and a frameless integrated body, making it ideal for outdoor environments.
4. Why choose a black plastic surface over a transparent one?
Black surfaces are more smudge-resistant, easier to clean, and offer a more professional, stylish aesthetic for high-end panels.
5. Does the switch come with a waterproof frame?
This specific model is a "No Frame" design, offering a cleaner, flush-mount appearance without sacrificing water resistance.
6. What is the electrical life expectancy of this 4-pin switch?
It is rated for a minimum of 10,000 cycles at full rated electrical load.
7. How do I know which pin is for the light?
For our 4-pin DPST switches, the light usually shares the circuit with the load pins; please refer to our wiring schematic for precise connection.
8. Can FILN provide custom LED colors like Blue or White?
Yes, we offer RGYBW (Red, Green, Yellow, Blue, White) LED options to suit your design requirements.
9. Is there a minimum order quantity (MOQ) for custom voltages?
No, FILN factory provides custom voltage services with no minimum order requirements.
10. Are these switches certified for international sale?
Absolutely. Our switches carry UL, CE, VDE, RoHS, and SGS certifications for global compliance.
