Product Overview

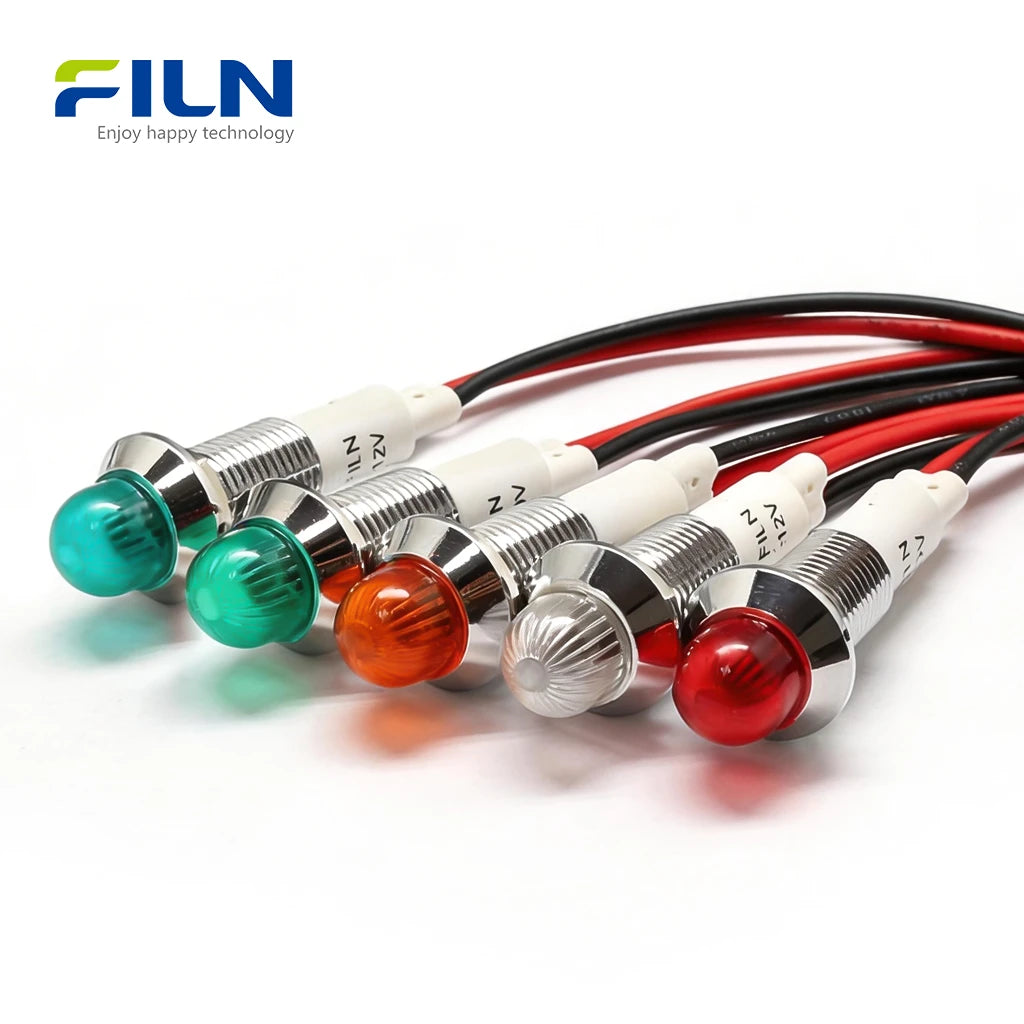

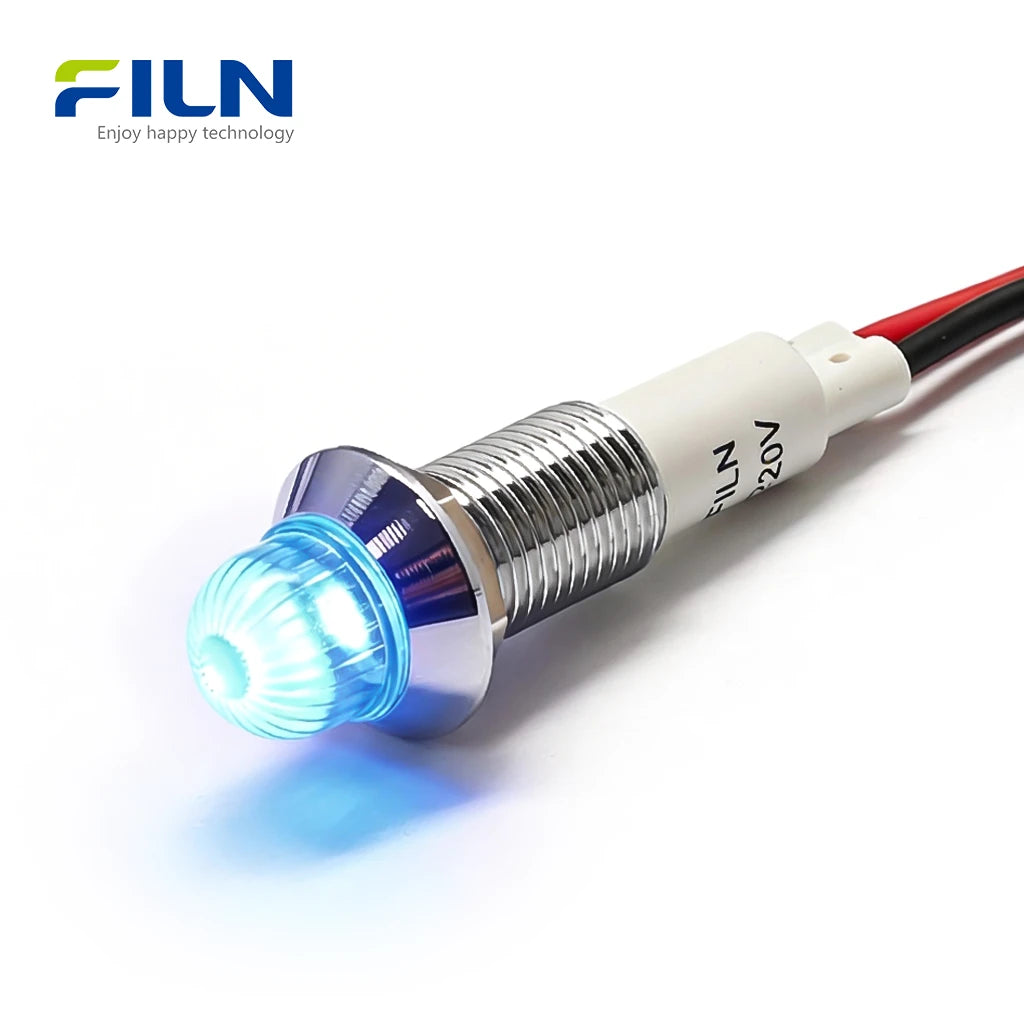

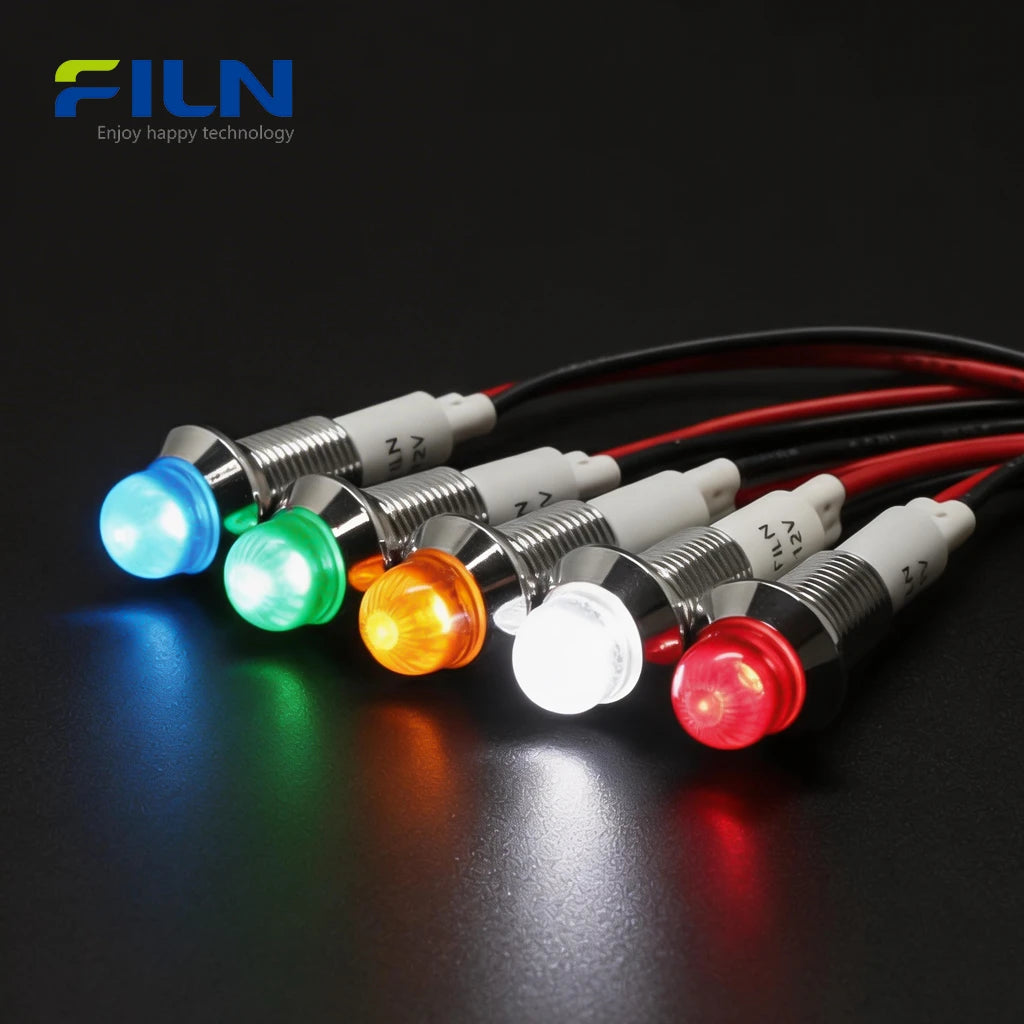

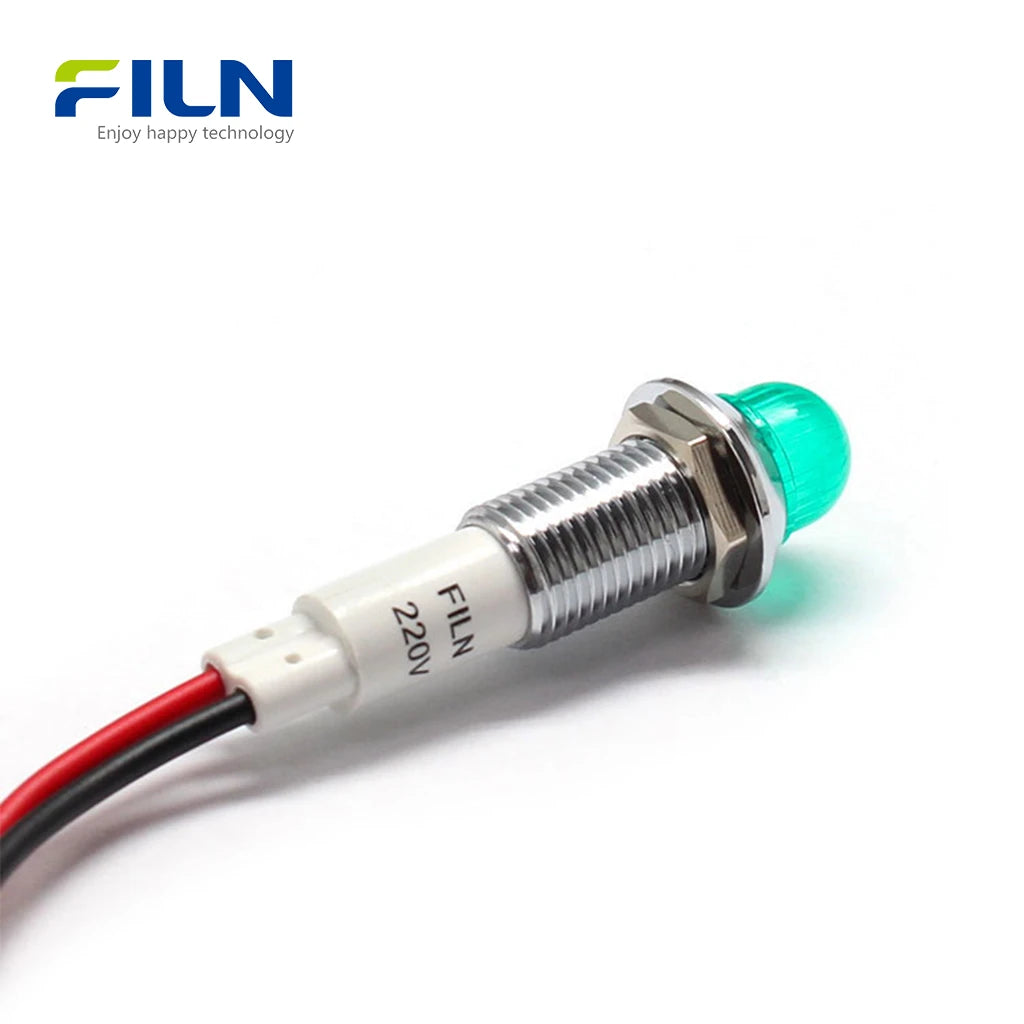

The charging indicator light (FL1M-10BW-1) is a high-performance 10mm metal signal lamp designed with a protruding ball-head for maximum visibility. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, this light ensures elite reliability for EV charging stations, industrial panels, and medical devices. Its core advantage lies in the pre-wired lead design, which simplifies installation compared to pin-type terminals, making it ideal for deep panels or tight spaces. With a robust silver chrome or black aluminum housing and a lifespan exceeding 50,000 hours, it provides a durable solution for automation, marine, and power management industries.
Quick Specifications
| Mounting Hole | 10mm (0.39 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | Wire Lead Type (Direct Wires) |
Rated Working Parameters
| Rated Voltage | Customized (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials

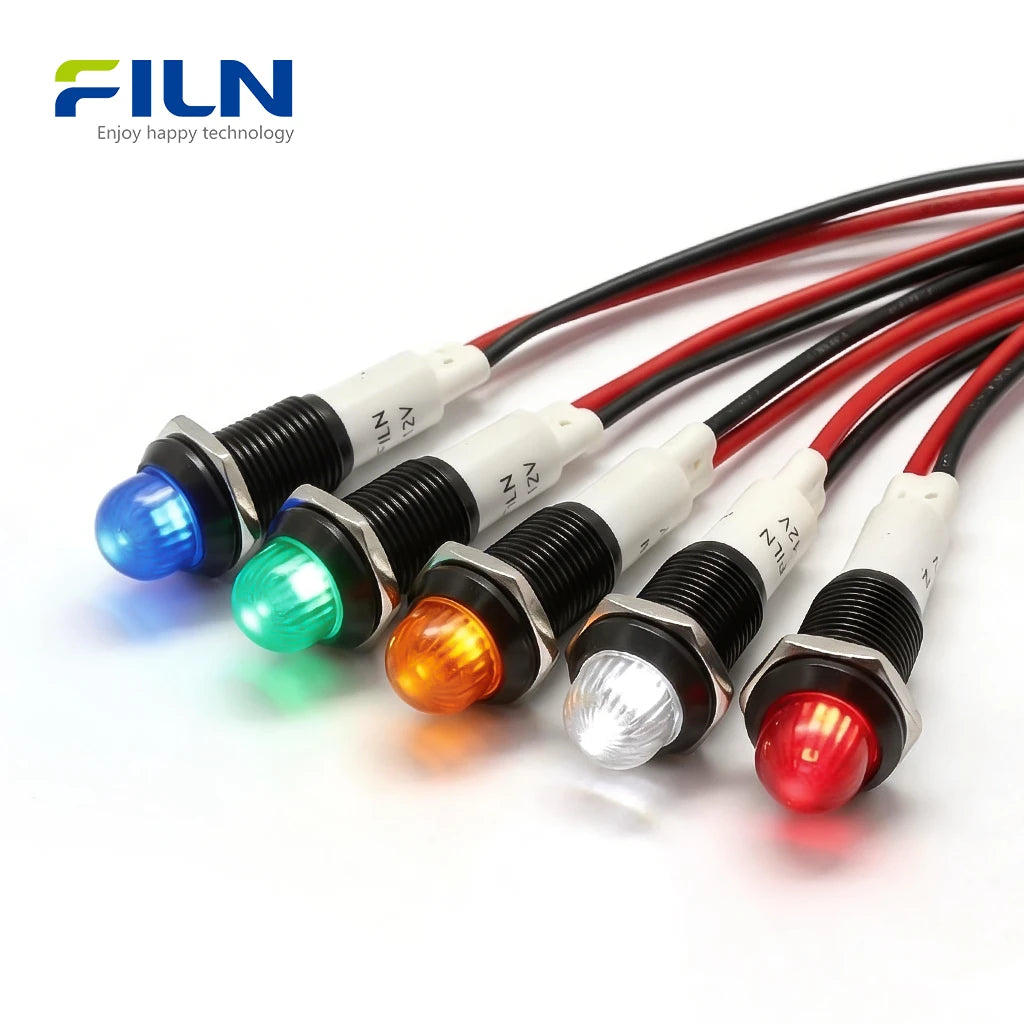

| Housing | Chrome-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Wire Material | UL Standard Copper Wire |
General Characteristics
| Operating Temp: -40℃～80℃ | Relative Humidity: ≤85% at +40℃ |
| Ambient Temp: 5~35℃ | Air Pressure: 86~106Kpa |
| Waterproof Rating: IP67 | Part Name: FL1M-10BW-1 |
Electric & Durability Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Working Life | 30mA 1000h | 50,000 Hours |
Resistant Performance
| High Temp: 80℃ 96h | Low Temp: -40℃ 96h |
| Moisture: 40℃ 95%RH 96h | Cycling: -40℃ → 25℃ → 85℃ |
Key Features
- LED High Brightness: Professional-grade LED chips for intense, clear signal delivery.
- Ball-Head Visibility: The protruding head offers 180-degree visibility, a major advantage over flat lenses.
- IP67 Waterproof: Fully sealed against heavy rain and dust, perfect for outdoor charging piles.
- Pre-wired Ease: Comes with 200mm wires (customizable) for faster, hassle-free installation.
- Industrial Grade Materials: Features smooth M10 threads and a robust metal shell for impact resistance.
Applications
- EV Charging Piles and Battery Management Systems.
- Industrial Control Panels and CNC Machines.
- Marine Equipment and Boat Dashboards.
- Outdoor Automation Systems and Power Cabinets.
- Medical Diagnostic Equipment and Commercial Appliances.
- Custom Automotive Dashboards and Security Panels.
Installation Guide
- Prepare a 10mm mounting hole on the target panel.
- Place the O-ring onto the indicator body to ensure a waterproof seal.
- Insert the indicator through the panel hole from the top.
- Slide the M10 nut over the wires from the back of the panel.
- Thread the nut onto the indicator and tighten securely.
- Connect the pre-wired leads to your power source (Red/Black wires for DC, specific colors for AC).
What Is a Charging Indicator Light?
A charging indicator light is a critical visual feedback component used to relay system status—such as power-on, charging, or fully charged—to a user. The FL1M-10BW-1 high-head ball design is specifically engineered to be seen from a distance and at wide angles, ensuring safety in busy industrial or public charging environments.
The primary difference between wire lead indicators and pin terminals is the installation workflow. Pre-wired models like the 10BW-1 are preferred for high-vibration environments (like marine or heavy machinery) because they eliminate the risk of terminal vibration loosening, while also providing a simpler "plug and play" experience for manufacturers.
FILN Factory Direct Supply
- ✅ Global Certifications: UL, CE, RoHS, VDE, ISO9001.
- ✅ Voltage & Color Customization: 3V to 380V; 5 vibrant colors.
- ✅ Wire Lead Customization: Customizable wire lengths and connectors.
- ✅ Fast Global Shipping: Reliable logistics for B2B procurement.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Why choose a ball-head design over a flat-head?
A: Ball-head indicators protrude, allowing for 180-degree side-view visibility, which is safer for public charging stations.
Q2: Can I use this in an outdoor marine environment?
A: Yes, the IP67 rating ensures it is fully waterproof and resistant to salt spray and rain.
Q3: How long are the standard wires?
A: Standard wires are 200mm, but we can customize the length to your specific needs.
Q4: Is the housing metal or plastic?
A: It is made of premium chrome-plated brass or black anodized aluminum for maximum durability.
Q5: Does it come with the mounting nut?

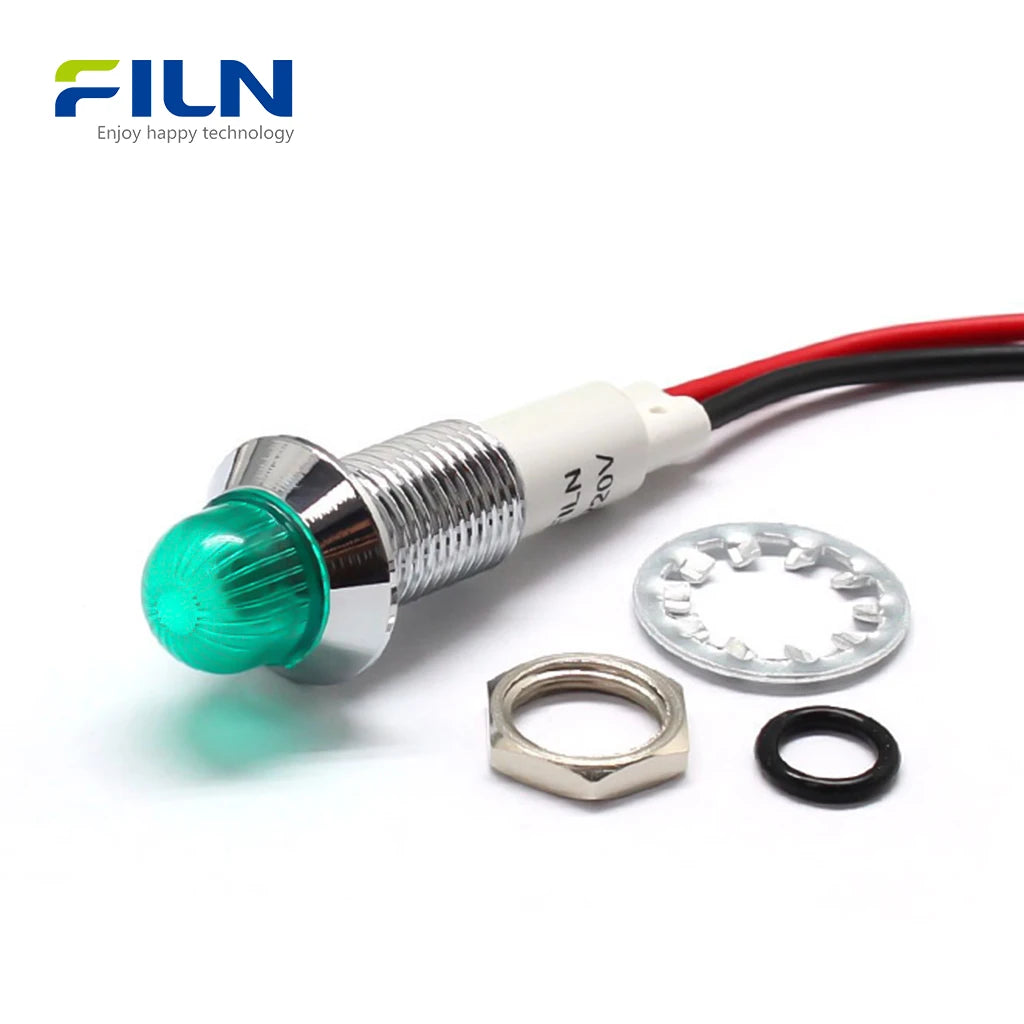

A: Yes, each indicator includes one M10 nut and one waterproof O-ring.
Q6: Can I get this in 110V for a home charger?
A: Yes, we offer 110V and 220V AC versions for residential and commercial power systems.
Q7: What is the expected lifespan?
A: Our industrial LEDs are rated for over 50,000 hours of continuous use.
Q8: Is it difficult to install?
A: No, the pre-wired leads and smooth M10 threading make it one of the easiest indicators to install in any panel.
Q9: Are these lights certified for the US market?
A: Yes, they are UL certified and comply with all major international standards.
Q10: Can I use different colors for different charging stages?
A: Absolutely. Most customers use Red for charging and Green for "Full" to provide clear user feedback.
