Product Overview

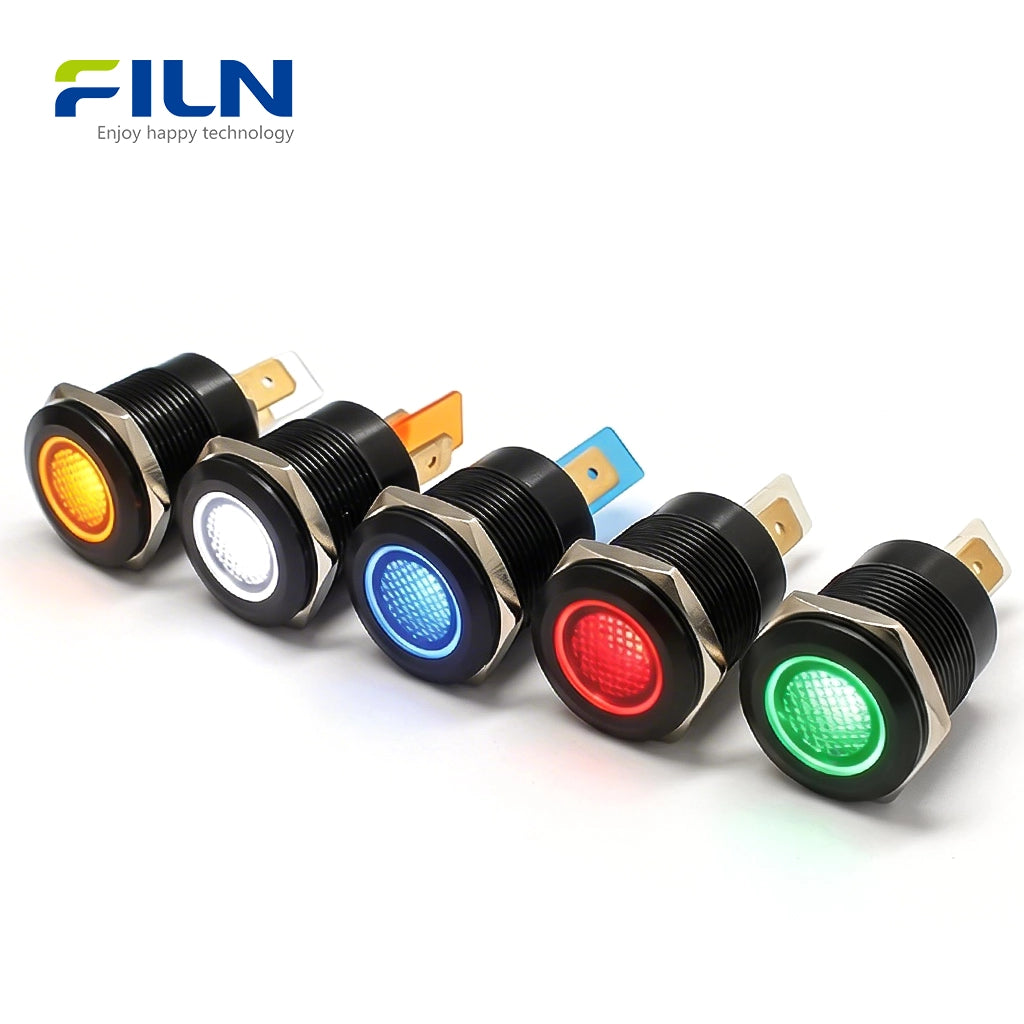

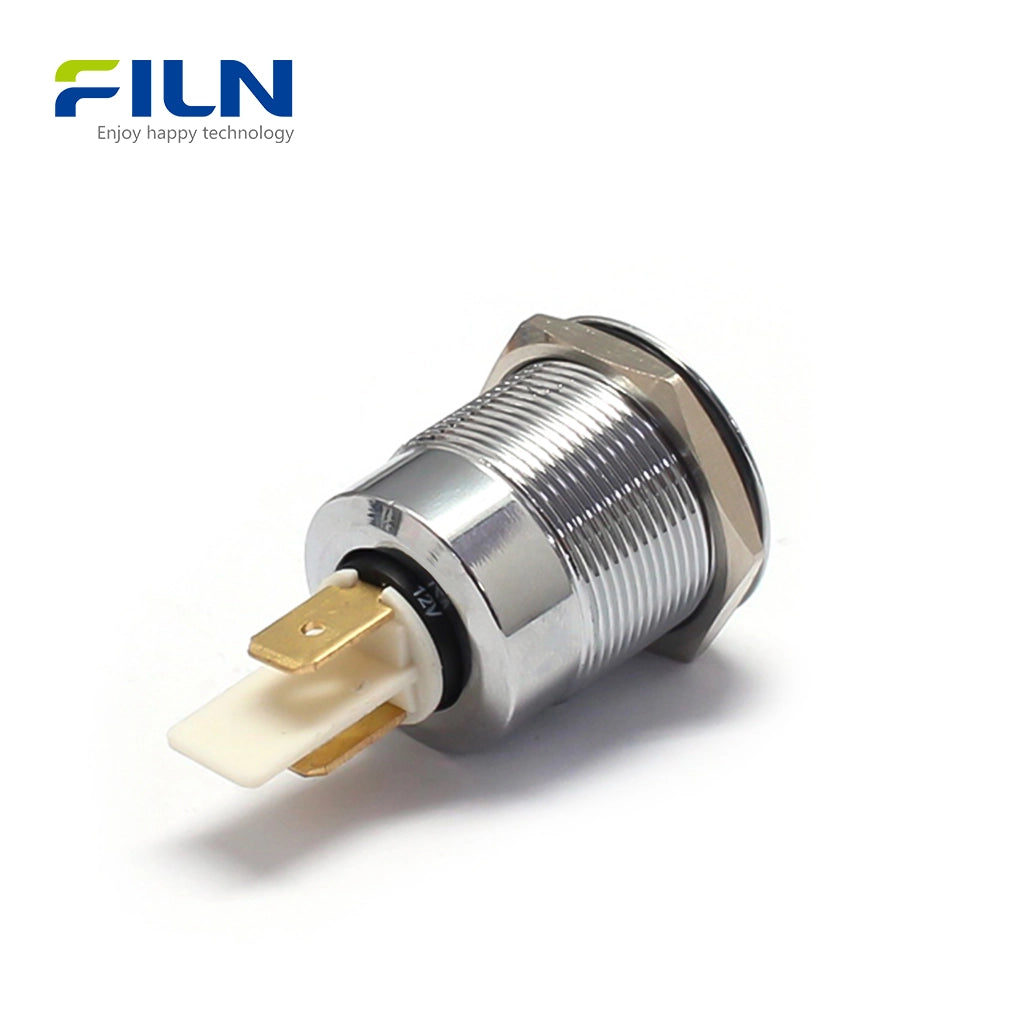

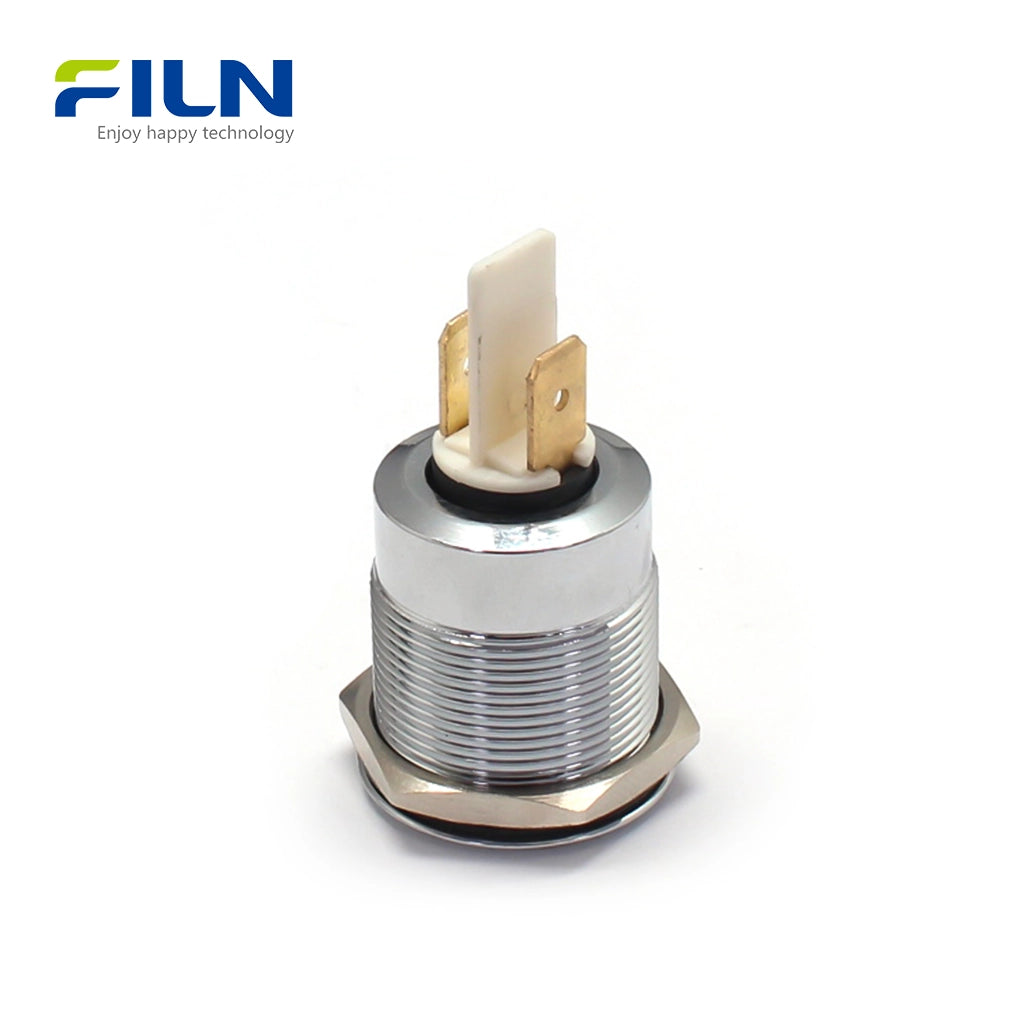

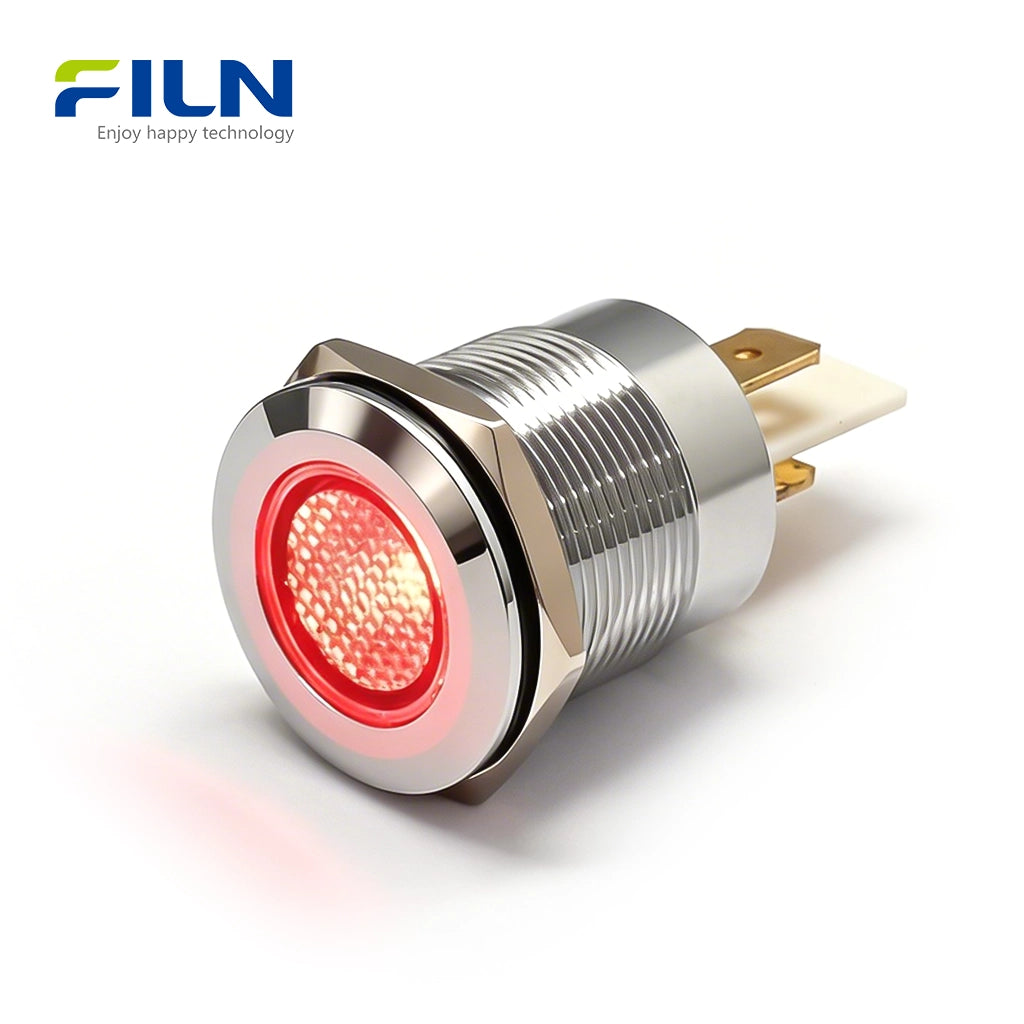

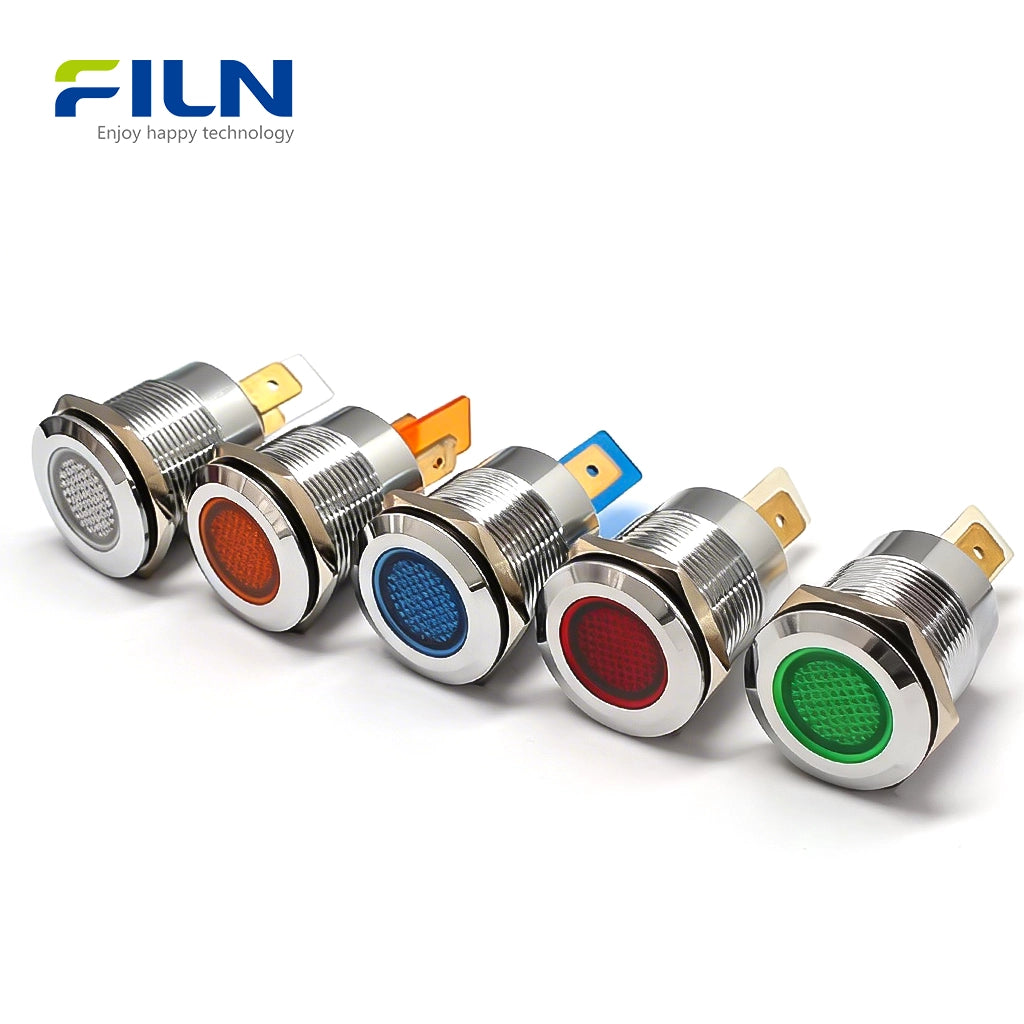

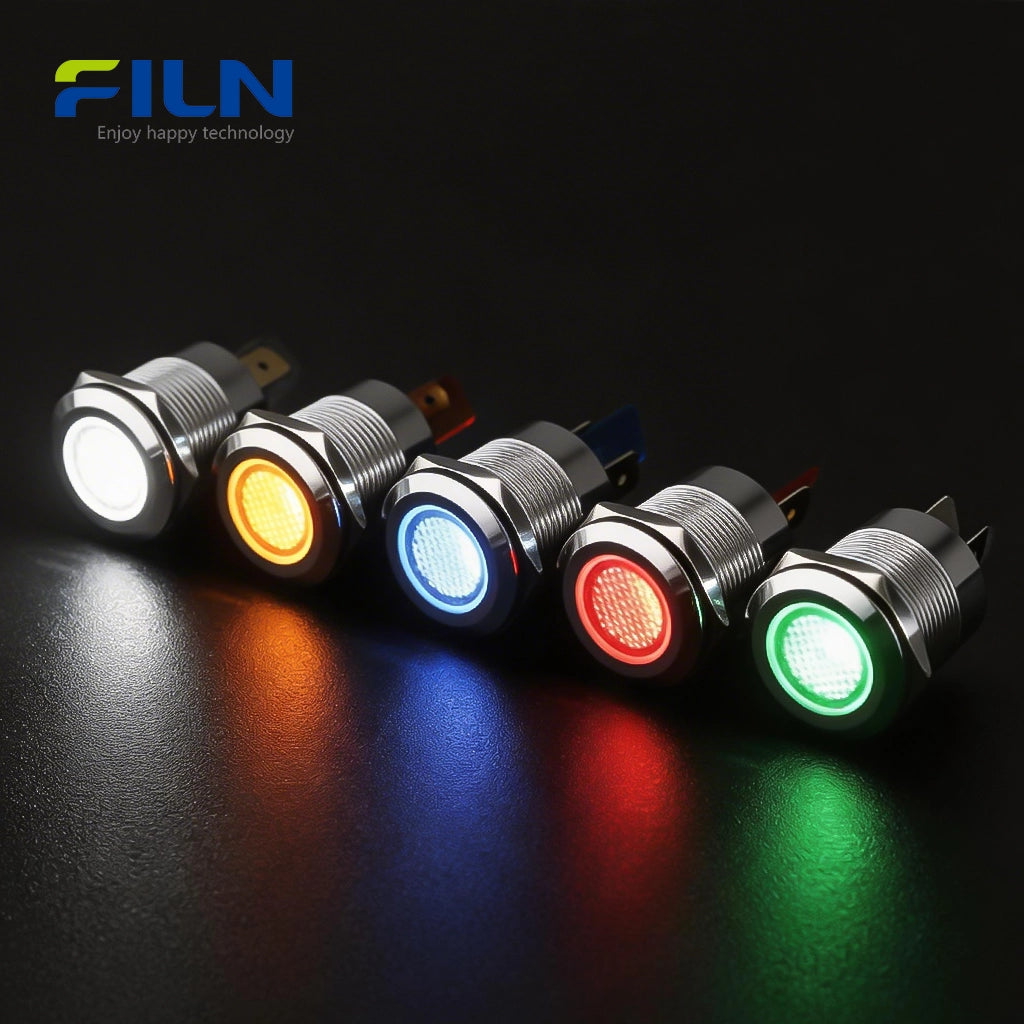

This premium control panel light (Model: FL1M-22FJ-3) is now available for sale directly from the FILN factory. As a robust 22mm metal indicator light, it features a sleek flat head design and durable silver or black housing options, making it the ideal choice for high-end industrial signaling. Whether you need 12V, 24V, 110V, or 220V configurations, we provide full customization to meet your specific electrical requirements. Our products carry international certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. Designed for industrial control panels, automation equipment, and electrical cabinets, these lights offer superior visibility and long-term reliability. Purchase directly online to ensure genuine quality and factory-direct pricing.
Quick Specifications
| Mounting Hole | 22mm / 0.87 inch |
| Voltage | 12V, 24V, 110V, 220V (Customized) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 2-PIN (Pin Type) |
| Lifespan | ≥ 50,000 Hours |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel or Chrome plated for corrosion resistance |
| Lamp Holder | PA66 Nylon | High temperature resistance |
| Lampshade | PC Polycarbonate | High light transmittance & impact resistance |
| Light Source | LED | Long life, low energy consumption |
| Resistor | Carbon Film | Stable current limiting protection |
| Pin | Brass | Excellent electrical conductivity |
| Nut | Copper Alloy | For secure panel mounting |
| O-ring | Silica Gel | Provides IP67 waterproof sealing |
| Plum Gasket | Stainless Steel | Anti-loosening vibration protection |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤ 20mA |
Component Materials
| Housing | Metal (Brass/Stainless Steel) |
| Lens | PC Polycarbonate |
| Seal Ring | Silicone |
| Terminal | 2-PIN Plug-in |
| Wire Material | N/A (Solderable Pins) |
General Characteristics
| Application | Industrial Signal Transmission |
| Operating Temperature | -40℃ ～ +80℃ |
| Relative Humidity | ≤85% at +40℃ (Working: 45~85%) |
| Air Pressure | 86 ~ 106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥ 100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown/flashover |
Durability Characteristics
| Item | Test Condition | Result |
|---|---|---|
| Continuous Life | 30mA / 1000h | 50,000 Hours |
Resistant Performance
| High Temperature | 80℃ for 96 hours |
| Low Temperature | -40℃ for 96 hours |
| Moisture Resistance | 40℃, 90-95%RH for 96 hours |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED High Brightness: Ultra-bright light source ensuring clear visibility in all lighting conditions.
- Long Lifespan: Industrial-grade LEDs rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Full protection against dust and temporary immersion in water.
- Easy Installation: Features a smooth M22 thread and 2-PIN plug-in design for rapid assembly.
- Industrial Grade Reliability: Robust metal housing resistant to impact, vibration, and corrosion.
Applications
Our 22mm indicator lights are versatile and suitable for diverse equipment:
- Industrial control panels
- CNC machines
- Automation equipment
- Electrical cabinets
- Marine systems
- Medical devices
- Power distribution units
- Commercial appliances
Installation Guide
- Prepare a 22mm diameter hole on your mounting panel.
- Place the O-ring waterproof washer onto the indicator light head. This ring ensures a tight seal against liquids.
- Insert the control panel light through the hole from the front side.
- From the back, slide the M22 nut onto the thread and tighten until secure.
- Connect your power source to the 2-PIN plug-in terminals.
What Is a Control Panel Light?
A control panel light is a critical industrial component used to communicate the operational status of machinery. Unlike traditional incandescent lamps, modern LED-based indicators like the FL1M-22FJ-3 consume significantly less power and provide a vibration-resistant signal source. The 22mm large-size flat head design allows for a wider viewing angle and a flush finish on control panels, preventing accidental damage. By using high-transmittance PC materials and metal housings, these lights serve as the "eyes" of industrial automation, indicating power (Green), faults (Red), or warnings (Yellow) reliably over decades.
Factory Direct Supply & Customization
As a leading manufacturer, FILN provides specialized OEM/ODM services for global B2B clients. Why choose our factory direct service?
- Voltage Customization: We support 3V to 380V AC/DC.
- Wiring Flexibility: Choose between Pin types or custom wire lead lengths.
- Rapid Shipping: Fast global logistics for bulk industrial orders.
- Proven Quality: Every batch is tested for IP67 compliance.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. What is the mounting size of the FL1M-22FJ-3 control panel light?
The mounting hole required is 22mm (approximately 0.87 inches).
2. Can I buy this 22mm LED indicator light in 220V?
Yes, we offer 110V and 220V versions for sale directly from our factory.
3. What is the benefit of the flat head design?
It provides a flush, professional finish and is less prone to physical impact damage.
4. Is this indicator light waterproof?
Yes, it features an IP67 rating, perfect for harsh industrial or outdoor environments.
5. What are the terminal types?
This model uses a 2-PIN plug-in design for quick industrial assembly.
6. What materials are used for the shell?
We use premium copper alloy with nickel plating for superior durability.
7. Does it have international certifications?
Yes, it is certified by UL, CE, VDE, and RoHS.
8. Can I order custom colors?
Standard colors include Red, Green, Yellow, Blue, and White. Special requests can be accommodated.
9. Is the nut included?

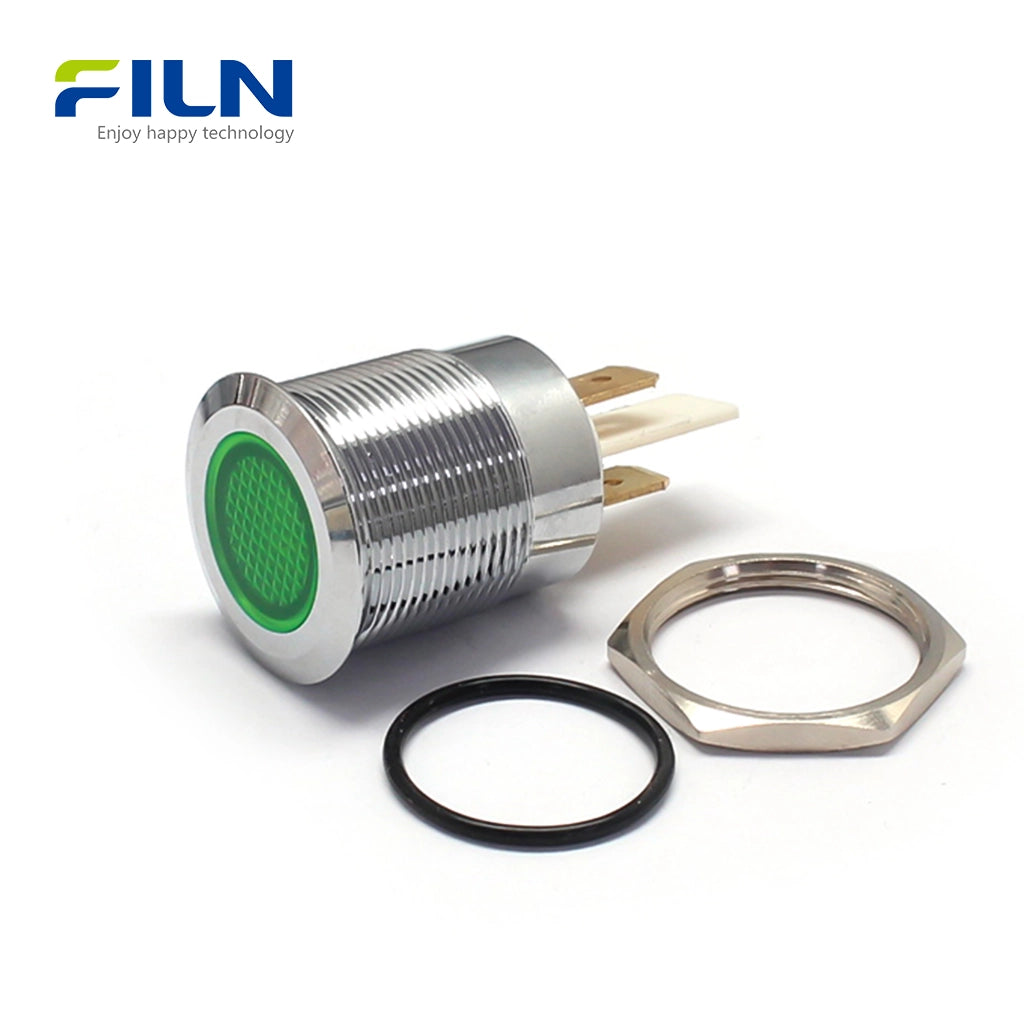

Yes, each light includes a high-quality M22 nut and a silicone waterproof O-ring.
10. How long is the lifespan?
The LED is rated for a working life of over 50,000 hours.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
