| Product Item | FL1M-6CJ-1 |
| Panel Mount Diameter | 6mm |
| Contact Way | solder pin |
| Install Way | screw thread |
| Lamp Type | LED |
| Rated voltage | AC/DC ，3V、6V、12V、24V、48V、110V、220V、380V |
| Lamp Color | red yellow blue green white |
| Product Design | concave head |
| Shell Material | brass plated nickel/stainless steel |
| Base Material | PA66 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
-
Product specifications
| Component name | material |
| lens | PC plastic |
| Metal body | H59 brass or 204 stainless
steel |
| wahser | T10 Cold Rolled Steel |
| rubber ring | SIL silica gel |
| nut | H59 nickel plated brass |
| housing | PA66 nylon |
| Light source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG24 0.2mm² |
| plug-in | C2680 RoHS brass |
| items | parameter |
| Rated voltage | 3V-780V DC or AC |
| rated current | 18mA |
| rated power | 0.2W |
| Insulation and voltage resistance | 1800V |
| working life | 100000h |
| electrical life | 100000 |
| cold-resistant | -40℃ |
| heat-resisting | 80℃ |
12v indicator light
Filn 12v 24v 120v 220v Green Indicator Light product introduction

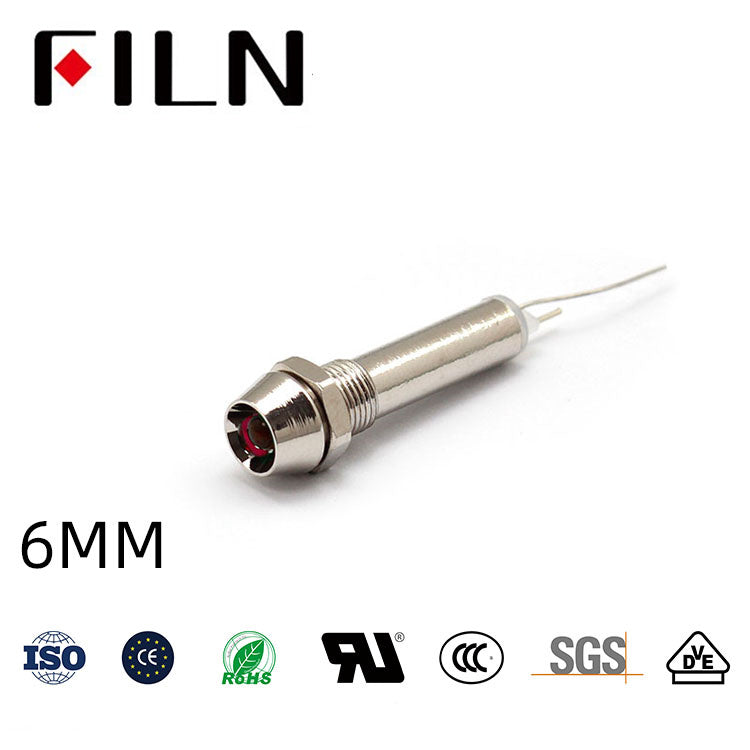

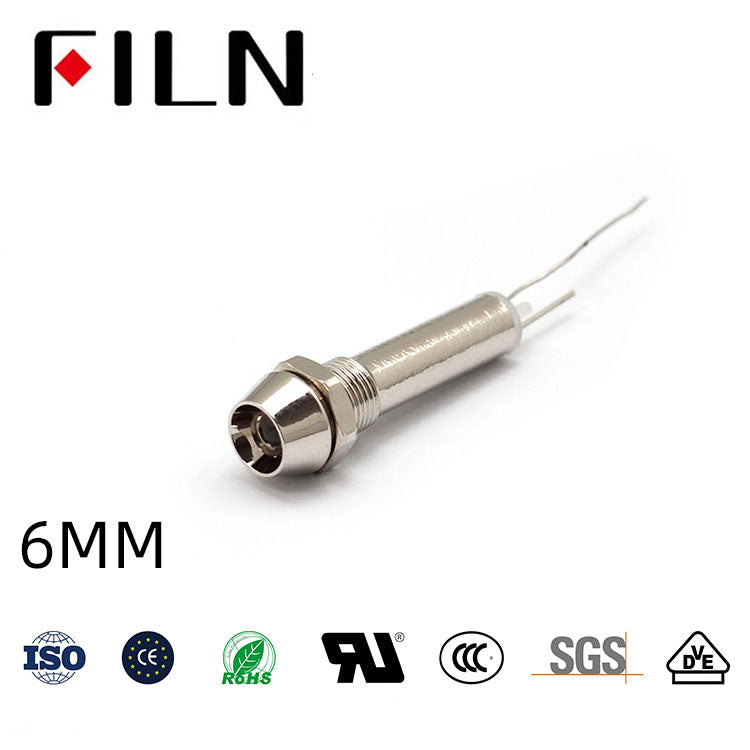

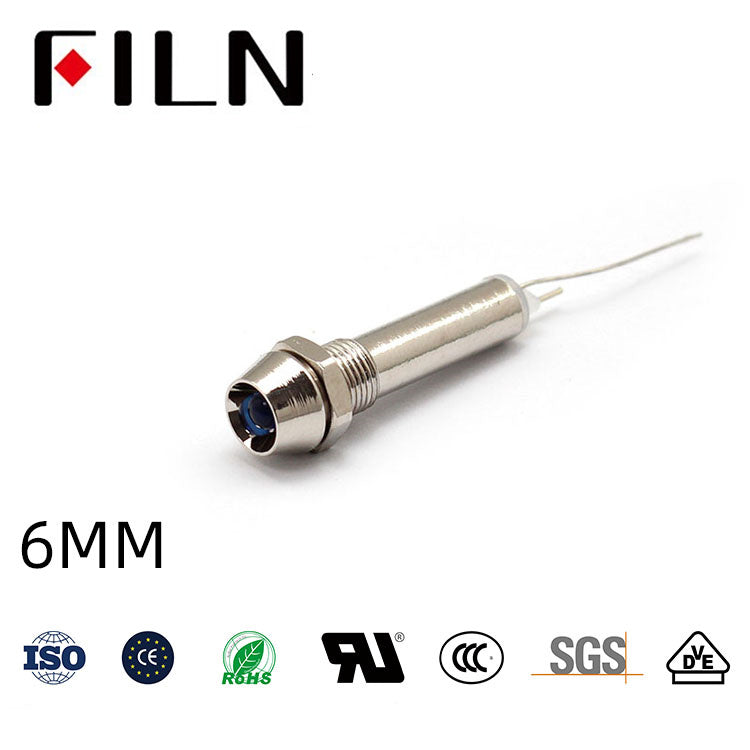

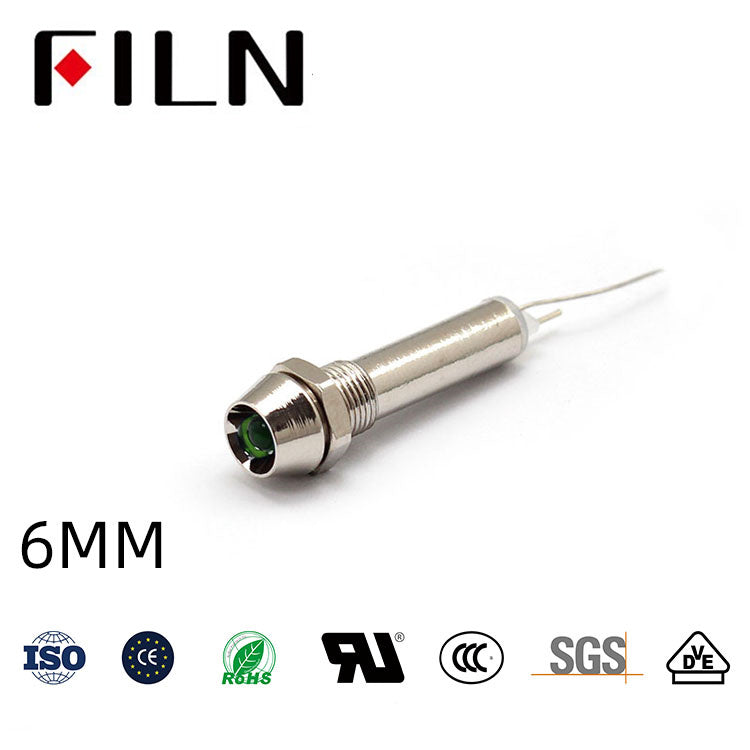

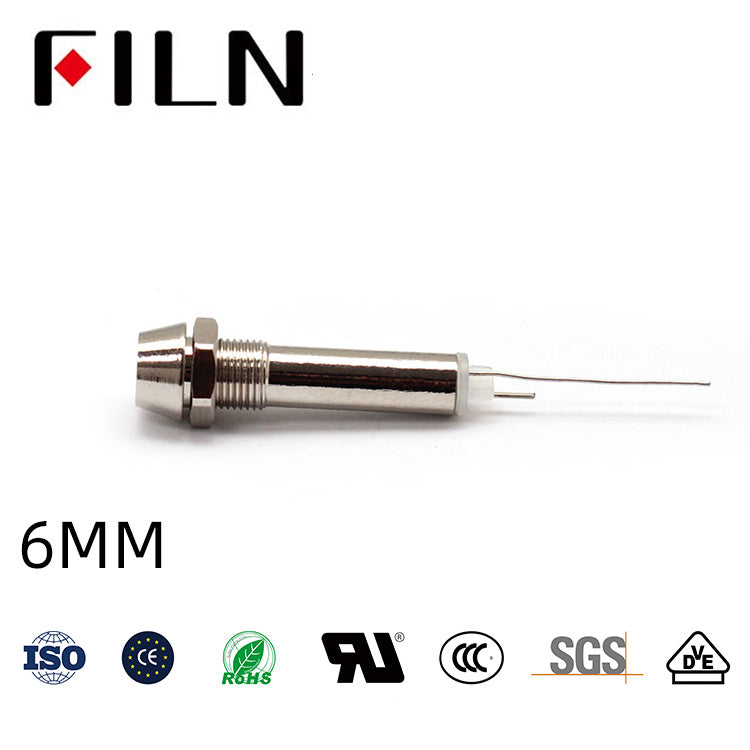

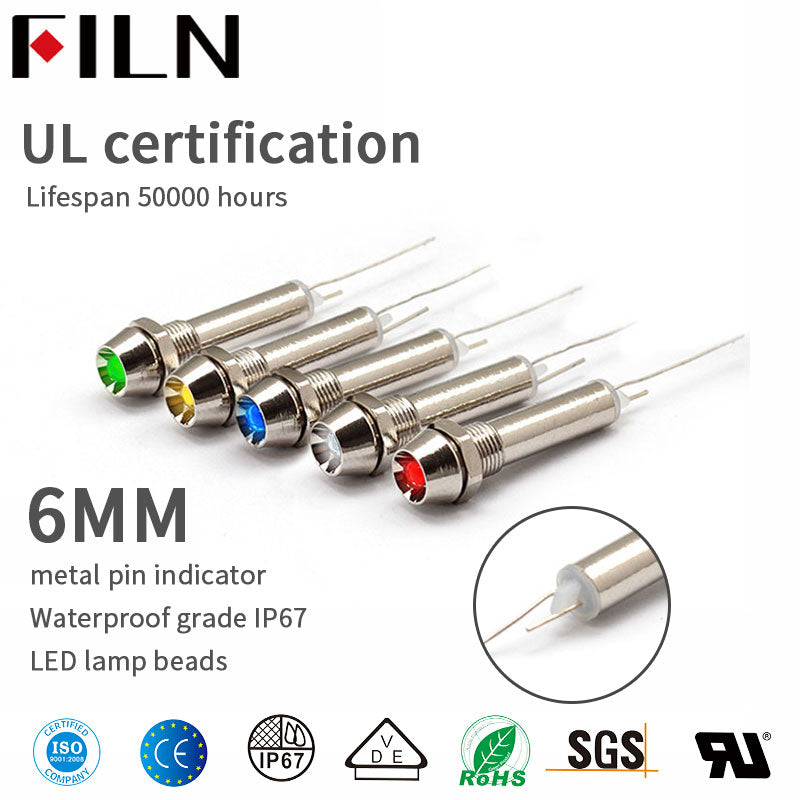

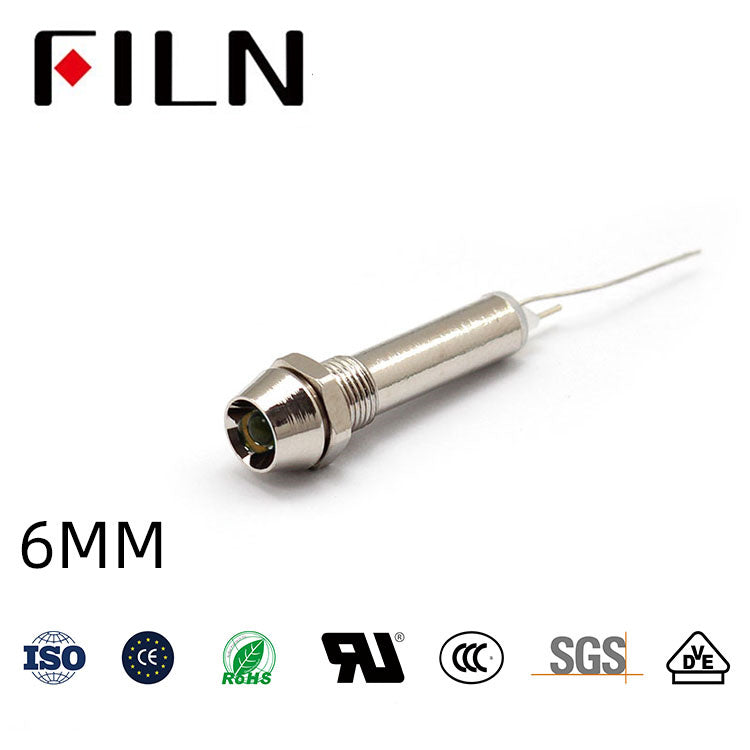

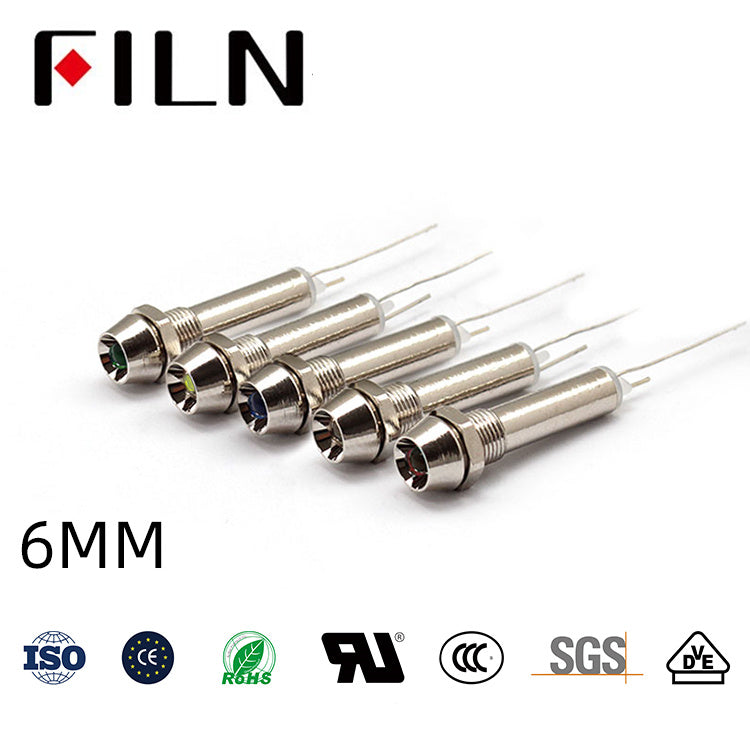

The model of Filn 12v 24v 120v 220v Green Indicator Light is FL1M-6CJ-1, the opening diameter is 6mm, the head is concave shape, the shell is nickel-plated copper, built-in high-brightness LED lamp beads, produced The voltage is 12V 24V, 120V, 220V, and the LED colors are red, green, yellow, blue and white. The tail is directly used as the LED pin.
12v indicator light has novel shape, clear light-emitting parts, energy-saving and power-saving, long service life, suitable for all kinds of small household appliances, electronic equipment, automation equipment, instrumentation, communication equipment, automobiles, motorcycles, photography, toys, refrigerators, It is used for various light indicator signals, warning signals, accident signals and other signals in electrical circuits such as freezers, electric welders, generators, and medical equipment.
The product dimensions are as follows:
How to wire a 12V indicator light
The Green indicator light has a built-in resistor, the long leg is the positive leg, and the short leg is the negative leg.
What are the advantages of the 12v indicator light produced by FILN?
1.12v LED indicator light uses a copper shell, a ring-shaped electroplating process, and the purchased color is translucent, has anti-oxidation, anti-corrosion, and has a long service life.
- The built-in LED indicator light is a high-brightness LED, low power consumption, high brightness, and long service life.
- The base of the LED indicator light is made of nylon material with fire rating V-0, which is safer in use.
- The high light transmittance PC material of the lampshade material has good light transmittance and mild color.
- Various voltages can be produced, no extra is needed in use
- FILN LED indicator light certificate is complete, currently we have UL, CE, ROHS, waterproof rating
How to buy 12v indicator light ?
Filn 12v 24v 120v 220v Green Indicator Light is a box of 100 pieces, 2000 pieces per piece, 100 pieces weighing 1KG, if you need a small amount of 12v indicator light, you can place an order directly at our shop, we have it in stock, and receive it Orders can be dispatched immediately.
If you have customized requirements, or the surrounding wiring harness, you can write your requirements, such as pre-connected wires, or pre-installed customized quick-connect terminals, or special voltages, you can email us .
If you have customized requirements, or the surrounding wiring harness, you can write your requirements, such as pre-connected wires, or pre-installed customized quick-connect terminals, or special voltages, you can email us .
FILN company has 20 years of production experience in Filn 12v 24v 120v 220v Green Indicator Light, as well as a professional ship switch R&D team, which can customize ship switch solutions for you within 24 hours. Filn also has more than 10 years of overseas sales experience. We can communicate and solve international trade issues in time. If you have any questions about ship switches, please contact us
