Two Color LED Indicator Light Detailed Parameters
| Component Name | Material |
| Lens | PC Plastic |
| Metal Body | H59 Brass Or 304 Stainless Steel |
| Washer | T10 Cold Rolled Steel |
| Rubber Ring | SIL Silica Gel |
| Nut | H59 Nickel Plated Brass |
| Housing | PA66 Nylon |
| Light Source | LED |
| Resistor | Metal Film |
| Cable | PTFE AWG22 0.3mm² |
| Items | Parameter |
| Rated Voltage | 3V-780V DC or AC |
| Rated Current | 20MA |
| Rated Power | 0.2W |
| Insulation And Voltage Resistance | 1800V |
| Working Life | 100,000H |
| Electrical Life | 100,000 |
| Cold-resistant | -40℃ |
| Heat-resisting | 80℃ |
| Plug-in | C2680 ROHS Brass |
| Product Item | FL1M-8FW-D-1 |
| Panel Mount Diameter | 8MM |
| Contact Way | With Wire |
| Install Way | Screw Terminal |
| Lamp Type | LED |
| Rated Voltage | AC / DC, 3V, 6V, 12V, 24V, 220V, 380V |
| Lamp Color | Red, Yellow, Blue, Green, White |
| Product Design | Flat Head |
| Shell Material | Brass Plated Nickel / Stainless Steel |
| Base Material | PA66 Nylon |
| Terminal Material | Brass |
| Applications | Coffee machine, Kitchen equipment, Household appliances, Automobiles, Medical equipment, Industrial equipment, etc. |
Green LED indicator light

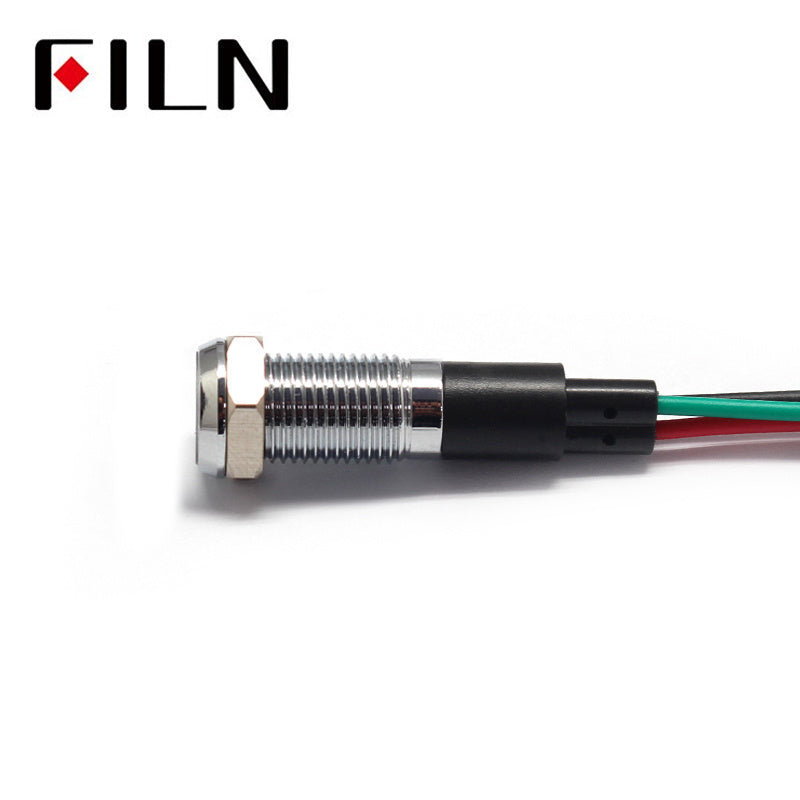

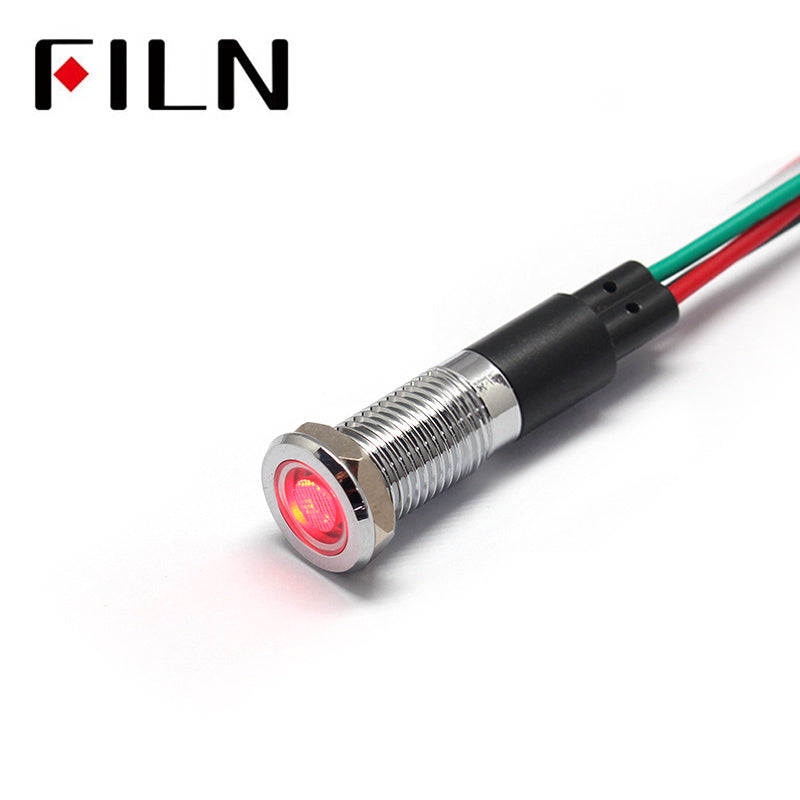

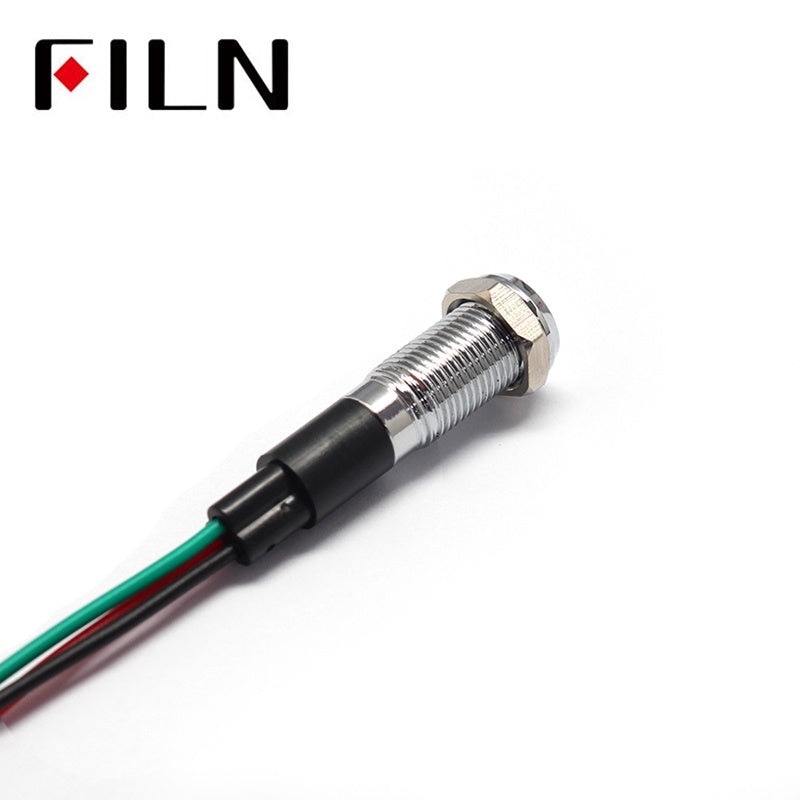

This kind of LED indicator light is a two-color LED indicator light, it has red and green two colors. An upgrade was made based on an individual color.
The description of Filn 8mm double color red green LED indicator light
- Red green LED indicator light has red and green two colors, the mounting hole size is 8mm, you just need to install it on the 8.2mm mounting hole, It is just stuck and very solid.
- The material of red green LED indicator light is divided into brass and zinc-aluminium alloy. Brass can be kept for a long time, but it is more expensive. We can customize zinc-aluminium alloy product according to your opinion.
- The red green LED indicator light adopts a two-color LED as light. If you use a neon bulb as a light, service life and durability is not as long as two-color LED indicator light. It is suitable for use on the mechanical and electrical machines requiring long-term work and operation.
- The red green LED indicator light can achieve a variety of voltages, such as 6V, 12V, 24V, 36V, 110V, 220V. Generally speaking, high voltage is needed in Asia, and low voltage is in Europe and America.
- As a high-end two-color indicator light, it has two colors and good waterproof properties. It can still last at 50,000 hours after wading. The product’s wire adopts high-temperature Teflon material, its temperature resistance is above 220 degrees, and it can be used in high-temperature scenarios.
- The wire end can weld different terminals to custom customers, such as molx series of 2.8MM and 2.54MM terminals and other types of terminals.
- The green indicator light had passed the certifications of UL, CE, ROSH, ensuring the product’s quality and making customers more rest assured.
What is the material of the green LED indicator light?
The main material of green LED indicator light is zinc-aluminium alloy brass part. Its wire end adopts high-temperature and high-resistant Teflon material, it greatly strengthen the product service life. It is more stable in mechanical operation. If you have any questions in use or need to replace the product, we will have special people to solve problems for you and replace the problem products free of charge.
How about the waterproof rating of the red green LED indicator light?
The 120V green indicator light has the best waterproof rating of IP67, and it is durable.
The advantages of green LED indicator light produced by Filn.
- There is no MOQ requirement, we can arrange the delivery even if you purchase one piece.
- We can arrange the delivery within three days if you purchase more than 1000 pieces of our products.
- We accept customize indicator light, you just need to confirm the specifications and parameters you need, and we will discuss the mould to give you a satisfactory answer.
- Filn has over 20 years of experience in indicator light producing, it is more authoritative in this industry and can handle the details in place.
- We have rich experience in foreign trade, we will soon answer customer questions and provide quality service.
