| Product Item | FL1M-8FW-2 |
| Panel Mount Diameter | 8mm |
| Contact Way | With wire |
| Install Way | screw terminal |
| Lamp Type | LED |
| Rated voltage | AC/DC,3V、6V、12V、24V、220V、380V |

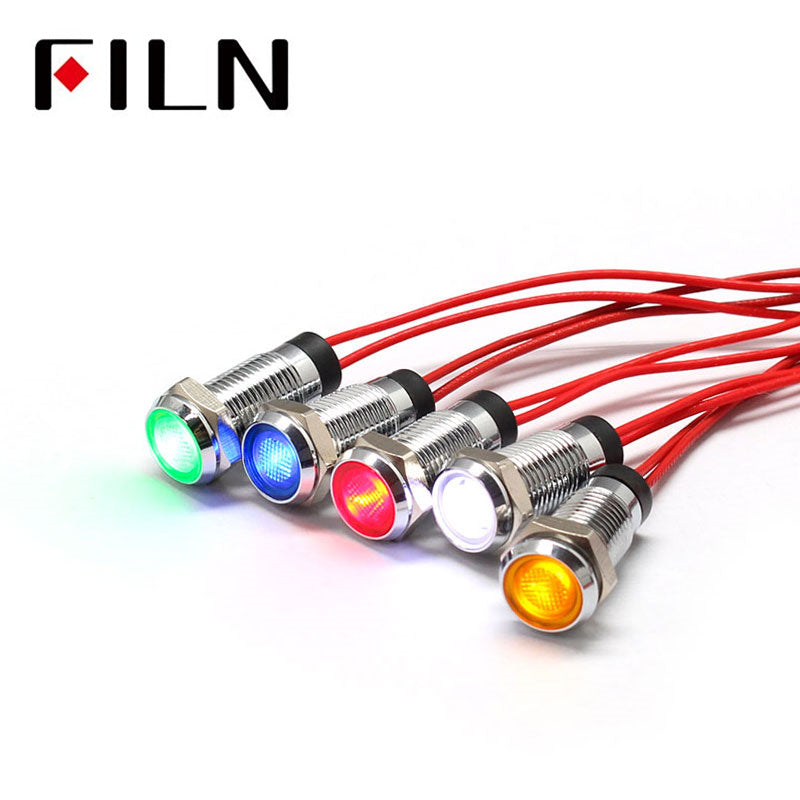

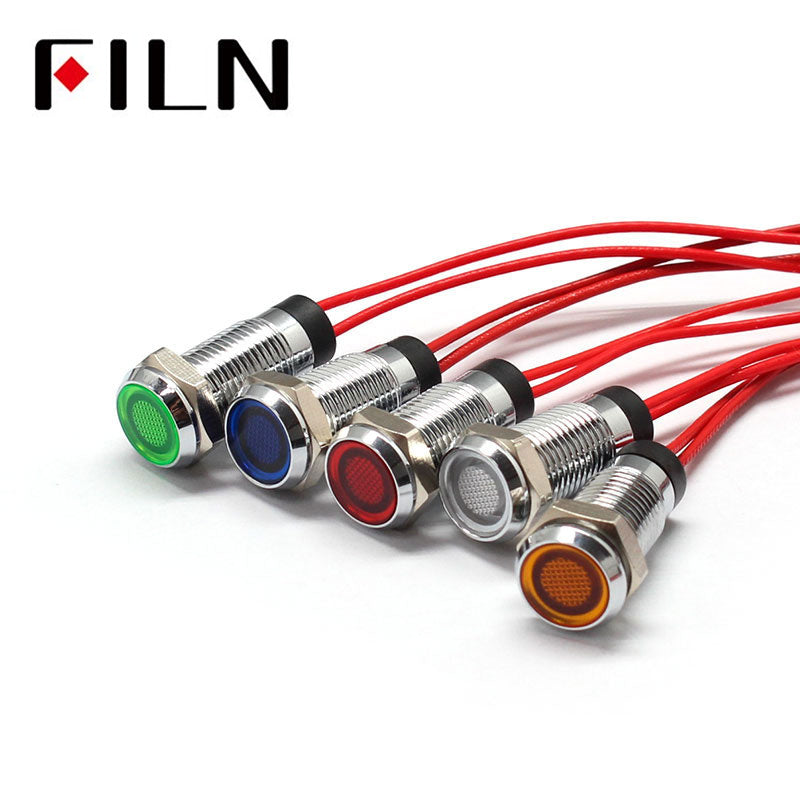

| Lamp Color | red yellow blue green white |
| Product Design | flat head |
| Shell Material | brass plated nickel/stainless steel |
| Base Material | PA66 nylon |
| Terminal Material | brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
| Component name | material |
| lens | PC plastic |
| Metal body | H59 brass or 204 stainless steel |
| wahser | T10 Cold Rolled Steel |
| rubber ring | SIL silica gel |
| nut | H59 nickel plated brass |
| housing | PA66 nylon |
| Light source | LED |
| Resistor | Metal film |
| Cable | PTFE AWG22 0.3mm² |
| plug-in | C2680 RoHS brass |
| items | parameter |
| Rated voltage | 3V-780V DC or AC |
| rated current | 20mA |
| rated power | 0.2W |
| Insulation and voltage resistance | 1800V |
| working life | 100000h |
| electrical life | 100000 |
| cold-resistant | -40℃ |
| heat-resisting | 80℃ |

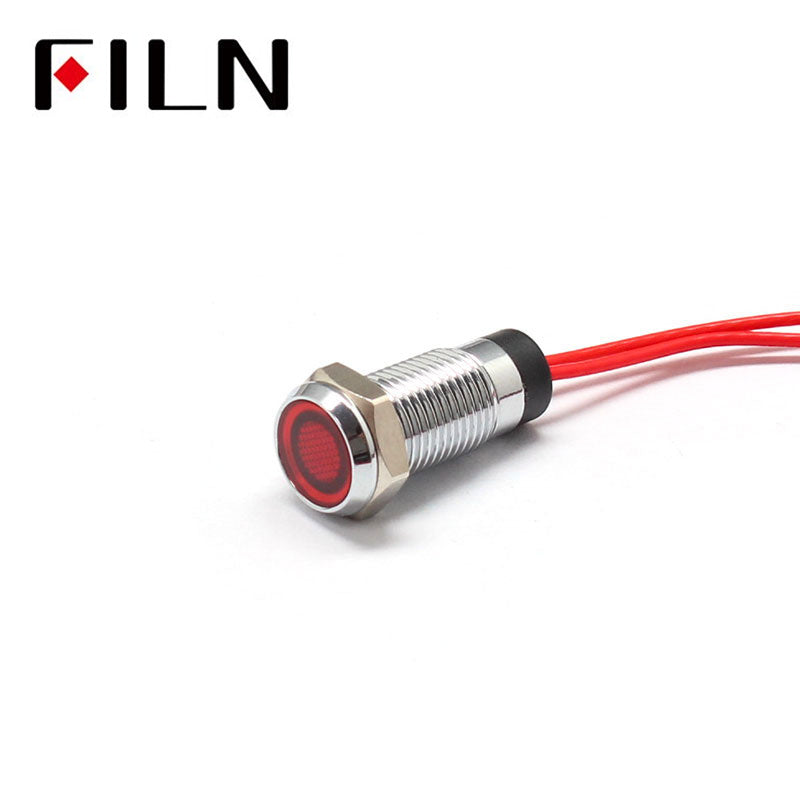

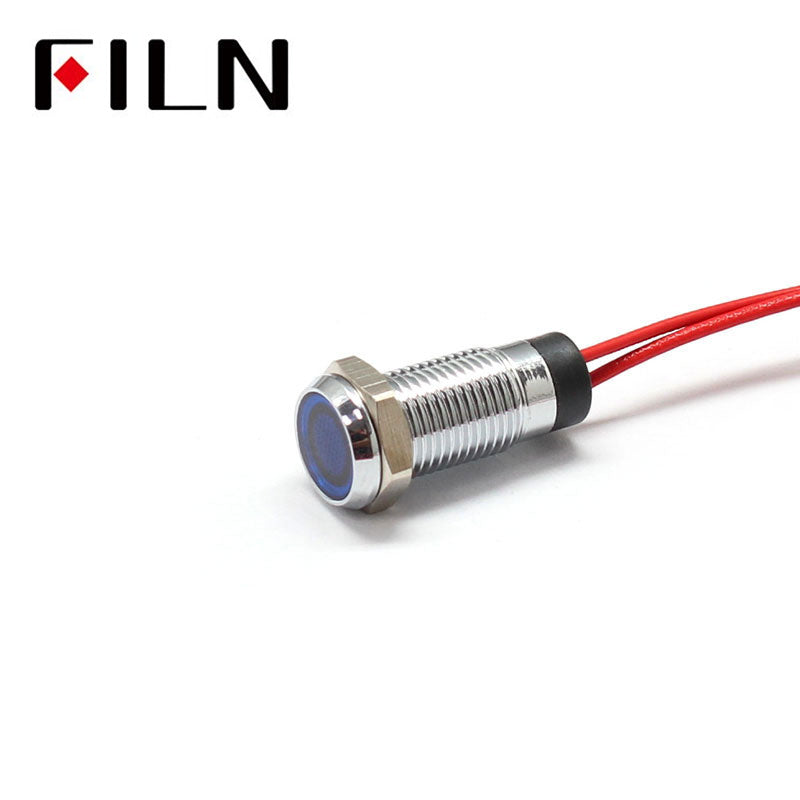

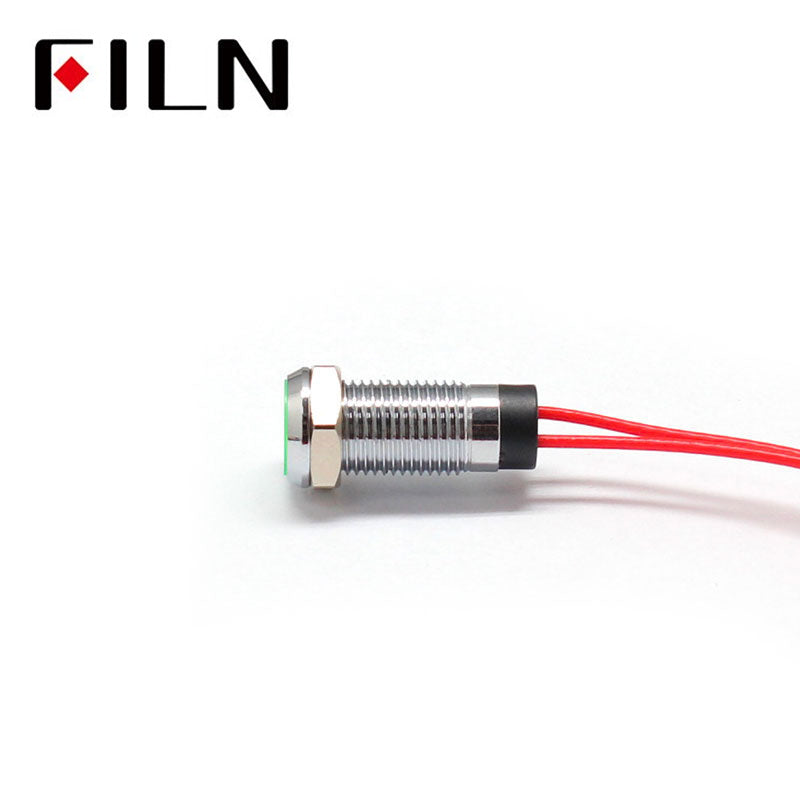

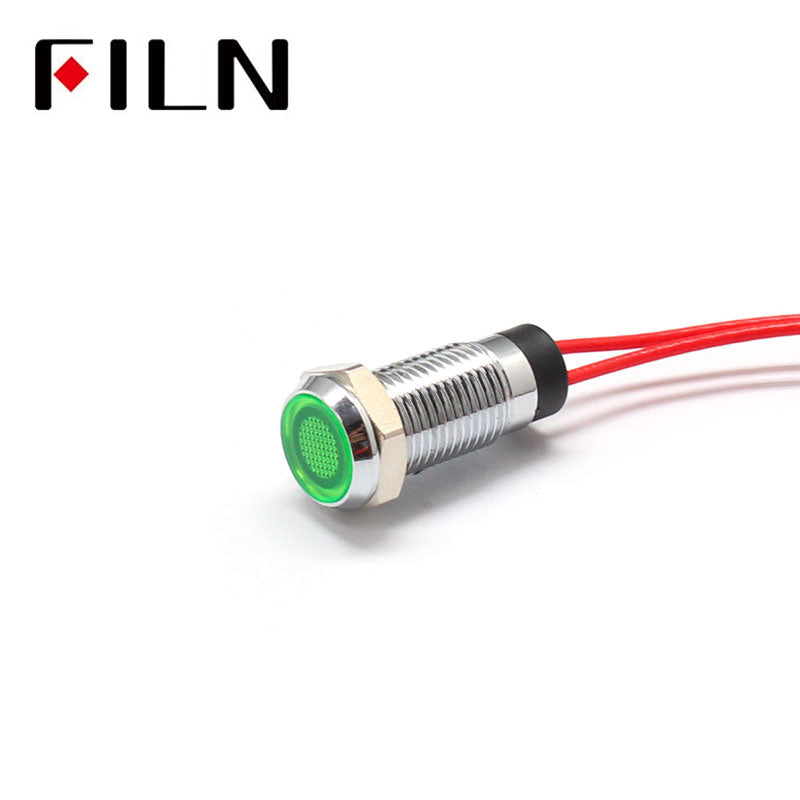

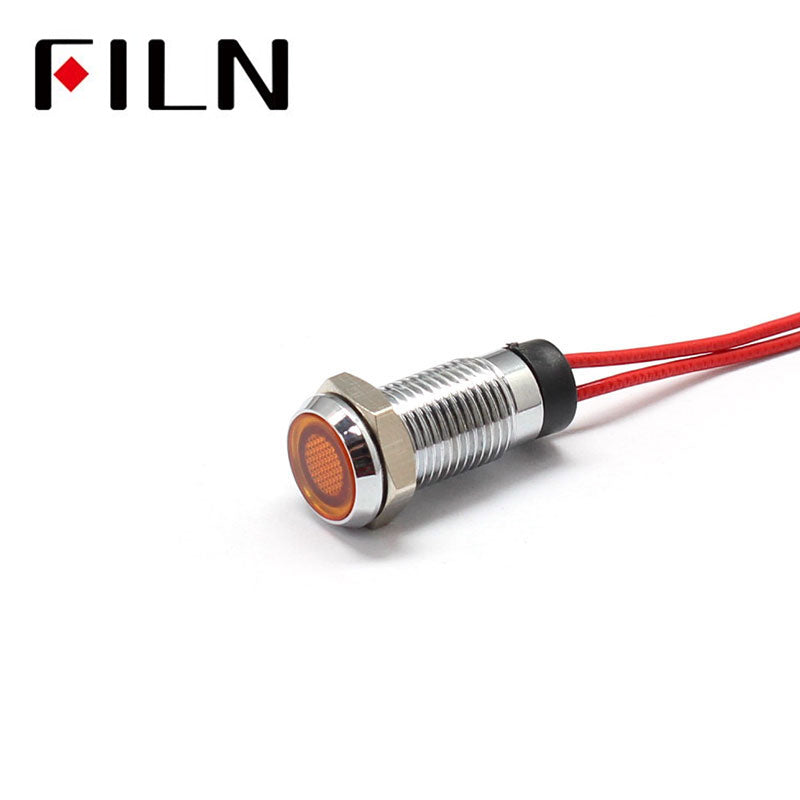

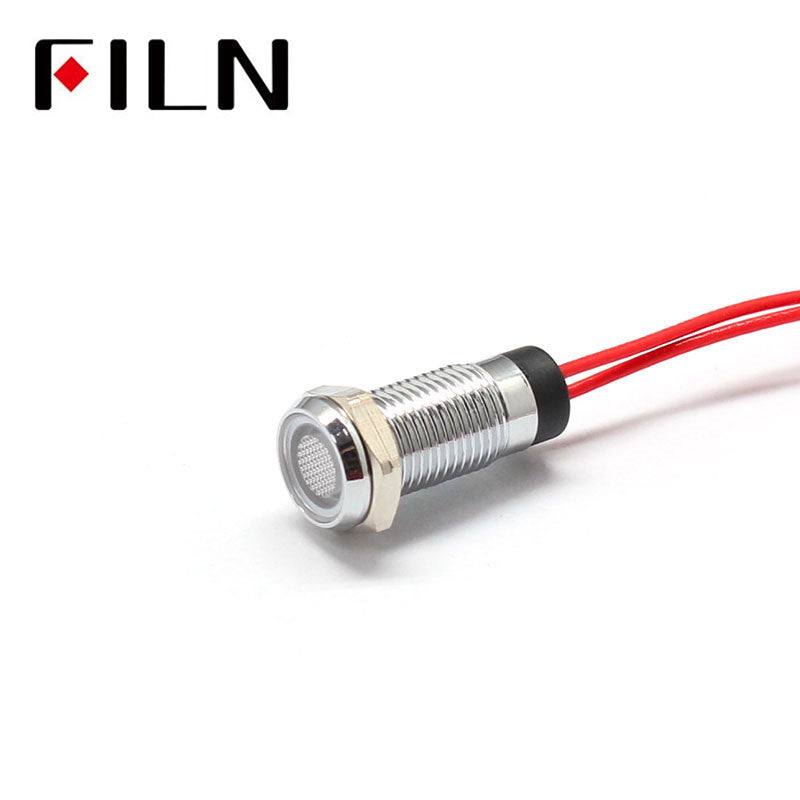

24 Volts LED indicator light
The 24 V LED indicator light means its material is metal and light is LED. It is the universal LED indicator light on the market.
The description of FILN 8MM indicator lamp 12Volts 24Volts Metal LED Indicator Light.
-
The 24Volts LED indicator light’s appearance adopts brass, After plating, the texture is relatively hard and the appearance has process style, it is suitable for high-end electrical machinery. If you use it in a wet place, or in a acidic place. We recommend you to choose stainless steel material because it has anti-corrosion. - The 8MM indicator light adopts a two-core LED as a light, it has advantages of durability and high light and is suitable for various mechanical machine requiring the assembly of the LED indicator light.

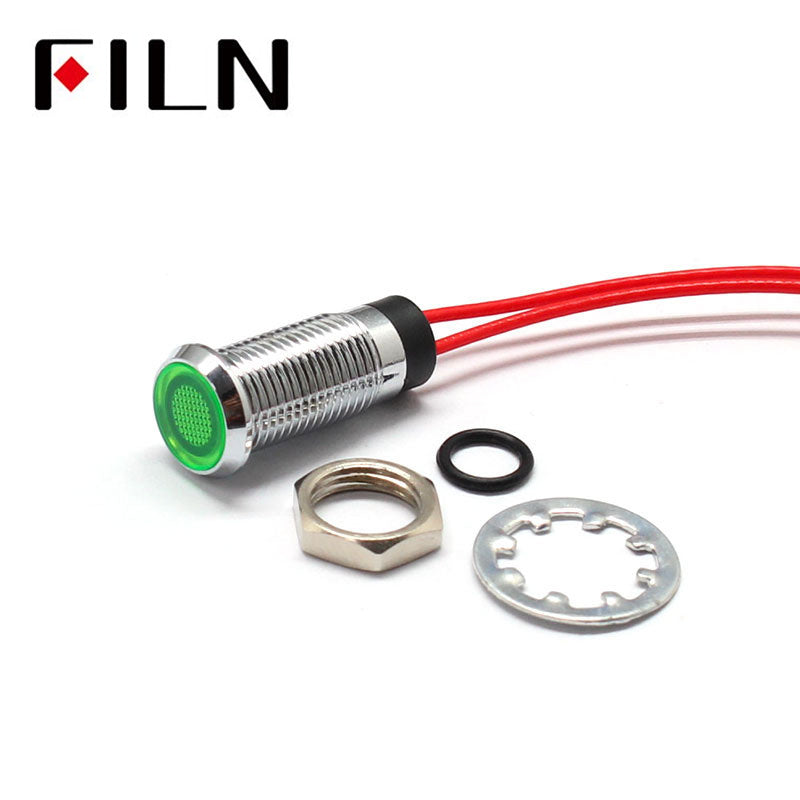

- The mounting hole size of the 8mm indicator light is 8mm, it is easy to install, the small indicator light is suitable for installation in 8.2mm mounting holes. The indicator light bring its own waterproof ring. Even if you soak in a pool, it will not enter the water, but the service life will be shorten.

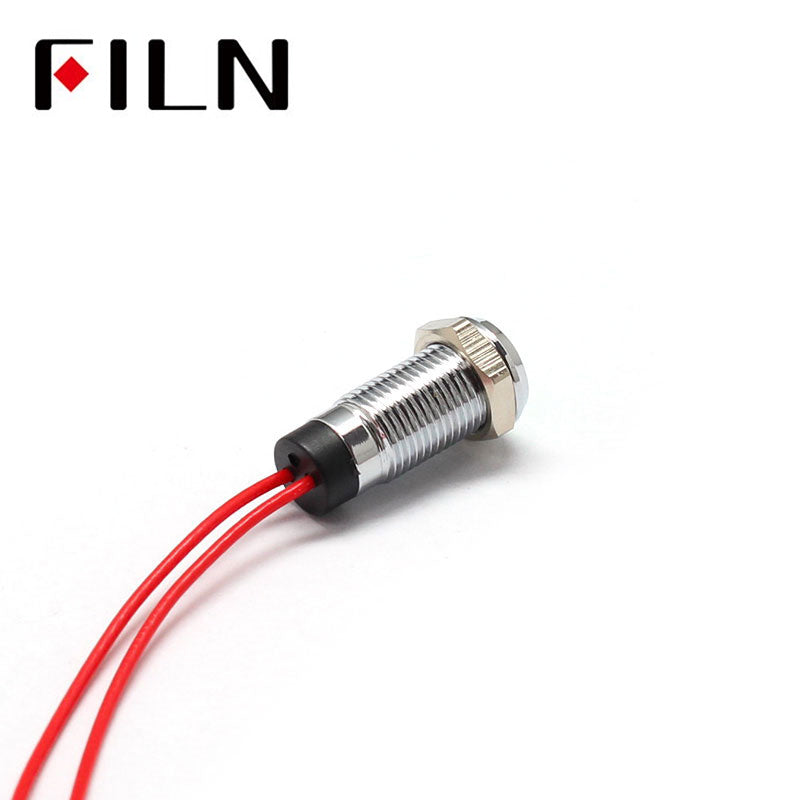

- The 24 V LED indicator light adopts high temperature Teflon, such wire has high temperature resistant. It can work in a environment above 220 degrees.
- Except for the 12V and 24V 8mm LED indicator light, we can produce other voltages, such as 2V, 3V, 6V, 12V, 24V, 110V, 120V, 220V, 240V. The most common used is 12 V LED indicator light. If you are living in the USA, we recommend you use 110V or 120V indicator light. If you are living in Asia, we recommend you use 220V or 240V LED indicator light.
- The waterproof rating of the 24Volts LED indicator light is IP67, the service life is about 50,000 hours, and the warranty period is 5 to 6 years. We will replace the problem product free of charge if there is some problem during the warranty period.
- The 12Volts LED indicator light had passed the certifications of UL, ROSH, CE, etc. We can customize the terminals for you, then we need to communicate and consultation with you before install and weld.
What are the attributes of 24 Volts LED indicator light?
The wire of the 24Volts LED indicator light adopts Teflon material, the product itself is made of brass, the light is a two-core LED indicator light and it has good lighting effect.
How to connect the wire with 24V LED indicator light and how about the waterproof effect?
Waterproof indicator light has own waterproof ring and its sealing ability is also good, please watch the video and see the waterproof effect of the waterproof indicator light.
The advantages of the 24volts LED indicator light produced by Filn.
- There is no MOQ, you can buy from one piece, we will arrange the delivery for you.
- If you need to customize products, we will discuss with you and make a thorough plan quickly.
- Filn has over 20 years of experience in LED indicator light producing. It can avoid many problems with LED indicator.
- As long as you determine the specifications, 1000 pieces indicator lights or other products will be completed within 3 days. It can save your time.
