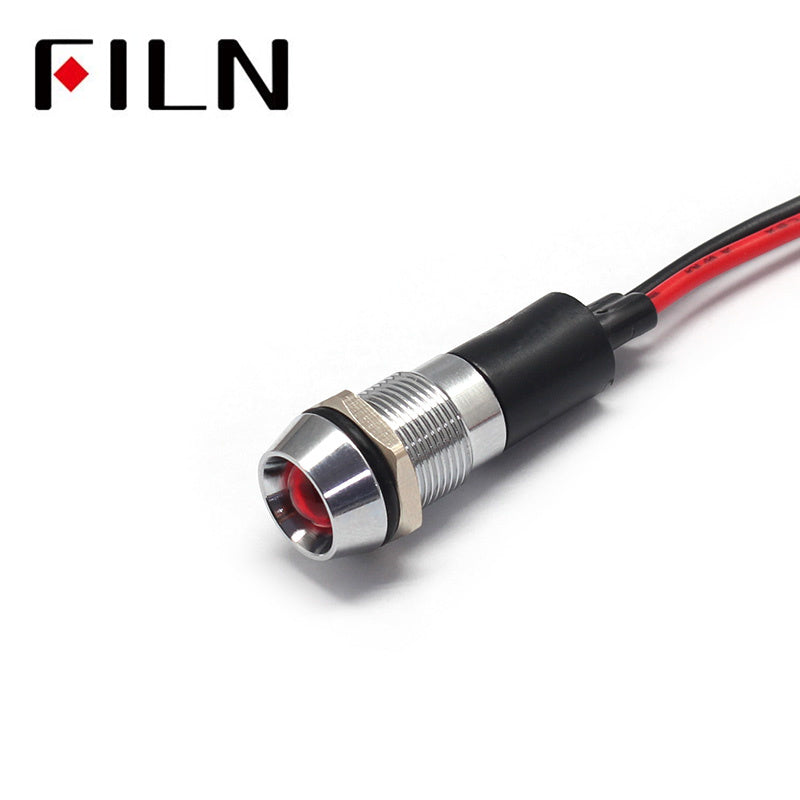

FILN 12mm Metal Indicator Light Concave Head red green yellow blue white led 12V 24V 110V 220v indicator light with 20cm cable

Product Item FL1M-12CW-1 Panel Mount Diameter 12mm Contact Way With wire Install Way Screw Terminal Lamp Type...
$1.67
$1.67
Please hurry! Only 2000 left in stock
Color: RED
Voltage: 6V
Subtotal: $1.67
10 customers are viewing this product

Shipment by DHL

Enjoy points to reduce shipping fees

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

380V High Voltage IP67 LED Metal Indicator Light With a Wire Red

FILN 12mm Metal Indicator Light Concave Head red green yellow blue white led 12V 24V 110V 220v indicator light with 20cm cable

$1.67

FILN 12mm Metal Indicator Light Concave Head red green yellow blue white led 12V 24V 110V 220v indicator light with 20cm cable

$1.67
Color: RED
Voltage: 6V
Product Item FL1M-12CW-1
Panel Mount Diameter 12mm
Contact Way With wire
Install Way Screw Terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design convex head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material Brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component name material
lens PC plastic
Metal body H59 brass or 204 stainless steel
wahser T10 Cold Rolled Steel
rubber ring SIL silica gel
nut H59 nickel plated brass
housing PA66 nylon
Light source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
plug-in C2680 RoHS brass

items parameter
Rated voltage 3V-780V DC or AC
rated current 20mA
rated power 0.2W
Insulation and voltage resistance 1800V
working life 100000h
electrical life 100000
cold-resistant -40℃
heat-resisting 80℃


About the advantages and use scenarios of 12mm concave head metal indicator light

12mm concave head metal indicator light Advantages:

  1. Durability: The metal construction of the indicator light ensures high durability and resistance to damage. Stainless steel is known for its corrosion resistance, making the light suitable for both indoor and outdoor environments.
  2. Visual Appeal: The sleek and elegant design of the metal indicator light adds a touch of sophistication to any application. The stainless steel finish provides a modern and professional look, enhancing the overall aesthetics.
  3. High Visibility: The 12mm concave head design of the light ensures excellent visibility from different angles. The metal construction helps to reflect and amplify the light, making it easily noticeable even in bright or dimly lit environments.
  4. Versatility: The indicator light can be used with various electrical systems and equipment, including machinery, control panels, appliances, and automotive applications. Its compatibility with different voltage levels and circuitry makes it a versatile choice.
  5. Easy Installation: The 20cm wire attached to the metal indicator light simplifies the installation process. It provides flexibility and convenience during setup, allowing for easier integration into existing systems or equipment.
  6. Enhanced Visibility: The concave head design allows the light from the indicator to be better focused and concentrated, thus enhancing its visibility. The shape of the concave head helps limit light scattering, enabling the light from the indicator to be more focused in one direction, making it easier to see and identify.
  7. Provide directional indication: The concave head can be designed to provide an indication function by changing the direction of the light. For example, in a car, the concave head of the indicator can be tilted to the left or right to indicate the direction of a turn. This concave head design makes the indicator light more intuitive and clear in conveying information.
  8. Prevent light interference: The concave head can play the role of isolation to prevent the light of the indicator from interfering with the surrounding environment. It can make the light of the indicator more concentrated in the target area by limiting the spread of light, avoiding the interference of light diffusion to other equipment or personnel
  9. Improve the visual effect: The design of the concave head can enhance the appearance of the indicator, making it more prominent and attractive. The shape of the concave head can add a unique beauty to the indicator, making it more outstanding in design, thus enhancing the overall visual effect.

12mm concave head metal indicator light Usage Scenarios:

  1. Industrial Machinery: The metal indicator light is suitable for use in industrial settings where robust and reliable signaling is required. It can indicate the status of machines, such as power on/off, operational modes, or error conditions, ensuring effective monitoring and troubleshooting.
  2. Control Panels: The indicator light can be used on control panels of various devices, such as electronic appliances or HVAC systems. It helps users quickly identify the operational status, alerts, or specific functions, enhancing user experience and convenience.
  3. Automotive Applications: The metal indicator light is suitable for automotive use, such as dashboard indicators or signal lights. Its durability and high visibility make it ideal for displaying critical information, such as engine warnings, turn signals, or seatbelt alerts.
  4. Outdoor Signage: Due to its resistance to environmental factors, the metal indicator light can be used in outdoor signage or displays. It can effectively convey information or attract attention in areas exposed to weather conditions, such as parks, shopping malls, or parking lots.

In summary, the metal indicator light with a 12mm concave head and a 20cm stainless steel wire offers durability, visual appeal, high visibility, versatility, and easy installation. Its applications span across industrial machinery, control panels, automotive systems, and outdoor signage, where reliable signaling and clear indications are essential.
