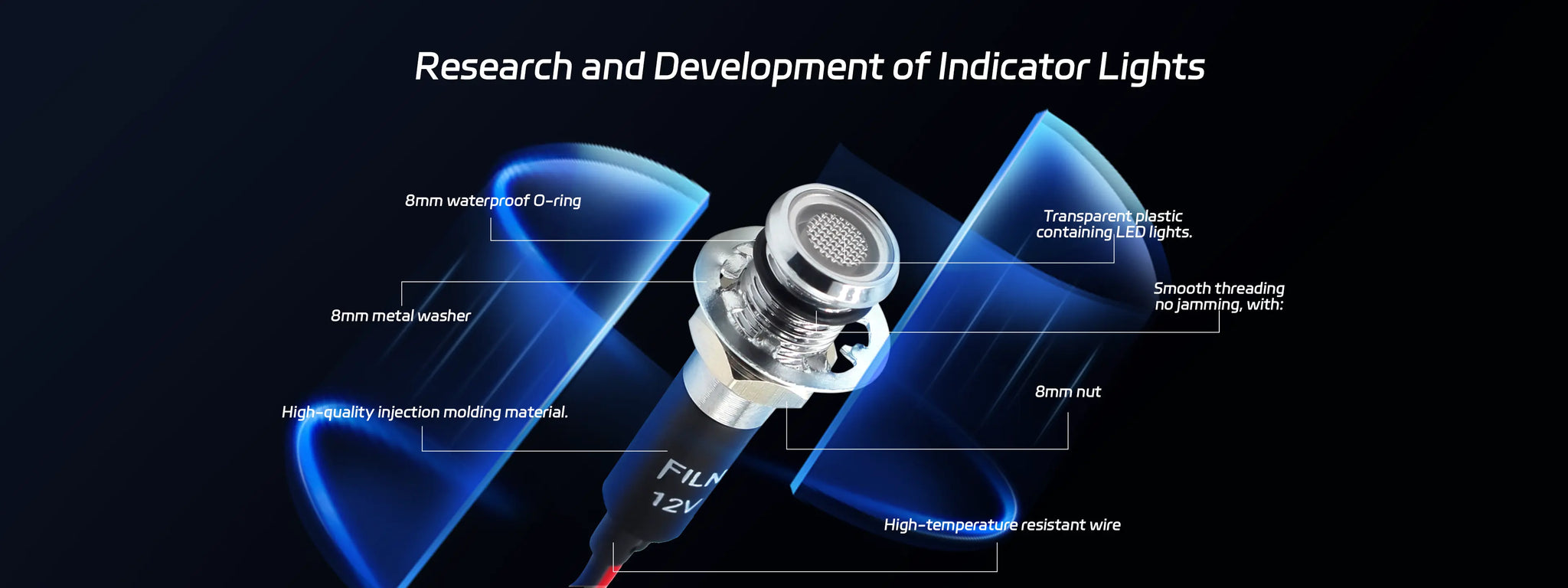

Component Name | Material |
Lens | PC plastic |
Metal Body | H59 brass or 304 stainless steel |
Washer | T10 cold rolled steel |
Rubber Ring | SIL silica gel |
Nut | H59 nickel plated brass |
Housing | PA66 nylon |
Light Source | LED |
Resistor | Metal film |
Cable | PTFE AWG22 0.3mm² |
Items | Parameter |
Rated Voltage | 3V-780V DC or AC |
Rated Current | 20mA |
Rated Power | 0.2W |
Insulation and Voltage Resistance | 1800V |
Working Life | 100000h |
Electrical Life | 100000 |
Cold-resistant | -40℃ |
Heat-resisting | 80℃ |
Plug-in | C2680 RoHS brass |
Product Item | FL1M-14FW-1 |
Panel Mount Diameter | 14mm |
Contact Way | With 20cm wire |
Install Way | Screw terminal |
Lamp Type | LED |
Rated Voltage | AC/DC, 3V, 6V, 12V, 24V, 220V, 380V |

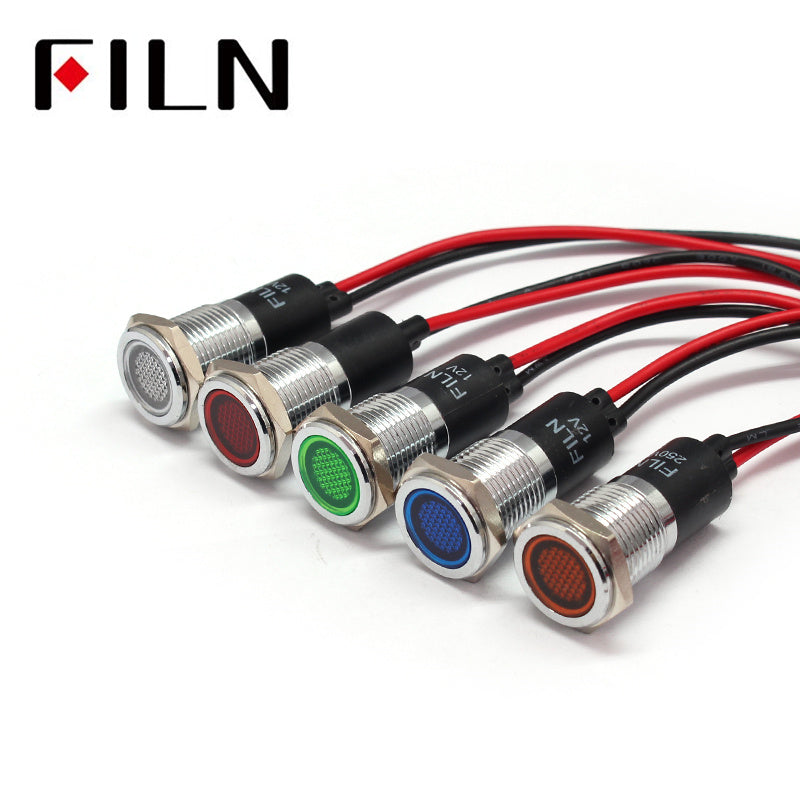

Lamp Color | Red, yellow, blue, green, white |
Product Design | Flat head |
Shell Material | Brass plated nickel / Stainless steel |
Base Material | PA66 |
Terminal Material | PTFE AWG24 |
Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment, etc. |

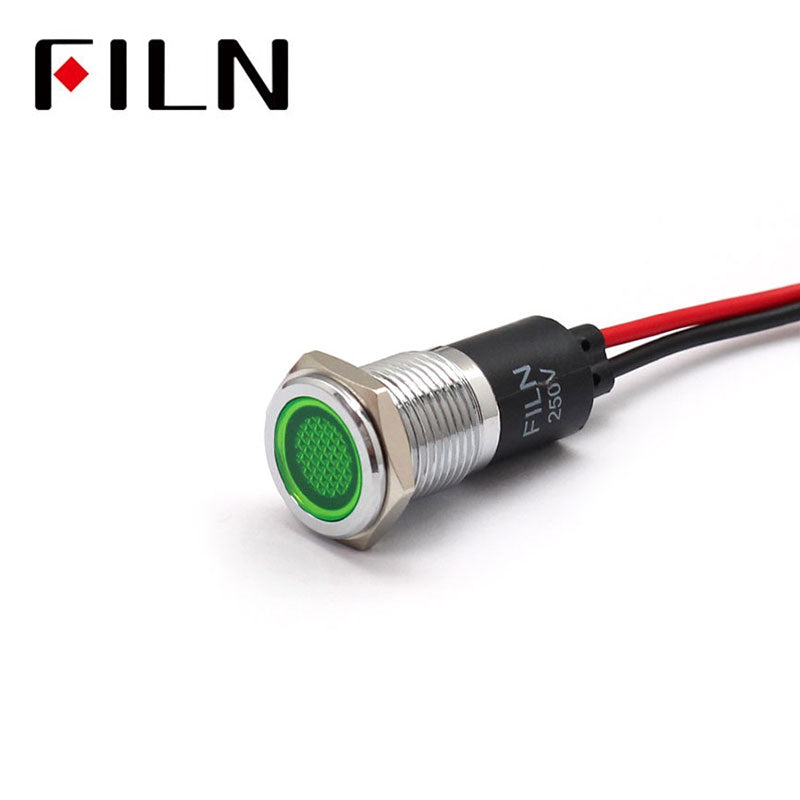

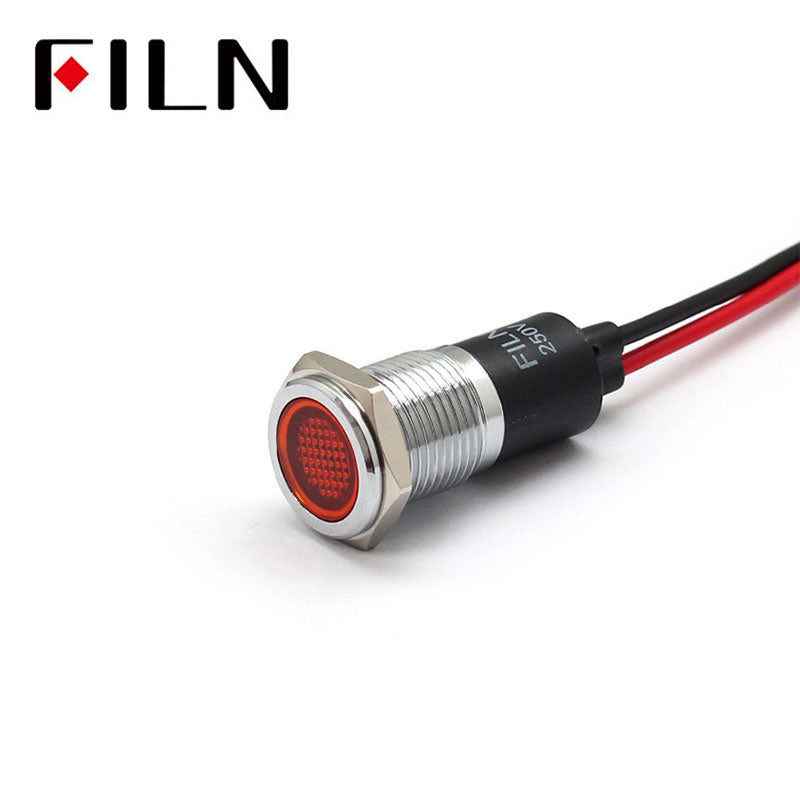

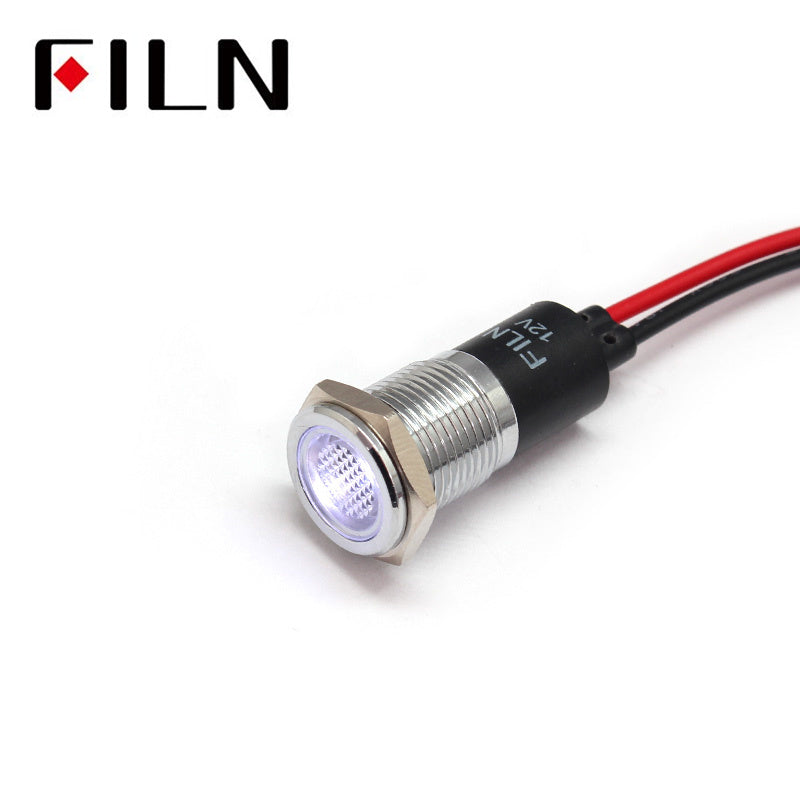

The 14mm waterproof metal indicator light is designed for various applications where a reliable and durable signaling solution is required in wet or challenging environments. Here are some potential use cases for this type of indicator light:
1.Marine Applications: The waterproof feature of the 14mm metal indicator light makes it suitable for use in boats, ships, or other marine vessels. It can be used to indicate the status of various systems, such as navigation lights, engine operation, or alarm activation.
2.Industrial Machinery: In industrial settings, where machinery and equipment are exposed to moisture or harsh conditions, the waterproof metal indicator light can be utilized. It can serve as a visual indicator for power status, equipment malfunction, or operational modes.
3.Outdoor Lighting: The 14mm waterproof metal indicator light can be employed in outdoor lighting systems, such as garden lights or landscape illumination. Its waterproof design ensures its resilience against rain, humidity, and other environmental factors.
4.Automotive Industry: This type of indicator light can find application in the automotive sector, particularly in vehicles that operate in challenging environments or are exposed to water or dirt. It can be used to signal the activation of specific functions, such as four-wheel drive engagement or hazard warning.
5.Medical Equipment: The waterproof metal indicator light can be utilized in medical equipment that requires reliable and moisture-resistant signaling components. It can indicate critical information like equipment readiness, alarm activation, or patient status in environments where cleanliness and sterilization are crucial.
6.Agricultural Machinery: In agricultural settings, where equipment is exposed to outdoor conditions and potential moisture, the waterproof metal indicator light can be used to indicate the status of various operations, such as irrigation systems, machinery activation, or harvesting processes.
Overall, the 14mm waterproof metal indicator light is a versatile component suitable for diverse applications requiring a robust, water-resistant signaling solution, particularly in industries where environmental factors and moisture pose a challenge.

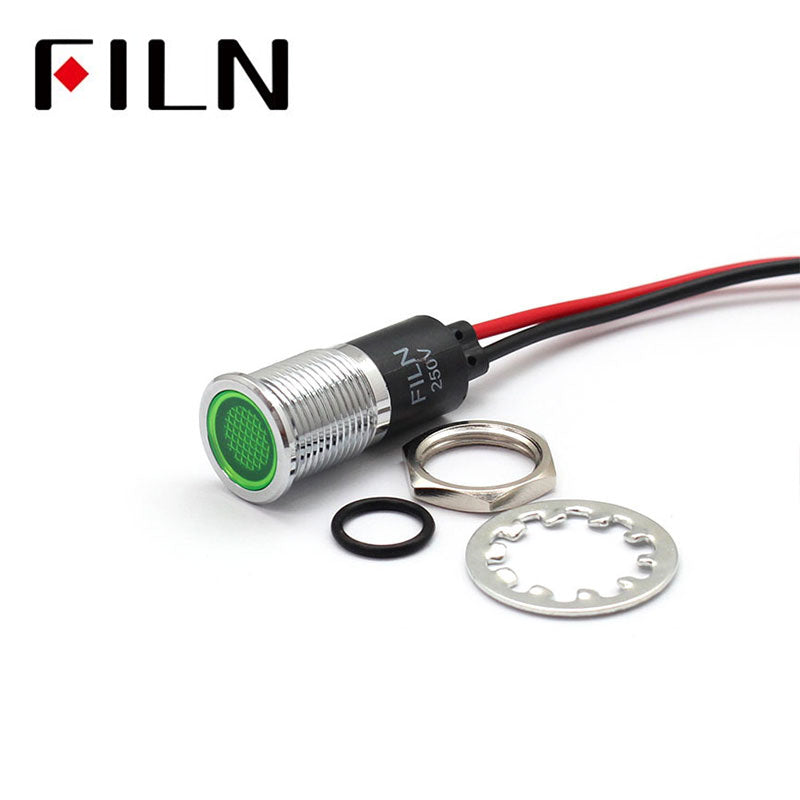

The 14mm waterproof metal indicator light with wire harness offers several advantages over traditional indicator lights. Here are some key benefits of this particular model:
1.Easy Installation: The inclusion of a wire harness simplifies the installation process. Users can easily connect the indicator light to the power source without the need for additional wiring or connectors, saving time and effort during installation.
2.Versatility: The wire harness allows for flexible placement of the indicator light. It can be positioned in various locations, even in hard-to-reach areas, while the wire extends the connection point to a more accessible location for easy monitoring and maintenance.
3.Enhanced Waterproofing: The waterproof feature ensures that the indicator light remains functional and reliable, even in wet or humid environments. The metal construction adds durability, making it suitable for applications that require resistance to moisture, water splashes, or exposure to outdoor conditions.
4.Secure Connection: The wire harness provides a secure and stable connection between the indicator light and the power source. This eliminates the risk of loose or intermittent connections, ensuring consistent and accurate signaling without interruptions.
5.Increased Safety: The waterproof and metal design of the indicator light reduces the risk of electrical hazards. It provides a level of protection against potential short circuits, moisture-related damage, or accidental contact with live components, making it safer for both users and equipment.
6.Longevity: The combination of waterproofing and durable metal construction contributes to the longevity of the indicator light. It can withstand harsh conditions, including temperature fluctuations and exposure to environmental factors, resulting in a longer lifespan compared to non-waterproof or less robust alternatives.
Overall, the 14mm waterproof metal indicator light with wire harness offers convenience, reliability, safety, and longevity. Its easy installation, versatility, and enhanced waterproofing make it an ideal choice for various applications where a dependable and durable signaling solution is required.
