Product Overview

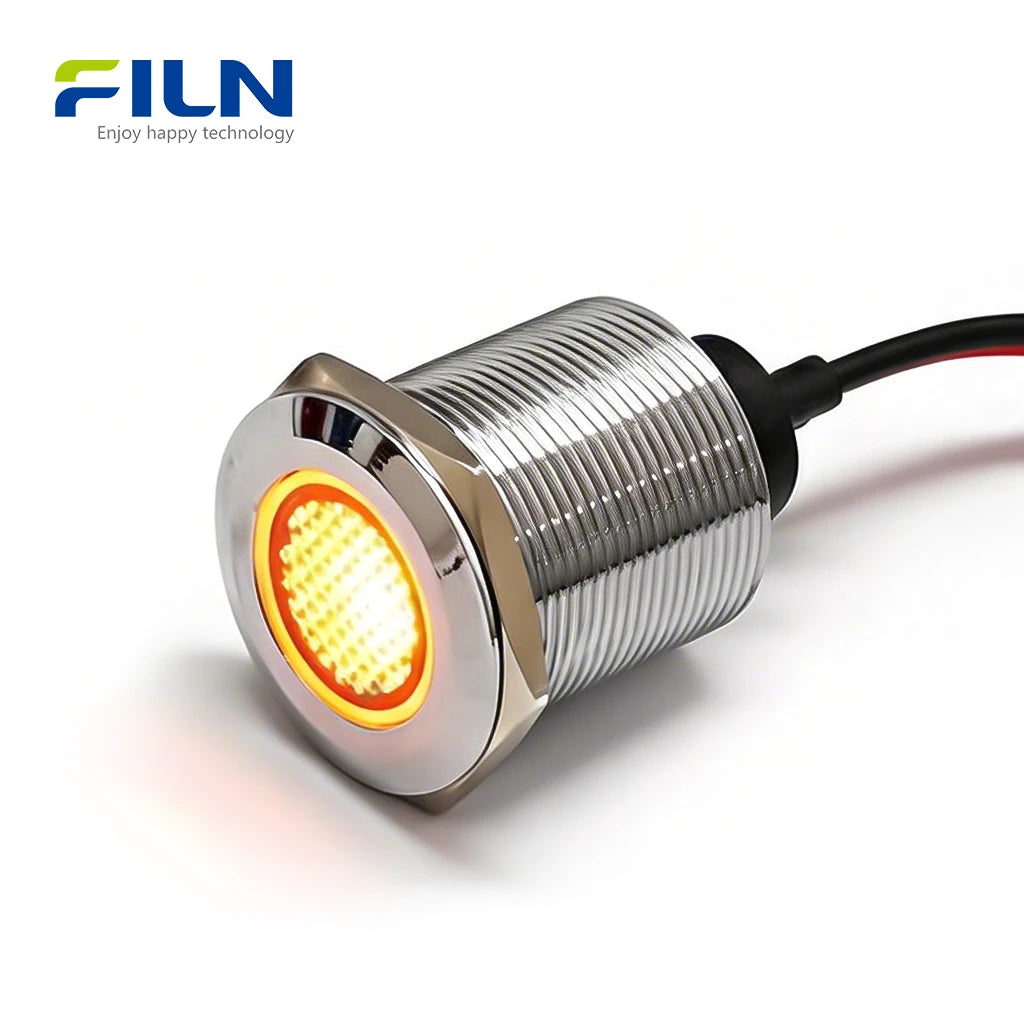

This premium indicator light 22mm 24v (Model: FL1M-22FW-1) is now available for sale directly from the FILN factory. Designed for heavy-duty industrial applications, this 22mm metal signal lamp features a sleek flat head design and 15cm pre-wired leads for instant installation. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, it ensures global compliance and safety. The flat head profile offers a modern aesthetic while preventing accidental damage in high-traffic control panels. Ideal for CNC machines, automation equipment, and power distribution cabinets, this indicator light provides reliable visual feedback with high-brightness LED technology. Order online today for professional-grade factory direct signal solutions.
Quick Specifications
| Mounting Hole | 22mm / 0.866 inch |
| Voltage | 12V, 24V, 110V, 220V (Customizable) |

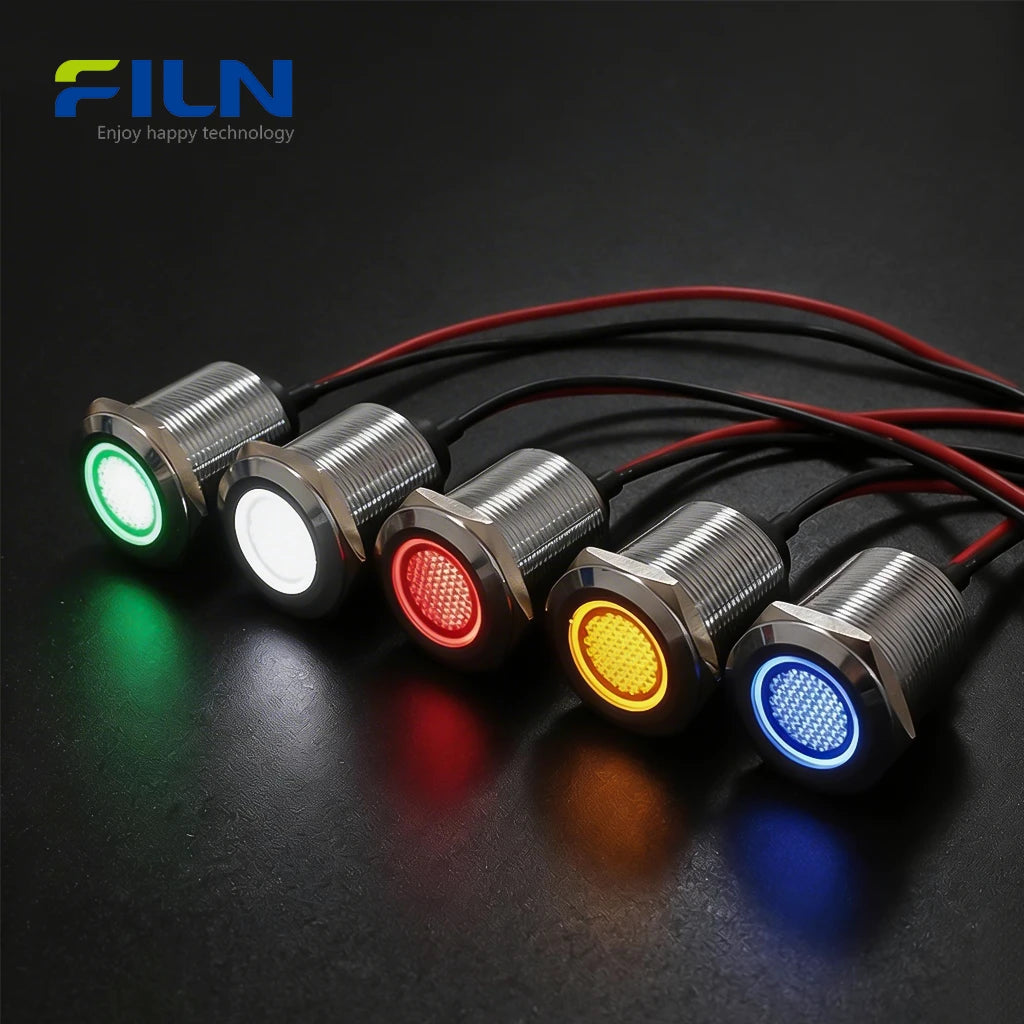

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |

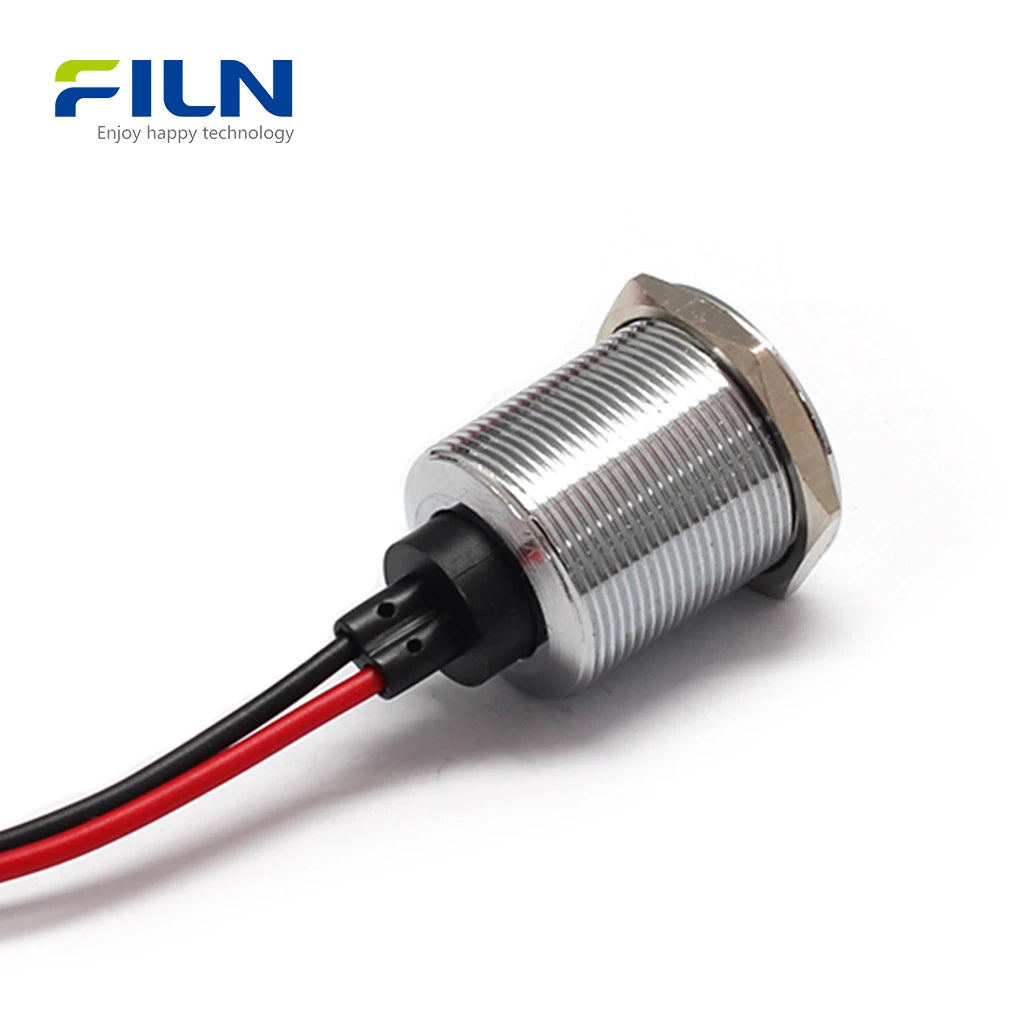

| Wiring Type | Wire Lead (15cm Standard) |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel or Chrome plated |
| Lamp Holder | PA66 Nylon | High temperature resistance |
| Lampshade | PC Polycarbonate | High light transmittance |
| Light Source | LED | Long life, low energy |
| O-ring | Silica Gel | IP67 Waterproof seal |
| Nut | Copper Alloy | For panel fixing |
Rated Working Parameters
| Rated Voltage | Customized (3V - 380V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Nickel Plating / Black Anodized |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone Rubber |
| Terminal | Pre-wired AWG Gauge |
| Wire Material | PVC / Teflon (Customizable) |
General Characteristics
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ (Non-condensing) |
| Ambient Temperature | 5~35℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Continuous Working Life | Test Condition: 30mA 1000h | Result: 50,000 hours |
Resistant Performance
| High Temperature | 80℃ for 96h (No deformation) |
| Low Temperature | -40℃ for 96h (Function remains normal) |
| Moisture Resistance | 40℃, 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 rounds) |
Key Features
- LED High Brightness: Uses advanced LED chips for clear visibility even in high-ambient light environments.
- Long Lifespan: Rated for over 50,000 hours of continuous operation, reducing maintenance costs.
- IP67 Waterproof: Full protection against dust and water immersion, perfect for outdoor or washdown areas.
- Easy Installation: Pre-wired with 15cm cables to save assembly time and reduce wiring errors.

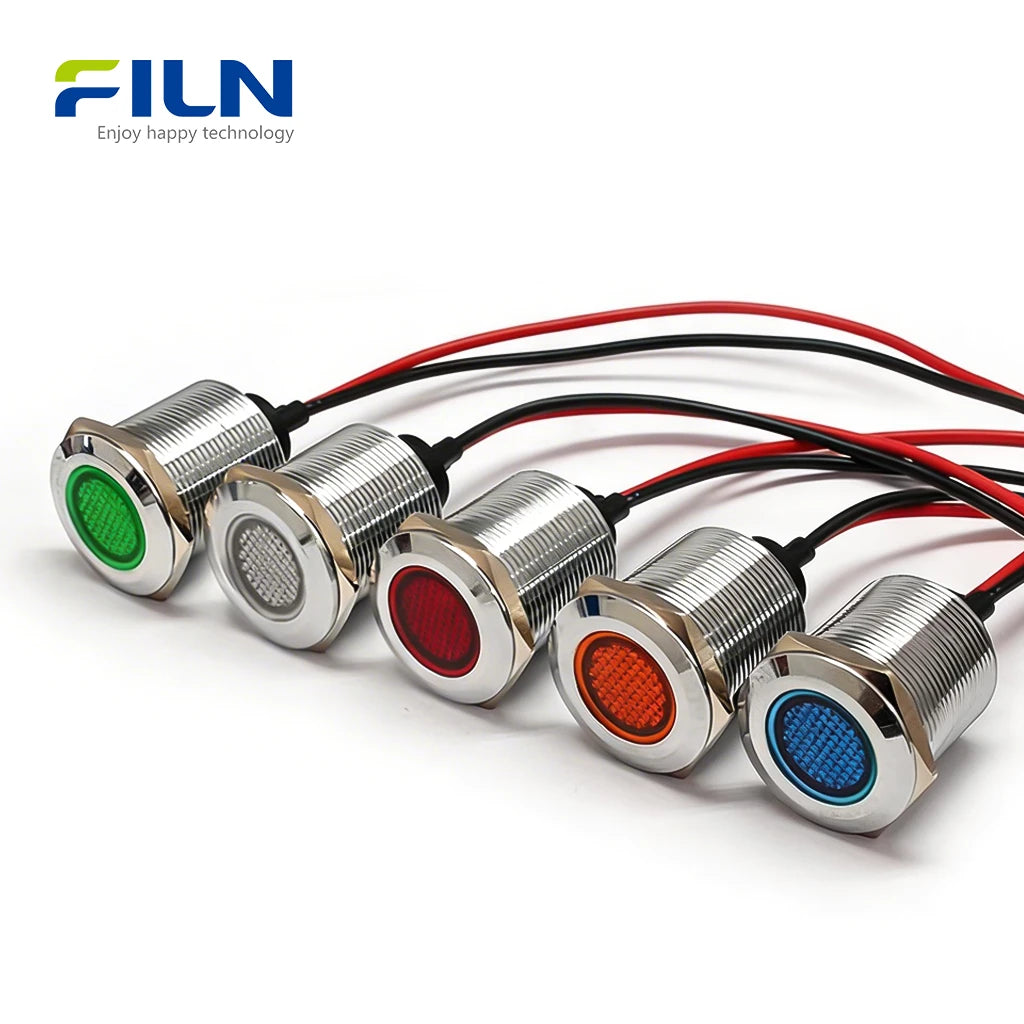

- Industrial Grade Reliability: Metal shell construction (Available in Silver or Black) provides superior impact resistance.
Industrial Applications
- Industrial control panels and distribution boards
- CNC machines and heavy-duty manufacturing equipment
- Automated assembly lines and robotics
- Marine electronic systems and dashboards
- Medical devices requiring precise signal feedback
- Commercial kitchen and food processing machinery
Installation Guide
- Drill a 22mm (7/8") diameter hole in the mounting panel.

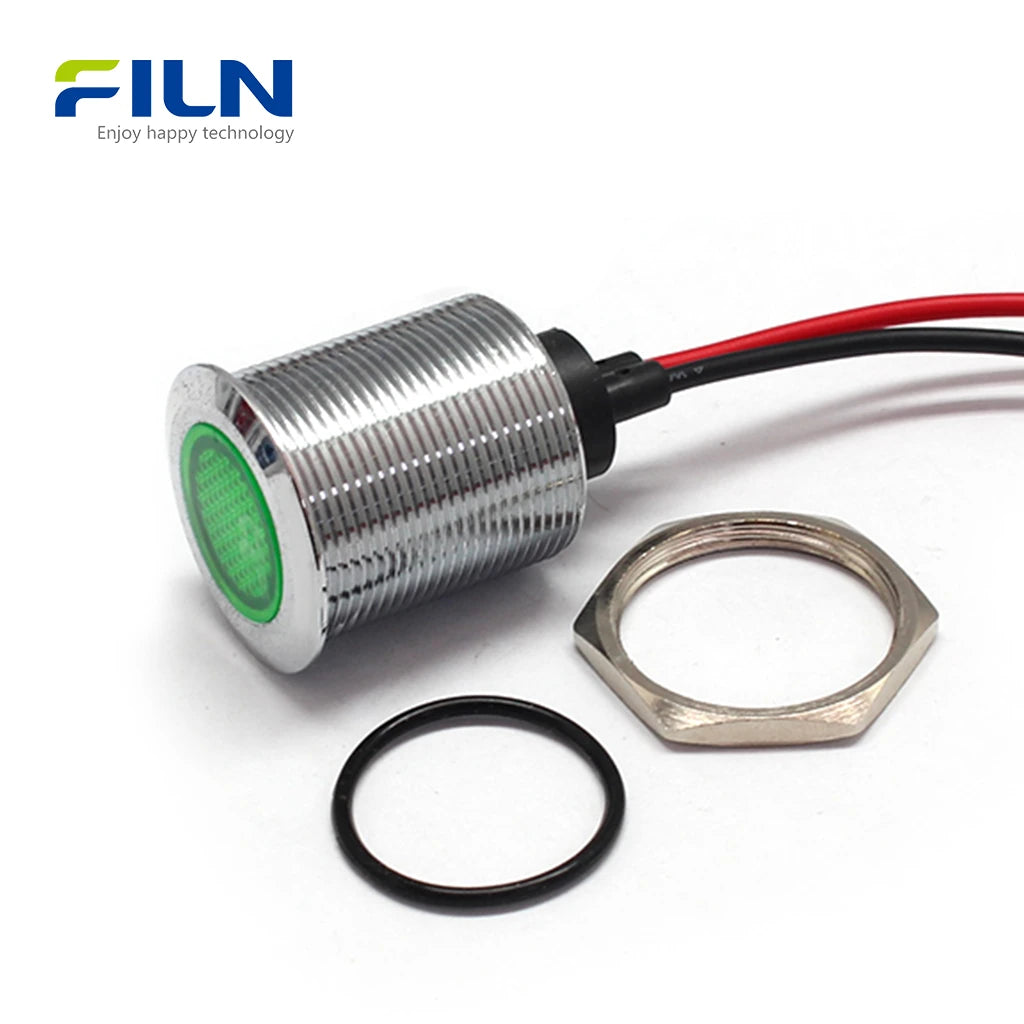

- Insert the indicator light through the hole from the front of the panel. Ensure the O-ring waterproof gasket is seated between the head and the panel surface for a tight seal.
- From the back of the panel, slide the M22 brass nut onto the threaded body.
- Tighten the nut firmly to secure the indicator light. The smooth threads ensure easy fastening.
- Connect the 15cm lead wires to your 24V power source (Red for positive, Black for negative).
What Is an Indicator Light 22mm 24v?
An indicator light 22mm 24v is a critical industrial signaling component used to communicate the status of electrical circuits or machinery. In industrial environments, the 22mm size is a global standard for panel-mount components, ensuring compatibility across different brands and regions. The "Flat Head" design is particularly valued for its low profile, which prevents accidental activation or breakage from falling objects or passing workers. Unlike pin-type terminals, the pre-wired lead design (direct wire out) offers superior vibration resistance and simplifies the wiring process in tight spaces. The inclusion of a silicone O-ring and a precision-machined M22 nut ensures that the installation remains airtight and vibration-proof, maintaining the integrity of the electrical cabinet.
FILN Factory Direct Supply
As a leading manufacturer, FILN provides comprehensive customization services for all indicator light orders:
- Voltage Customization: 3V, 6V, 12V, 24V, 110V, 220V, 380V.
- Wire Length: Standard 15cm or custom lengths to suit your application.
- Connector Options: Terminal connectors can be added upon request.
- Fast Global Shipping: Efficient logistics for B2B procurement.
Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. Can I use this 22mm indicator light for outdoor machinery?
Yes, with an IP67 rating, it is fully waterproof and dustproof.

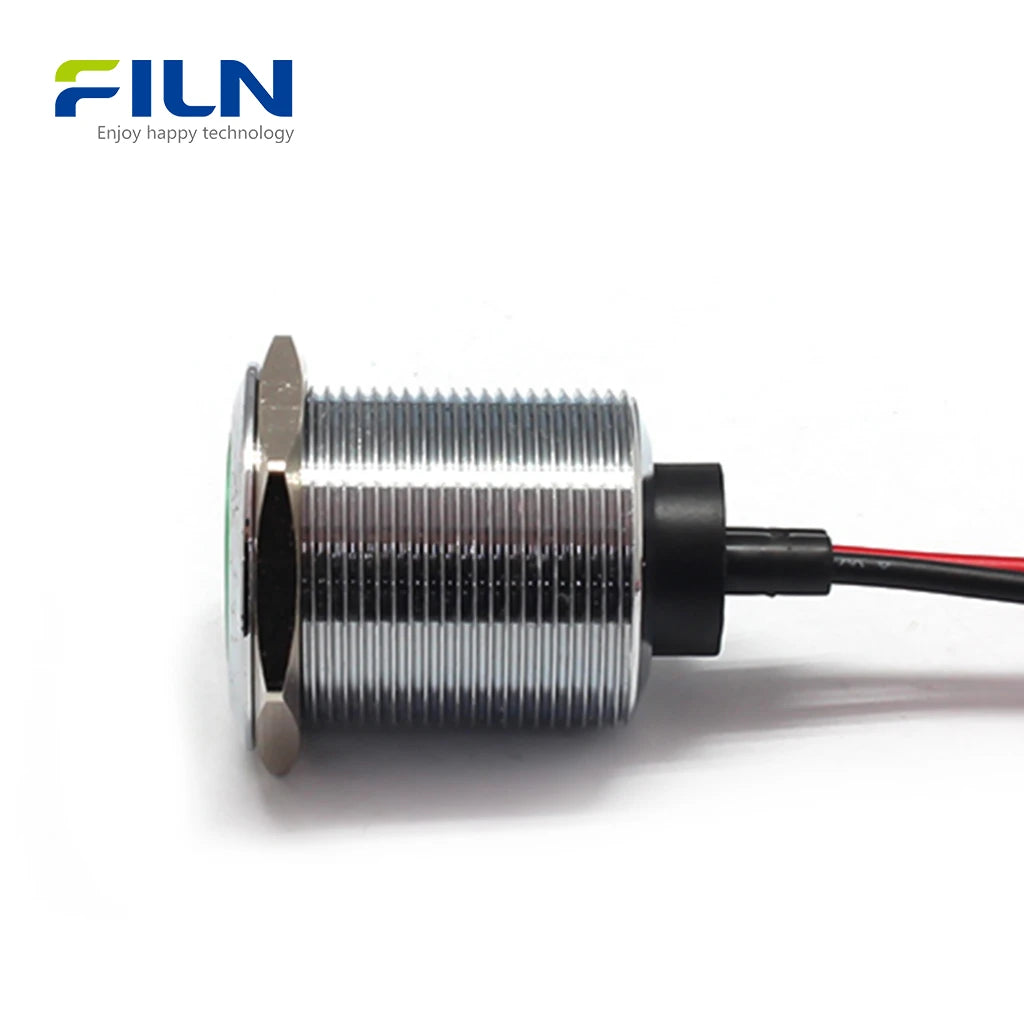

2. What is the advantage of the flat head design?
The flat head is flush with the panel, making it more durable and aesthetically modern.
3. Does FILN support custom wire lengths for the 24v signal lamp?
Absolutely, we can customize the lead length beyond the standard 15cm.
4. Are these lights compatible with AC and DC?
We offer both AC and DC versions. Please specify your requirement when ordering.
5. What shell colors are available?

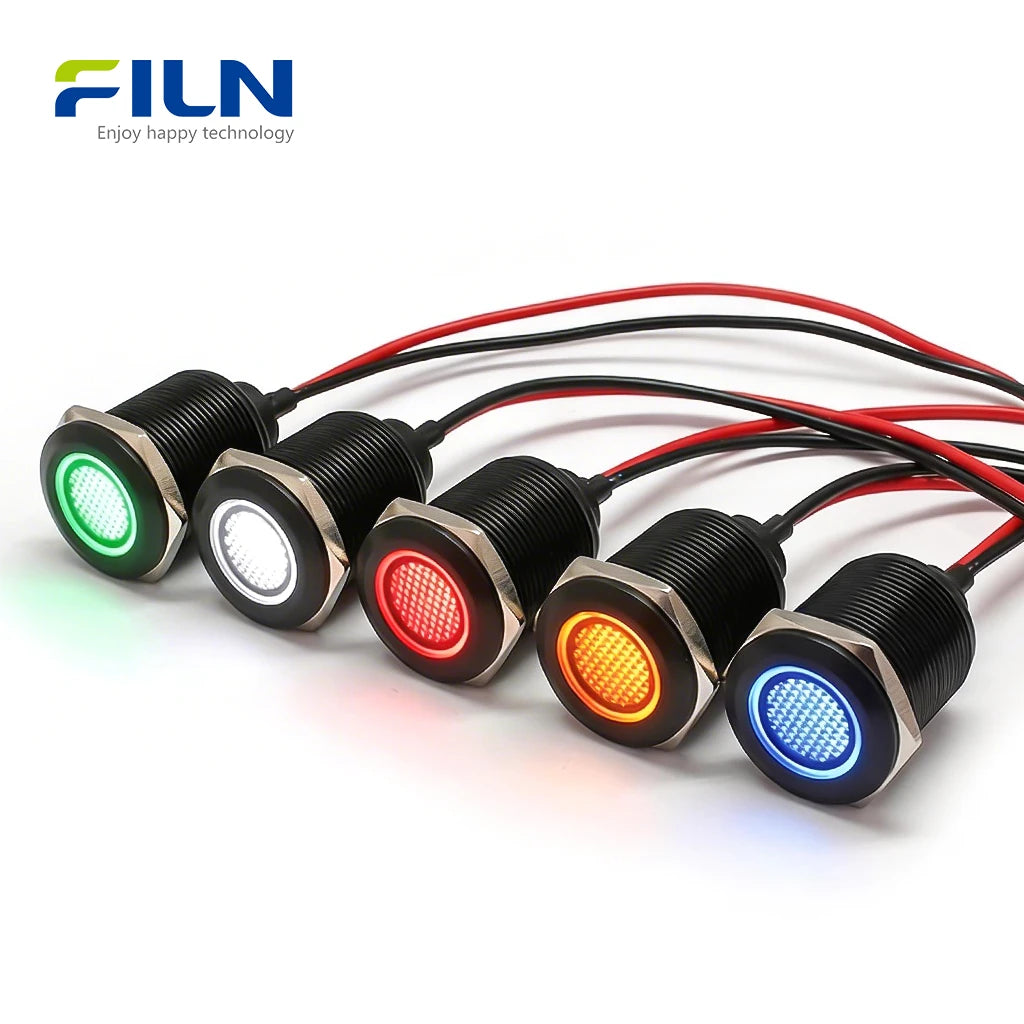

We offer Silver (Nickel-plated brass) and Black (Anodized) housings.
6. Is there a bulk discount for factory orders?
Yes, FILN offers tiered pricing for wholesale industrial procurement.
7. What certifications does the 22mm indicator light have?
It holds UL, CE, VDE, RoHS, and ISO9001 certifications.
8. What is the role of the O-ring?
The silicone O-ring provides an airtight seal to prevent water from entering the panel.
9. How do I install the indicator light?
Simply drill a 22mm hole, insert the light, and tighten the M22 nut from behind.
10. Can I get a sample before a large order?
Yes, contact our sales team at inquiry@cnylin.com.cn for samples.
