Product Overview

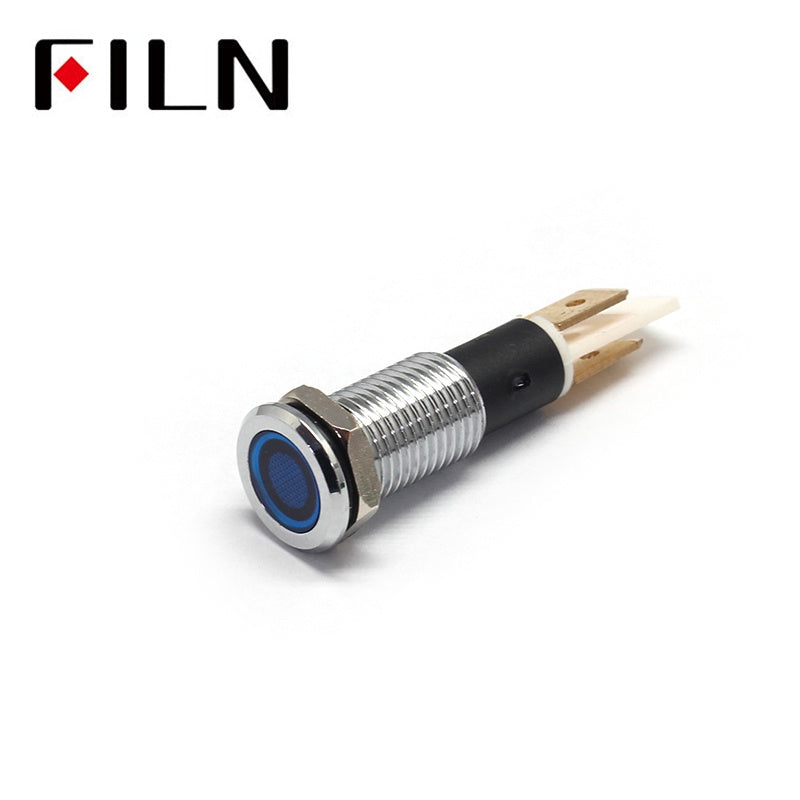

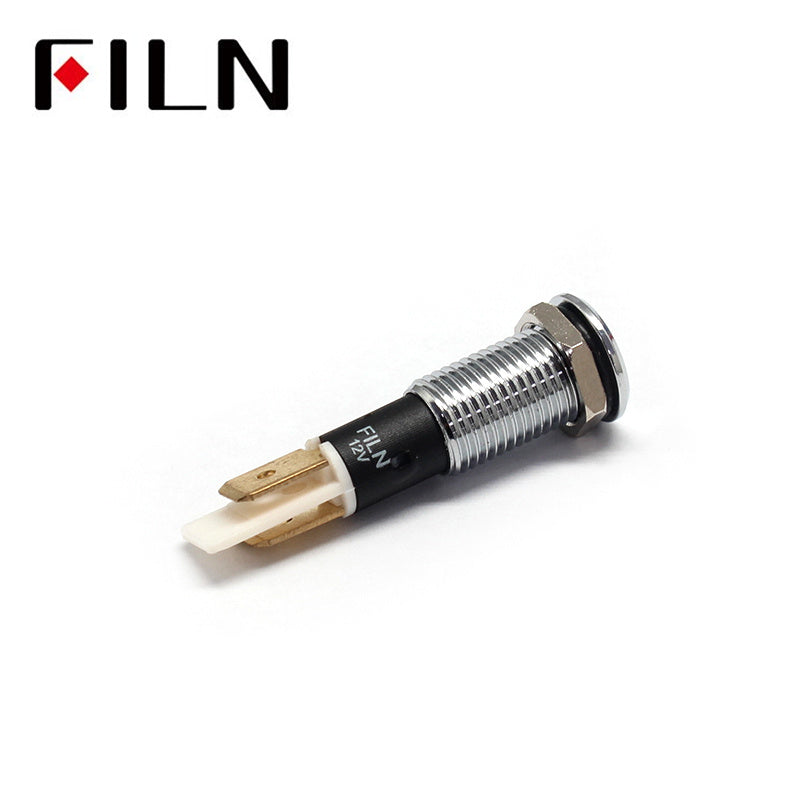

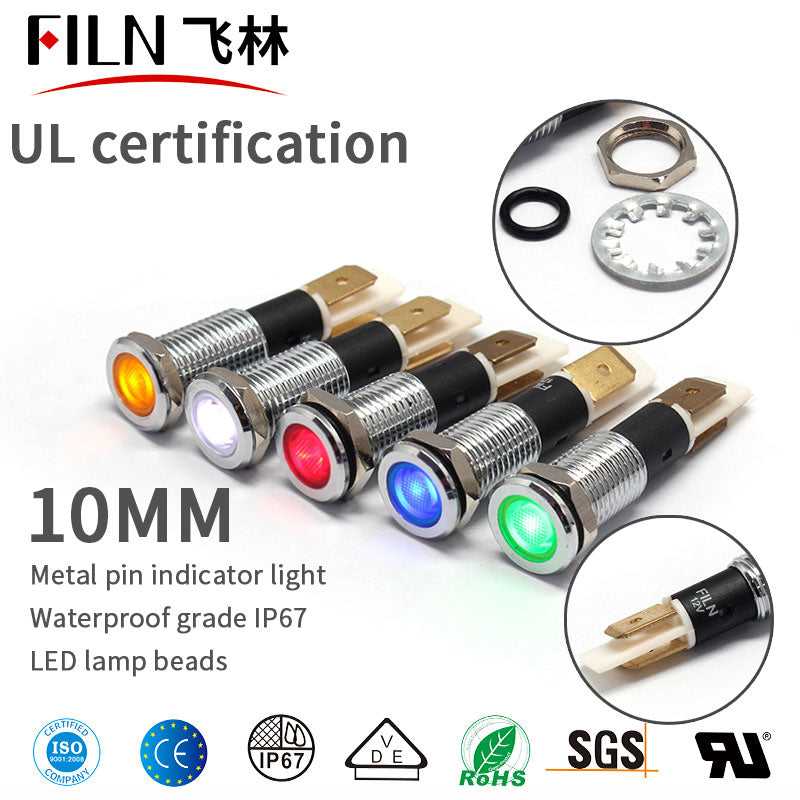

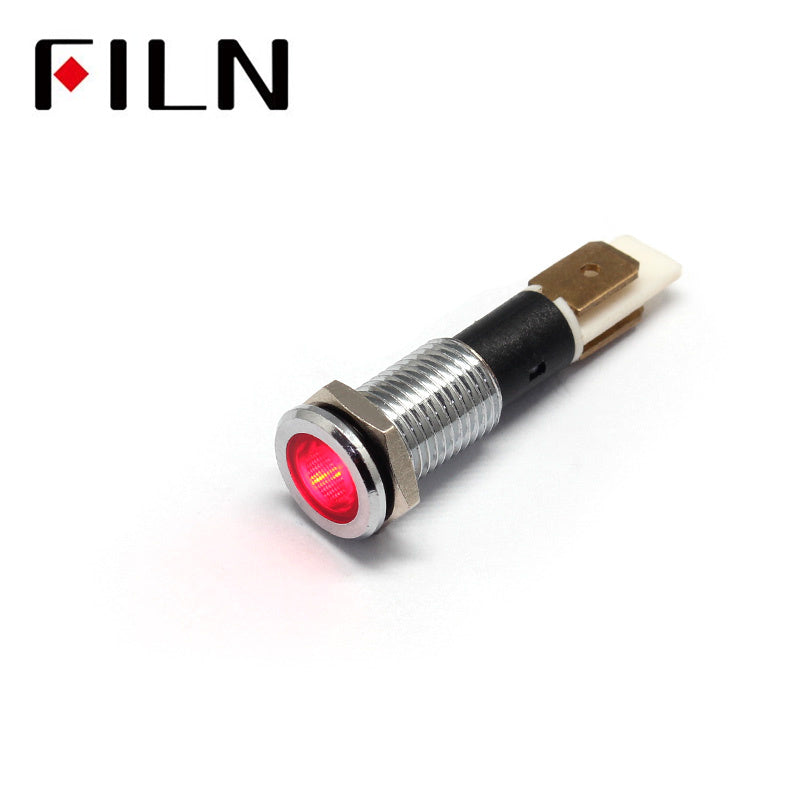

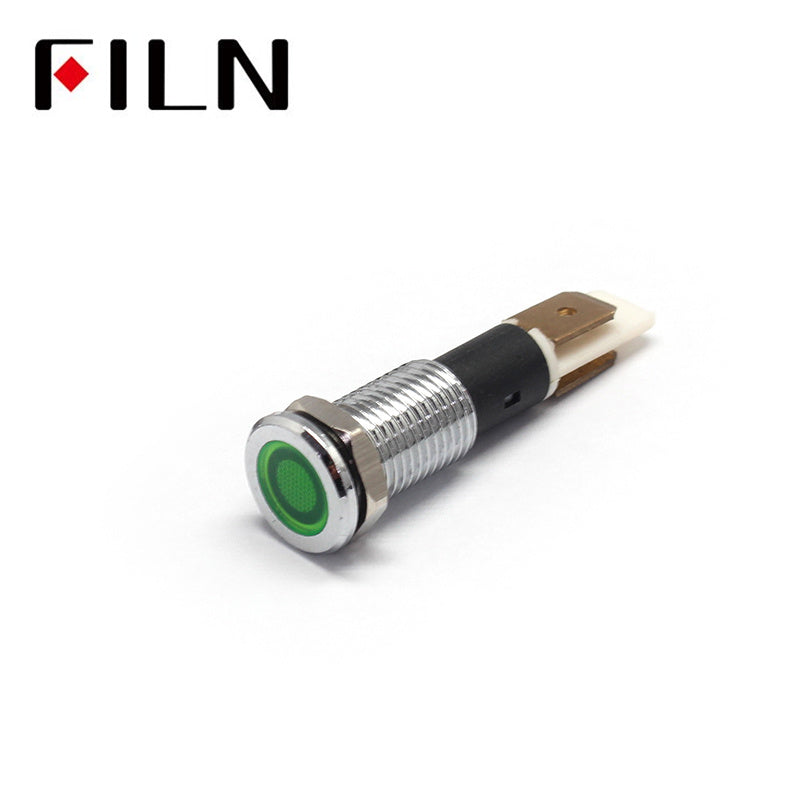

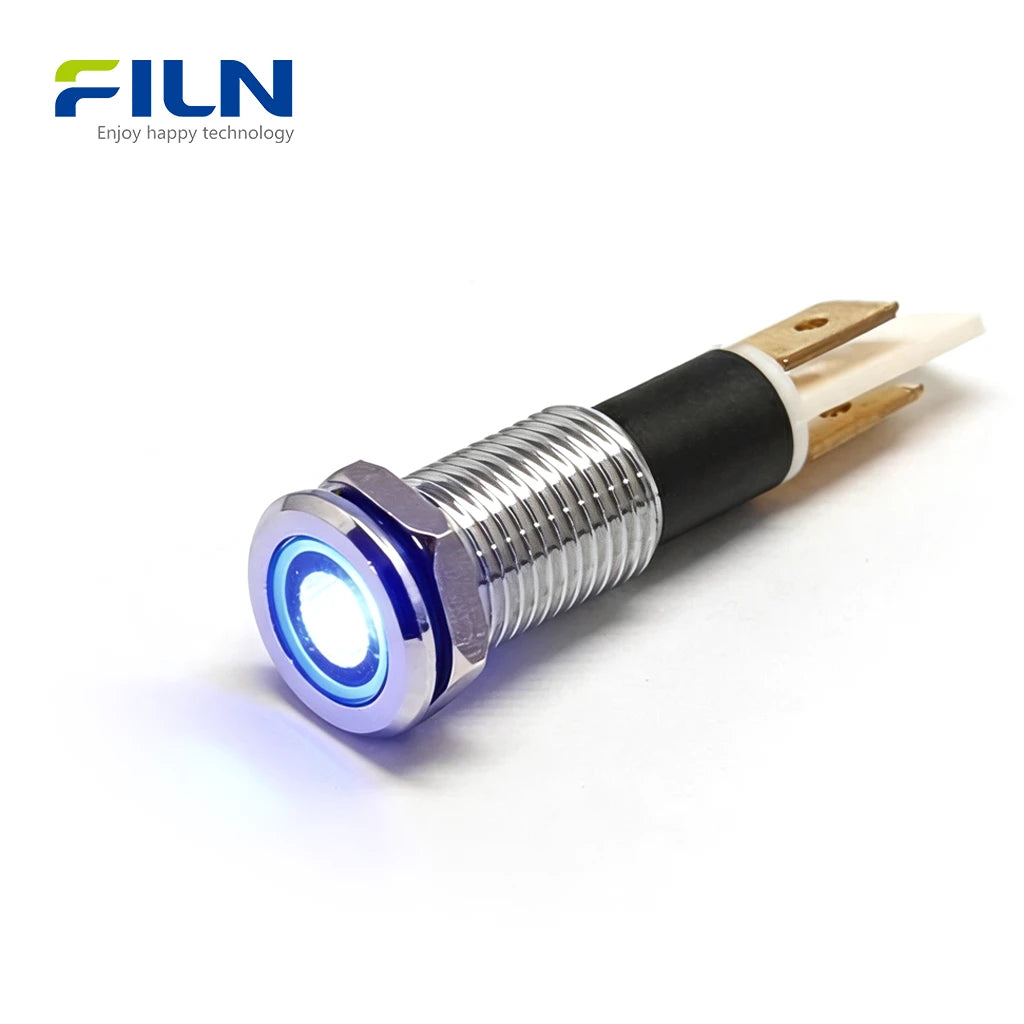

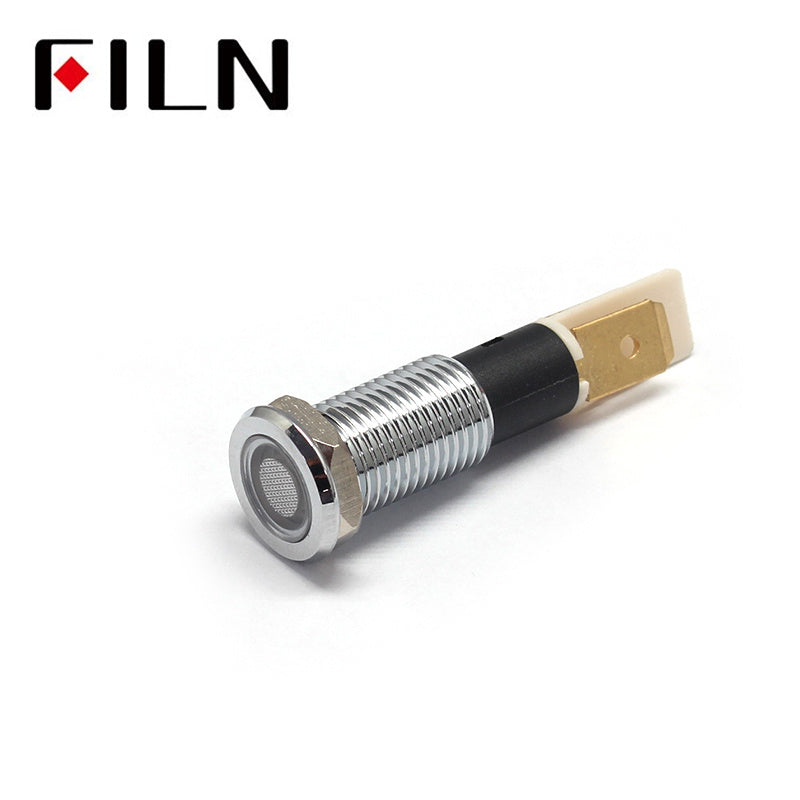

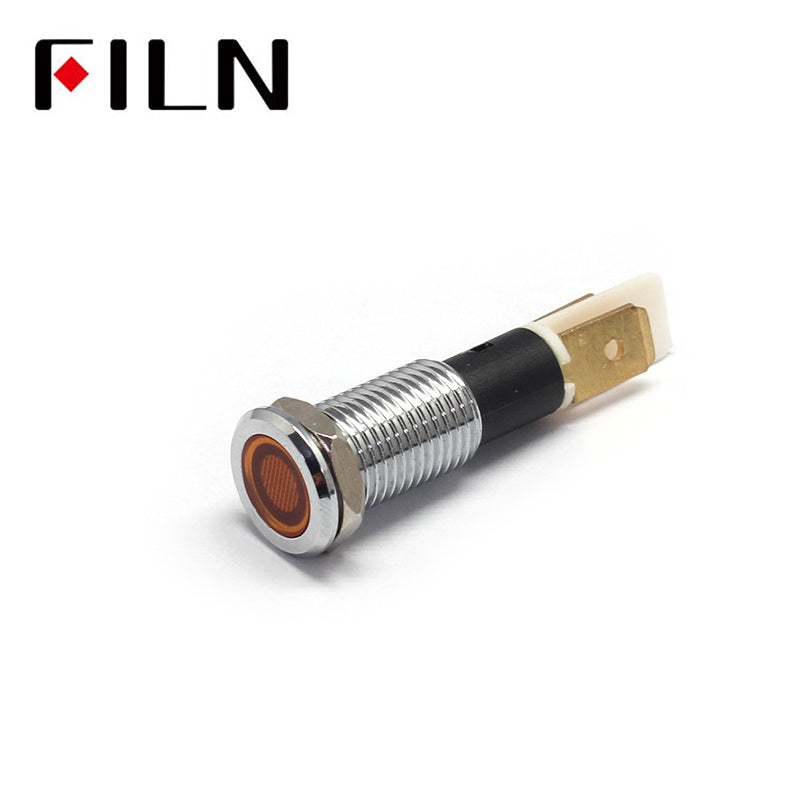

The FILN 10mm lamp indicator light (Model: FL1M-10FJ-1) is an industrial-grade signaling solution featuring a durable metal flat-head design. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67, this lamp indicator light ensures peak performance in harsh environments. Designed for automation, CNC machinery, electrical cabinets, and marine systems, it supports universal voltages from 12V-24V to 110V-220V. The flat-head aesthetic prevents mechanical damage while the pin-type terminals provide a more secure, vibration-resistant connection compared to standard wires.
Quick Specifications
| Mounting Hole | 10mm (0.39 inch) |
|---|---|
| Voltage | 12V-24V / 110V-220V (Customizable) |

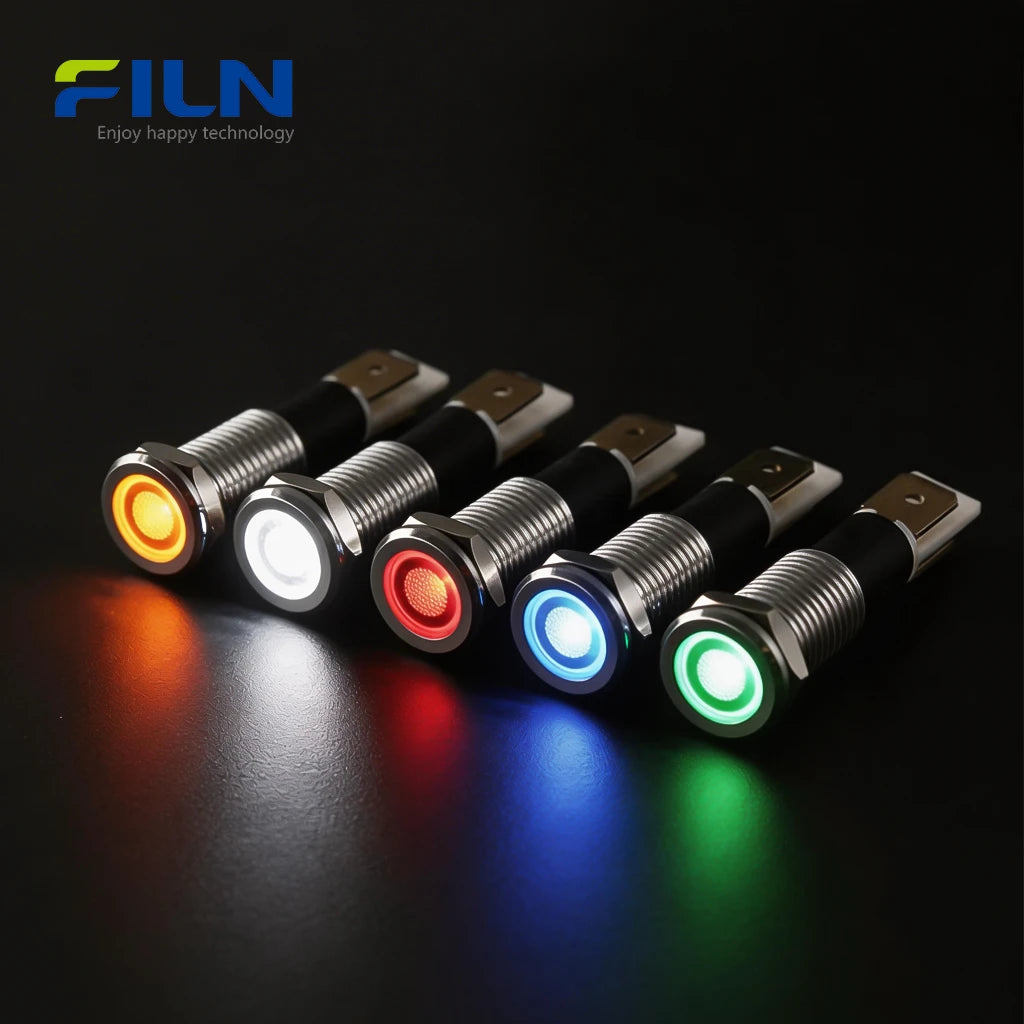

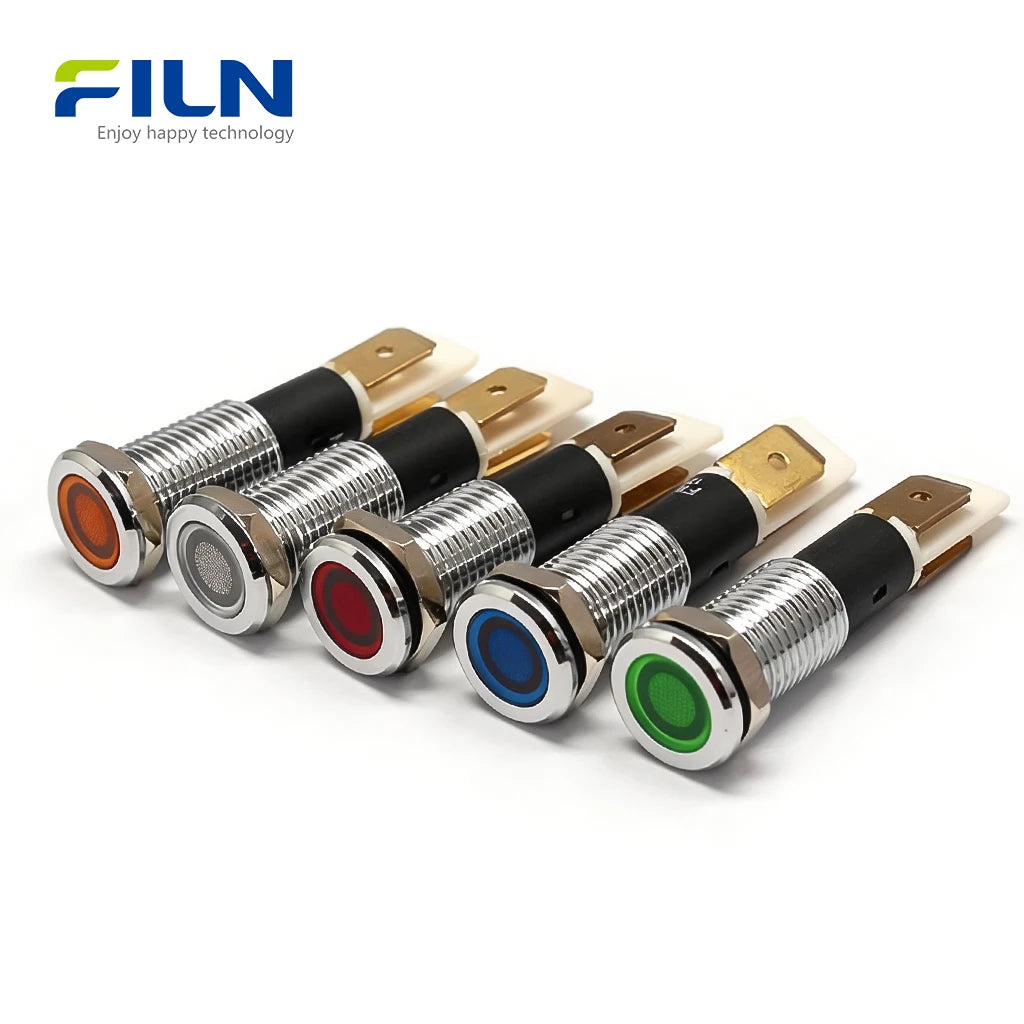

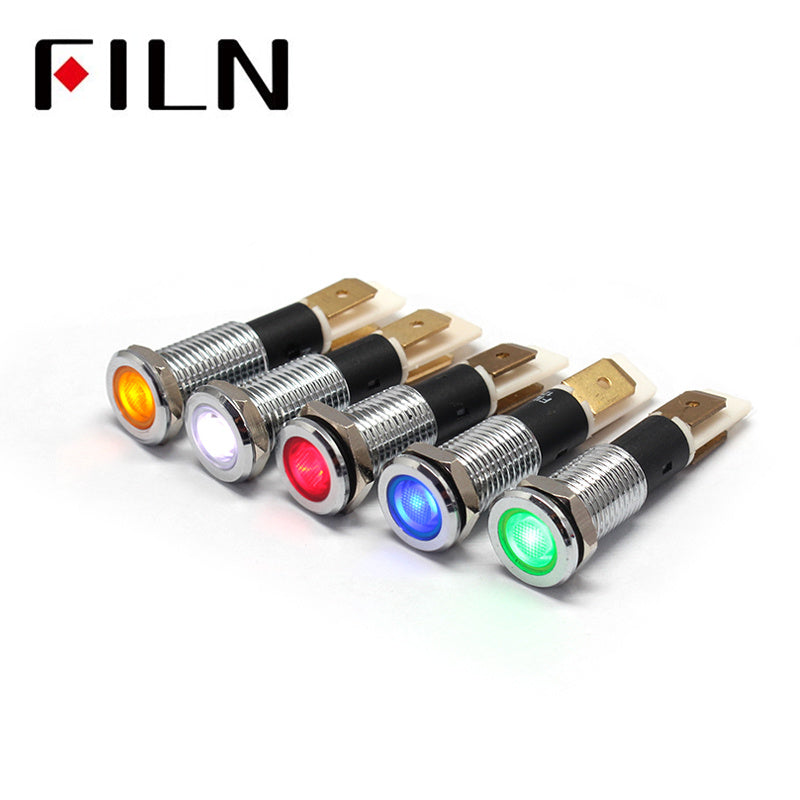

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |

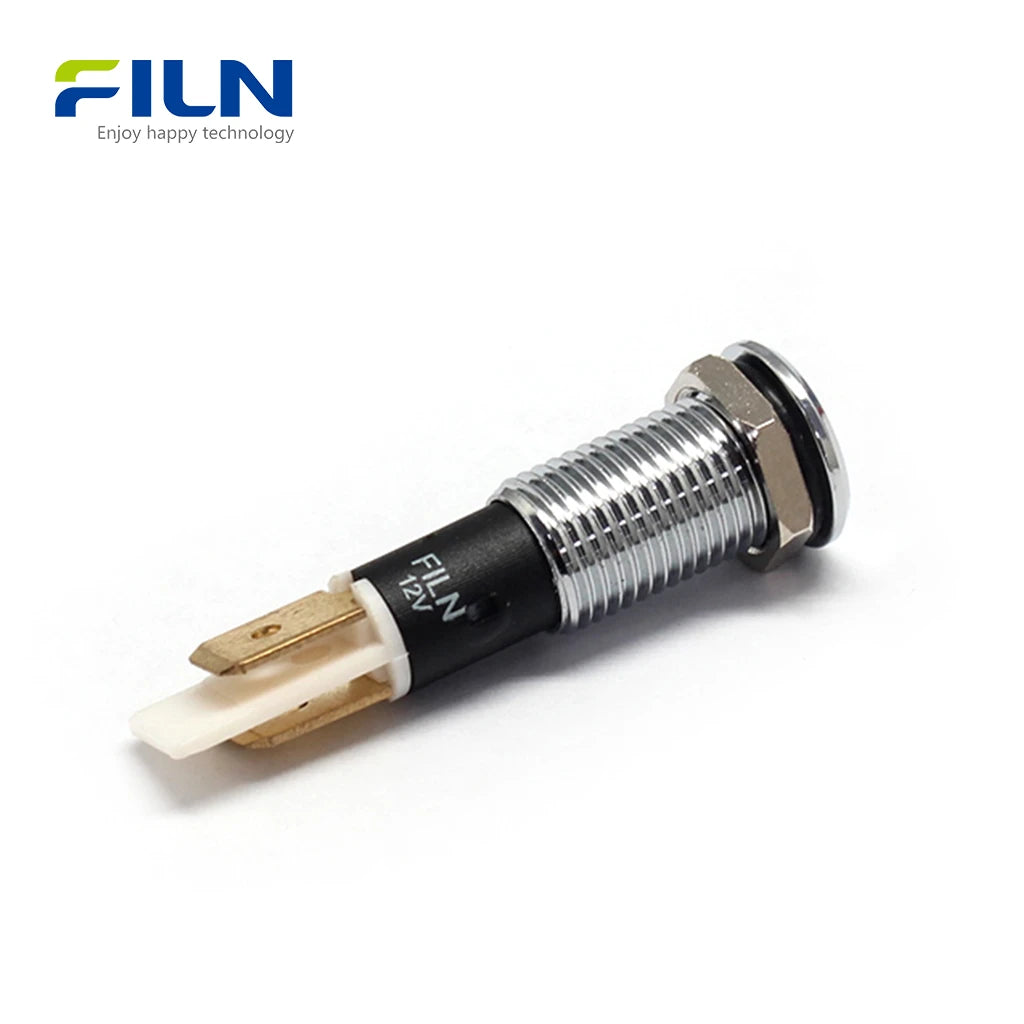

| Wiring Type | Pin Type (Plug-in) |
Rated Working Parameters
| Rated Voltage | Customized Support |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials

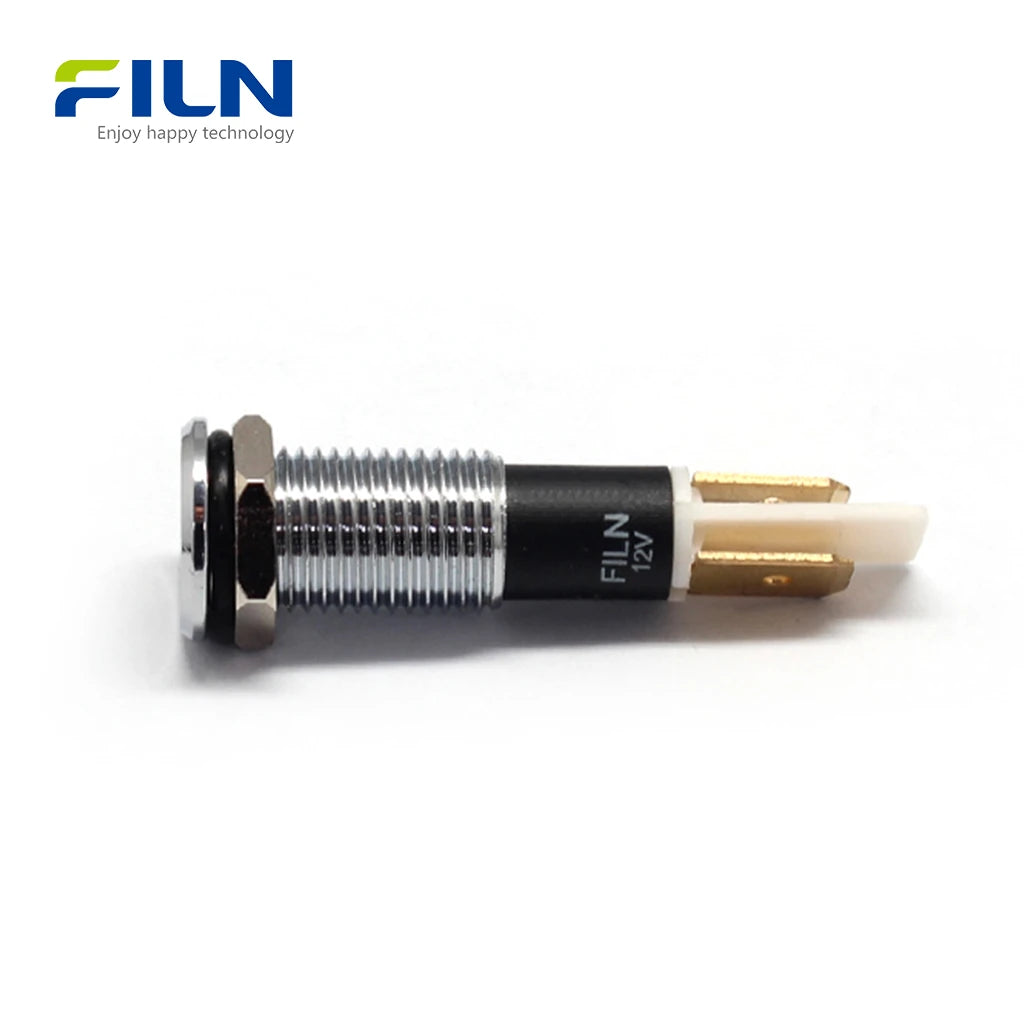

| Housing | Chrome Plated Brass / Black Anodized |
|---|---|
| Lens | PC Polycarbonate |
| Seal Ring | Silicone Rubber |
| Terminal | Silver Plated Copper Pin |
General Characteristics
| Part Name | Lamp Indicator Light |
|---|---|
| Operating Temp | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V 1min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 60s | No Breakdown |
Durability Characteristics
| Continuous Life | 50,000 Hours (Tested at 30mA) |
|---|
Resistant Performance
| High Temperature | 80℃ for 96h |
|---|---|
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 95%RH 96h |
Key Features
- LED High Brightness: Superior visibility in both dark and brightly lit environments.
- Long Lifespan: Exceeds 50,000 hours of maintenance-free operation.
- IP67 Waterproof: Perfect for marine, medical, and outdoor heavy equipment.
- Easy Installation: Features smooth M10 threads and quick-connect pin terminals.

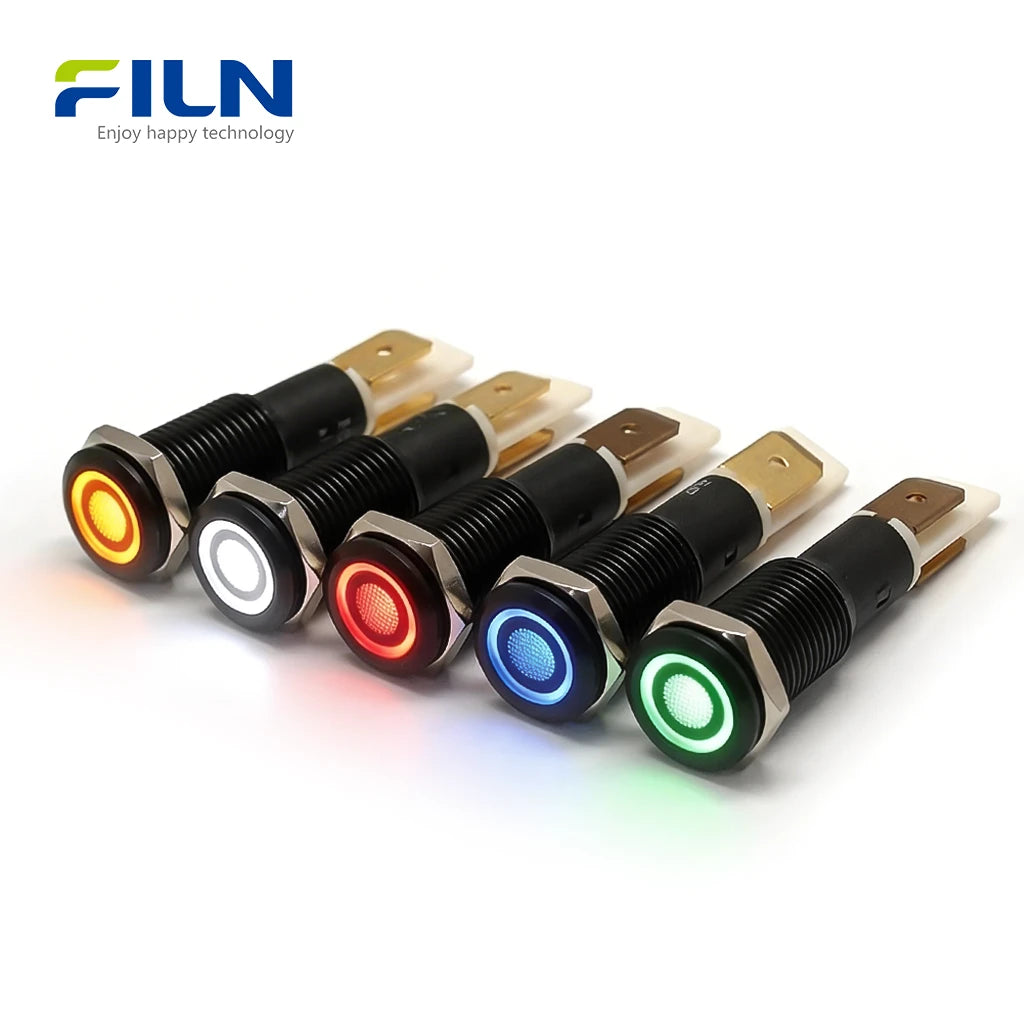

- Industrial Aesthetics: Sleek flat-head design available in silver or black.
Applications
- Industrial Control Panels & CNC Machines [cite: 3]
- Automation Equipment & PLC Signal Indication
- Electrical Cabinets & Distribution Systems
- Marine Systems & Boat Dashboard Displays
- Medical Devices & Lab Instrumentation [cite: 3]
- Commercial Appliances (Coffee Machines, Ovens)
Installation Guide
- Drill a 10mm mounting hole on the panel.
- Insert the indicator light from the front.
- Slide the O-ring over the body to ensure a waterproof seal.
- Secure tightly using the M10 nut from the back.
- Connect your circuit to the silver-plated pin terminals.
What Is a Lamp Indicator Light?
A lamp indicator light is a visual signal device used to convey status information to operators. In the FL1M-10FJ-1 series, the flat-head design provides several advantages: it creates a flush mounting surface that is easy to wipe clean and prevents the light from being damaged by passing objects. While wire-lead indicators are common, pin-terminal indicators are preferred in modular designs because they allow for quick replacements and cleaner cable management behind high-density control panels.
FILN Factory Direct Advantage
- ✔️ Voltage & Wire Customization - Tailored to your specific needs.
- ✔️ Global Certifications - UL, CE, RoHS, VDE compliant.
- ✔️ Fast Global Shipping - Reliable delivery for B2B procurement.
Official Site: www.filn.com
Email: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the main benefit of the flat-head design?
A: It provides a flush, professional finish and is less prone to mechanical impact compared to raised heads.
Q2: Can I get this indicator in 110V for US markets?
A: Yes, we support 12V, 24V, 110V, and 220V customization.

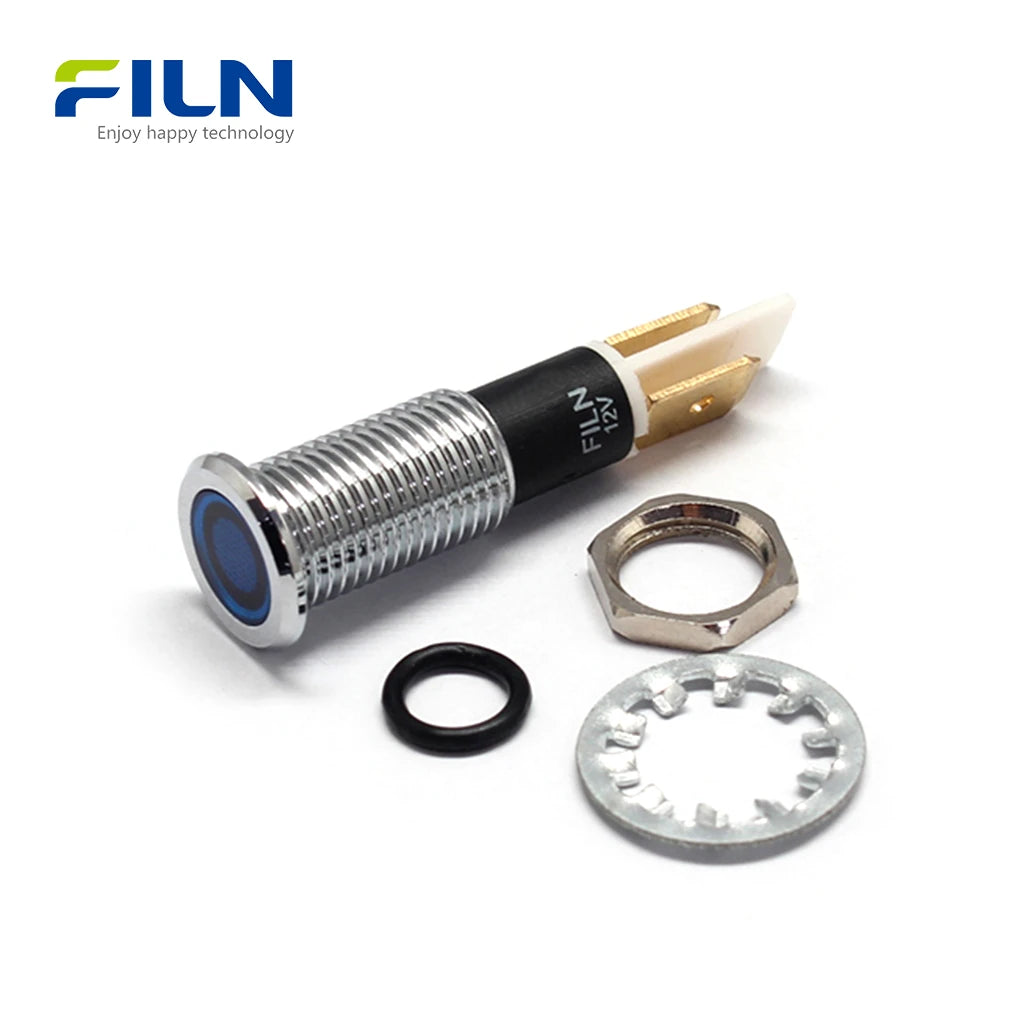

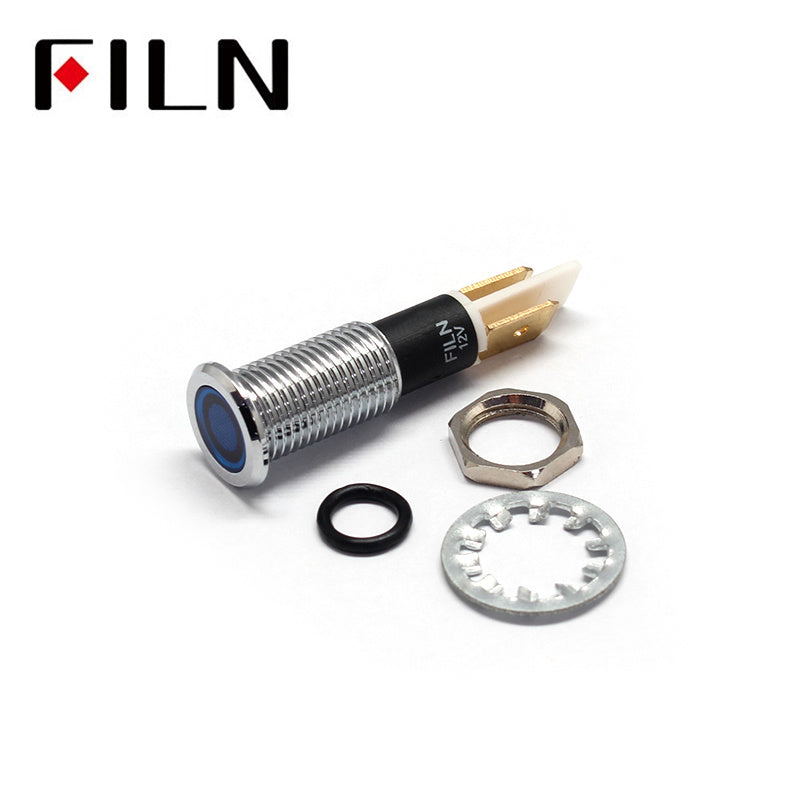

Q3: Is the M10 nut and O-ring included?
A: Yes, each unit includes a smooth M10 nut and a high-grade waterproof silicone ring.
Q4: What housing colors are available?
A: We provide silver chrome-plated brass and black anodized aluminum housing.
Q5: Are these suitable for CNC machines?
A: Absolutely. Their vibration resistance and IP67 rating make them perfect for CNC environments.
Q6: How do I connect the pin terminals?
A: You can use soldering or compatible female spade connectors for a secure fit.
Q7: Can I use this for outdoor marine panels?
A: Yes, the IP67 waterproof rating ensures protection against salt spray and moisture.
Q8: What is the lifespan of the LED?
A: Our high-quality LEDs are rated for over 50,000 hours.
Q9: Is it UL certified?
A: Yes, our products meet UL, CE, and VDE standards for industrial safety.
Q10: Do you offer bulk discounts for factories?
A: Yes, we are a direct factory (FILN) and offer competitive B2B pricing for large orders.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
