Product Overview

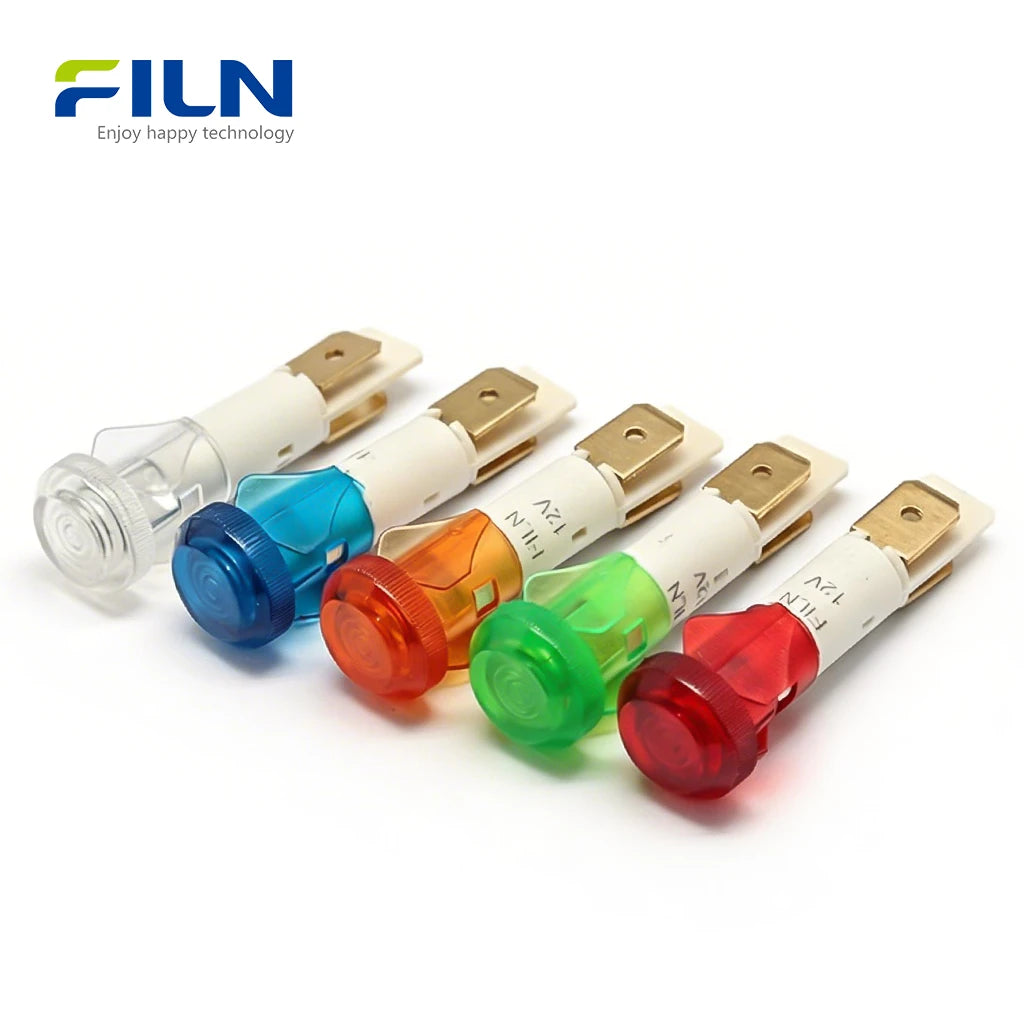

FILN high-performance 10mm led indicator lamps are now available for sale directly from our factory. These plastic indicator lamps (Model: FL1P-10QJ-2) are specifically designed for kitchen equipment and laboratory instruments. Featuring a 2-pin terminal design, they offer superior ease of installation compared to traditional metal versions. Our products carry international certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you need a 220v snap-in panel mount indicator or a 12v plastic led warning light, these lamps provide a cost-effective, long-lasting solution for modern industrial panels.
Quick Specifications
| Mounting Hole Size | 10mm (0.39 inch) |
|---|---|
| Rated Voltage | 12V, 24V, 110V, 220V (Support Customization) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Thread mount: IP65 / Snap-in: Non-waterproof |
| Wiring Type | 2.8mm Pin Terminal (2-Pin) |
| Mounting Method | Snap-in Mounting |
| Certifications | UL, CE, VDE, RoHS, ISO9001 |
Rated Working Parameters
| Rated Voltage | Customized (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Shell (Housing) | Flame Retardant PA66 |
|---|---|
| Lampshade (Lens) | High-transparency PC |
| Light Source | High-brightness LED |
| 2.8mm Terminal | H59 Brass |
| Resistance | Carbon Film Resistance |
General Characteristics
| Working Life | 60,000 Hours |
|---|---|
| Operating Temperature | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Insulation Resistance | 1800V/5s |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability & Weather Performance
| High Temperature Resistance | 80℃ for 96h |
|---|---|
| Low Temperature Resistance | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
Key Features

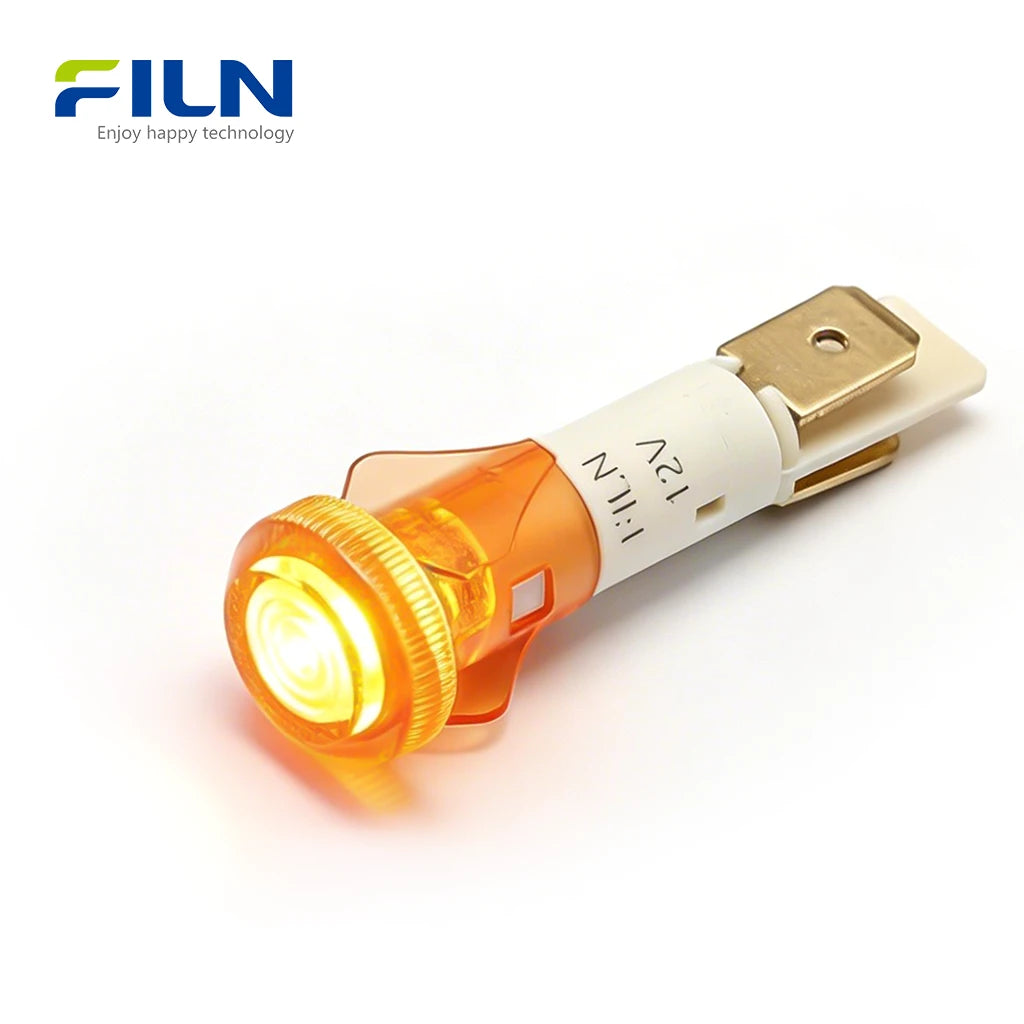

- LED High Brightness: Exceptional visibility in bright kitchen or lab environments.
- Long Lifespan: Rated for up to 60,000 hours of continuous use.

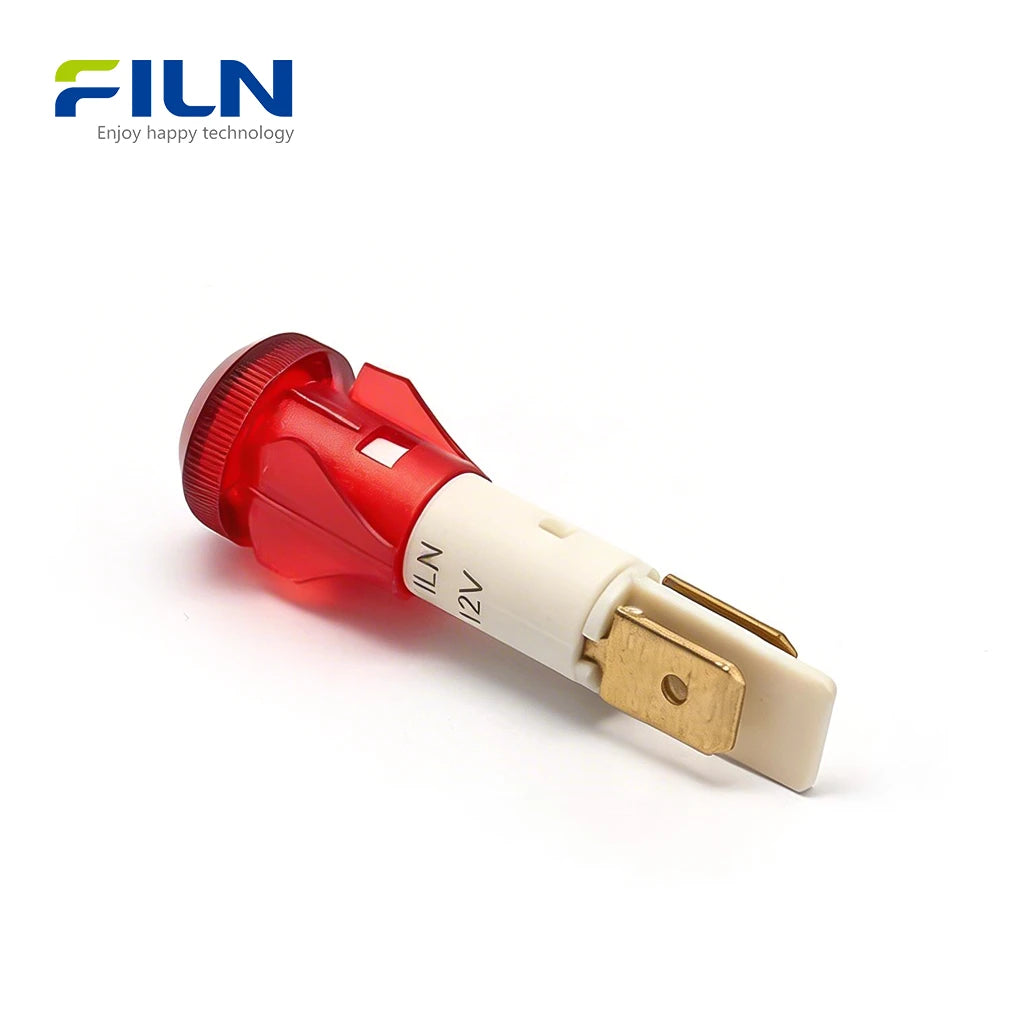

- Industrial Grade Reliability: Built with flame-retardant PA66 material.

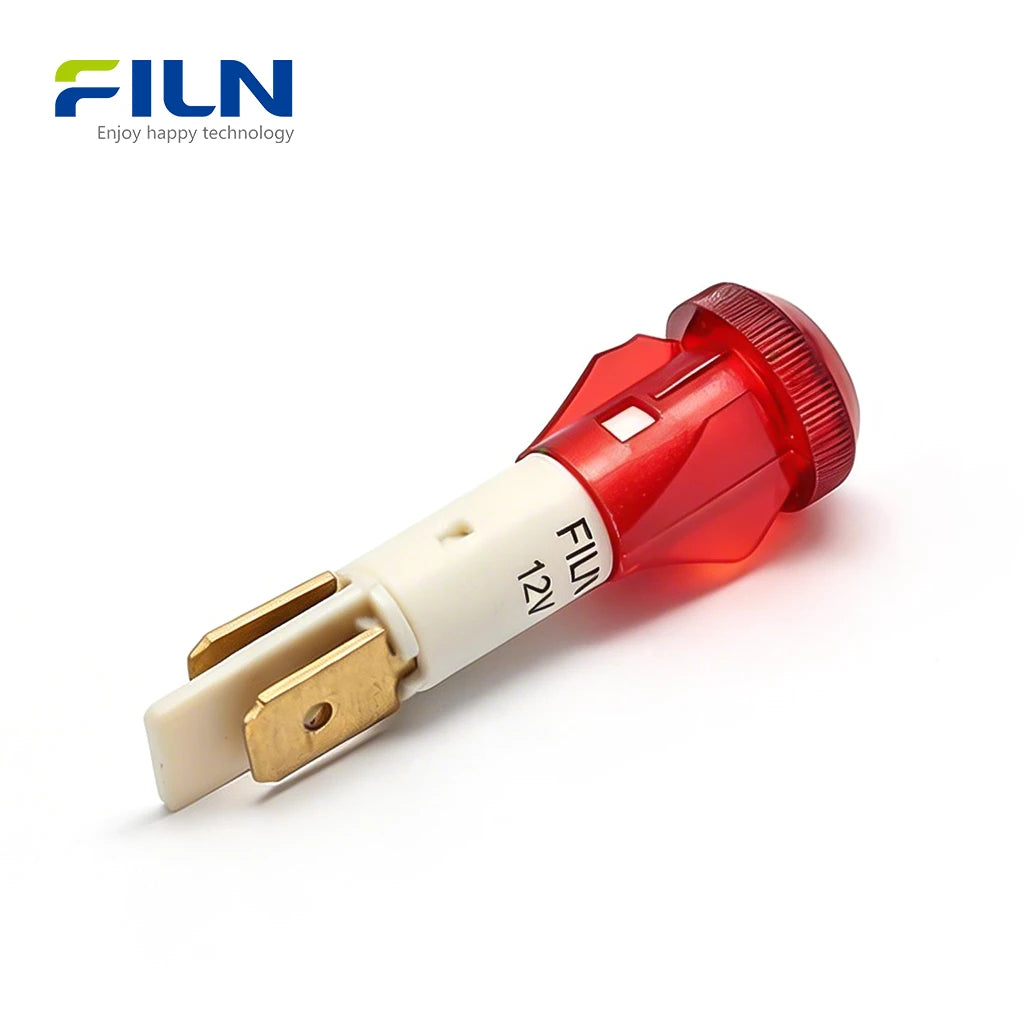

- Snap-in Mounting: No tools required for rapid assembly.
- Fast Connection: 2.8mm pin terminals allow for quick wiring with standard female terminals.
Common Applications
Our laboratory instrument plastic indicator light is highly versatile and widely used in:
- Commercial Kitchen Equipment (Ovens, Dishwashers, Fryers)
- Precision Laboratory Instruments
- Industrial Control Panels
- Electrical Power Distribution Cabinets
- Coffee Machines and Beverage Dispensers
Installation Guide (Snap-in Type)
- Drill a 10mm hole in the mounting panel.

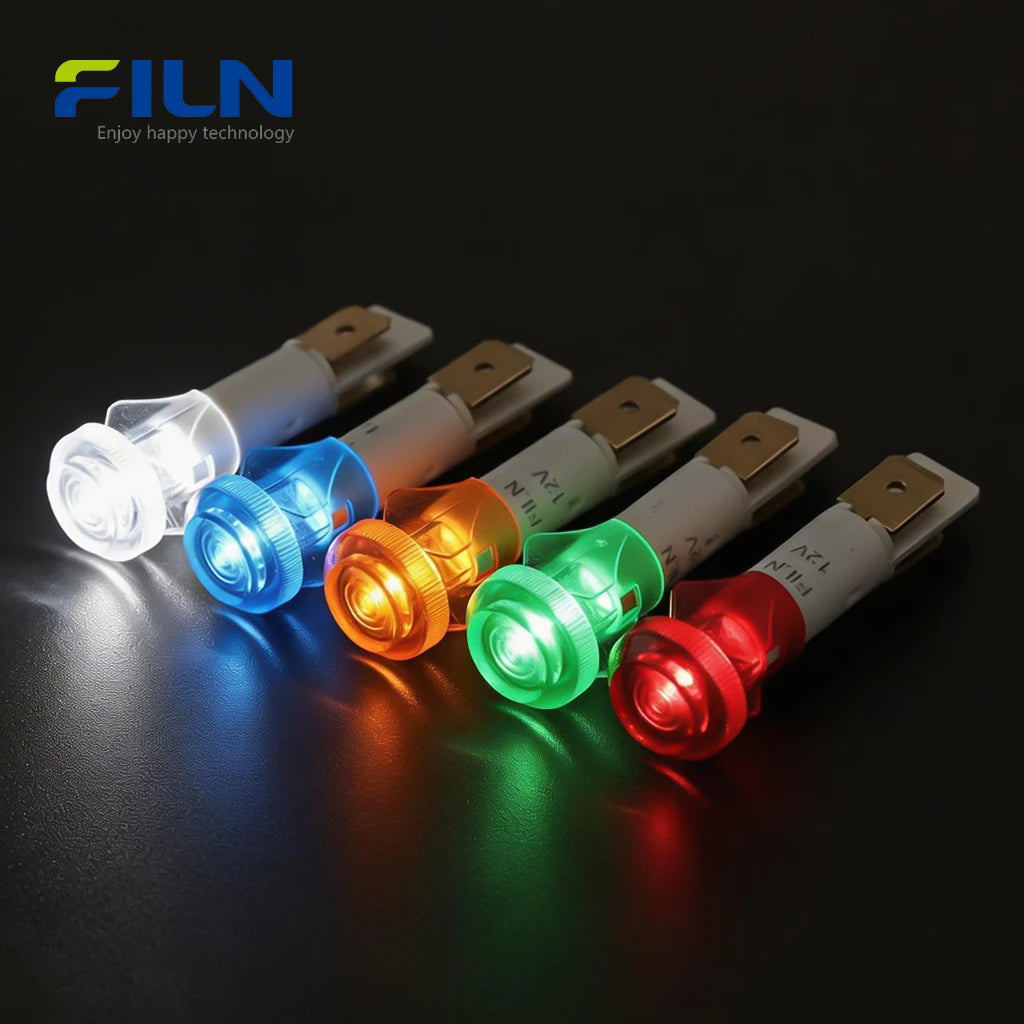

- Insert the plastic-2pin-signal-light-kitchen-equipment from the front of the panel.
- Push until the side clips lock securely into place against the panel back.
- Connect your power source using 2.8mm female spade connectors to the pins.
What Is a Plastic LED Indicator Lamp?
A plastic-2pin-signal-light is a critical visual feedback component for electrical circuits. Unlike metal indicator lights, plastic indicator lamps are lighter, resistant to corrosion from chemical cleaners (essential for kitchen equipment), and provide excellent insulation. The snap-in mounting plastic indicator lamps are preferred for mass production due to their tool-free installation. While metal lights offer high impact resistance, plastic versions offer better cost-efficiency and flexibility in shape and color.
Factory Direct Supply from FILN
As a leading custom voltage plastic pilot lamp manufacturer, FILN provides professional OEM/ODM services. We offer:
- Factory Direct Pricing (Buy Online)
- Custom Voltage (3V-380V) and Wire Lengths
- Variety of Connectors & Terminals
- Fast Global Shipping (DHL/FedEx/UPS)
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy these 10mm-led-indicator-lamps-for-sale directly?
Yes, FILN offers direct factory sales. You can place an order online via our store.
2. What is the difference between pin type and wire lead type?
The pin type (this model) uses 2.8mm terminals for spade connectors, while wire lead types come with pre-soldered PVC wires.
3. Why choose plastic over metal for kitchen equipment?
Plastic is non-corrosive and handles high-humidity kitchen environments better than some low-grade metals.
4. Is the snap-in mounting secure?
Yes, the dual-side clips are designed to grip panels from 0.8mm to 3mm thickness firmly.
5. Can you customize a 110v plastic pilot lamp?
Absolutely. We manufacture custom voltages from 3V up to 380V.
6. Are these suitable for laboratory instruments?
Yes, their compact 10mm size and high brightness make them ideal for scientific equipment.
7. Do you provide UL certification?
Yes, all our LED indicator lights are UL certified for North American safety standards.
8. What colors are available for the 220v snap-in indicator?
We stock Red, Green, Yellow, Blue, and White.
9. What is the lifespan of the LED?
Our LEDs are rated for 60,000 hours, significantly longer than traditional incandescent bulbs.
10. Can I get a sample before bulk ordering?
Yes, contact our sales team at inquiry@cnylin.com.cn for sample requests.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
