Product Overview

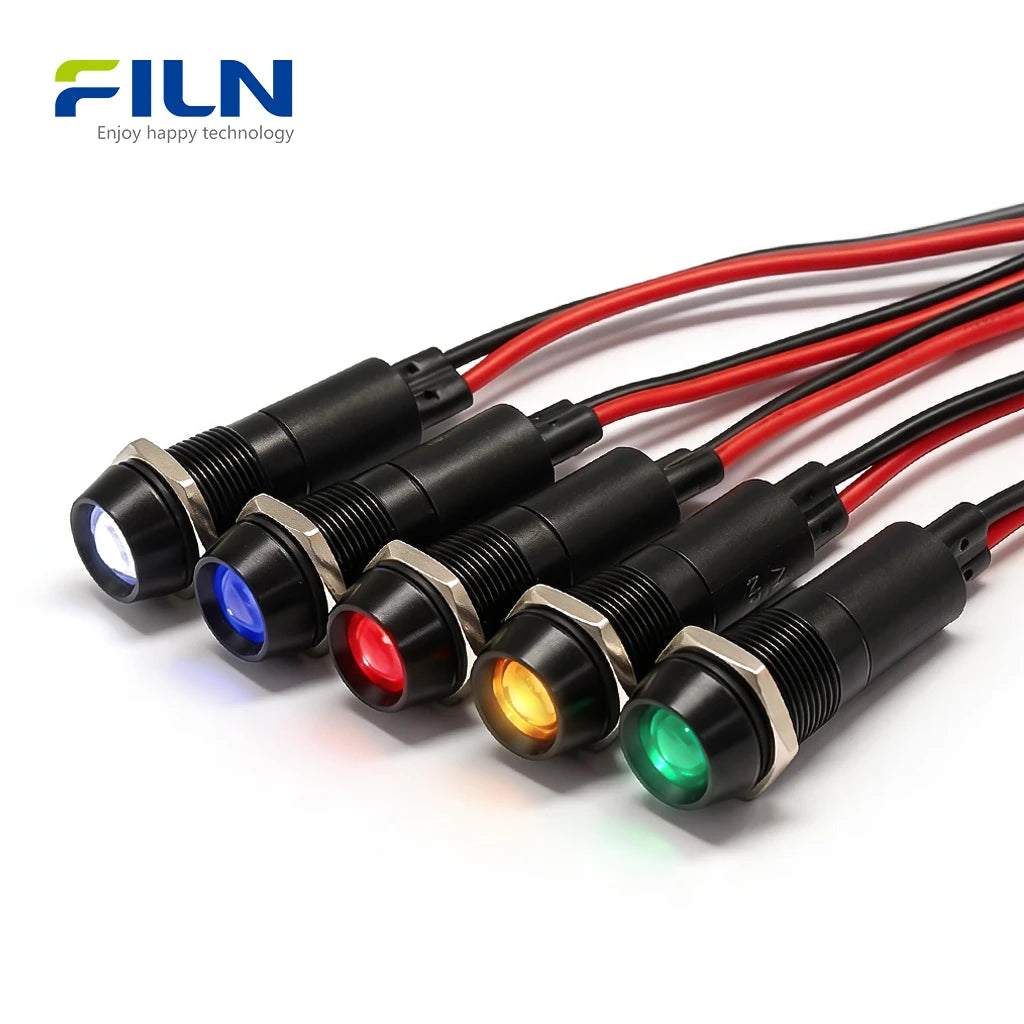

The led indicator light 12v black (Model: FL1M-12CW-1) by FILN is a premium 12mm signaling solution designed for extreme reliability. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this concave head metal indicator provides a sleek, low-profile aesthetic that prevents accidental impacts. Engineered for industrial control panels, medical devices, marine yachts, and new energy equipment, it features a durable black or silver housing and IP67 waterproof protection. Its core advantage lies in the pre-wired 15cm leads, offering a secure, vibration-resistant connection that outperforms standard pin terminals in harsh environments.
Quick Specifications
| Mounting Hole | 12mm (0.47") |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Supports Customization) |

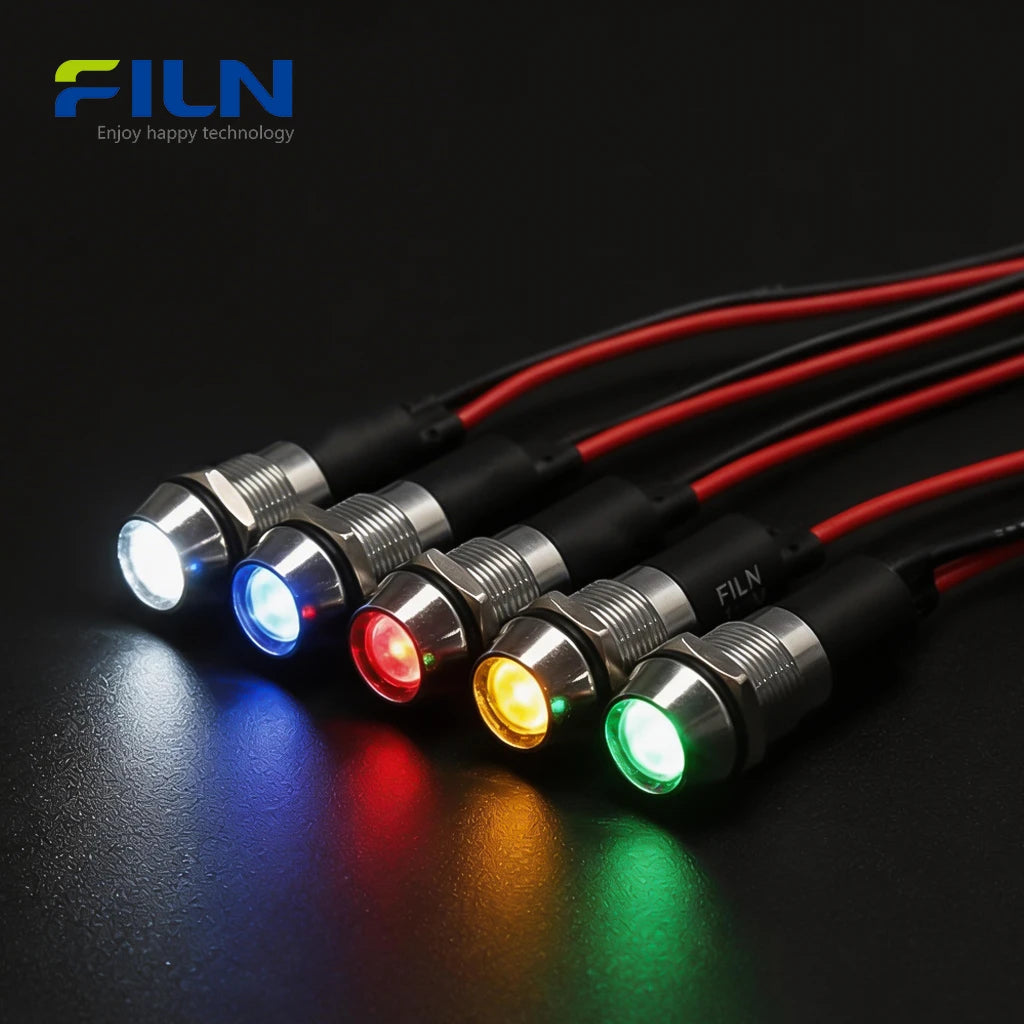

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead Type (15cm Standard) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized (3V to 380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Black Anodized Aluminum / Chrome Brass |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Wire Material | UL1007 Copper Wire (15cm) |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | 50,000 Hours (Tested at 30mA for 1000h) |
|---|
Key Features

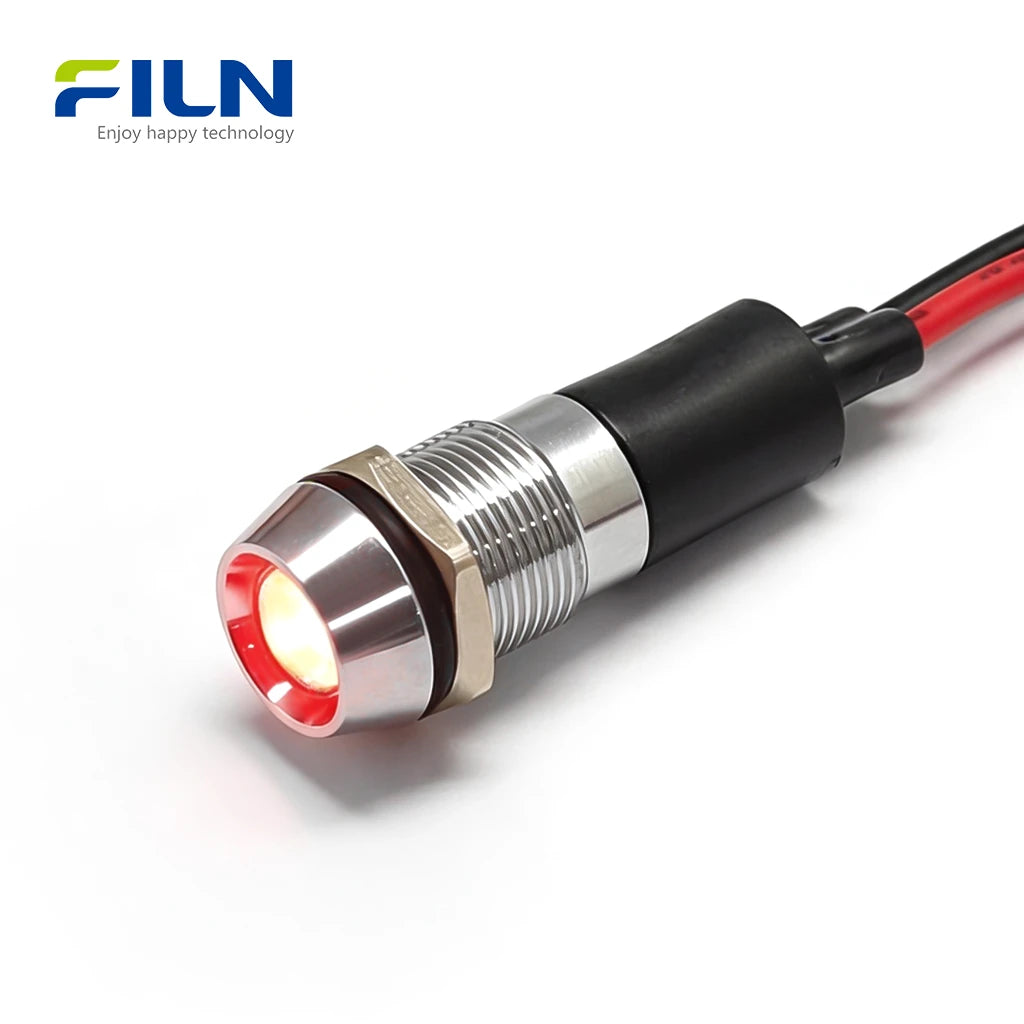

- Concave Head Design: Protects the lens from physical damage and provides a modern, recessed light aesthetic.
- Pre-Wired Convenience: 15cm wire leads allow for direct connection, eliminating the need for soldering or crimping terminals.

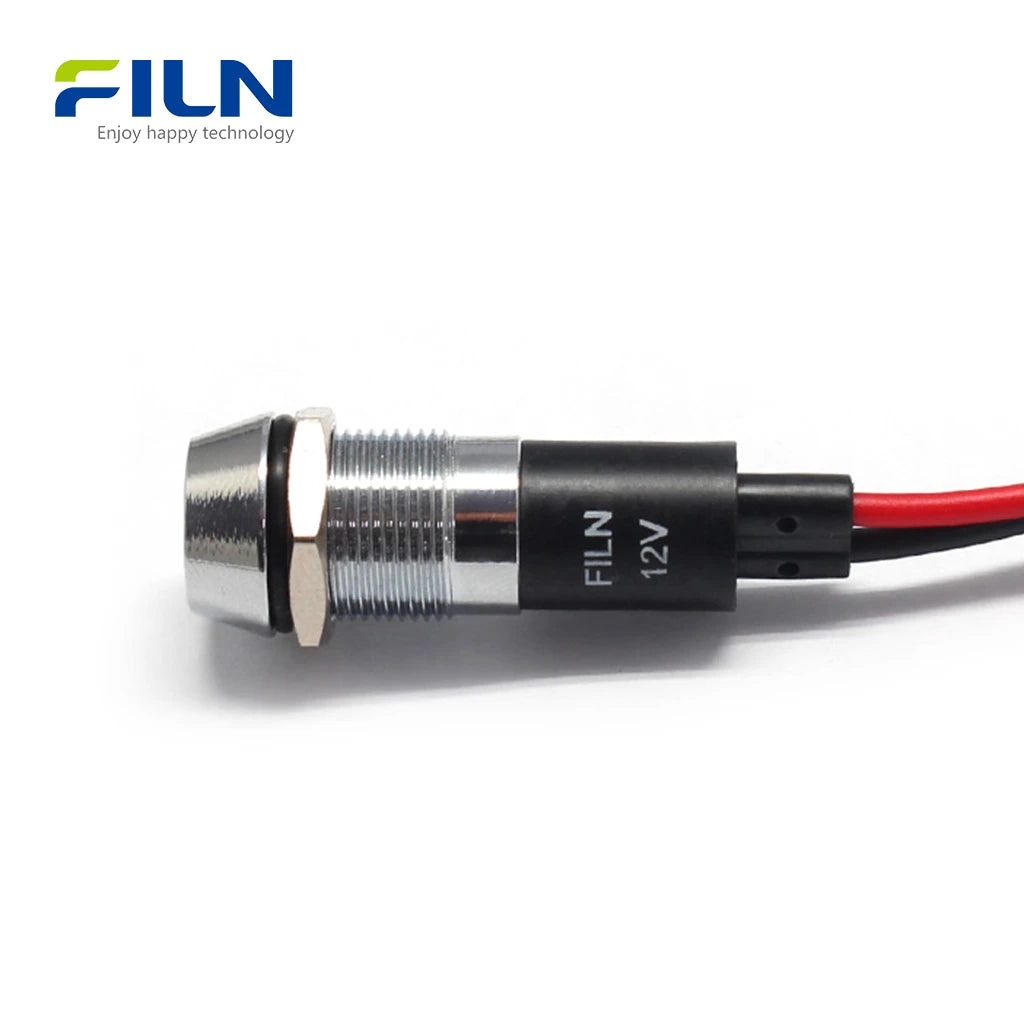

- IP67 Waterproofing: Includes a high-grade O-ring and M12 nut, ensuring complete protection against dust and moisture.

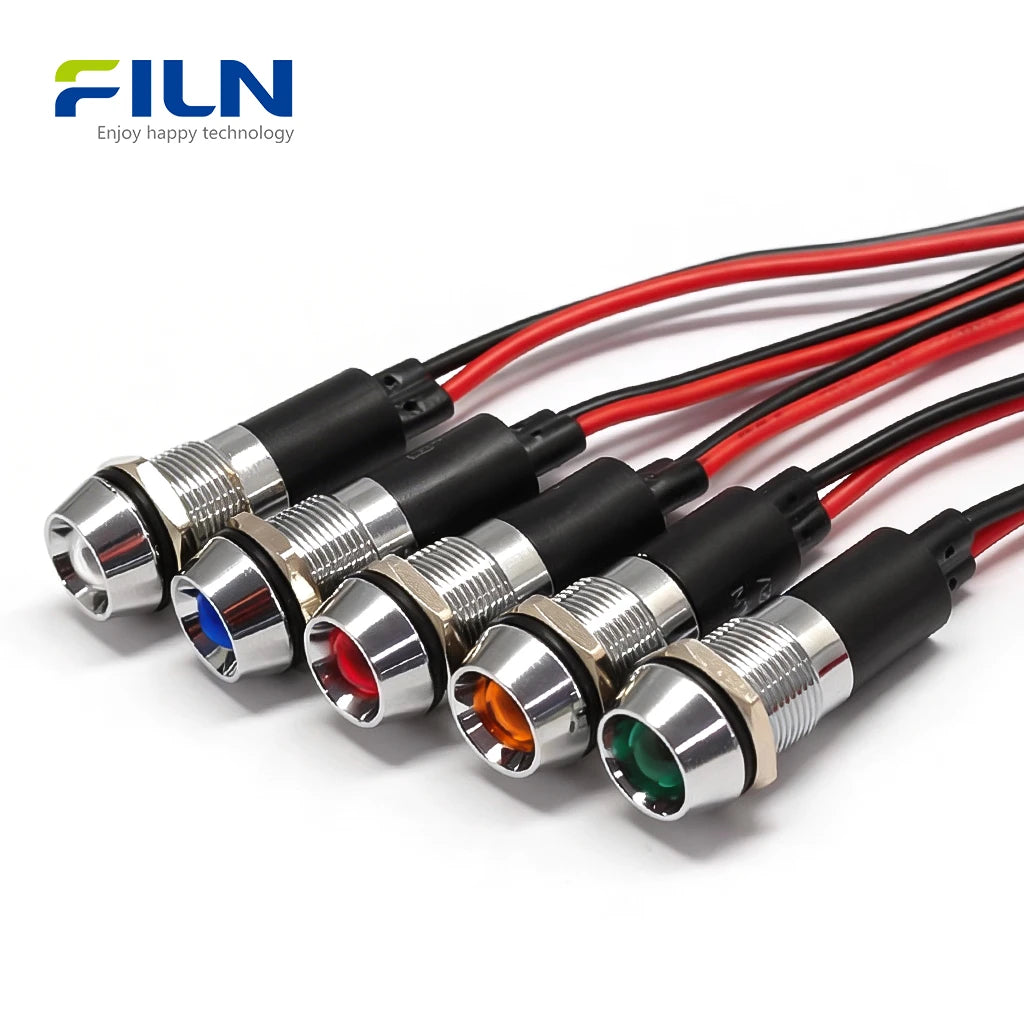

- Versatile Housing: Available in sleek black anodized aluminum or classic silver finishes.
- Industrial Grade Reliability: Built with UL-certified copper wire and high-brightness LEDs for 50,000 hours of service.
Applications
- Industrial: Control panels, CNC machining centers, and automation lines.
- Marine & Transportation: Yacht dashboards, RV control panels, and electric vehicles.
- New Energy: Charging piles, solar energy storage systems, and battery management cabinets.
- Medical & Lab: Diagnostic equipment, testing instruments, and sterilization devices.
Installation Guide
- Drill a 12mm diameter hole on your control panel.
- Insert the indicator light through the hole from the top/front side of the panel.
- Place the included O-type waterproof seal ring onto the threaded body from behind.
- Thread the M12 nut onto the housing and tighten until the light is securely fixed.
- Connect the 15cm wire leads to your power source (Polarity: Red for Positive, Black for Negative).
What Is an LED Indicator Light 12V Black?
An led indicator light 12v black is a critical visual signaling device used to communicate system status to operators. The 12mm size is a global standard for space-constrained panels. The "Concave Head" design is specifically used to prevent the light source from being hit or damaged by moving parts or accidental contact. Unlike pin-type indicators which require manual soldering or specialized connectors, wire lead indicators (like the FL1M-12CW-1) come pre-assembled with 15cm of wire. This "Direct Lead" approach is preferred in high-vibration industries like marine or heavy machinery because it creates a more permanent, fail-safe electrical connection.
FILN Factory Direct & Customization
Get factory-direct pricing and full technical support for your B2B requirements:
- Custom Voltages (3V-380V) [cite: 4]
- Custom Wire Lengths
- Custom Terminal/Connector Types
- Bulk Branding & OEM Support
- Fast Global Shipping
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What are the benefits of the concave head design?
A1: The recessed lens is protected from side impacts and accidental bumps, making it ideal for high-traffic panels.
Q2: Is the black housing scratch-resistant?
A2: Yes, our black anodized aluminum housing is treated for high durability and corrosion resistance.
Q3: Can I use this 12V light in a marine yacht environment?
A3: Absolutely. The IP67 rating and metal housing provide excellent protection against salt spray and moisture.
Q4: Why choose wire leads over pin terminals?
A4: Wire leads offer faster installation and better resistance to vibration, as there is no risk of a terminal popping off.
Q5: What colors are available for the 12mm indicator?
A5: We offer Red, Green, Yellow, Blue, and White high-brightness LEDs.
Q6: Is the mounting nut included with the light?

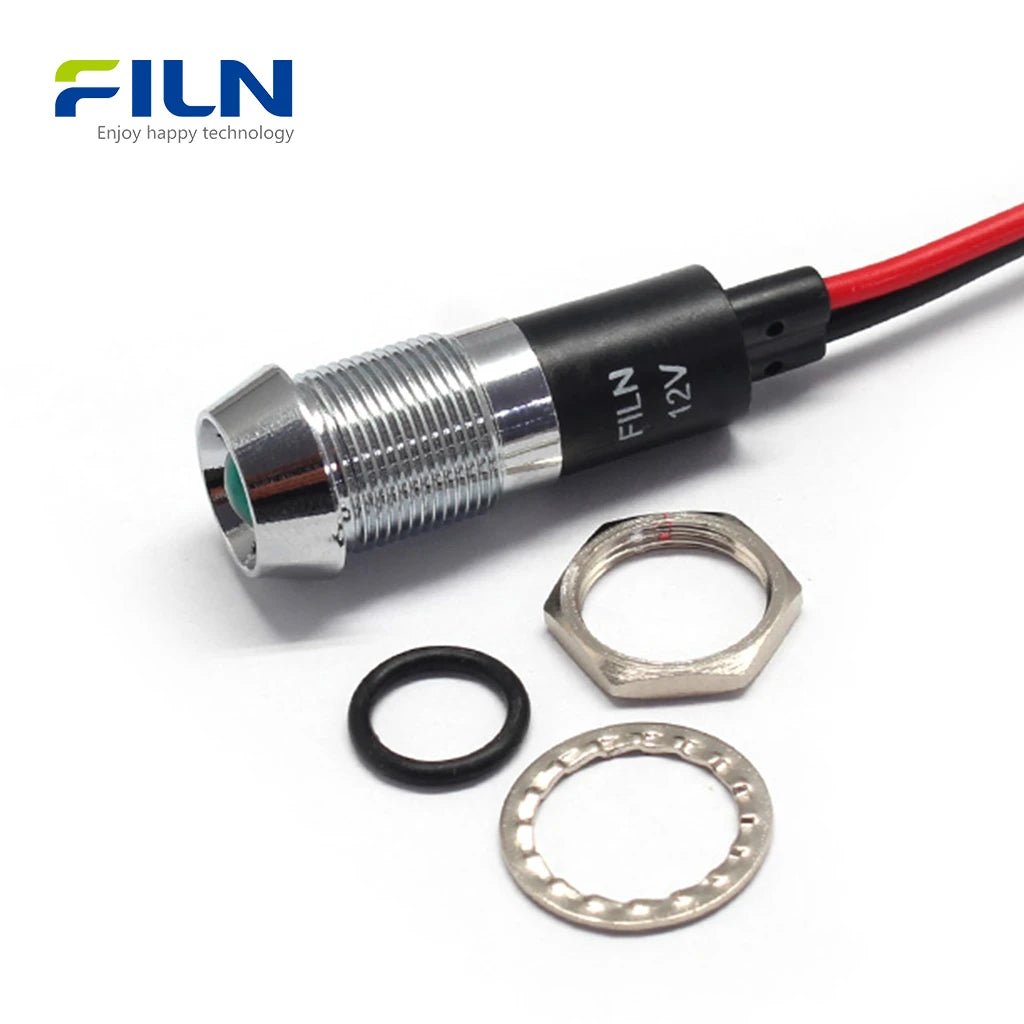

A6: Yes, each indicator comes with one M12 nut and one waterproof O-ring.
Q7: Can these indicators be used with 220V AC?
A7: Yes, while the standard is 12V, we support custom production for 110V-220V AC/DC.
Q8: What is the standard wire length?
A8: The standard length is 15cm, but we can customize this to any length for bulk orders.
Q9: Are these lights suitable for medical equipment?
A9: Yes, our products are CE and UL certified, meeting the safety standards required for medical devices.
Q10: Do you provide samples for testing?
A10: Yes, as a factory-direct supplier, we can provide samples for project evaluation.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
