Product Overview

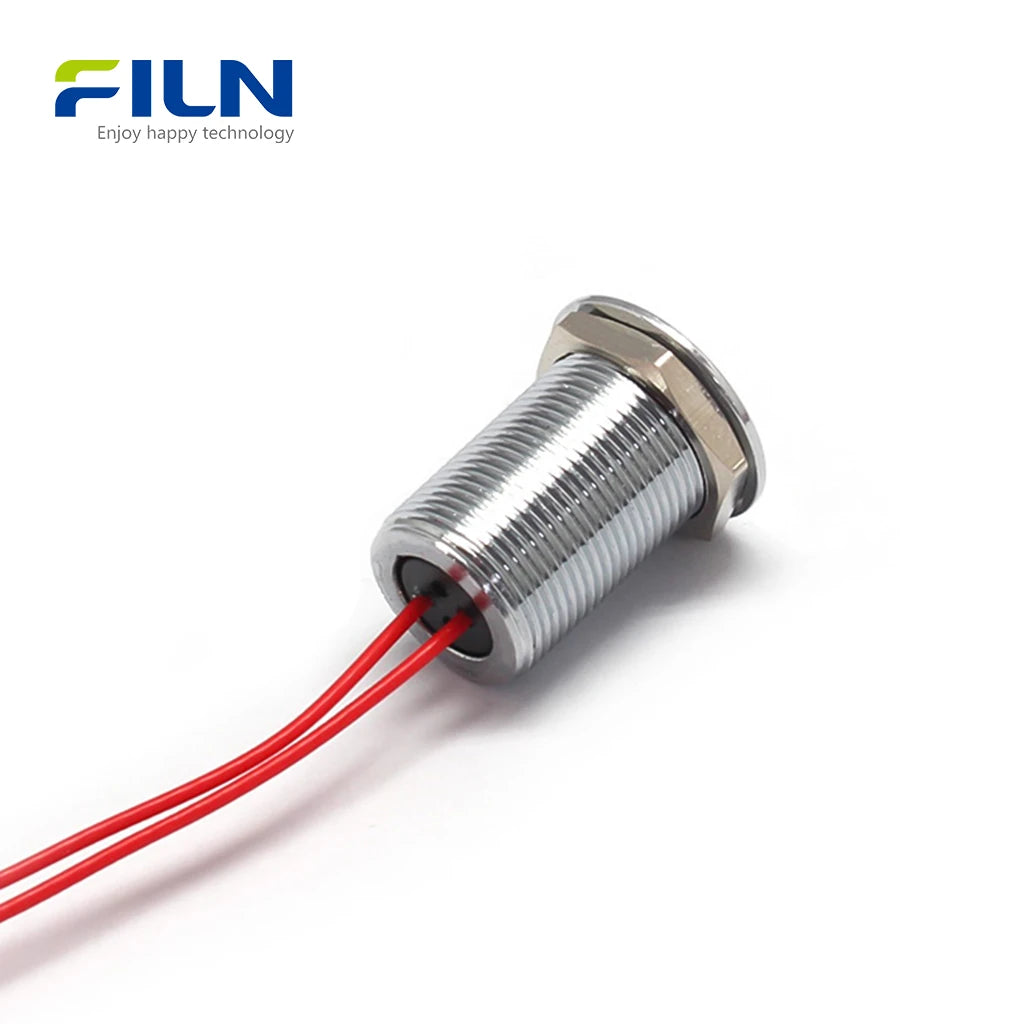

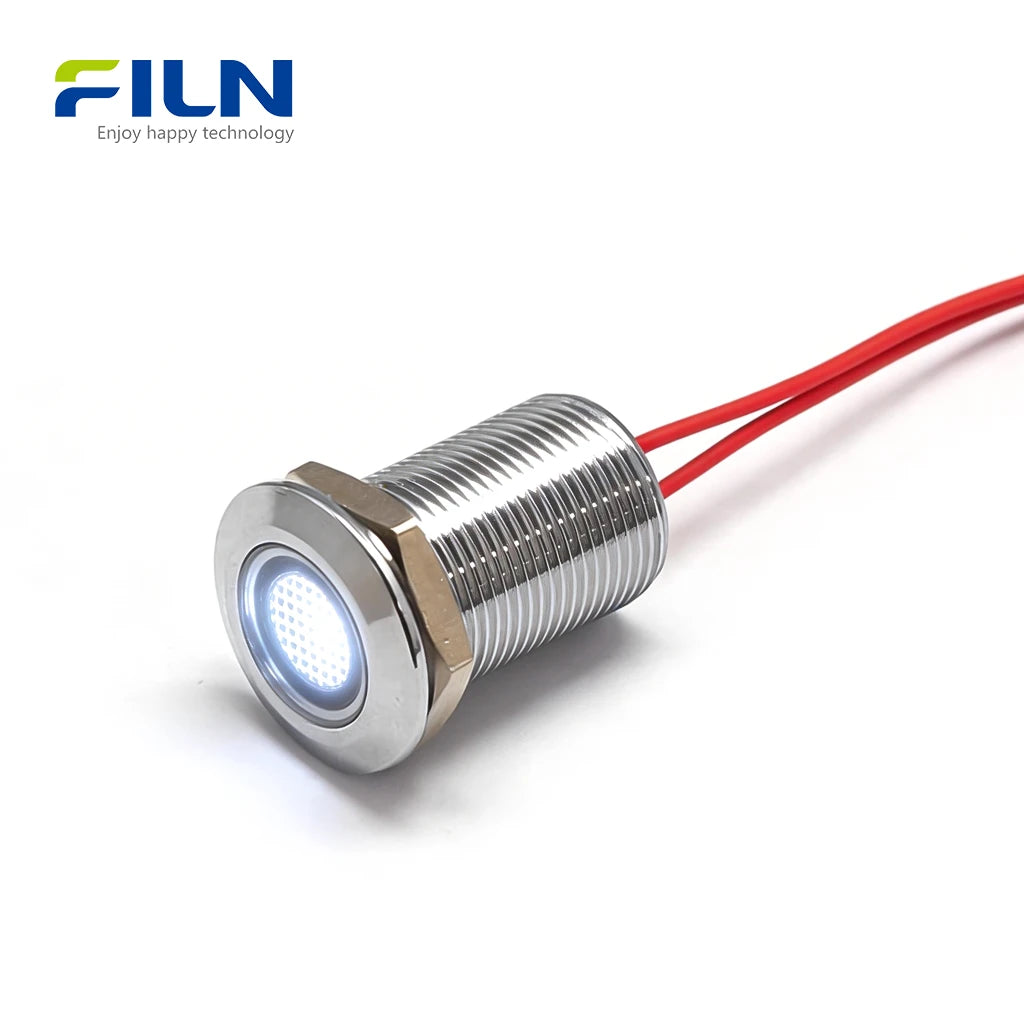

The FL1M-12FW-2 LED indicator light 220v is a high-performance 12mm metal signal lamp designed for demanding industrial environments. Featuring a flat-head short-body design, this indicator is ideal for compact spaces in CNC machines, medical devices, and marine systems. Our products carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, ensuring global compliance and safety. With a versatile voltage range of 12V-24V and 110V-220V, and available in Red, Green, Yellow, Blue, and White, it offers superior visibility and industrial-grade reliability for automation and power distribution cabinets.
Quick Specifications
| Mounting Hole | 12mm / 0.47 inch |
|---|---|
| Voltage | 12-24V / 110-220V (Customizable) |

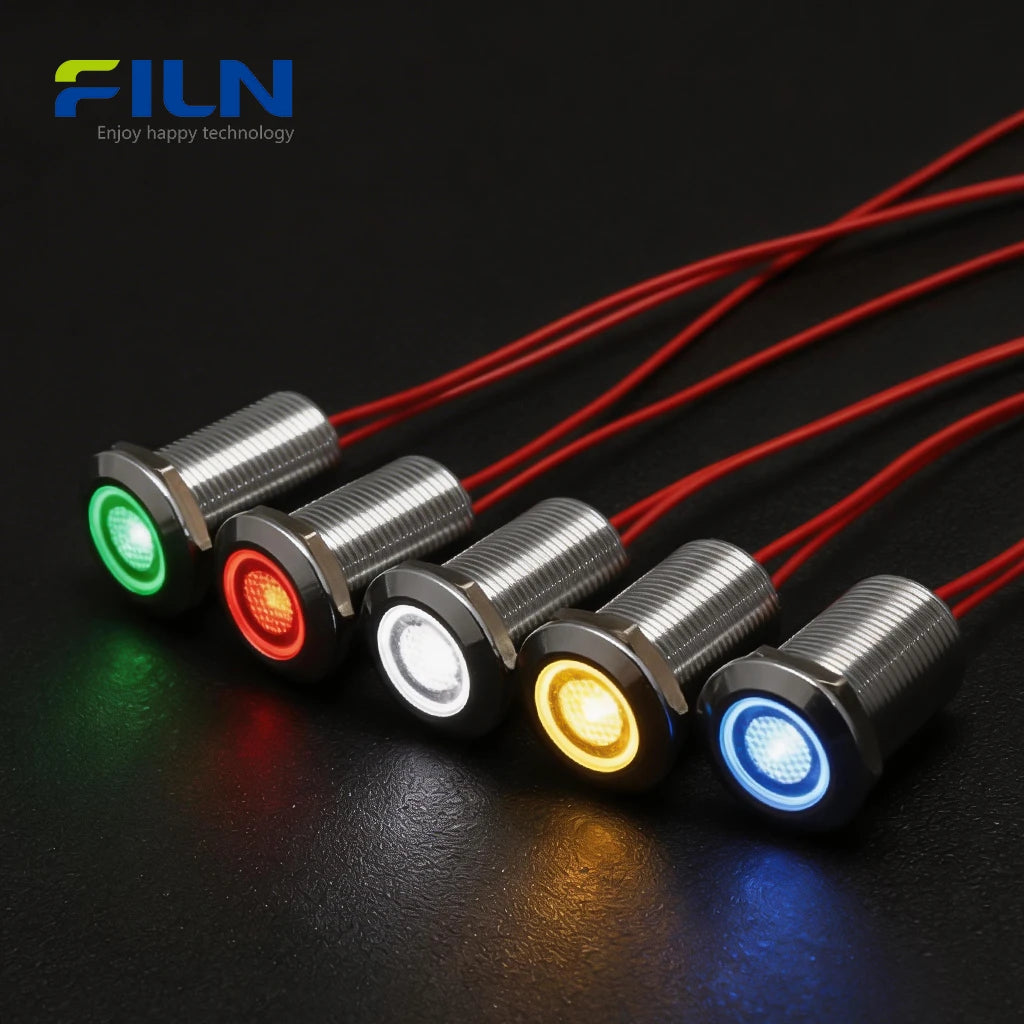

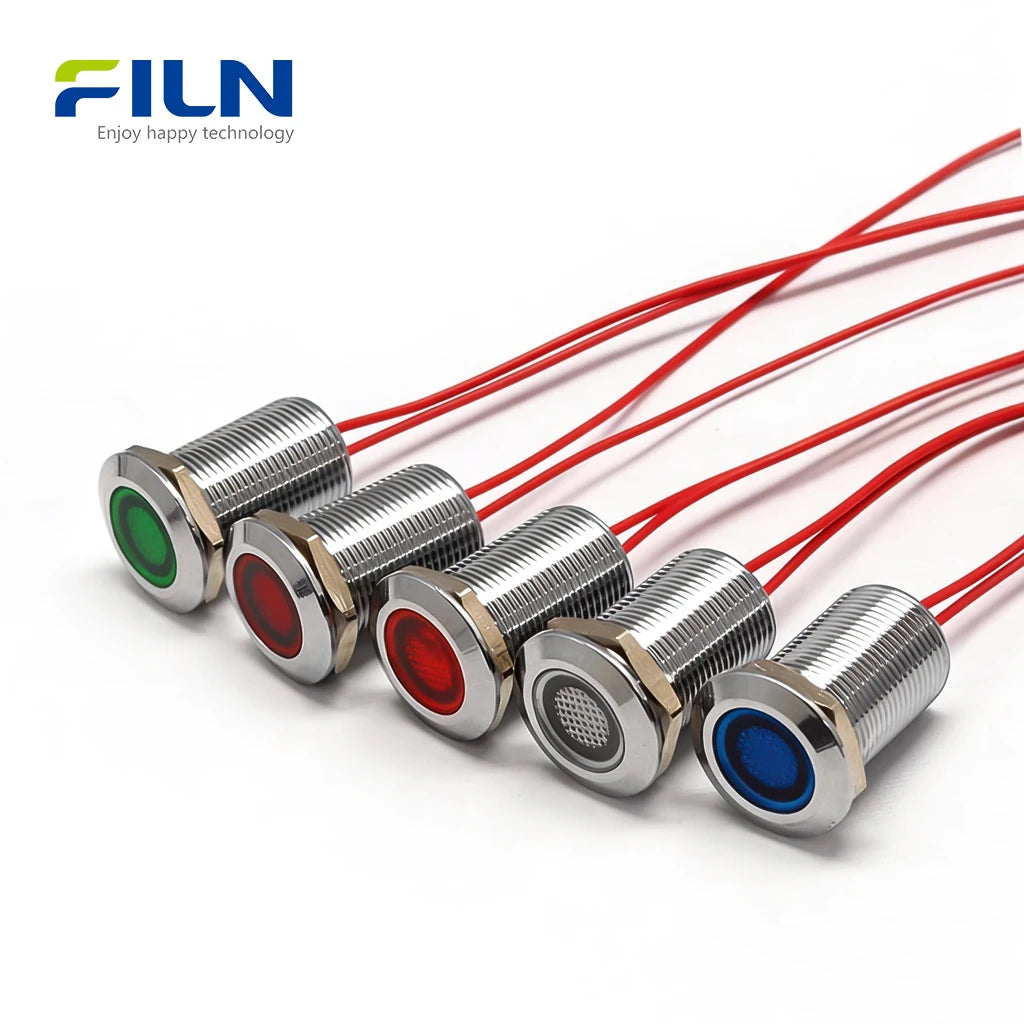

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Wire Lead (15cm standard) |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | Customized (up to 220V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone (O-ring included) |
| Wire Material | UL1007 High-quality Copper Wire |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Parameter | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Resistant Performance
| High Temperature | 80℃ for 96h |
|---|---|
| Low Temperature | -40℃ for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Rounds) |
Key Features
- High-Brightness LED: Pure colors with long-distance visibility.

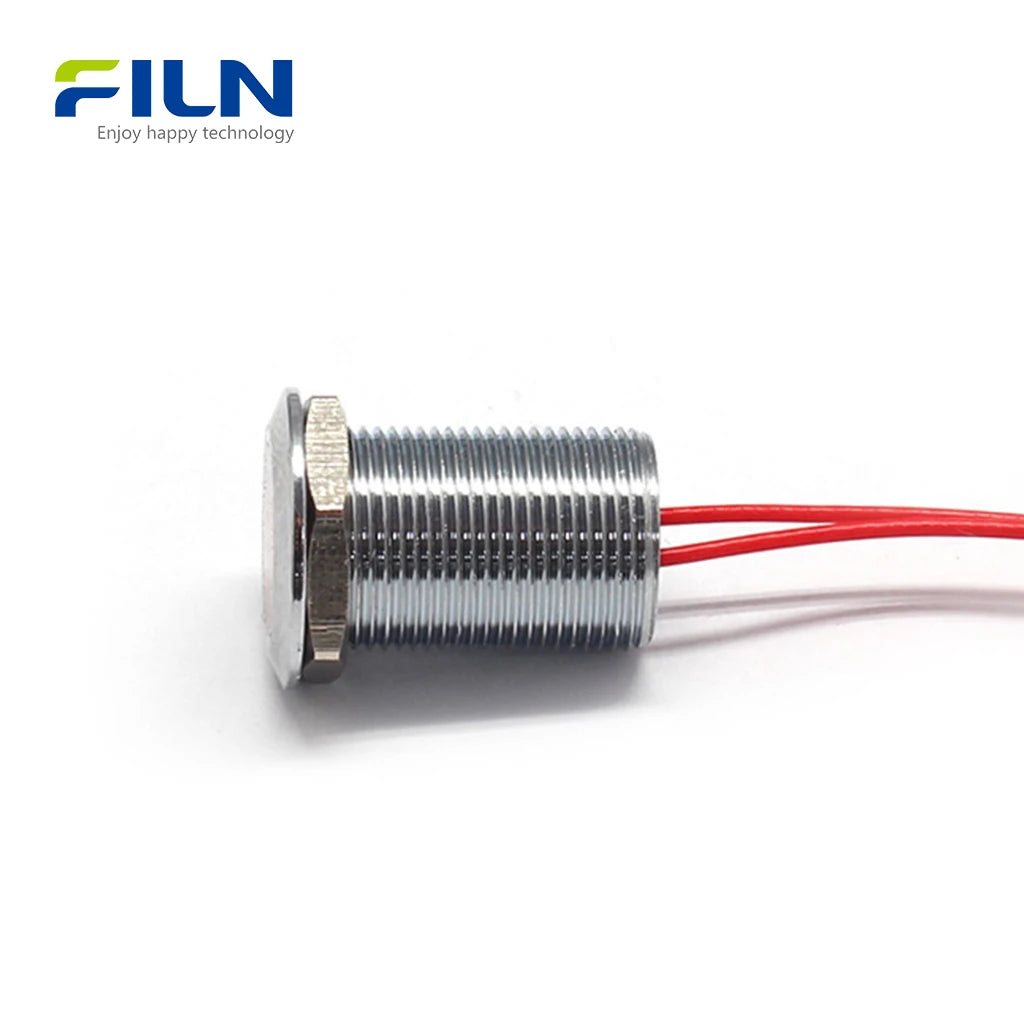

- Compact Flat Head Design: Aesthetic "Short Body" structure for space-saving installation.
- Superior Sealing: IP67 waterproof with an included O-ring for harsh conditions.
- Pre-Wired Convenience: 15cm lead wires eliminate the need for manual soldering on-site.

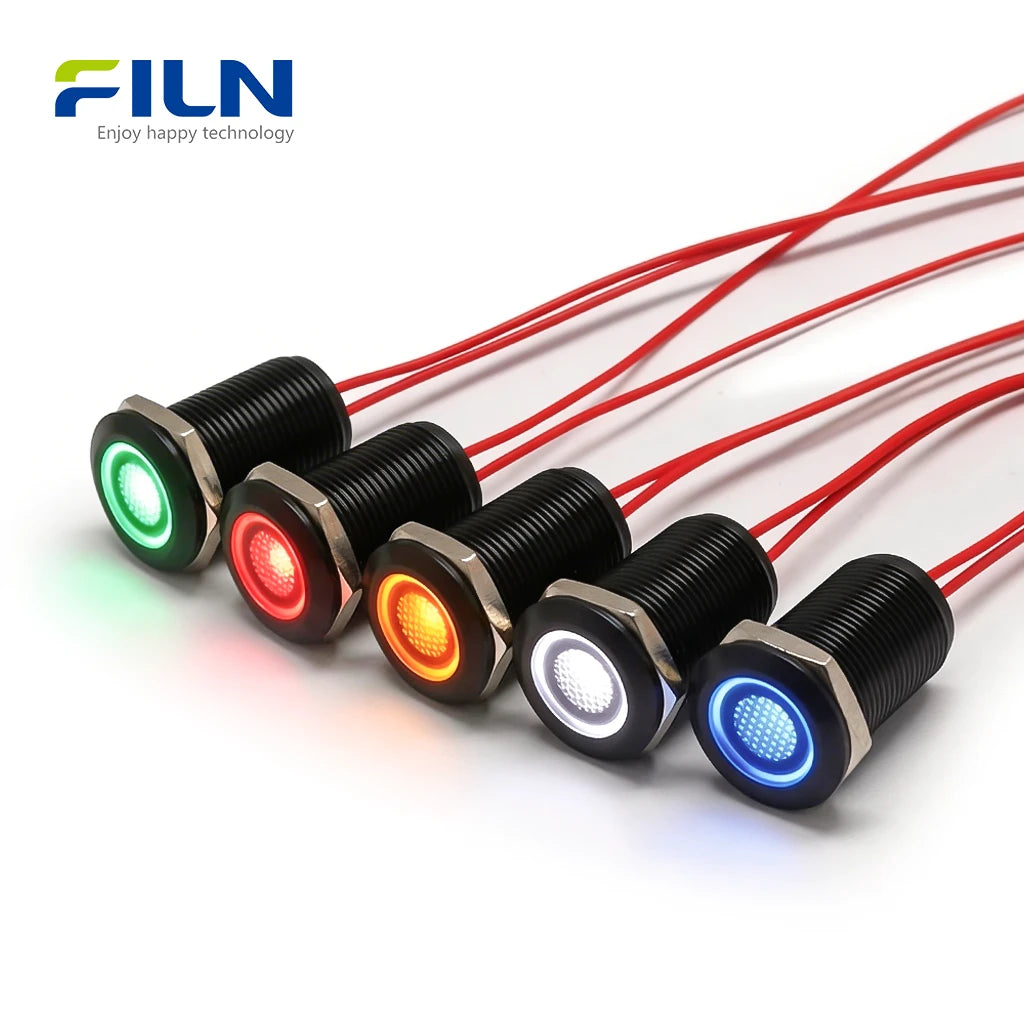

- Durable Housing: Choice of Silver (Nickel) or Black (Aluminum) shells for corrosion resistance.
Applications
- Industrial Control Panels & Automation Equipment
- CNC Machining & Manufacturing Centers
- Marine Systems, Yachts, and Dashboard Indicators
- Medical Testing & Diagnostic Devices
- New Energy Charging Piles & Battery Systems
Installation Guide
- Drill a 12mm (M12) mounting hole on the control panel.
- Insert the LED indicator light from the front/top of the panel.
- Slide the O-ring onto the threaded body behind the panel.
- Secure the unit firmly using the provided M12 hex nut (smooth threading for easy grip).
- Connect the 15cm lead wires to your power source (12V-220V depending on model).
What Is an LED Indicator Light 220V?
An LED indicator light 220v is a critical signaling component used in electrical circuits to visually communicate the status of a machine or system (On, Off, or Fault). Unlike traditional incandescent bulbs, LEDs offer higher efficiency and a lifespan exceeding 50,000 hours. The flat head design is preferred in modern industrial aesthetics because it sits flush against the panel, reducing the risk of accidental damage. Furthermore, short-body indicators are essential for thin-profile control boxes where depth is limited. Compared to pin-type terminals, the pre-wired lead type provides a more secure, vibration-resistant connection, saving significant labor time during mass assembly.
FILN Factory Direct Supply
Looking for customized solutions? FILN offers professional OEM/ODM services:
- Voltage Customization: 3V to 380V available.
- Wire Customization: Tailored wire lengths and connector types.
- Global Logistics: Fast shipping to over 150 countries.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can this 12mm led indicator handle 220V AC?
Yes, it is designed with internal resistors to handle stable 110V-220V AC/DC power.
2. Is the 12mm led indicator light truly waterproof?
Yes, it is rated IP67, meaning it can withstand temporary immersion and high-pressure washdowns.
3. What are the benefits of the flat head design?
Flat heads are easier to clean and don't catch on clothing or tools in busy industrial environments.
4. Do you offer different shell colors?
We provide standard silver (nickel-plated) and professional black anodized aluminum shells.
5. Can I customize the wire length for my CNC project?
Absolutely. While 15cm is standard, we can produce any length required for your factory order.
6. What is the difference between wire leads and pin terminals?
Wire leads provide a more flexible and vibration-proof connection, ideal for moving machinery.
7. Are these lights suitable for marine use?
Yes, the corrosion-resistant metal shell and IP67 seal make them perfect for yacht dashboards.

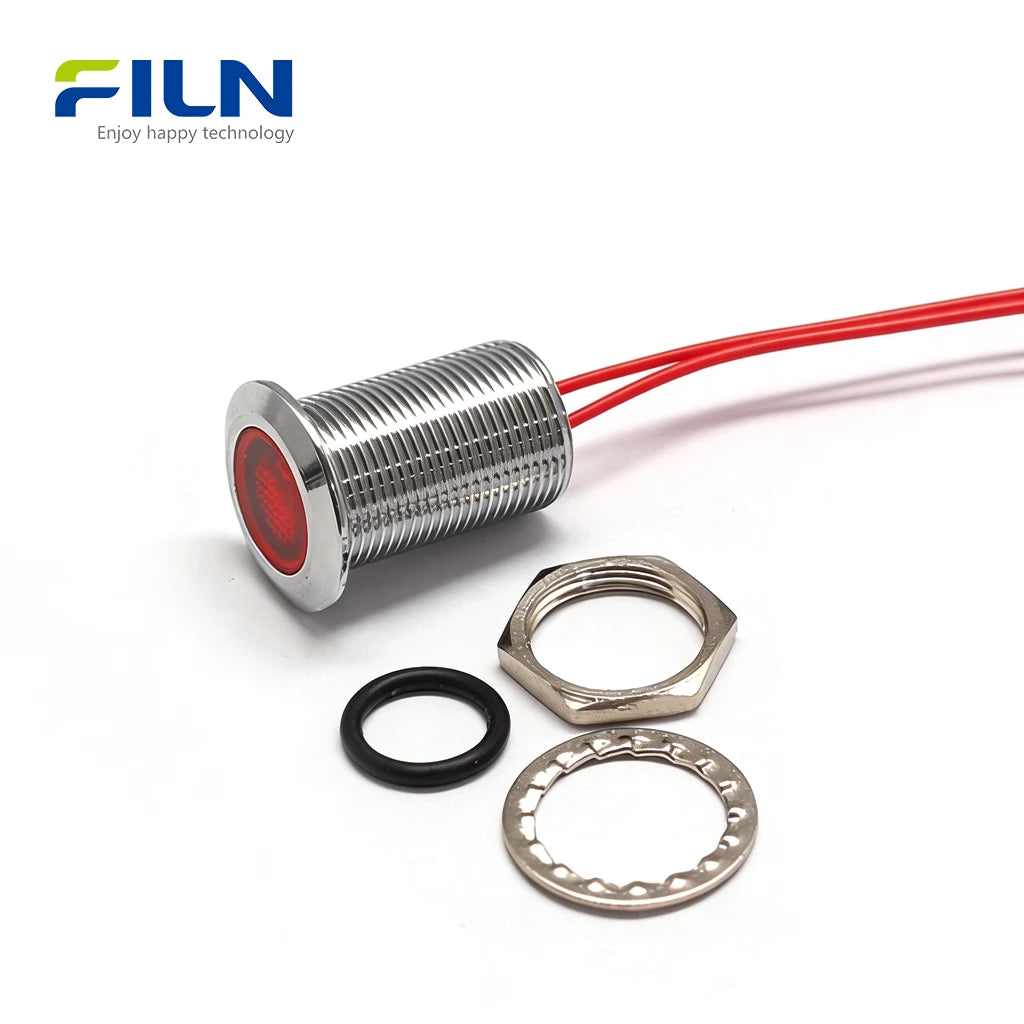

8. Does the package include mounting hardware?
Each light comes with one high-quality O-ring and one smooth-threading M12 hex nut.
9. Is there a minimum order quantity (MOQ)?
As a factory, we support both small sample orders and large-scale wholesale procurement.
10. What certifications do these signal lamps have?
Our lights are certified by CE, UL, RoHS, and VDE, ensuring high safety standards.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
