Product Overview

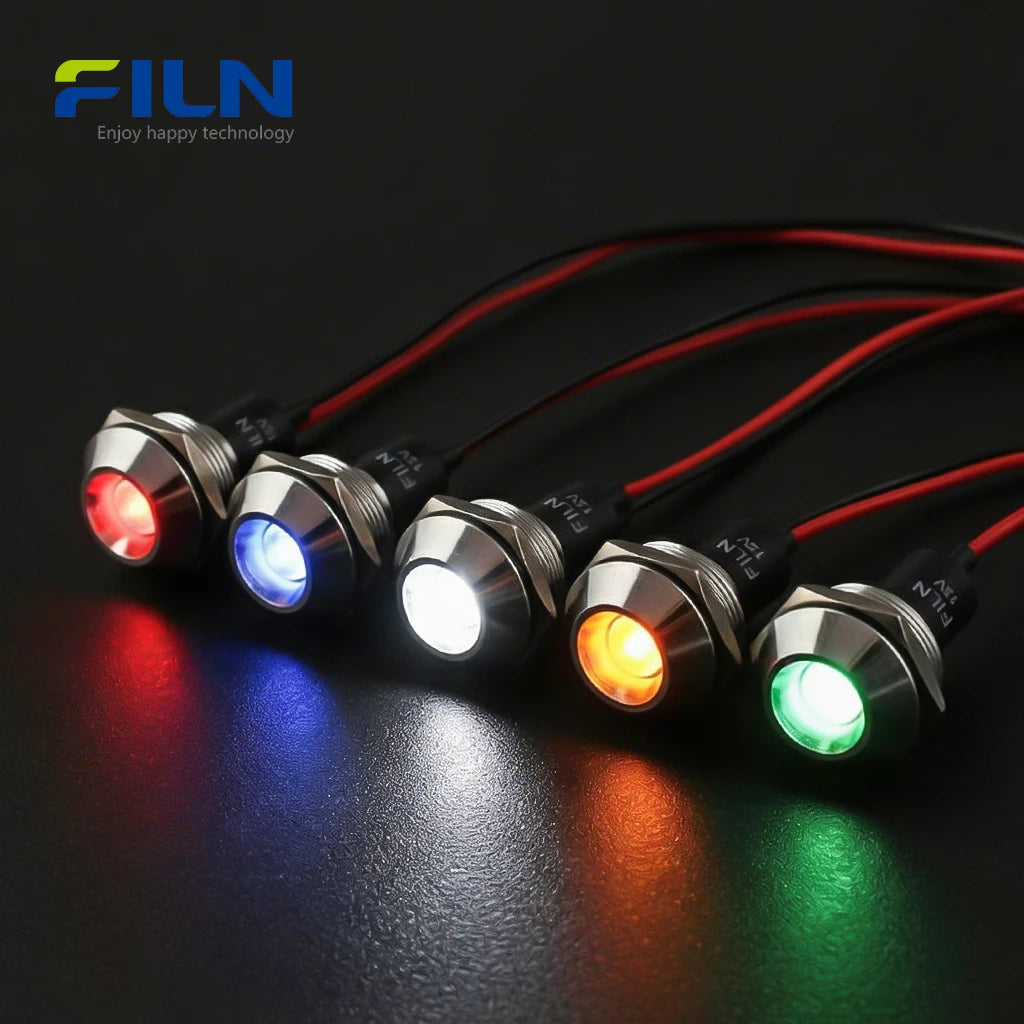

The LED light panel 12V indicator (Model: FL1M-22CW-1) is a high-performance industrial signal solution now for sale directly from the FILN factory. This 22mm large-size metal indicator features a unique concave head design, which protects the lens from physical impact and reduces side-glare for better frontal visibility. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, it is engineered for extreme environments. Available in silver chrome or black anodized finishes, it includes a 15cm pre-wired tail for rapid deployment. Whether for heavy machinery, automation cabinets, or marine panels, you can buy online today and ensure your equipment has reliable, long-lasting signal transmission.
Quick Specifications
| Mounting Hole | 22mm / 0.866 inch |
| Voltage | 12V-24V, 110V-220V (Customizable) |

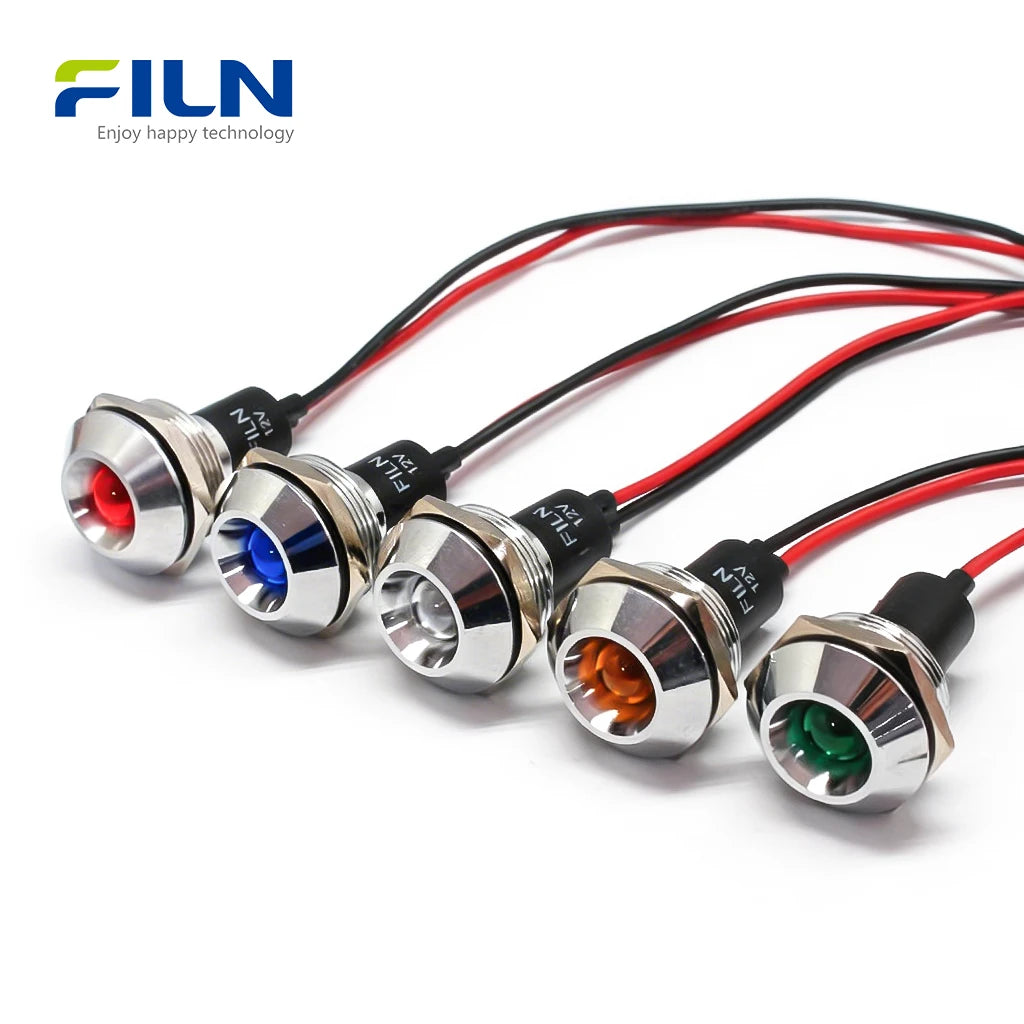

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |

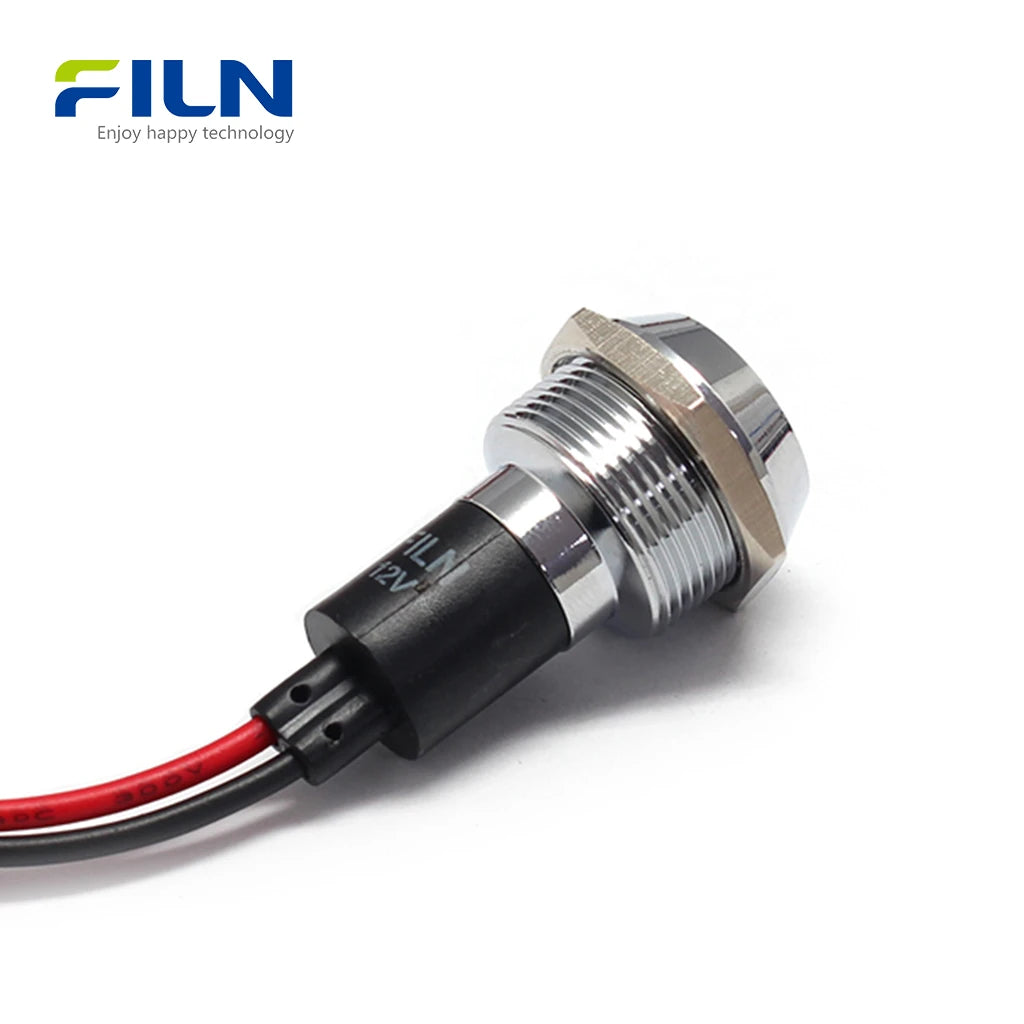

| Wiring Type | Pre-wired Lead (15cm) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Certifications | ISO9001, CE, VDE, RoHS, SGS, UL |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Nickel/Chrome plated or Black Anodized |
| Lamp Holder | PA66 Nylon | High heat resistance |
| Lampshade | PC Polycarbonate | Concave design, high impact resistance |
| Light Source | LED | High-brightness chips |
| Resistor | Carbon Film | Current limiting protection |
| Pin/Wire | Brass / PVC | Excellent conductivity |
| Nut | Copper Alloy | M22 smooth threading |
| O-ring | Silica Gel | IP67 waterproof seal |
| Plum Gasket | Stainless Steel | Anti-loosening reinforcement |
Rated Working Parameters
| Rated Voltage | Customized (12V/24V/110V/220V) |
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Nickel-plated Brass / Black Aluminum |
| Lens | Polycarbonate (PC) |
| Seal Ring | Silicone (O-ring) |
| Terminal | PVC Tail Wire |
| Wire Material | Standard AWG PVC Lead |
General Characteristics
| Application | Signal Indication |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | Test Condition: 30mA 1000h | Requirement: 50,000 hours |
Resistant Performance
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- LED high brightness: Premium LED chips ensure visibility in high-light environments.
- Long lifespan: Engineered for over 50,000 hours of continuous signal indication.
- IP67 waterproof: The silicone O-ring provides a perfect seal against moisture and dust.
- Easy installation: Smooth M22 threading and pre-wired 15cm leads save assembly time.
- Industrial grade reliability: Heavy-duty metal shell and concave head offer superior physical protection.
Applications
- Industrial control panels and distribution boards
- CNC machines and precision manufacturing tools
- Automation equipment and robotics signal feedback
- Electrical cabinets for infrastructure projects
- Marine dashboards and nautical electronic systems
- Medical diagnostic and laboratory devices
Installation Guide
- Prepare the panel by drilling a 22mm (0.866") mounting hole.

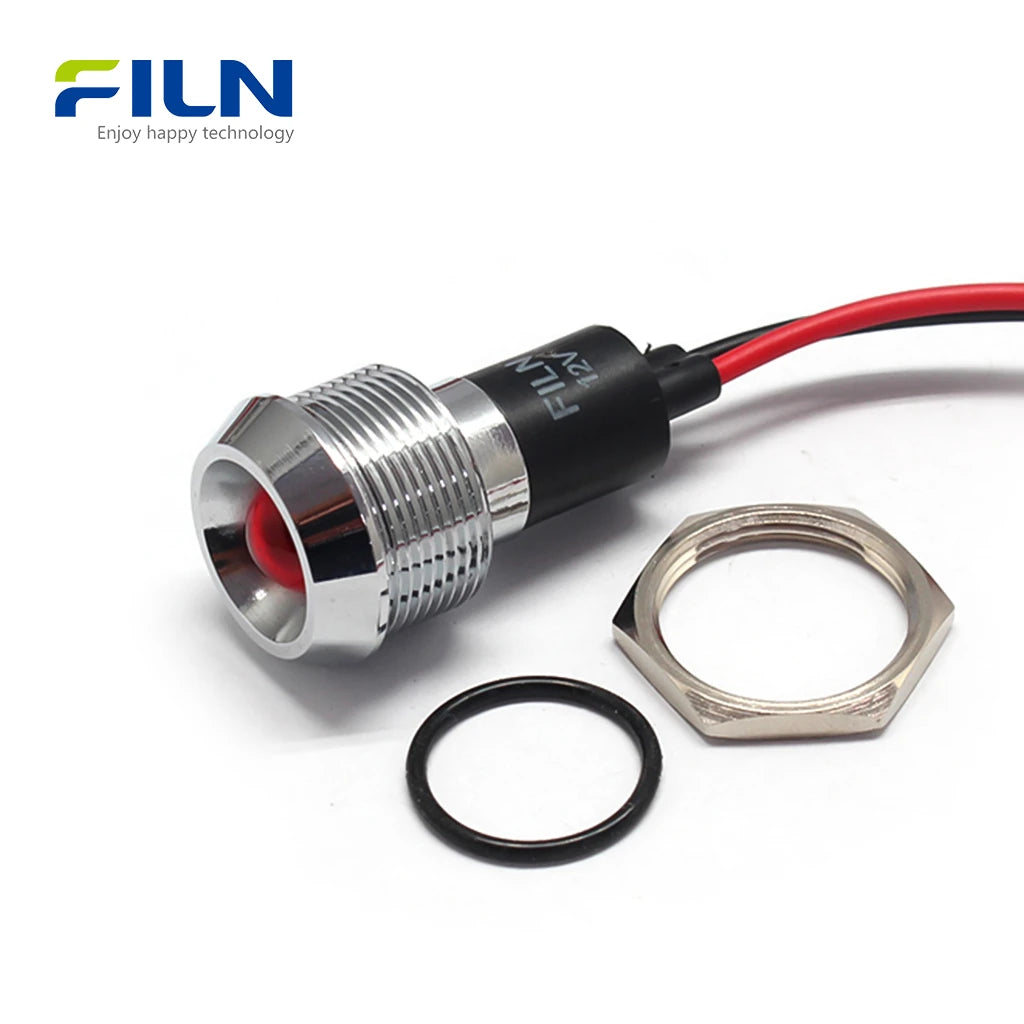

- Place the O-ring waterproof seal onto the indicator body to ensure an IP67 rating.
- Insert the indicator light through the hole from the front side of the panel.

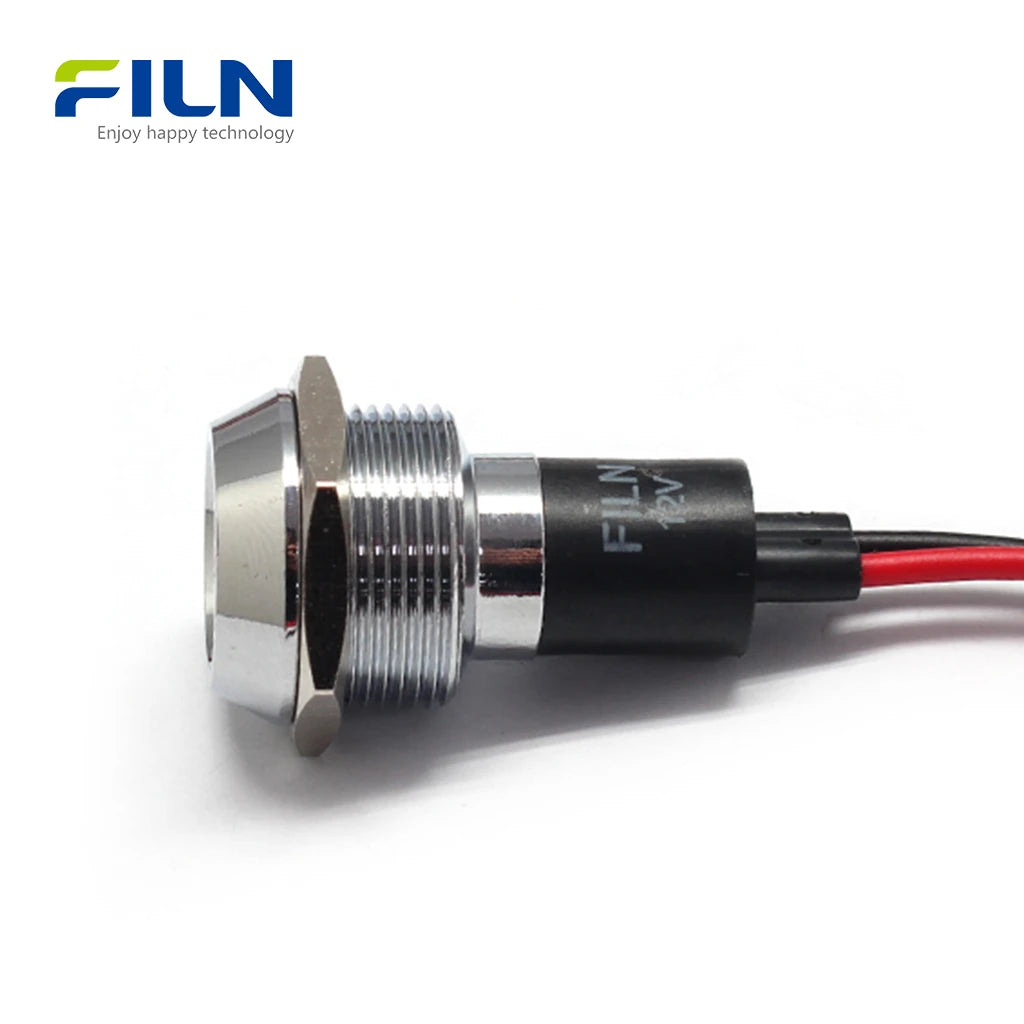

- From the back of the panel, screw on the M22 nut. The smooth threads allow for easy tightening by hand or tool.
- Connect the 15cm tail wires to your 12V/24V power source.
What Is an LED Light Panel 12V Indicator?

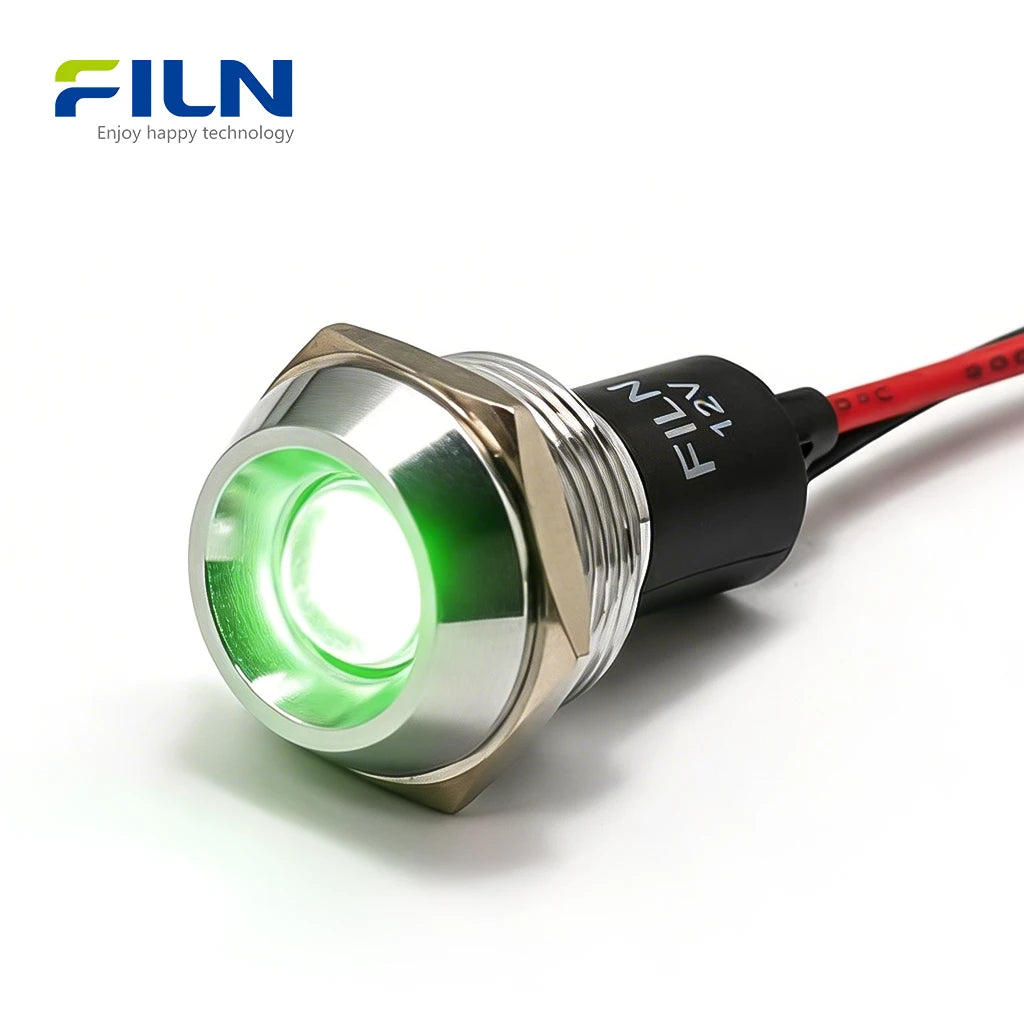

An LED light panel 12V indicator is a fundamental component in modern electrical engineering, serving as a visual interface between machines and operators. The concave head design of the 22mm indicator is specifically advantageous in industrial settings; the recessed lens protects the light-emitting surface from accidental knocks and tool scratches while concentrating the light beam for better frontal clarity.
A key distinction in industrial wiring is the choice between pre-wired (lead-out) and pin-type terminals. While pin terminals are modular, pre-wired indicators offer a superior, vibration-proof connection that eliminates the risk of pins loosening in high-motion environments (like CNC machines). The M22 nut and silicone O-ring work in tandem: the O-ring blocks liquid ingress, while the precision-machined nut ensures the device remains vibration-resistant and firmly mounted.
Factory Direct Supply
FILN is a professional manufacturer specializing in high-quality signal indicators. We offer:
- Factory Direct: No middlemen, get the best industrial pricing.
- Voltage Customization: We support 12V, 24V, 110V, 220V, and more.
- Wire Length Customization: Standard 15cm or custom lengths based on your cabinet size.
- Connector Customization: We can add specialized terminals to your leads.
- Fast Global Shipping: Reliable delivery to your doorstep.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can the LED light panel 12V indicator be customized for 24V?
Yes, FILN supports customization for any voltage from 3V to 380V.
2. What is the benefit of the concave head?
The concave head protects the lens from physical damage and provides focused light for the operator.
3. Is the wire lead version better than the pin version?
For high-vibration machinery, the pre-wired lead version is more reliable as it avoids terminal disconnection.
4. Is this 22mm indicator light available for sale in bulk?
Yes, we are a factory and provide wholesale pricing for industrial customers.
5. What is the role of the O-ring?
The silicone O-ring creates a seal between the indicator and the panel, providing IP67 waterproof protection.
6. Can I use this in a marine environment?
Absolutely. The IP67 rating and corrosion-resistant metal shell make it perfect for saltwater environments.
7. What colors can I choose for the LED light panel 12V?
We offer Red, Green, Yellow, Blue, and White LEDs.
8. Does the shell come in different colors?

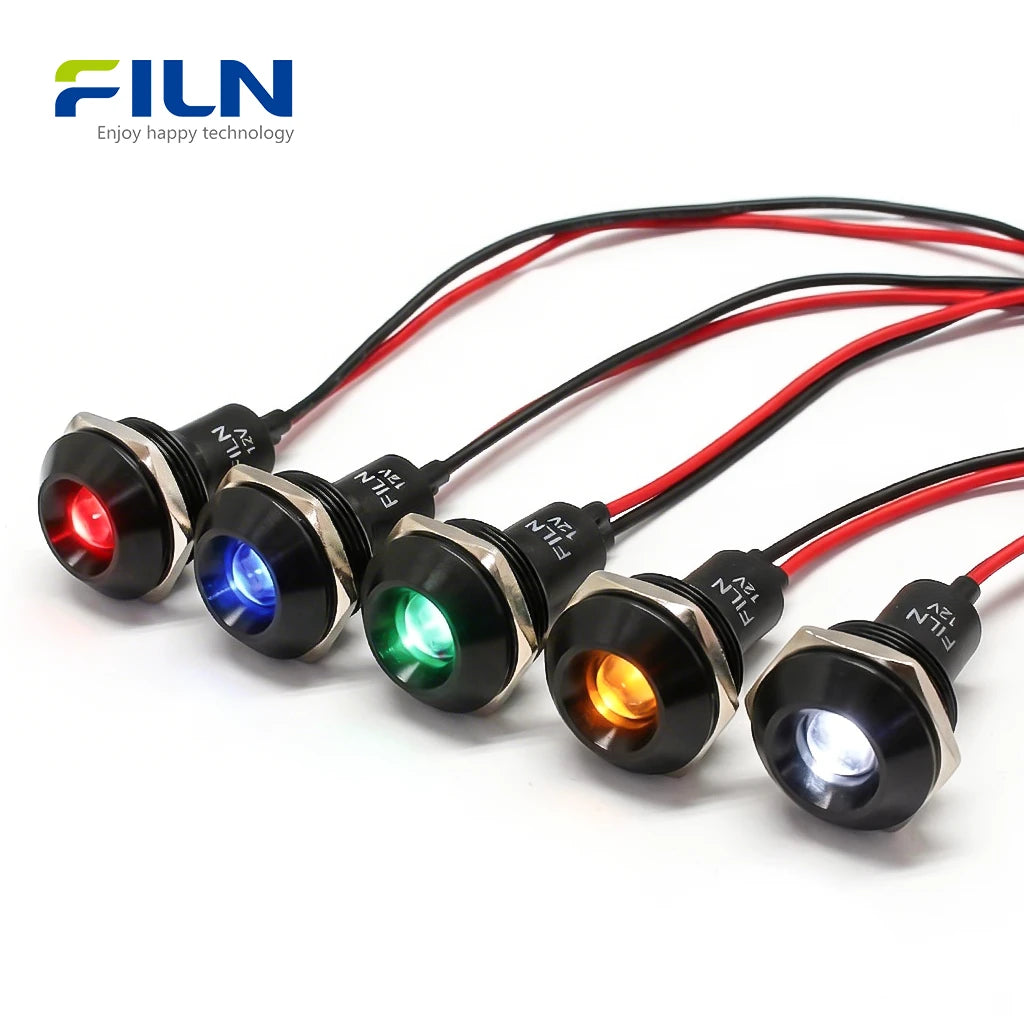

Yes, we offer both silver (nickel-plated) and black anodized metal shells.
9. How long are the wires?
The standard wire length is 15cm, but we can customize this for your specific needs.
10. Does FILN provide international shipping?
Yes, we provide fast global shipping for all our industrial indicator products.
