Product Overview

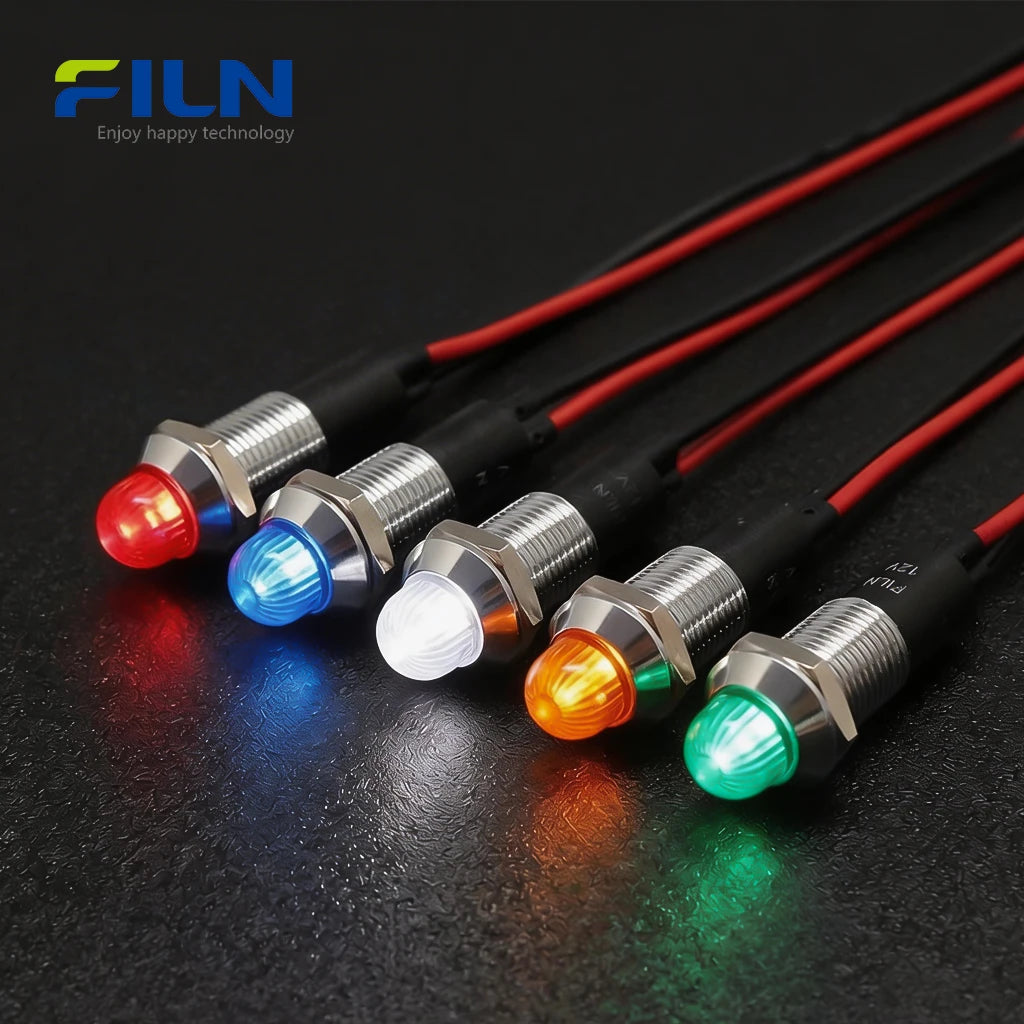

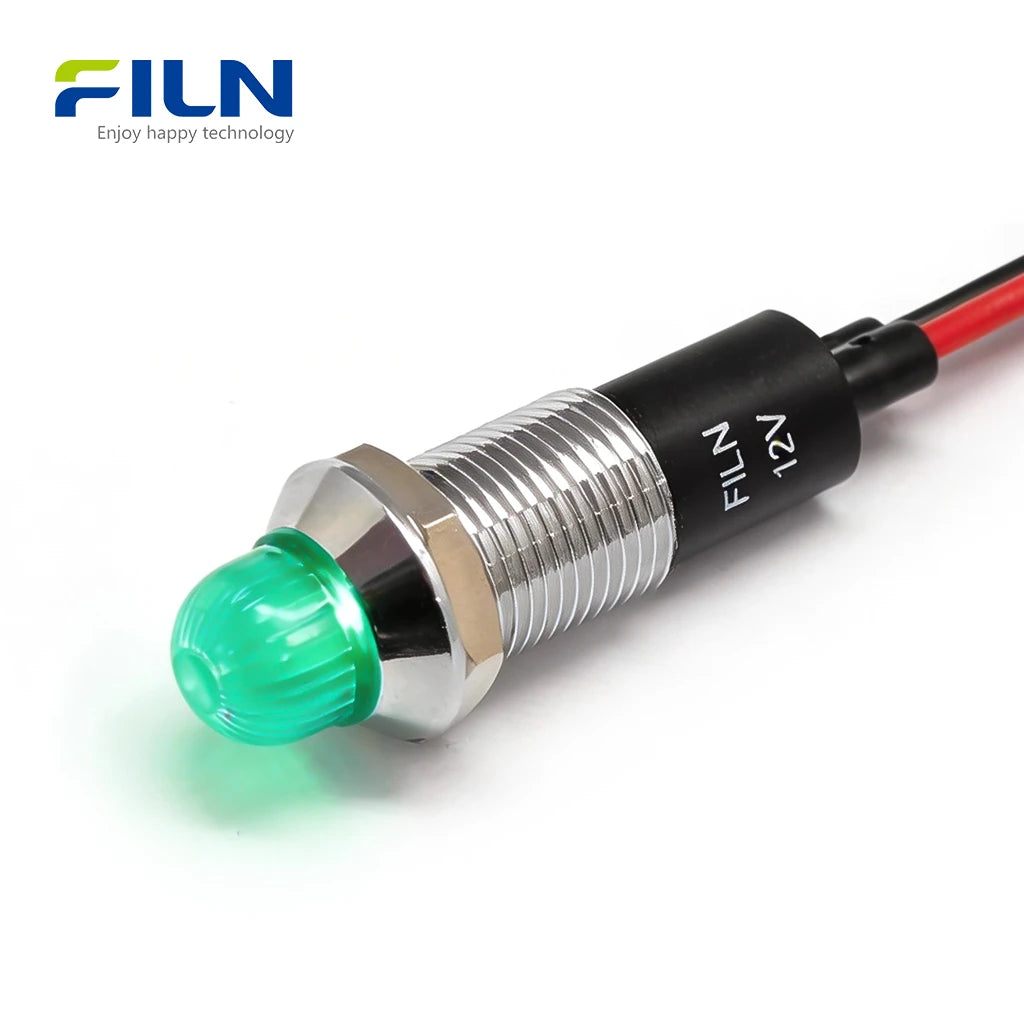

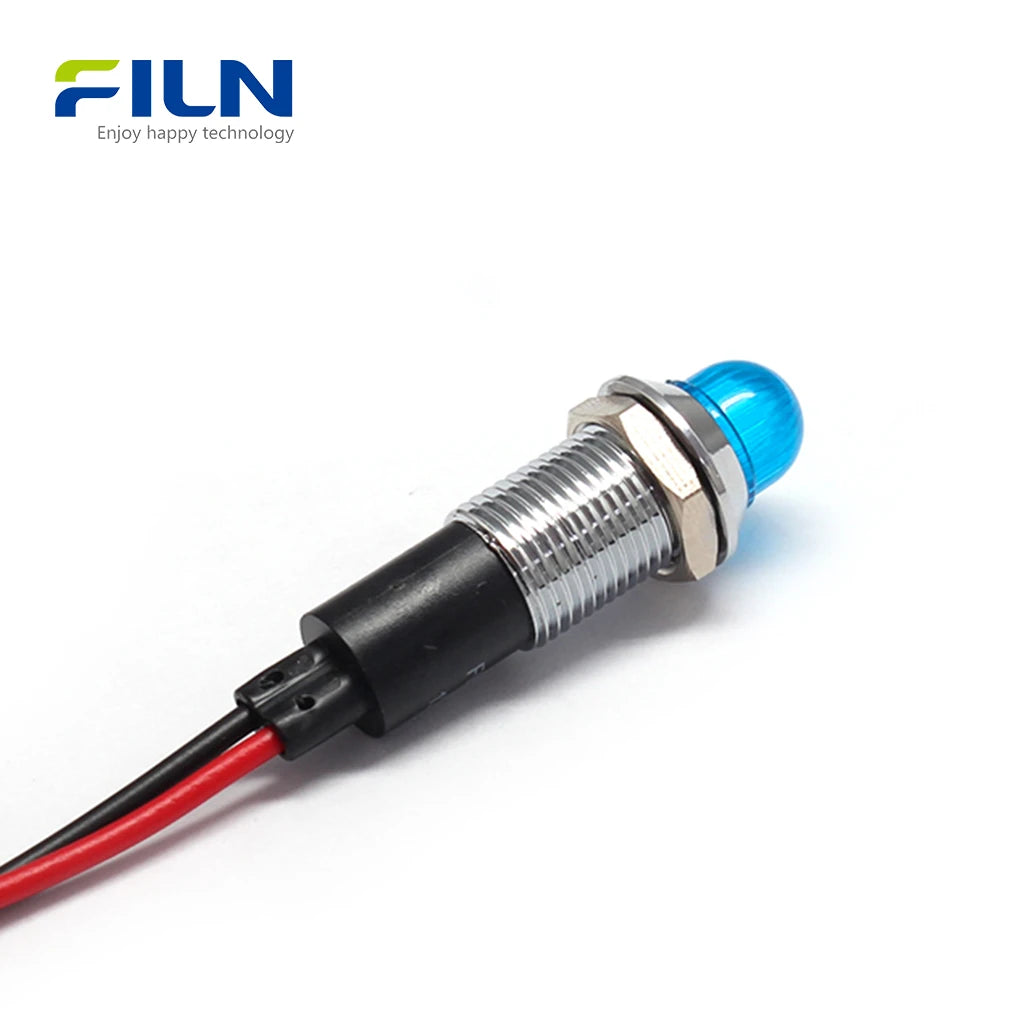

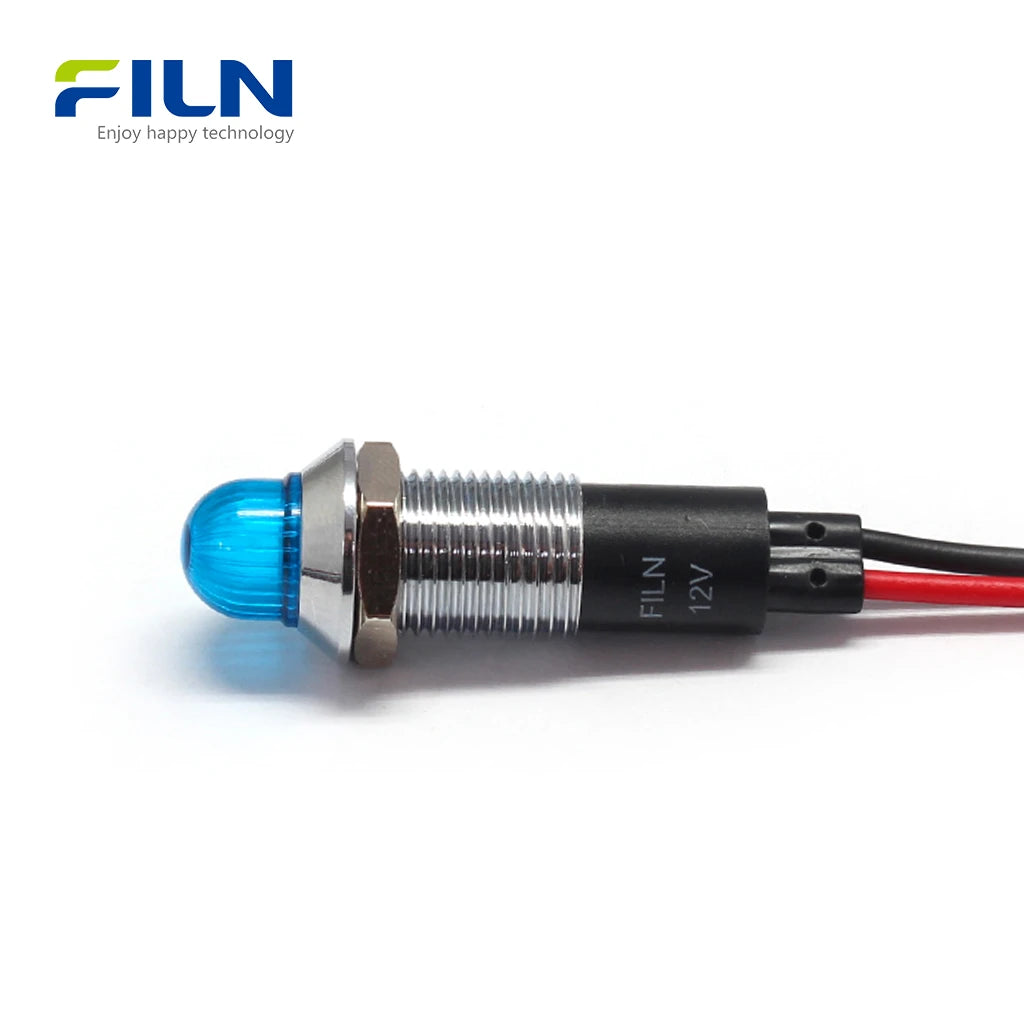

The led panel indicator lights (Model: FL1M-12BW-1) by FILN are high-performance signaling components engineered for demanding environments. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67, these 12mm indicators feature a robust metal domed head (球头) design for maximum 180-degree visibility. Ideal for industrial control panels, medical devices, marine yachts, and new energy systems, they offer a sleek finish in silver or black. The 15cm pre-wired leads provide a superior, vibration-resistant connection compared to traditional pin terminals, ensuring easy installation and a long service life of 50,000 hours.
Quick Specifications
| Mounting Hole | 12mm / 0.47" |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃～80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Wire Lead Type (15cm length) |
Rated Working Parameters
| Rated Voltage | Customized |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Nickel Plated / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Terminal | Pre-wired Lead |
| Wire Material | UL Standard Copper Wire (15cm) |
General Characteristics
| Application | Industrial, Medical, Marine, New Energy |
|---|---|
| Part Name | LED Indicator Light |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -40℃～85℃ |
| Relative Humidity | ≤85% at +40℃ |
| Waterproof Rating | IP67 |
*Ambient Temperature: 5~35℃; Air Pressure: 86~106Kpa
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Item | Test Condition | Requirement |
|---|---|---|
| Continuous Working Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| Test Type | Condition | Duration/Cycles |
|---|---|---|
| High Temperature | 80℃ | 96h |
| Low Temperature | -40℃ | 96h |
| Moisture Resistance | 40℃ 90-95%RH | 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ | 5 Rounds |
Key Features
- Domed Head Design: Provides wide-angle 180-degree visibility for status alerts from any direction.
- High Durability: Rated for over 50,000 hours of continuous operation with high-brightness LEDs.
- Superior Sealing: IP67 waterproof rating with a large O-type ring ensures reliability in wet or dusty environments.
- Easy Installation: Smooth M12 threads and included nuts allow for fast, secure mounting on various panel thicknesses.
- Vibration Resistant: Pre-wired 15cm leads eliminate the risk of loose connections common with traditional pin terminals.
Applications
- Industrial Automation: Control panels, CNC machinery, and factory production lines.
- Marine & Yachting: Deck instrumentation, bilge pump alerts, and navigation panel lighting.
- Medical Equipment: Patient monitoring status lights and diagnostic instrument indicators.
- New Energy: EV charging piles, solar inverter monitoring, and battery storage cabinets.
- Transportation: Dashboard signaling for specialized vehicles and testing equipment.
Installation Guide
- Drill a 12mm diameter hole in your panel.
- Place the O-type waterproof ring onto the indicator body.
- Insert the indicator light through the hole from the front side of the panel.
- Slide the M12 nut onto the threaded body from the back of the panel.
- Tighten the nut until the unit is securely fixed and the seal is compressed.
- Connect the 15cm wire leads to your power source.
What Is an LED Panel Indicator Light?
An led panel indicator light is a visual signaling device used in modern interfaces to provide real-time status updates—such as power status, system errors, or process completion—to operators. The domed head (球头) variant is specifically designed to extend beyond the panel surface, allowing the light to be seen from the side, which is critical for safety in large factory floors or marine environments. While traditional pin terminals (插脚) are common for PCB mounting, pre-wired leads are preferred for panel mounting as they offer easier wiring in tight spaces and superior protection against vibration-induced failure.
FILN Factory Direct Supply
Benefit from manufacturer direct pricing and full customization support
- Voltage Customization
- Wire Length Customization
- Connector Integration
- Custom Logo Engraving
- Fast Global Shipping
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are these 12mm indicator lights suitable for outdoor marine use?
A1: Yes, with an IP67 waterproof rating and metal housing, they are highly resistant to salt spray and moisture.
Q2: What is the benefit of the domed (ball) head over a flat head?
A2: The domed head protrudes from the panel, offering a much wider viewing angle (180 degrees) for improved safety monitoring.
Q3: Can I get a custom wire length longer than 15cm?
A3: Absolutely. As a direct factory, we support customization for wire length and connector types[cite: 4].
Q4: Why choose wire leads over pin/solder terminals?
A4: Pre-wired leads simplify installation in tight cabinets and provide a more secure connection in high-vibration environments.
Q5: Do you offer these in 220V for industrial machinery?
A5: Yes, we support standard voltages like 12V, 24V, 110V, and 220V, with custom options available.
Q6: What certifications do these lights have?
A6: Our products are certified by UL, CE, VDE, RoHS, SGS, and ISO9001.
Q7: Can I request a black housing instead of silver?

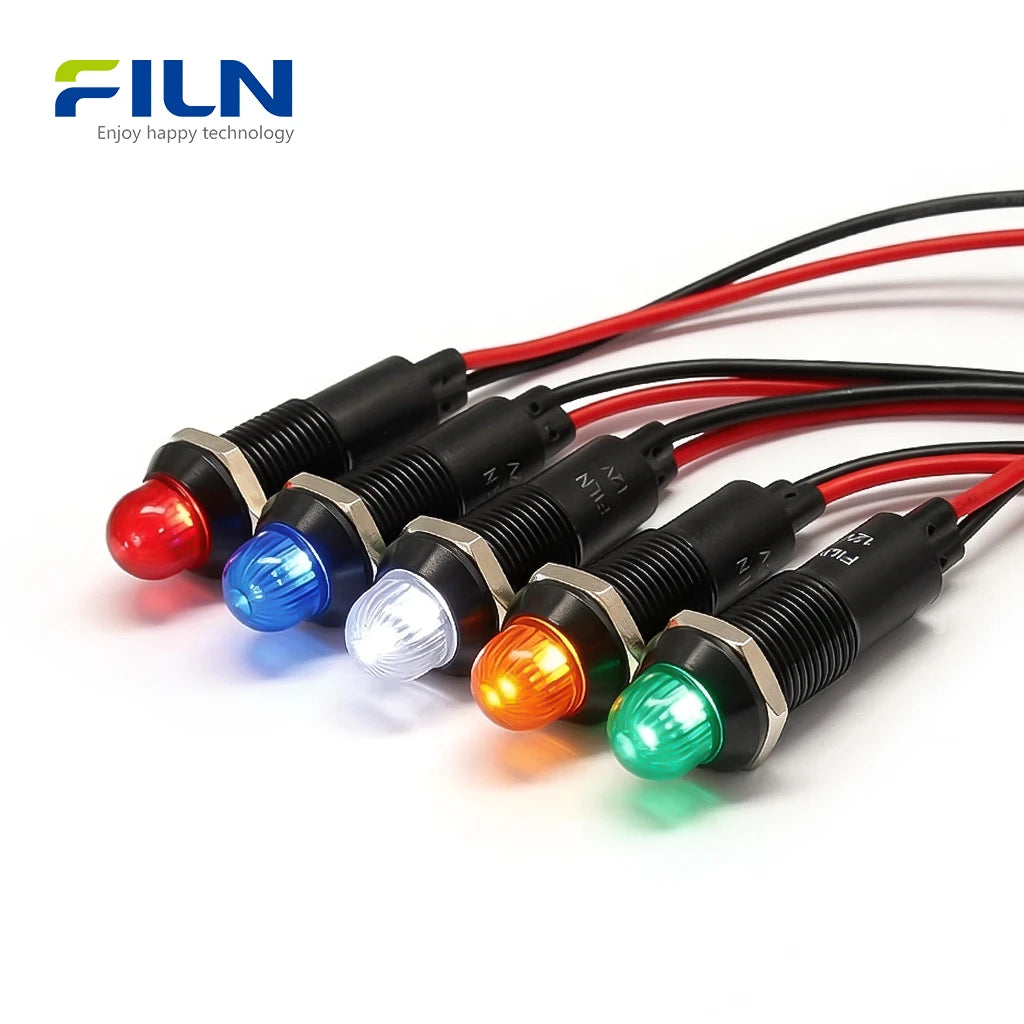

A7: Yes, we offer both nickel-plated brass (silver) and black anodized aluminum finishes.
Q8: What is included in the package?

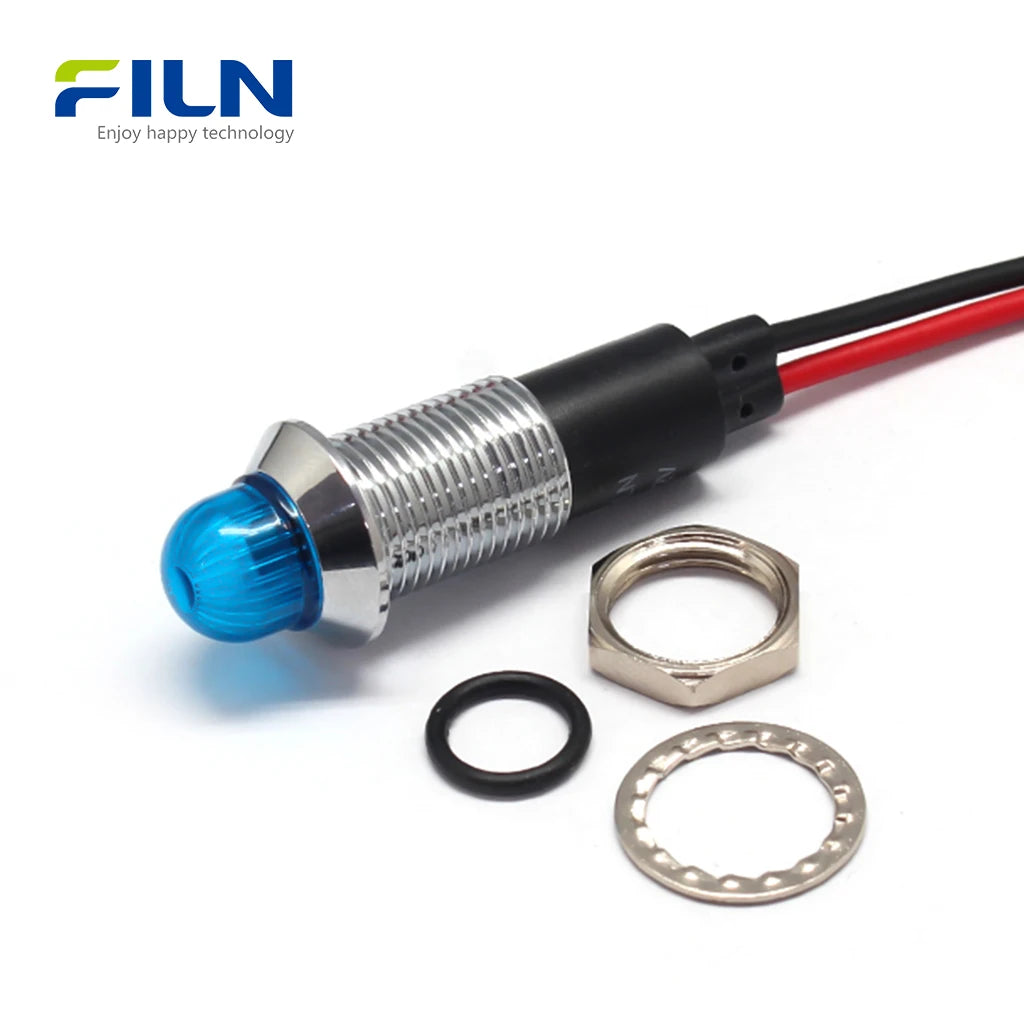

A8: Each light includes the indicator unit with 15cm leads, one M12 nut, and a waterproof O-ring.
Q9: Are these suitable for medical diagnostic equipment?
A9: Yes, the high reliability and certified materials make them ideal for medical and lab instrumentation.
Q10: Is the thread pitch standard for easy mounting?
A10: Yes, the M12 threads are precision-engineered for smooth rotation and secure locking with the included nut.
