Product Overview
This premium 6mm light indicator pilot (Model: FL1M-06FW-1) is now available for sale directly from our factory. As a leading manufacturer, FILN provides high-quality 6mm LED indicators designed for compact panel signaling. This model features a sleek flat-head metal design, offering a flush, professional finish on any control interface. Whether you need 12V, 24V, 110V, or 220V, our pre-wired indicator lights with 20cm leads are ready for immediate purchase. Our products carry ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67 certifications, making them the preferred choice for global industrial automation and electrical equipment.
Quick Specifications
| Mounting Hole | 6mm (0.24 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Custom Available) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | Pre-wired Lead (20cm Standard) |
| Head Type | Flat Head |
Component Material List
| Component Name | Material | Note |
|---|---|---|
| Shell | Copper Alloy | Chrome or Black Anodized |
| Lamp Holder | PA66 Nylon | High heat resistance |
| Lampshade | PC Polycarbonate | Impact resistant |
| O-ring | Silica Gel | IP67 Sealing |
| Nut | Copper Alloy | M6 Threaded |
Rated Working Parameters
| Rated Voltage | Customized (3V-380V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Copper Alloy (Silver/Black) |
|---|---|
| Lens | PC (Polycarbonate) |
| Seal Ring | Silicone Rubber |
| Terminal | Pre-wired Lead Wire |
General Characteristics
| Operating Temperature | -40℃～80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Test Condition | Requirement |
|---|---|
| 30mA 1000h continuous working | 50,000 hours lifespan |
Resistant Performance
| Test Item | Condition |
|---|---|
| High Temperature | 80℃ 96h |
| Low Temperature | -40℃ 96h |
| Temperature Cycling | -40℃ → 25℃ → 85℃ (5 Cycles) |
Key Features
- Ultra-Bright LED: High-visibility light output in multiple colors.
- Flat Head Design: Provides a professional aesthetic and prevents accidental triggering.
- Pre-wired Convenience: 20cm leads allow for immediate connection without soldering.
- IP67 Protection: Fully sealed against water and dust for harsh environments.
- Compact 6mm Profile: Ideal for high-density panel layouts.
Applications
Our 6mm light indicator pilots are widely used in:
- Industrial control panels and automation lines.
- Small and large electrical household appliances.
- CNC machinery and power distribution cabinets.
- Marine and automotive dashboard signal transmission.
- Medical equipment and laboratory instruments.
Installation Guide
- Drill a 6mm diameter hole in your mounting panel.
- Ensure the Silicone O-ring is placed on the indicator head.
- Insert the indicator through the hole from the front of the panel.
- From the rear, slide on the metal gasket and secure with the M6 nut.
- The O-ring and nut work together to create an IP67 waterproof seal and vibration-proof fastening.
What Is a 6mm Light Indicator Pilot?
A 6mm light indicator pilot is a miniature signal lamp used to indicate the power status, circuit faults, or operational modes of electrical systems. The flat-head design is specifically engineered to be flush with the panel, reducing the risk of impact damage and creating a modern, clean look.
Wiring vs. Pin Terminals: Unlike pin terminal indicators which require female connectors or careful soldering, pre-wired (wire lead) indicators come with direct output leads. This simplifies the assembly process, especially in tight spaces where soldering is difficult. The M6 nut and smooth threading ensure that the device remains locked under high-vibration conditions, while the silicone O-ring prevents moisture from penetrating the panel.
Factory Direct Supply
FILN is your trusted partner for industrial signaling solutions:
- Factory Direct: No middleman, best prices for sale.
- Full Customization: Voltage, wire length, and connectors.
- Fast Shipping: Global logistics for urgent industrial needs.
Official Website: www.filn.com
Contact Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I purchase these 6mm light indicator pilots directly?
Yes, they are available for sale directly through our online store with global shipping.
2. What voltages are supported?
We support 12V, 24V, 110V, 220V, and can customize any voltage from 3V to 380V.
3. Is the wire length adjustable?
The standard length is 20cm, but we can customize the wire length to meet your specific equipment requirements.
4. How do I achieve the IP67 waterproof rating?
Ensure the O-ring is properly seated on the indicator head before inserting it into the 6mm panel hole.
5. What is the advantage of the flat-head design?
It provides a flush appearance and is less likely to be damaged by external forces compared to domed heads.
6. Are black shells available?
Yes, we offer both silver (chrome-plated) and black anodized metal housings.
7. Do you provide samples for B2B clients?
Yes, please contact us via email to request samples for testing in your electrical devices.
8. What is the typical lifespan of the LED?
Our industrial-grade LEDs have a continuous working life of over 50,000 hours.
9. Are these indicators compliant with US standards?
Yes, our products are UL and RoHS certified, ensuring high safety standards.
10. Can you add connectors to the ends of the wires?
Yes, we offer customization for various connectors like JST, Molex, or Dupont pins.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
D
Excellent quality indicators for custom electronic panels. The 6mm size is extremely neat and minimal. Will continue to buy from FILN for our future manufacturing needs.
Thank you for your fantastic review! We are delighted to support your compact electronic designs with our high-quality 6mm mini indicators.
D
Fantastic experience buying from FILN. Their product documentation is complete with all required CE/RoHS certifications, which makes compliance approvals very straightforward for us.
Thank you for your fantastic review! We are delighted to support your compact electronic designs with our high-quality 6mm mini indicators.
A
All good. Friendly business.
D
We've integrated these mini indicator lights into our test benches since 2021. The threads run perfectly smooth, making automated assembly an absolute breeze. Very bright output.
C

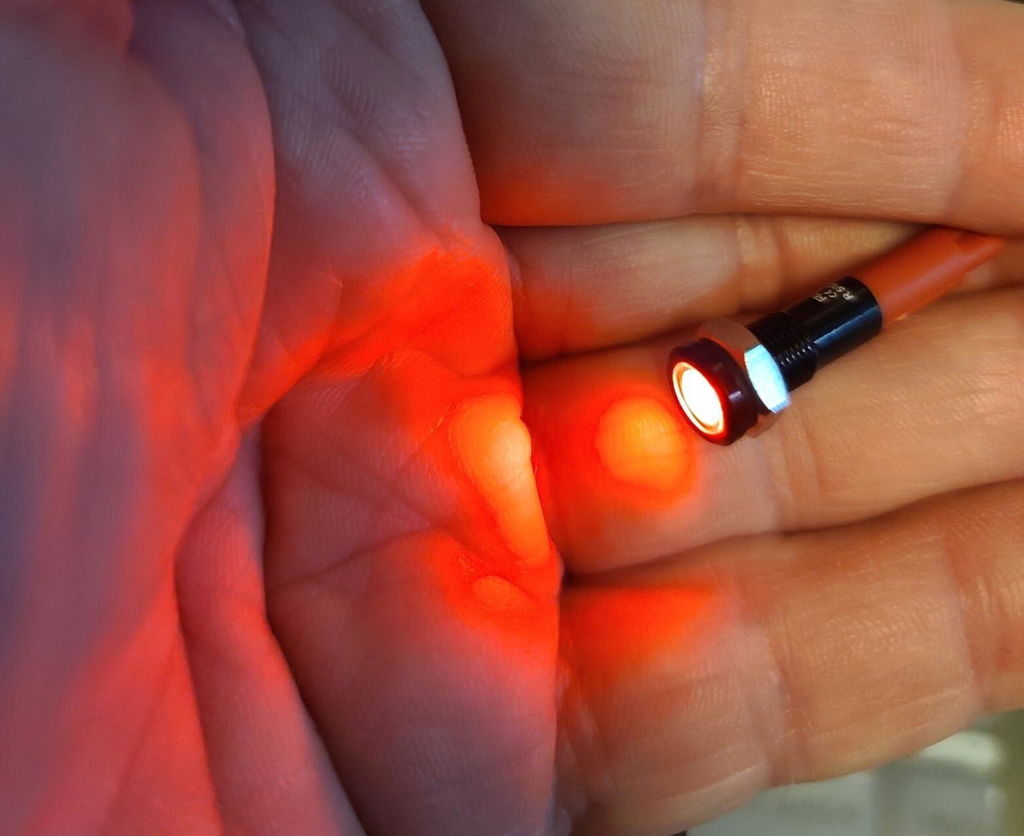

Superb durability and clear brightness. We use these in a marine telemetry box where space is highly restricted. The pre-wired design is rugged and resists vibrations well.
Thank you for your valuable feedback regarding the pre-wired setup. We are glad our polarless design saves your assembly line significant time.
J
Superb durability and clear brightness. We use these in a marine telemetry box where space is highly restricted. The pre-wired design is rugged and resists vibrations well.
E
Die Mini-Metall-Anzeigen von FILN überzeugen qualitativ auf ganzer Linie, aber die Lieferzeit nach Hamburg war diesmal schlicht zu lang. Der Kundenservice hat zum Glück zügig geantwortet und geholfen.
Dear customer, we deeply apologize for the delayed shipping caused by unexpected logistics carrier constraints. We are actively optimizing our global air freight channels to ensure much speedier international transits for your future orders. Thank you for recognizing our 6mm indicator build quality!
P

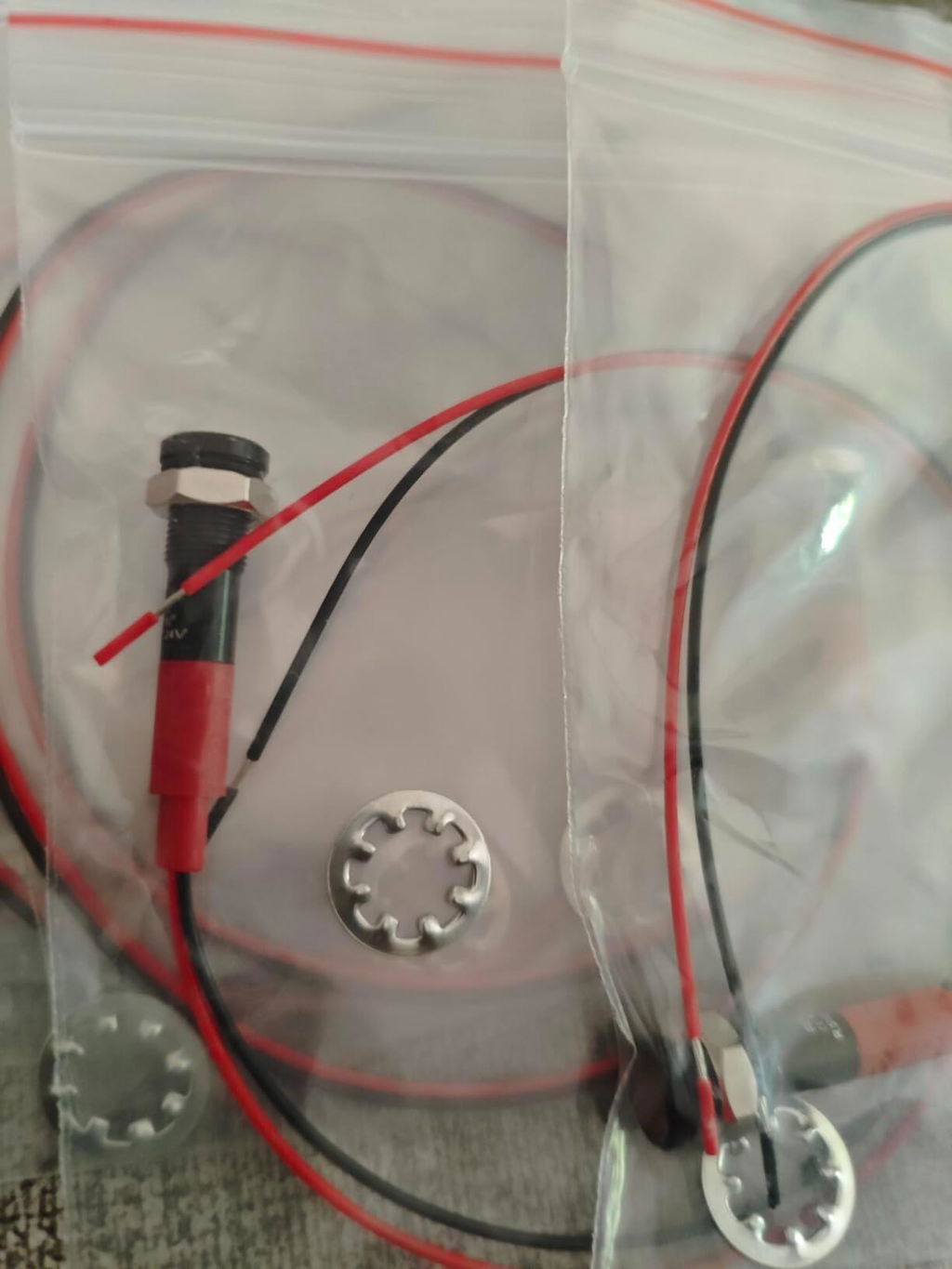

Ordered a large batch of the black shell 6mm flat head indicators. The lighting is crisp and easily visible from distances. Wiring is simple: tie common grounds, then connect target signal directly.
