What is ON OFF ON Rocker Switch?
An on off on rocker switch is a three-position electrical controller that allows a single power source to alternate between two separate output circuits or remain in a central neutral "OFF" state. The FL3-KCD4-0121-23 model is a professional KCD4 series rectangular switch featuring an ordinary plastic surface and a reinforced mounting frame. Designed for 30x22mm cutouts, this 6-pin configuration functions as a Double Pole Double Throw (DPDT) mechanism, ideal for motor direction control and complex dual-circuit management.
Product Overview

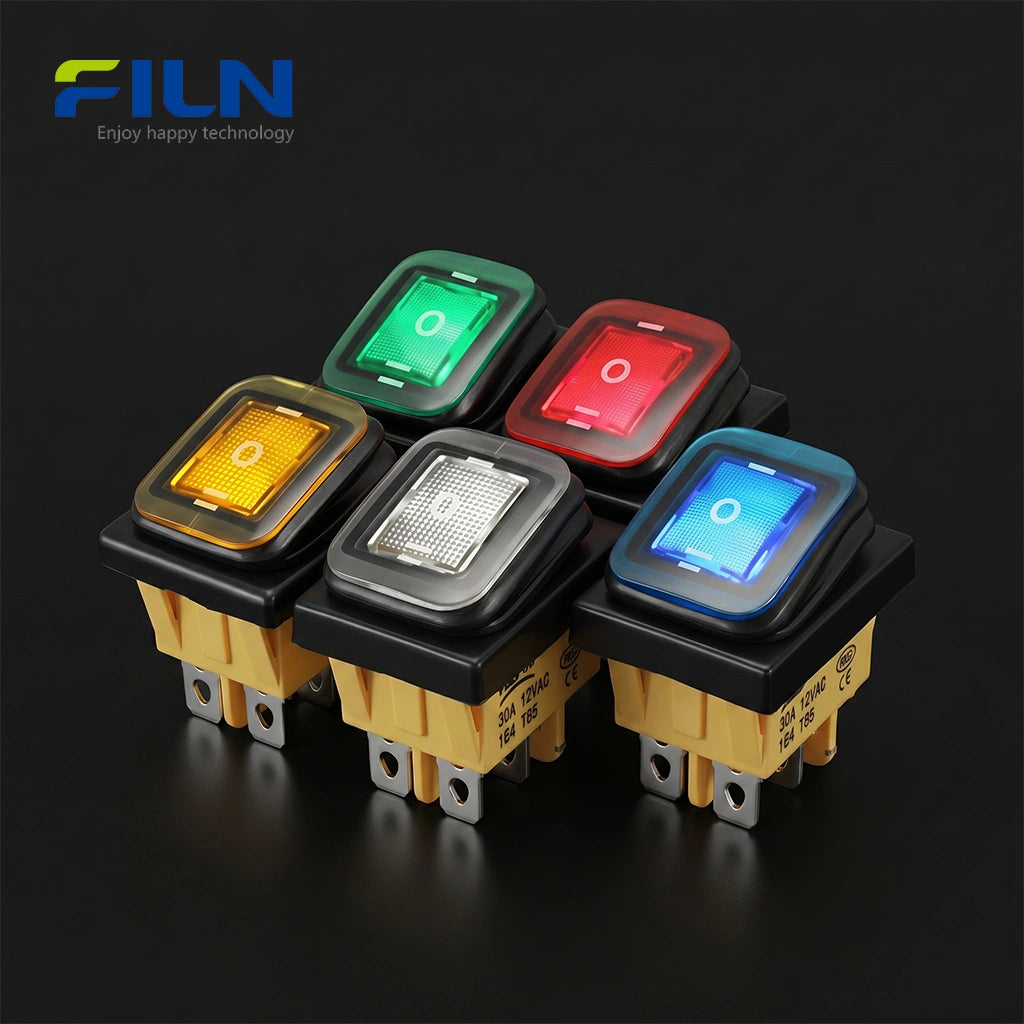

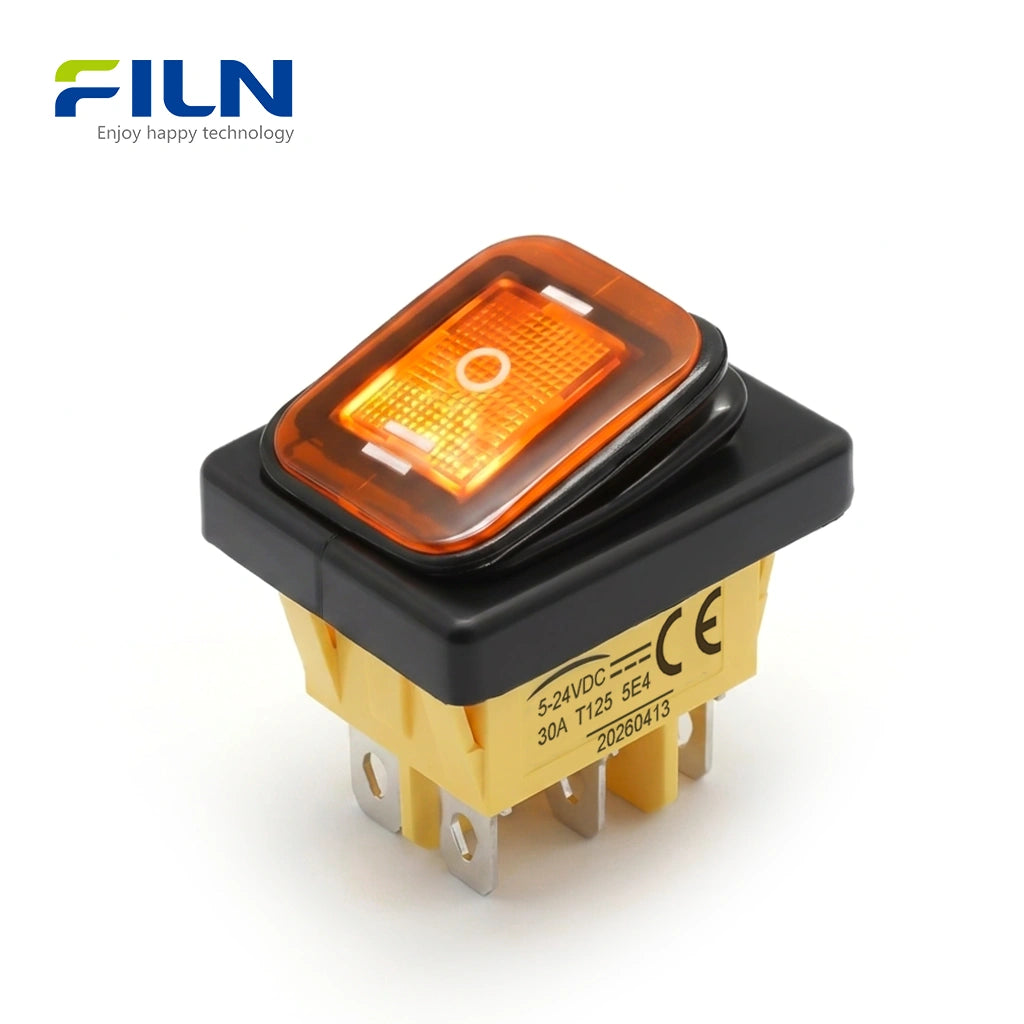

The FILN on off on rocker switch is a market-universal solution for high-reliability circuit switching. This model features an ordinary plastic surface that is easy to clean, highly fashionable, and provides a smooth tactile response. Equipped with an integrated LED indicator, it ensures high visibility in dark environments, while the black non-lighted version offers a versatile aesthetic for all-purpose panels. The switch is built into a framed housing for extra stability, yet maintains an IP65 waterproof rating for outdoor applications. Supporting a wide range of voltages from 5V to 220V, it is the perfect component for any device requiring precise three-gear control.
Introduction to 3-Position Rocker Switch Functions
| Function Type | Operation Logic | Typical Application |
|---|---|---|
| ON-OFF-ON | The center position is OFF. Toggling up activates Circuit A; toggling down activates Circuit B. | Motor forward/reverse, high/low speed toggles. |
| (ON)-OFF-(ON) | Momentary action: The switch returns to the center OFF position automatically when released. | Winch controls, electric window toggles. |
| ON-ON-ON | Special dual-circuit bridging where specific poles remain active across different positions. | Guitar pickups, specialized industrial modes. |
Quick Specifications
| Model Number | FL3-KCD4-0121-23 |
| Mounting Cutout Size | 30X22MM |
| Function Logic | ON-OFF-ON (3-Position) |
| LED Colors | RGYBW (Red, Green, Yellow, Blue, White) |
| Terminal Pins | 6-Pin Plug-in Terminals |
| Frame Included | Yes (With Frame) |
| Actuator Finish | Ordinary Plastic Surface |
Performance Parameters
| Rated Load Capacity |
16A 250VAC
|
| Voltage Range | 5V-24V / 110V-220V / Custom |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Service Life | 10,000 Cycles |
| Waterproof Grade | IP65 Waterproof |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Design Advantages: Stability & Style
The on off on rocker switch with a black plastic surface is optimized for both durability and modern aesthetics. This surface is exceptionally easy to clean and maintains its sleek finish even in high-traffic industrial environments. For users requiring visual feedback, the illuminated KCD4 rocker switch provides a bright, localized light that enhances visibility in dark conditions, ensuring the operator can always confirm the switch's position. The inclusion of a mounting frame ensures the switch remains securely locked in place, even under mechanical stress or vibration.
Snap-in Mounting & Wiring Steps
Installation of the 6-pin rocker switch is designed to be efficient for mass production or individual projects:

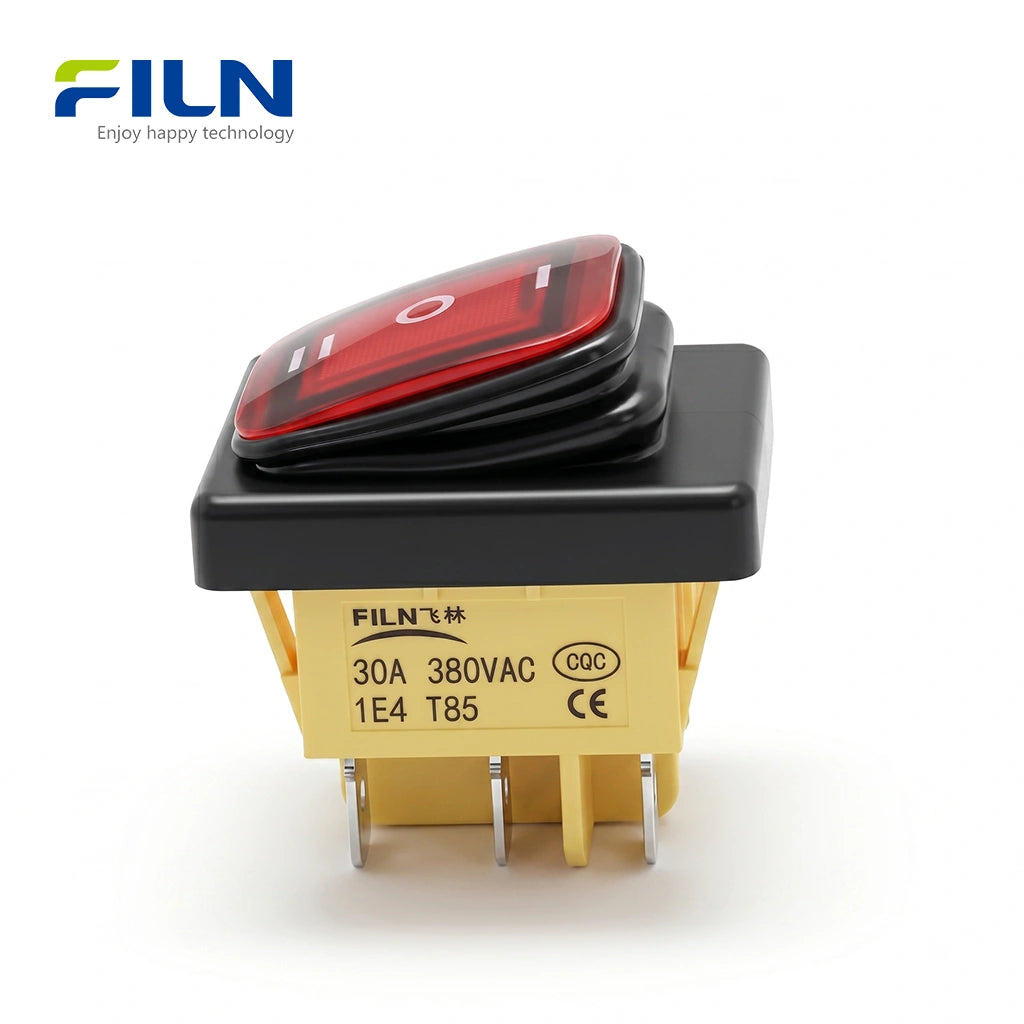

- Perform a rectangular cutout on your panel measuring exactly 30x22mm.
- Align the switch from the exterior side of the panel.
- Push the switch into the hole; the integrated side clips will retract and then lock firmly behind the panel for a secure fit.
- Complete the electrical circuit by connecting your wires to the 6-pin terminals on the back.
Complete 6 Pin Rocker Switch Wiring Diagram and Connection Guide
A 6 pin rocker switch wiring diagram is a vital resource for complex electrical systems requiring the simultaneous control of two separate circuits or the reversal of motor polarity. This 6-pin configuration typically functions as a Double Pole Double Throw (DPDT) switch. It is frequently used in industrial machinery, automotive power windows, and marine equipment where multi-device management is required from a single control point. This wiring schematic is universal and applies to both illuminated (lighted) and non-illuminated 6-pin rocker switches.
How to Wire a 6 Pin Rocker Switch: Connection Steps

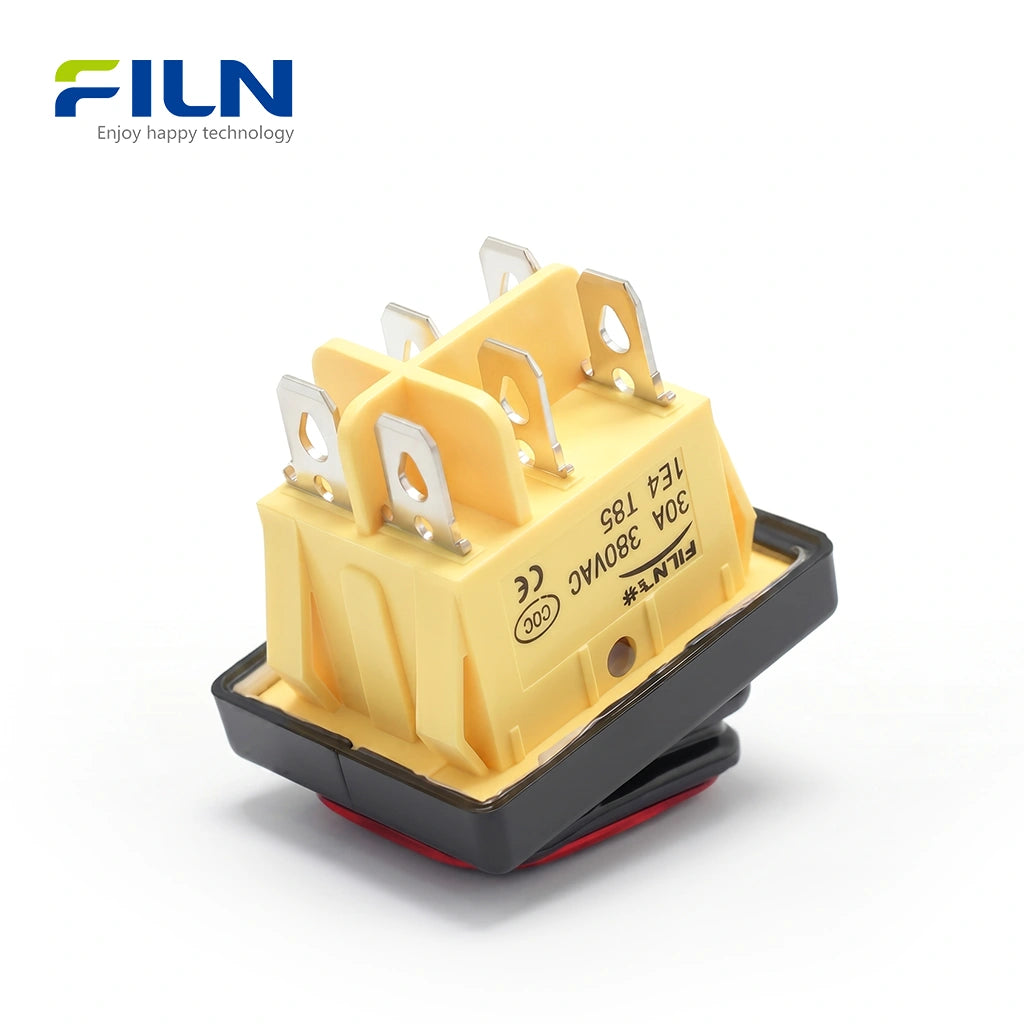

According to the technical schematic, a 6-pin switch features two independent columns of terminals. Follow these steps to ensure a correct and safe connection for both lighted and non-lighted models:
- 1. Central Power Input: Connect the positive (+) wires from your power source to the middle pair of pins. These terminals act as the common feed for the entire switch.
- 2. Device 1 Connection (Up Position): Connect the top pair of pins to the terminals of your first device (Device 1). When the rocker is toggled to the "Up" position, the circuit to Device 1 is closed.
- 3. Device 2 Connection (Down Position): Connect the bottom pair of pins to your second device (Device 2). Toggling the switch to the "Down" position redirects power to this device.
-
4. Grounding and Illumination:
- For Illuminated Switches: The negative (-) wire must be connected to the dedicated ground pin (often indicated by a different color or label) to power the internal LED. In many DPDT configurations, the lamp remains lit to act as a locator light.
- For Non-Illuminated Switches: Connect the negative (-) wires from both Device 1 and Device 2 directly back to the negative terminal of the power supply. The switch body itself does not require a ground connection.
Switch Operation and Load Logic
| Switch State | Device 1 Status | Device 2 Status | LED Status (If Lighted) |
|---|---|---|---|
| UP Position | ON (Active) | OFF | ON |
| Normal (Middle) | OFF | OFF | ON (Constant) |
| DOWN Position | OFF | ON (Active) | ON |
Technical Considerations and Precautions

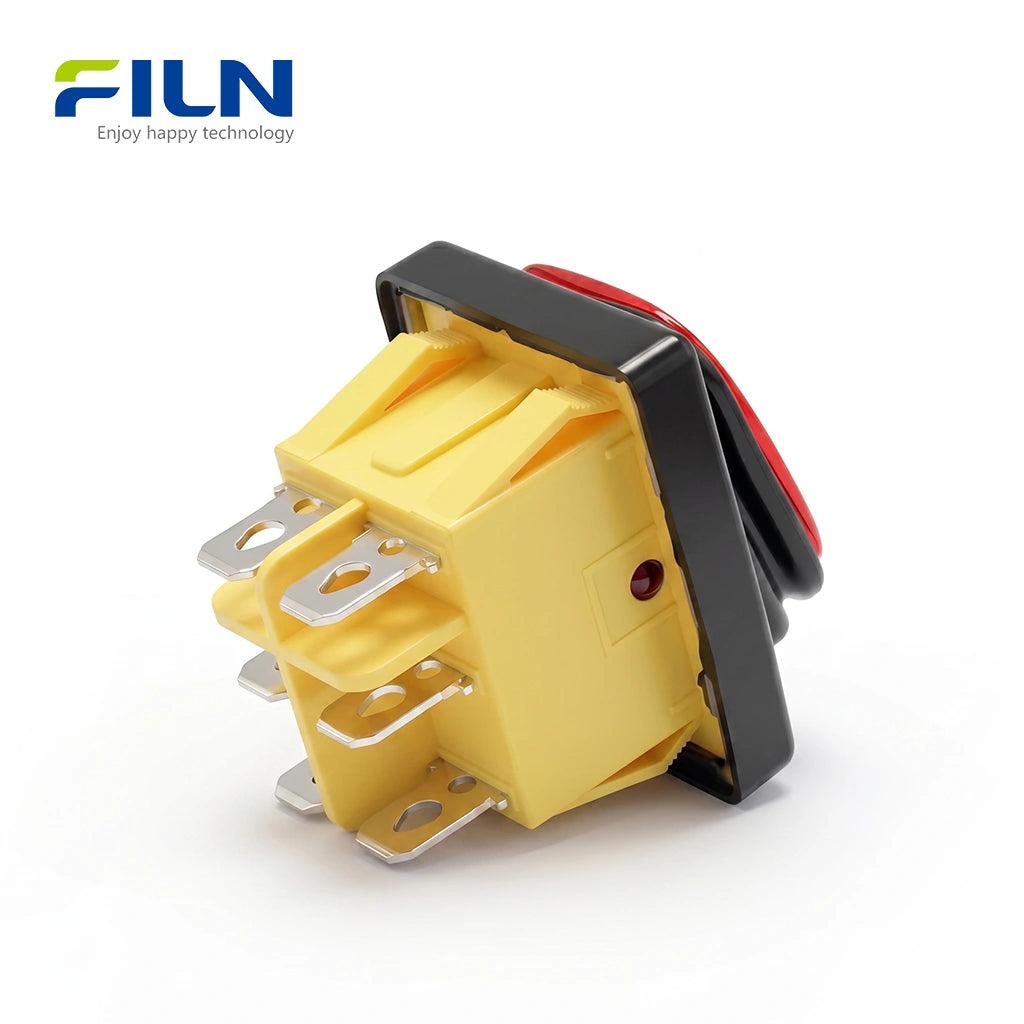

- DPDT Versatility: Because a 6-pin switch handles two independent poles, it can be used for dual-circuit control or to create a polarity-reversal circuit (enabling forward and reverse motor directions).
- Voltage and Amperage: Ensure the switch is rated for your load. Industrial 6-pin switches (like the KCD4 series) are often rated for 15A 250VAC. Overloading terminals can lead to contact welding.
- Internal Lamp Compatibility: If using an illuminated rocker switch, confirm whether the lamp is rated for DC (12V/24V) or AC (110V/220V) to avoid damaging the internal indicator.
- Terminal Security: Use insulated crimp connectors. Given the pin density, insulation is critical to prevent accidental bridging and short circuits between the two poles.
Figure 1: Connection Schematic for 6-Pin Rocker Switches (Applicable to Illuminated & Non-Illuminated Versions)
Broad Application Scenarios
The on off on rocker switch is an essential component for any device requiring multi-circuit control. Its IP65 waterproof rating and frameless integrated shell (for specific outdoor versions) make it suitable for:
- Industrial Control: Motor reversing and conveyor belt management.
- Automotive & Marine: Bilge pump control and cabin lighting selection.
- Household Appliances: Multi-speed fans, air purifiers, and kitchen equipment.
- Medical Equipment: Patient bed adjustment and power mode selection.
Factory Direct Supply & Customization
FILN is a specialized manufacturer offering factory pricing with No MOQ. We support full customization of Voltage (5V-220V), LED Colors, and custom Wiring Harnesses. Our switches are certified for global sale, ensuring your products meet all safety standards.
Official Site: www.filn.com
Email Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How many pins does this illuminated on off on rocker switch have?
This model features 6 pins (DPDT), allowing it to control two separate circuit poles in a 3-position configuration.
2. Can I use the 6-pin rocker switch for motor reversing?
Yes, the ON-OFF-ON 6-pin setup is perfect for swapping polarity to change motor direction.
3. Is the KCD4 30x22mm switch waterproof for outdoor use?
Absolutely. It has an IP65 rating and a frameless integrated body version specifically designed for outdoor environments.
4. What are the benefits of the 6-pin lighted rocker switch?
The 6 pins provide complex control logic, and the LED ensures safe and accurate operation in dark conditions.

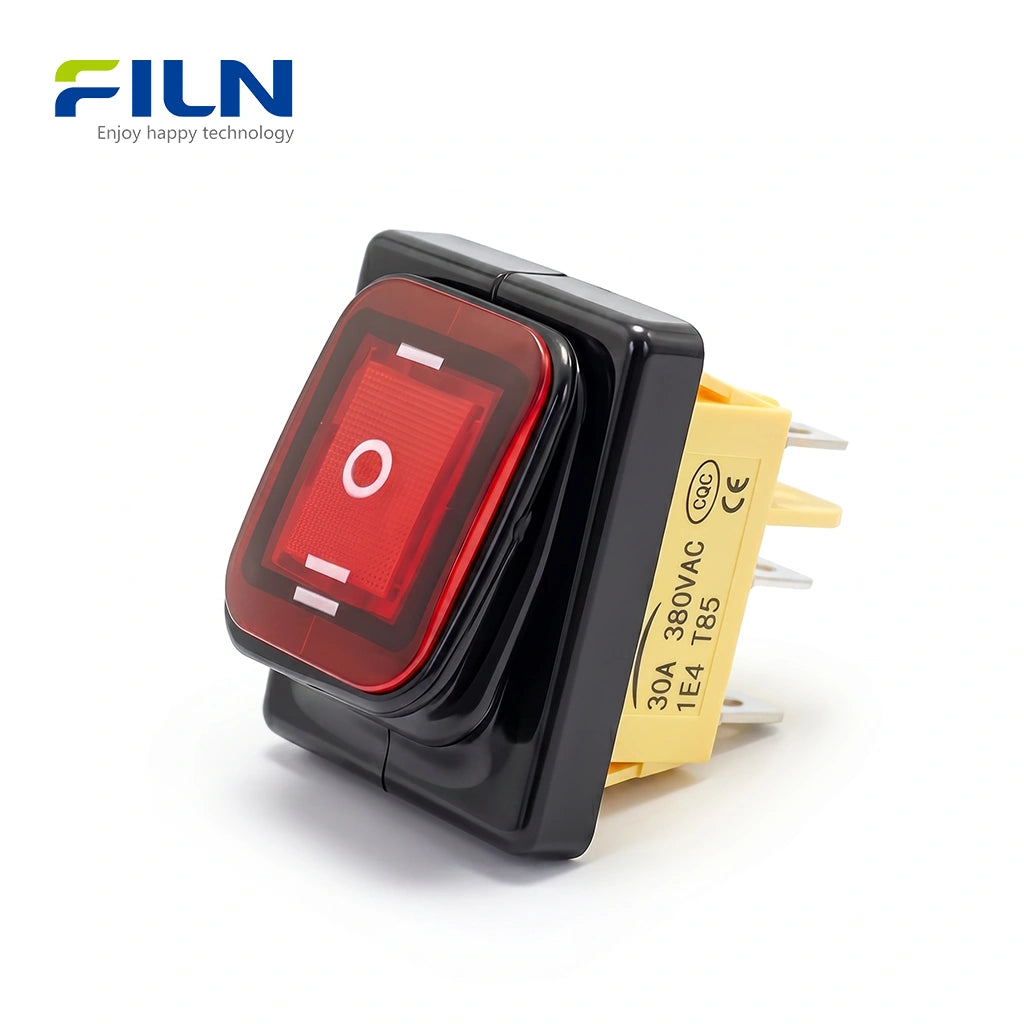

5. Does this rocker switch come with a mounting frame?
Yes, this specific model (FL3-KCD4-0121-23) includes a mounting frame for enhanced panel stability.
6. Can I get a custom LED color for the 3-position switch?
Yes, FILN factory offers RGYBW (Red, Green, Yellow, Blue, White) LED options to match your design.
7. Why is the ordinary plastic surface considered fashionable?
It provides a clean, matte, or gloss black finish that is timeless, professional, and very easy to maintain.
8. Is there a minimum order quantity (MOQ) for custom voltages?
No, FILN factory provides custom voltage services with no minimum order requirements.
9. How long is the electrical service life of this switch?
It is rated for a minimum of 10,000 electrical cycles under full rated load.
10. Does this switch have international safety certifications?
Yes, it is fully certified with UL, CE, RoHS, VDE, and SGS for worldwide distribution.
