Product Overview

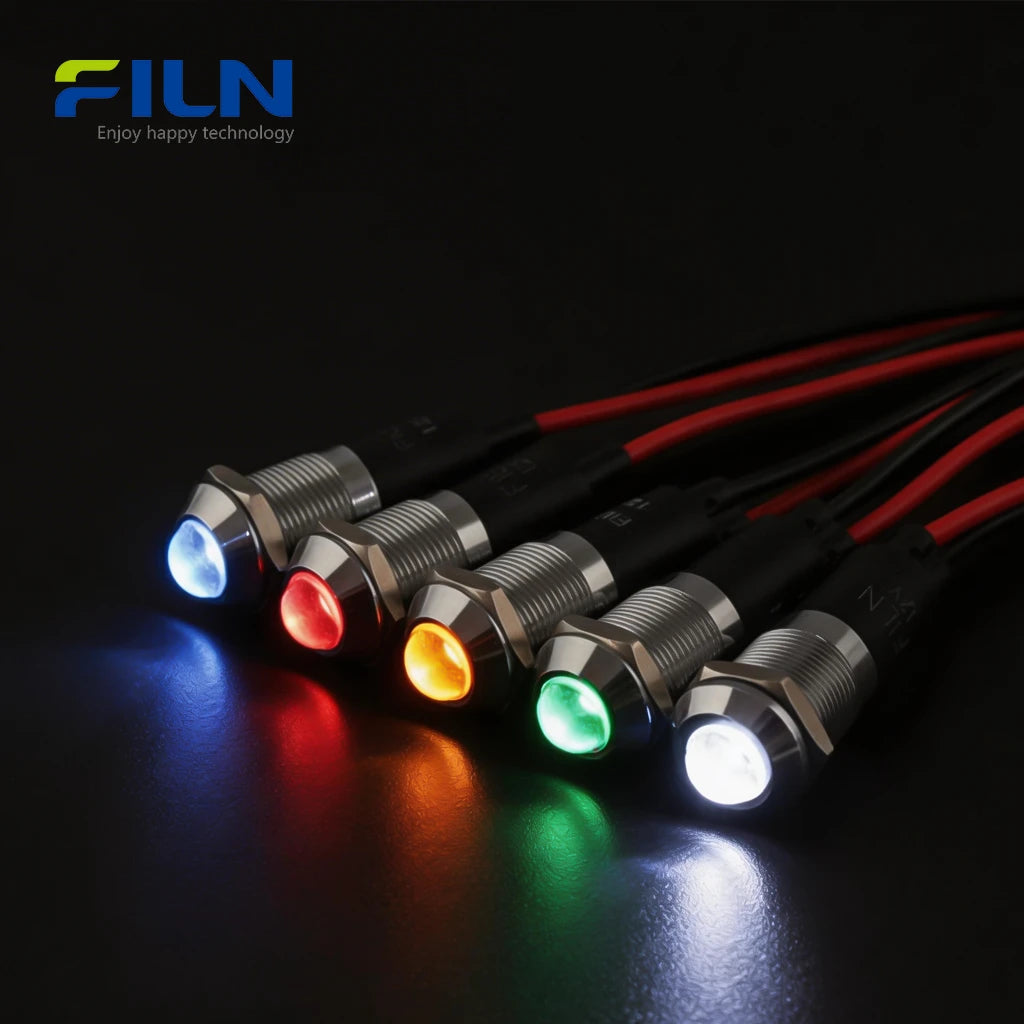

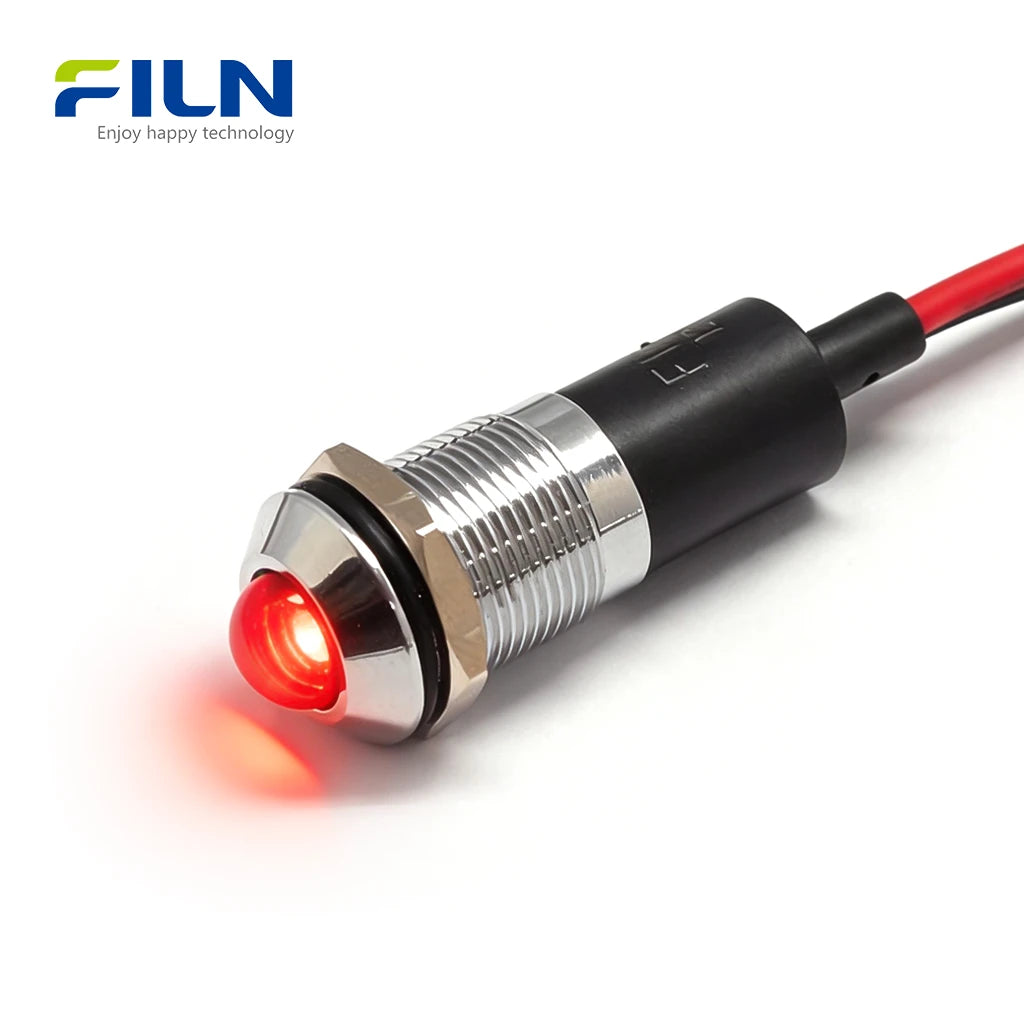

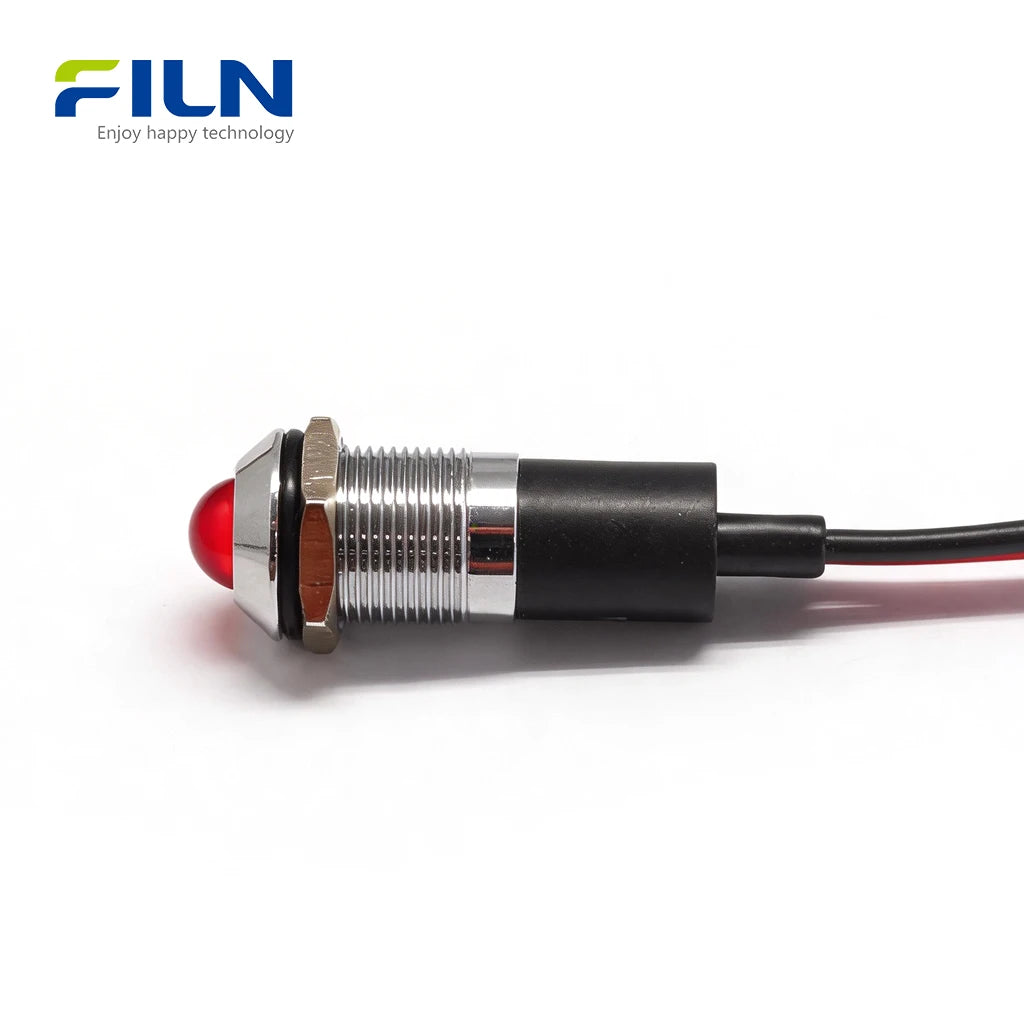

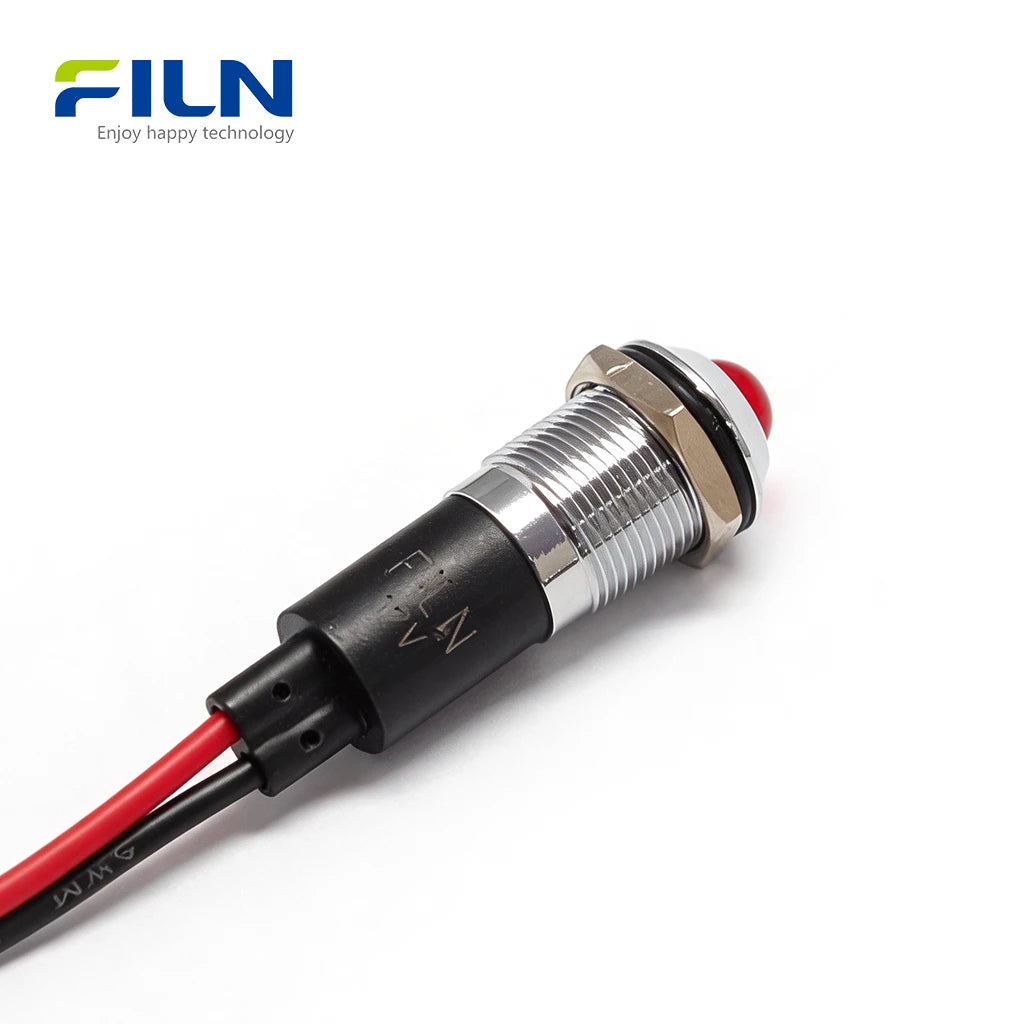

The FILN 12mm panel mount indicator lights (Model: FL1M-12SW-1) are engineered for high-performance signaling in demanding environments. Featuring a robust metal high-head design and IP67 waterproof rating, these lights offer superior visibility and durability compared to standard flat-head versions. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65[cite: 1], they ensure global compliance for industrial control panels, CNC machines, medical devices, and marine systems. The pre-wired 15cm wire lead design simplifies installation compared to traditional pin terminals, providing a secure, vibration-resistant connection[cite: 4].
Quick Specifications
| Mounting Hole | 12mm / 0.47 inch |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Wiring Type | 15cm Wire Lead Type |
| Lifespan | 50,000 Hours |
Rated Working Parameters
| Rated Voltage | 3V - 380V (Customized) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Brass with Nickel Plating / Black Anodized Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Wire Material | AWG Standard UL Copper Wire |
General Characteristics
| Operating Temperature | -40℃ ～ 80℃ |
|---|---|
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86 ～ 106Kpa |
Electric Property
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown/flashover |
Key Features
- LED High Brightness: Exceptional visibility from all angles with high-head lens design.
- Long Lifespan: Rated for over 50,000 hours of continuous operation.
- IP67 Waterproof: Includes an O-type waterproof ring for reliable performance in wet environments.
- Easy Installation: Pre-wired 15cm leads with smooth M12 threads and nuts for fast mounting.

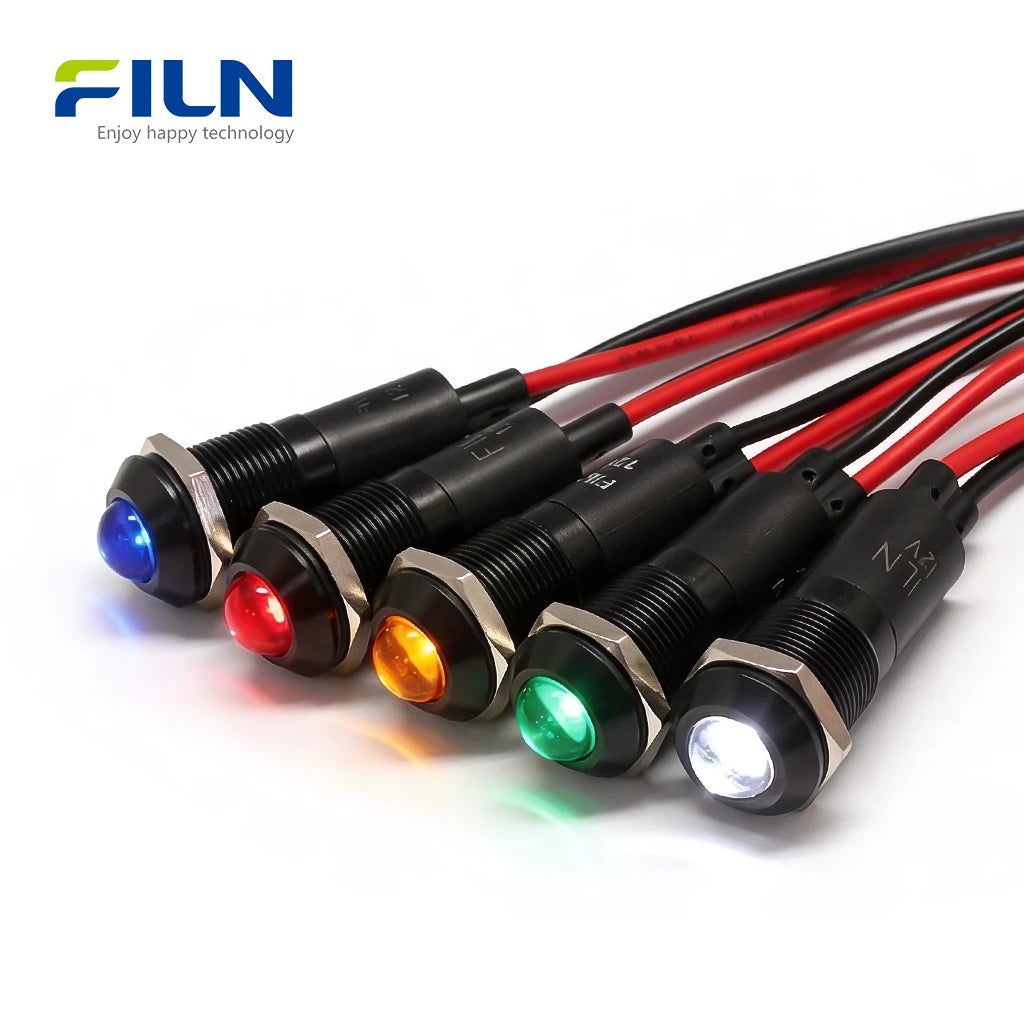

- Industrial Grade: High-quality metal housing available in silver or black finishes.
Applications
- Industrial Control Panels & Automation Equipment
- CNC Machining Centers & Test Equipment
- Marine Instrumentation & Yacht Control Systems
- Medical Monitoring Devices
- New Energy Charging Stations & Electrical Cabinets
Installation Guide
- Drill a 12mm hole in the desired position on your panel.
- Insert the indicator light through the hole from the front side.
- Slide the O-type waterproof ring onto the light body behind the panel.
- Tighten the M12 nut onto the threaded body to secure the light firmly.
- Connect the 15cm wire leads to your power source (Red: Positive, Black: Negative for DC).
What is a Panel Mount Indicator Light?
A panel mount indicator light is a critical visual signaling component used in human-machine interfaces (HMI). Its primary role is to provide real-time status updates—such as "Power On," "System Error," or "Cycle Complete"—to operators. The 12mm size is a global standard for compact yet highly visible status indication. High-head designs are preferred in industrial settings because they offer a wider viewing angle compared to flush-mount versions. By using wire lead connections instead of pin terminals, these lights offer better resistance to mechanical stress and vibration, making them ideal for mobile machinery and marine applications. [cite: 1, 2, 3]
FILN Factory Direct Supply
Benefit from direct manufacturer pricing and comprehensive customization options:
- Custom Voltage Support
- Wire Length Customization [cite: 4]
- Connector Integration
- Custom Logo Engraving
- Fast Global Shipping
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Are these 12mm indicator lights suitable for outdoor use?
A1: Yes, the IP67 rating ensures they are completely protected against dust and water immersion up to 1 meter.
Q2: Can I get a custom wire length longer than 15cm?
A2: Absolutely. As a factory, FILN supports custom wire lengths to fit your specific cabinet layout.
Q3: What is the advantage of the high-head design?
A3: The high-head protrudes from the panel, making the light visible from the side, which is crucial for safety monitoring.
Q4: Do you offer different housing colors?
A4: Yes, we provide standard silver nickel-plated brass and premium black anodized aluminum housings.
Q5: Can these be used with 220V AC power?
A5: Yes, our 12mm lights support a wide range of voltages from 12V to 220V AC/DC.
Q6: Is the mounting nut included?

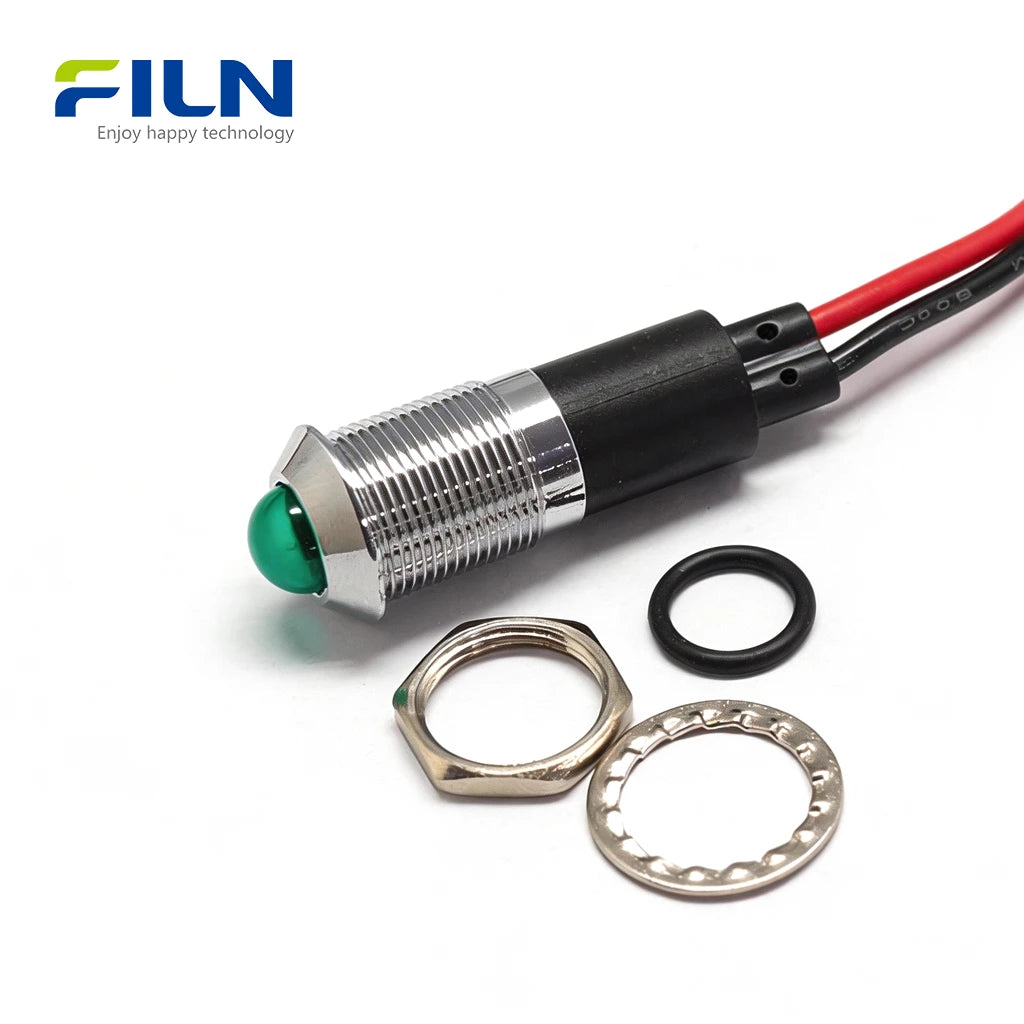

A6: Each light comes with a high-quality M12 nut and a waterproof O-ring for a complete installation.
Q7: What is the lifespan of the internal LED?
A7: The high-brightness LED is rated for over 50,000 hours of continuous use.
Q8: Can these be used in medical equipment?
A8: Yes, with UL and CE certifications, they are suitable for medical and testing instruments.
Q9: How do I choose between wire leads and pin terminals?
A9: Wire leads (this model) are easier for manual wiring and better for vibration-heavy environments, while pins are often used for PCB or quick-connect headers.
Q10: Are they resistant to chemicals for marine use?
A10: The metal housing and PC lens are designed to withstand salt spray and harsh environmental conditions common in marine applications.
