Product Overview

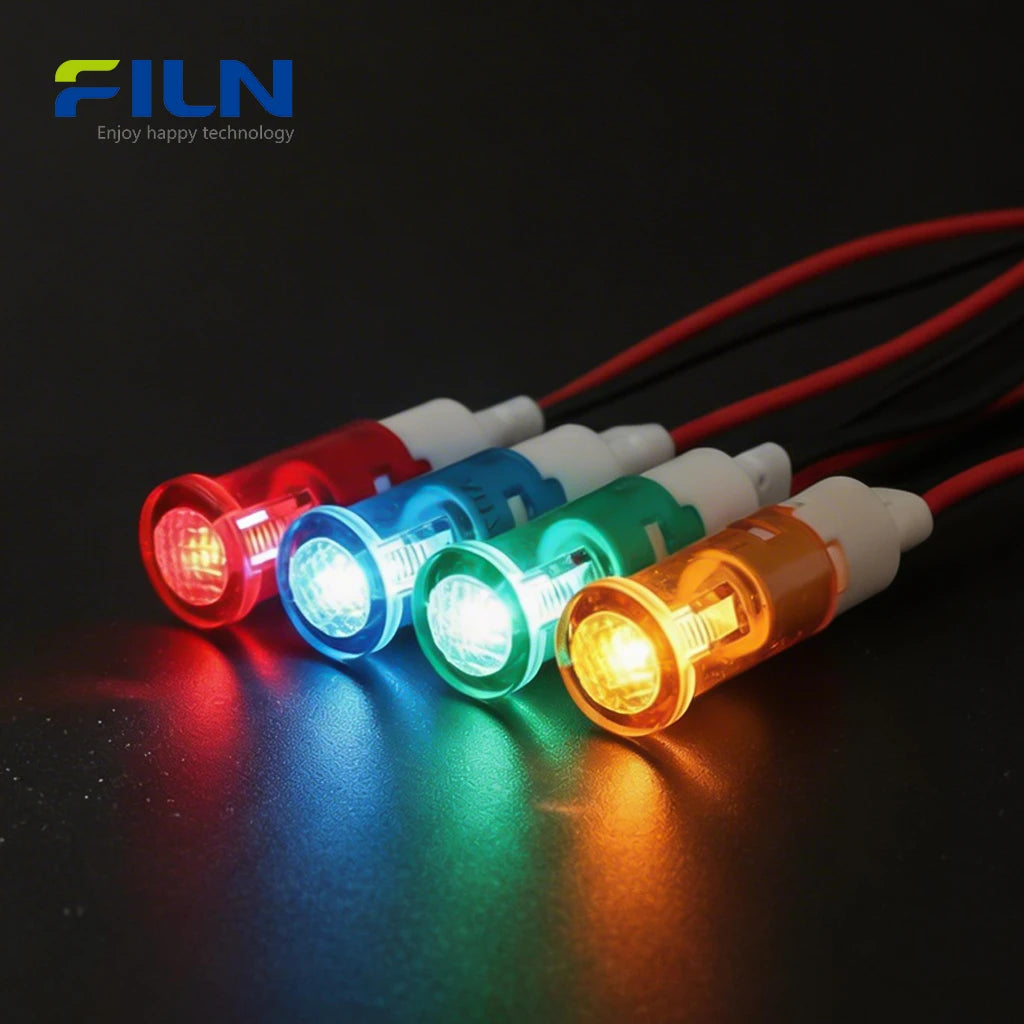

This premium pilot light indicator 220v (Model: FL1P-10QW-1) is now available for sale directly from the FILN factory. Designed with a sleek 10mm plastic body, this 10mm-plastic-indicator-light-with-wire offers a modern, high-end aesthetic for industrial interfaces. As a leading manufacturer, FILN ensures all products meet ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications. These lights are essential for industrial control panels, automation equipment, and electrical cabinets. The snap-in-panel-mount-indicator-220v design provides a secure fit and "atmospheric" visual effect. Whether you need a waterproof-plastic-signal-lamp-12v or a high-voltage 220V version, our filn-brand-plastic-indicator-wholesale service supports full customization to meet your specific project needs. Buy online today for reliable, long-lasting performance.
Quick Specifications
| Mounting Hole | 10mm (0.39 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue |
| Waterproof Rating | Snap-in types are Non-waterproof (Standard) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Method | Snap-in Mount |
| Wiring Type | Wire Lead (15cm Standard PVC) |
| Certifications | UL, CE, RoHS, VDE, ISO9001, SGS |
Component Materials
| Component Name | Material |
|---|---|
| Shell (Housing) | High-grade PA66 Nylon |
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | Transparent PC (Polycarbonate) |
| Luminescent Source | High-Brightness LED |
| Resistance | Carbon Film Resistance |
| Wire Specification | 15cm PVC Insulated Wire |
Technical Parameters
| Rated Power | 0.2W | Frequency (AC) | 50～60Hz |
|---|---|---|---|
| Insulation Resistance | 1800V / 5s | Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa | Rated Current | ≤20mA |
Quality & Testing
| Test Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V / 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 60s | No Breakdown |
| Continuous Life | 30mA / 1000h | 50,000+ Hours |
| Thermal Resistance | 80℃ for 96h | Stable Performance |
Key Features
- LED high brightness: Clear visibility even in well-lit industrial environments.
- Long lifespan: Maintenance-free operation for over 60,000 hours.
- Snap-in Design: Fast, tool-free installation for 10mm panel holes.
- Pre-wired Convenience: Comes with 15cm wire leads for immediate connection.
- Industrial grade reliability: Durable PA66 shell and PC lens for heat resistance.
Applications & Color Meanings
Our red-green-yellow-blue-white-pilot-light options serve specific safety functions:
- Red: Emergency stop or danger warning.
- Green: Normal operation or system ready.
- Yellow: Caution or standby mode.
- Blue: Specific mandatory actions or remote reset.
- White: Power supply indication or general illumination.
Installation Guide (Snap-in)
- Drill a 10mm diameter hole in the target industrial-control-panel-indicator-light surface.
- Clean the area to ensure the small-diameter-plastic-pilot-lamp sits flush.
- Insert the indicator light from the top of the panel.
- Press down firmly until the side "ears" (latches) snap and lock into place securely.
- Connect the 15cm wire leads to your power source (e.g., 220V).
What Is a Pilot Light Indicator 220V?
A pilot light indicator 220v is a critical signaling device used in circuitry to provide visual feedback on machine status. Unlike metal indicator lights, plastic versions are cost-effective, lightweight, and offer excellent electrical insulation. While metal lights provide superior impact resistance, our custom-wire-lead-plastic-indicator focuses on ease of installation and high visibility. The wire lead type provides a more secure, vibration-resistant connection compared to pin-type terminals, making it ideal for moving machinery like CNC machines or automation equipment.
Factory Direct Supply from FILN
- ✅ Direct Factory Pricing: No middlemen.
- ✅ Voltage Customization: 3V to 380V support.
- ✅ Wire Length & Connector: Tailored to your project.
- ✅ Fast Global Shipping: Reliable logistics for B2B.
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Can I buy this 10mm plastic indicator light for sale online?
Yes, FILN offers direct online purchasing for standard models with worldwide shipping.
2. What are the advantages of a 220v-neon-indicator-light-replacement-led?
LEDs offer much longer life (60,000h) and lower power consumption compared to traditional neon bulbs.
3. Is the wire length customizable for the custom-wire-lead-plastic-indicator?
Absolutely. While 15cm is standard, we can customize lengths up to several meters.
4. Does this indicator fit a standard dash mount?
Yes, it is a perfect dash-mount-plastic-warning-light for 10mm holes.
5. What is the difference between snap-in and screw mounting?
Snap-in is faster for mass assembly, while screw mounting (IP67) offers better waterproofing.
6. Are these lights suitable for 24V automation?
Yes, we provide 12V and 24V versions as part of our waterproof-plastic-signal-lamp-12v series.
7. Why use PA66 for the shell?
PA66 Nylon provides excellent heat resistance and durability for industrial environments.
8. Can I get a sample of the filn-brand-plastic-indicator-wholesale?
Yes, contact our sales team for industrial samples.
9. Do the LEDs maintain brightness over time?
Our high-quality LEDs are rated for 50,000 hours with minimal lumen depreciation.
10. What does a green light signify on a CNC machine?
Usually, it indicates the machine is in a safe, operational state.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
