Product Overview

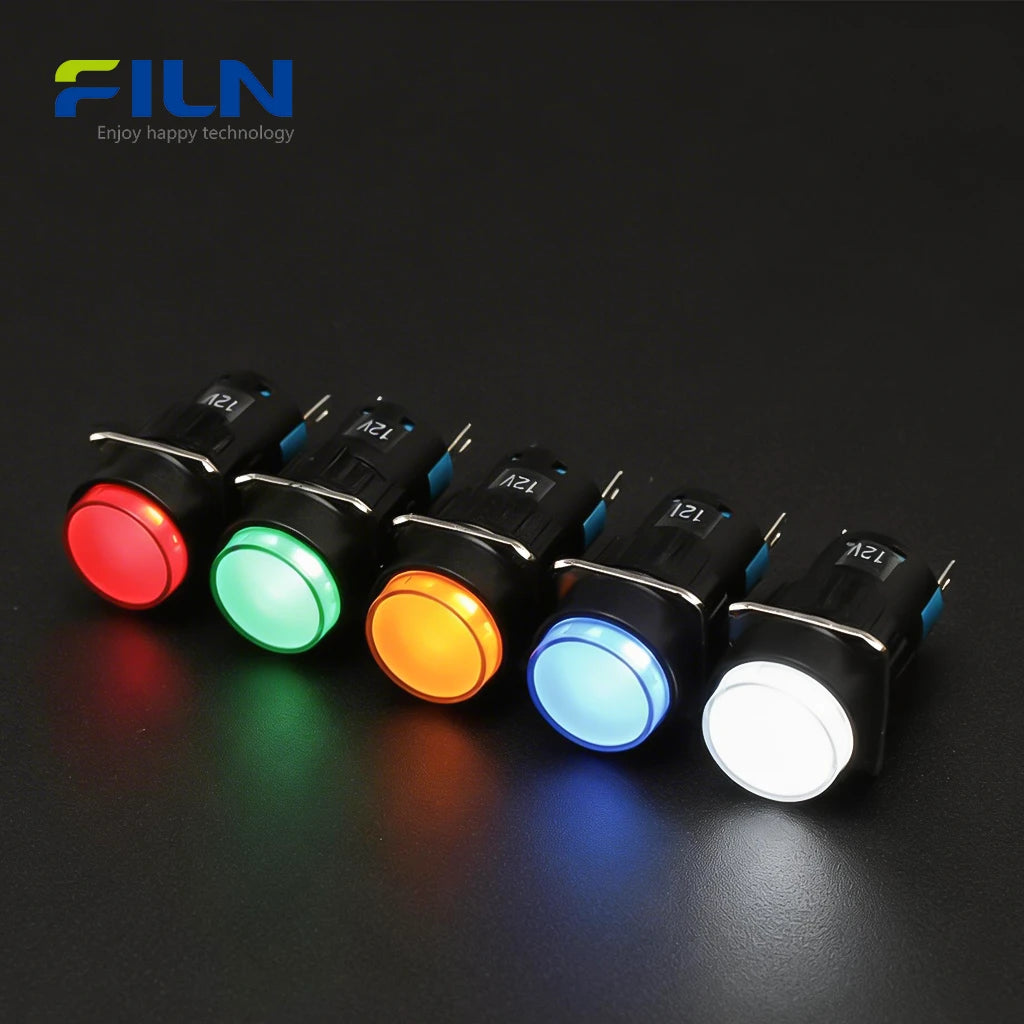

The 110V indicator light (Model: FL1P-16NJ-7) is a professional-grade 16mm plastic signal lamp PA66 designed for robust industrial signaling. Featuring a round high head pilot light aesthetic, this indicator provides superior side-visibility on control panels. Manufactured by FILN, a leading 110v indicator light factory, these lamps are built from high-strength PA66 nylon, offering excellent insulation and flame retardancy compared to traditional metal lights. This product is currently available for purchase and ready for immediate deployment in automation, CNC machinery, and electrical cabinets. With certifications like ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures high reliability for global industrial buyers.
Quick Specifications
| Mounting Hole | 16mm (0.63 inch) |
|---|---|
| Voltage | 12V, 24V, 110V, 220V |

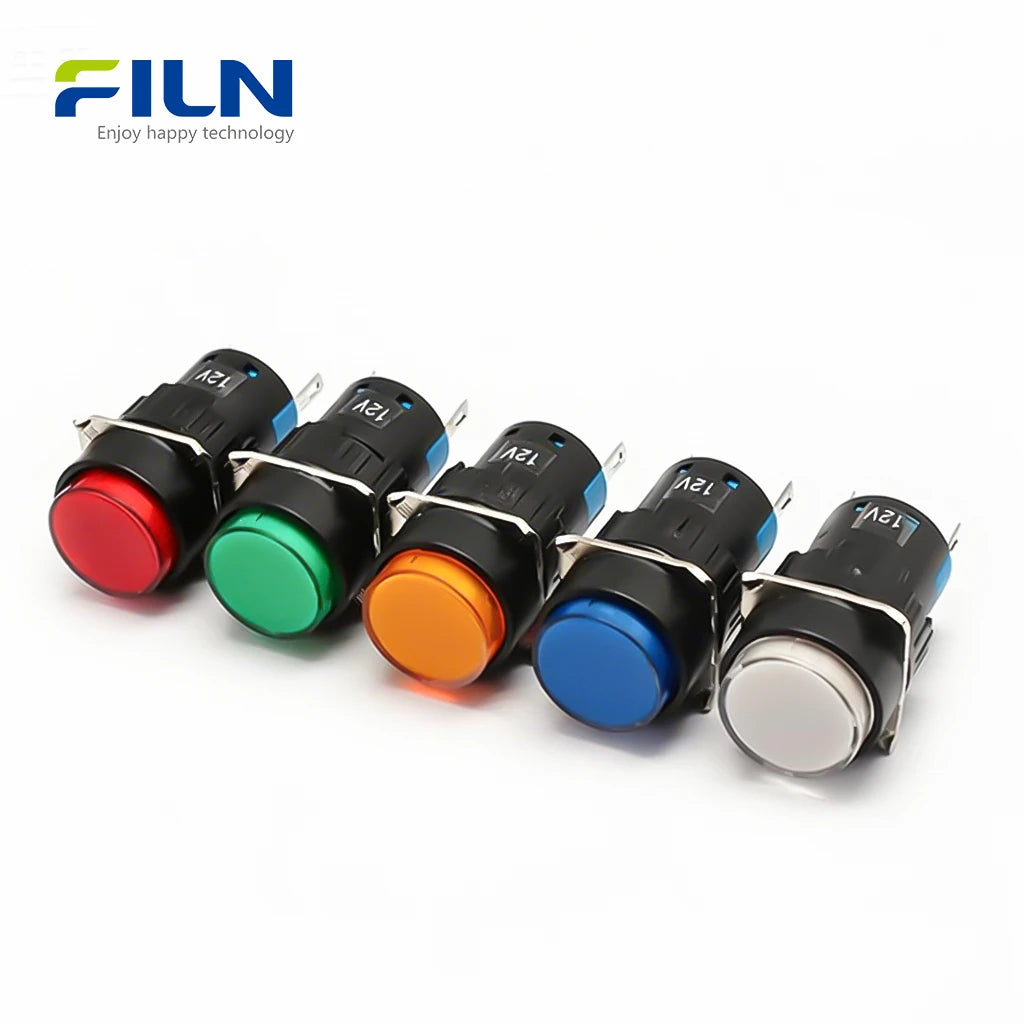

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Screw Mount) |
| Operating Temperature | -40℃ ～ 80℃ |
| Lifespan | ≥60,000 hours |
| Wiring Type | 2-Pin Terminal (2.8mm) |
Component Materials
| Component Name | Material |
|---|---|
| Shell | PA66 |
| Lamp Holder | PA66 |
| Lampshade | PC |
| Luminescent Source | LED |
| Resistance | Carbon film resistance |
| 2.8mm Terminal | Brass H59 |
Rated Working Parameters
| Rated Voltage | Customized (110V Standard) |
|---|---|
| Frequency(AC) | 50～60Hz |
| Rated Current | ≤20mA |
General Characteristics
| Item | Parameter |
|---|---|
| Insulation Resistance | 1800V/5s |
| Working Life | 60,000h |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Technical Performance
| Category | Test Condition | Requirement |
|---|---|---|
| Insulation | DC500V for 1 min | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
| Durability | 30mA 1000h | 50,000 hours |
Key Features

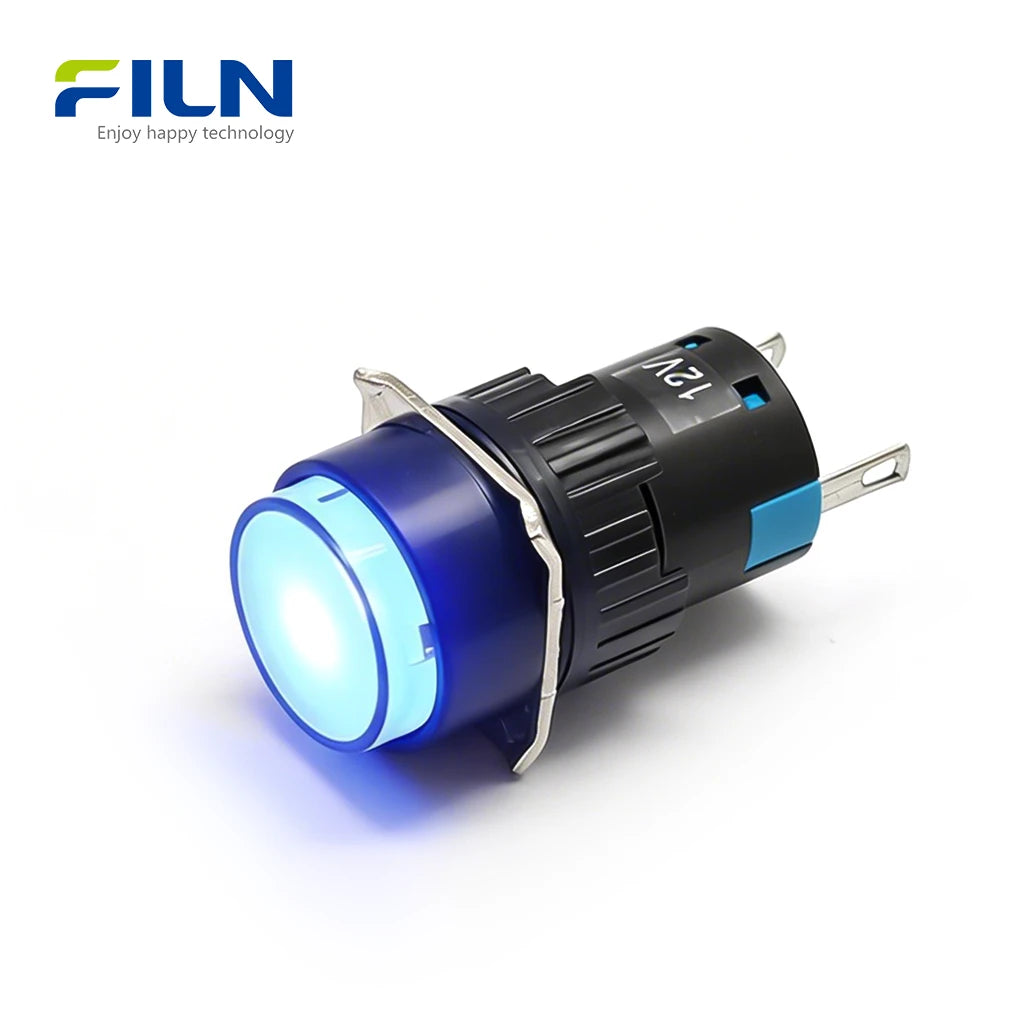

- High-Head Visibility: The round high head pilot light ensures signals are seen from multiple angles.

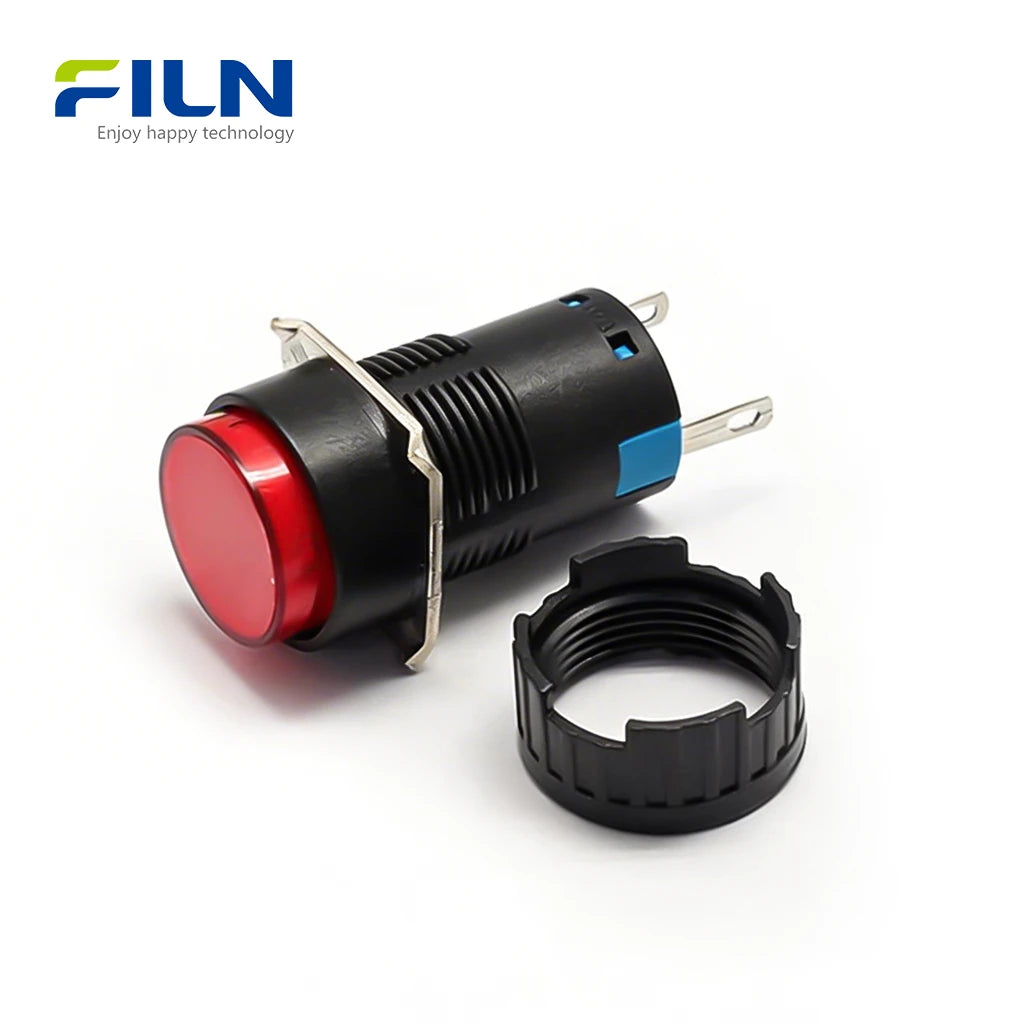

- Easy Installation: Features a simple screw-mount 16mm indicator lighting system with a secure plastic nut.

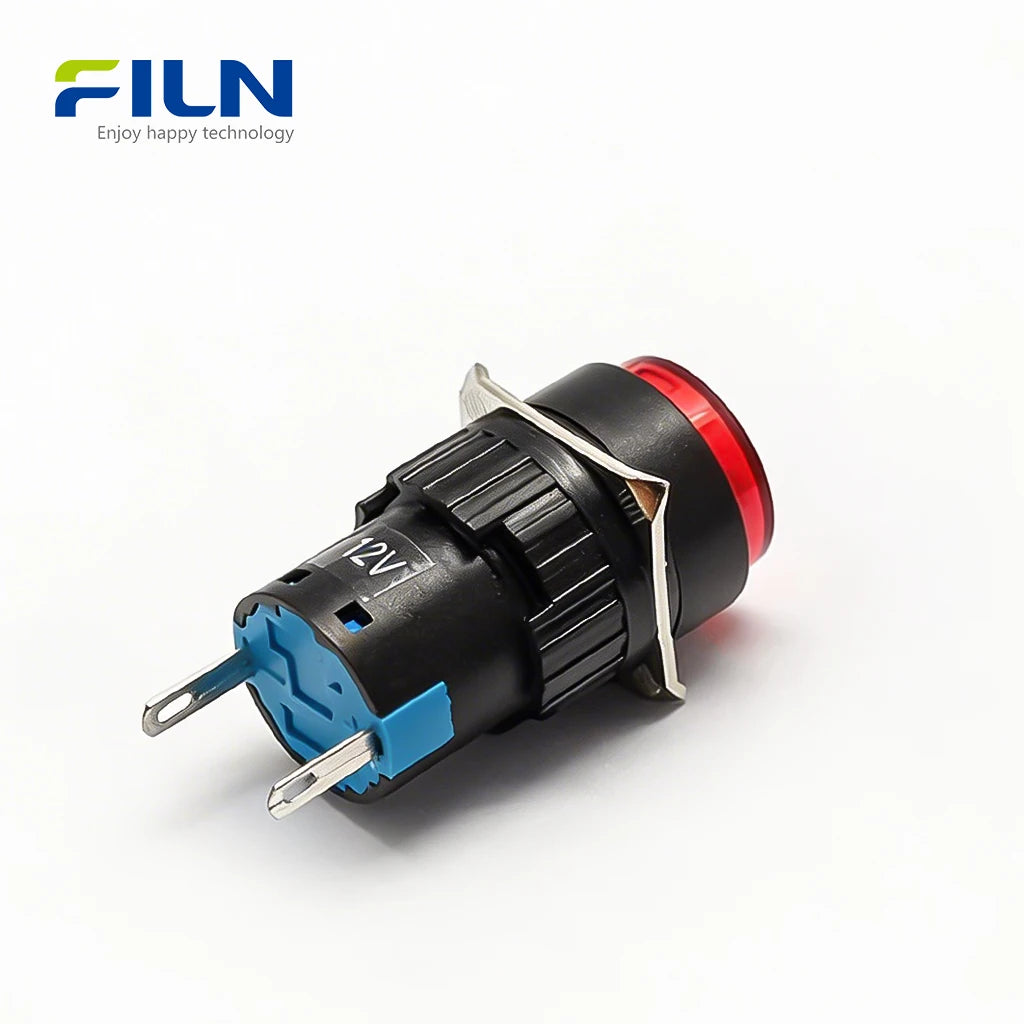

- Pin Terminal Advantage: The pin-terminal-led-indicator-110v (2.8mm) design offers faster, cleaner wiring compared to pre-wired versions, allowing for easier maintenance and field repairs.

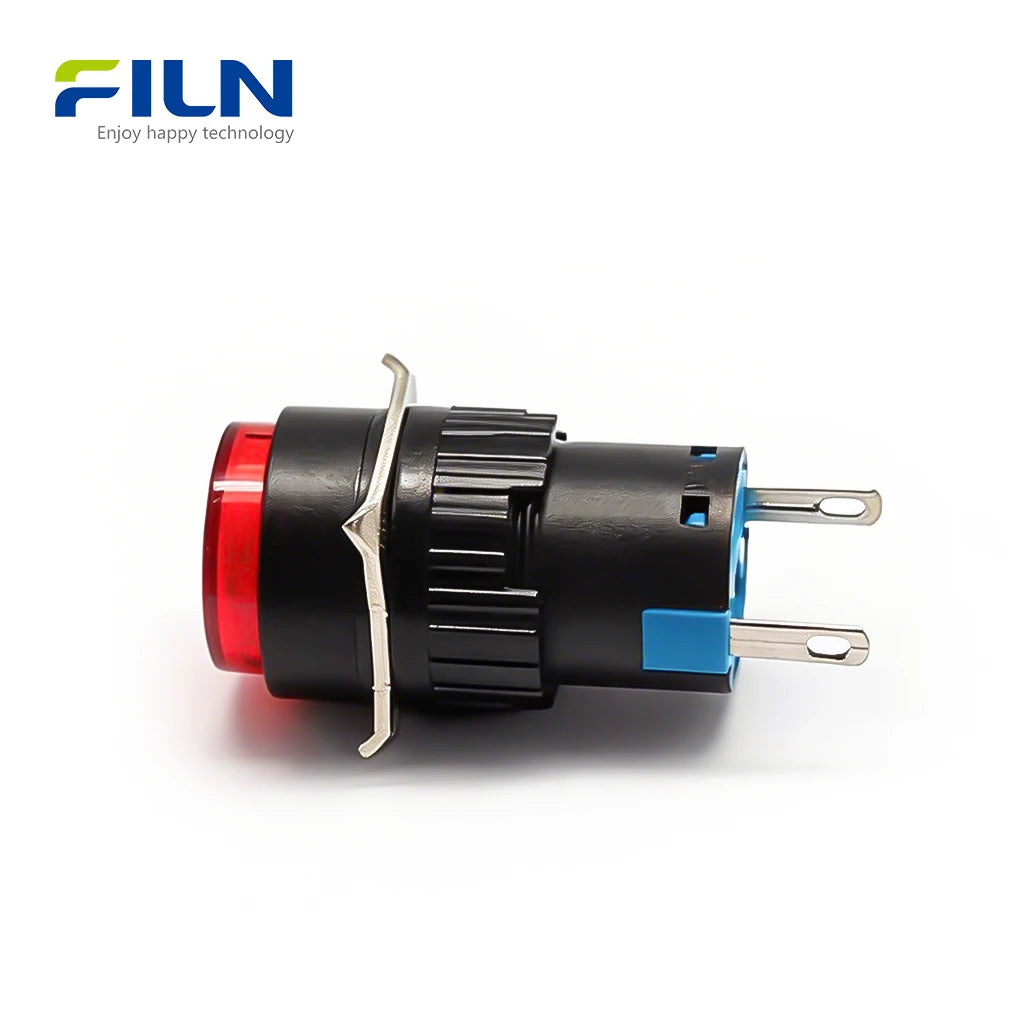

- PA66 Durability: Superior mechanical strength and heat resistance for heavy industrial-panel-mount-indicator-light use.
- Energy Efficient: Uses high-brightness LEDs with minimal power draw (≤20mA).
LED Color Indicators Meaning
- Red: Emergency stop, danger, or system failure alerts.
- Green: Normal operation, safety, or "system ready" status.
- Yellow/Amber: Warnings, caution, or process-in-progress signaling.
- Blue: Mandatory action, remote control status, or reset indications.
- White: Power supply presence or general monitoring.
Installation Guide
- Drill a 16mm hole into your panel using appropriate tools.
- Insert the 110V indicator light through the hole from the front side.
- From the rear of the panel, thread the plastic nut onto the light body.
- Tighten the nut firmly to secure the light against the panel.
- Connect your wiring to the 2.8mm 2-pin terminals.
What Is an 110V Indicator Light?
An 110V indicator light is a critical visual component in industrial control systems. Using a 16mm plastic signal lamp PA66 housing, these devices provide reliable status feedback for operators. The choice between pin terminal and wire lead designs is essential: pin terminals allow for modular wiring and are preferred in high-density panels where cable management is key. By using PA66 nylon, these lights withstand higher temperatures and provide better electrical insulation than many metal-bodied alternatives, making them perfect for modern automation.
Factory Direct Supply
FILN offers direct factory pricing and professional customization for all signaling needs.
- Voltage Customization: 3V - 380V
- Wire & Connector Customization
- Fast Global Logistics
FILN Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
1. Why choose the FL1P-16NJ-7 round high head design?
The high head ensures the 110v indicator light is visible even when viewed from the side, improving safety on long control panels.
2. What is the benefit of the pin-terminal-led-indicator-110v over wire leads?
Pin terminals allow you to plug in connectors or use crimped terminals for faster replacement and a more organized cabinet layout.
3. Can I use these for 220V systems?
Yes, while optimized for 110V, the FL1P series is available in 220V and DC variants like 12V/24V.
4. Is the plastic material flame retardant?
Yes, the PA66 material is industrial grade and meets high fire-safety standards.
5. What is the mounting size?
It requires a standard 16mm (0.63 inch) diameter hole.
6. Does the head stay waterproof?
When installed with the provided gasket and screw nut, the head achieves an IP65 rating against dust and water spray.
7. How long will the LED last?
The 110v indicator light has a lifespan of approximately 60,000 hours.
8. Is the color lens replaceable?
The lens is fixed to maintain the IP65 seal and industrial durability.
9. Are these suitable for outdoor use?
They are IP65 rated, suitable for protected outdoor environments or panels with covers.
10. Does FILN provide bulk discounts for B2B?
Yes, as a factory, we offer tiered pricing for 110v indicator light bulk orders.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
Contact Us Today
Email: inquiry@cnylin.com.cn
