Product Overview

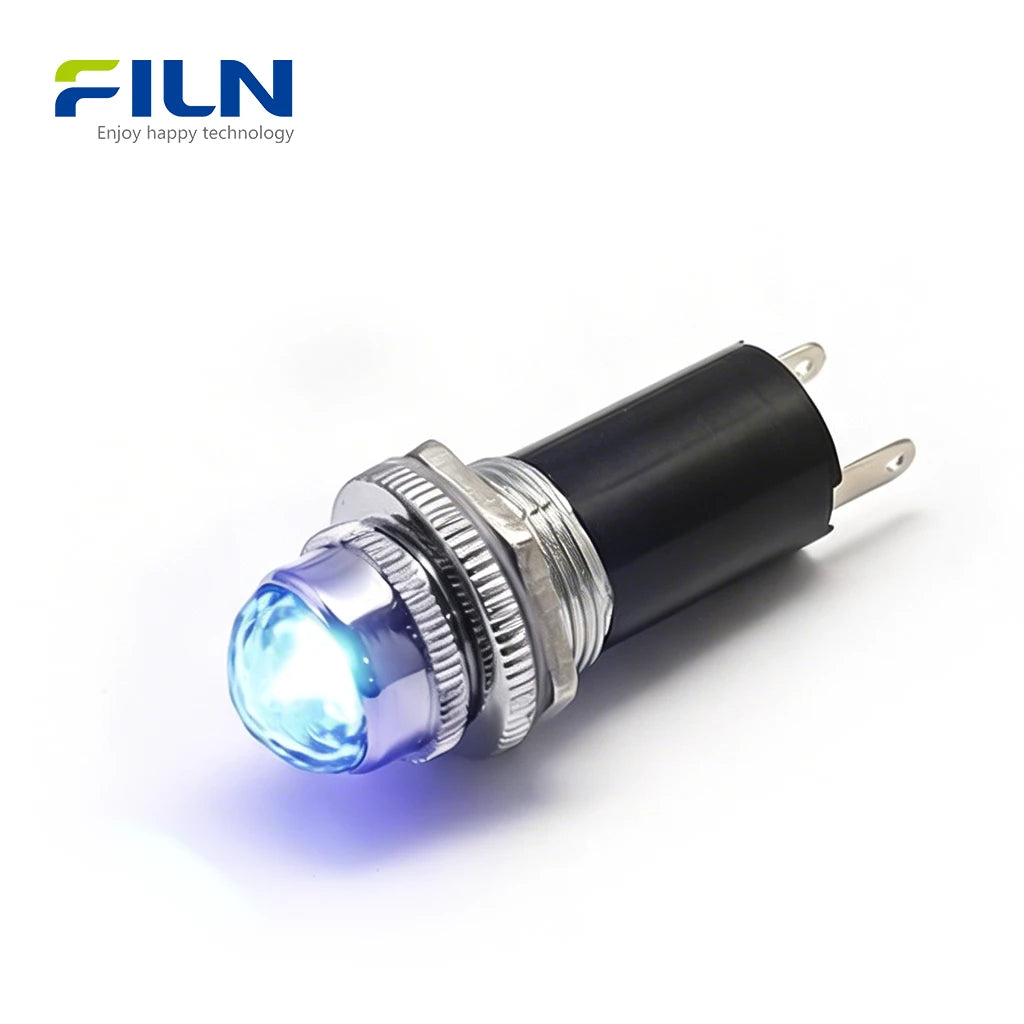

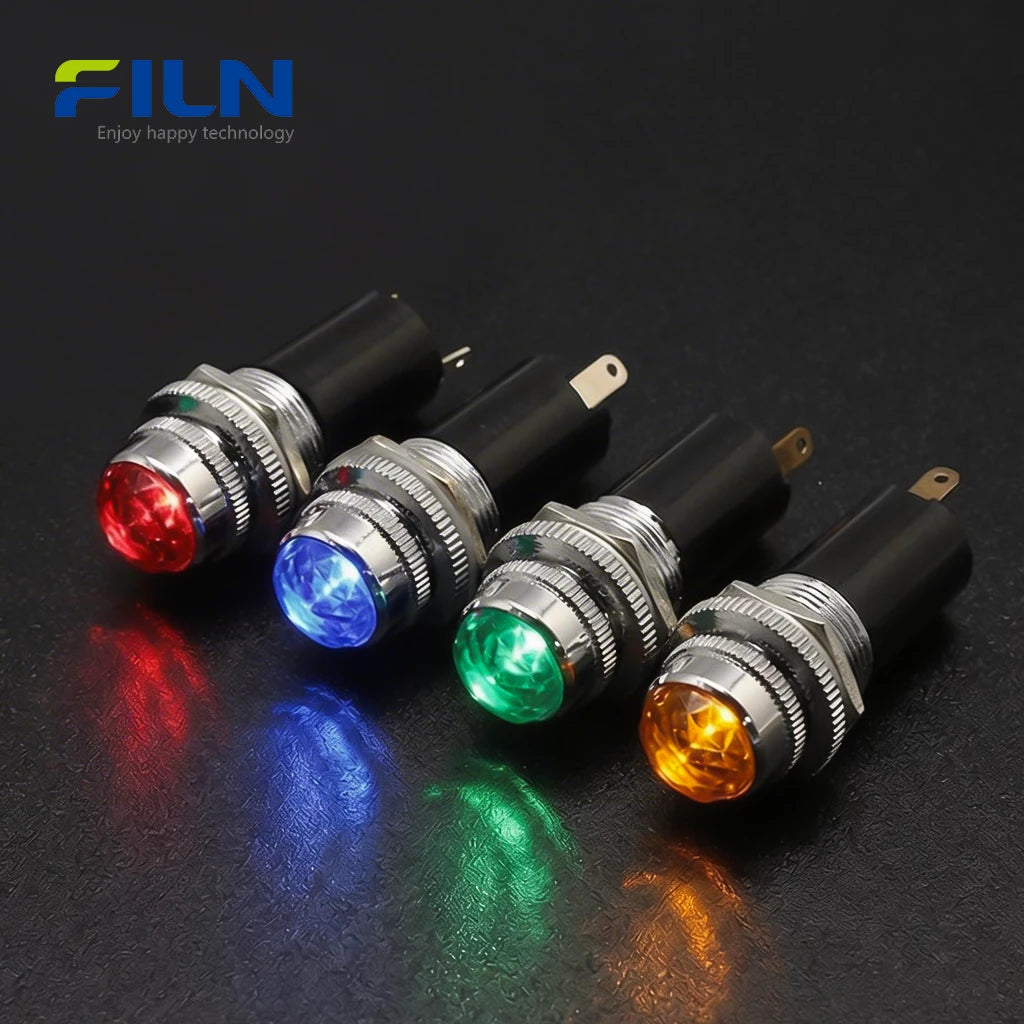

The Diamond Head LED Indicator Lamp is a premium 16mm plastic indicator light for sale(FL1P-16BJ-1), designed for high-visibility industrial signaling. Manufactured by FILN, a leading factory specializing in signal solutions, this lamp features a unique diamond-cut lens that enhances light refraction for superior clarity. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures safety and reliability in harsh environments. This industrial-automation-equipment-indicator-light is perfect for CNC machines and control panels. Its durable-pa66-plastic-indicator-lamp-housing offers excellent insulation compared to metal alternatives, while the 2-pin terminal design simplifies installation. Available in 12V, 24V, 110V, and 220V, this high-brightness-led-plastic-indicator-light-110v is ready for global distribution.
Quick Specifications
| Mounting Hole | 16mm (0.63 inch) |
|---|---|
| Voltage | 12V, 24V, 110V, 220V (Customizable) |
| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | Head IP65 (Screw Mount) |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 60,000 Hours |
| Installation Type | Screw Thread Mounting |
| Wiring Type | 2-pin Terminal Type (2.8mm) |
| Certification | ISO9001, CE, VDE, RoHS, SGS, UL |
Rated Working Parameters
| Rated Voltage | Customized (3V-250V) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Shell / Housing | PA66 Nylon |
|---|---|
| Lamp Holder | PA66 Nylon |
| Lampshade (Lens) | PC (Polycarbonate) |
| Luminescent Source | LED |
| Terminal | 2.8mm H59 Copper |
| Resistance | Carbon Film Resistance |
General Characteristics
| Insulation and Voltage Resistance | 1800V/5s |
|---|---|
| Working Life | 60,000h |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown or flashover |
Durability Characteristics
| Continuous Working Life | 50,000+ hours (Test: 30mA 1000h) |
|---|
Resistant Performance
| Item | Condition |
|---|---|
| High Temperature | 80℃ for 96h |
| Low Temperature | -40℃ for 96h |
| Moisture Resistance | 40℃ 90-95%RH for 96h |
Key Features

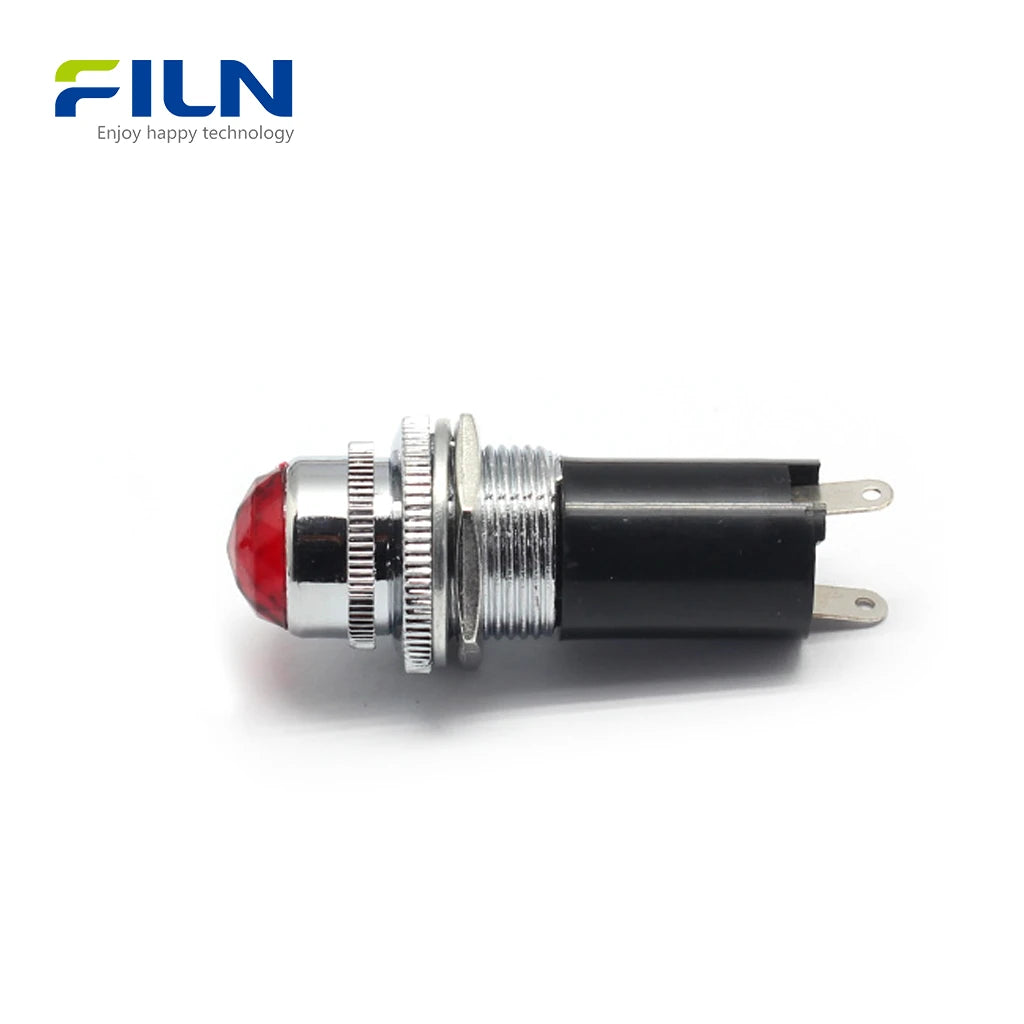

- Diamond-Head-Style-LED-Pilot-Lamp: Unique aesthetics and superior light dispersion.
- LED High Brightness: Utilizes premium LED chips for long-range visibility.
- 2-Pin Terminal Design: Faster and more secure than traditional soldering.
- Industrial Grade Reliability: Made from flame-retardant PA66 material.
- IP65 Waterproof: Safe for use in humid and dusty environments.
Applications & Signal Meanings

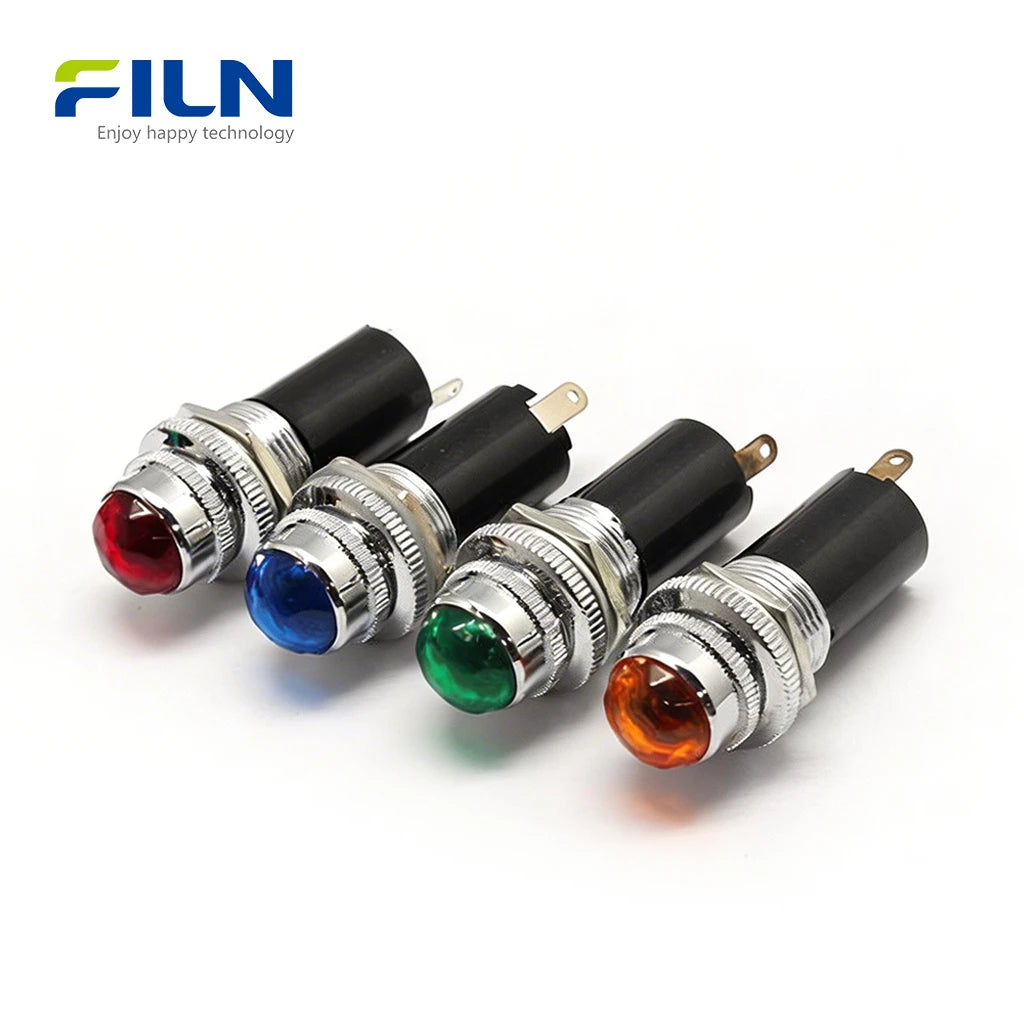

This red-green-yellow-blue-white-indicator-lamps set serves specific safety functions:
- Red: Emergency or danger alert.
- Green: Normal operation or system ready.
- Yellow/Amber: Warning or standby mode.
- Blue: Specific operator instructions or resets.
- White: Power status monitoring.
Installation Guide (Screw Mount)
- Drill a 16mm hole on the control panel.
- Insert the screw-mount-plastic-indicator-light-220v from the front of the panel.
- Tighten the hex nut from the back to secure the lamp.
- Connect the 2.8mm female terminals to the 2-pin pins.
What Is a Diamond Head LED Indicator Lamp?

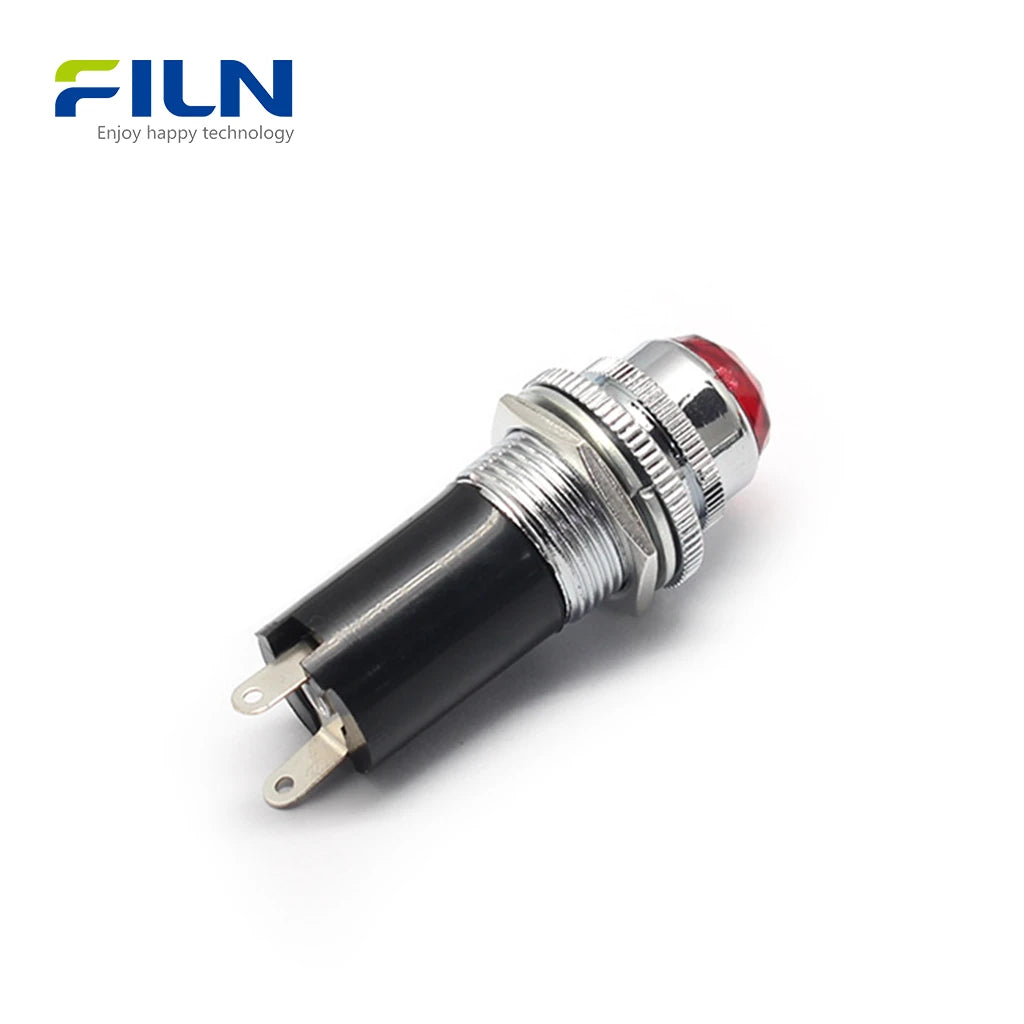

A Diamond Head LED Indicator Lamp is a specialized visual signaling device used in industrial environments to communicate machine status to operators. Unlike flat-head lamps, the "diamond" cut allows light to be visible from multiple angles. The use of PA66 plastic makes these indicators lightweight, corrosion-resistant, and provides superior electrical insulation. Compared to wire-lead types, the 2-pin-terminal-plastic-led-signal-lamp design allows for quick maintenance—simply unplug the terminal rather than cutting wires.
Factory Direct Supply
FILN is a professional manufacturer offering filn-plastic-indicator-light-factory-customization. We provide:
- Customized Voltage (3V to 380V)
- Custom Wire Lengths & Connectors
- Fast Global Shipping (DHL/FedEx/UPS)
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: Is this plastic indicator light for sale with different voltages?
A1: Yes, we offer 12V, 24V, 110V, and 220V standard models, with customization available.
A1: Yes, we offer 12V, 24V, 110V, and 220V standard models, with customization available.
Q2: What is the advantage of the 2-pin terminal over wire leads?
A2: The 2.8mm pin terminal allows for faster plug-and-play installation and easier replacement.
A2: The 2.8mm pin terminal allows for faster plug-and-play installation and easier replacement.
Q3: Can I use this in an outdoor control box?
A3: Yes, the head is IP65 rated, making it splash-proof and dust-proof for outdoor use.
A3: Yes, the head is IP65 rated, making it splash-proof and dust-proof for outdoor use.
Q4: Does FILN provide bulk discounts for 16mm plastic indicator lights?
A4: As a direct factory, we provide wholesale pricing for large industrial orders.
A4: As a direct factory, we provide wholesale pricing for large industrial orders.
Q5: What certifications does this product carry?
A5: It is fully certified by UL, CE, RoHS, and VDE.
A5: It is fully certified by UL, CE, RoHS, and VDE.
