Product Description

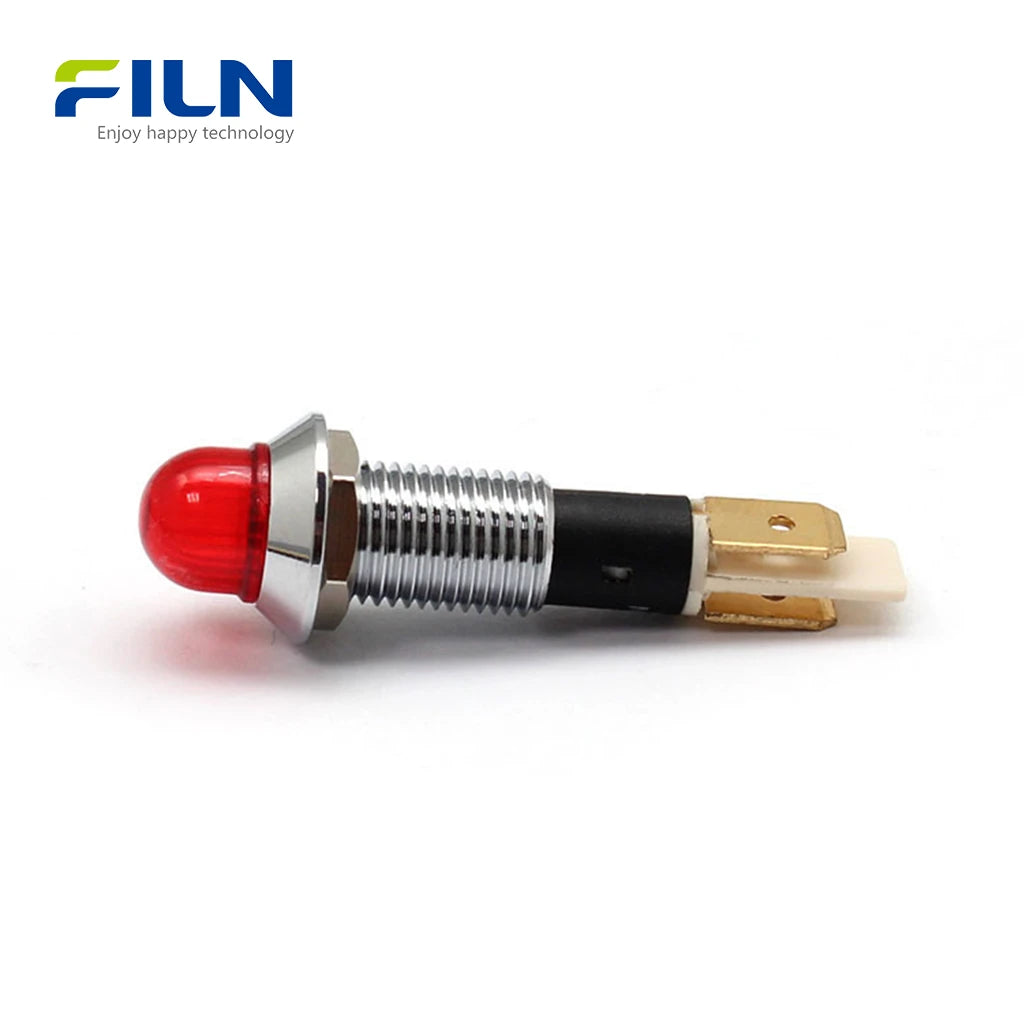

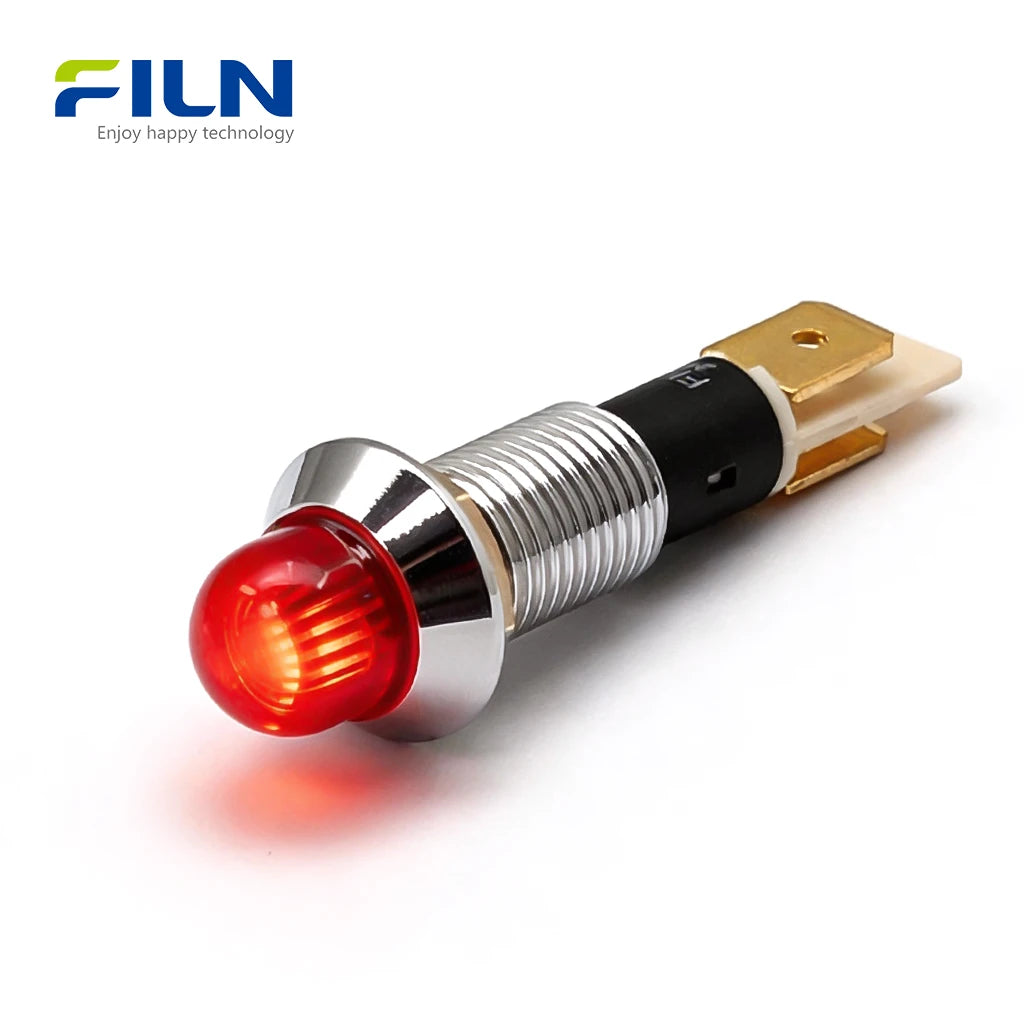

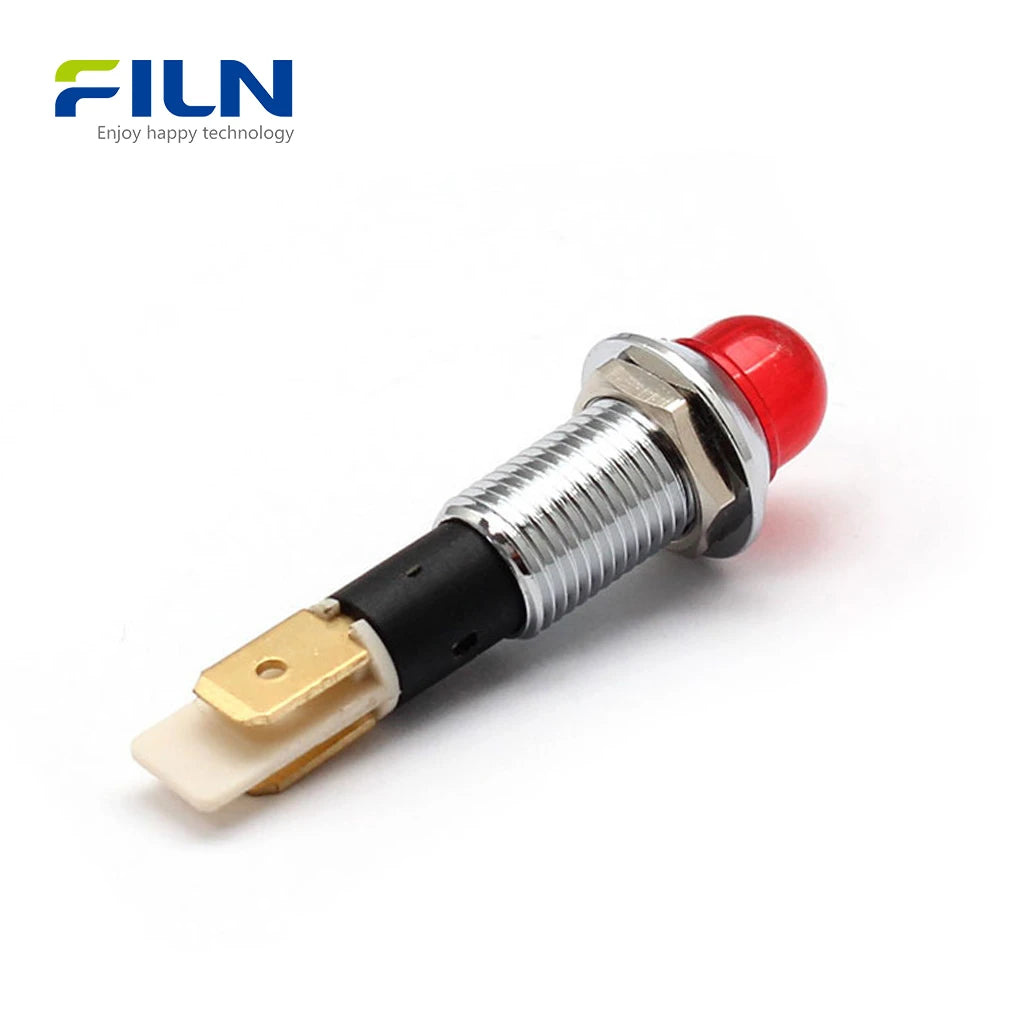

The FL1M-10BJ-1 Power Indicator Lamps are high-performance 10mm metal signal lights featuring a distinctive ball-head design for enhanced visibility. These lamps carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/67. Designed for versatile use, they are ideal for industrial control panels, automation equipment, and consumer appliances. The core advantage lies in its durable metal housing (available in silver or black) and pin-terminal wiring, which ensures a secure and rapid installation. Whether used in marine systems, medical devices, or electrical cabinets, these indicators provide a long-lasting, high-brightness status signal across various voltages (12V-220V).
Quick Specifications
| Mounting Hole | 10mm (0.39 inch) |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |

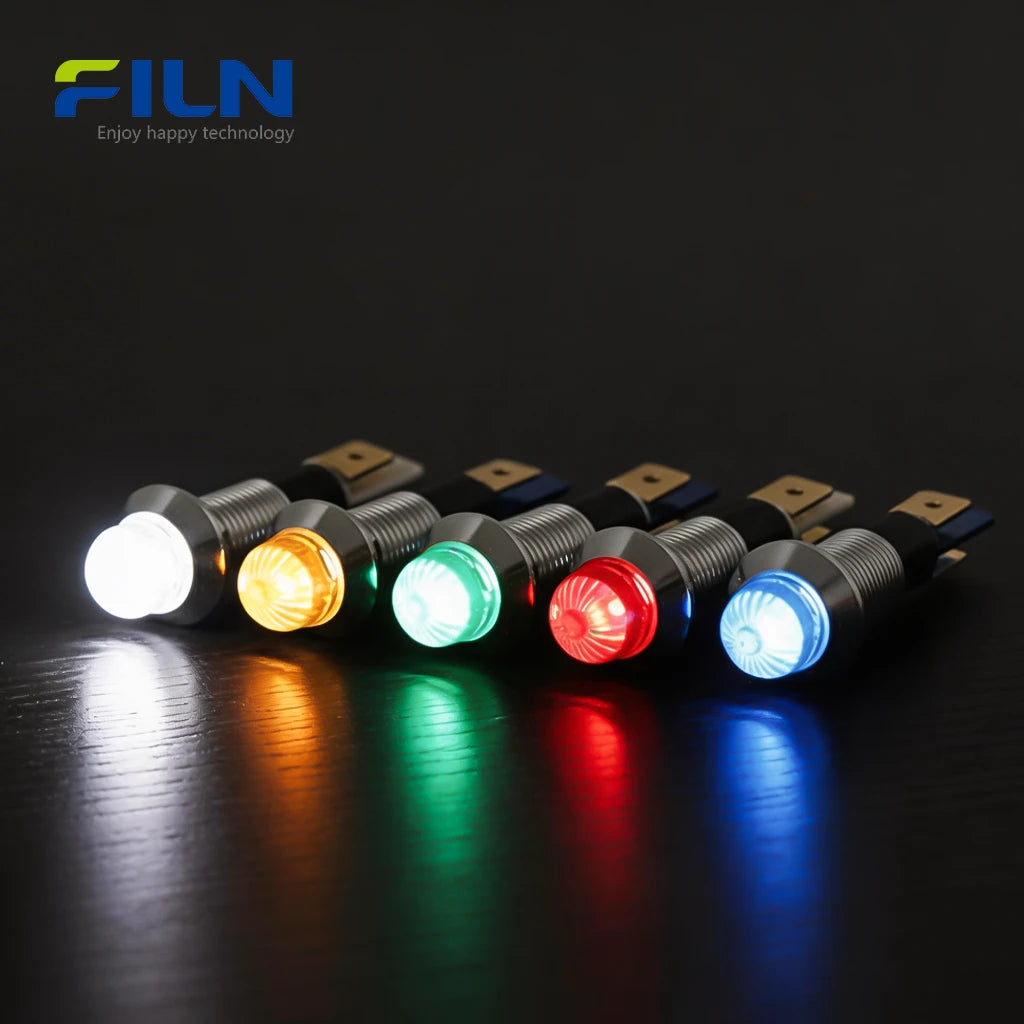

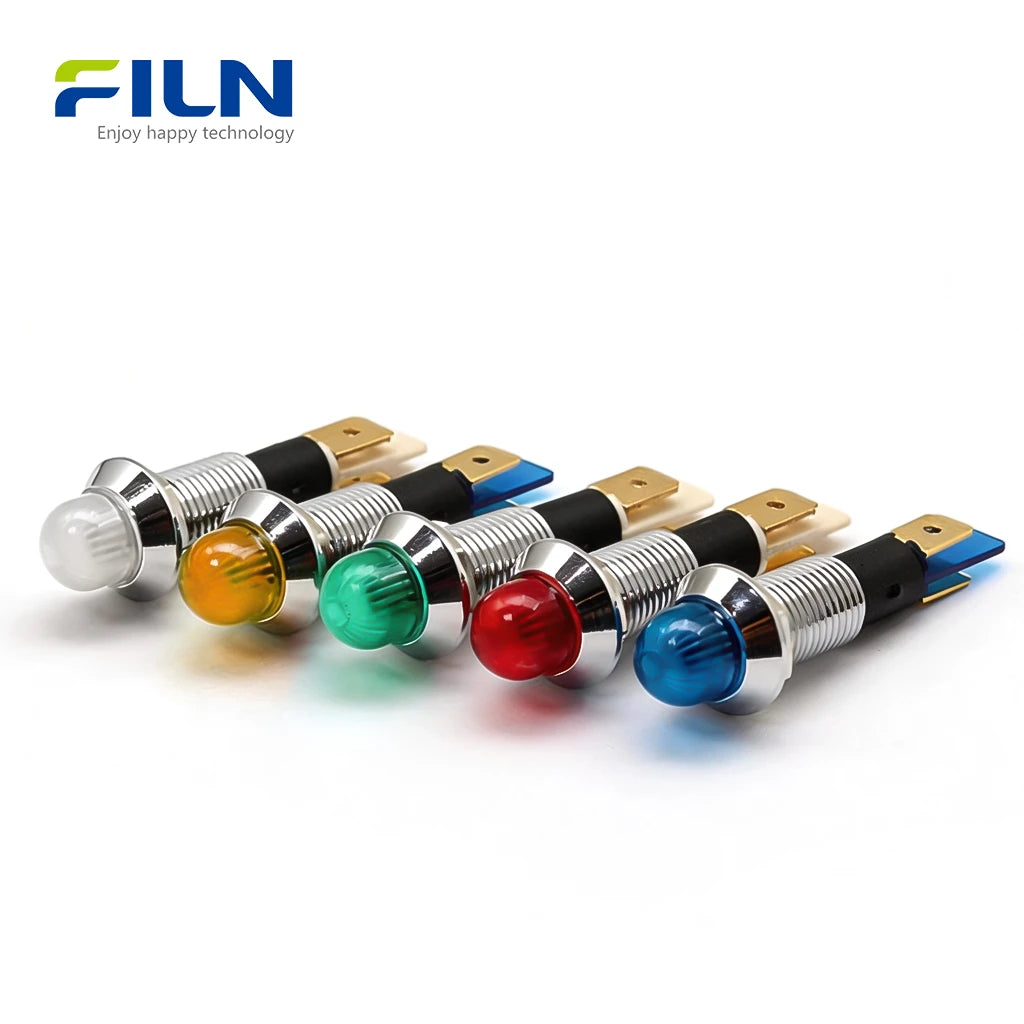

| LED Color | Red, Green, Yellow, Blue, White |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | ≥50,000 Hours |
| Wiring Type | Pin Terminal (Plug-in) |
Rated Working Parameters
| Rated Voltage | Customized (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Chrome-plated Brass / Black Aluminum |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silica Gel |
| Terminal | Silver-plated Brass Pin |
General Characteristics
| Operating Temp: -40℃～80℃ | Relative Humidity: ≤85% at +40℃ |
| Ambient Temp: 5~35℃ | Air Pressure: 86~106Kpa |
| Waterproof Rating: IP67 | Part Name: FL1M-10BJ-1 |
Electric Property
| Property | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Durability Characteristics
| Test Item | Condition | Requirement |
|---|---|---|
| Continuous Life | 30mA 1000h | 50,000 hours |
Resistant Performance
| High Temp | 80℃ 96h | Moisture | 40℃ 90-95%RH 96h |
| Low Temp | -40℃ 96h | Cycling | -40℃ ↔ 85℃ (5 Rounds) |
Key Features
- LED High Brightness: Utilizes advanced LED chips for crystal-clear illumination in any lighting condition.
- Long Lifespan: Engineered for over 50,000 hours of continuous operation.
- IP67 Waterproof: Fully sealed against dust and water, perfect for outdoor or wash-down environments.
- Easy Installation: Features smooth M10 threads and high-quality accessories for a perfect fit.
- Industrial Grade Reliability: Robust metal construction resistant to impact and corrosion.
Applications
- Industrial control panels and CNC machinery.
- Automation equipment and electrical cabinets.
- Marine systems and outdoor power generators.
- Medical devices and laboratory equipment.
- Kitchen appliances and coffee machine status indicators.
- Automotive dash indicators and EV charging stations.
Installation Guide
- Drill a 10mm hole into your mounting panel.
- Insert the indicator lamp through the hole from the front side of the panel.
- Ensure the provided 10mm O-ring is positioned correctly between the head and panel for a waterproof seal.
- From the back, thread the M10 nut onto the smooth metal threads.
- Tighten the nut securely to fix the indicator in place.
- Connect your circuit to the pin terminals at the rear (soldering or quick-connect connectors recommended).
What Is a Power Indicator Lamp?
A Power Indicator Lamp is a specialized visual signal device used to display the operational status of a circuit or machine. In industrial settings, the high-head ball design provides a significant advantage: it offers wide-angle visibility, allowing operators to see the light status from the side, not just from the front.
The pin-terminal (plug-in) connection differs from traditional wire leads by offering a more modular approach. Pin terminals are ideal for PCB-based designs or environments where wiring needs to be replaced quickly without cutting cables. This model's robust metal housing ensures it withstands the rigors of harsh environments, far outperforming plastic alternatives in heat resistance and durability.
FILN Factory Direct Supply
- ✅ Factory Direct: Genuine FILN engineering and manufacturing.
- ✅ Voltage Customization: Supports 3V to 380V requirements. [cite: 4]
- ✅ Tailored Solutions: Custom wire lengths and connector types available. [cite: 4]
- ✅ Fast Global Shipping: Rapid delivery for B2B industrial orders.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What is the advantage of the ball-head design?
A: The protruding ball head allows the light to be visible from the side (up to 180 degrees), improving safety in large workspaces.
Q2: Can I use these for outdoor applications?
A: Yes, with an IP67 rating and a included O-ring, it is fully waterproof and dustproof.
Q3: What is the difference between pin terminals and wire leads?
A: Pin terminals are better for compact spaces and modular assembly, while wire leads are generally used for direct long-distance wiring.
Q4: Are the threads easy to strip?
A: No, our M10 threads are precision-machined for smoothness and high torque resistance.
Q5: Can I get a 110V version?
A: Yes, we support 110-220V AC and 12-24V DC as standard, with other voltages available upon request.
Q6: Is the black housing scratch-resistant?
A: Our black aluminum housing is anodized for superior hardness and corrosion resistance.

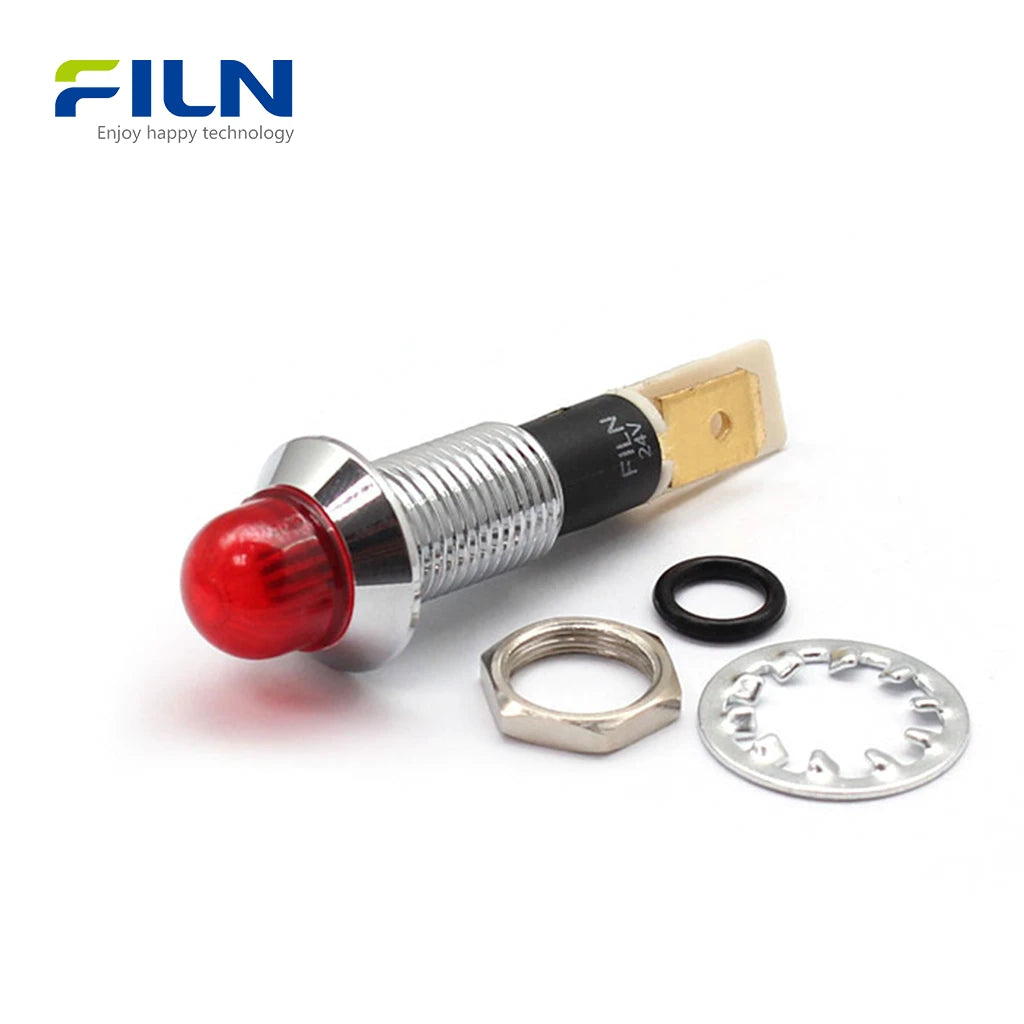

Q7: What accessories come in the box?
A: Each unit includes the indicator lamp, one high-quality O-ring, and one metal M10 nut.
Q8: Is this suitable for coffee machines?
A: Absolutely. Many commercial kitchen appliance manufacturers use this 10mm size for status indication.
Q9: Does it have UL certification?
A: Yes, FILN products carry UL, CE, and RoHS certifications for global compliance.

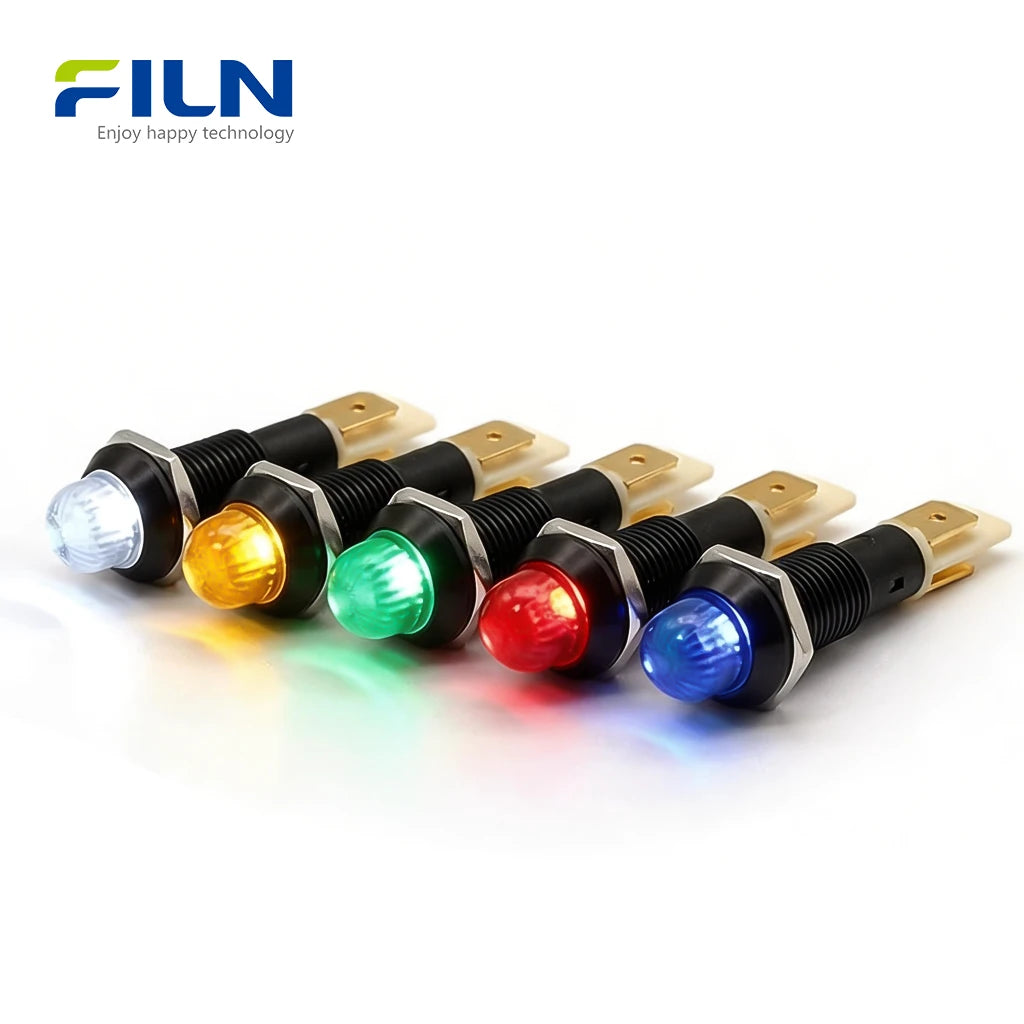

Q10: How do I choose between silver and black housing?
A: Silver chrome-plated brass offers a classic industrial look, while black aluminum is popular for modern aesthetics and automotive interiors.
Dear Valued Customers,
At FILN, we specialize in delivering precision-engineered indicator lights, push button switches, and rocker switches tailored to your unique requirements. While our products default to standard voltage ranges (12-24V and 110-220V), we understand that specialized applications demand flexibility.
Need a Custom Voltage Solution? Simply inform us of your desired voltage specifications (e.g., 5V, 48V, or non-standard ranges), and our engineering team will craft a solution within 10-15 business days.
Why Choose FILN for Custom Manufacturing?
✅ Expertise You Can Trust: Over 20 years of experience in industrial-grade electronic component production.
✅ End-to-End Customization: From voltage adjustments to bespoke designs (shape, color, IP rating), we adapt to your needs.
✅ Quality Guaranteed: All custom orders undergo rigorous testing to meet CE/RoHS/IP65 standards.
✅ Scalable Support: Whether prototyping or bulk orders, we ensure seamless delivery.
How It Works
Consultation: Share your technical requirements via email or our contact form.
Design & Approval: Receive 3D models or samples for confirmation.
Production & QC: Precision manufacturing with real-time updates.
Global Shipping: Trackable logistics to your doorstep.
