Button Switch Drawing
Product Overview

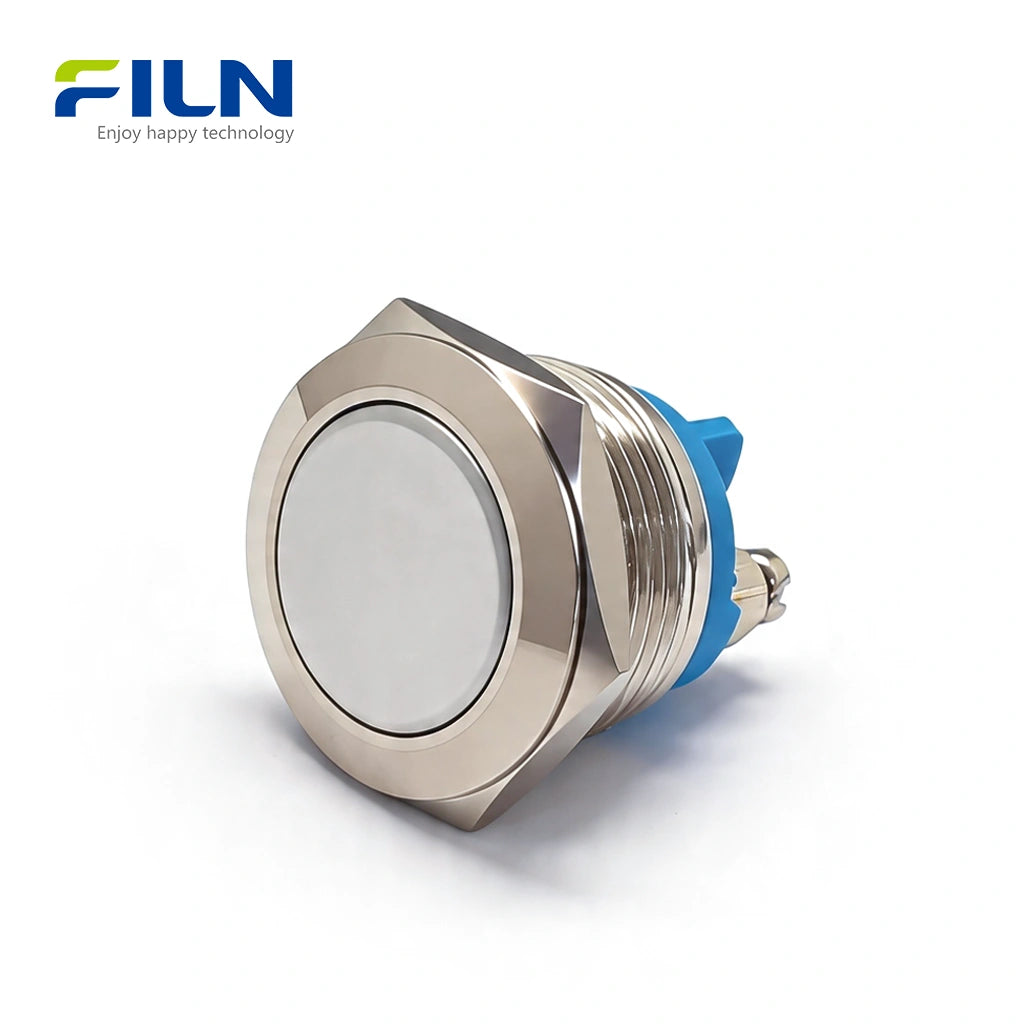

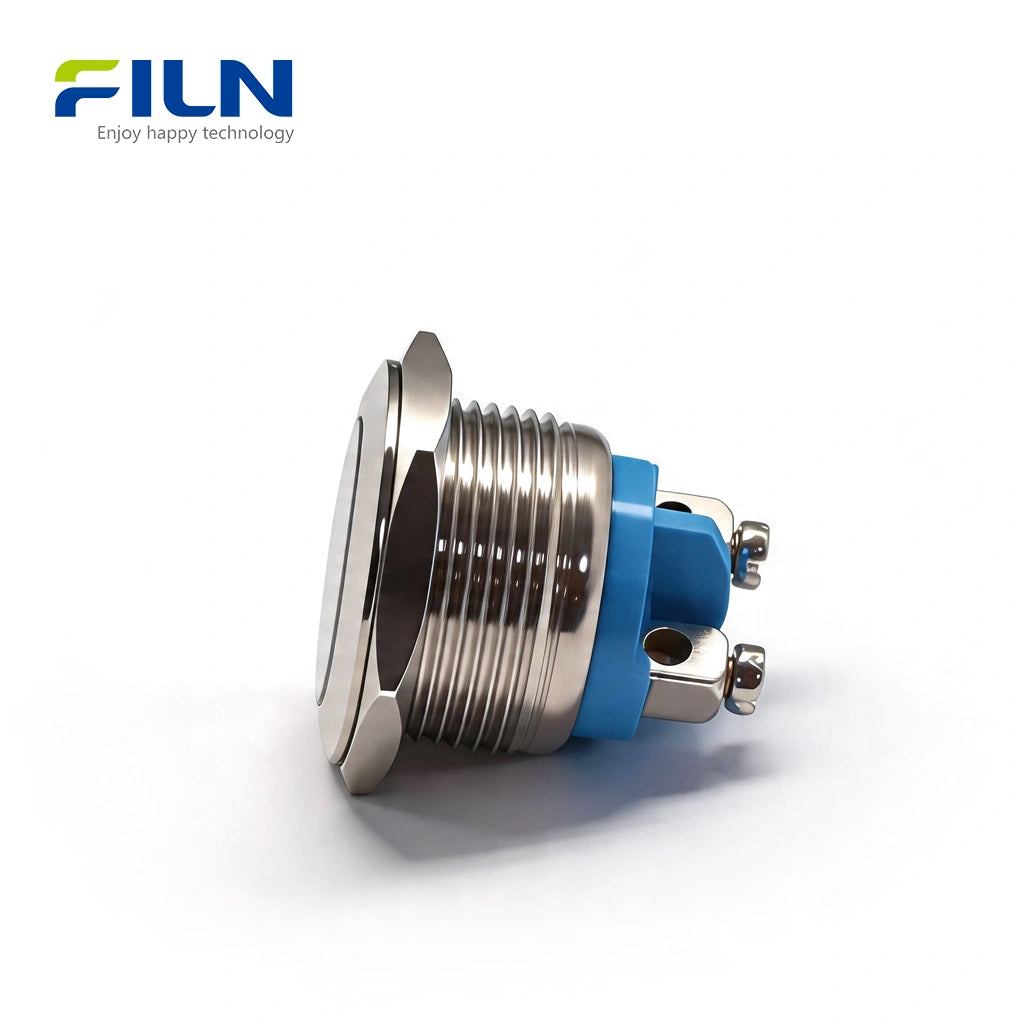

The push button reset switch (Model: FLM19-FS-2) is a high-durability 19mm-push-button-reset-switch engineered for heavy-duty industrial applications. Crafted from premium 304 stainless steel, this industrial-metal-reset-switch offers exceptional resistance to corrosion and mechanical impact. With its 2-pin-screw-terminal-button design, it provides a secure and reliable electrical connection without the need for soldering. FILN is a leading factory providing ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certified products. This momentary-metal-button-switch is essential for power circuit control, functioning as a reliable reset or function trigger in automation, CNC machinery, and electrical cabinets. The sleek silver metal finish and robust build make it a top choice for waterproof-19mm-push-button requirements in demanding environments.
Quick Specifications
| Model Number | FLM19-FS-2 |
| Mounting Diameter | 19mm (0.75 inch) |
| Operation Mode | Momentary (Self-reset) |
| Illumination | Non-Illuminated (No Light) |
| Button Shape | Flat Round Head |

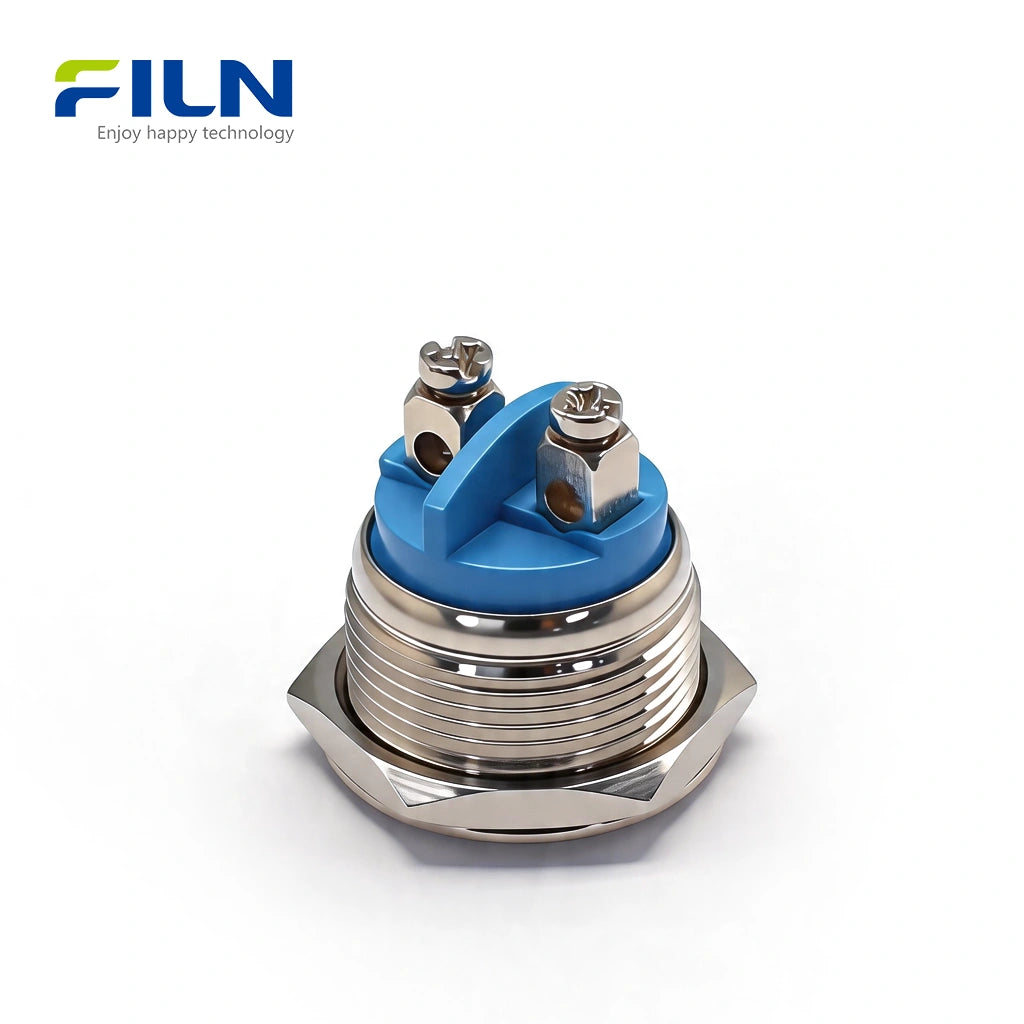

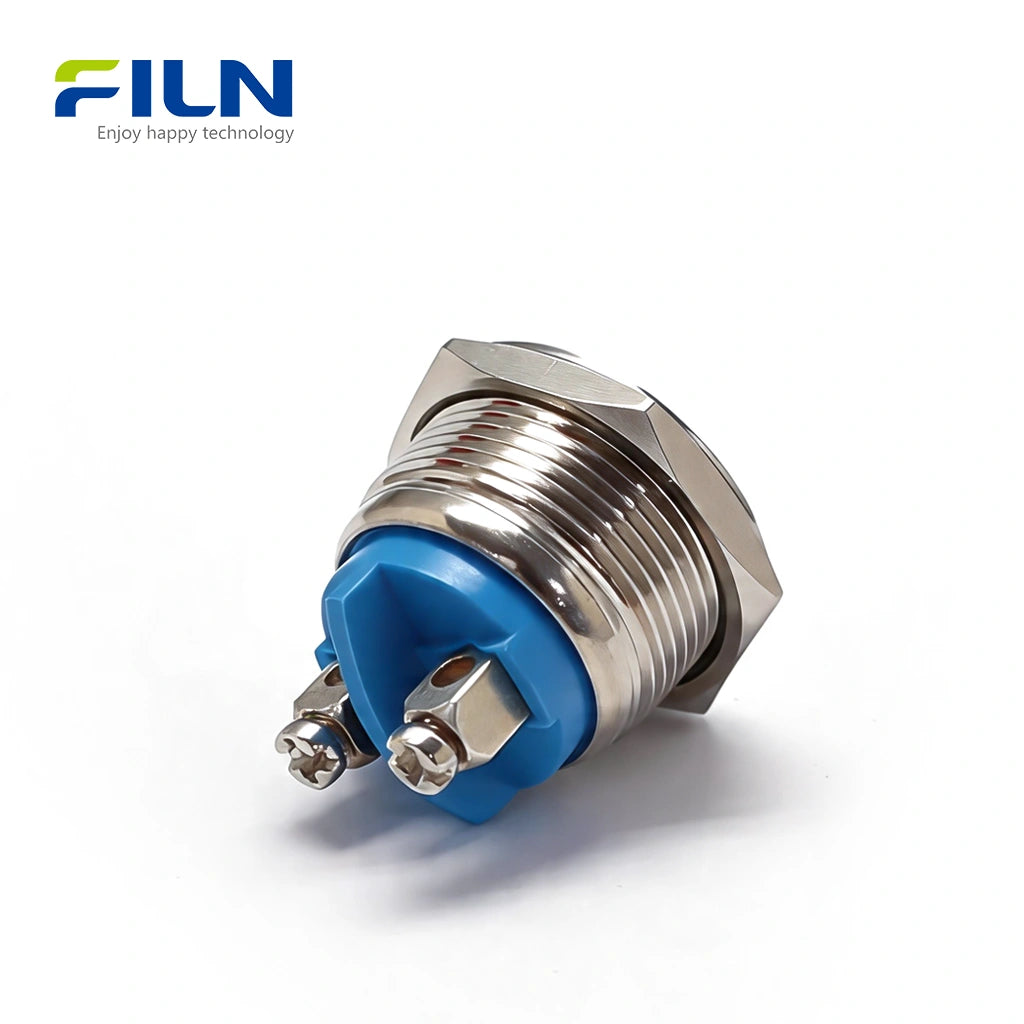

| Wiring Connection | 2-Pin Screw Terminals |
Performance Parameters
| Rated Voltage | 36V DC / 250V AC |
| Rated Current | 5A DC / 5A AC |
| Rated Power | 180W (DC) / 1250W (AC) |
| Dielectric Strength | 1800V |
| Contact Resistance | < 50mΩ |
| Insulation Resistance | ≥ 1000MΩ |
Component Materials
| Button Actuator | 304 Stainless Steel |
| Outer Shell | 304 Stainless Steel / Nickel-Plated Brass |
| Terminals | H62 Copper Alloy (Screw Posts) |
| Base Internal | PA66+GF20% Flame Retardant Nylon |
| Contacts | Silver Alloy (AgCdO12) |
| Sealing | SIL Silicone Waterproof Ring |
General Characteristics
| Operating Temperature | -25°C to +85°C |
| Protection Level | IP65, IK08 |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles (3A) / 50,000 Cycles (5A) |
Key Advantages & Material Quality
This screw-terminal-momentary-button is specifically designed for industrial installers who value reliability and speed. The advantages include:
- Tool-Free Soldering: No need for soldering irons; a simple screwdriver ensures a heavy-duty connection.
- High-Current Support: The 5A capacity allows for direct control of machinery components without extra relays.
- Anti-Corrosion Shell: The 304 Stainless Steel body is perfect for medical, food, and marine applications.
- Precise Tactile Feedback: Designed as a reset switch, it provides a clear "click" upon activation.
LED Color Meanings (For Illuminated Models)
Although this model is non-illuminated, FILN offers color customization for system status:
- Red: Stop or Emergency status.
- Green: Normal Operation or Start status.
- Blue: Specific system function or Standby.
- Yellow/Orange: Warning or Caution alerts.
- White: General lighting or Power indicator.
Terminal Type Comparison
| Terminal Type | Installation Speed | Vibration Resistance | Service Life |
|---|---|---|---|
| Screw Terminals (This Model) | High (Screw connection) | Excellent | Long (Heavy-duty) |
| Pin Terminals | Moderate (Soldering req.) | Moderate | Standard |
| Pre-wired / Lead Wire | Fastest (Plug & Play) | High | Standard |
Applications
Every electrical device requires a switch to control circuit connectivity. This industrial-control-push-button is widely used in:
- Industrial control panels
- CNC machines
- Automation equipment
- Electrical cabinets
- Marine systems
- Medical devices
Installation Guide
- Cutout: Create a 19mm diameter hole in the mounting panel.
- Placement: Insert the 19mm-panel-mount-switch from the top of the panel.

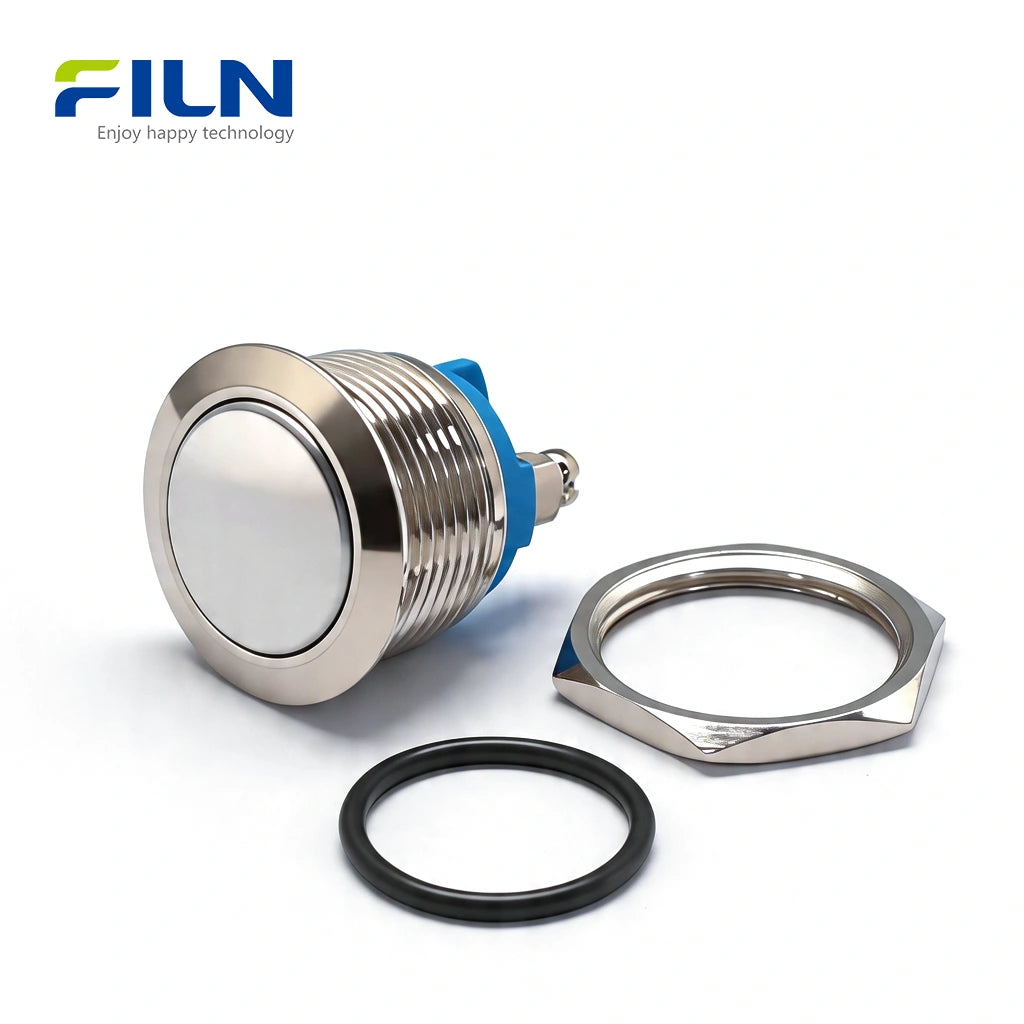

- Fixation: Use the provided metal hexagonal nut to tighten the switch from the back of the panel (Threaded Mounting).
- Wiring: Connect the 2 circuit wires to the screw terminals and tighten using a screwdriver.
Industry Knowledge
What is a Push Button Reset Switch?
A push button reset switch is a momentary control device that temporarily changes the state of an electrical circuit. It is vital in industrial machinery for resetting logic controllers, clearing faults, or acting as a manual trigger for specific automated sequences. Its high IP65 rating ensures it operates even in dusty or wet factory conditions.
Latching vs. Momentary: Comparison
| Feature | Momentary (This Model) | Latching |
|---|---|---|
| Action | Returns to original position after release. | Stays in the "pressed" state until pressed again. |
| Common Use | Reset, Start, Signal, Horn. | Power Switch, Light Toggle. |
FILN Factory Direct Advantage
FILN offers professional manufacturing with zero MOQ and rapid lead times. We specialize in custom industrial solutions.
- No MOQ Requirement
- Fast Global Shipping
- Voltage Customization
- Wire Length Customization
- Connector Customization
- CE / RoHS Certified
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. Is this 2-pin screw terminal switch without light?
Yes, the FLM19-FS-2 is a non-illuminated model, focusing on pure mechanical reset functionality.
2. Can I use this 19mm momentary switch for outdoor equipment?
Absolutely. With an IP65 rating and stainless steel body, it is resistant to water and dust.
3. What is the maximum current this switch can handle?
It is rated for 5A at 250V AC, making it suitable for direct circuit control.
4. Do you provide customization for screw terminals?
Yes, we can adjust terminal sizes or provide pre-wired versions upon request.
5. Is the 19mm-push-button-reset-switch durable?
It has a mechanical life of 500,000 cycles, ensuring it outlasts most consumer-grade switches.
6. Does this switch come with a waterproof rubber gasket?
Yes, every switch includes a high-quality SIL silicone O-ring for panel sealing.
7. Why choose a stainless steel outer shell?
It provides superior rust protection and is food-safe/medical-grade compared to plastic or plated brass.
8. Can I buy this directly from the FILN factory?
Yes, we offer factory-direct sales and support global shipping with no minimum order quantity.
9. How does the self-reset (momentary) function work?
The button only stays in the "ON" state while your finger is pressing it. It springs back once released.
10. Is there a latching version of this 19mm metal switch?
Yes, FILN offers latching versions for different models; please check our collection page.
