Product Overview

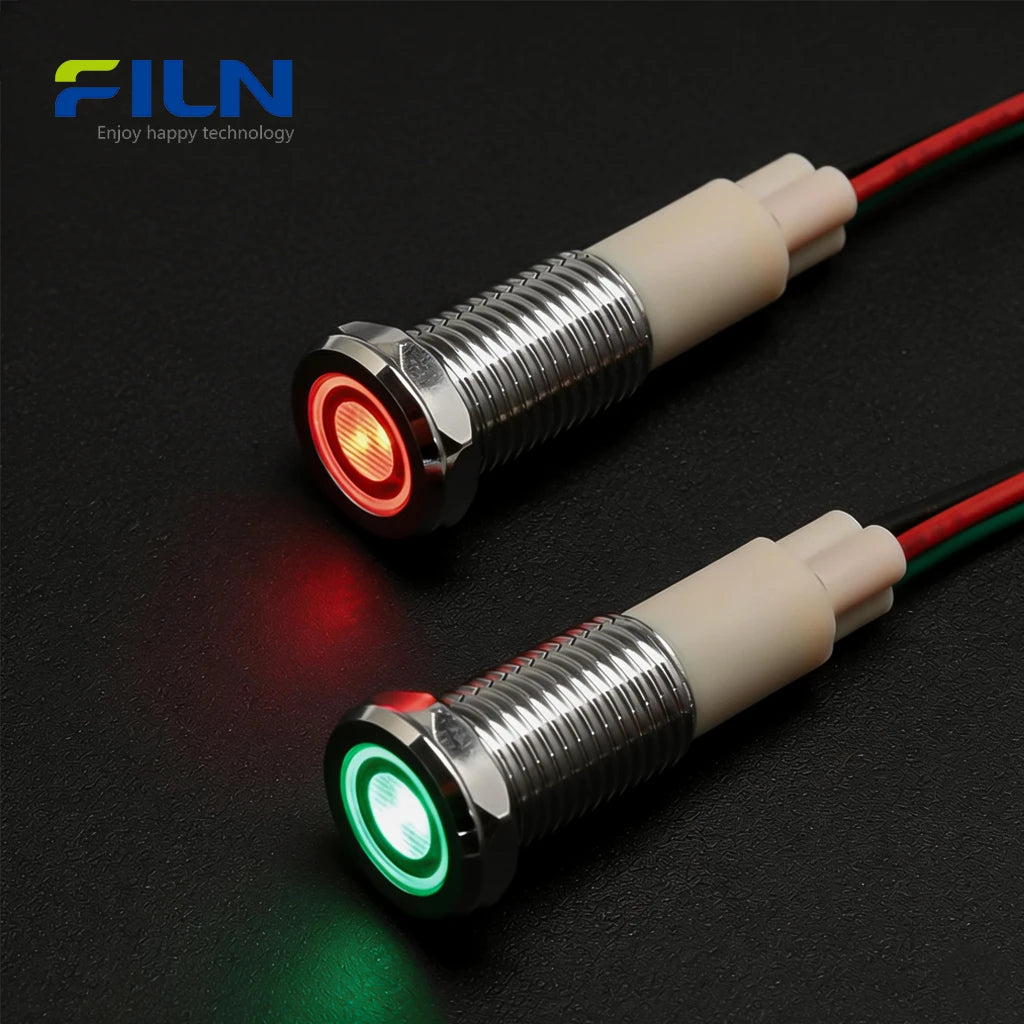

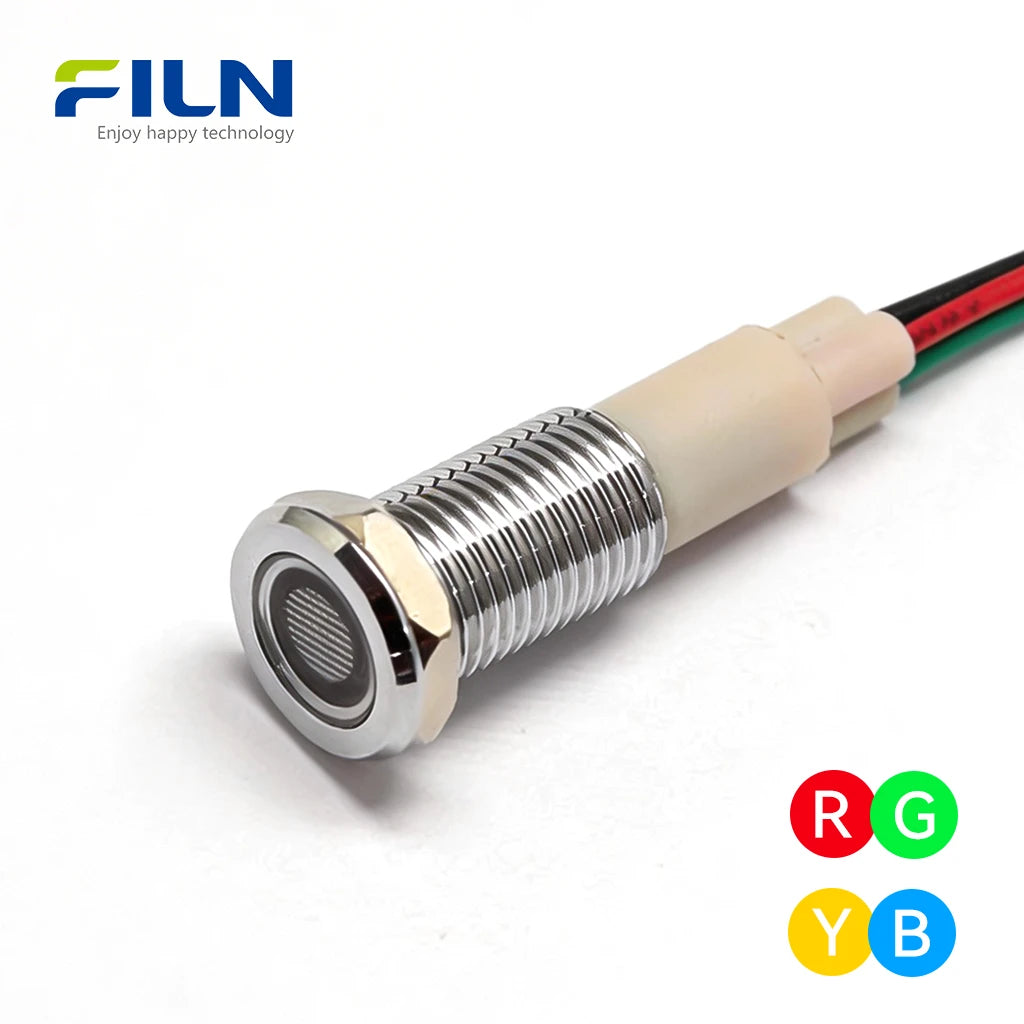

The RG indicator light (Red/Green dual-color) is a premium 10mm metal signal lamp designed for high-reliability status monitoring. Manufactured by FILN, these indicators carry prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65/IP67 protection[cite: 1]. Available in Flat, High-dome, and Concave head styles, these units are ideal for industrial control panels, CNC machinery, marine systems, and medical devices. The dual-color LED integration allows for space-saving multi-status signaling (e.g., Go/Stop) within a single M10 mounting hole, featuring pre-wired leads for rapid installation and extreme industrial-grade durability.
Quick Specifications
| Mounting Hole | 10mm / 0.39 inch |
|---|---|
| Voltage | 12-24V, 110-220V (Customizable) |
| LED Color | Red / Green Dual Color (RG) |

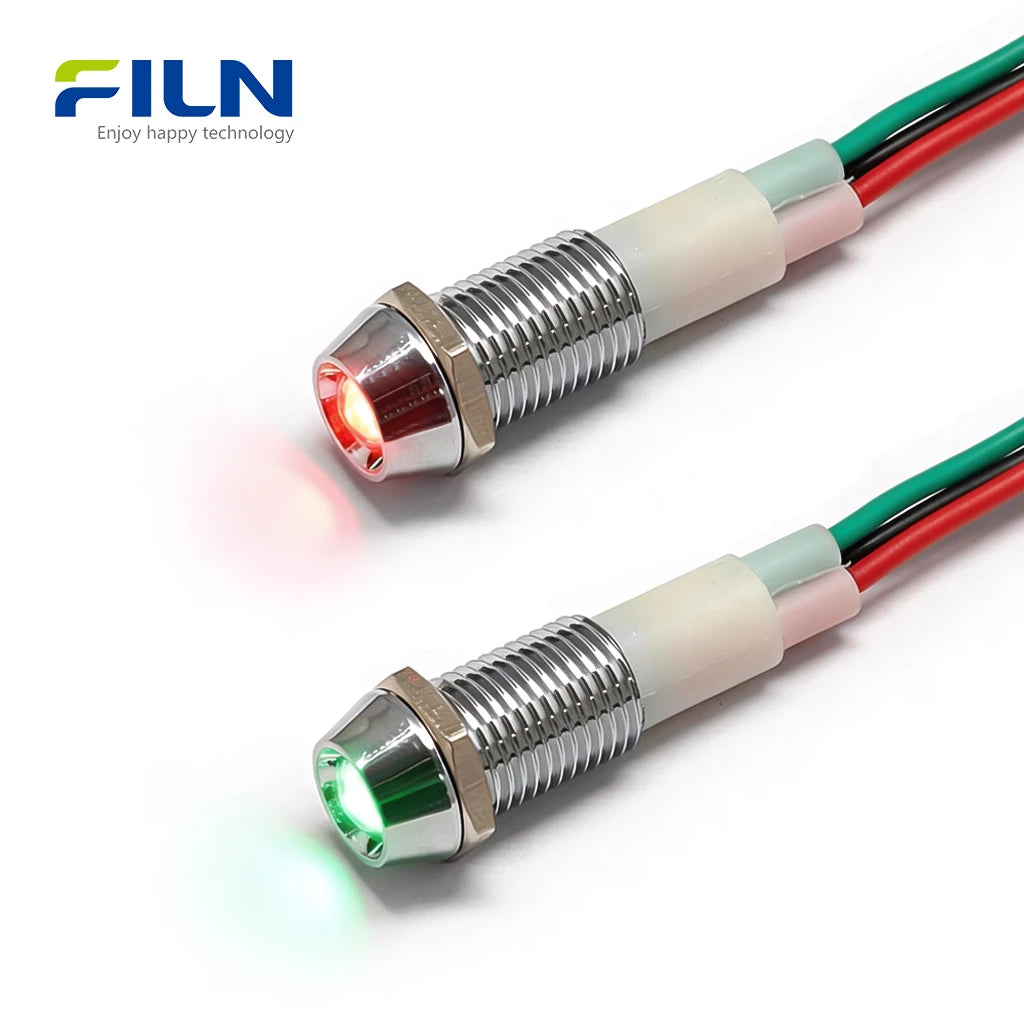

| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40℃ to +80℃ |
| Lifespan | 50,000 Hours |
| Wiring Type | Pre-wired Lead Type |
Rated Working Parameters
| Rated Voltage | Customized (AC/DC) |
|---|---|
| Frequency (AC) | 50～60Hz |
| Rated Current | ≤20mA |
Component Materials
| Housing | Stainless Steel / Nickel-plated Brass (Silver or Black) |
|---|---|
| Lens | Polycarbonate (PC) |
| Seal Ring | SIL Silicone (10mm O-ring included) |
| Terminal | Pre-wired copper leads |
| Wire Material | UL1007 / High-temperature PVC |
General Characteristics
| Application | Signal Indication |
|---|---|
| Operating Temp | -40℃～80℃ |
| Relative Humidity | ≤85% at +40℃ |
| Air Pressure | 86~106Kpa |
| Waterproof Rating | IP67 |
Electric Property
| Item | Test Condition | Requirement |
|---|---|---|
| Insulation Resistance | DC500V for 1 minute | ≥100MΩ |
| Dielectric Strength | 1500VAC / 5mA / 60s | No breakdown |
Key Features

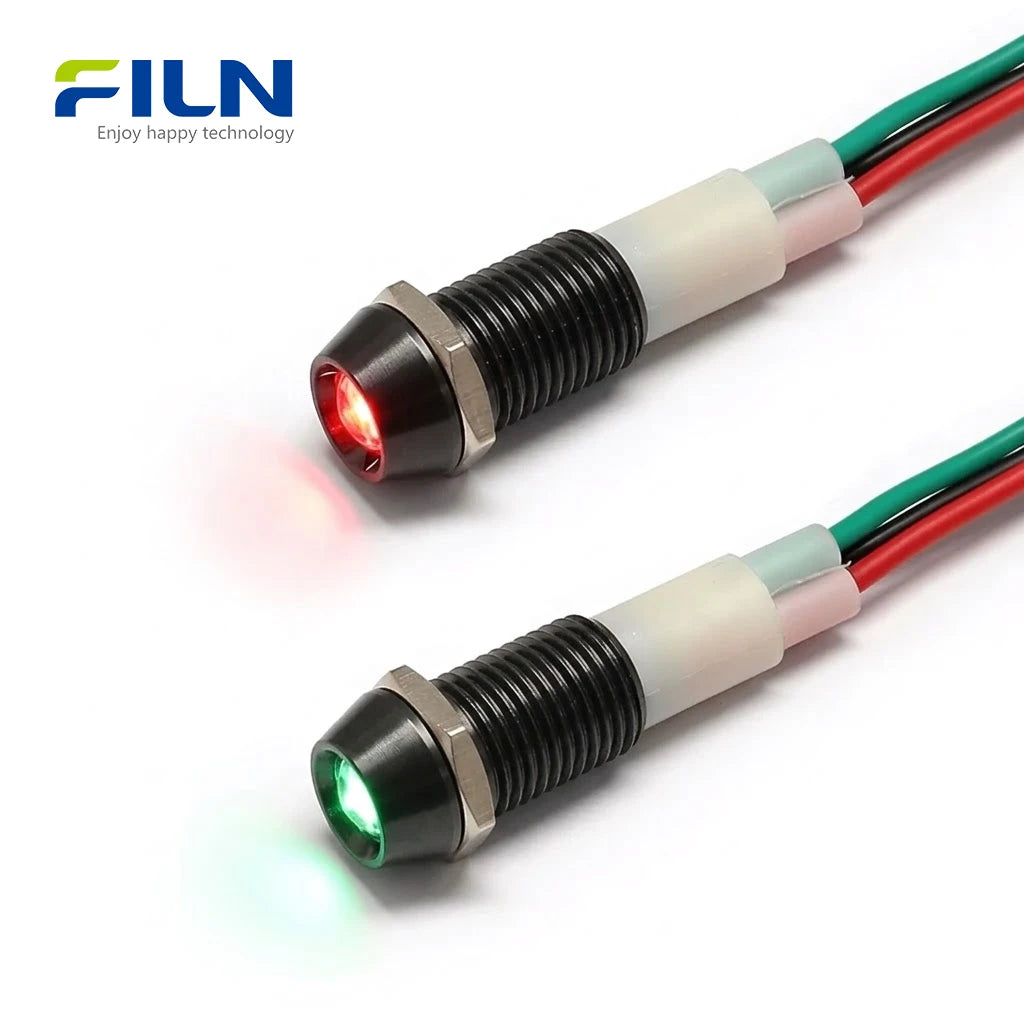

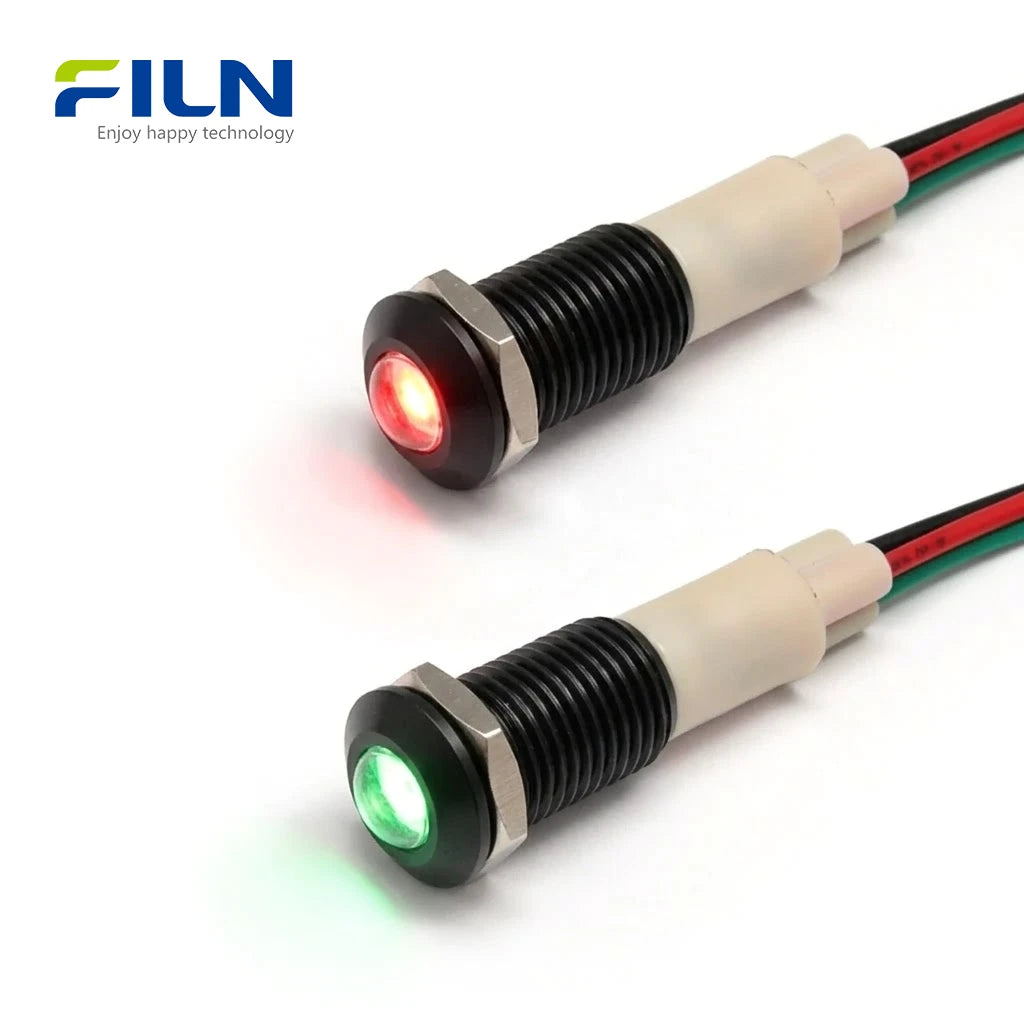

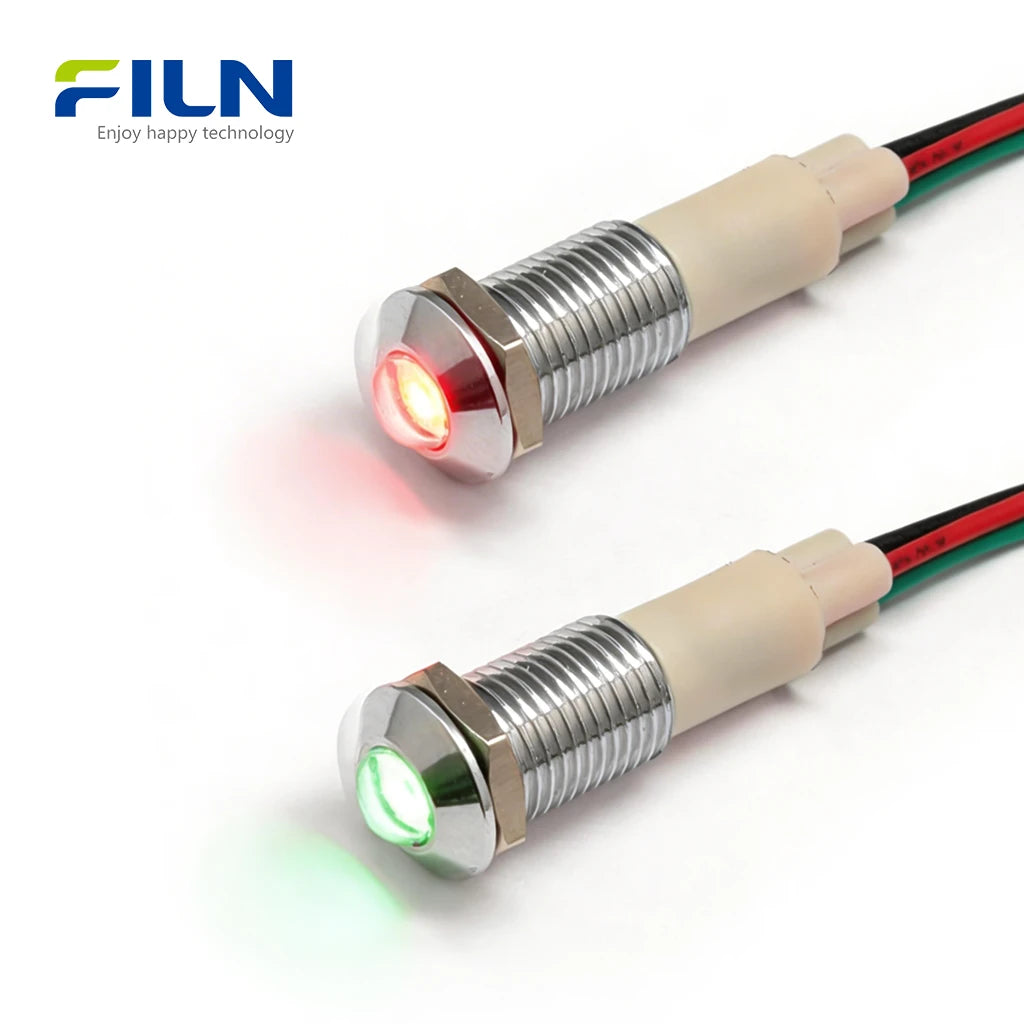

- Triple Head Designs: Available in Flat (FL1M-10FW-D), High-dome (FL1M-10SW-D), and Concave (FL1M-10CW-D) to suit diverse aesthetic and tactile requirements.
- Dual-Color Efficiency: Integrated Red/Green LED in a single housing saves panel space while providing clear bi-status signals.

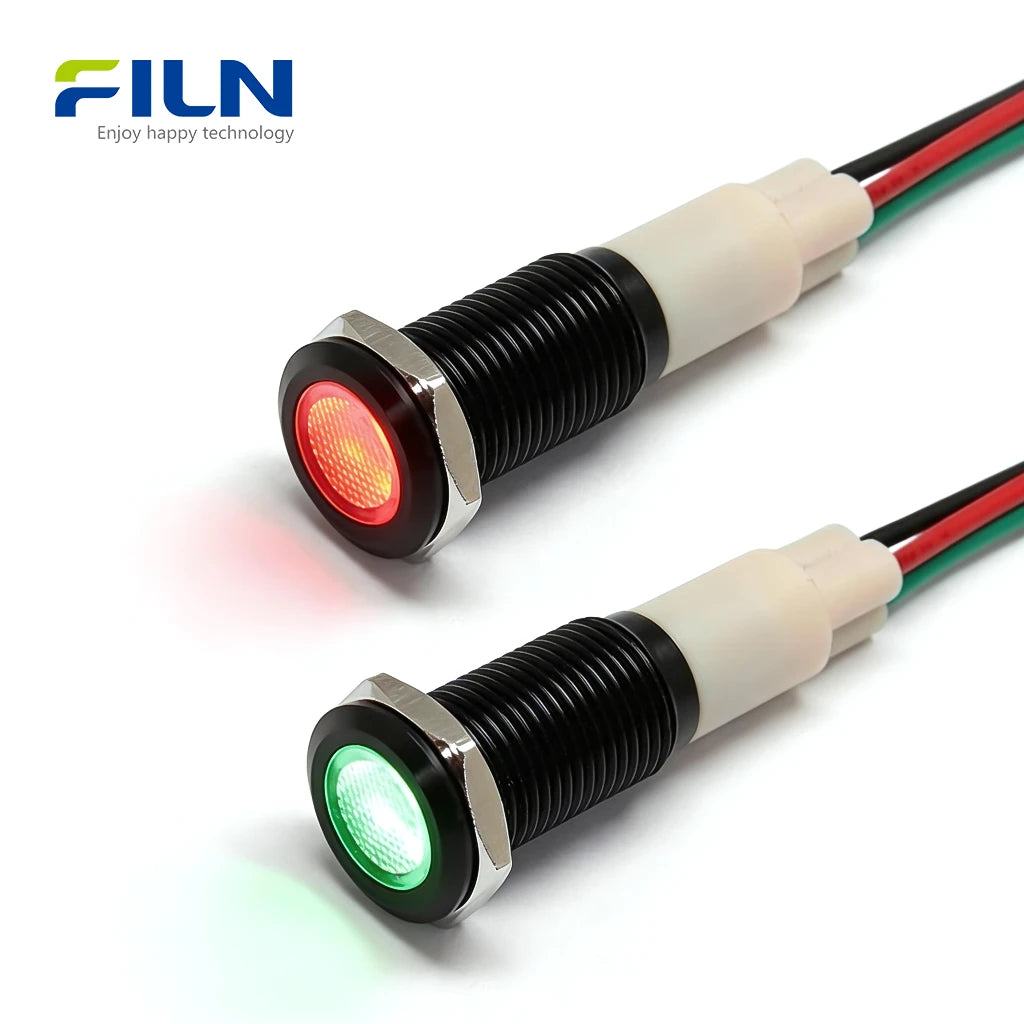

- Industrial Metal Housing: Choose between polished silver or sleek black finishes for extreme durability and corrosion resistance.

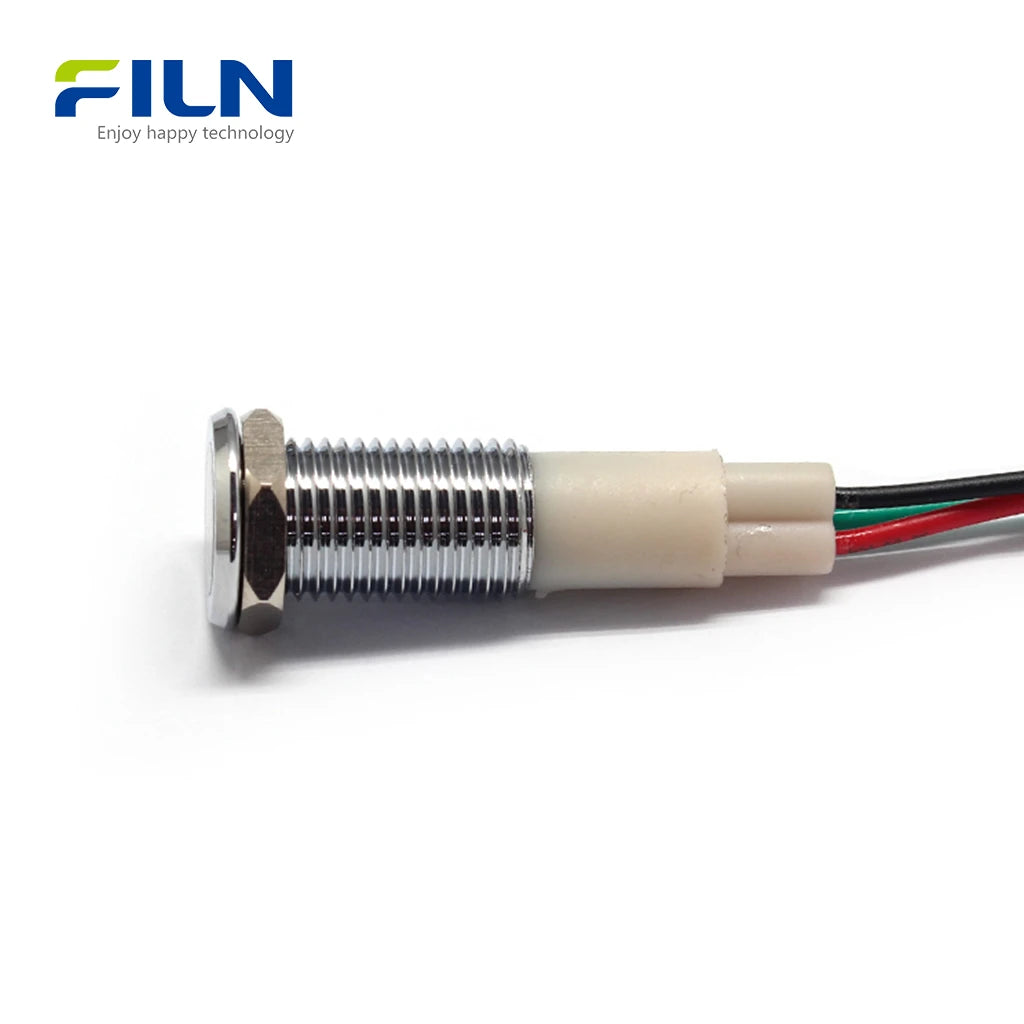

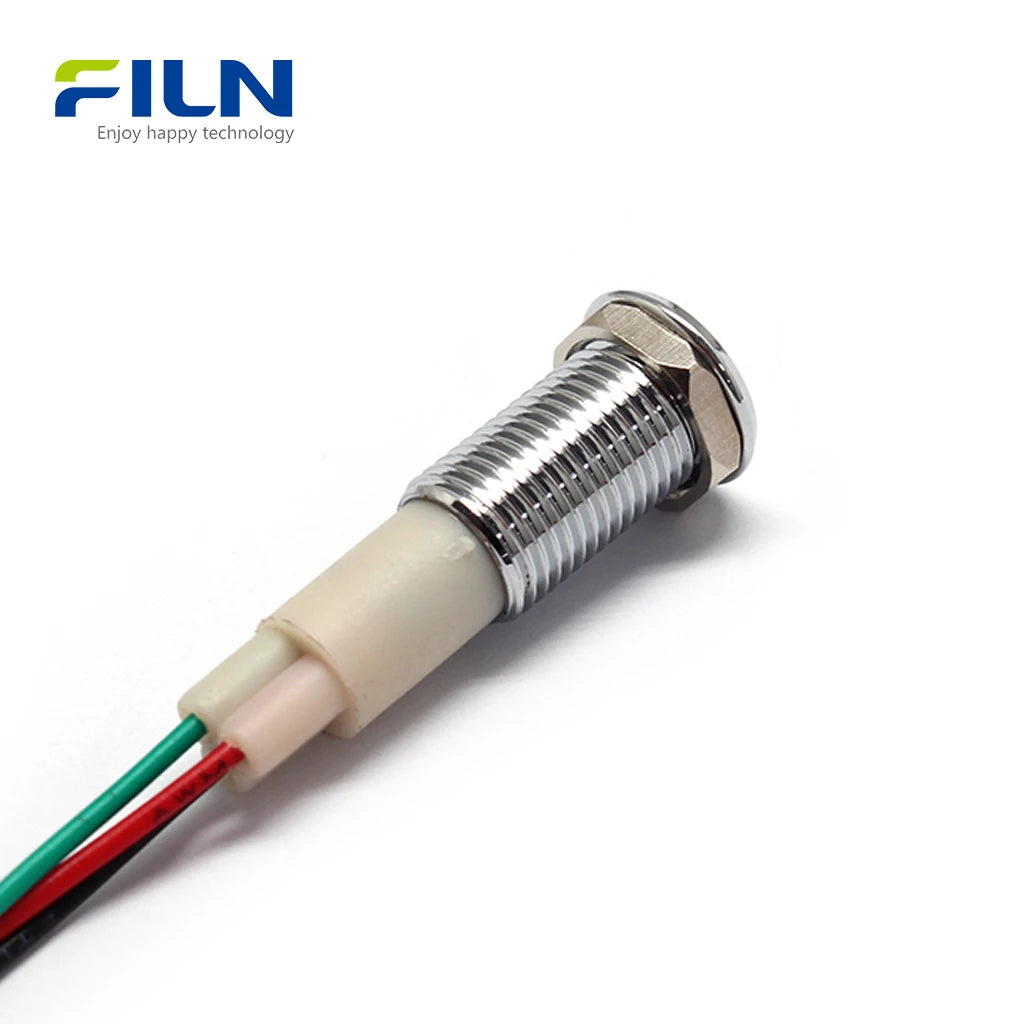

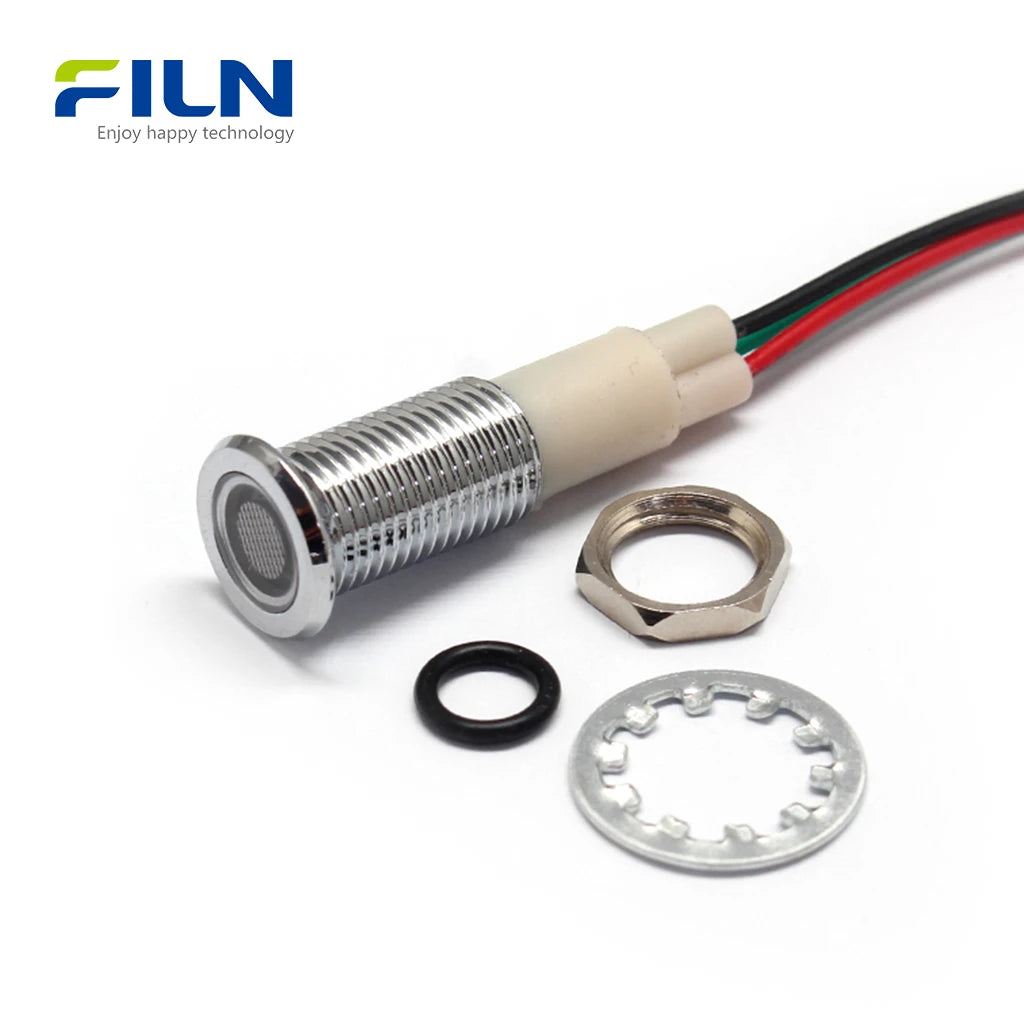

- Simplified Installation: Pre-wired tail design eliminates soldering, paired with a smooth M10 thread and waterproof O-ring for a perfect seal.
- Full Certification: Complying with UL, CE, and RoHS standards ensures safety for global market exports[cite: 1].
Applications
- Industrial Control & PLC Panels
- CNC Machines and Tooling Centers
- Commercial Coffee Machines & Kitchen Equipment
- Marine Dashboard & Ship Systems
- Automated Vending Solutions
- Medical Monitoring Devices
- EV Charging Stations
Installation Guide
- Drill a 10mm (M10) diameter hole on the desired control panel surface.
- Place the included silicone O-ring onto the indicator light body.
- Insert the indicator light from the top/front of the panel.
- Secure the unit from the back using the provided M10 hex nut; tighten until the O-ring compresses for an IP67 seal.
- Connect the pre-wired leads to your 12V-24V or 110V-220V power source.
What Is an RG Indicator Light?
An RG indicator light is a specialized dual-color signal lamp that integrates two distinct LED chips (Red and Green) within a single 10mm housing. In industrial environments, these are essential for "Status Signaling." For example, a Green light indicates "System Normal" or "Ready," while a Red light signals "Error" or "Stop." Unlike standard pin-terminal lights, pre-wired lead indicators provide superior vibration resistance and faster assembly times, making them the preferred choice for high-intensity machinery and portable commercial equipment.
FILN Factory Direct Advantage
- ✅ Direct Manufacturing: Competitive B2B pricing and bulk availability.
- ✅ Full Customization: Tailored voltage, wire lengths, and specialized connectors[cite: 4].
- ✅ Global Shipping: Fast logistics support for international projects.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions
Q1: What head styles are available?
We offer Flat (flush mount), High-dome (maximum visibility), and Concave (lens protection).
Q2: Is custom voltage available?
Yes, we support everything from 3V to 380V customization[cite: 4].
Q3: How do I wire a dual-color RG light?
Our RG lights typically feature three wires (common cathode or anode) to switch between red and green states.
Q4: Can these withstand outdoor rain?
Yes, with an IP67 rating and the included O-ring, they are fully protected against heavy rain and dust.
Q5: What finishes are available?
Standard silver (nickel-plated) and professional black (electrophoresis) housings.
Q6: Are samples available for B2B clients?
Yes, contact our sales team at inquiry@cnylin.com.cn for testing samples.
Q7: What is the screw thread pitch?
It uses a standard M10 fine thread for smooth installation.
Q8: Does the color fade over time?
No, we use high-quality PC lenses that are UV-resistant and won't yellow.
Q9: Is the wiring heat resistant?
Yes, we use UL-standard high-temperature resistant copper wires.
Q10: Are these suitable for marine use?
Yes, the stainless steel option is highly resistant to salt spray and corrosion.
