Rocker Switch Drawing
What is Rocker Switch 12V?

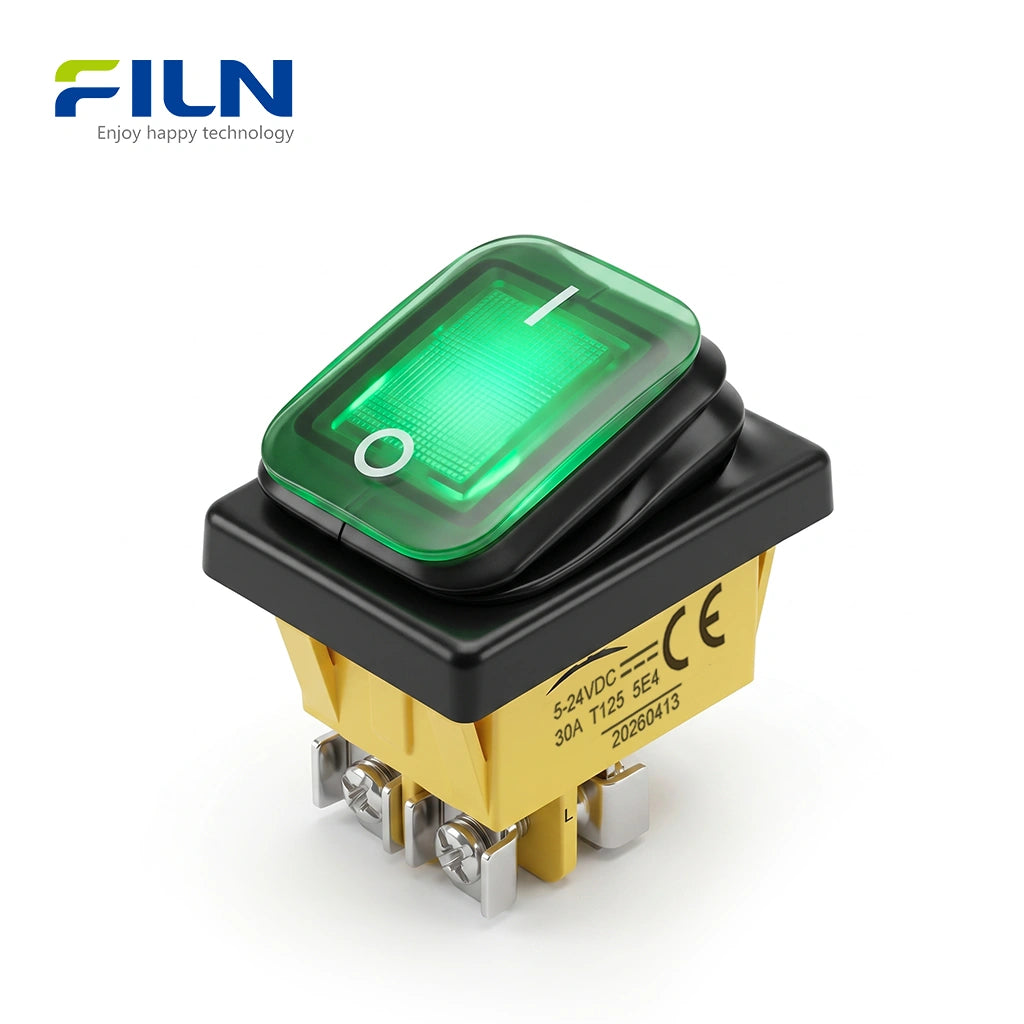

A Rocker Switch 12V is an electrical control device designed to open or close a circuit by rocking motion. The FL3-KCD4-0111-21S model is a professional-grade KCD4 series switch featuring a transparent ordinary plastic surface. It is engineered for 30x22mm panel cutouts and typically operates as a 4-pin DPST (Double Pole Single Throw) switch, providing robust power control for both automotive and industrial 12V DC applications.

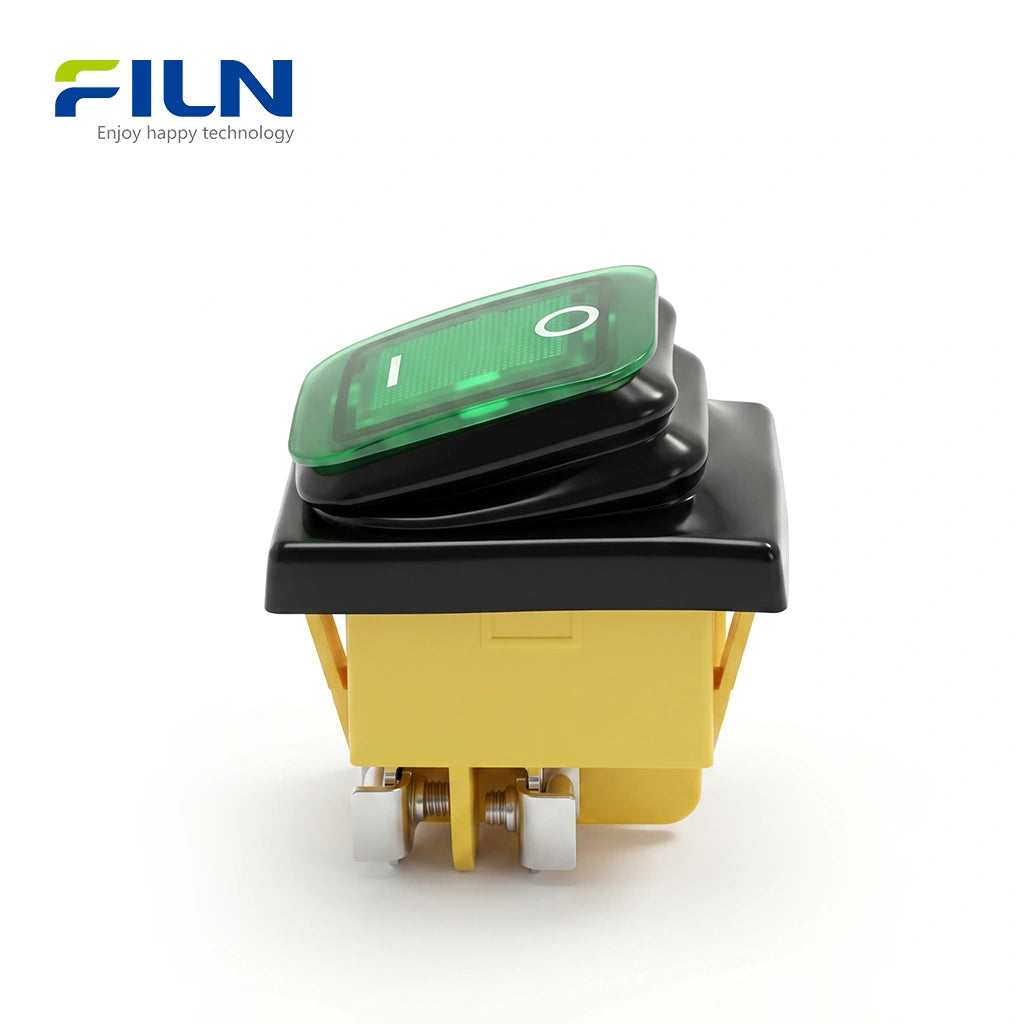

Product Overview
The FILN rocker switch 12v is a market-standard KCD4 rectangular component built for reliability. It features a unique transparent plastic actuator that maximizes the brightness of the internal LED, ensuring the switch is highly visible in dark environments. With an IP65 waterproof rating and a frameless (no frame) integrated housing, it is ideal for outdoor equipment. The 21S version utilizes screw-foot terminals (screw terminals) at the base for an ultra-secure connection. Certified with ISO9001, CE, VDE, RoHS, SGS, and UL, it serves as a high-current control solution (up to 30A) across various industries.
Switch Function Principles (ON-OFF & ON-ON)
| Function | Working Principle | Circuit Status |
|---|---|---|
| ON-OFF | Single Throw: The circuit is either fully connected or completely disconnected. | Standard 2-position power control. |
| ON-ON | Double Throw: Toggling switches the power from one output path to another. | Continuous power to alternating devices. |
Quick Specifications
| Model | FL3-KCD4-0111-21S |
| Mounting Size | 30X22MM |

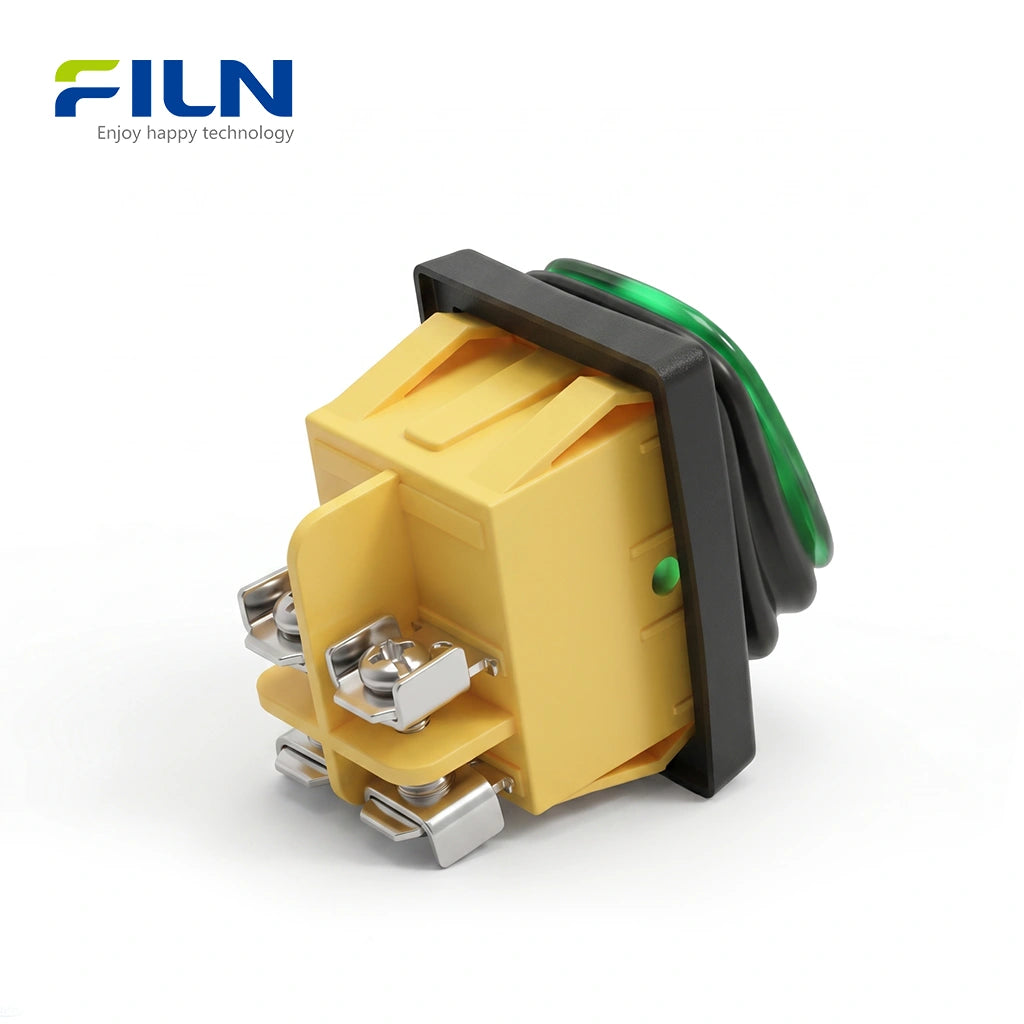

| Switch Function | ON-OFF |

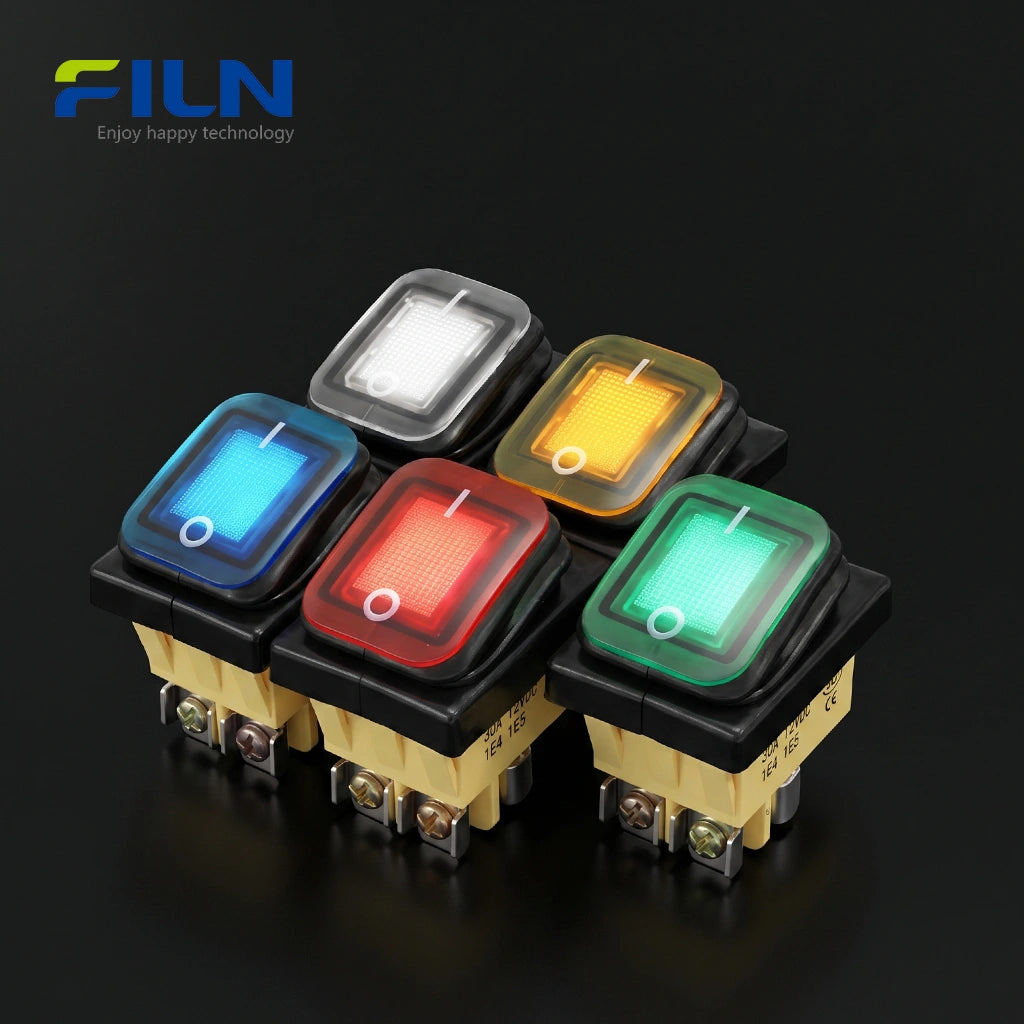

| LED Colors | Red, Green, Yellow, Blue, White |

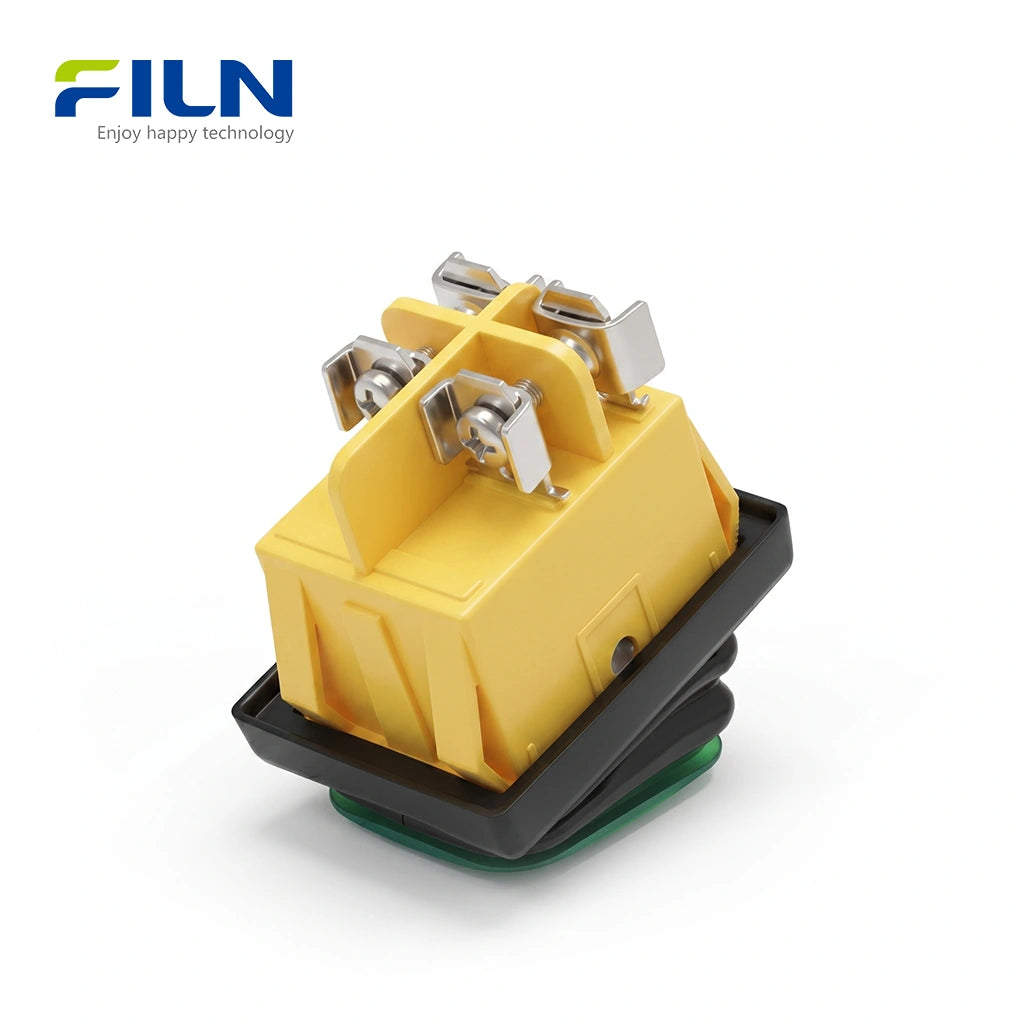

| Terminal Type | Screw Foot (Screw Terminals) / 4-Pin |
| Frame Design | No Frame (integrated) |
Performance Parameters
| Rated Voltage/Current |
16A 250VAC
|
| LED Voltage | 5V-24V / 110V-220V / Custom |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Life | 10,000 cycles |
| Protection Rating | IP65 Waterproof |
Component Materials
| Part Name | Material Used |
|---|---|
| Transparent Actuator | Polycarbonate (PC) |
| Housing Base | PA66 / ABS |
| Waterproof Cover | Industrial Rubber |
| Terminals | H62 Brass / Silver Contacts (AgCdO12) |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Premium Design: Transparent vs. Classic Surfaces
The FILN KCD4 rocker switch series offers two distinct styles. The transparent plastic surface featured here is optimized for illumination; in dark environments, it provides a bright, clear glow that improves operator safety. Conversely, the black plastic surface option offers a sleek, versatile look that is exceptionally easy to clean and smudge-resistant, making it a popular choice for high-end industrial panels and modern kitchen equipment. Both designs share the same long-life internal silver contacts and easy-to-wire terminal configurations.
Industrial and Outdoor Applications
This waterproof rocker switch 12v is versatile enough for virtually any power control scenario. Common applications include:
- Automotive & Marine: RV light controls, boat dashboard switches.
- Industrial: Machinery power buttons, distribution boxes.
- Appliances: Coffee makers, water dispensers, and kitchen fryers.
Installation Steps
- Cut a 30x22mm rectangular hole in the mounting panel.
- Align the switch from the front of the panel and push it into the cutout.
- The snap-in side clips will expand to lock the switch firmly against the panel.
- Connect the wires to the screw terminals or 4-pin quick-connect terminals on the back.
Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Industry Knowledge: How it Works

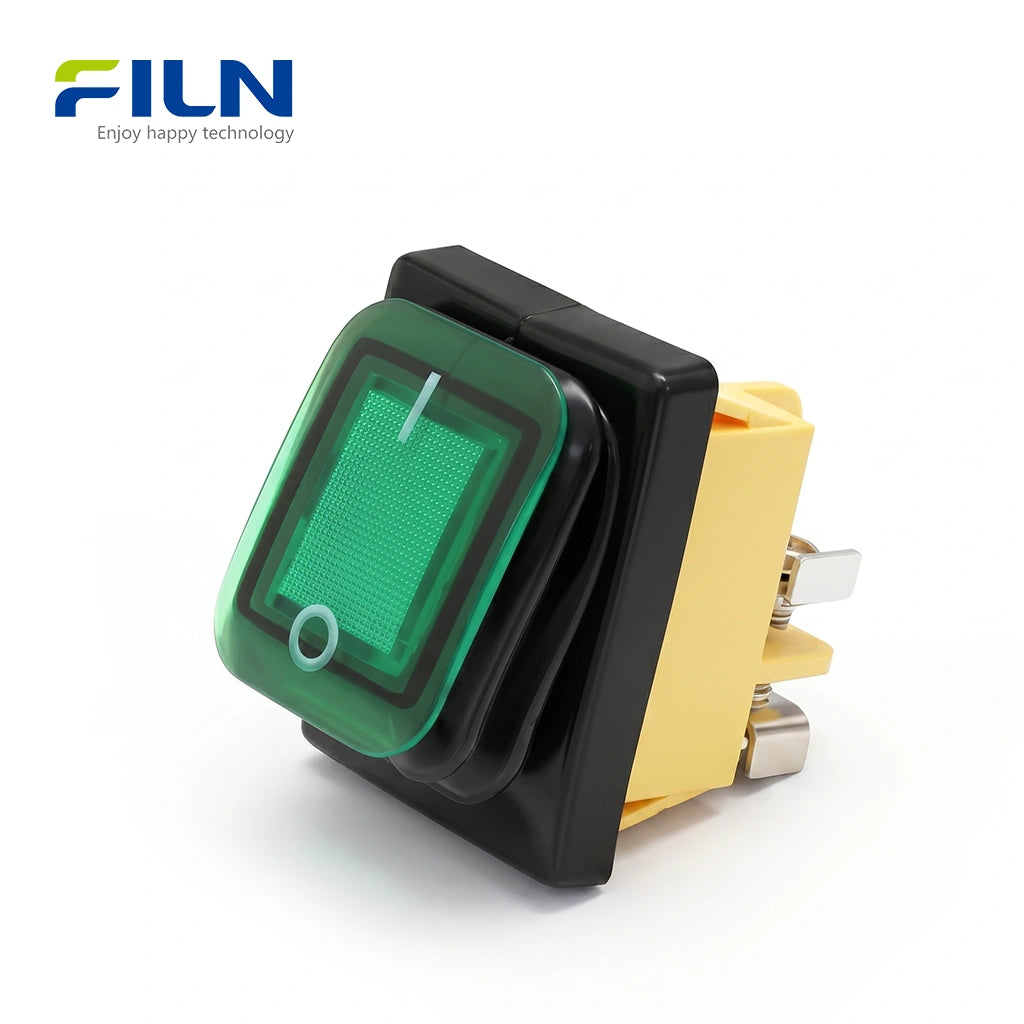

A rocker switch functions by rocking back and forth; one side remains depressed while the other is raised. Internally, this movement pivots a metal contact arm (silver alloy) into position, bridging the gap between the incoming power pins and the device output pins. Because the KCD4 4-pin switch controls two independent poles (DPST), it provides a safer disconnection by cutting both the live and neutral lines in AC systems, or both positive and negative in 12V DC systems.
Factory Direct Supply & Customization
FILN is a specialized manufacturer offering factory-direct pricing with no MOQ. We support full customization including Voltage (5V-220V), Wire Lengths, and Connector Styles.
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How many pins does the lighted 12V rocker switch have?
This model features 4 pins (DPST) for total circuit control and LED integration.
2. Can I use a 12V rocker switch 12v for a 110V appliance?
The switch housing can handle the current, but the internal light is voltage-specific. FILN offers custom 110V/220V LED versions for these needs.
3. Is the KCD4 30x22mm switch waterproof?
Yes, it has an IP65 rating and a frameless integrated body, making it suitable for wet and outdoor environments.
4. What is the benefit of the screw terminal foot?
Screw terminals provide a more vibration-resistant and heavy-duty connection than standard spade lugs.
5. Is there a minimum order quantity (MOQ) for custom voltages?
No, FILN factory provides custom voltage services with no MOQ requirements.
6. How does the transparent plastic surface improve the light?
The high-transparency PC material allows the LED light to diffuse evenly through the entire rocker face.
7. What is the mounting hole size for this switch?
The standard cutout size is 30mm x 22mm (KCD4 standard).
8. Are these switches certified for global sale?
Yes, they carry UL, CE, RoHS, and VDE certifications for worldwide compliance.
9. Does this switch have a frame?
No, this model is a frameless design, providing a flush and clean installation profile.
10. How long is the electrical life of the switch?
It is rated for a minimum of 10,000 cycles at full electrical load.
