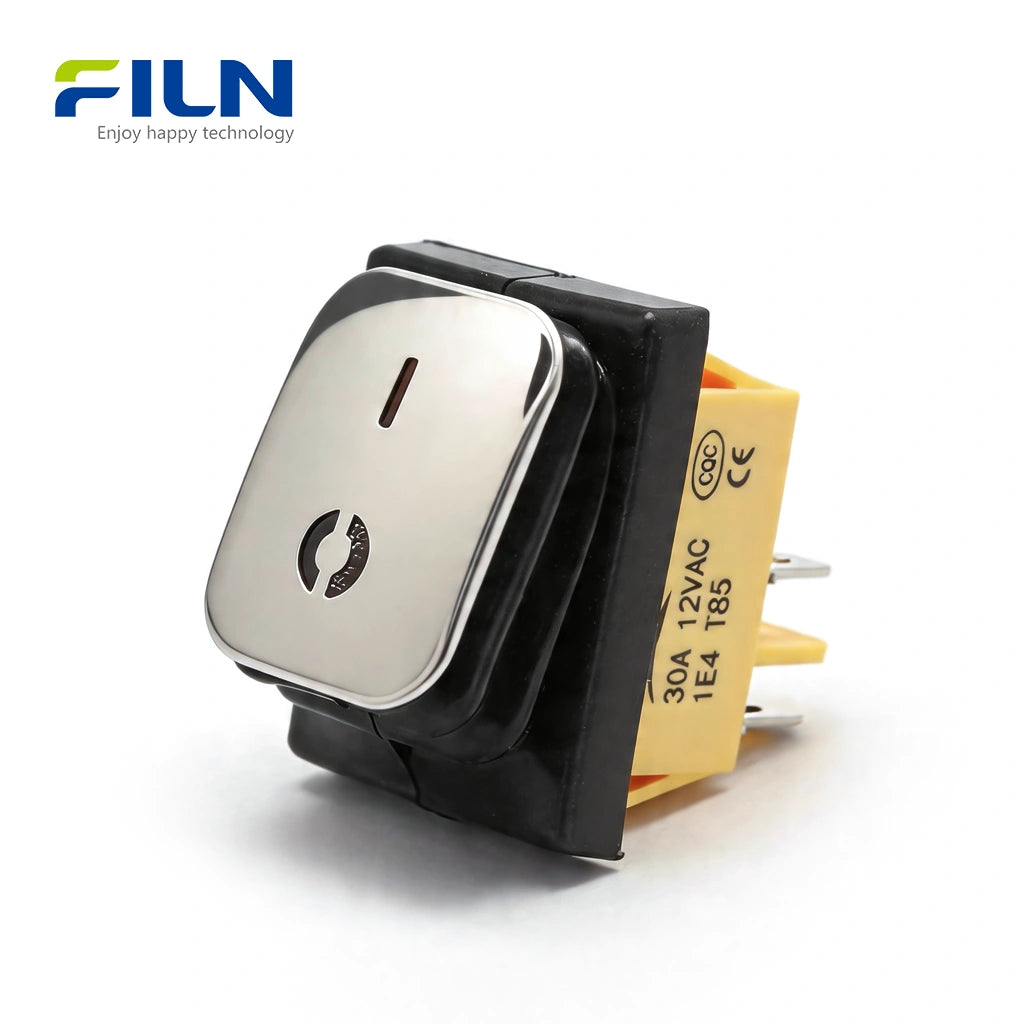

Rocker Switch Drawing

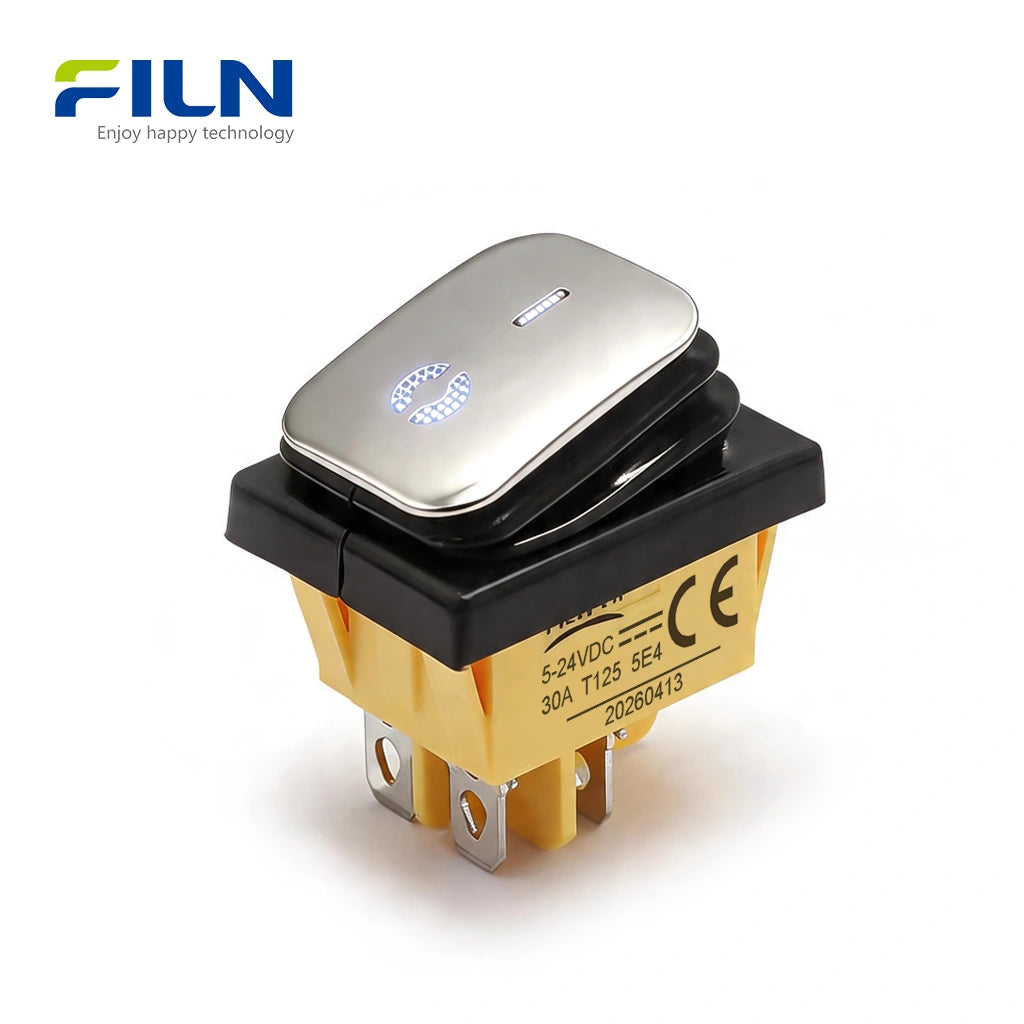

What are Lighted Rocker Switches?
Lighted rocker switches are premium electrical control components featuring an integrated LED or neon lamp that provides visual status feedback. The FL3-KCD4-0114-21 series is distinguished by its unique stainless steel metal surface, combining industrial durability with a high-end aesthetic. These switches function as 4-pin Double Pole Single Throw (DPST) devices, allowing for the simultaneous control of both live and neutral lines, ensuring maximum safety in high-load applications like industrial machinery and commercial appliances.
Product Overview
The FILN stainless steel face rocker switch is engineered for demanding environments where standard plastic actuators might fail or lack the desired finish. Certified by ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this switch offers unrivaled reliability. The 30x22mm mounting size is a global industrial standard (KCD4), making it an ideal drop-in replacement for existing panels. Its waterproof integrated housing (frameless design) prevents moisture ingress, while the black plastic button body remains easy to clean and maintain. Whether used in outdoor power equipment or sleek kitchen appliances, the ON-OFF 4-pin configuration provides a secure, snap-in installation and high-amperage switching capacity up to 30A.
Quick Specifications
| Model Number | FL3-KCD4-0114-21 |
| Mounting Hole Size | 30mm x 22mm (1.18" x 0.87") |
| Function | ON-OFF (DPST) |

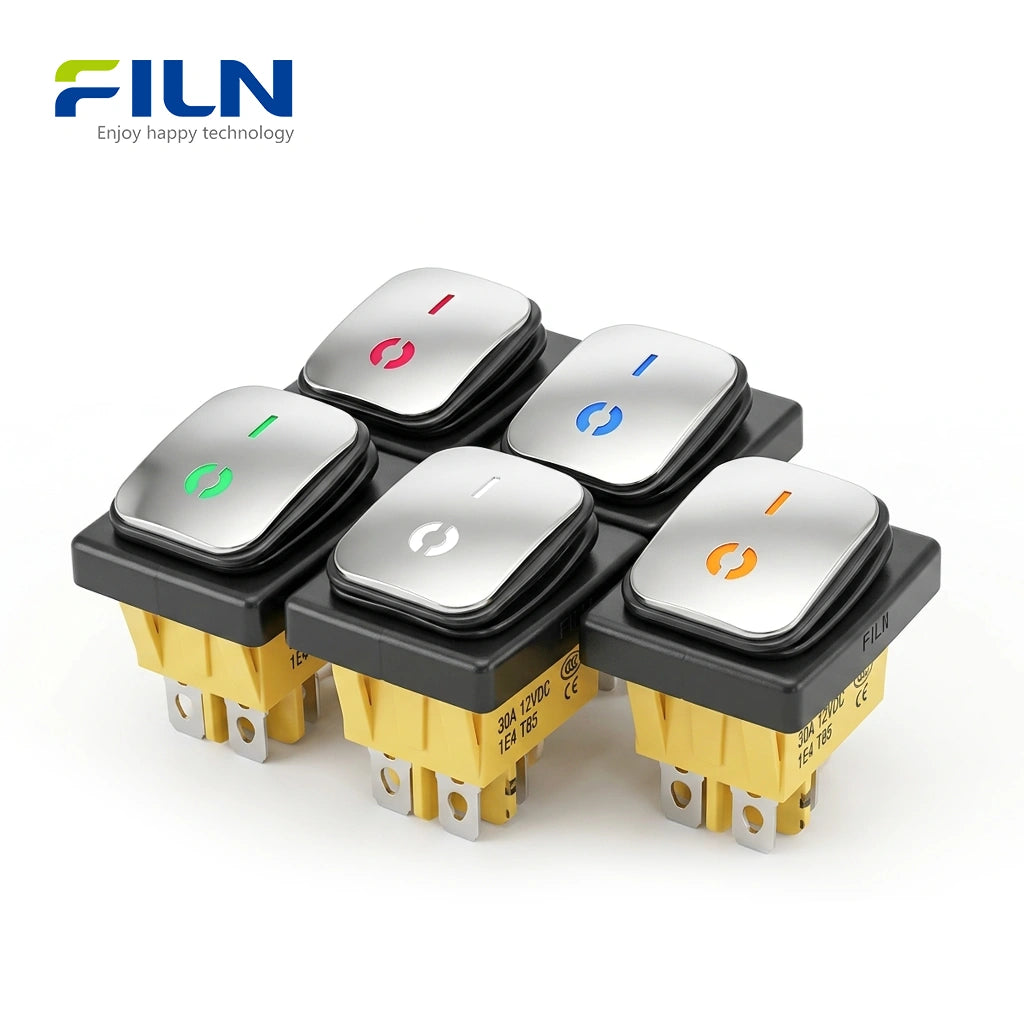

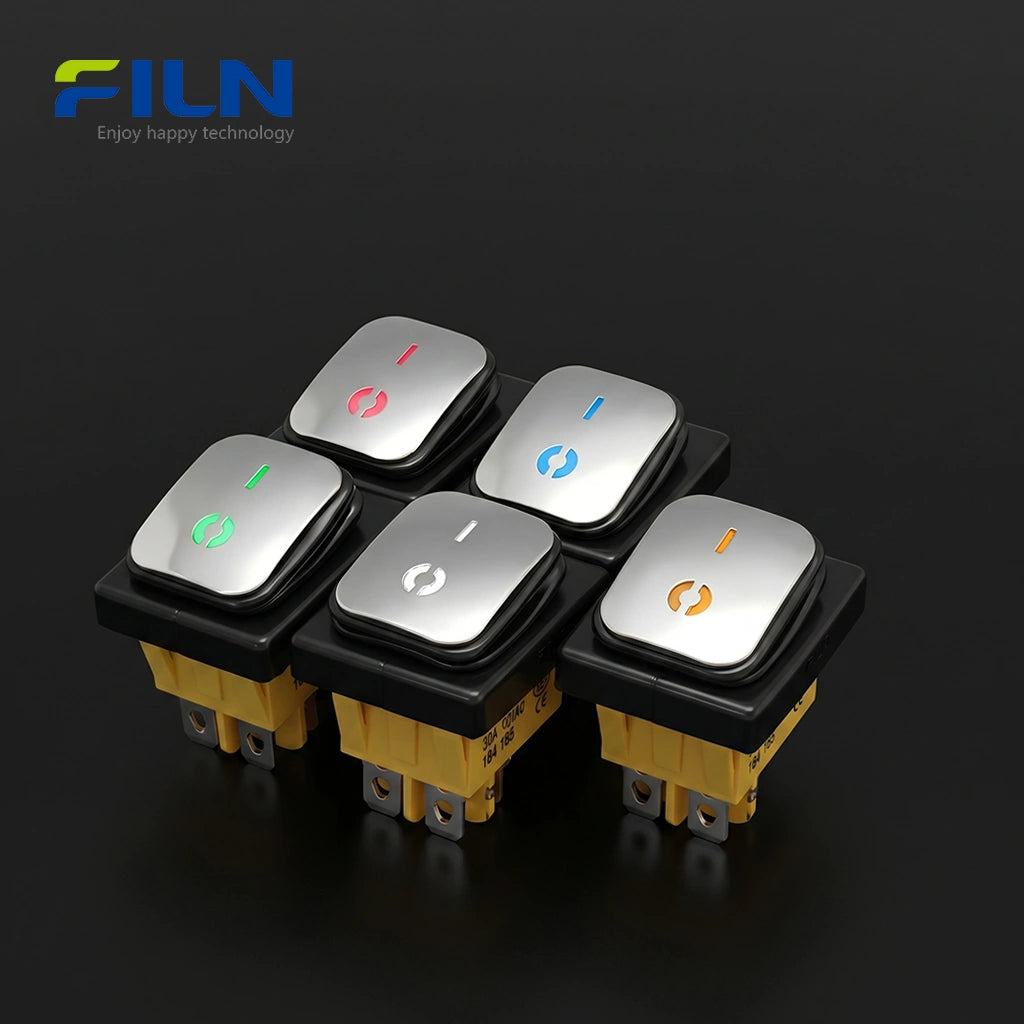

| LED Color Options | Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Actuator Material | Stainless Steel Surface / Black Plastic Body |

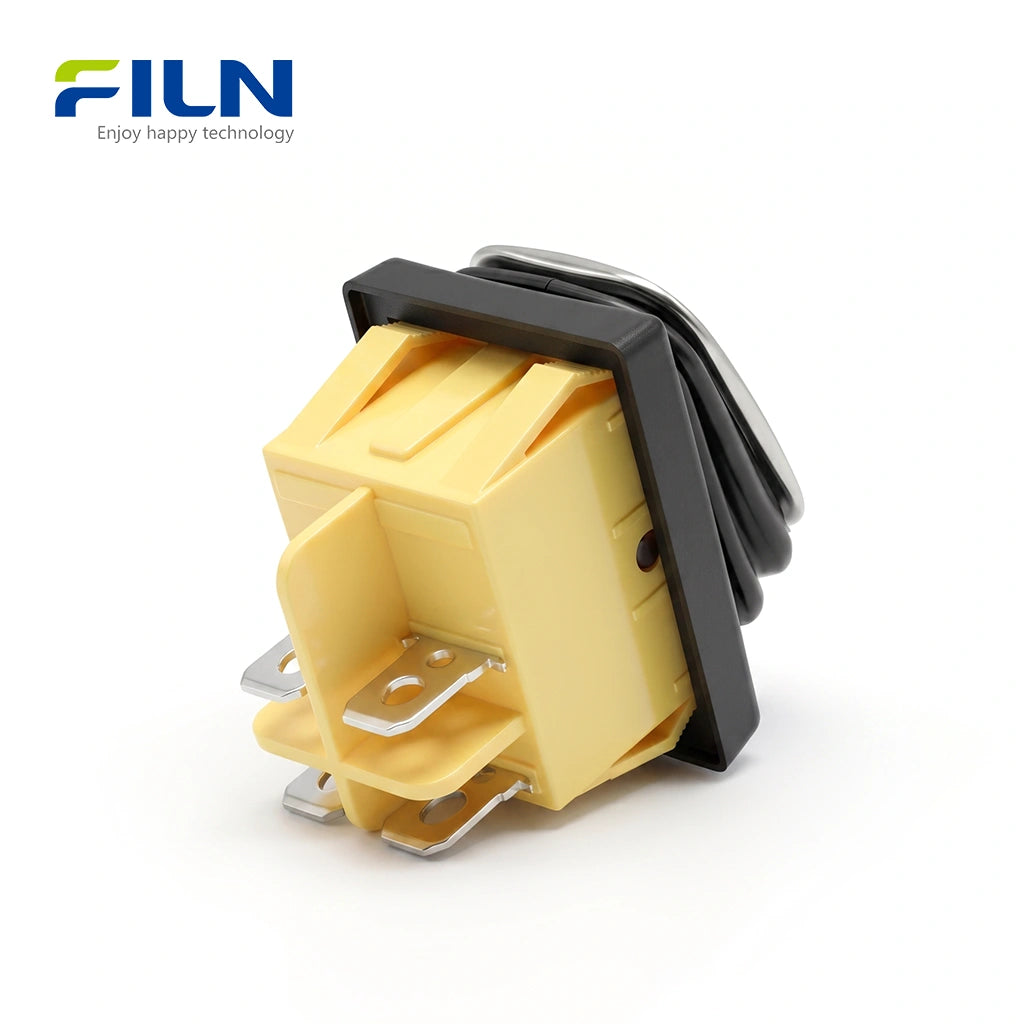

| Connection Type | 4-Pin Quick Connect Terminals (Spade) |
| Frame Type | Frameless (Integrated Housing) |
Performance Parameters
| Parameter Name | Technical Specification |
|---|---|
| Rated Voltage | 30A 250VAC / 18(12)A 125VAC |
| Rated Current | 30A Heavy Duty |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Electrical Life | ≥10,000 Cycles |
| Operating Temperature | -40°C to +125°C |
| Protection Rating | IP65 Waterproof |
| Certifications | UL, CE, VDE, RoHS, SGS, ISO9001 |
Component Materials
| Accessory Name | Material |
|---|---|
| Transparent Sheet | PC |
| Light Guiding Part | PC |
| Button Surface | Stainless Steel |
| Up/Bottom Base | PA66 / ABS |
| Terminals (Pin) | H62 Brass |
| Contact Point | AgCdO12 (Silver Alloy) |
| Seal/Washer | Rubber |
| Internal Lamp | High-Brightness LED |
General Characteristics
| Application | General use range of KCD4 series rocker switches. |
| Storage Temperature | -40℃ to +125℃ |
| Relative Humidity | 45% to 85% RH |
| Air Pressure | 86 to 106 Kpa |
Technical Testing & Standards
| Test Project | Condition & Requirement |
|---|---|
| Contact Resistance | Measured at 1 KHz; ≤50mΩ |
| Terminal Strength | 80N static load for 60s; No damage or fall-off. |
| Solderability | 235±5℃ for 3s; >90% coverage. |
| Mechanical Life | 20,000 operations (no load); 60 cycles/min. |
| Thermostability | 125±2℃ for 72 hours; Structure remains intact. |
The Difference Between Framed and Frameless Rocker Switches
FILN offers two distinct designs to meet varying industrial requirements: the Reinforced White Frame and the Classic Standard Frameless (as featured on this model).
Standard Frameless Design (Integrated Housing): This model focuses on space efficiency and a modern, sleek look. By eliminating the external frame, it allows for tighter panel spacing in compact devices. The stainless steel surface provides the necessary structural rigidity, while the black plastic body ensures a flush, waterproof fit against the panel cutout.
Benefits of the Stainless Steel Surface: Unlike standard plastic buttons, the stainless steel actuator is easy to clean, highly resistant to chemical corrosion, and maintains a premium "high-tech" appearance even after years of use in commercial kitchens or medical labs.
Industrial & Commercial Applications
- Kitchen Appliances: Coffee machines, fryers, and ovens requiring 30A high-current capacity.
- Office Equipment: Power strips (PDU), printers, and shredders.
- Industrial Control: Distribution boxes, testing instruments, and packaging machinery.
- Marine & Automotive: RV lighting, boat instrument panels (IP65 waterproof rating).
- Medical Gear: Centrifuges and diagnostic instruments.
Installation Guide
- Measure and cut a 30mm x 22mm rectangular hole in the mounting panel.
- Insert the rocker switch from the front of the panel.
- Ensure the side retaining clips (snap-in) click firmly into place, securing the switch.

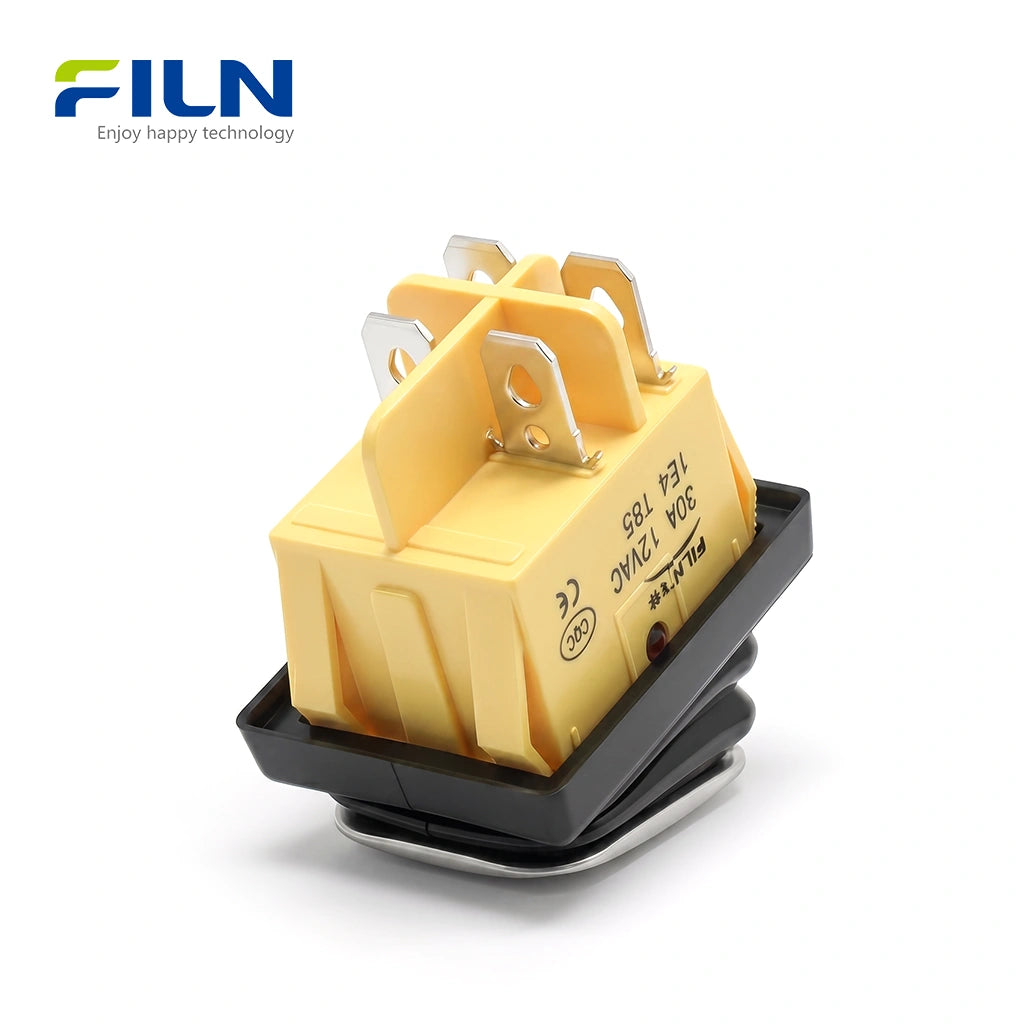

- Connect the 4-pin wiring terminals using 6.3mm female spade connectors as per the wiring diagram.
Complete Rocker Switch Wiring Diagram and Connection Guide
A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Industry Knowledge: How Rocker Switches Work
A rocker switch functions through a seesaw mechanism. When one side is pressed, the internal contact arm "rocks" to bridge two metal terminals, completing the circuit. In 4-pin DPST (Double Pole Single Throw) configurations, the switch controls two separate lines (typically hot and neutral) simultaneously, which is a critical safety requirement for high-wattage 220V appliances. The stainless steel face used in the FILN FL3 series serves as a protective shield against physical impact and provides superior heat dissipation compared to all-plastic designs.
FILN Factory Direct Supply
As an original manufacturer, FILN provides high-performance switching solutions with No Minimum Order Quantity (MOQ) and rapid global lead times.
- ✅ Voltage Customization: 5V, 12V, 24V, 110V, 220V Options.
- ✅ Wire Customization: Custom lengths and terminal connectors available.
- ✅ Fast Shipping: Direct from factory to your facility.
Official Website: www.filn.com
Contact Us: inquiry@cnylin.com.cn
Frequently Asked Questions (FAQ)
1. What is a 4-pin lighted rocker switch used for?
It is used to control high-current devices while providing a visual indicator. The 4-pin design allows it to cut both lines (Phase/Neutral) for safety.
2. Is the 30x22mm size standard for KCD4 switches?
Yes, 30x22mm is the industry standard for large rectangular "KCD4" rocker switches used in power strips and machinery.
3. Can I use a 220V lighted switch on a 12V circuit?
The switch will work, but the internal light will not illuminate. You must match the LED voltage to your power source[cite: 126].
4. What does "Stainless Steel Surface" mean?
It means the top part of the button has a metal plate for better wear resistance and a high-end aesthetic finish.
5. Is this rocker switch waterproof?
Yes, this model features an IP65 rated integrated design, making it suitable for damp and outdoor environments.
6. How do I install a snap-in rocker switch?
Push the switch into a pre-cut 30x22mm hole; the integrated side clips will automatically lock it into the panel.
7. Does FILN provide custom wiring harnesses?
Yes, we can provide switches with pre-soldered wires and specific connectors (like XH or Spade) to save your assembly time.
8. What is the difference between silver and copper contacts?
FILN uses silver alloy contacts (AgCdO12) which have better conductivity and longer electrical life than pure copper.
9. Can this switch handle 30 Amps?
Yes, this heavy-duty KCD4 model is rated for up to 30A 250VAC, making it suitable for industrial heaters and motors.
10. Does this product have UL certification?
Yes, all FILN industrial rocker switches are UL, CE, and RoHS certified for international trade and safety compliance.
