Rocker Switch Drawing
What is 12V Rocker Switches?

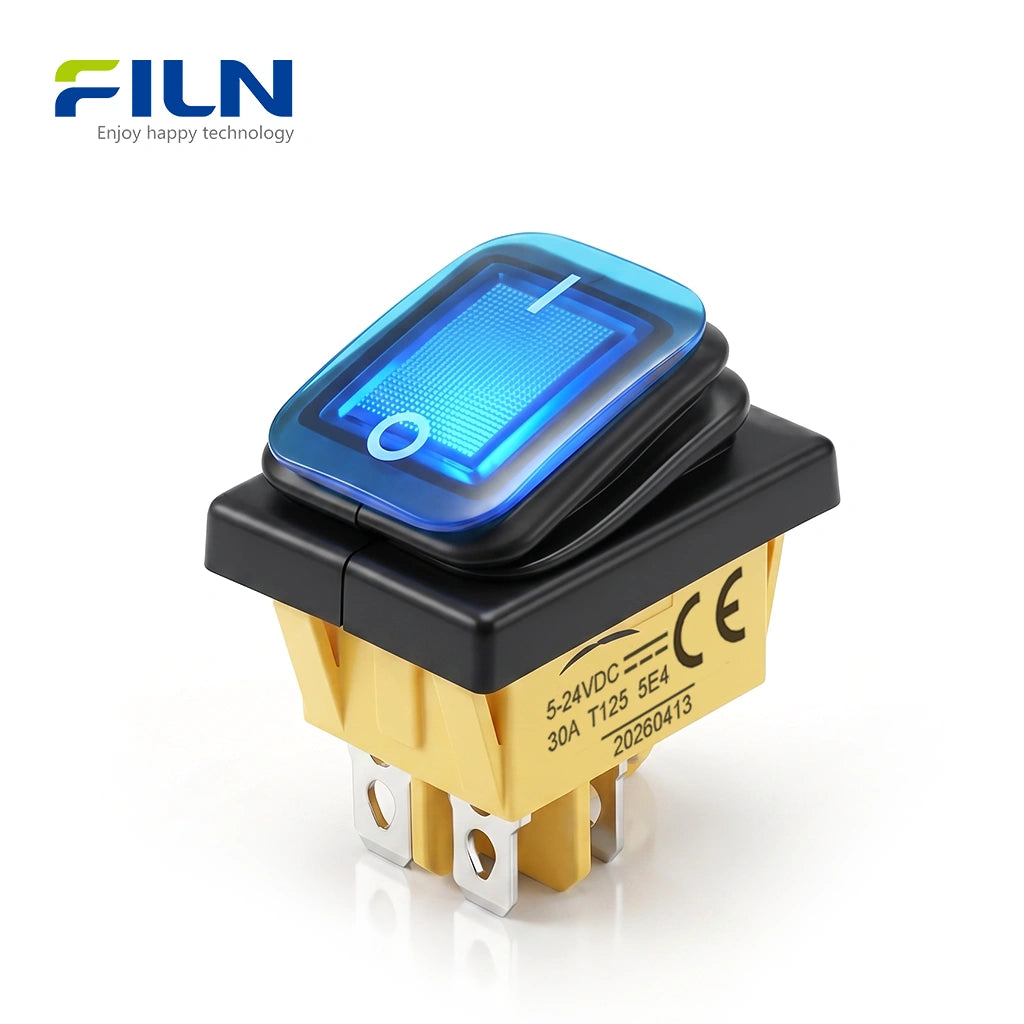

12V rocker switches are pivotal electrical components used to manually bridge or interrupt power within a circuit. The FL3-KCD4-0111-21 model is an industrial-standard KCD4 series device featuring a transparent ordinary plastic surface. Engineered for a 30x22mm rectangular mounting hole, these switches provide robust 4-pin DPST (Double Pole Single Throw) control, making them essential for high-current applications in automotive, marine, and industrial machinery.
Product Overview

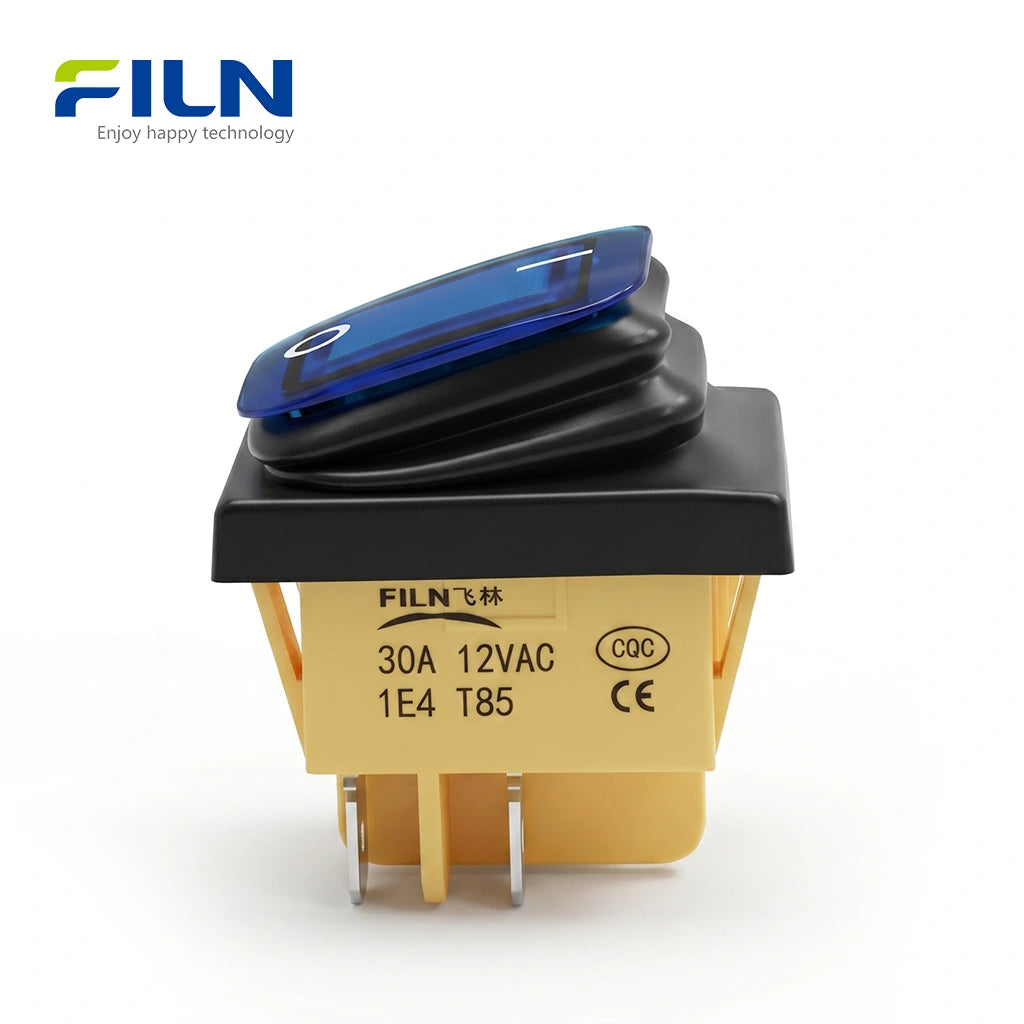

The FILN 12v rocker switches represent a benchmark in reliability and visual clarity. Utilizing a transparent ordinary plastic surface, this switch allows the internal LED light to shine through brightly, ensuring clear status indication in pitch-black environments. Unlike standard models, it features a frameless (no frame) integrated housing that provides an IP65 waterproof rating, allowing for safe outdoor and industrial use. The 4-pin terminal pins are designed for quick and secure installation. With global certifications including ISO9001, CE, VDE, RoHS, SGS, and UL, this KCD4 switch handles loads up to 30A with unmatched stability.
Switch Function Principles (ON-OFF & ON-ON)
| Function | Technical Principle | Operation Result |
|---|---|---|
| ON-OFF | Single Throw: The switch bridges or breaks the circuit between two terminals. | Used for main power control (Start/Stop). |
| ON-ON | Double Throw: Power is always directed to one of two different device paths. | Used for alternating between two different modes or circuits. |
Quick Specifications
| Model Name | FL3-KCD4-0111-21 |
| Mounting Cutout | 30X22MM (1.18" x 0.87") |
| Standard Function | ON-OFF |

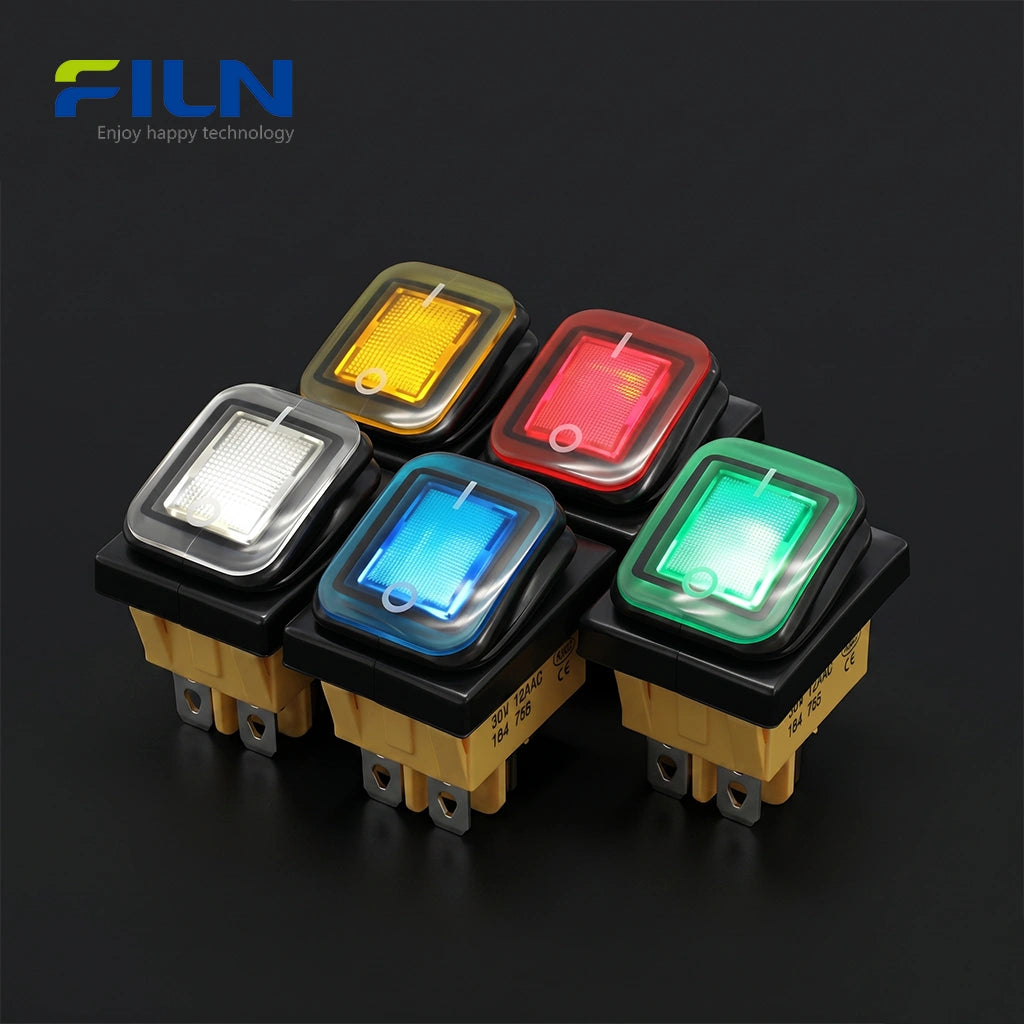

| LED Colors | Red, Green, Yellow, Blue, White |
| Terminal Pins | 4-Pin Quick Connect |
| Frame Status | No Frame (Integrated Body) |
Performance Parameters
| Rated Load |
16A 250VAC
|
| Rated Current | 30A Max |
| Initial Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ / 500VDC |
| Dielectric Strength | 1500VAC / 5mA 60s |
| Endurance Life | 10,000 cycles |
| Ambient Temperature | -40°C to +125°C |
| Protection Rating | IP65 Waterproof |
Component Materials
| Component Name | Material Specification |
|---|---|
| Transparent Actuator | Polycarbonate (PC) |
| Base Housing | PA66 / ABS |
| Terminals / Pins | H62 Brass |
| Silver Contact Point | AgCdO12 |
| Waterproof Seal | Rubber |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Aesthetic Choice: Transparent vs. Black Surfaces
FILN's KCD4 rocker switch series provides multiple actuator finishes to suit different environments. The transparent surface model is specifically designed for dark workspaces, as the LED illumination provides a brilliant status check. For a more versatile and stylish appearance, our black plastic surface is highly recommended. Black actuators are significantly easier to clean, maintain their professional look longer, and fit seamlessly into any modern dashboard or control panel design. Both options feature snap-in installation and long operational life.
Wide Range of Applications
Every device requiring a reliable circuit toggle can benefit from the FILN 12v rocker switches. Common application fields include:
- Appliances: Coffee machines, water dispensers, and air fryers.
- Industrial: Machinery control panels and distribution boxes.
- Marine & RV: 12V lighting control and interior accessory toggles.
- Office Equipment: Power strips (PDU) and shredder master switches.

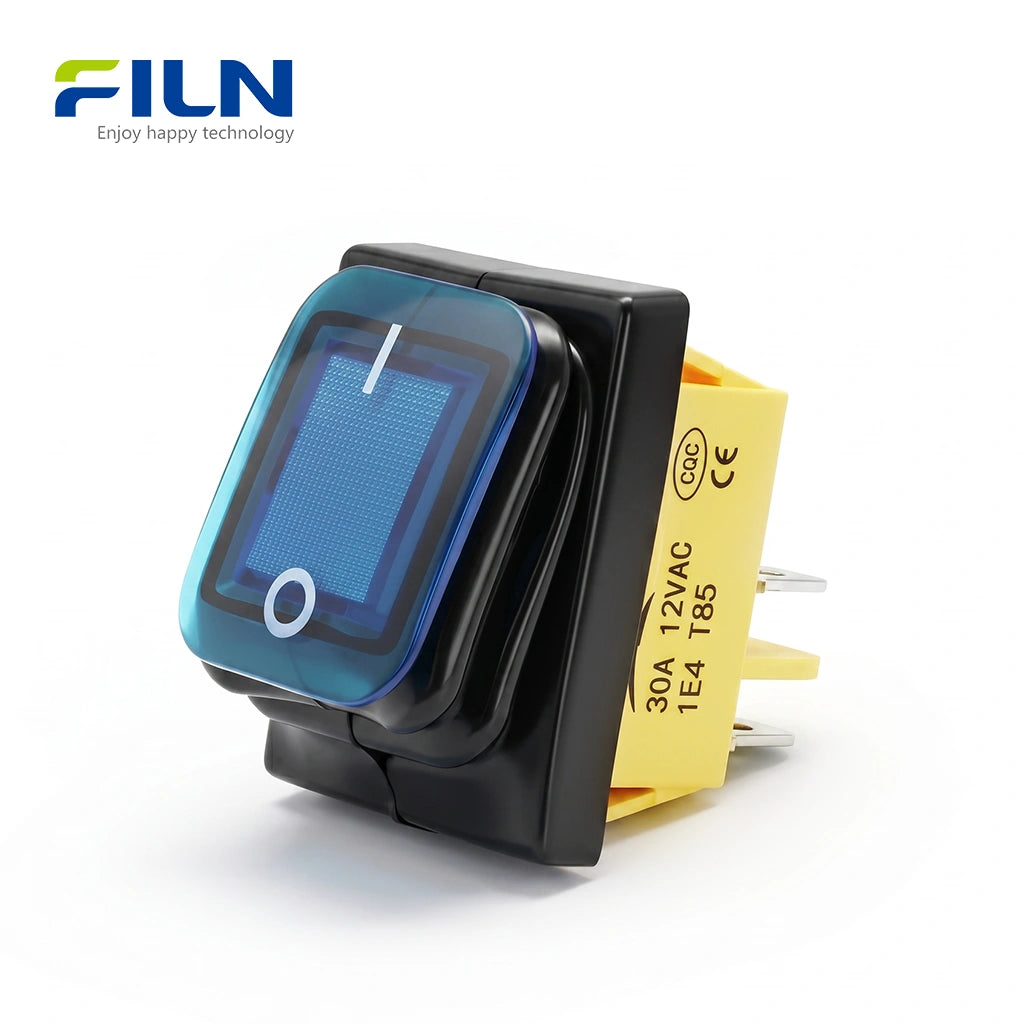

Step-by-Step Installation Guide
- Mark and cut a 30x22mm rectangular opening on your mounting panel.
- Align the rocker switch from the top (front) side of the panel.
- Firmly press the switch into the cutout; the integrated side clips will snap into place automatically.

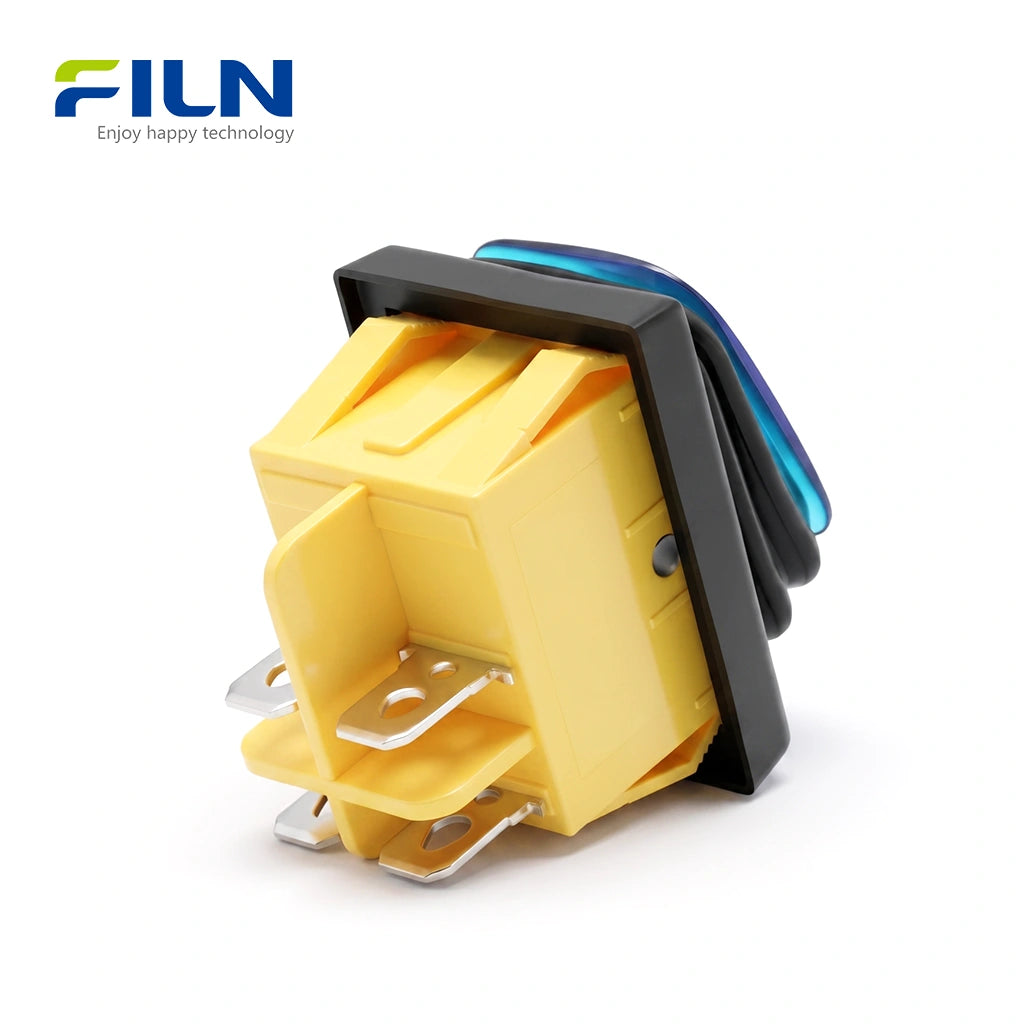

- Connect the 4-pin terminals on the back according to your wiring schematic to complete the installation.
Complete Rocker Switch Wiring Diagram and Connection Guide

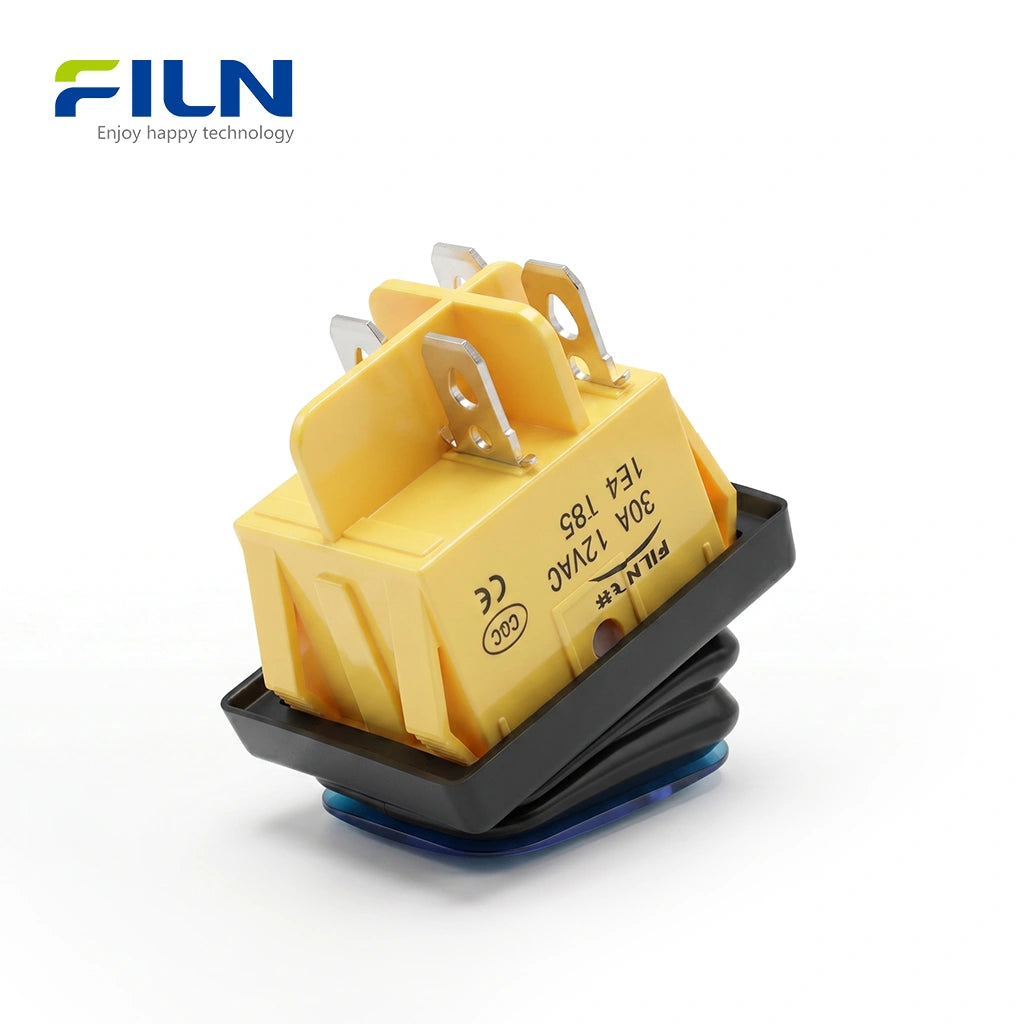

A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.
Industry Knowledge: How It Works
A rocker switch functions via a "see-saw" mechanical pivot. Pressing one side pushes an internal contact arm into position, bridging metal contacts to complete an electrical circuit. The KCD4 series is particularly valued for its DPST (Double Pole Single Throw) configuration, which allows for the simultaneous disconnection of both power lines—providing a critical safety layer for high-voltage industrial equipment. The PC transparent surface is highly heat-resistant, ensuring safety even under 30A loads.
Factory Direct Supply & Customization
FILN is a world-class factory providing high-quality switches with No MOQ and rapid delivery times. We offer extensive customization services:
- ✅ Voltage Customization: 5V, 12V, 24V, 110V, 220V Options.
- ✅ Wire & Connector: Pre-soldered wires and custom connectors.
- ✅ Global Shipping: Fast international logistics for B2B clients.
Official Website: www.filn.com
Contact: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How many pins does this 12v rocker switch have?
This model features 4 pins (DPST) for controlling both positive and negative lines simultaneously.
2. Can I use the transparent 12V rocker switches on a 220V AC circuit?
While the body can handle the load, the LED must match the voltage. FILN offers custom 110V/220V LED versions upon request.
3. What is the benefit of the transparent plastic surface?
It allows for 360-degree light diffusion, making the switch highly visible and functional as an indicator lamp.
4. Is the KCD4 30x22mm switch waterproof?
Yes, it features an integrated frameless design with an IP65 waterproof rating, suitable for outdoor use.
5. What is the difference between ON-OFF and ON-ON functions?
ON-OFF is a standard power disconnect, while ON-ON switches power between two different output paths.
6. Does this switch have an external mounting frame?
No, this model is a frameless design, allowing for a flush, clean installation on compact panels.
7. How do I install a snap-in rocker switch?
Simply cut the 30x22mm hole and push the switch in; the side clips will automatically lock it to the panel.
8. Are the silver contacts reliable for high current?
Yes, FILN uses AgCdO12 silver contacts which are designed to handle up to 30A without welding or overheating.
9. Can FILN provide switches with pre-wired harnesses?
Yes, we offer customization for wire lengths and specific connectors to save your assembly time.
10. Does this product carry global safety certifications?
Absolutely. Our switches are UL, CE, VDE, RoHS, and SGS certified for international markets.
