Rocker Switch Drawing
What is a Transparent LED Light Rocker Switch?

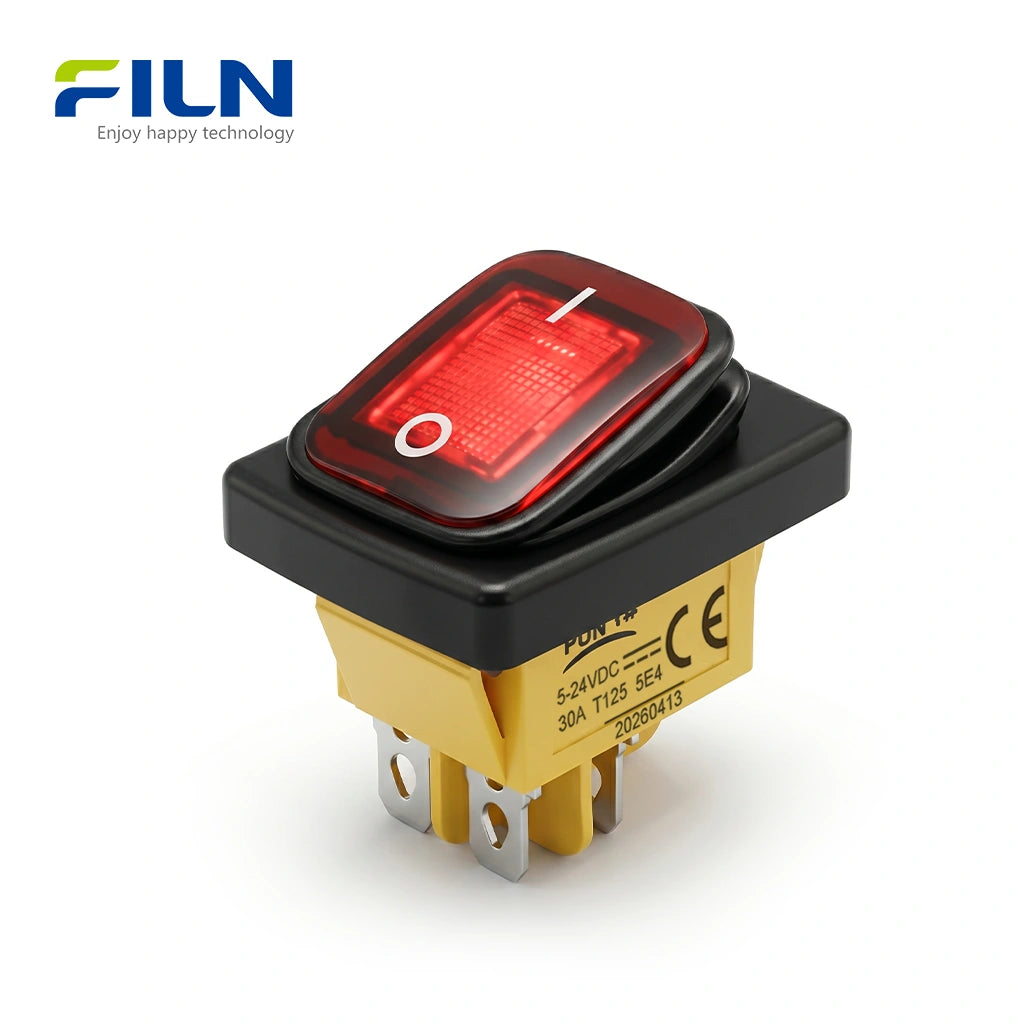

An LED light rocker switch is a specialized electrical toggle component that utilizes a rocking mechanism to control circuit continuity. The KCD4 series features a unique transparent plastic surface, which allows the internal LED to provide a crisp, modern aesthetic while serving as a functional status indicator. This specific 28x22mm model is a 4-pin device designed to manage high-current loads safely in both industrial and consumer electronics.
Industrial Product Overview

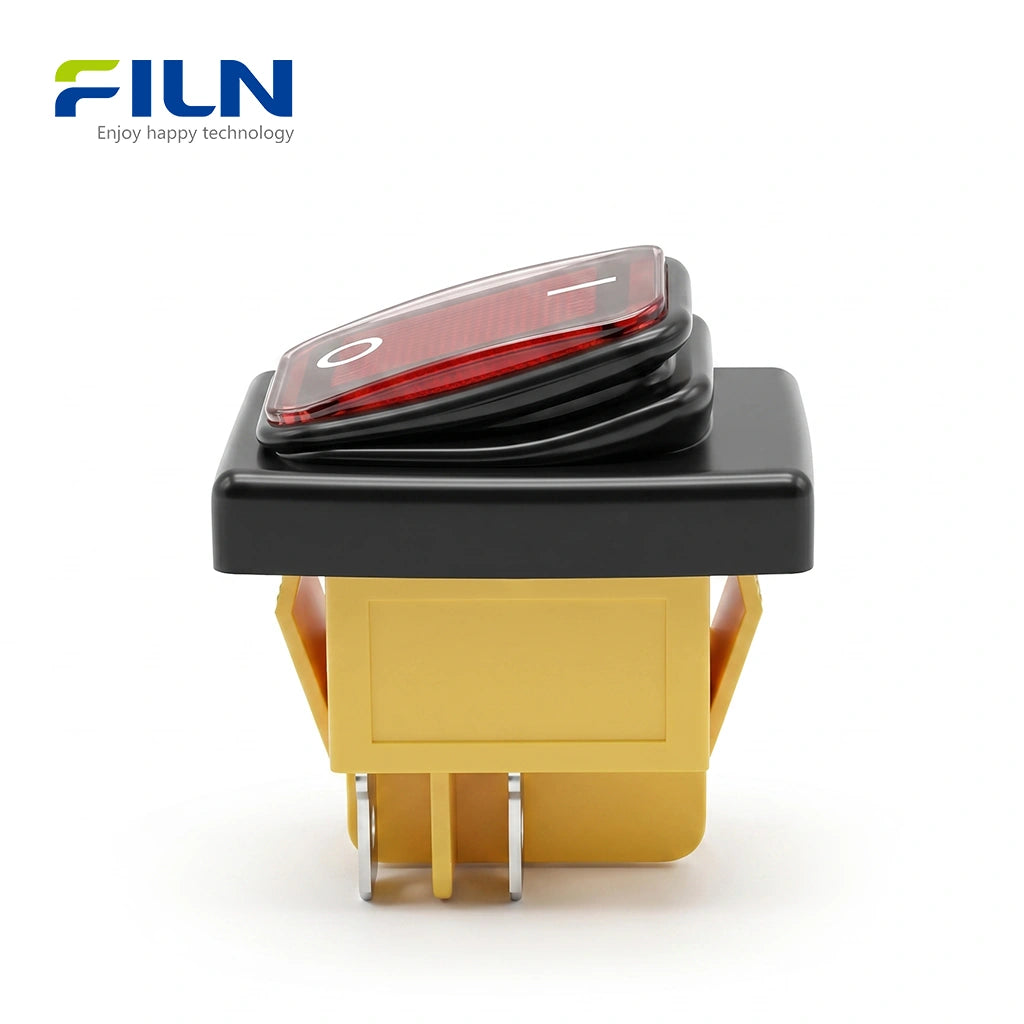

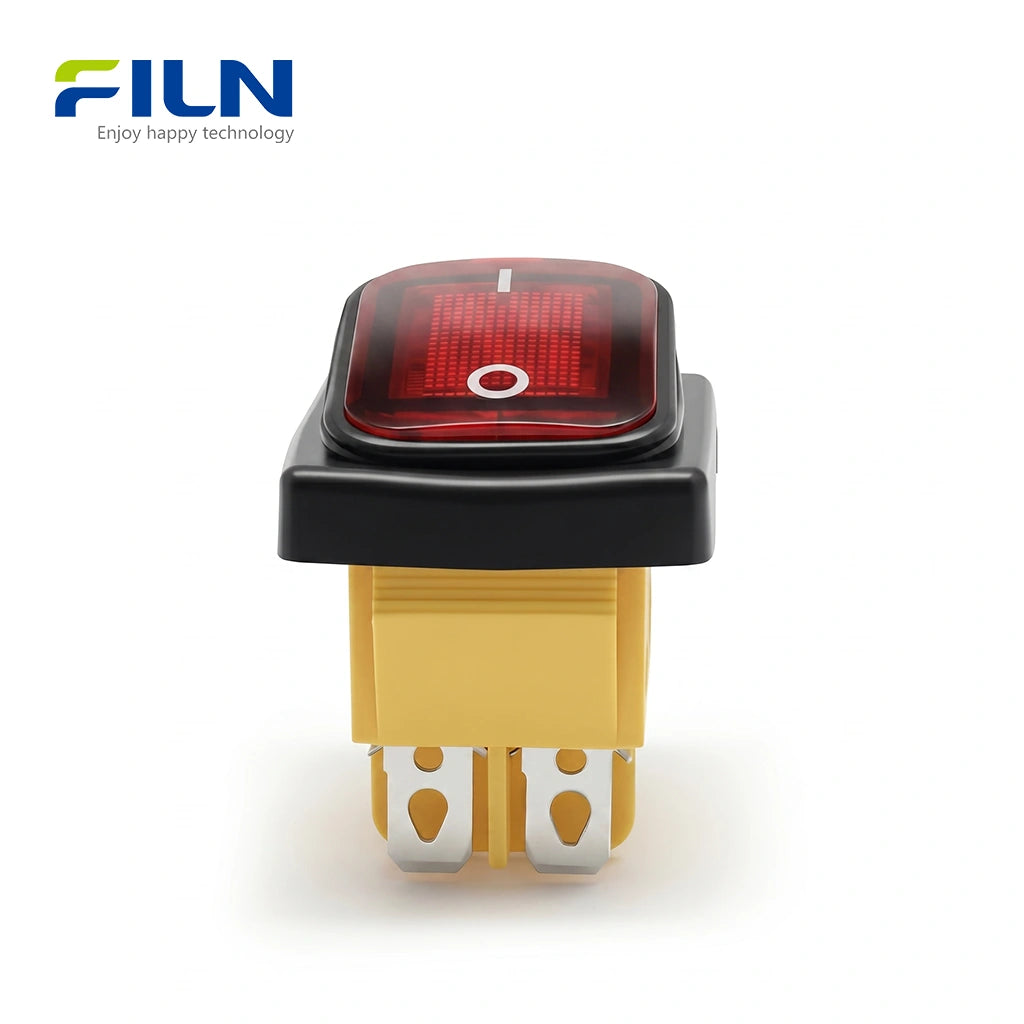

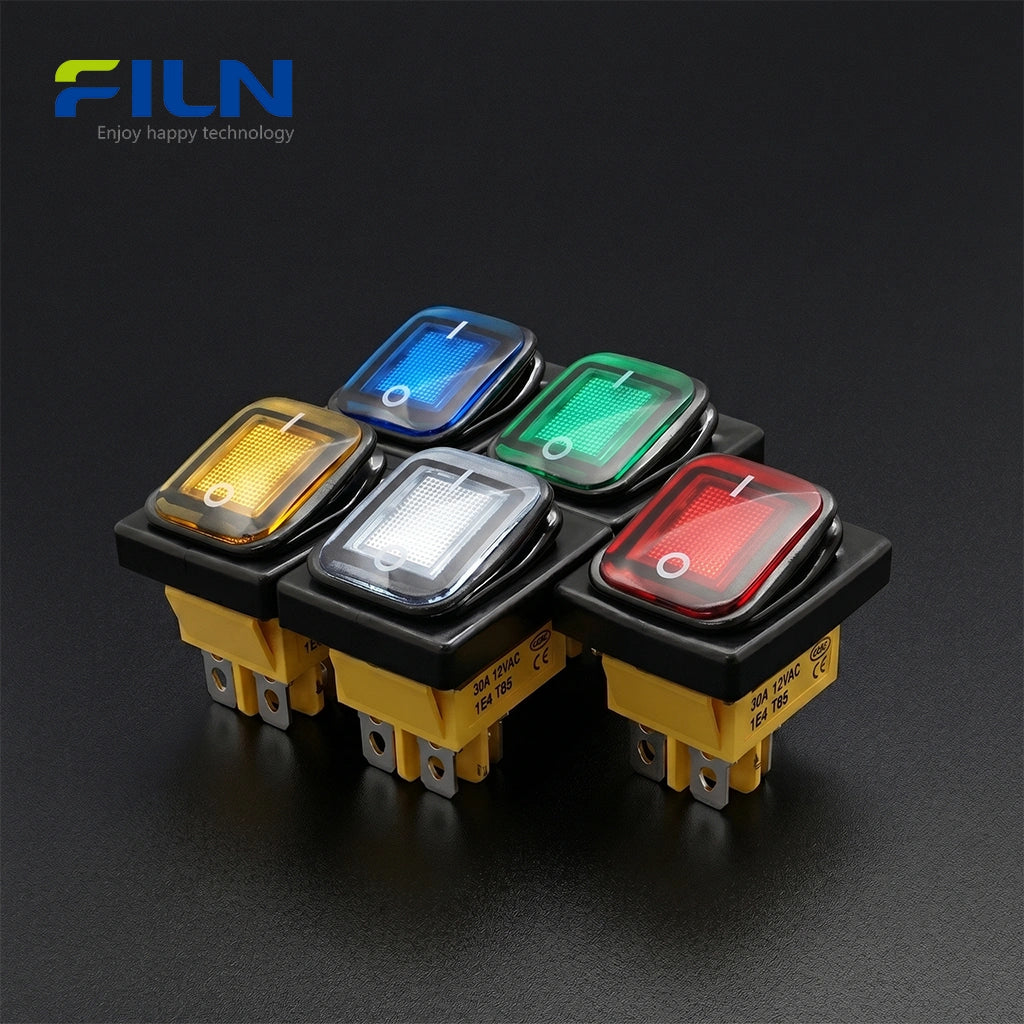

The FILN FL3-KCD4-0221-21 stands out in the market with its non-standard 28x22mm mounting footprint, offering a compact alternative to the traditional 30x22mm KCD4 models. This framed rocker switch combines a sleek transparent plastic surface with an IP65 waterproof rating, making it an excellent choice for outdoor control panels and moisture-prone environments. The 4-pin ON-OFF configuration supports Double Pole Single Throw (DPST) switching, ensuring complete isolation of the power source. Available in RGYBW colors and customizable voltages (5V-220V), this switch provides superior visibility in dark environments, while remaining fashionable and easy to maintain.
Technical Guide to 2-Position Switch Functions
| Function Type | Circuit Logic | Industry Application |
|---|---|---|
| Latching ON-OFF | Maintains state after being pressed. | Standard power controls for appliances and machinery. |
| Momentary (ON)-OFF | Returns to OFF position when released. | Reset functions, engine start, or horn triggers. |
Technical Specifications
| Model / Part Number | FL3-KCD4-0221-21 | |
| Panel Cutout Size | 28mm x 22mm | |
| Switch Function | ON-OFF (2 Positions) | |
| Wiring Terminals | 4 PIN Spade Terminals | |
| LED Illumination | Yes (Red, Green, Yellow, Blue, White) | |
| Operating Voltage | 5-24V / 110-220V / Custom | |
| Frame Configuration | Framed Design (Integrated Shell) | |
| Waterproof Grade | IP65 Waterproof Rating | |
| Rated Current/Voltage | 30A 250VAC / 18(12)A 125VAC | |
| Certifications | UL, CE, VDE, RoHS, SGS, ISO9001 |
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Aesthetic and Practical Advantages
The transparent plastic surface of the FL3-KCD4-0221-21 offers more than just a fashionable look; it is highly functional. The smooth surface is easy to clean and resistant to industrial residues, ensuring the switch maintains its clarity over time. In dark environments, the illuminated KCD4 provides a bright, localized light that guides the operator, whereas standard non-lighted black switches are better suited for well-lit, minimalist panel layouts. The snap-in installation method utilizes dual-side clips to secure the framed body to the panel, providing a durable and professional finish for all power-consuming equipment.
Complete Rocker Switch Wiring Diagram and Connection Guide

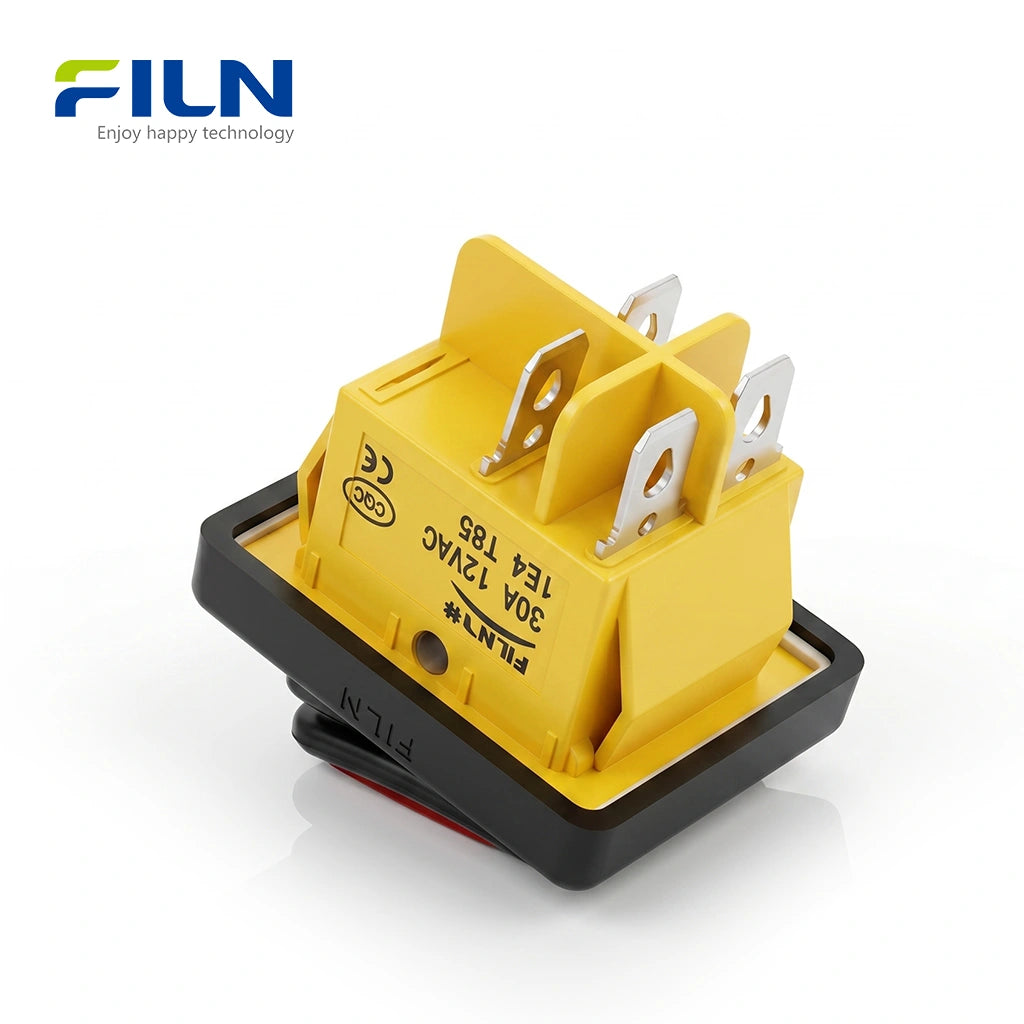

A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).
Option 1: Light On When Device is Operating (Dependent Illumination)
This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.
- Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
- Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
- Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.
Figure 1: Wiring for LED illumination during device operation.
Option 2: Switch Light Remains Constantly Lit (Independent Illumination)
This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.
- Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
- Output Connection: Connect the device terminals to the bottom set of pins.
- Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.
Figure 2: Wiring for constant LED illumination (Switch Finder Mode).
Comparison of Operation Logic
| Configuration Type | Switch State | Device Status | LED Status |
|---|---|---|---|
| Dependent (Option 1) | Normal | OFF | OFF |
| Press | ON | ON | |
| Independent (Option 2) | Normal | OFF | ON |
| Press | ON | ON |
Technical Considerations & Safety Notes
- Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
- Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
- Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
- Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.

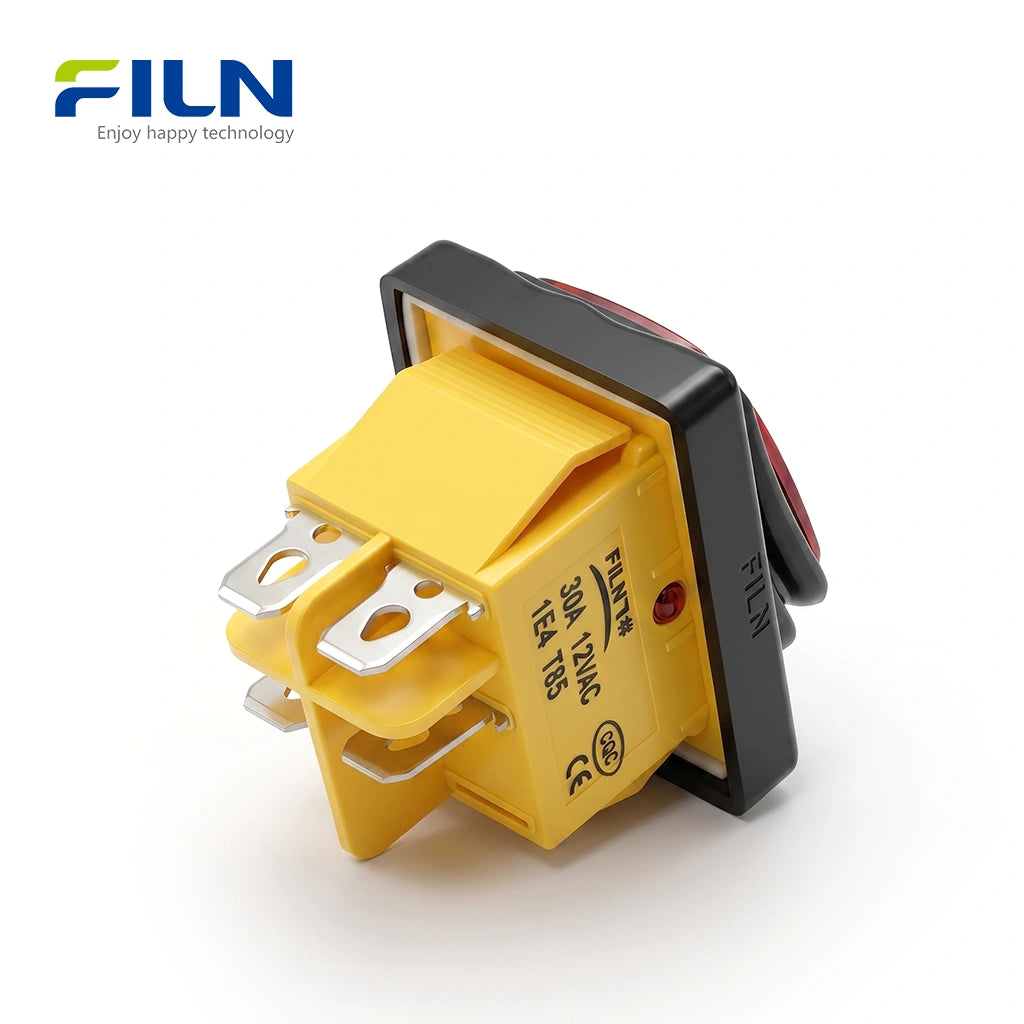

Snap-In Installation Steps
- Panel Cutout: Prepare a precise 28mm x 22mm rectangular opening in your device panel.
- Alignment: Align the switch with the transparent actuator facing outward.
- Secure Mounting: Press the switch into the opening from the top of the panel until the side clips snap into place.
- Wiring: Connect the 4 wires to the rear terminals using 6.3mm spade connectors, following the circuit diagram.
FILN Factory Direct Supply
As a professional manufacturer of control components, FILN provides tailored solutions for global industrial clients. This switch can be used as a primary power control or for specific functional toggling.
- Custom Voltage: 5V to 380V
- No MOQ Requirements
- Fast Global Shipping
- Custom Harness Services
- Global Safety Certifications
Frequently Asked Questions (FAQ)
Q1: What is the benefit of a 4-pin illuminated rocker switch?
A: A 4-pin design (DPST) ensures the LED lights up only when the device is active and provides full electrical isolation for both power lines.
Q2: Can I use this 28x22mm switch in a 30x22mm hole?
A: It is recommended to use the exact 28x22mm cutout for a secure snap-in fit, although the framed edge provides some coverage for minor panel gaps.
Q3: Is the transparent plastic surface durable?
A: Yes, it is made of high-quality PC material that is fashionably sleek, easy to clean, and resistant to aging.
Q4: How do I wire a 4-pin rocker switch for 220V?
A: Connect the power supply to the input set of pins and the device to the output set. Ensure the internal LED is rated for 220V.
Q5: What does the IP65 rating mean for this switch?
A: It means the switch is protected against dust and low-pressure water jets, making it suitable for outdoor use.
Q6: Does this illuminated switch work in dark environments?
A: Yes, the high-intensity LED light provides excellent visibility in pitch-black conditions for safe operation.
Q7: Can I get this switch with a blue LED?
A: Absolutely. We offer Red, Green, Yellow, Blue, and White (RGYBW) color options.
Q8: What is the lifespan of this industrial-grade switch?
A: It is designed for high endurance, typically exceeding 10,000 electrical cycles and much higher mechanical cycles.
Q9: Is a 4-pin rocker switch easy to install?
A: Yes, the snap-in method allows for quick installation on any panel without extra screws or tools.
Q10: Can the LED voltage be customized for a 12V battery system?
A: Yes, FILN factory supports customization for any voltage from 5V to 220V to match your circuit needs.
