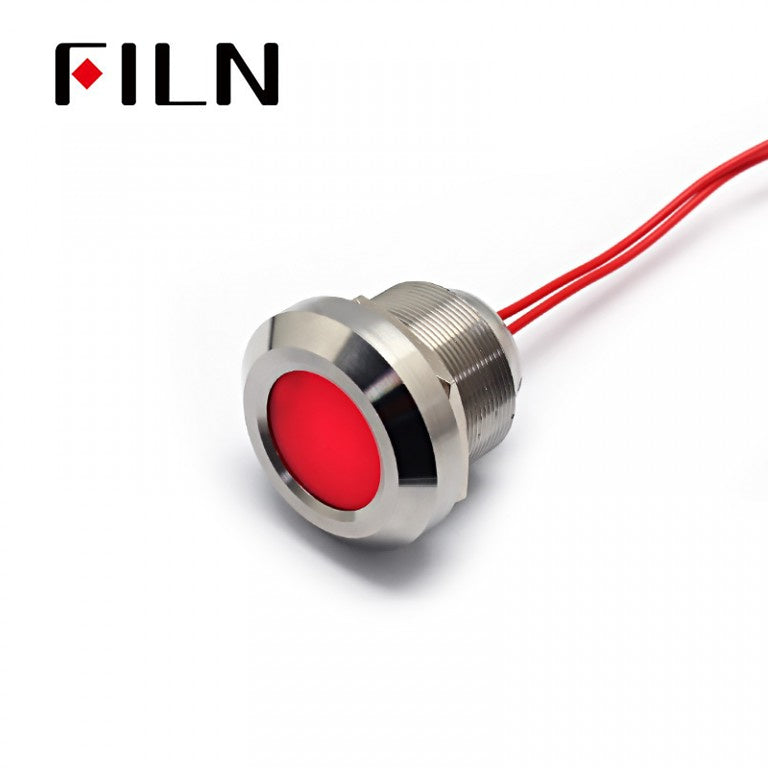

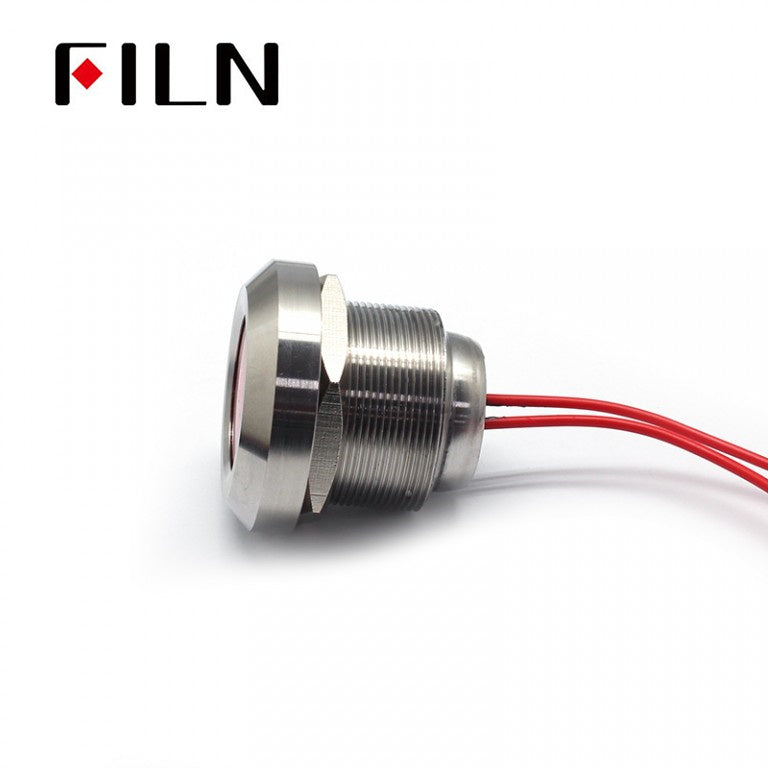

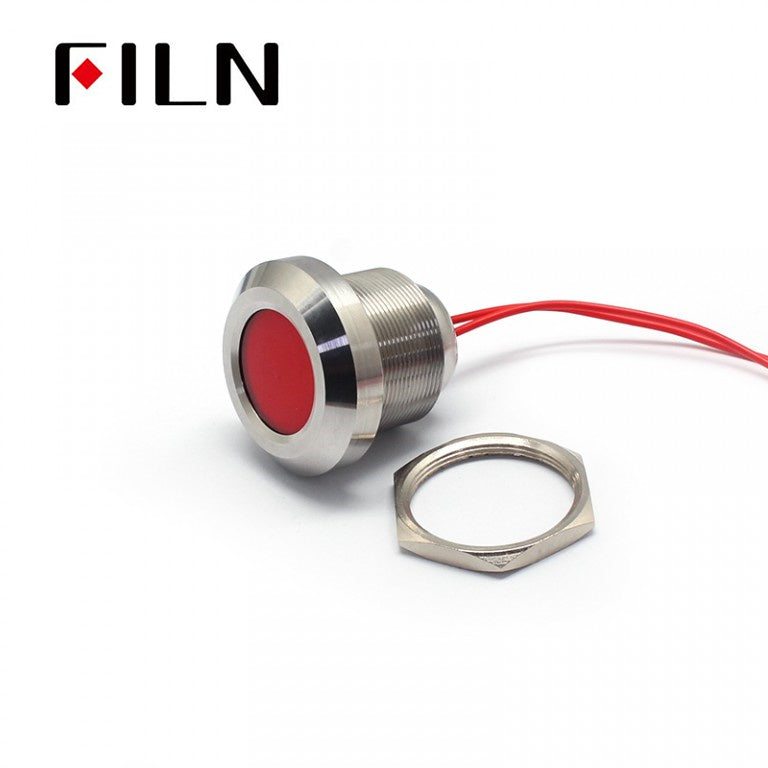

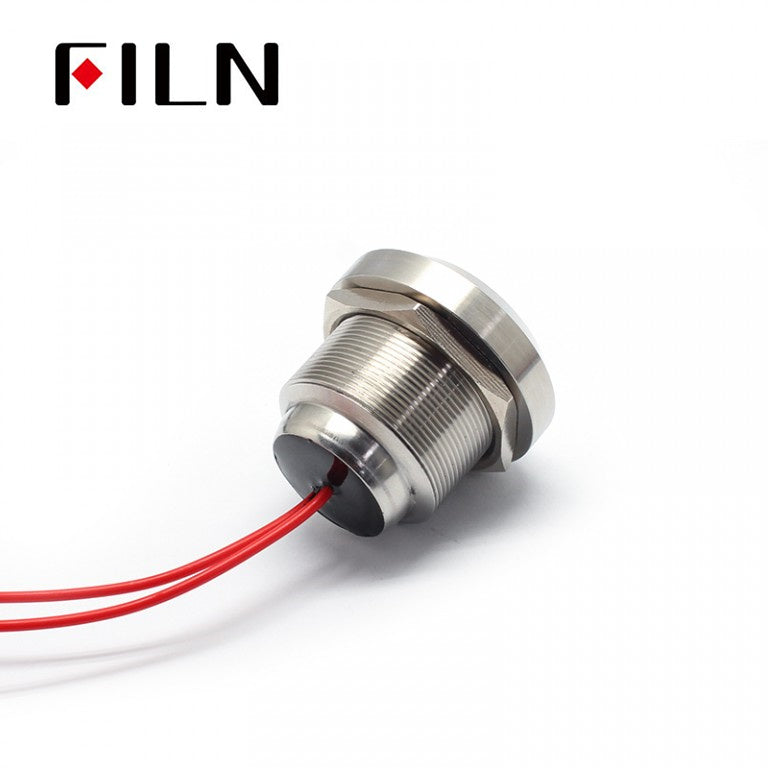

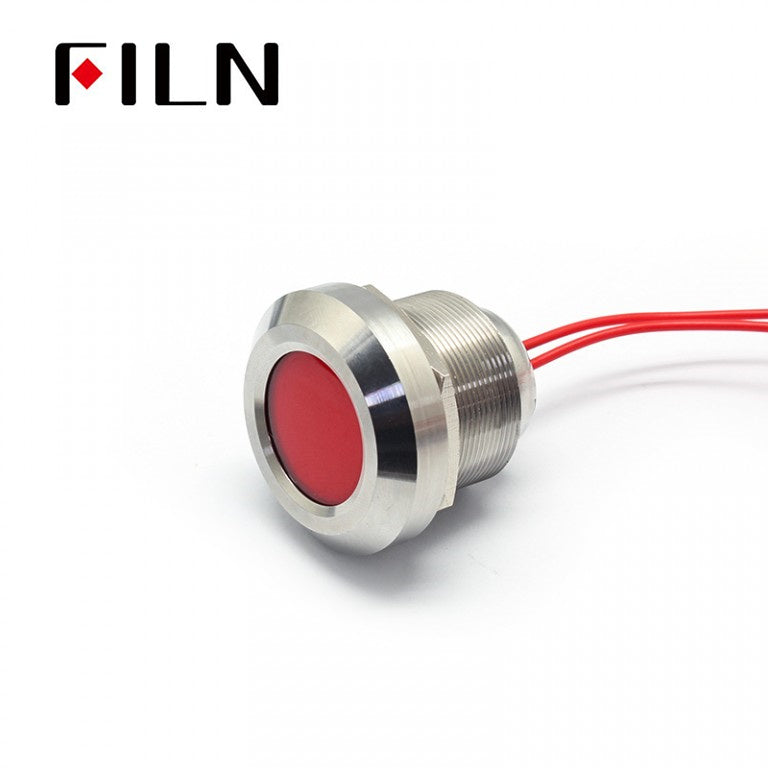

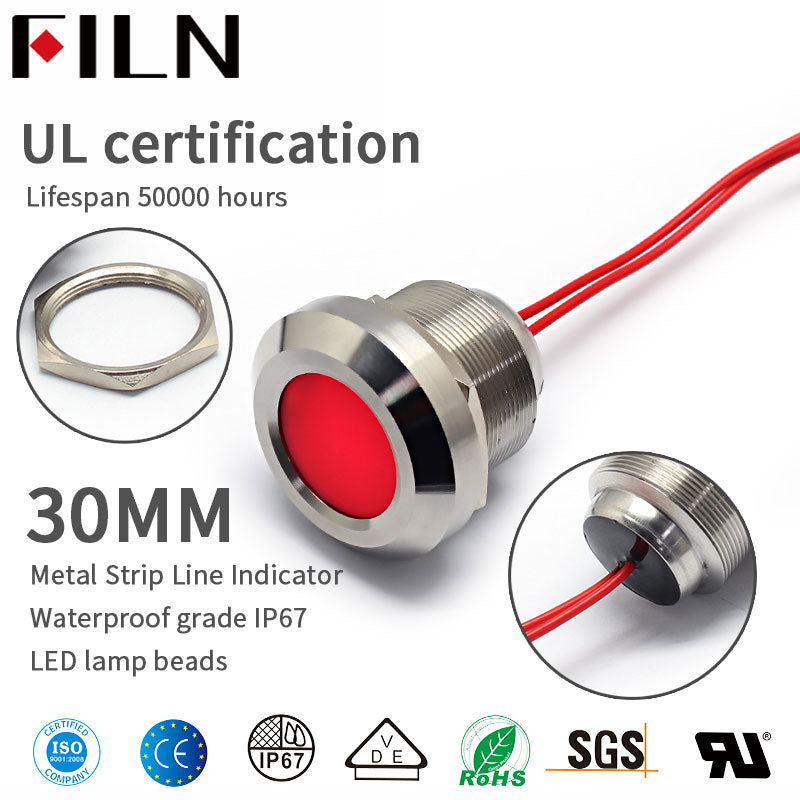

30MM 220V Barbecue Rack Red Metal Indicator Light Parts
30MM 220V Barbecue Rack Red Metal Indicator Light Price
30MM 220V Barbecue Rack Red Metal Indicator Light On Sale
30MM 220V Barbecue Rack Red Metal Indicator Light Red
30MM 220V Barbecue Rack Red Metal Indicator Light China

30MM 220V Barbecue Rack Red Metal Indicator Light

  Product Item FL1M-30FW-1 Panel Mount Diameter 30mm Contact Way Pins Install Way screw terminal Lamp Type...
$4.32
$4.32
Please hurry! Only 2000 left in stock
Color: RED
Voltage: 6V
Subtotal: $4.32
10 customers are viewing this product

Shipment by DHL

Enjoy points to reduce shipping fees

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

30MM 220V Barbecue Rack Red Metal Indicator Light

30MM 220V Barbecue Rack Red Metal Indicator Light

$4.32

30MM 220V Barbecue Rack Red Metal Indicator Light

$4.32
Color: RED
Voltage: 6V



Product Item FL1M-30FW-1
Panel Mount Diameter 30mm
Contact Way Pins
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC, 3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design Flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component Name Material
Lens PC plastic
Metal Body H59 brass or 304 stainless steel
Wahser T10 Cold Rolled Steel
Rubber Ring SIL silica gel
Nut H59 nickel plated brass
Housing PA66 nylon
Light Source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
Plug-in C2680 RoHS brass
Items Parameter
Rated Voltage 3V-780V DC or AC
Rated Current 20mA
Rated Power 0.2W
Insulation and Roltage Resistance 1800V
Working Life 100000h
Electrical Life 100000
Cold-resistant -40℃
Heat-resisting 80℃
